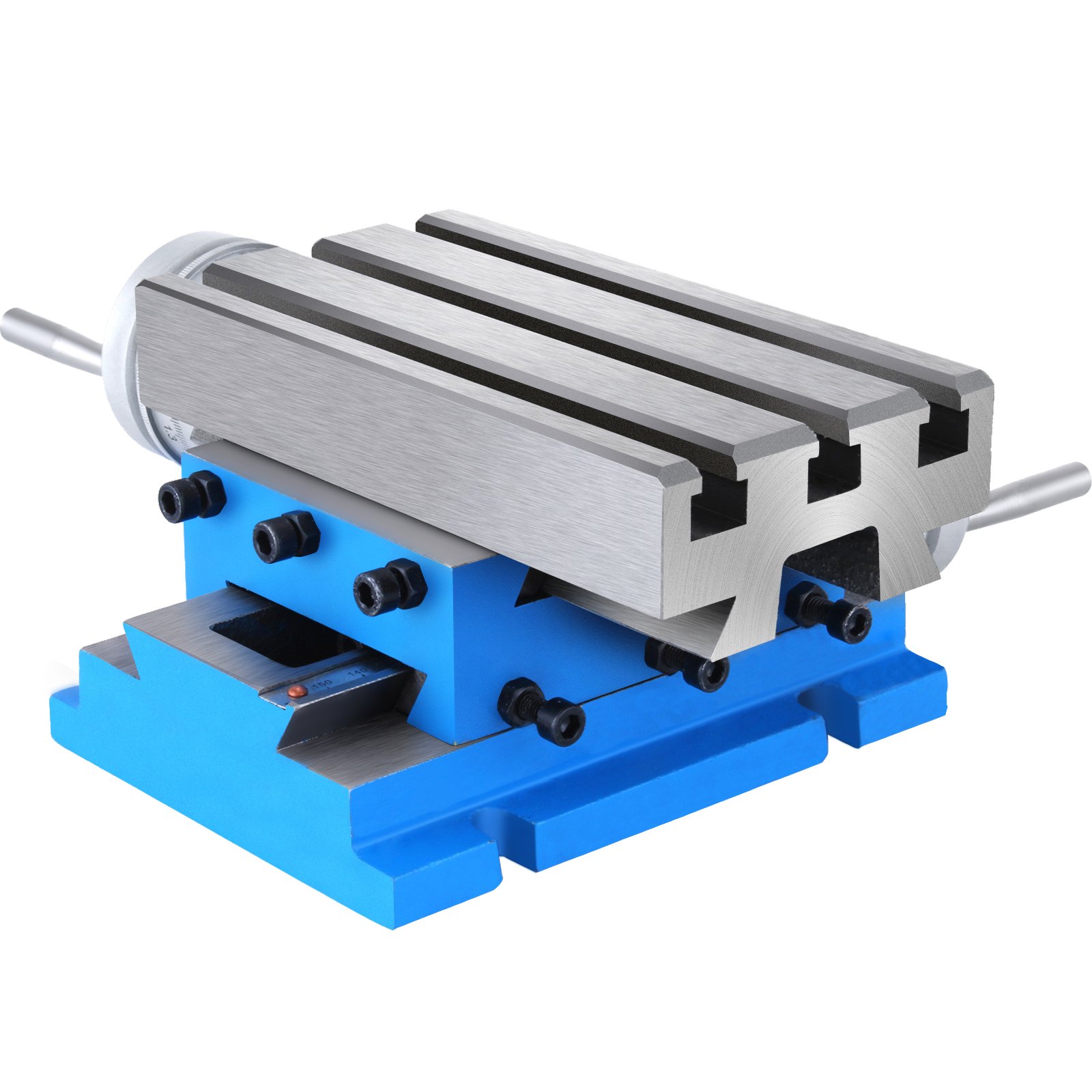

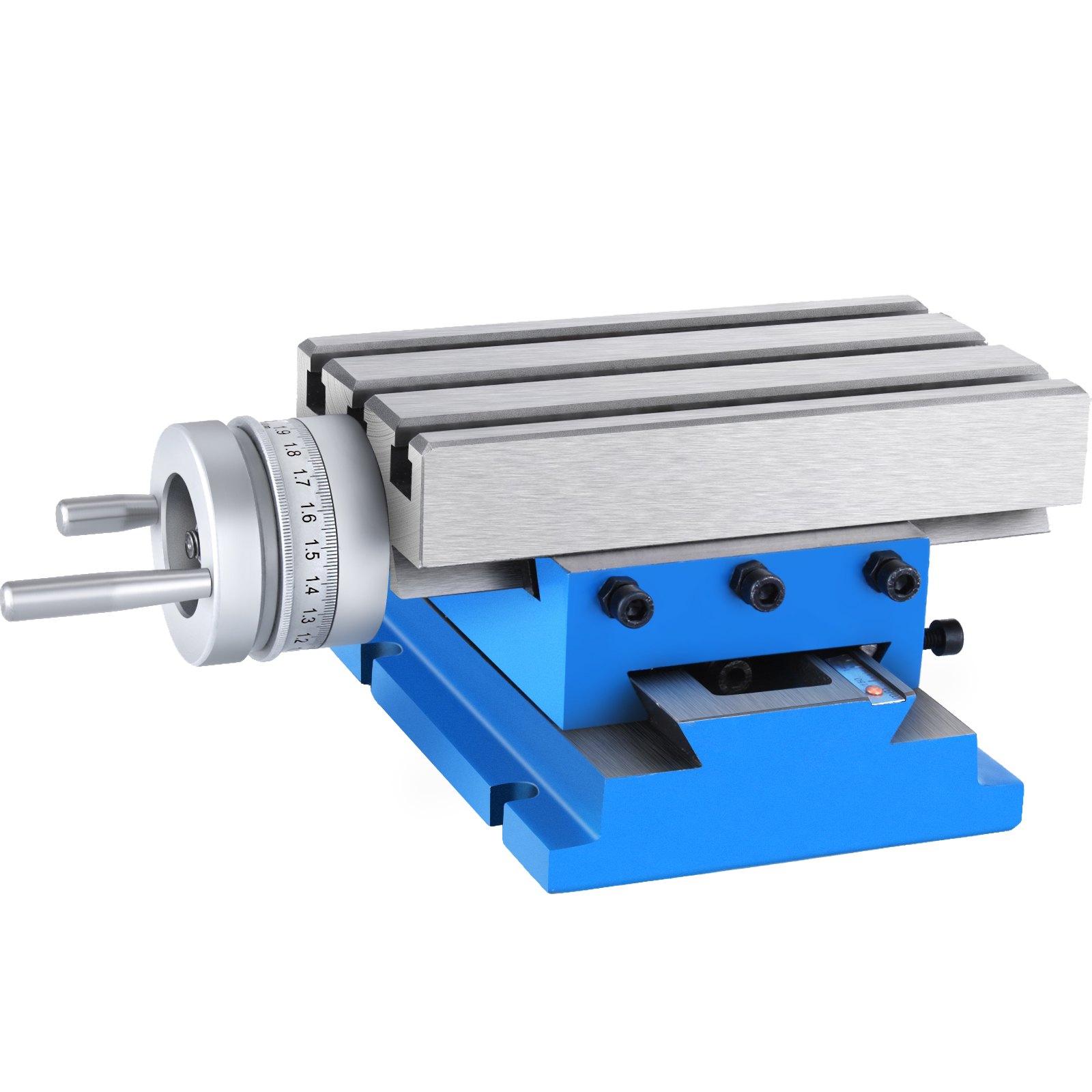

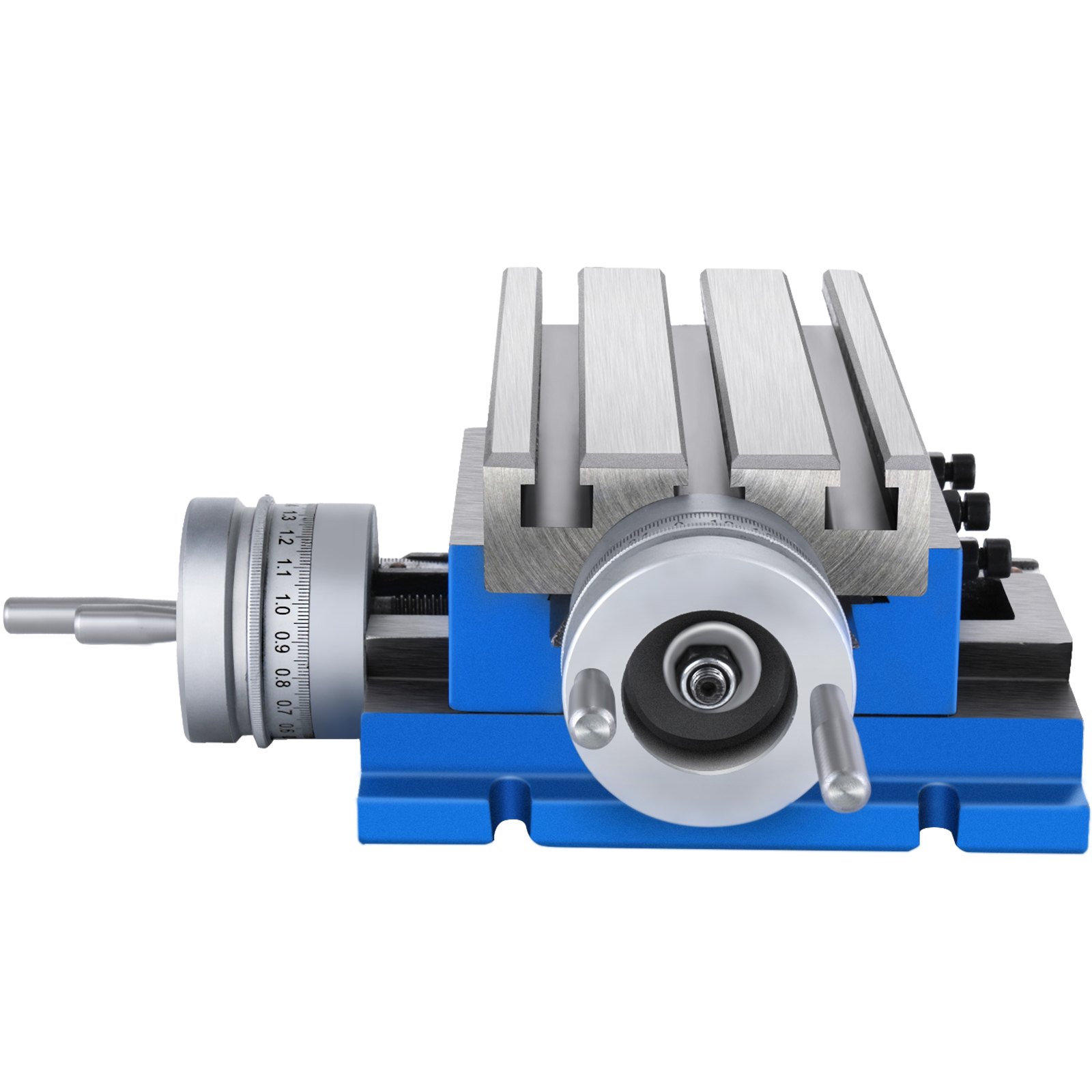

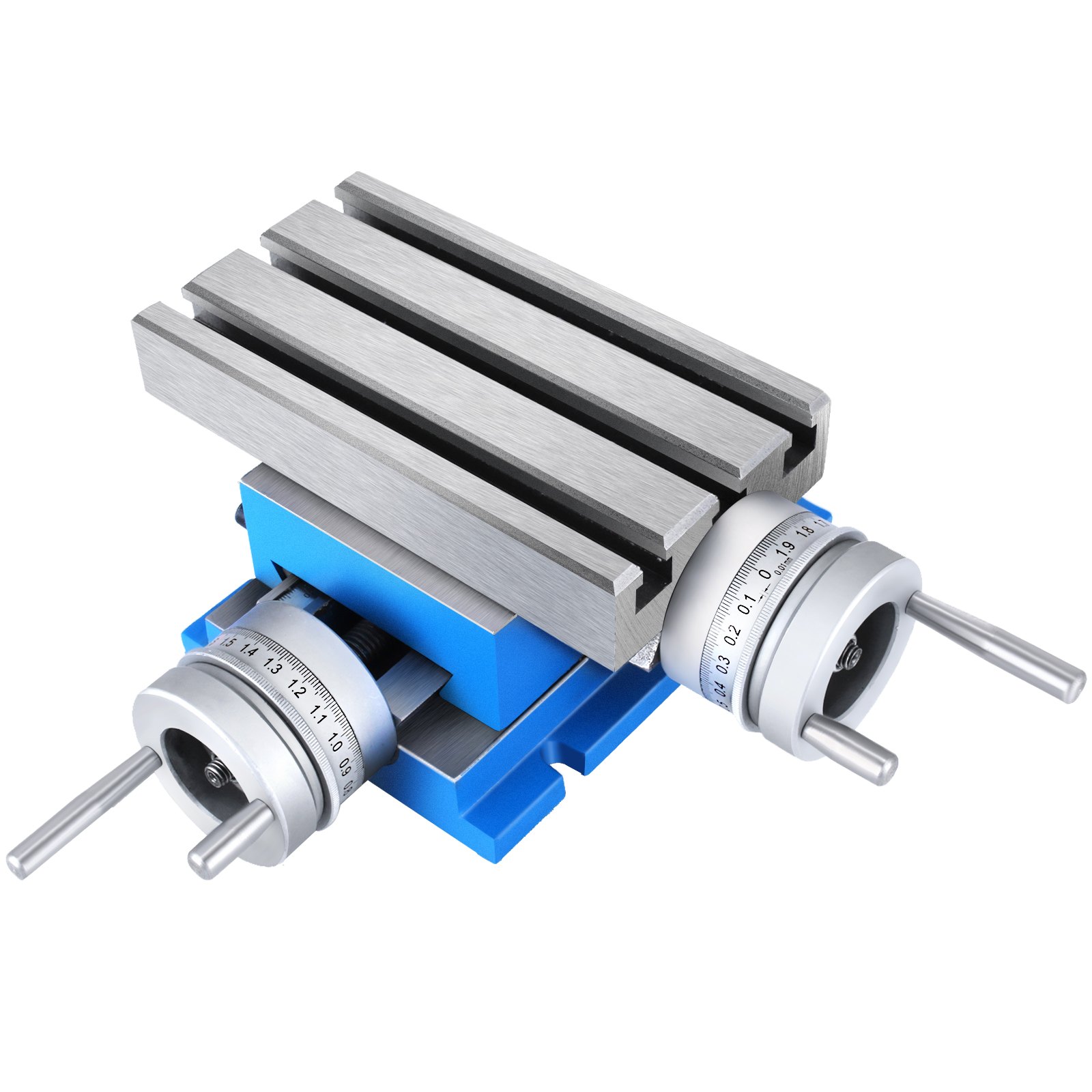

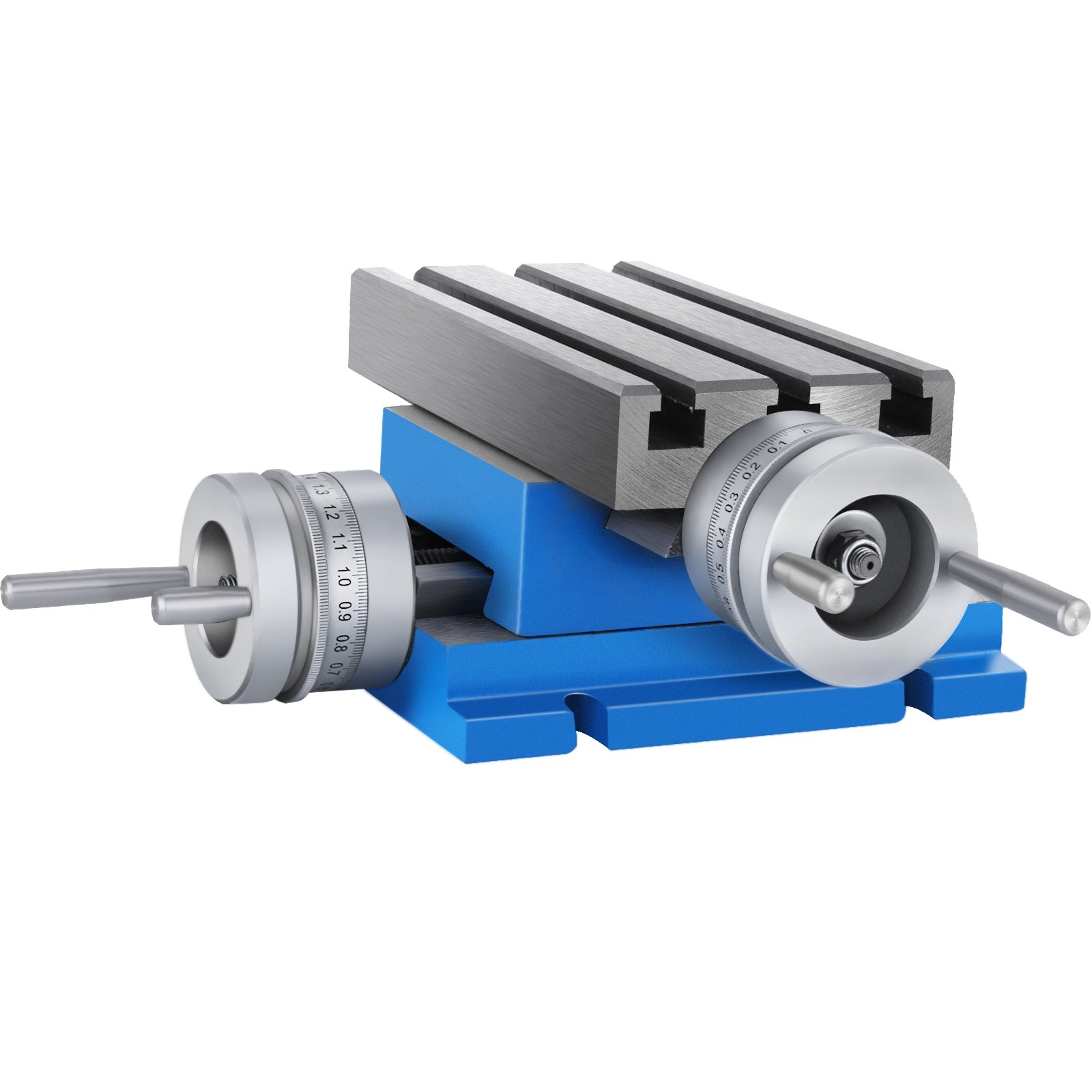

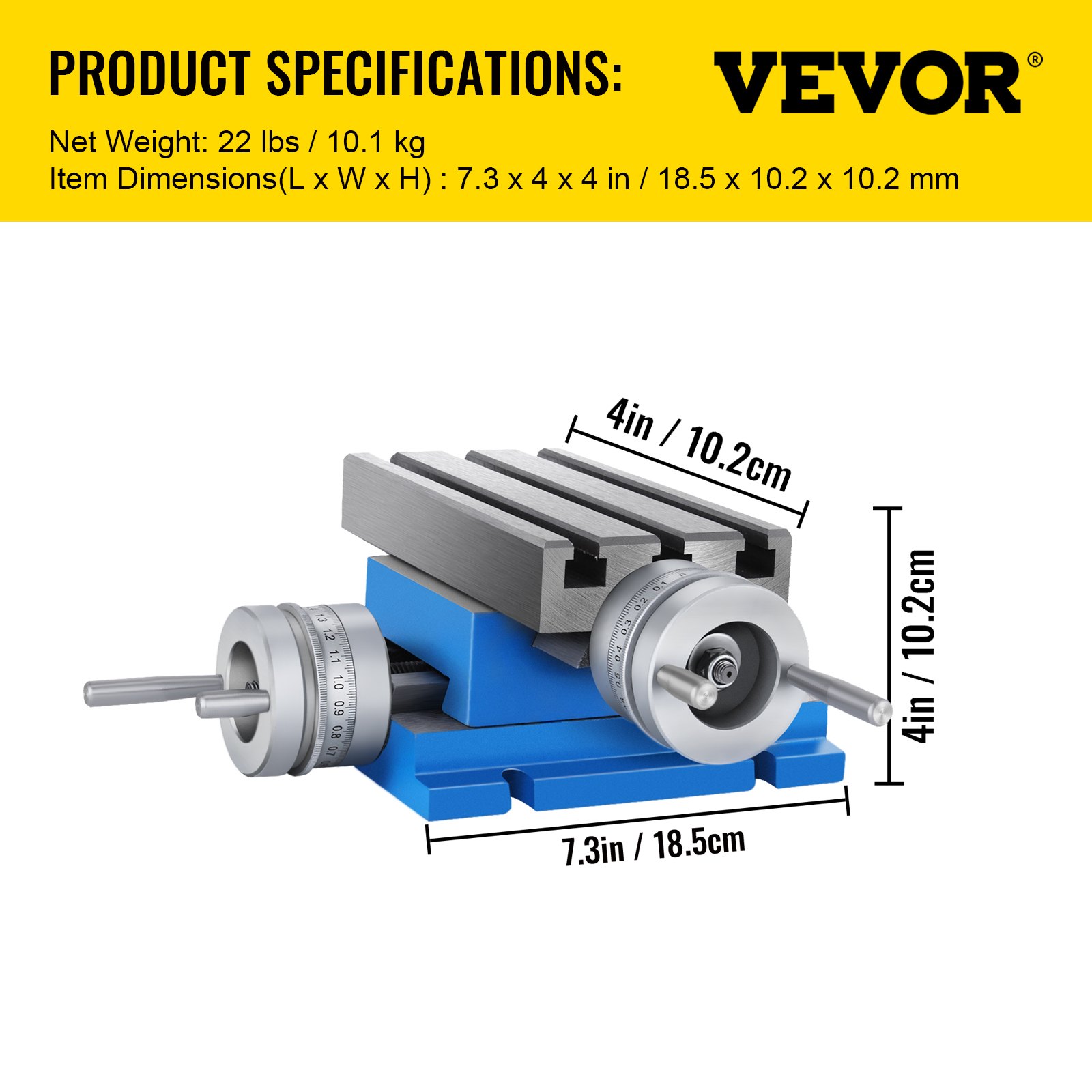

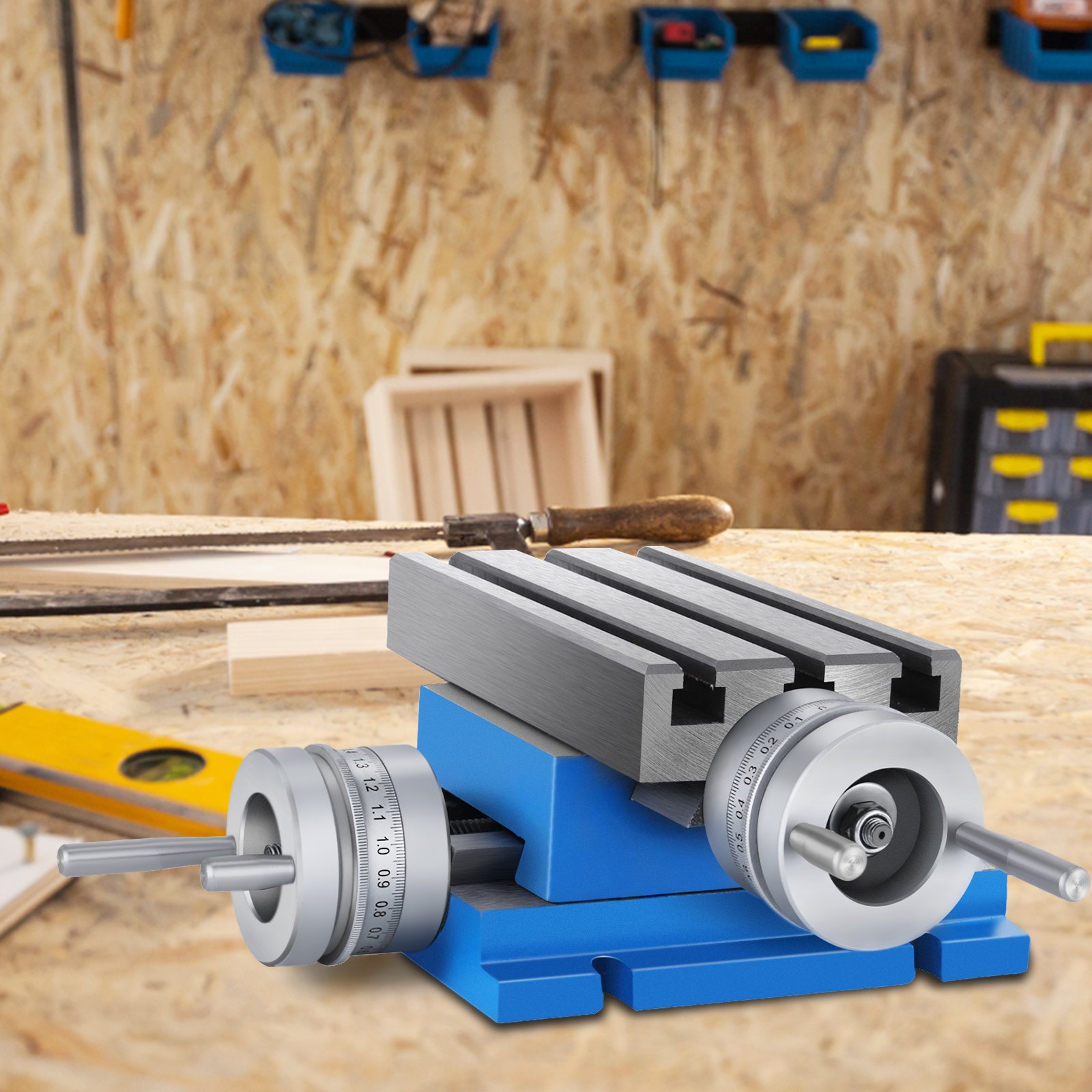

VEVOR 4''×7.3'' Freesmachine Cross Slide Werktafel Sliding Workholding 185×100mm

I bought this small milling worktable to fit on the table of my bench drill. It certainly is a good, heavy, sturdy workable, which is just what I need to do small milling jobs. However, as other reviewers have mentioned, I did need to modify and rectify a few issues. I dismantled the worktable and filed off the burrs, which had been left after this item had been manufactured. There was also some paint overspray on the slides, which I also removed. Also the friction device, which holds the graduated scale in position on the two spindles, turned out to be masking tape! I removed this and have ordered a couple of large wavy washers to make my own friction device. This will need some machining work on the graduated scales, but after that, it should work fine. I also lubricated and adjusted the keys in the slideways, unitl the table was was moving nicely. All in all, a good, solid piece of kit for a great price, albeit needing some fettling to make it even better. I've already used it for a small milling job on aluminium, and the results were great.

Kruistafel is stevig verpakt - los van de commentaren van kopers - beantwoordt aan de beschrijving Dank U

Great seller! Fast response, accurate description. A great product at a very good price, delivered quickly. Pleasure doing business with.

Good value for money. Not super precision but good enough. Robustly made and rather heavy. [not sure why this review must contain a minimum number of characters].

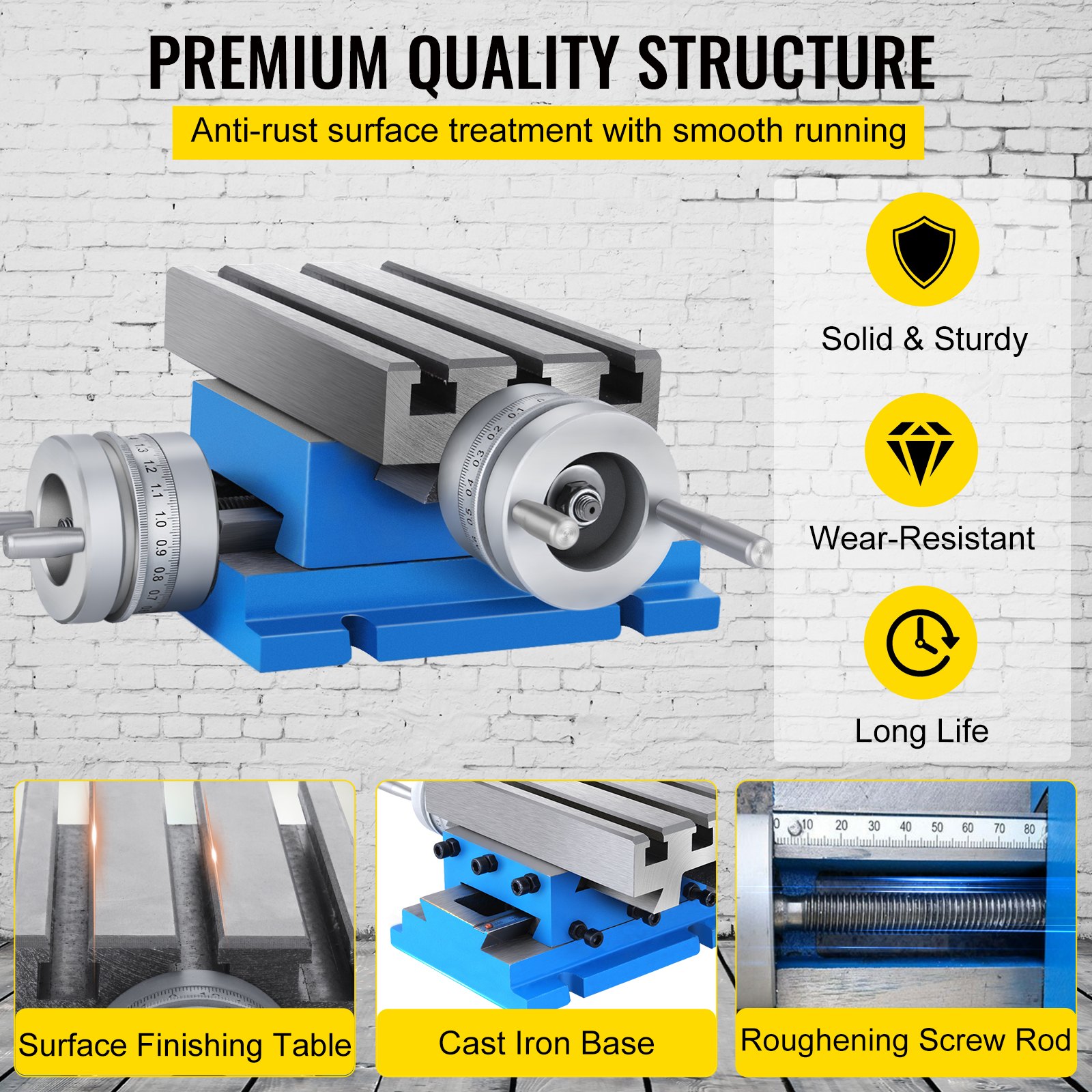

Made of cast iron but needs a complete strip down an excellent clean and deburring lots of sharp edges but once done its usable as a drill table and very light milling.

Very pleased with this item. Please bear in mind I am not precision engineer, I am a wood worker mainly interested with wood turning. Now and again I have the need for a metal work lathe, but I cannot justify buying one, so I have converted my wood lathe into a metal work lathe. To achieve this I purchased this simple compound table, a tool post and tool holder and a set of metal turning tools. OK, it not a Colchester or any other precise lathe but used very gently it works a treat. Had to rebuild the table of course! Would recommend just adding an m6 nut to the handwheels.

Good casting but required the end thrust bearings replaced.Easy job. Used to hold a job next to my milling head. Very happy with purchase

What I expected for the price was something that was basically sound but had been shoddily assembled, was probably unusable as delivered but with fettling could be turned into a decent bit of kit. That is exactly what I got! About 5 hours later and it’s pretty good, perfectly sufficient with a drill press and OK for light milling. Non existent quality control resulted in an excellent price. Rough edges, nibs, wobbling, paint overspray on running surfaces, hand wheels incorrectly sized meant that bearings and calibrated wheels didn’t work. Oh, and no grease anywhere so although easier to clean, hardly surprising that everything felt rough. However, cleaning, filing, sanding, deburring, scraping off paint and lubricating worked wonders. The hand wheels needed touching up on the lathe…the tolerances were wrong so rotating parts were either too tight or too loose. I couldn’t have done it without a lathe but it wasn’t difficult work with one and everything now runs smoothly and accurately. The cast iron is quite soft but that makes it easier to tweak. The only thing I’ve yet to do after installing on my drill press is to check the horizontals of the table. I expect it to be out but it should be easy to simply shim it up to get everything square. So if you want to use it out if the box…awful….but if you’re happy and able to put in a few hours setting the thing up properly, you’ll have a decent xy table with no side play and smooth operation for a very good price. Am I happy that I bought it? Yes. Would I recommend it? Yes…with the above provisos. Overall rating ** as received, but ***** after fettling.

Wordt in nogal ruwe vorm geleverd. Zware uitvoering, uitstekend als basis om verder te verbeteren. Neem er wel even de tijd voor. Alle scherpe randen afgevijld en geslepen. Alle loopvlakken gangbaar gemaakt, geschuurd en gepolijst. Lagers verbeterd met koperen hulzen. Kogellagers verbeterd met juiste afstandringen. De kruistafel werkt nu soepel en nagenoeg spelingvrij. Heel tevreden over.

VERY GOOD PRODUCT, I WILL BE USING IT FOR SMALL MILLING JOBS.
