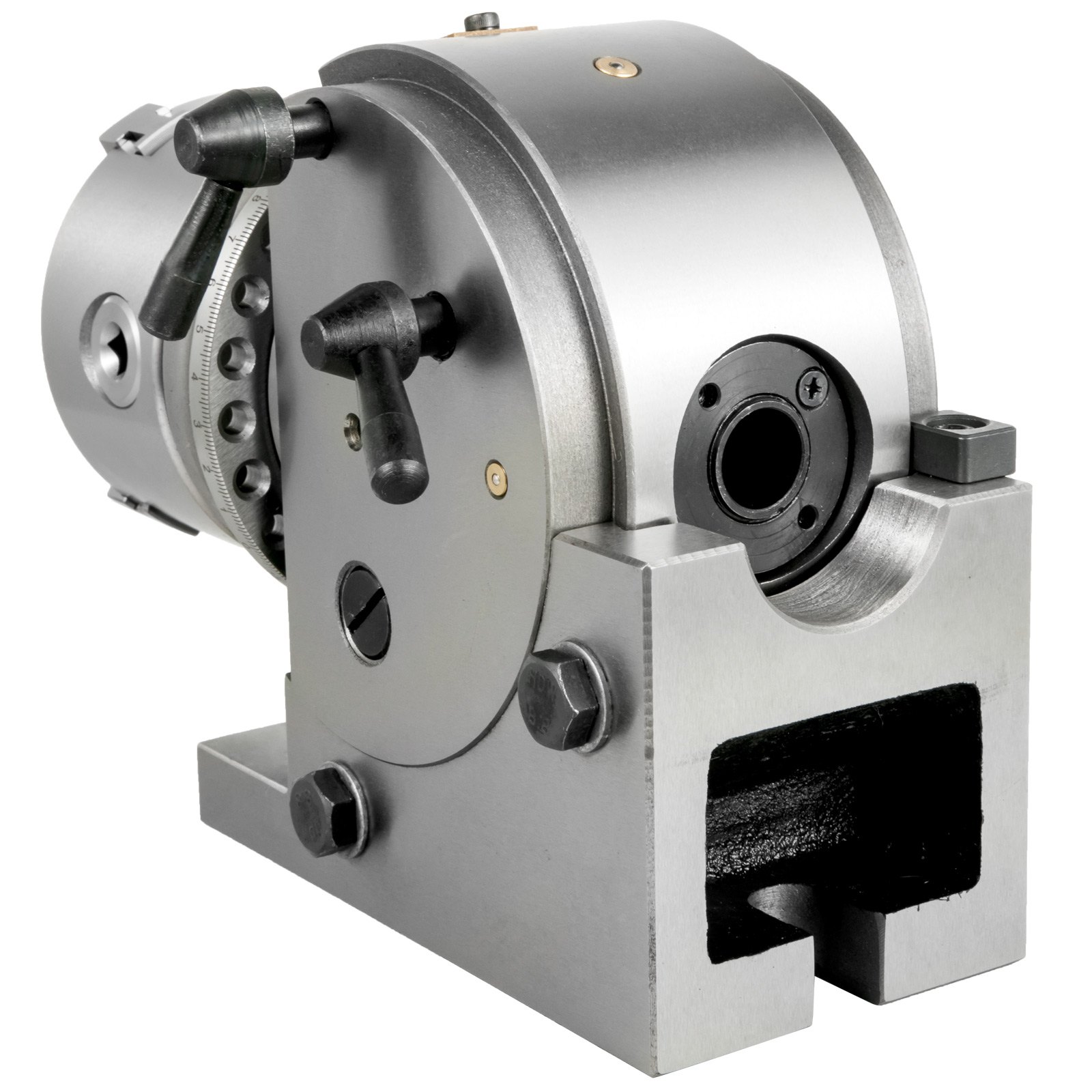

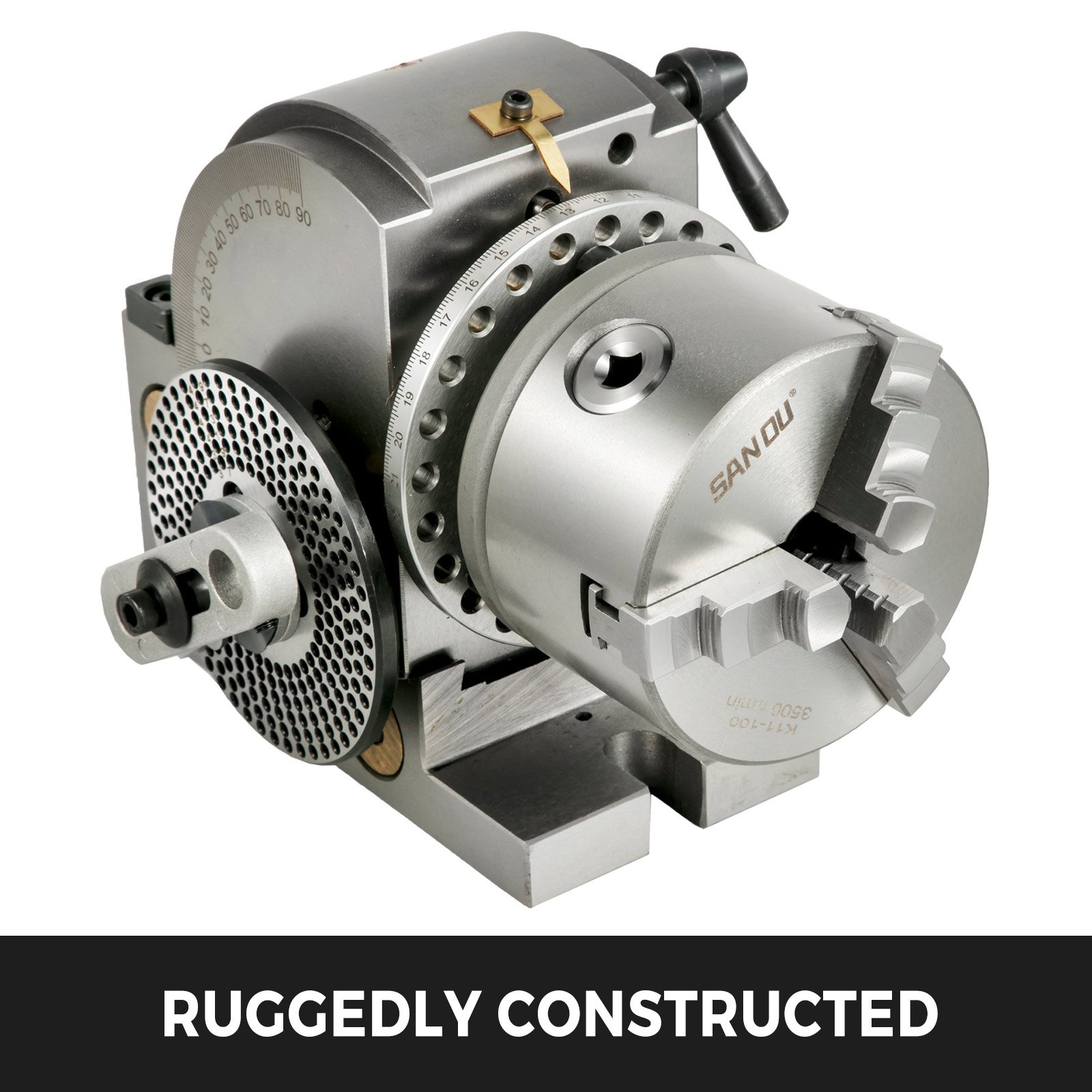

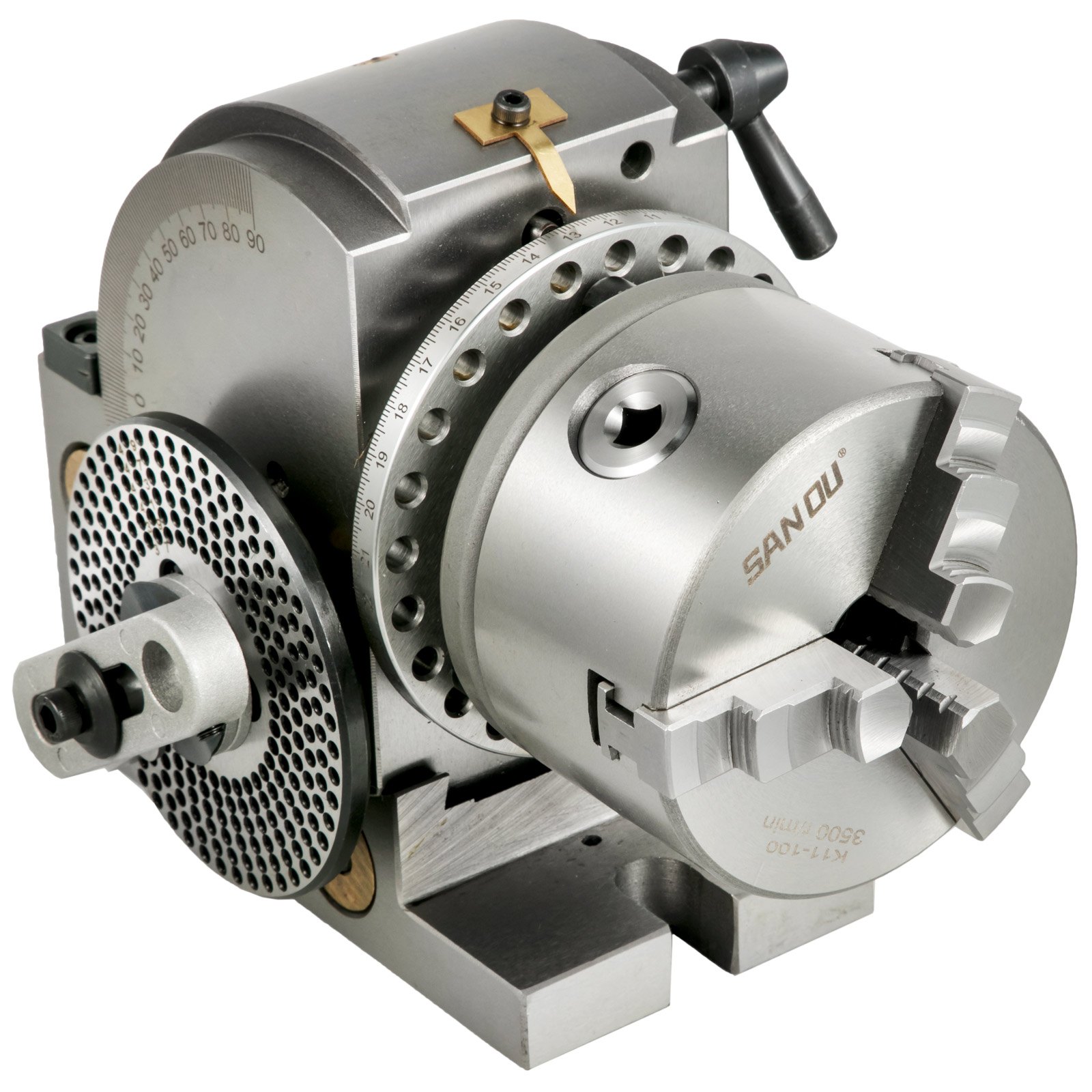

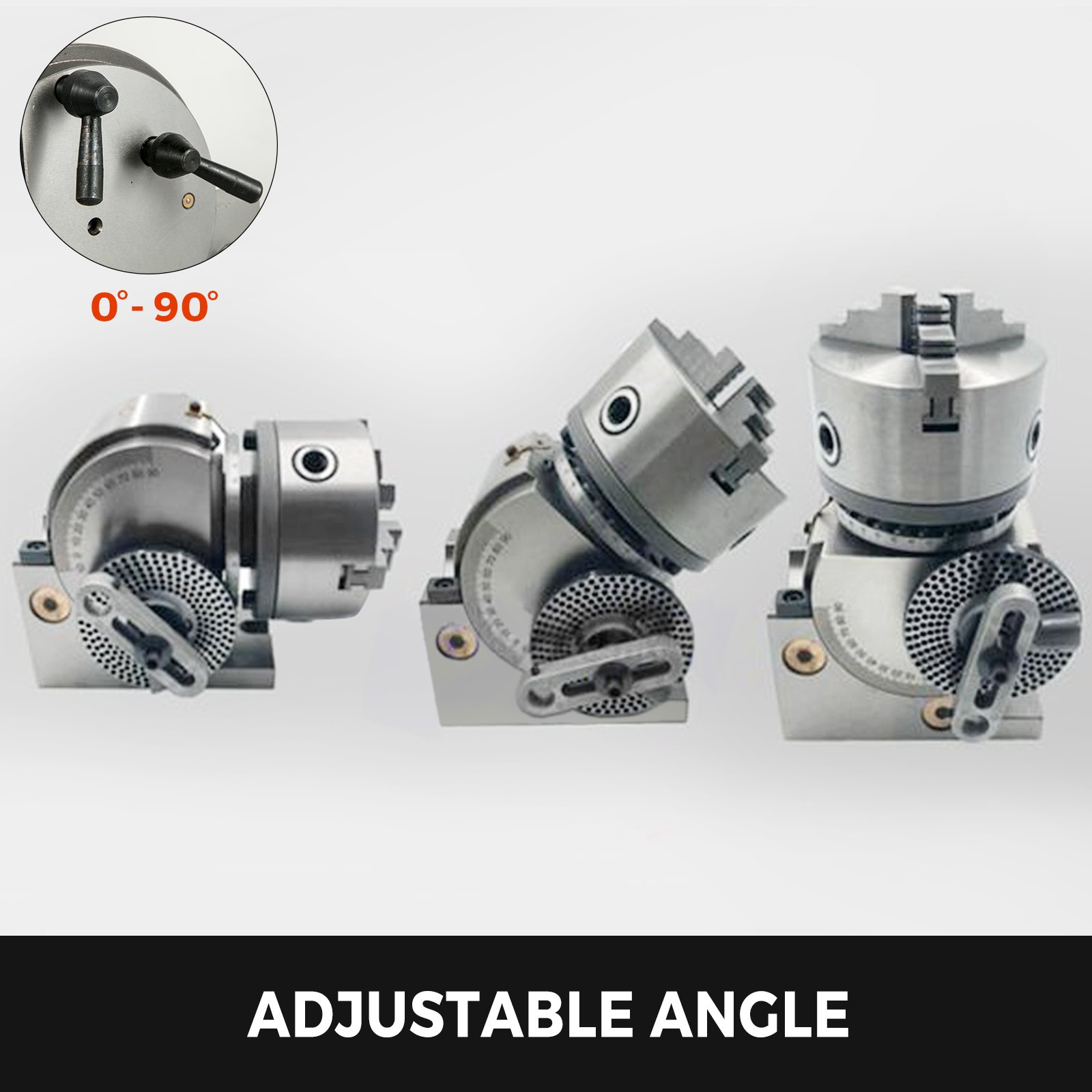

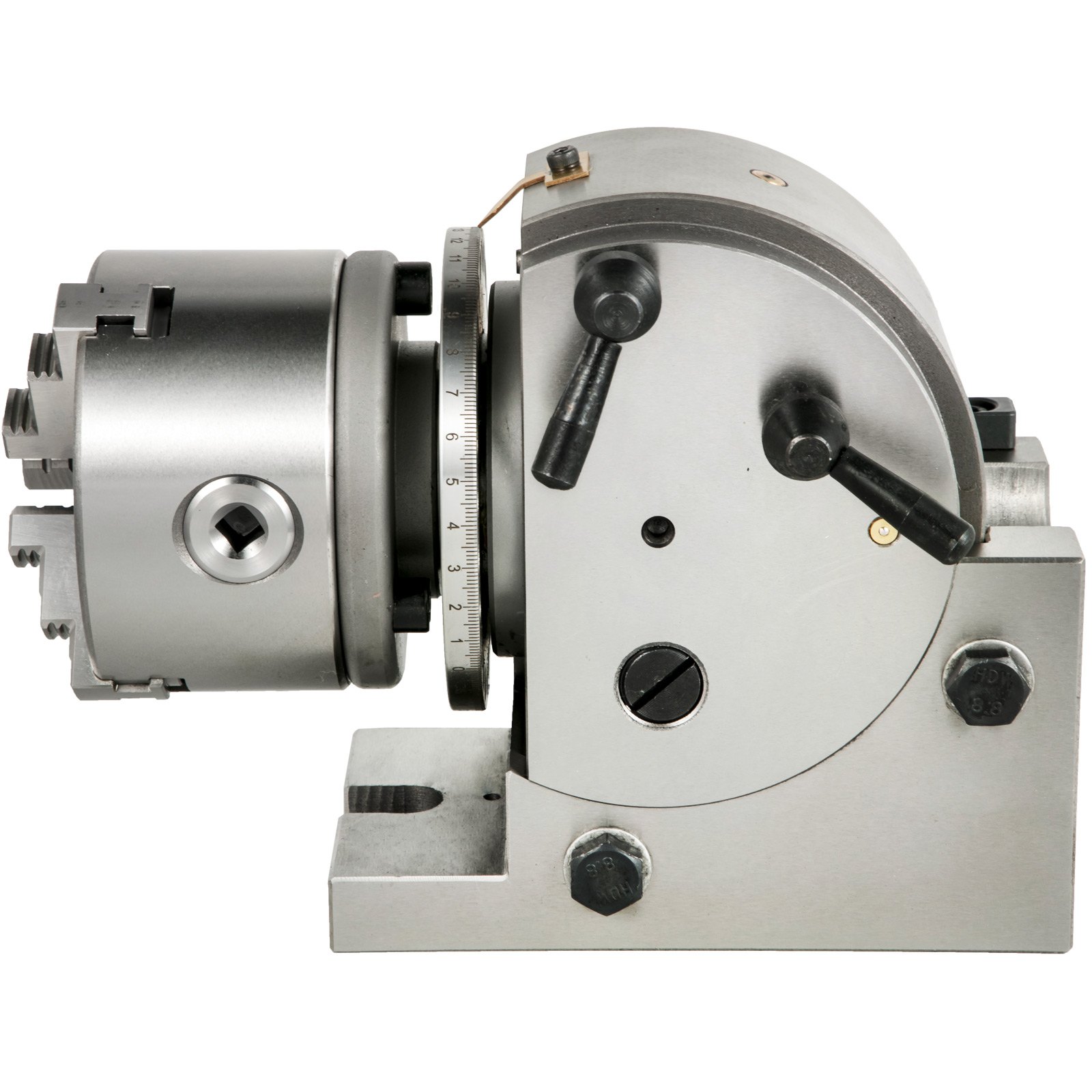

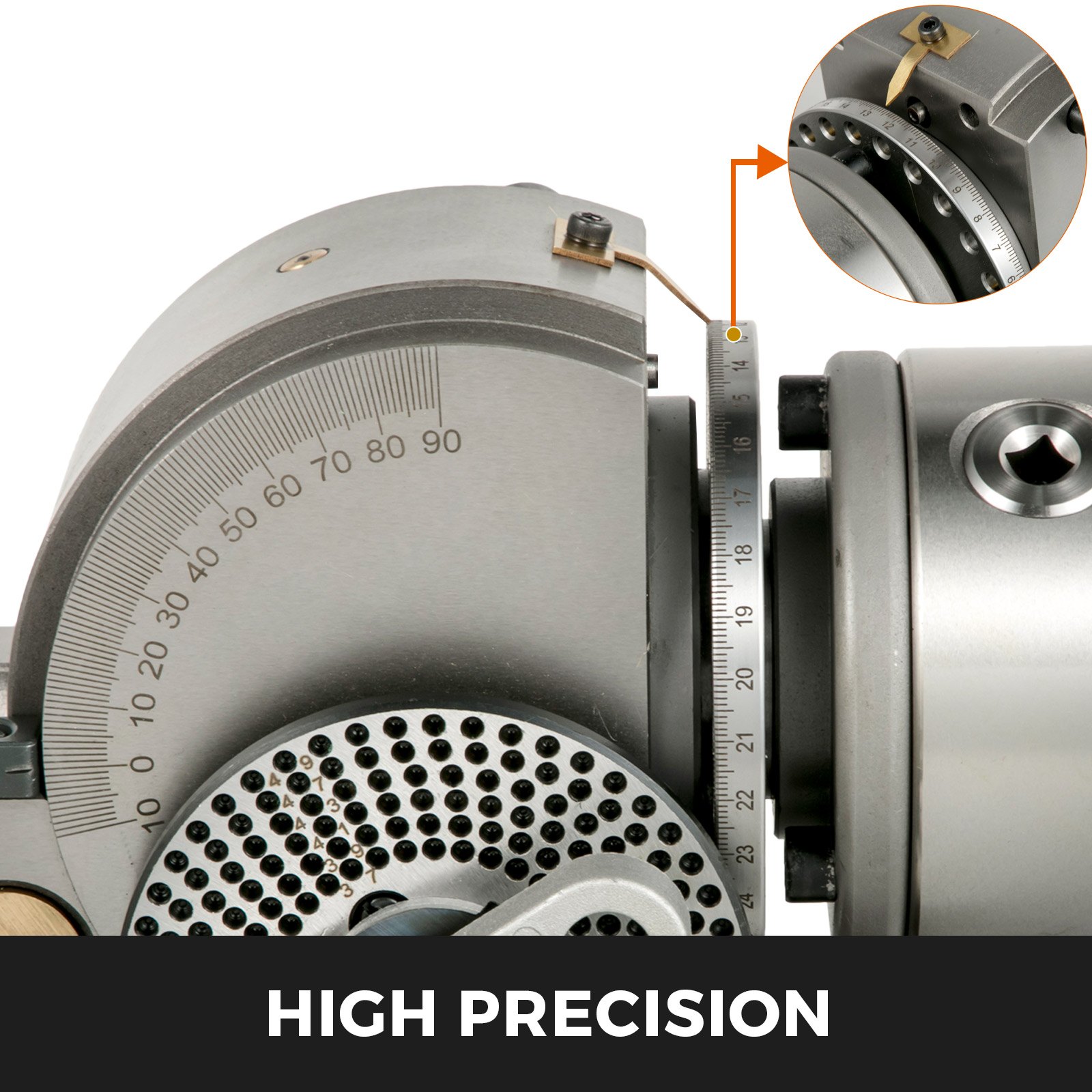

4" verdeelkop ronde tafel verdeelkop Ø100MM horizontale verticale freesmachine BS-0

De set werd binnen 2 dagen verstuurd met GLS. Het kwam goed verpakt aan, in dik piepschuim, in een stevige kartonnen doos, en goed in het vet. Optisch als mechanisch was de set dik in orde, niks op aan te merken, en voor een hobbyist / semi prof als ik met een kleine maar industriële freesbank is dit eigenlijk een ideale set. Houd er rekening mee dat Vevor ook nog de 160mm uitvoering verkoopt, dus even goed opletten wanneer je welke gaat bestellen. Deze tafels worden onder allerlei merknamen verkocht, de bekendste zijn HBM, Vertex,Shars, maar misschien met uitzondering van een originele 70's Japanse Yuasa / NEWS set, is de kwaliteit van al die nieuwe merken eigenlijk hetzelfde. Dus onder de streep komt het er vooral op neer waar je de beste deal kunt doen. Al met al is de Vevor BS-0 gewoon een schitterende verdeelset voor een super prijs, en ik kan hem dus ook 100% aanbevelen.

It seems to be very high quality nice and smooth in operation and not accurately detect accuracy that will fulfil my requirements. Very pleased with my purchase.

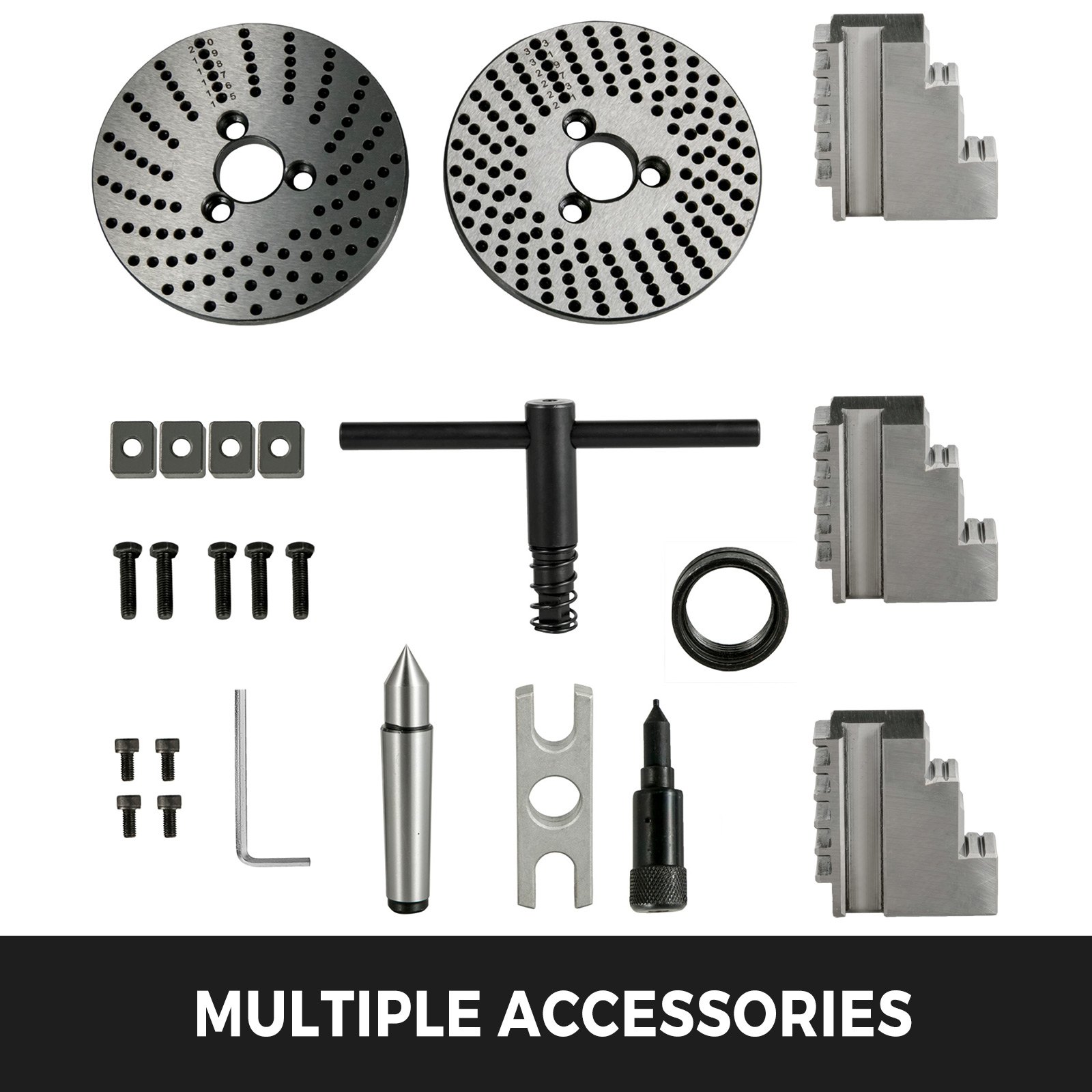

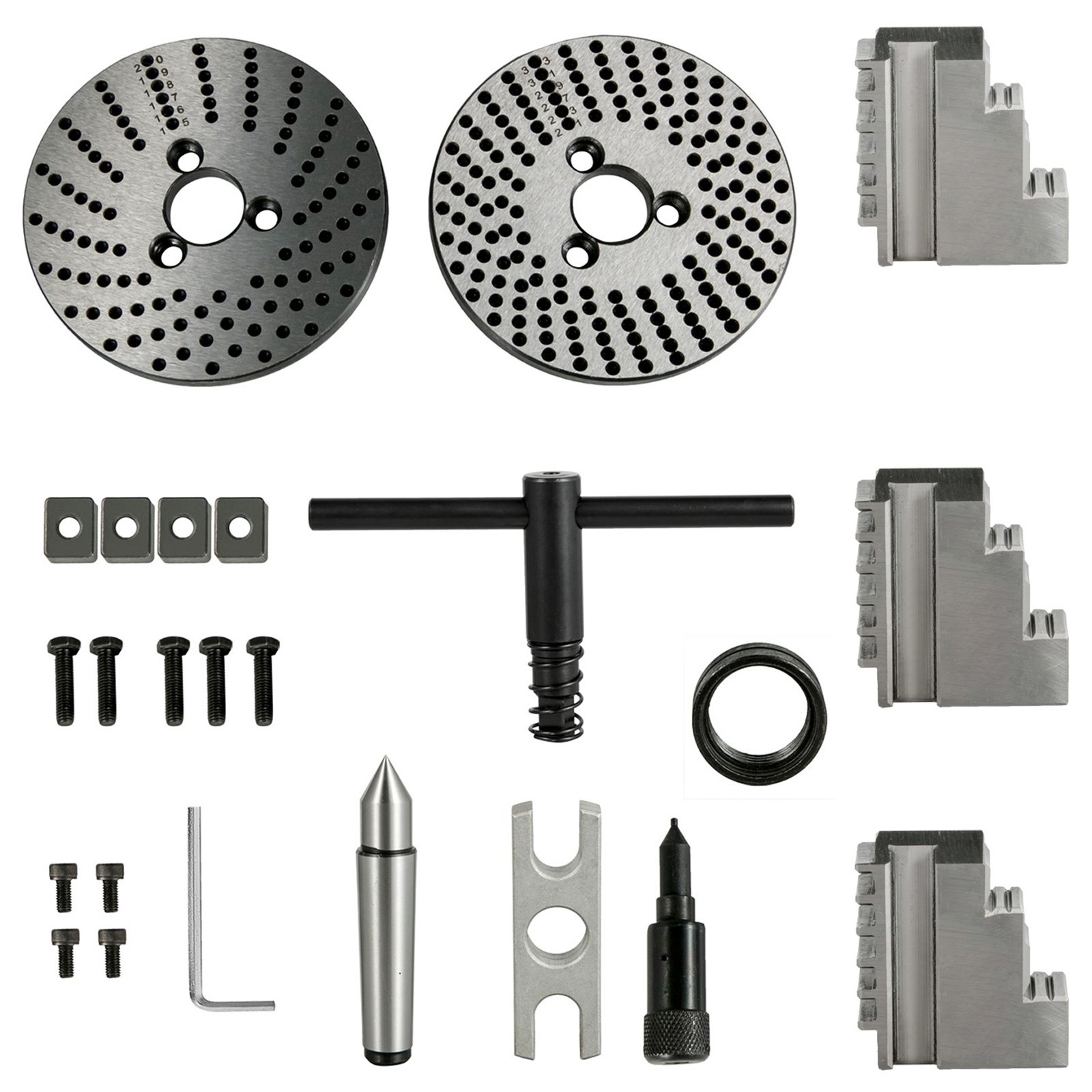

Plenty of ancillaries.

Great seller! Fast response, accurate description. A great product at a very good price, delivered quickly. Pleasure doing business with.

initially purchased for one particular job, stright out of the box fitted with a holding fixture 40 hours plus of milling later no problems it stood up to the job better than expected. used for a few smaller jobs since, got the thumb up from me

Instructions were poor got some good tables on line for free brown and sharp seems to use the same gear ratio so just used there tables used it to put hex on round bar so far

This is a very nice dividing head for the money. Pretty well finished and smooth operating, very little lash in the gearing.If you were thinking to use an ER32 chuck in the headstock taper note that the taper is #2 Morse not #7B&S as stated in the specifications. That is really good news given that the ER32 chuck adapter for #2 Morse is much cheaper than the #7 B&S. They are also available with 10mm drawbar threads so you can eliminate the chance of slipping in the taper.I checked the run-out specifications and found the following: Radial run-out of the spindle nose spec 0.0006" Actual <0.0002" Radial run-out of spindle taper nose spec 0.0008" Actual was about 0.001" Radial run-out of spindle taper hole 4" distant 0.0014" Actual was 0.0025" Radial run-out of test bar with 3-jaw chuck 0.0031" Actual was 0.003"So the specs were pretty close and my measurements might not be perfect. The run-out with the 3-jaw chuck was due the the chuck back-plate (spindle nose locating diameter had <0.0002 TIR). The locating diameter for the chuck had a run-out of 0.0025". That could be corrected by taking a few thousandths off the locating diameter, center the chuck and use the mounting screws to lock it in.

I looked at second hand dividing heads on ebay for a long time, but they were well worn. In the end I decided on a new unit and wasn't disappointed. Not so certain how long the rapid indexing location pin will last up, but it is easy to replace if it wears. It is a very solid head and suitable for any machine shop, let alone a home engineering workshop. Buy with confidence.

Was abit unsure at first as I had never heard of you but after doing some research on the Internet and reading the reviews, I placed my order. it came today and I have to say what a fast service you have given and the product is exactly what was pictured and described. It looks good and is solid, haven't tried it yet but can not see why it wouldn't perform like it says. Thanks
