Features & Details

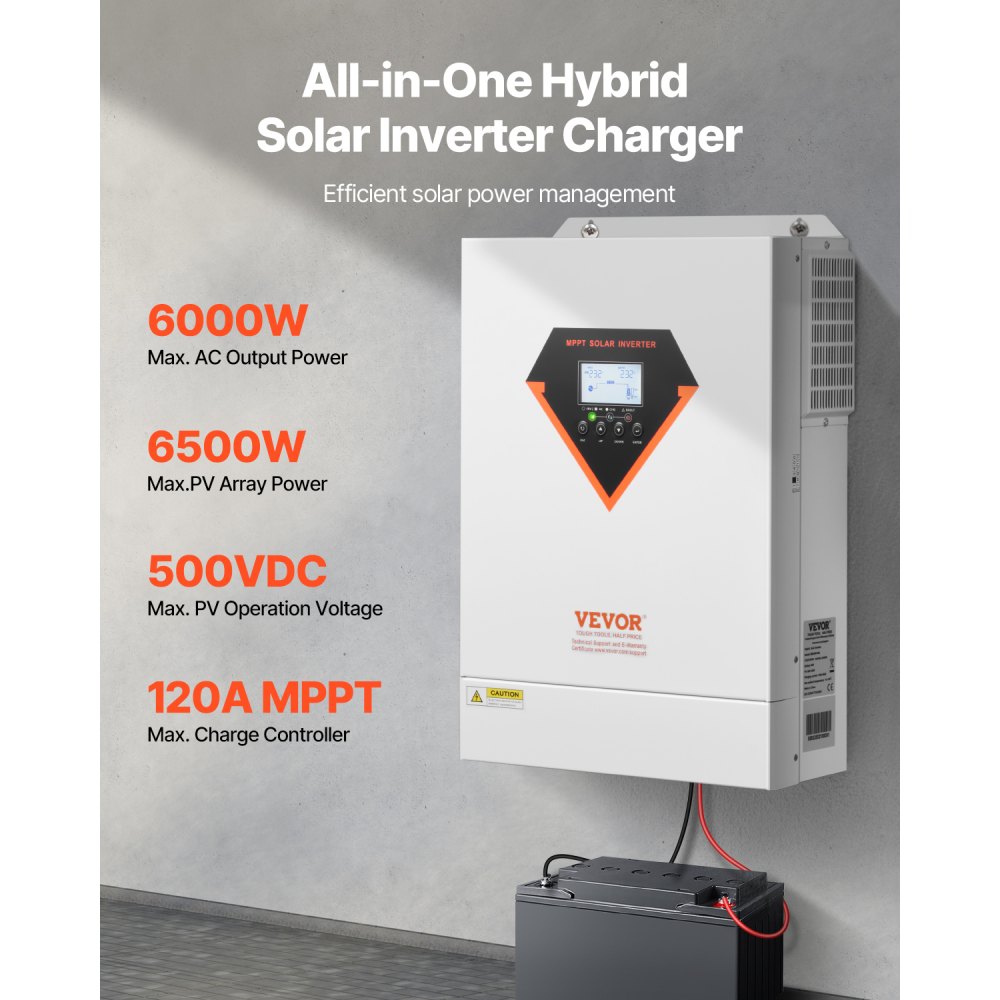

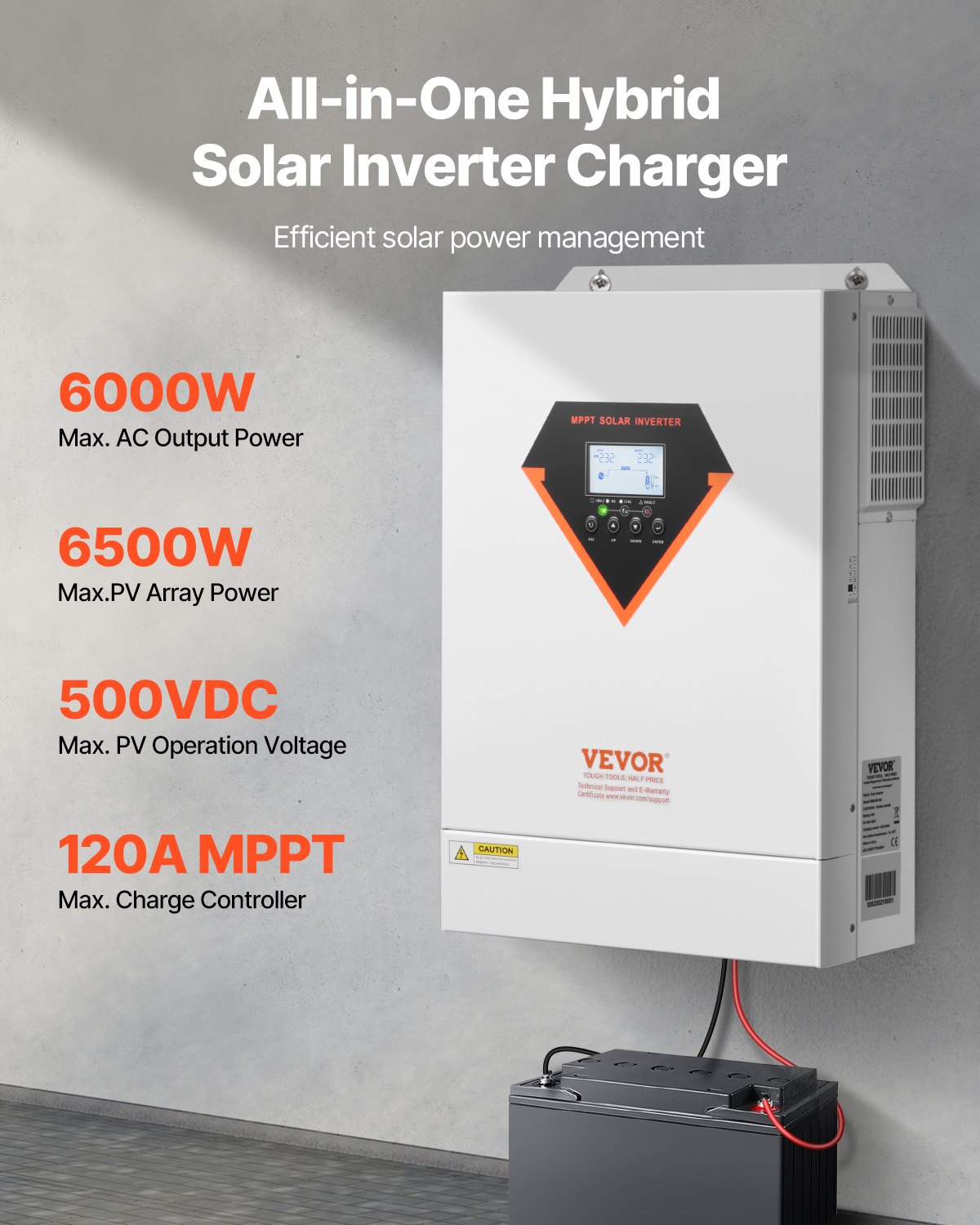

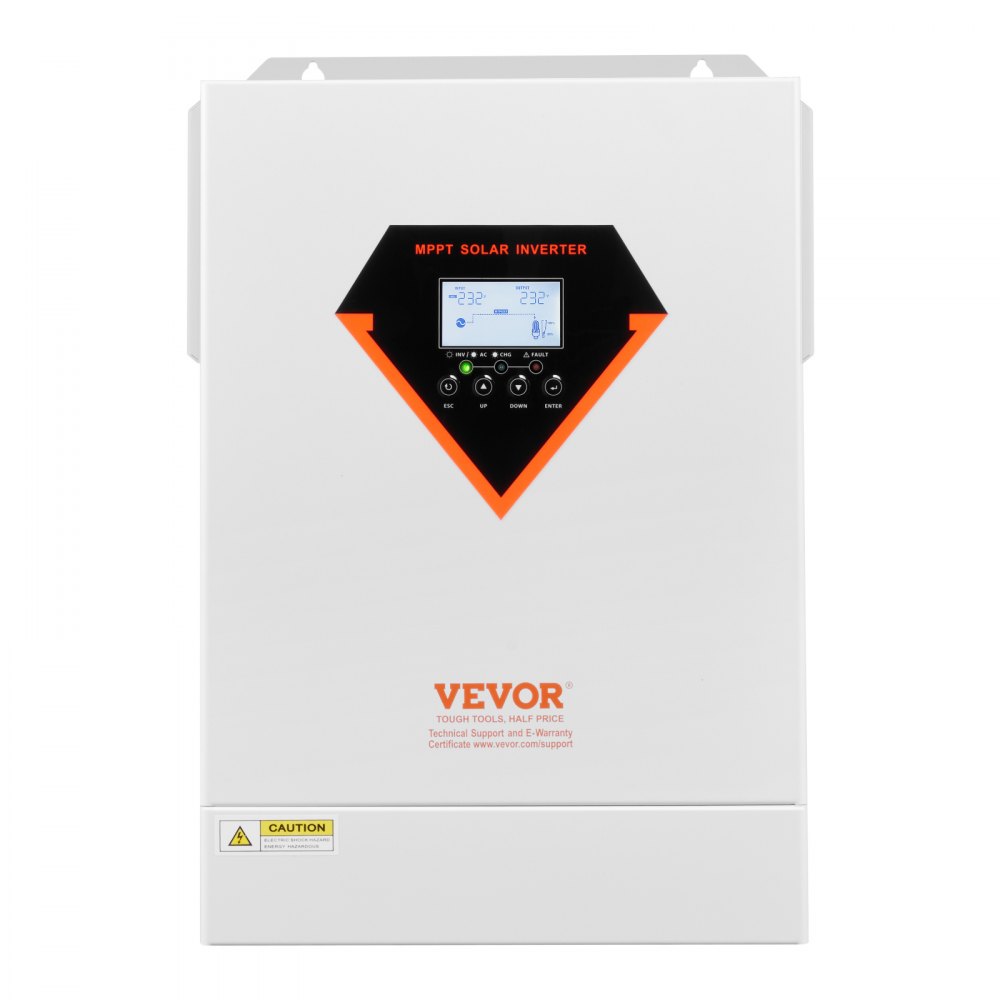

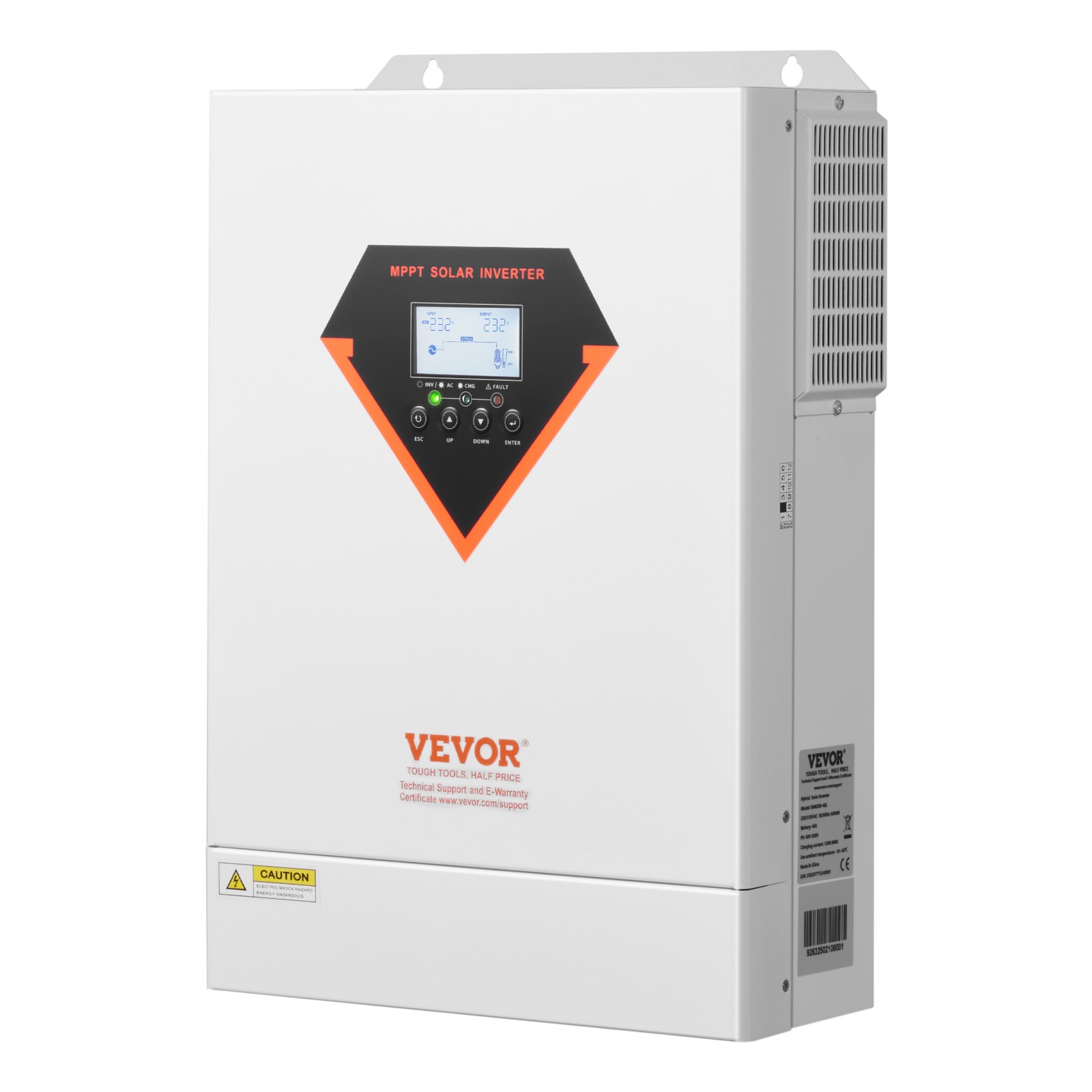

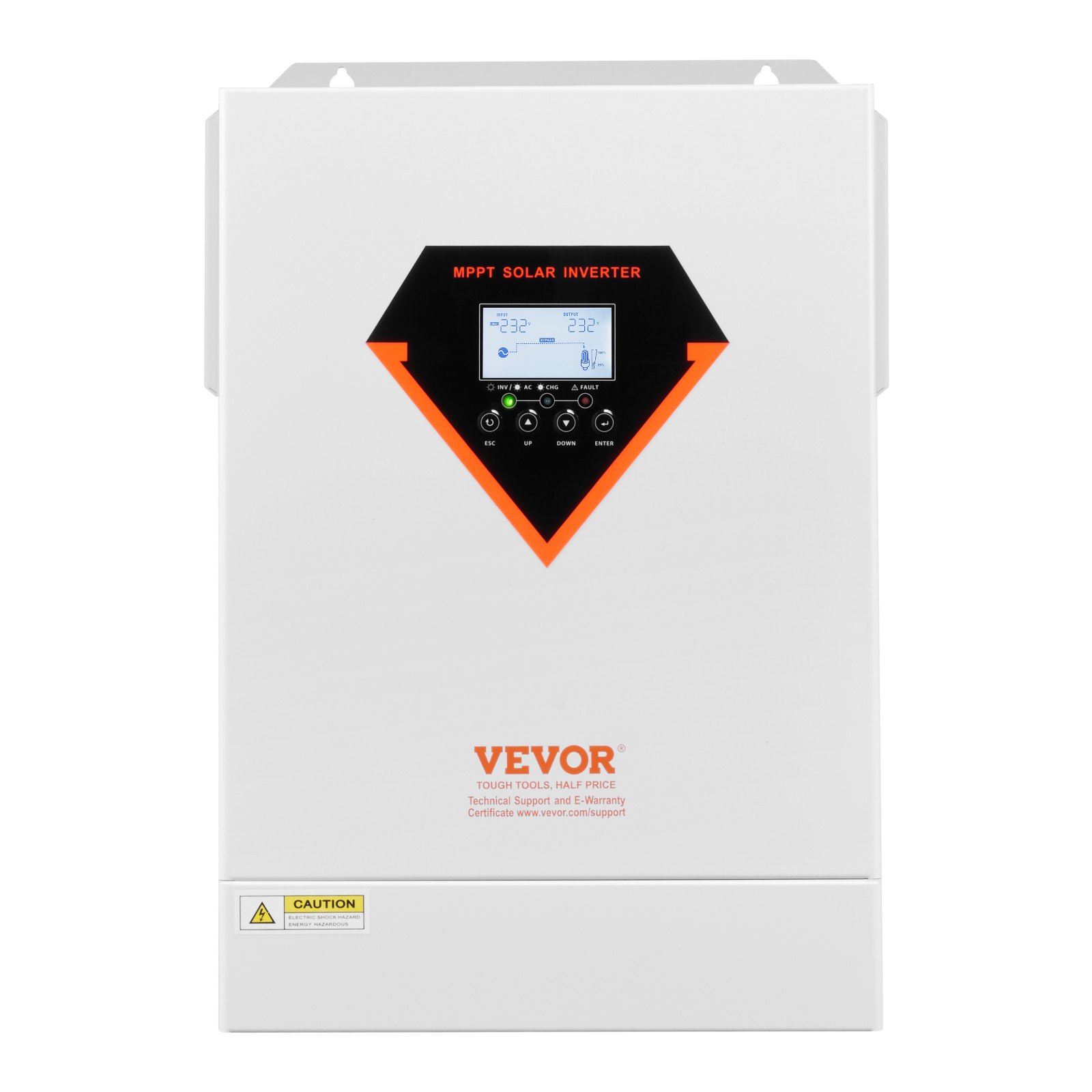

- 2-in-1 Hybrid Solar Inverter: Our 2-in-1 hybrid solar inverter combines an inverter and controller in one efficient unit. With a powerful 6000W pure sine wave output at 220/230V AC, it meets high-energy demands. It is ideal for off-grid solar photovoltaic systems, providing efficient power solutions for various applications

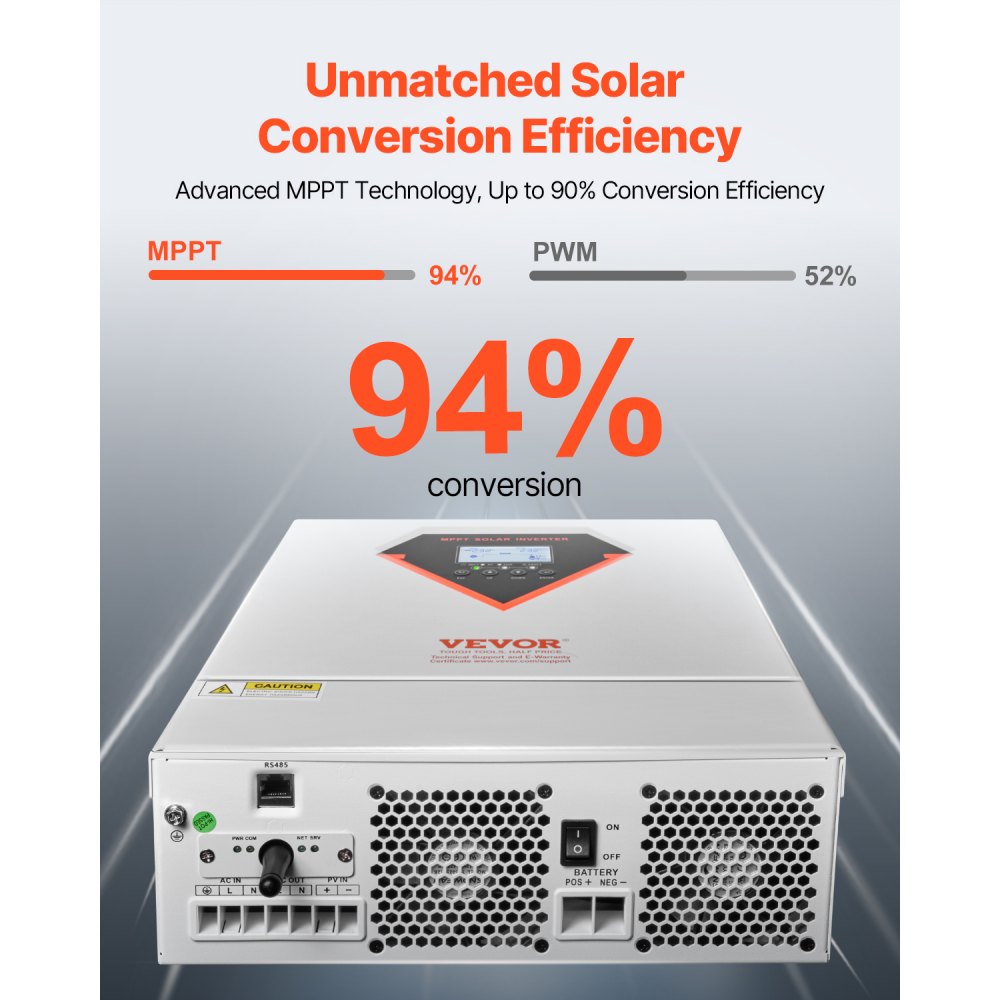

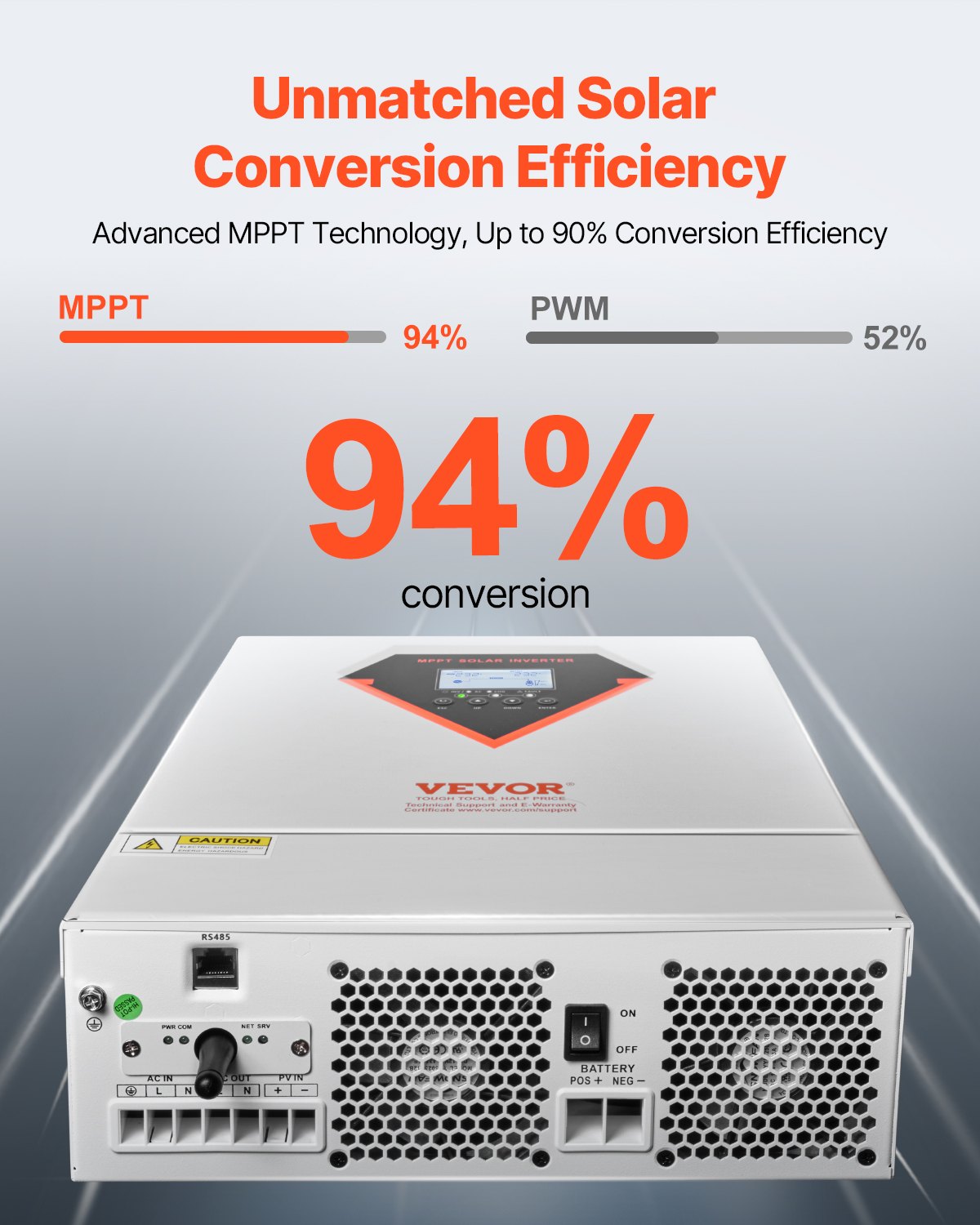

- Efficient MPPT Charging Technology: Equipped with an advanced MPPT solar charge controller, this hybrid solar power inverter supports up to 120A battery charging, boosting solar energy conversion efficiency to 94%. It supports a maximum power of 6500W and a voltage range from 60V to 500V DC, making it highly compatible with a wide range of solar systems

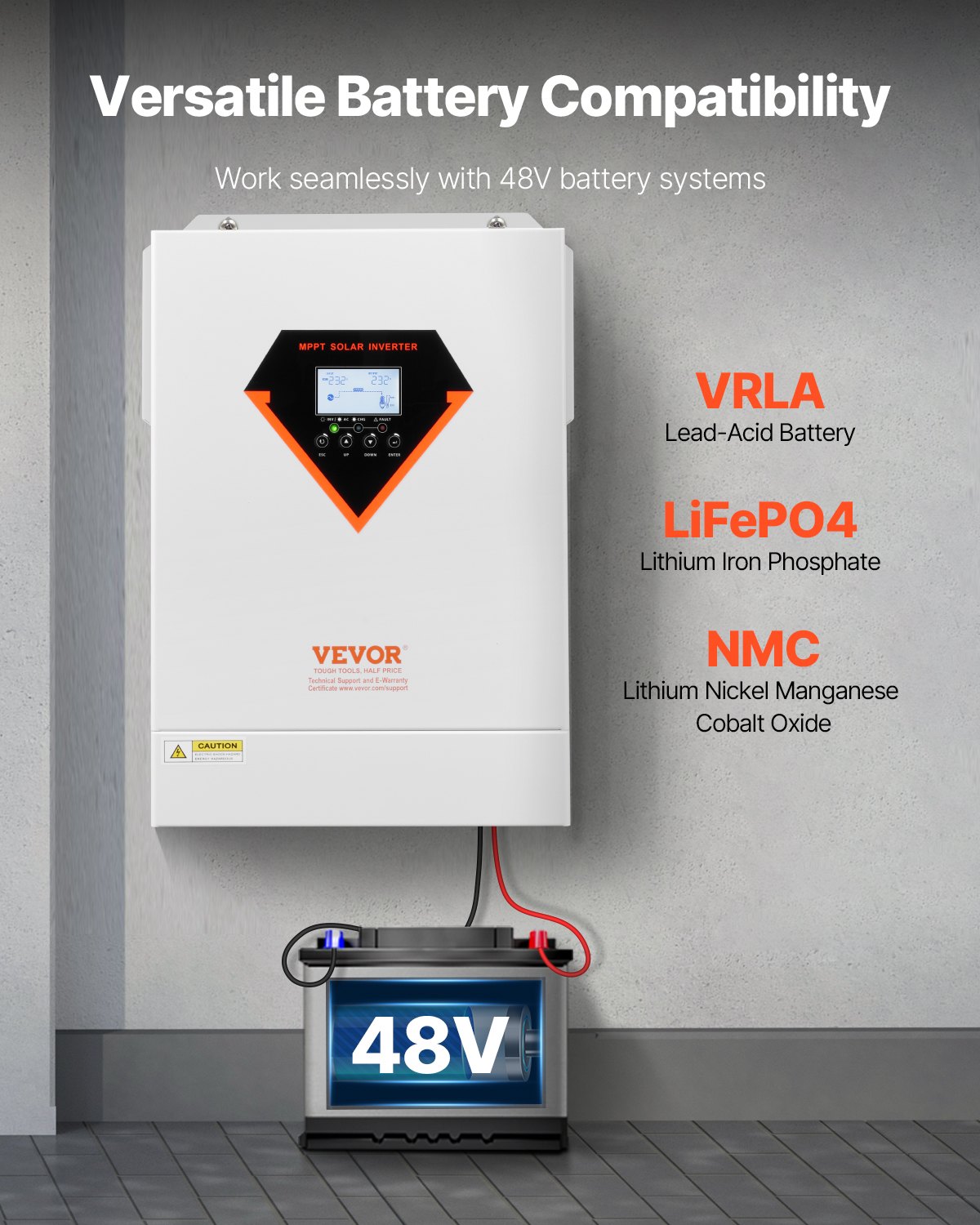

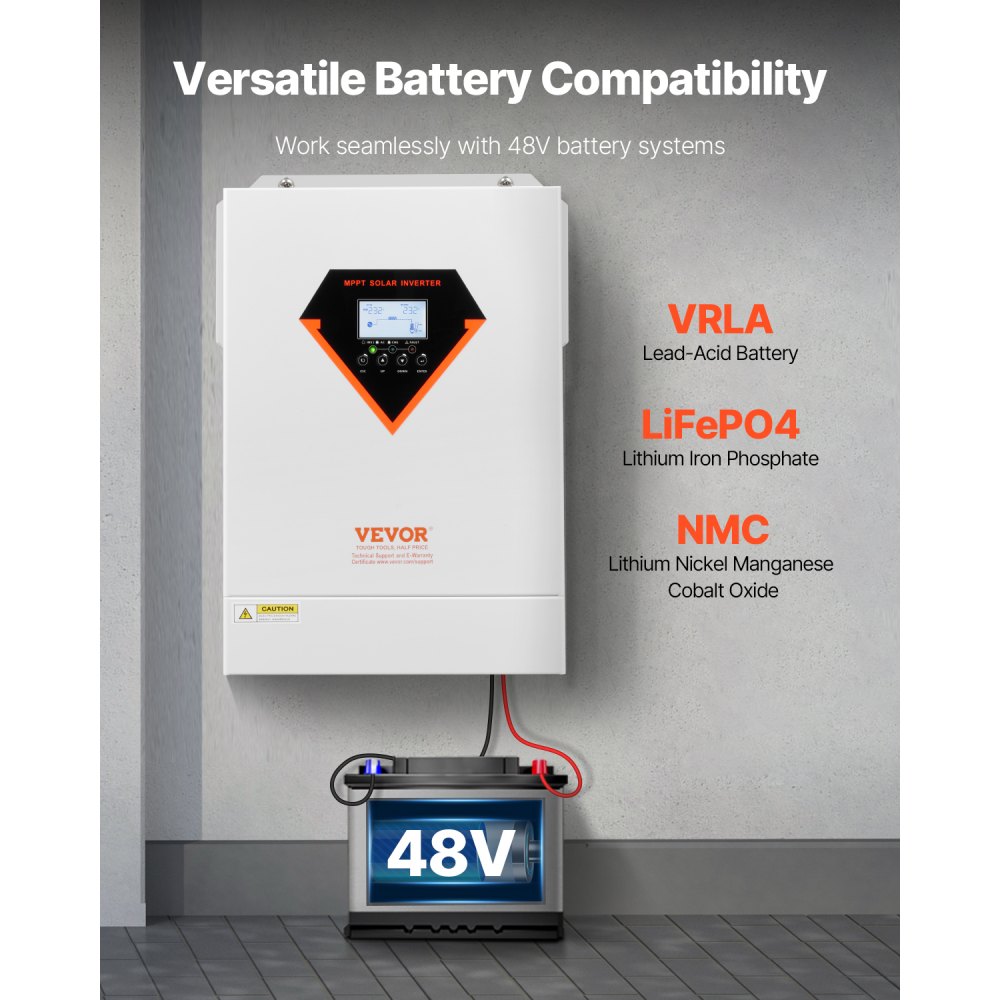

- Compatible with Various Battery Types: Designed for 48V battery systems, our hybrid inverter charger supports a range of battery types, including lithium, lead-acid, and custom batteries. Specially optimized for lithium battery systems, it has an activation function to enhance battery performance

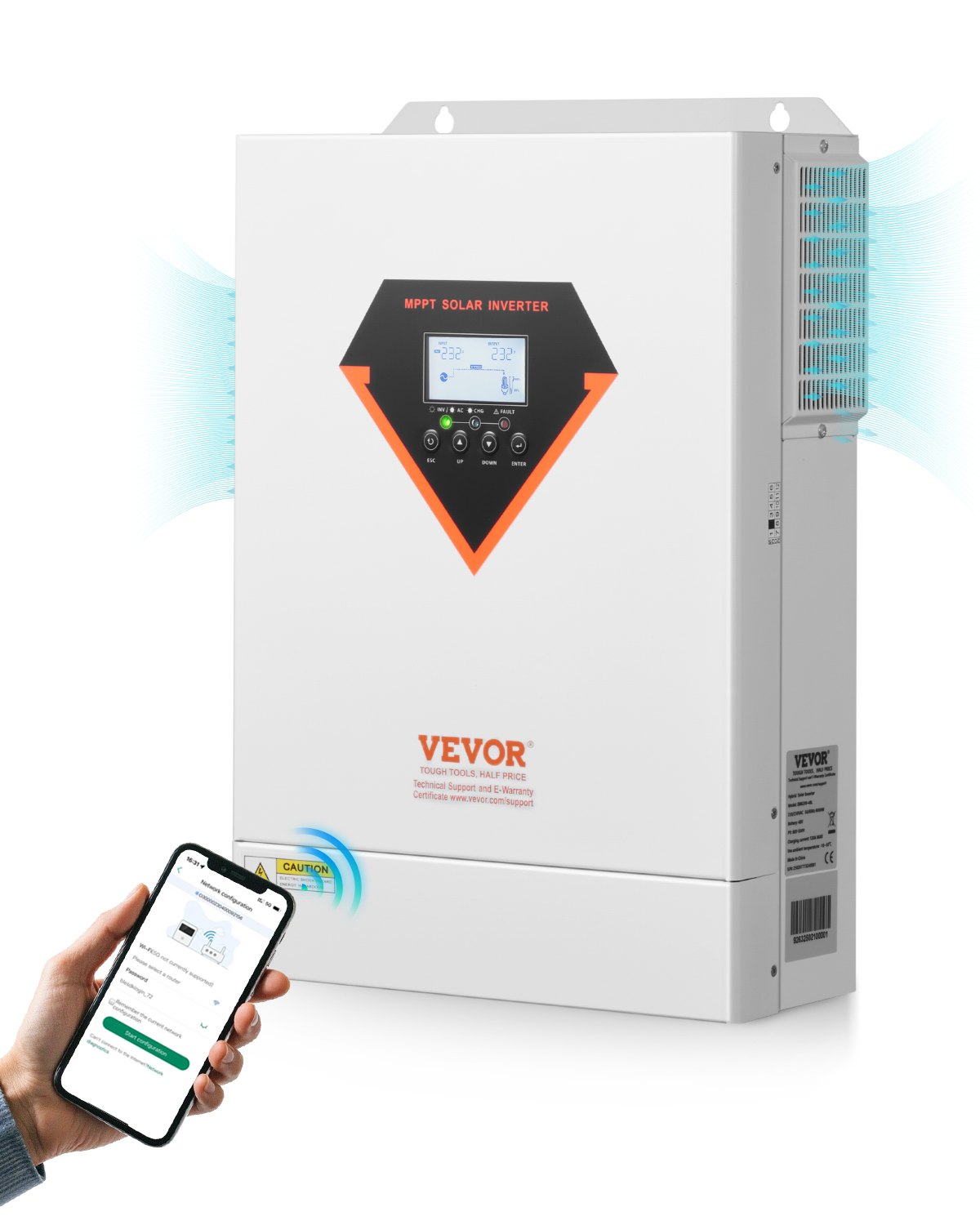

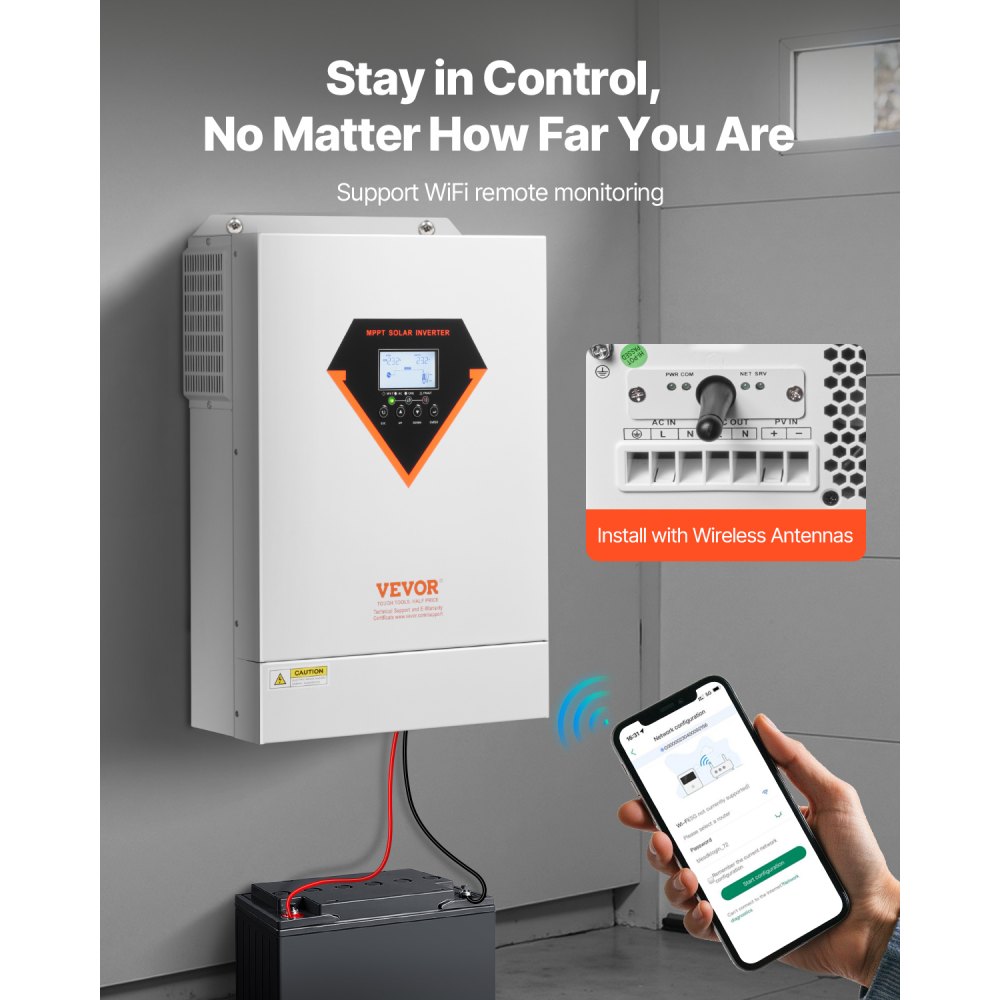

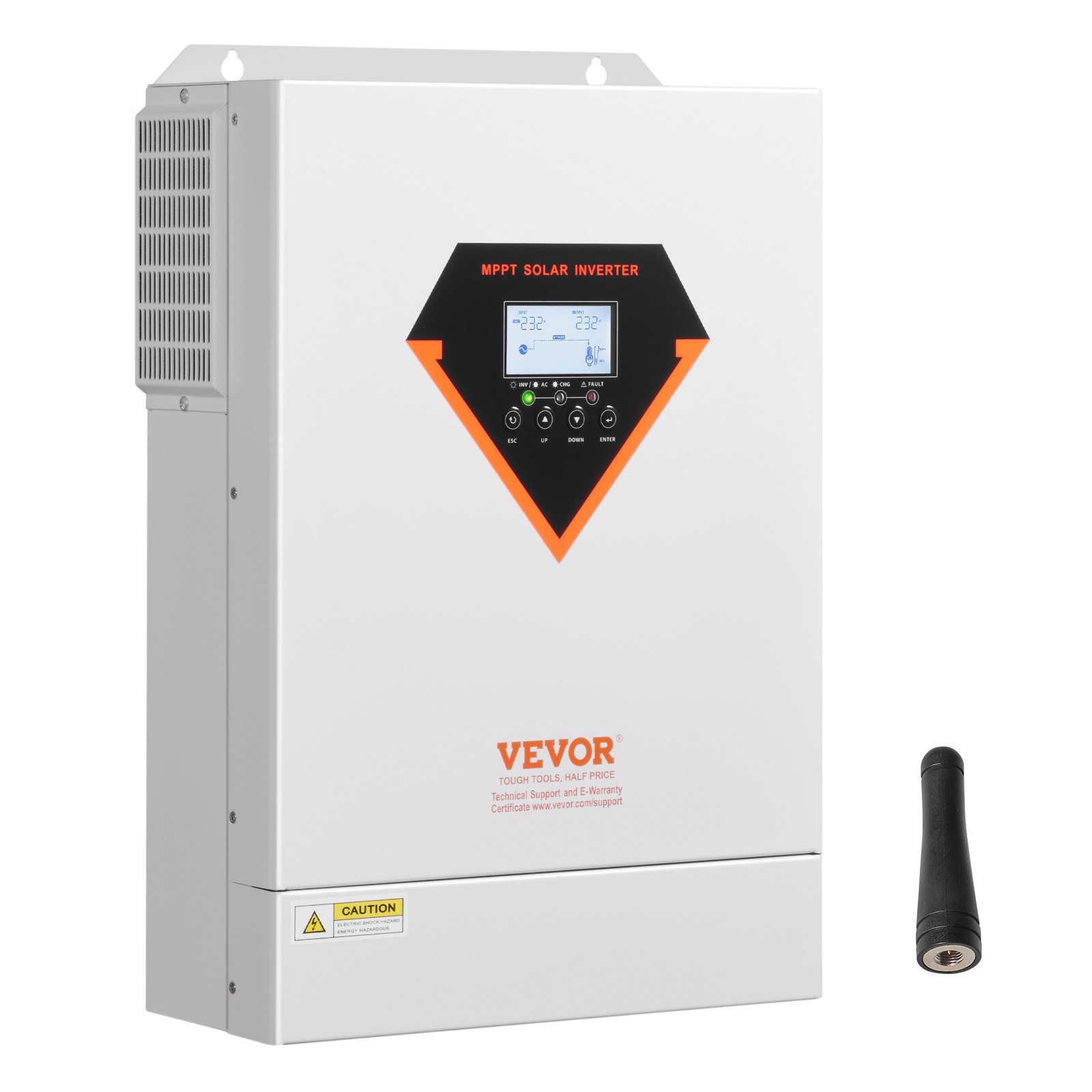

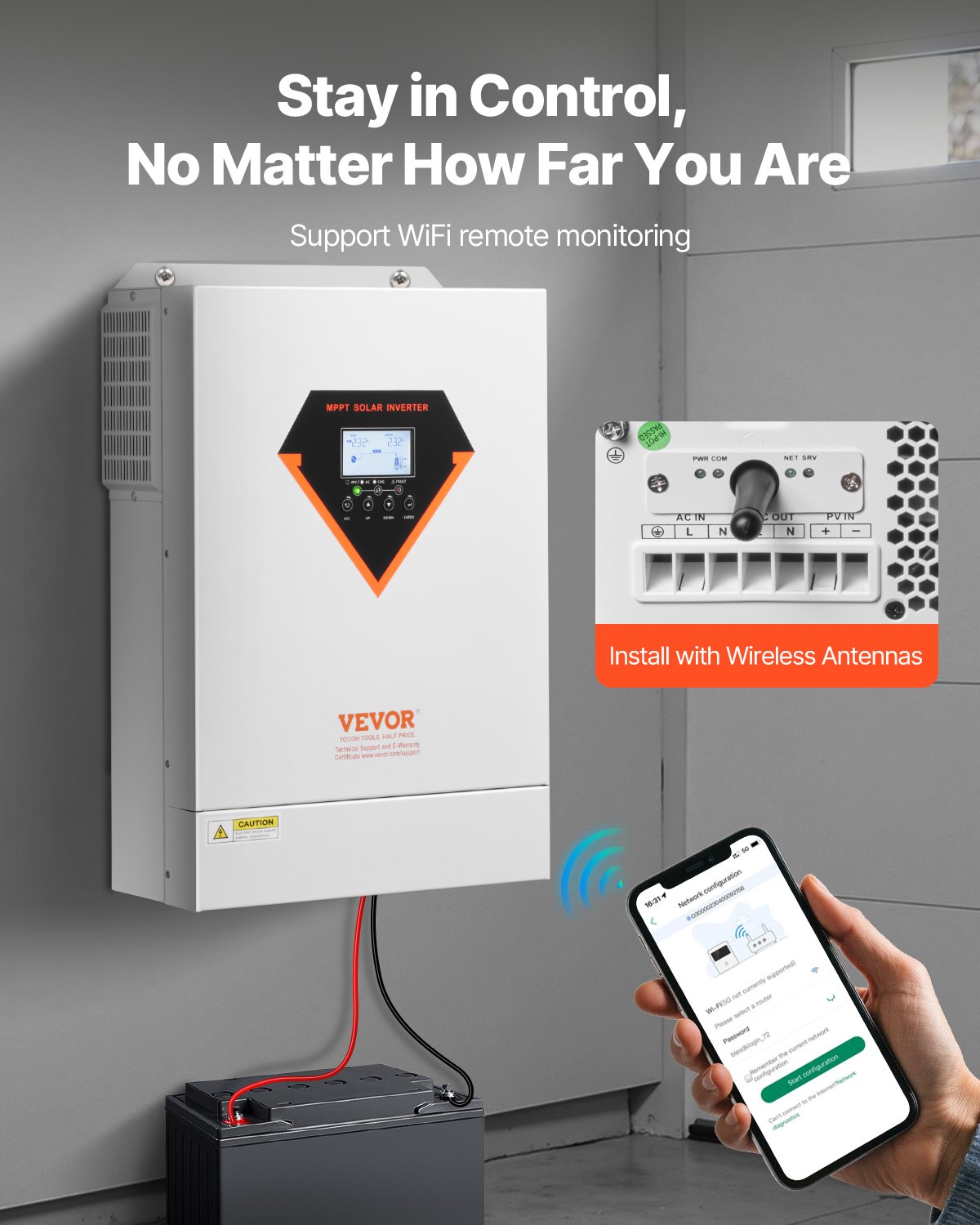

- Smart Monitoring, Stay In Control: With a built-in WiFi module, this solar power inverter allows for remote monitoring via WiFi, bringing excellent connection stability so you can track your system's status anytime, anywhere. Additionally, you can easily adjust different charging modes (Solar Only, Mains Only, or Solar & Mains hybrid charging) and output modes (UTL, SOL, SBU, and SUB) using the on-device buttons. Fit for powering most devices in your home or office

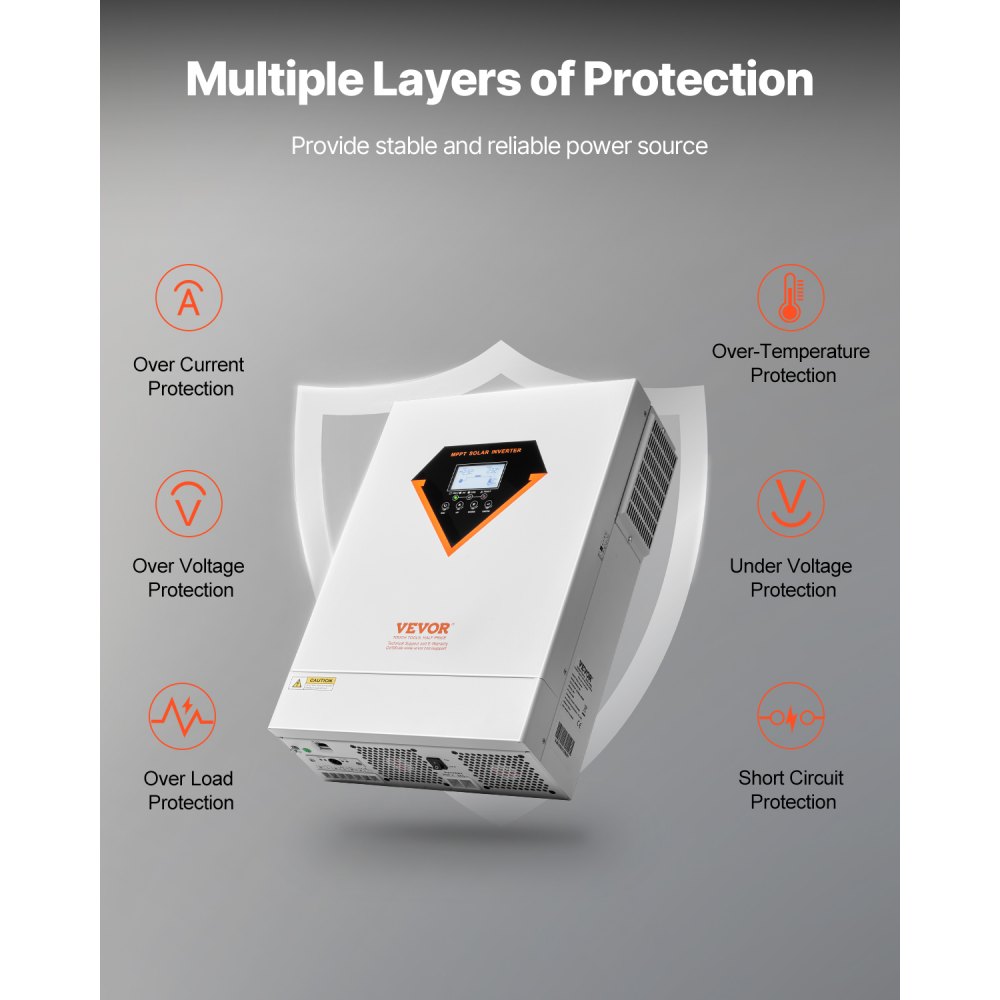

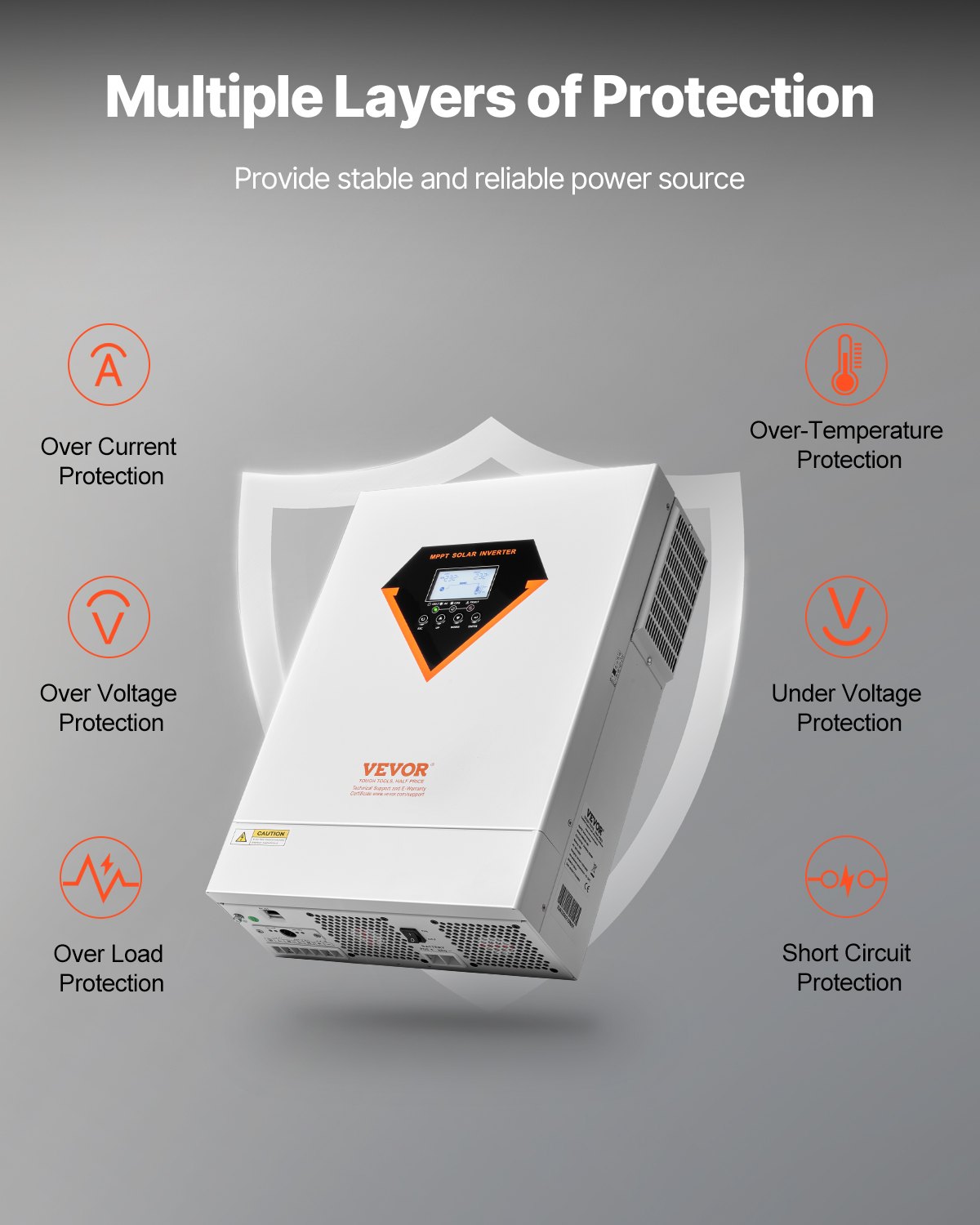

- Comprehensive Protection Features: Your system's security is our priority. This off grid hybrid solar inverter features multiple protection, including over-temperature, over current, over voltage, under voltage, short circuit, and overload protection, giving peace of mind to your circuit and power source
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 5.0
All reviews are from verified purchases
See all 1 reviews
About this item

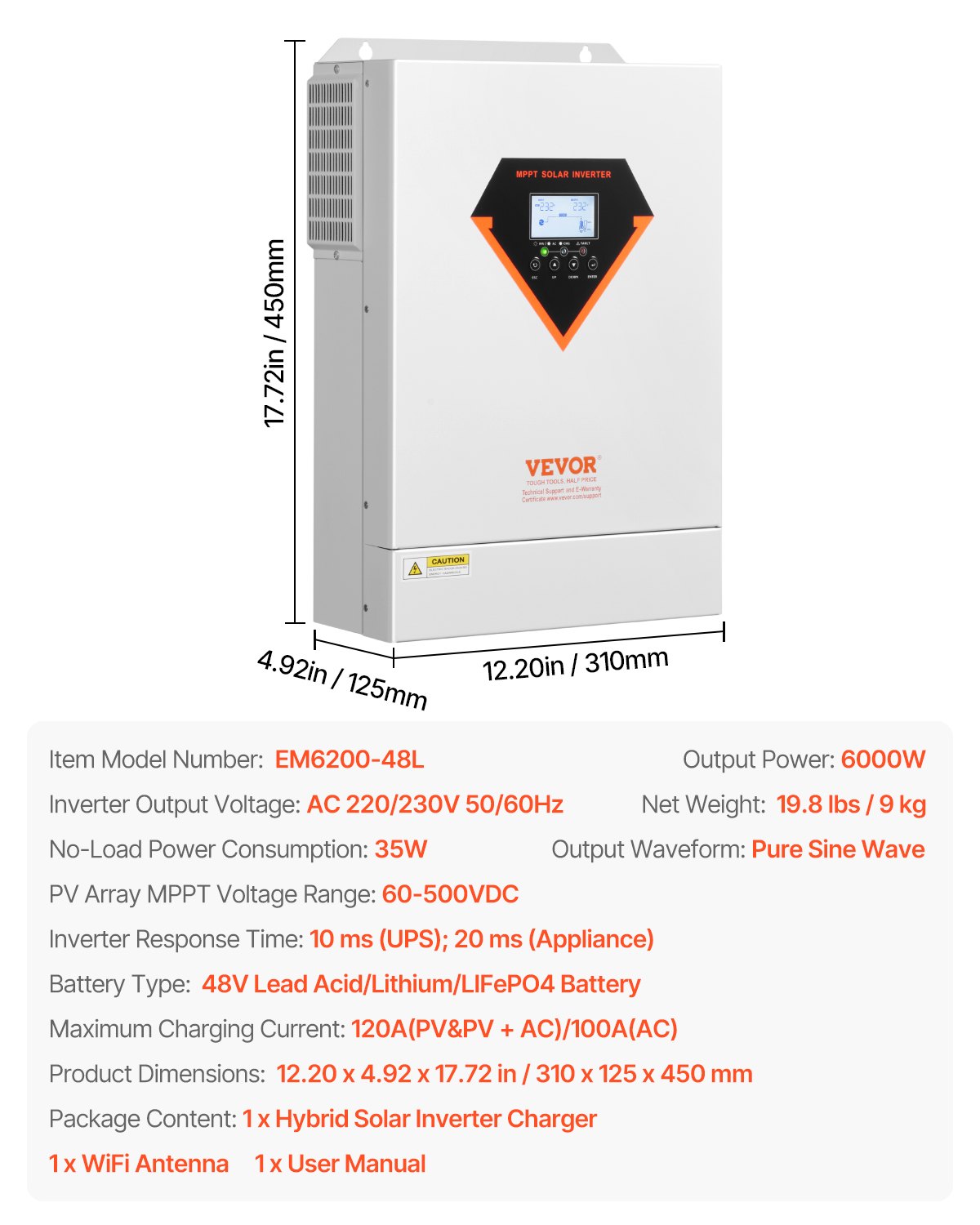

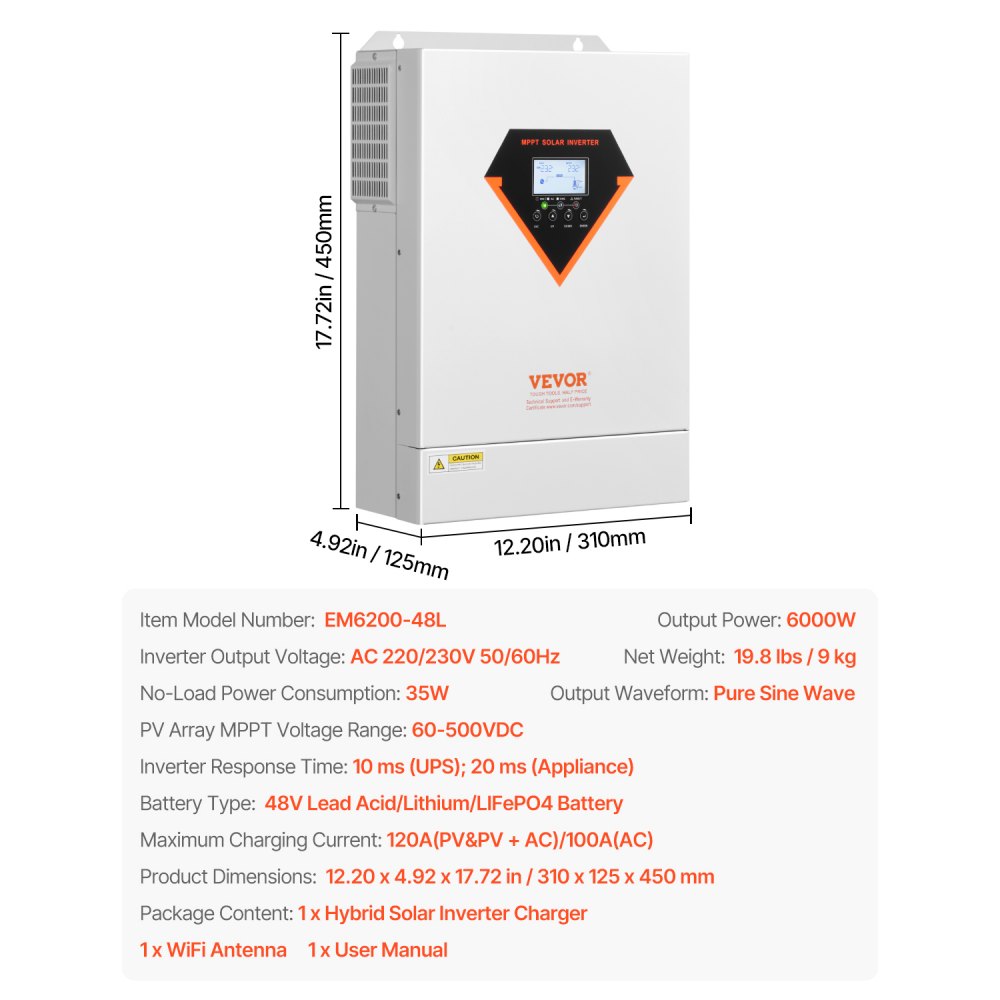

Product specification
- Item Model Number
- EM6200-48L
- Inverter Output Voltage
- AC 220/230V 50/60Hz
- Inverter Response Time
- 10 ms (UPS); 20 ms (Appliance)
- Output Waveform
- Pure Sine Wave
- Battery Type
- 48V Lead Acid/Lithium/LIFePO4 Battery
- Output Power
- 6000W
- Maximum Charging Current
- 120A (PV & PV + AC) / 100A (AC)
- PV Array MPPT Voltage Range
- 60-500VDC
- No-Load Power Consumption
- 35W
- Product Dimensions
- 17.72 x 12.20 x 4.92 in / 450 x 310 x 125 mm
- Net Weight
- 19.8 lbs / 9 kg
Description
6000W Hybrid Solar Inverter
Our 2-in-1 hybrid solar inverter controller delivers a 6000W pure sine wave output and boasts an impressive 12000VA peak performance. Advanced MPPT technology achieves up to 94% conversion efficiency. Compatible with lithium, lead-acid, and LiFePO4 batteries, it has lithium activation function.
Q: Does this hybrid solar inverter support parallel operation?
A: No, it does not support parallel operation.
Q: Are there any installation location requirements?
A: It is not waterproof, so it should be installed in a well-ventilated indoor area or a sheltered location away from rain.
Q: Can I monitor the solar power generation via my phone?
A: Yes, it comes with a built-in WiFi chip and APP support, allowing you to monitor the system's power generation and energy storage status anytime, anywhere.
Q: Can this inverter directly power 110/120V US appliances?
A: No. This is a single-phase 220V output inverter that cannot output 110V. You can add a transformer (not included) to step down 220/240V AC to 110/120V AC for powering 110/120V US home appliances. Contact us if you have any questions.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (9)
is het mogelijk om 2 van deze omvormers parallel aan te sluiten om 1 grote batterij te laden?
Bedankt voor uw vraag over het aansluiten van twee omvormers in parallel om één grote batterij te laden. Helaas is het niet mogelijk om deze omvormers parallel aan te sluiten voor dit doel.
By vevor
Helpful
(
0
)
Wat is het maximale vermogen dat je uit een accupack kunt halen.
Het maximale vermogen dat uit het accupakket kan worden gehaald is 6200W.
By vevor
Helpful
(
0
)
Kan deze hybride-omvormer 6kW aangesloten op fotovoltaïsche cellen (voorlopig) worden gebruikt zonder een batterij-systeem?
In welke modus dient de apparatuur worden ingesteld?
Dient er buiten een 48V LiPO4-batterij met intelligente BMS nog extra toestellen aangekocht worden voor de energieopslag met batterij
Kan in batterijloze modus werken, geen instellingsmodus nodig. Naast lithium-accu's zijn er ook andere soorten accu's verkrijgbaar, zoals loodzuuraccu's, gel-accu's en wateraccu's.
By Vevor
Helpful
(
0
)
als ik de batterij gebruik staatn hij toch ook in verbinding met het net? of niet?
Hij kan tegelijkertijd op de accu en netstroom worden aangesloten
By Vevor
Helpful
(
0
)
Kan vanuit de batterij teruggeleverd worden aan het net?
Sorry, nee. Alleen overtollige PV-energie kan in het net worden gevoerd. De eerste prioriteit van een thuisopslagomvormer is om ervoor te zorgen dat uw batterij is opgeladen en klaar is om aan uw elektriciteitsbehoeften te voldoen.
By Vevor
Helpful
(
0
)
