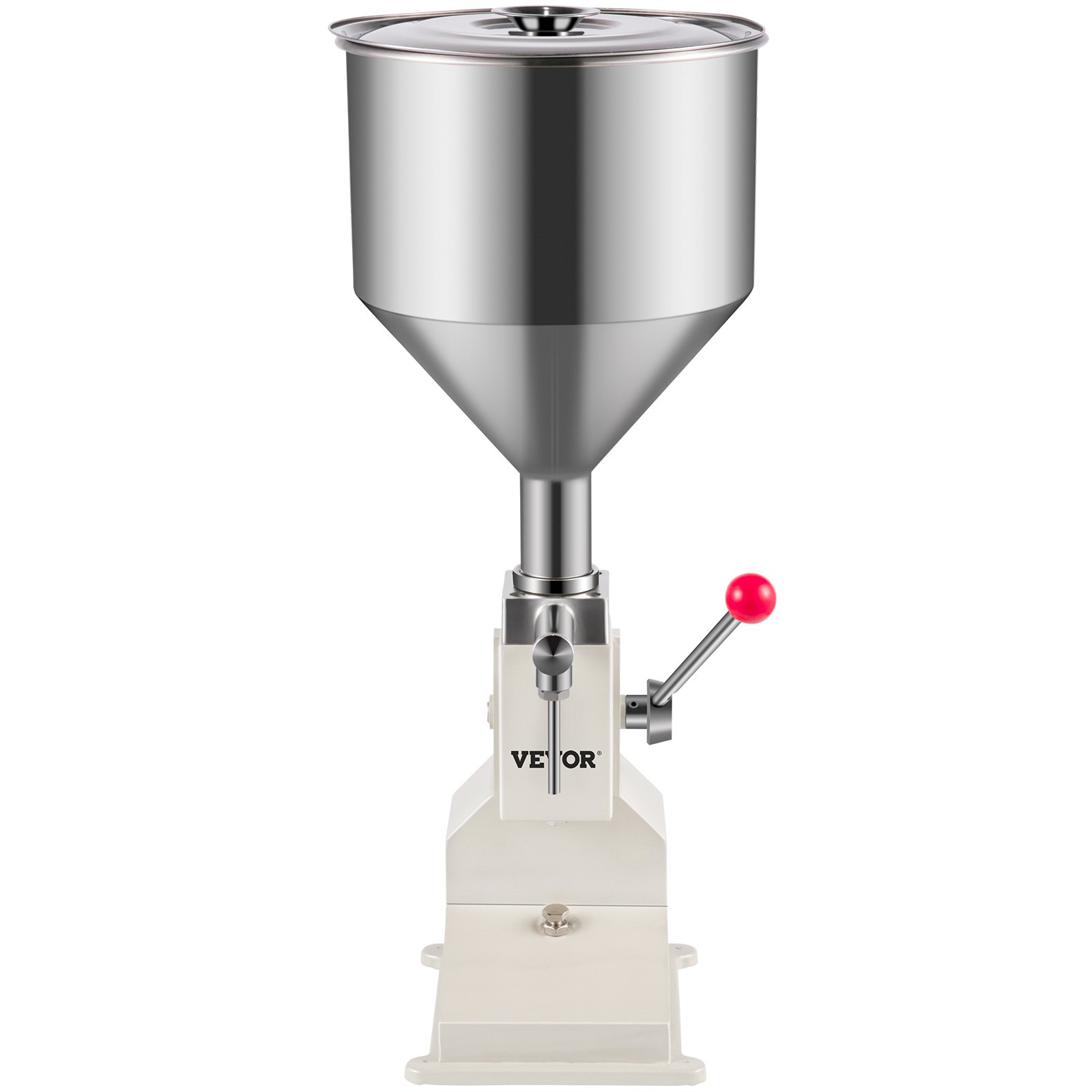

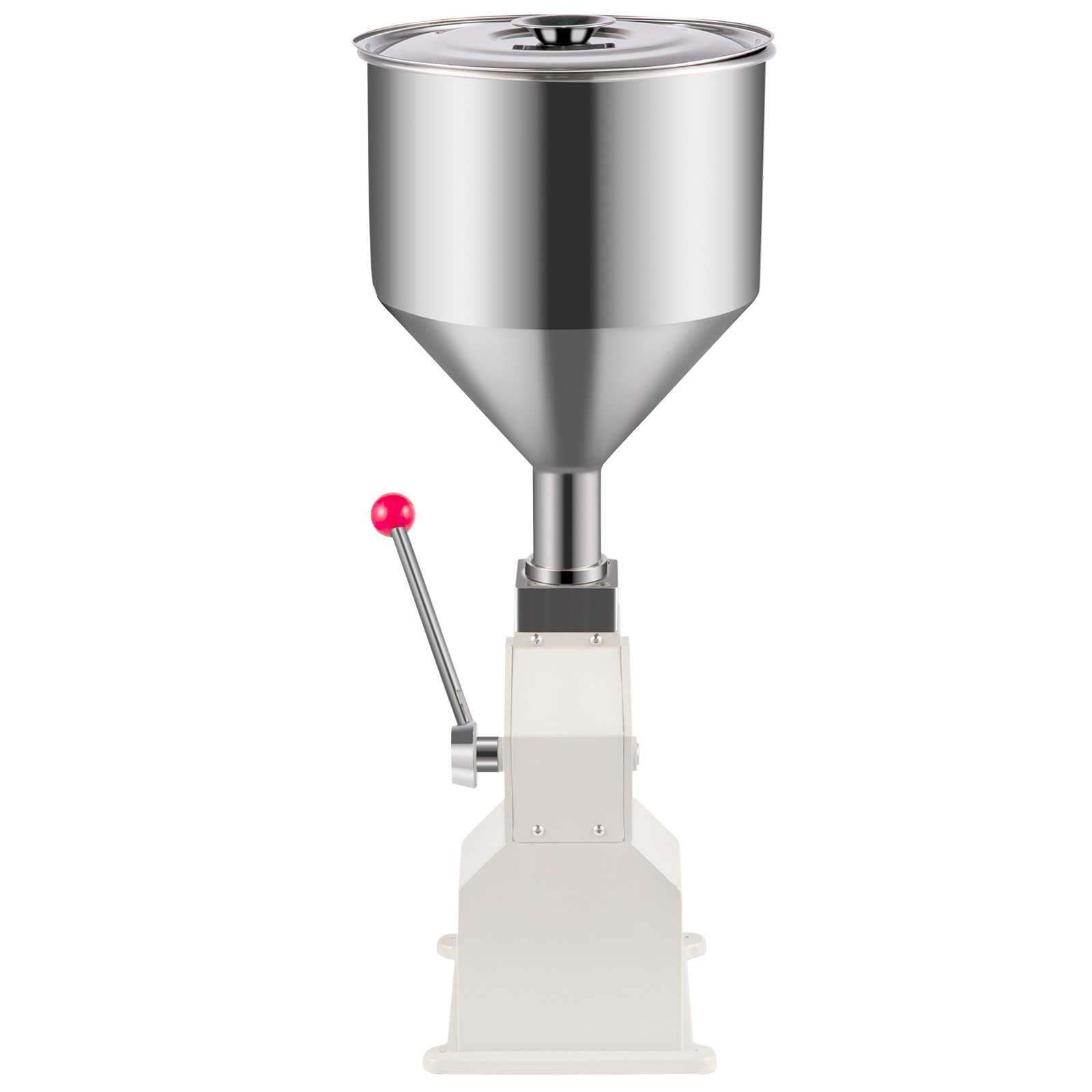

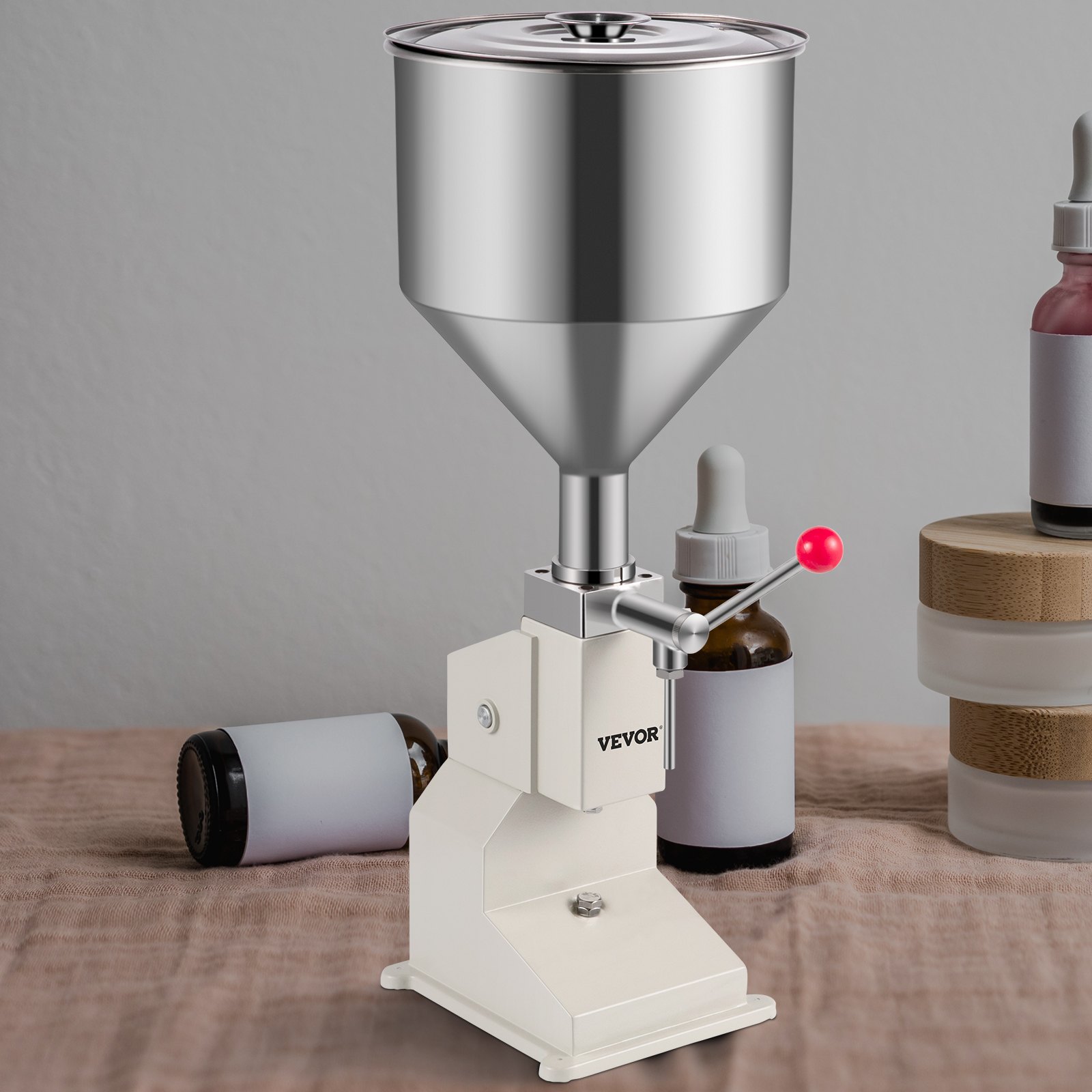

A03 Manual Liquid Filling Machine
Anti-Drip Design & 0.17-1.7 oz/5-50 ml Filling & Easy to Clean
This manual filling machine adopts a piston-type structure, suitable for 0.17-1.7 oz/5-50 ml quantitative filling. Filling accuracy: +/- 1%. This product can be used for liquid and also paste with good fluidity. It can apply to pharmaceutical, cosmetic, pesticides, and particular industries.
- Friendly Note: it is suitable for objects with low viscosity, such as liquid, shampoo, body wash, etc.

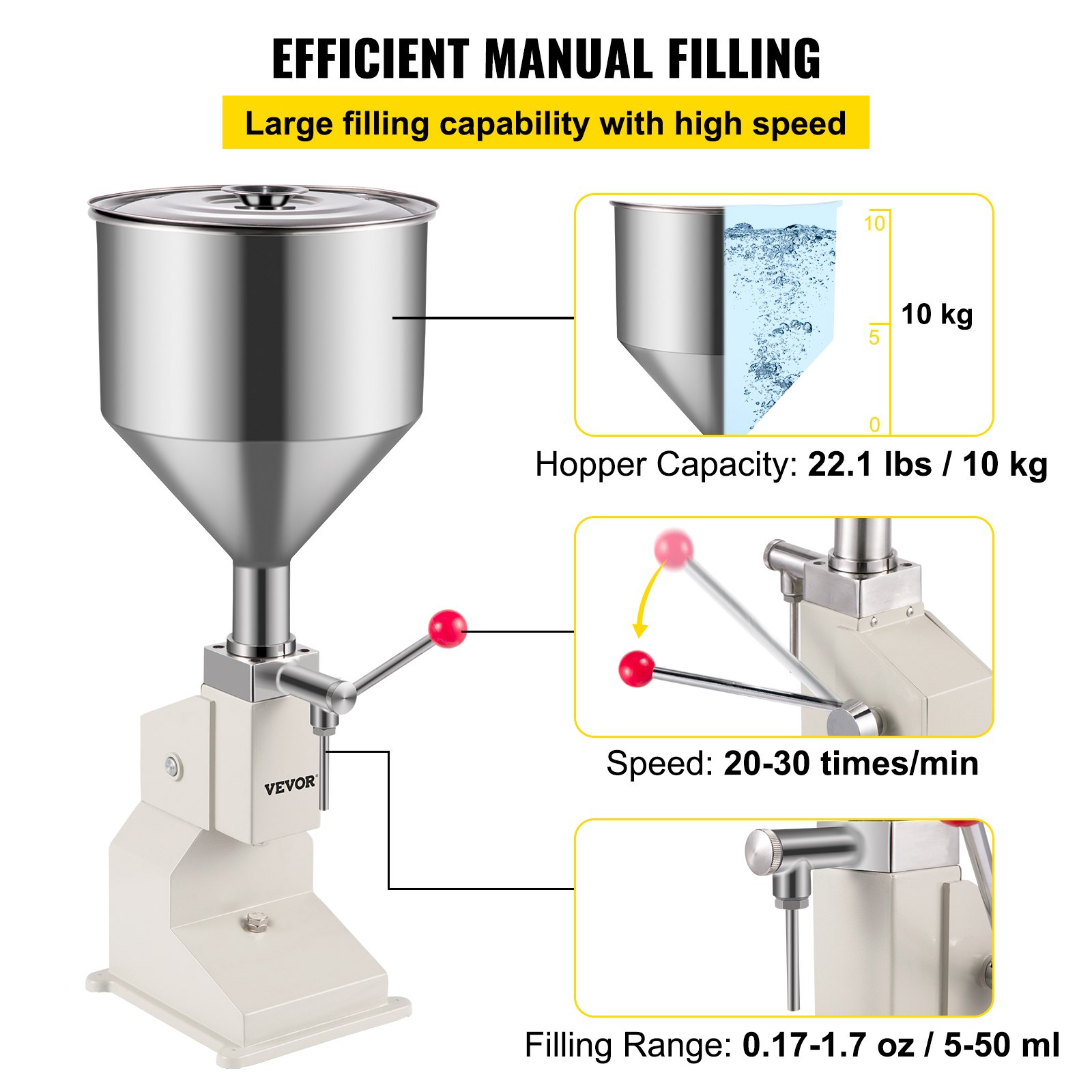

- Efficient Manual Filling
- Stainless Steel Structure
- Reasonable Design
- Easy to Operate
Large Capacity Filling
This liquid filling machine is equipped with 22 lbs/10 kg large capacity hopper. The filling speed is 20-30 times/minute, and the filling volume is 0.17-1.7 oz/5-50 ml. Those adjustable speeds and volumes are changed from your needs.

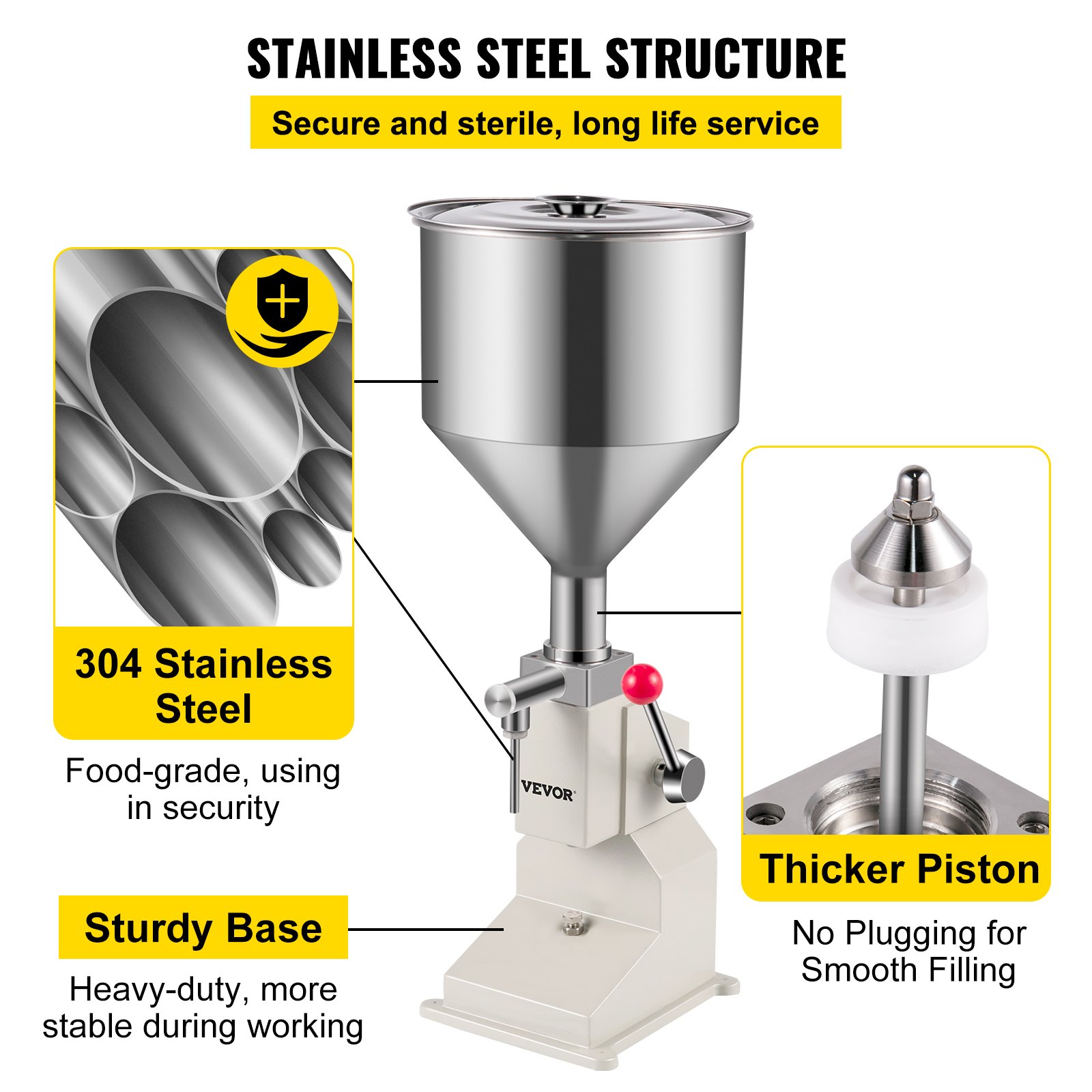

304 Stainless Steel
Our manual filling machine is made of 304 stainless steel. The food-grade material is anti-corrosion and wear-resistances, easy to clean and maintain. The solid base keeps sturdy, supplies a stable working environment.

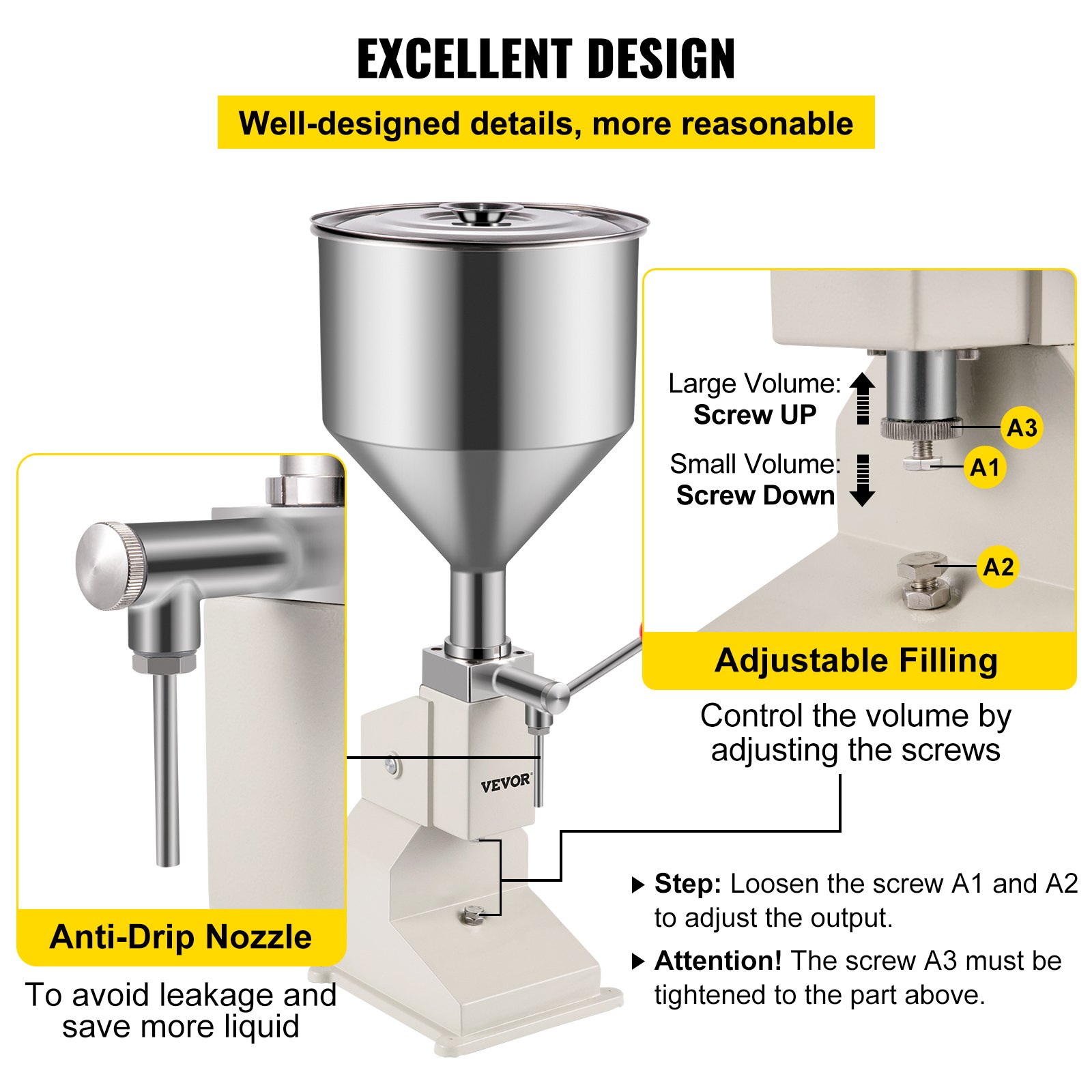

Anti-Drip Filling Nozzle
A high-quality anti-drip filling nozzle, made of premium steel, is not easily plugged, ensuring the automatic liquid filling machine has an accurate and efficient filling. Filling accuracy: +/- 1%, save more liquid during operation.
Adjustable Filling Volume
With the filling volume regulator knob, quantitative discharging, filling volume, and filling speed can be controlled. Turn the regulator knob clockwise or anti-clockwise to find your needed filling condition.
Simple Operation
After connecting the air compressor, adjust the filling condition, don't forget to press the on/off button to turn on the machine, then use the pedal switch to control and finish the filling. This liquid filler machine is convenient to operate.

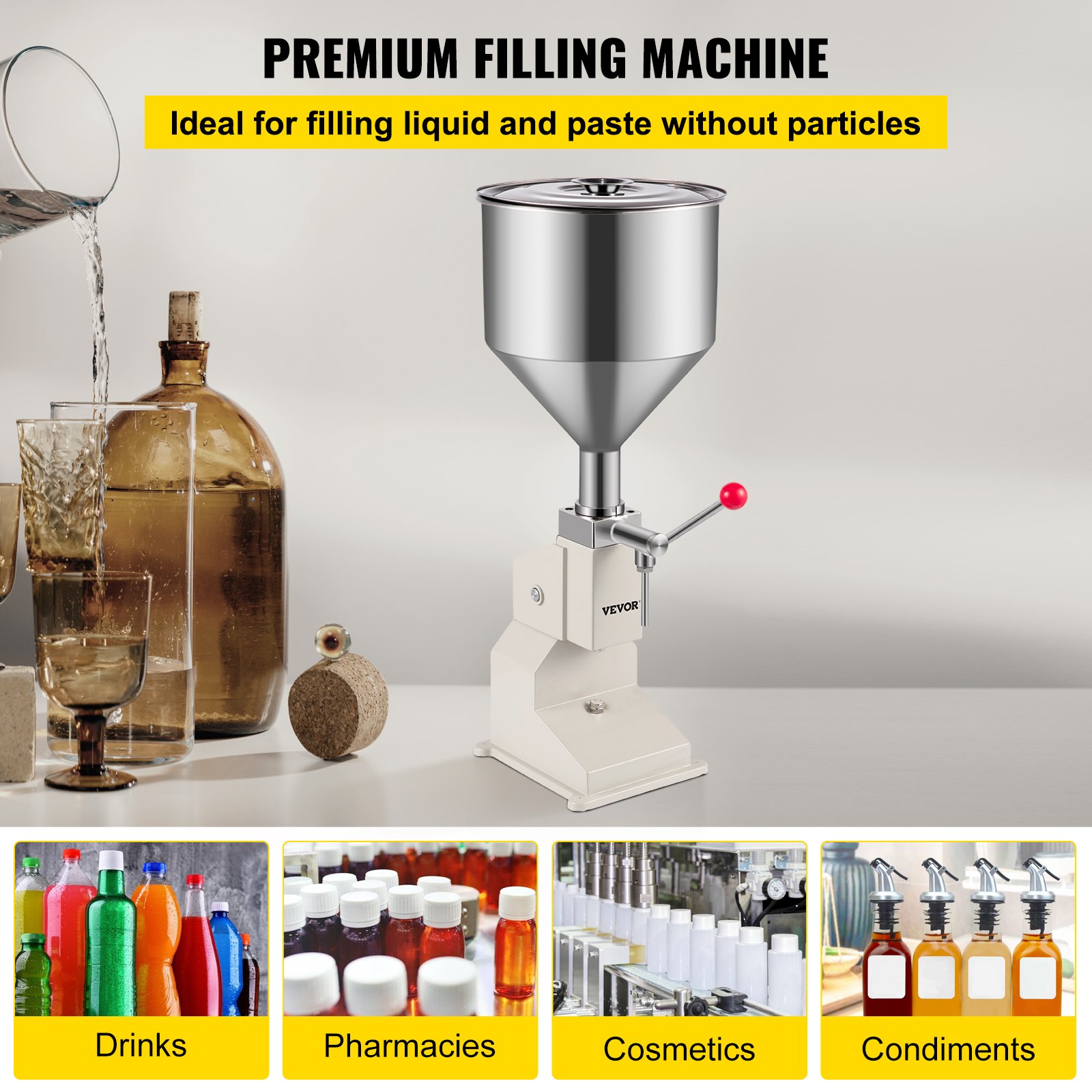

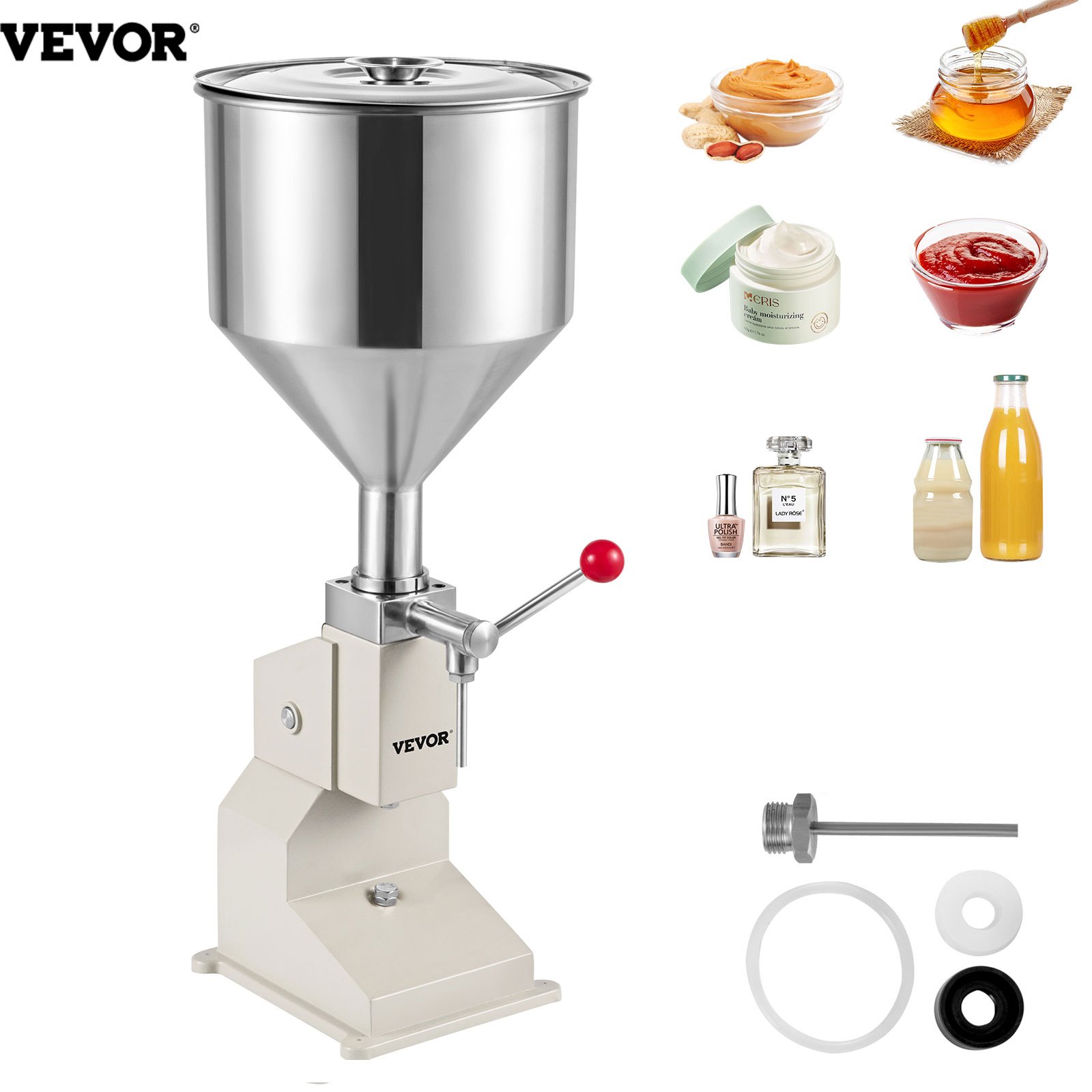

Wide Application
This pneumatic liquid filling machine is perfect for filling liquid, oil, shampoo, liquid substance without particles. Applicable to the pharmaceutical, cosmetic, and other industries, it is the ideal paste liquid filling equipment.

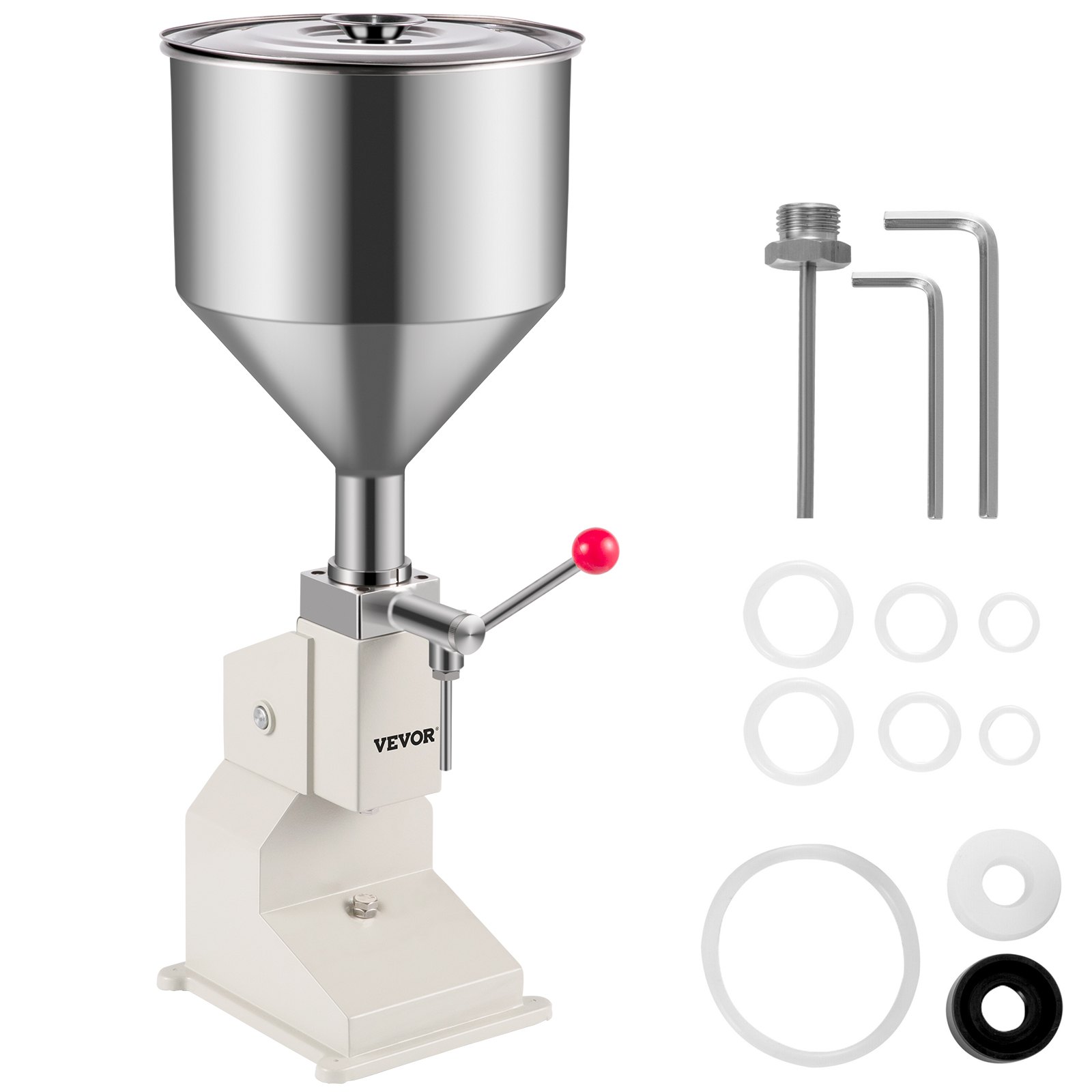

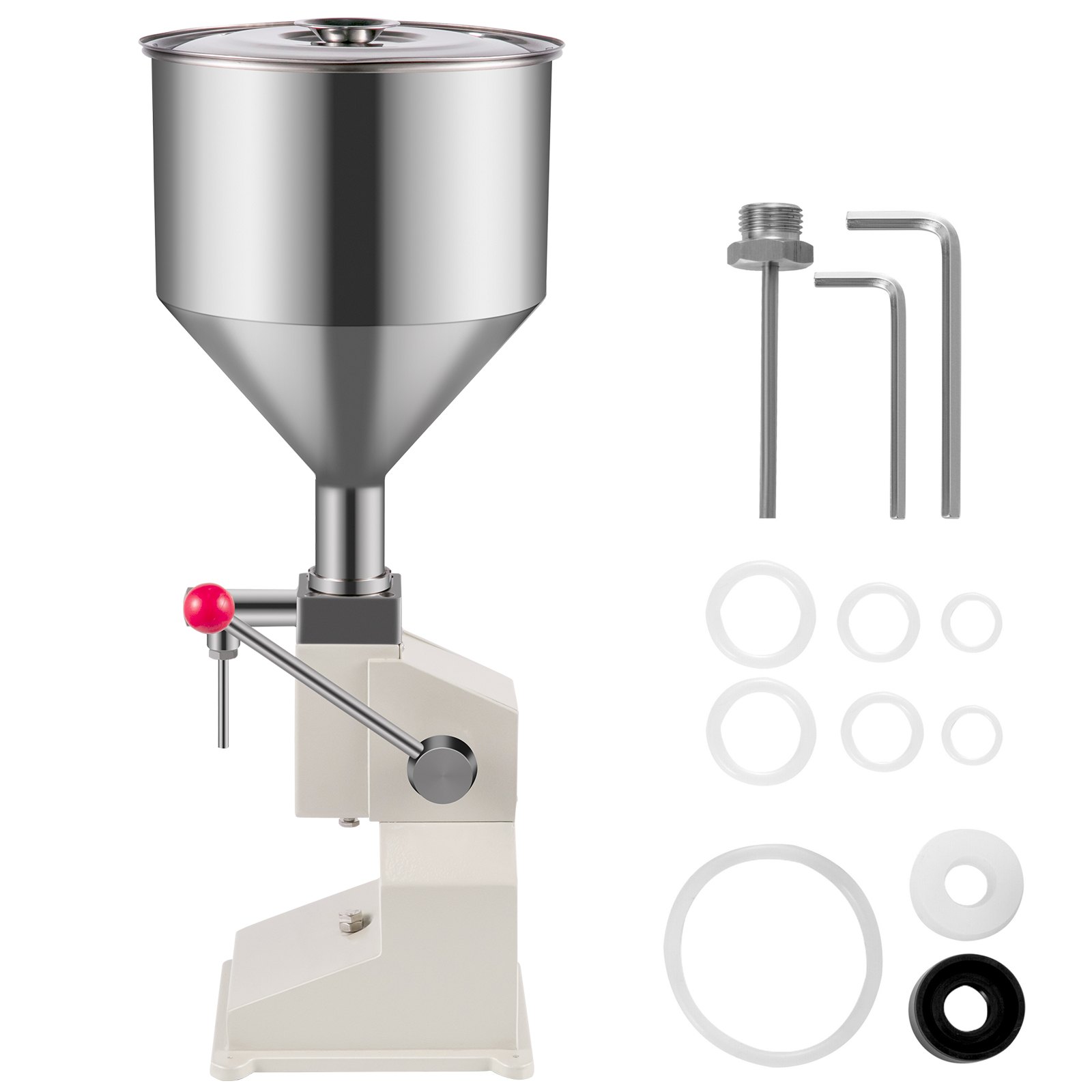

- 1 x A03 Manual Filling Machine
- 1 x Nozzle(Inside diameter 6 mm, outside diameter 8 mm)
- 5 x O-Rings
- 1 x Screwdriver
- 1 x Guide Manual
- Model: A03
- Material: Stainless Steel
- Filling Range: 0.17-1.7 oz / 5-50 ml (adjustable)
- Capacity of Hopper: 22 lbs / 10 kg
- Height Range: 7.87 in / 20 cm
- Bottle Diameter Range: 0.12-0.6 in / 3-15 mm
- Filling Accuracy: ±1%
- Speed: 20-30 times/min

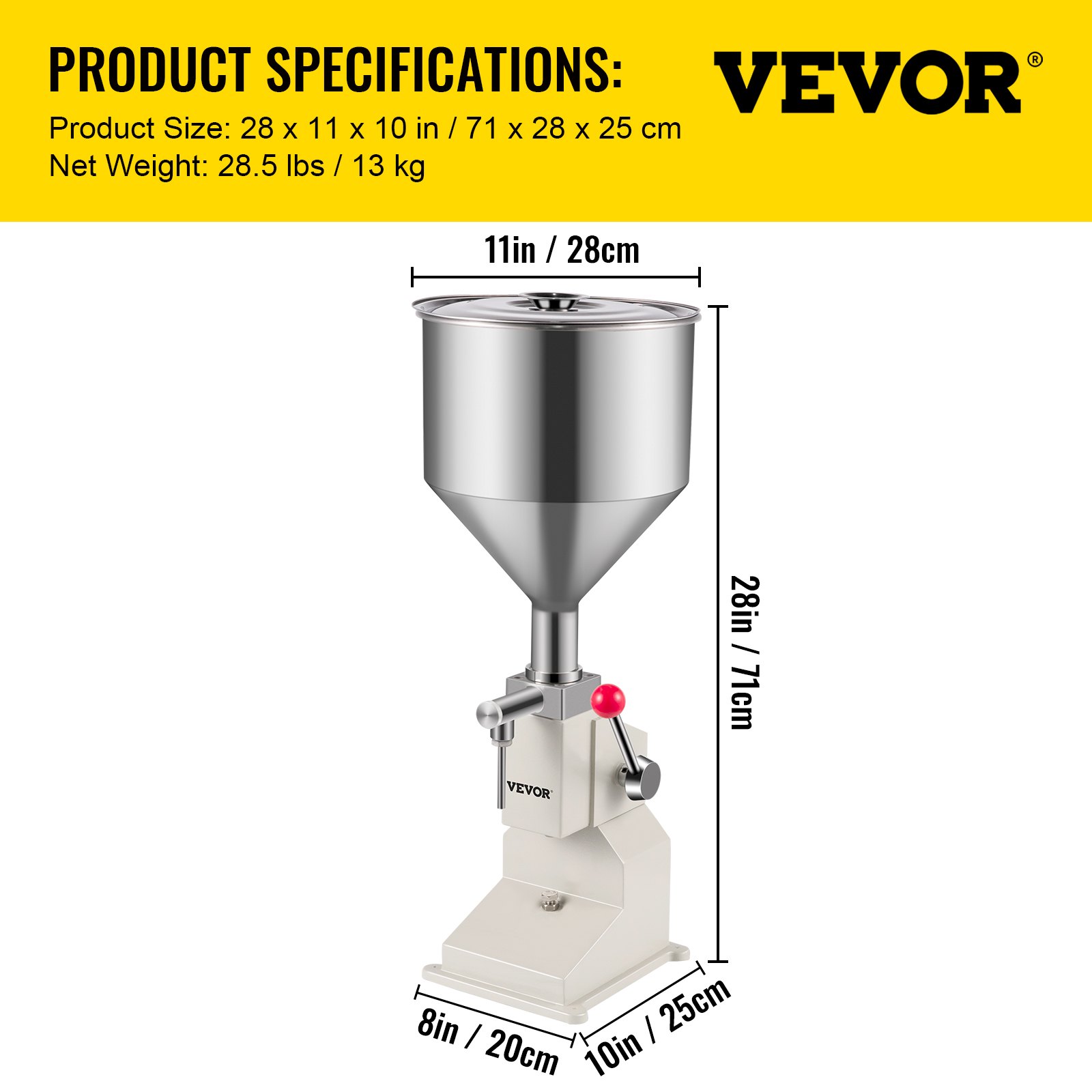

- Machine Size: 10.6 x 10.6 x 27.5 in / 27 x 27 x 71 cm
- Packing Size: 13.4 x 13.4 x 31.1 in / 34 x 34 x 79 cm
- Net Weight: 28.5 lbs / 13 kg
- Gross Weight: 37.5 lbs / 17 kg
- Filling Material: Paste liquid with good fluidity(cosmetic, cream, shampoo)
- Wire Thickness of Spring: 2 mm
- Spring Length: 110 mm
- Spring Diameter: 15.7 mm
