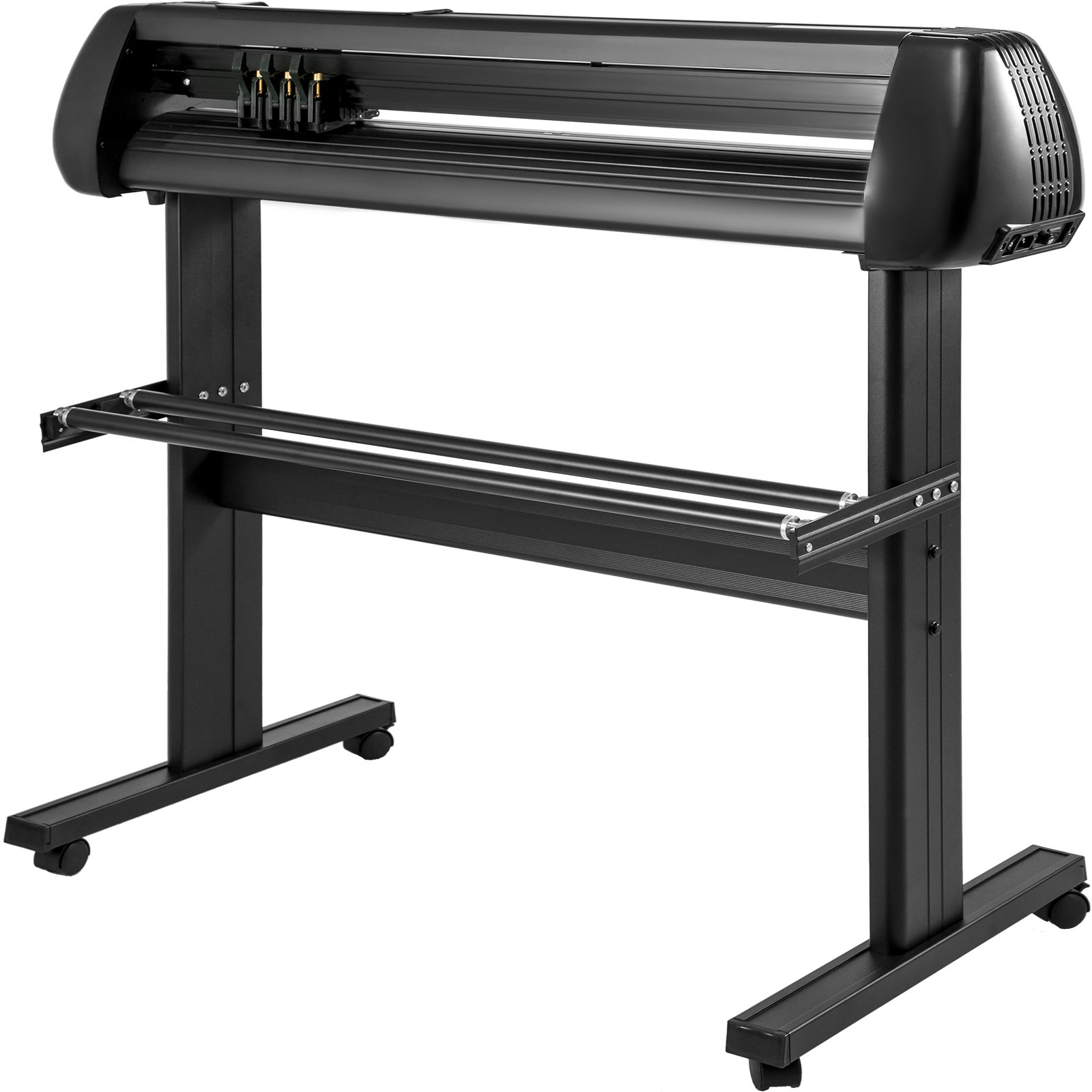

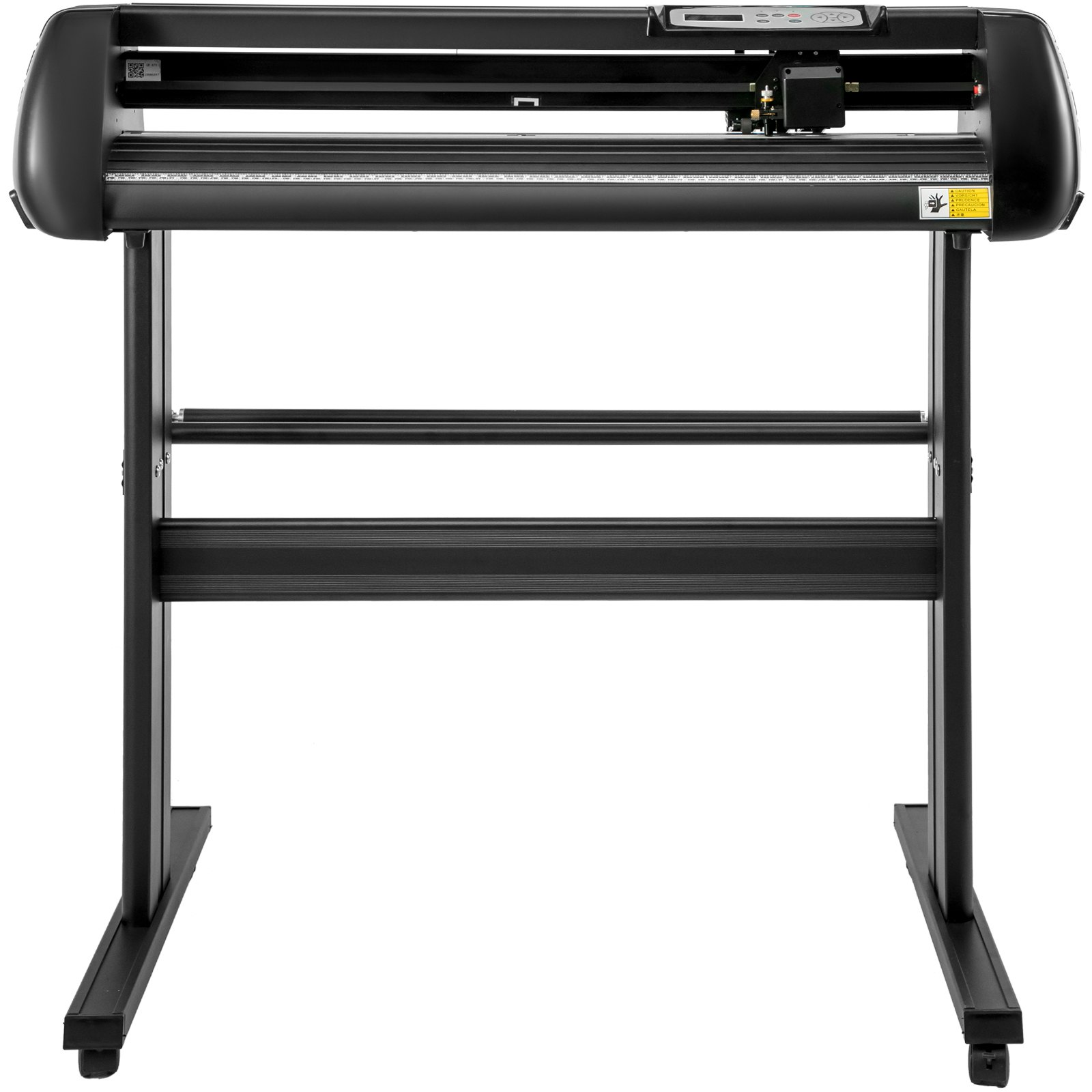

28 Inch Vinyl Cutter Plotter
Large Cutting Width & Excellent Performance & Wide Paper Feed
This 28" Professional Vinyl Cutting Plotter comes with an easy-to-use and flexible design, which allows you to cut customized labels and signs. Adjustable speed and force is available by the touch of a button. Suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
- Premium Quality
- High-precision Operation
- Dual Roller System
- Superior Compatibility
- Wide Application
Accurate Cutting

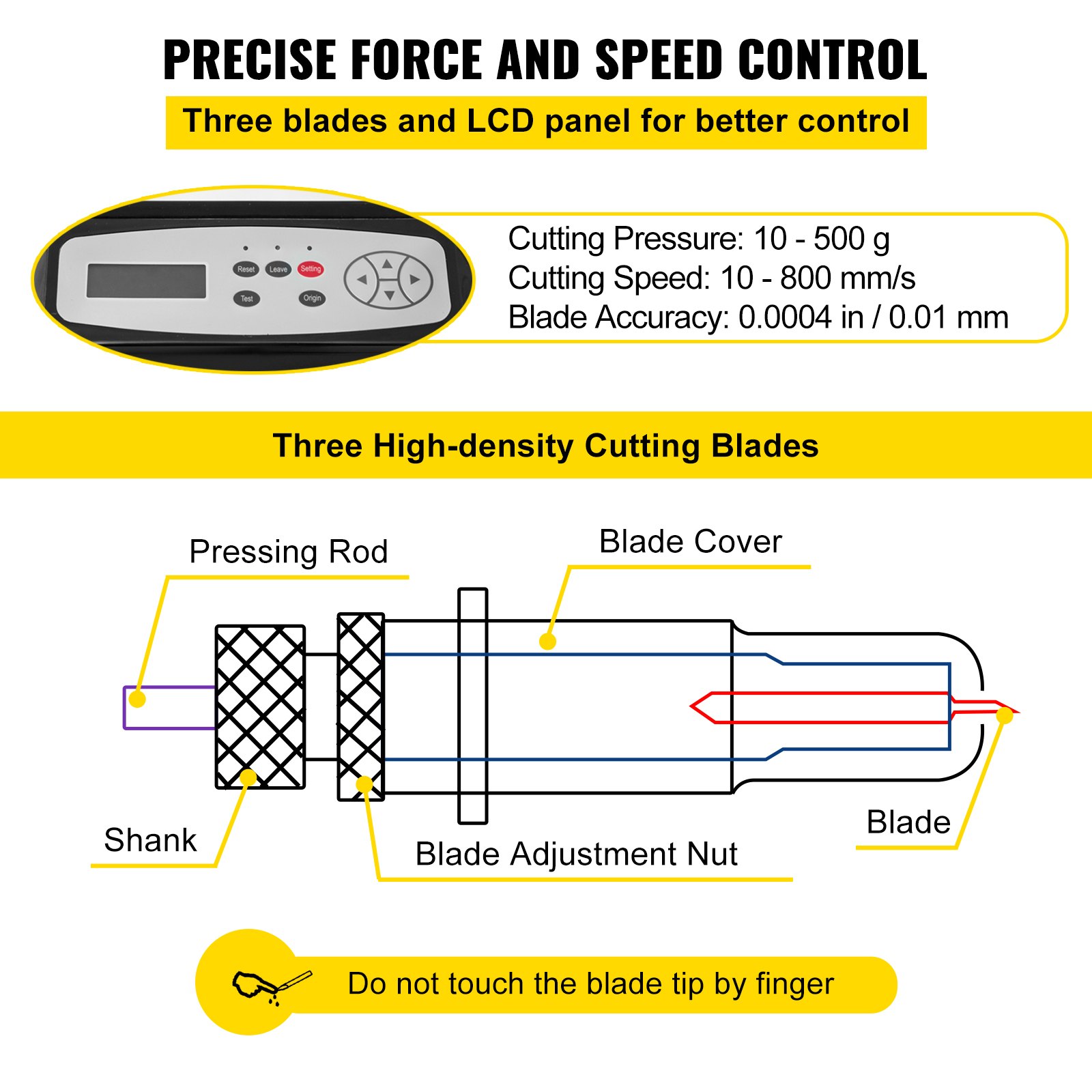

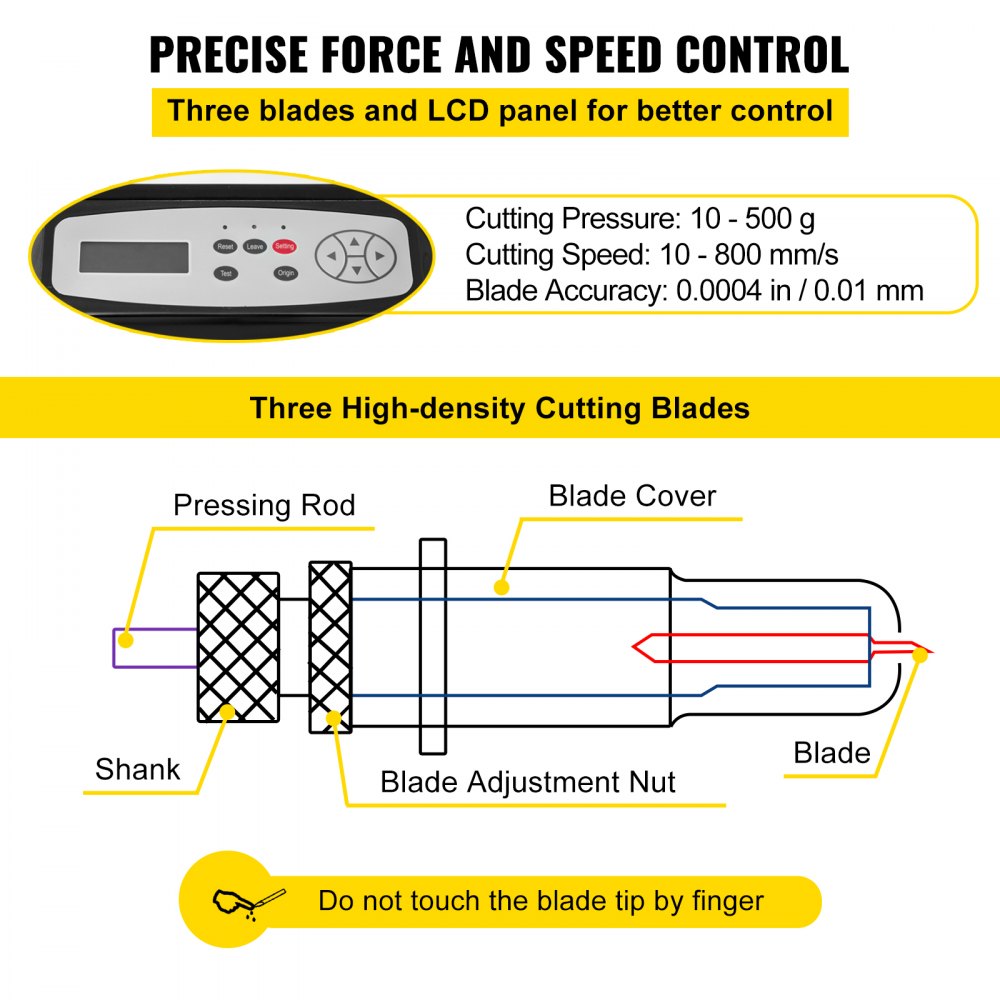

The ruler guide is integrated for easier measurements, and the 3 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included Biro pen component to sketch out your design before cutting.
Flawless Cutting Alignment

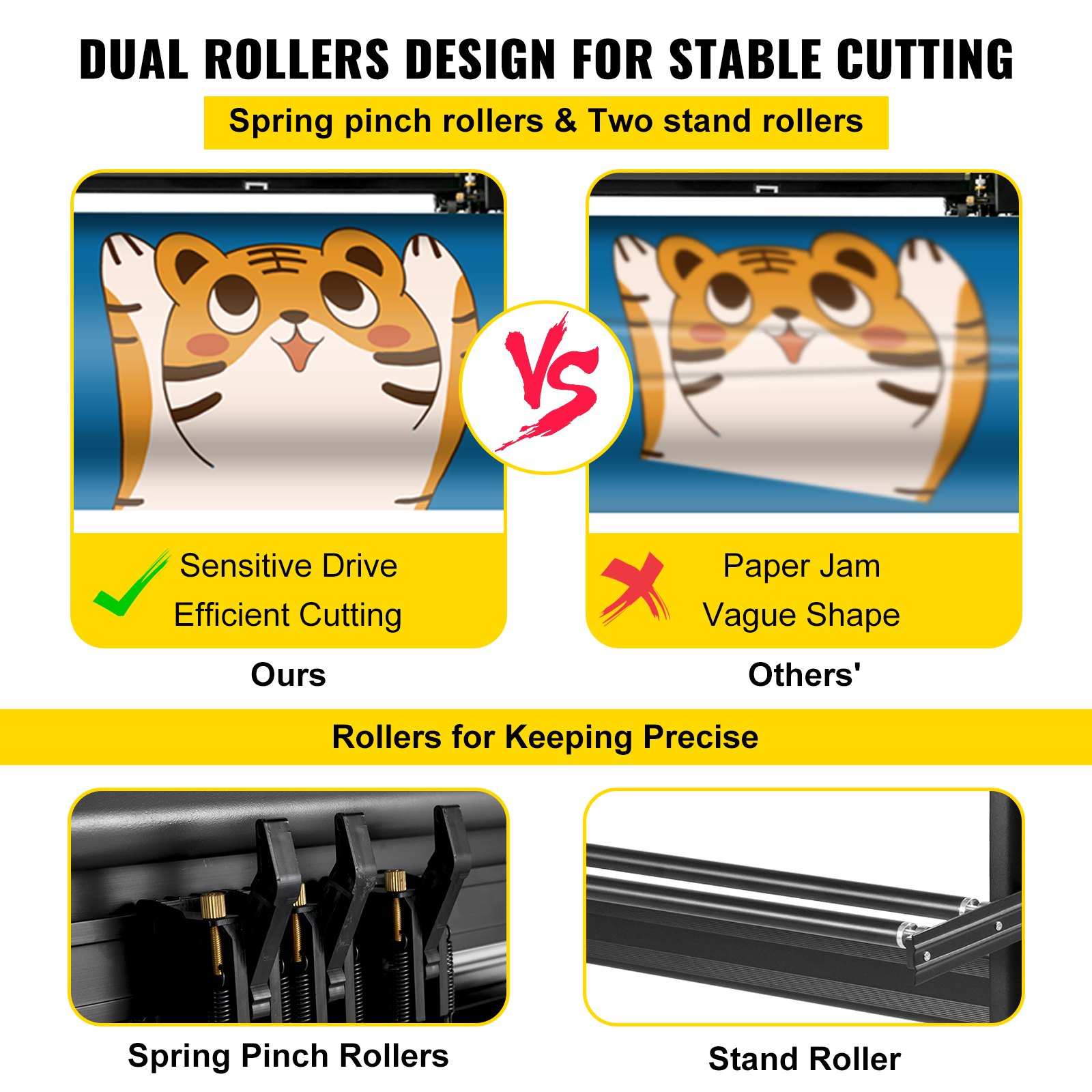

Rear-mounted adjustable double-spring pinch rollers, aluminum knurling stick, high precision pressing wheels, and scale line are integrated for an easier slice through various thicknesses of vinyl materials. Besides, it ensures the vinyl plotter feeding paper steadily without paper jam.
Digital LCD Display
The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a maximum cutting speed of 800 mm/s and 500 g cutting force.

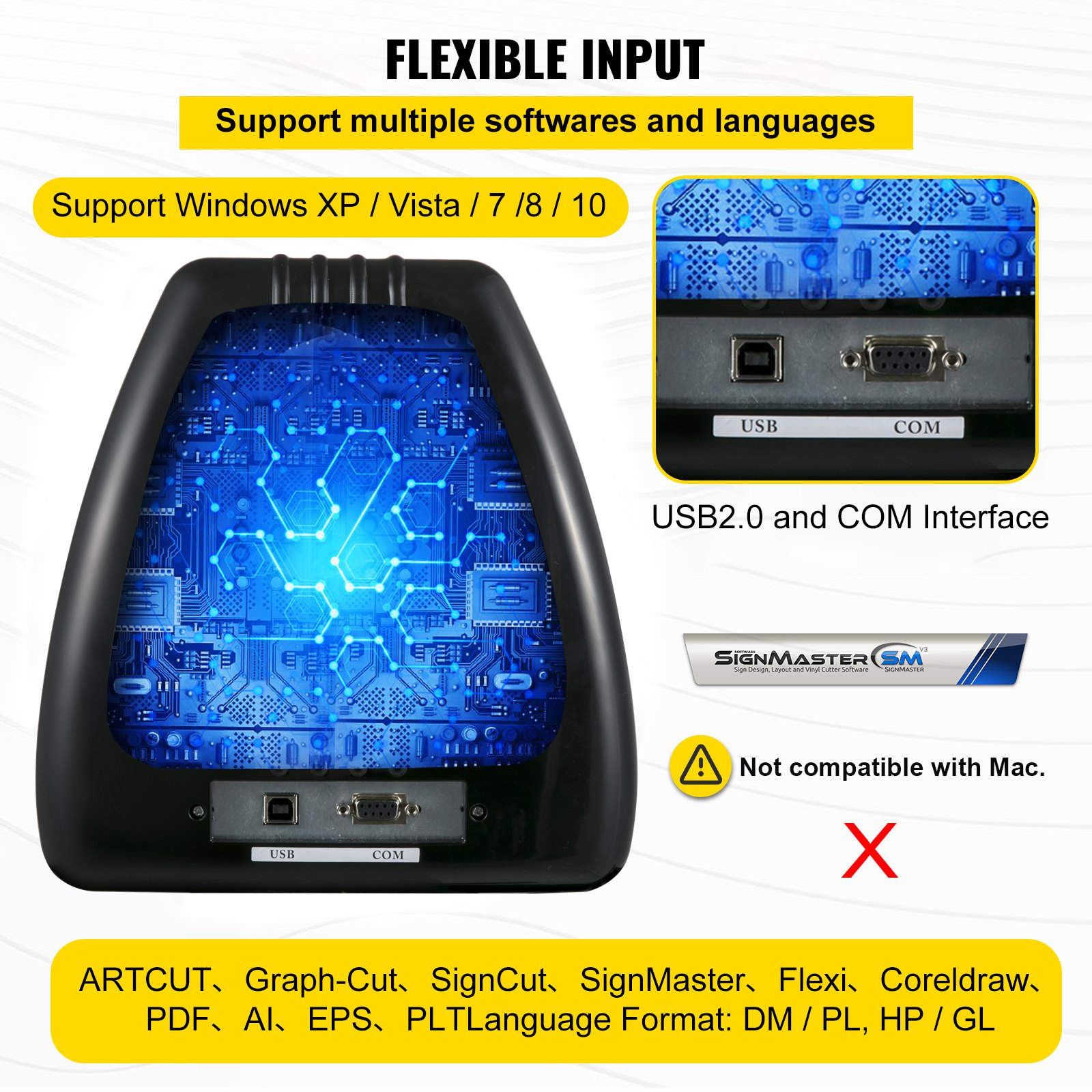

USB and COM Interface
Connect the vinyl plotter through two available ports, COM and USB. Included SignMaster software is compatible with Windows XP / VISTA / 7/ 8 / 10. NOT compatible with the Mac system.

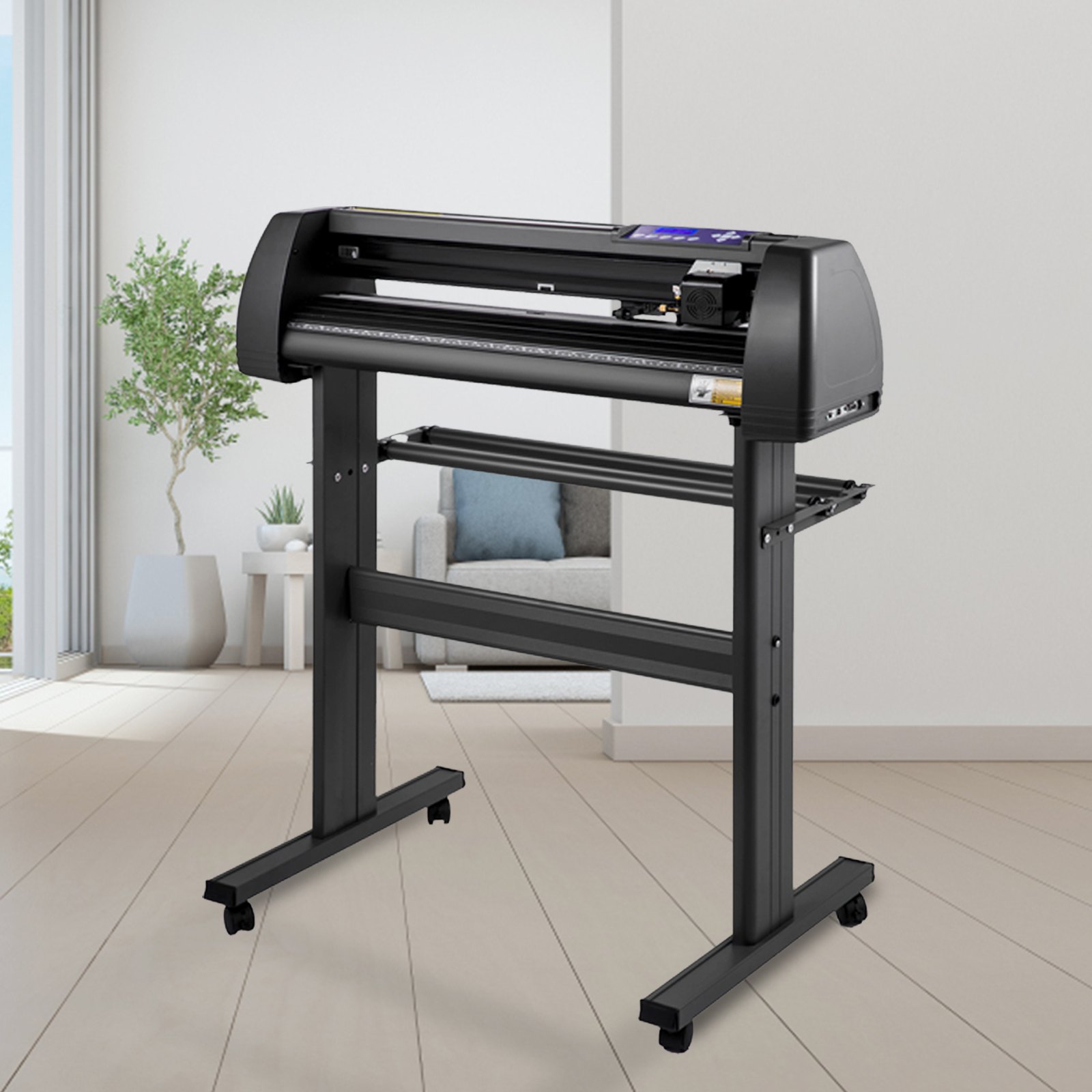

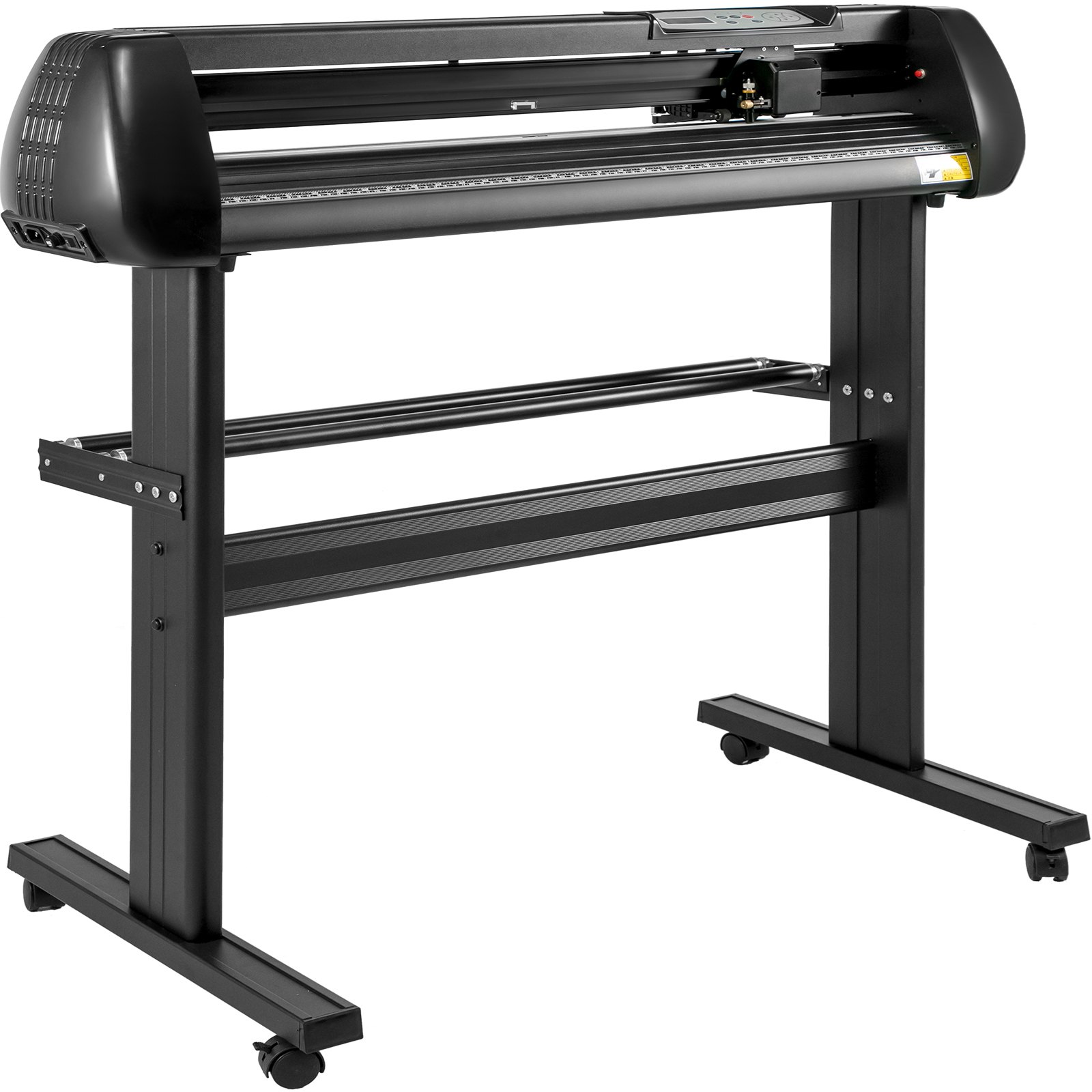

Flexible Floor Stand
This cutter is packaged with a heavy-duty sheet metal floor stand, featuring four rollers that can hold the paper steadily. Make it easy for users to carry without effort. The improved appearance is more in line with aesthetics.

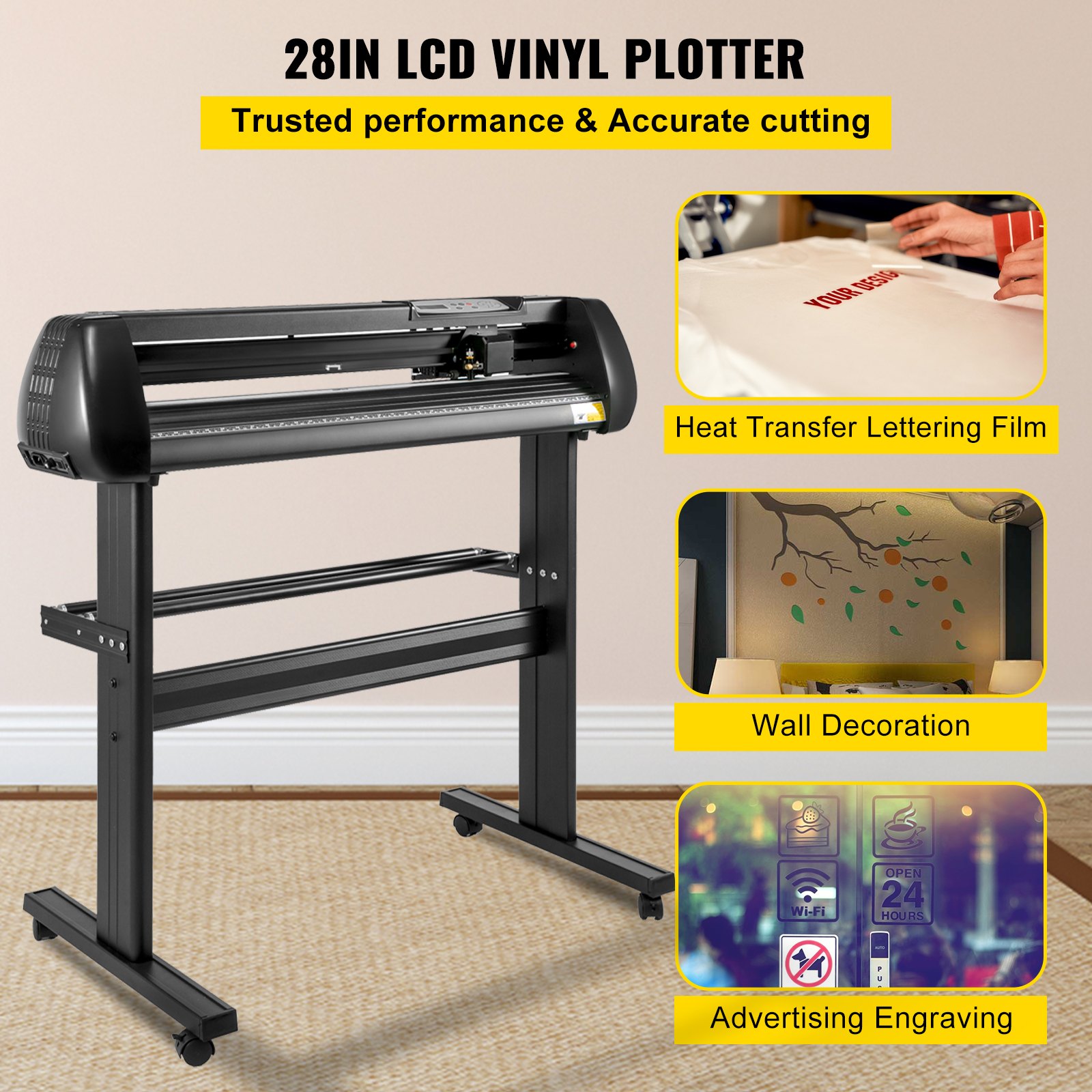

Wide Application
The vinyl cutter can flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes, and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

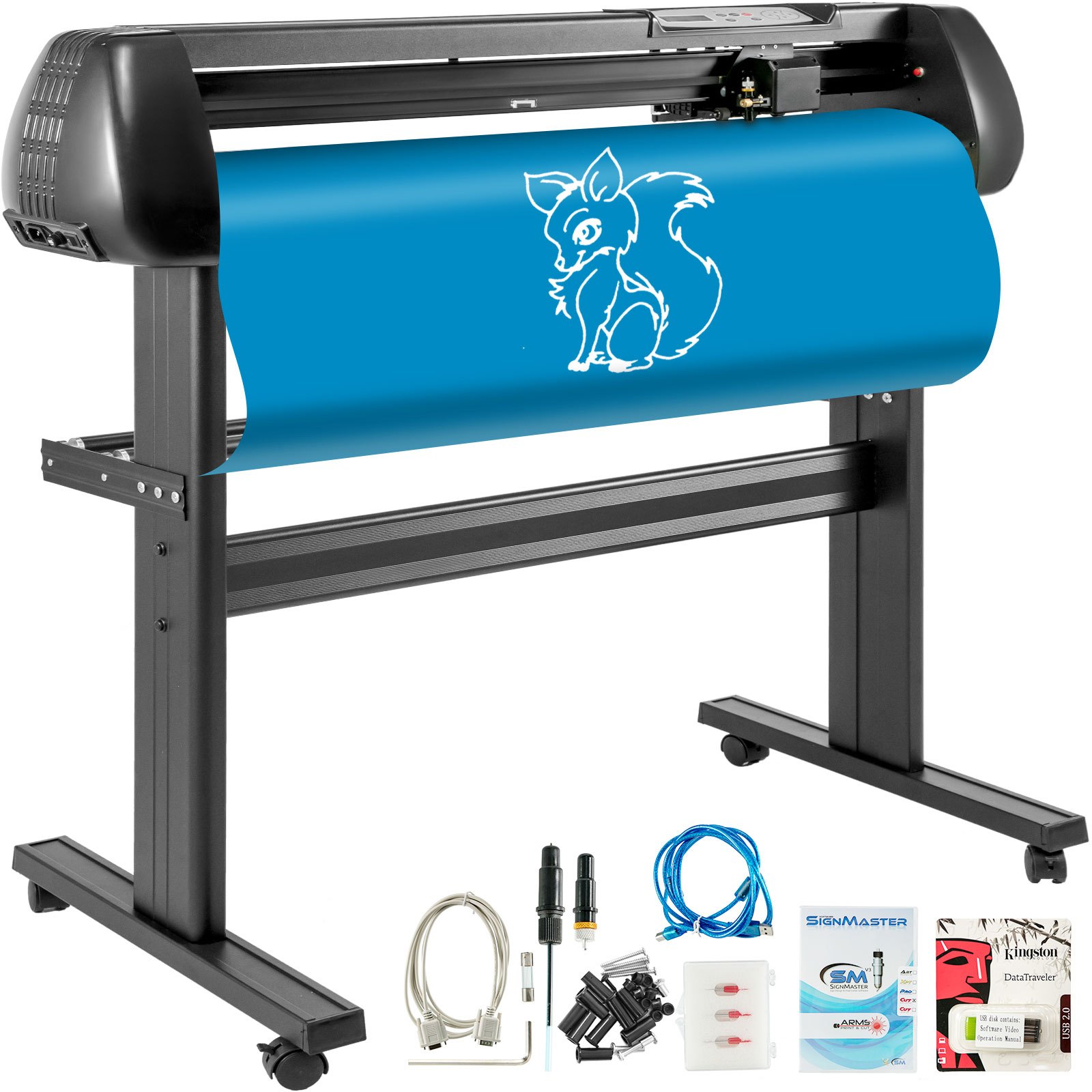

- 1 x 28 Inch Vinyl Cutter Plotter Machine
- 1 x SIGNMASTER Software
- 1 x Blades Holder
- 3 x Blades
- 1 x Pen Holder
- 3 x Cables
- 1 x USB Flash Disk
- 1 x User Manual
- 1 x Floor Stand Kit
- Voltage: 220V AC, 60Hz
- Software: SignMaster
- Motor Type: Stepper motor
- Interface: USB port

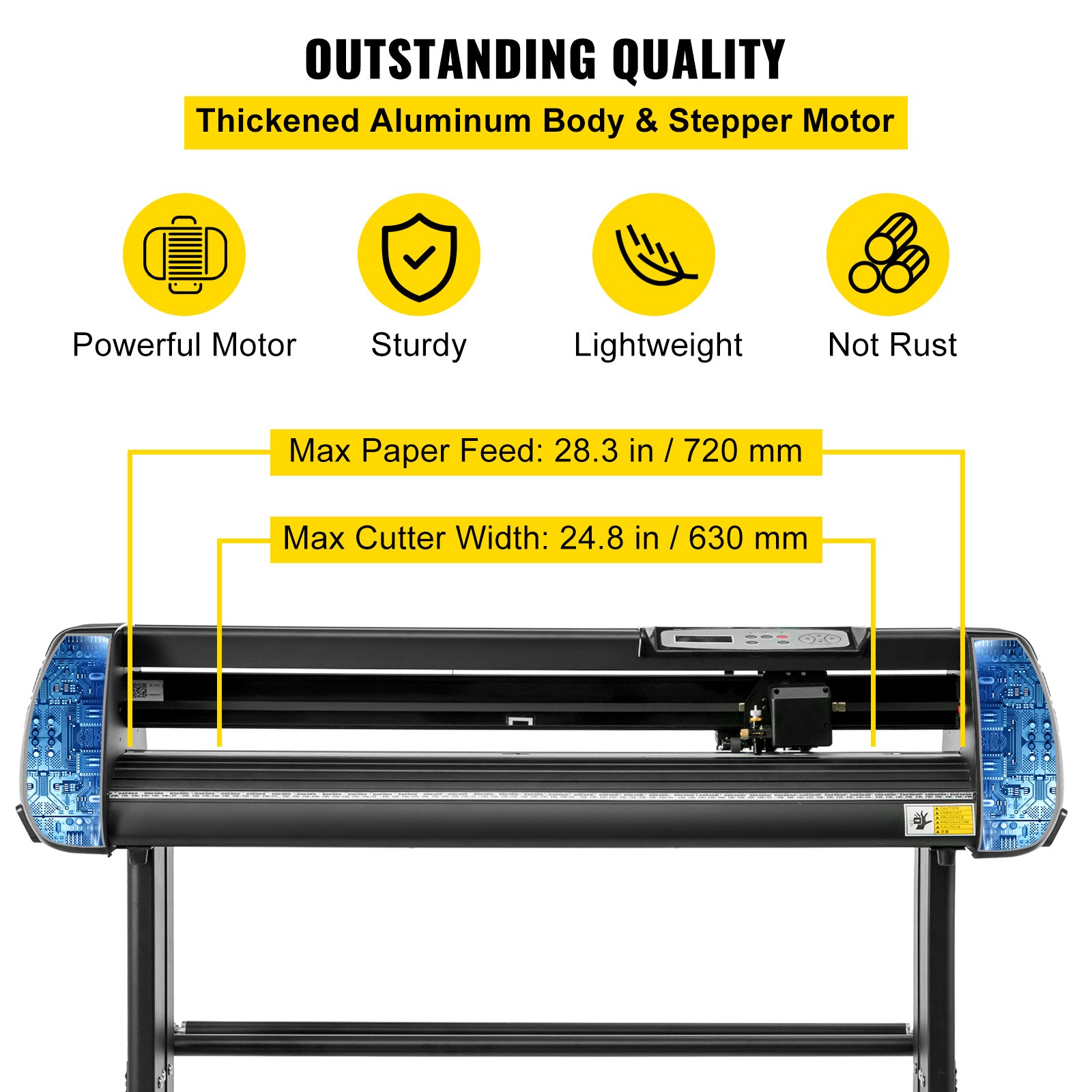

- Max Paper Feed: 28.3 in / 720 mm
- Max Cutter Width: 24.8 in / 630 mm
- Cutter Pressure: 10 - 500g
- Cutting Speed: 10-800 mm/s
- Number of Pinch Rollers: 2
- Memory: 128K - 2M
- Positioning: Manual
- Language: DM/PL, HP/GL
- Repetition Accuracy: 0.0004 in / 0.01 mm
- System: Windows XP / Vista/ 7 / 8 / 10

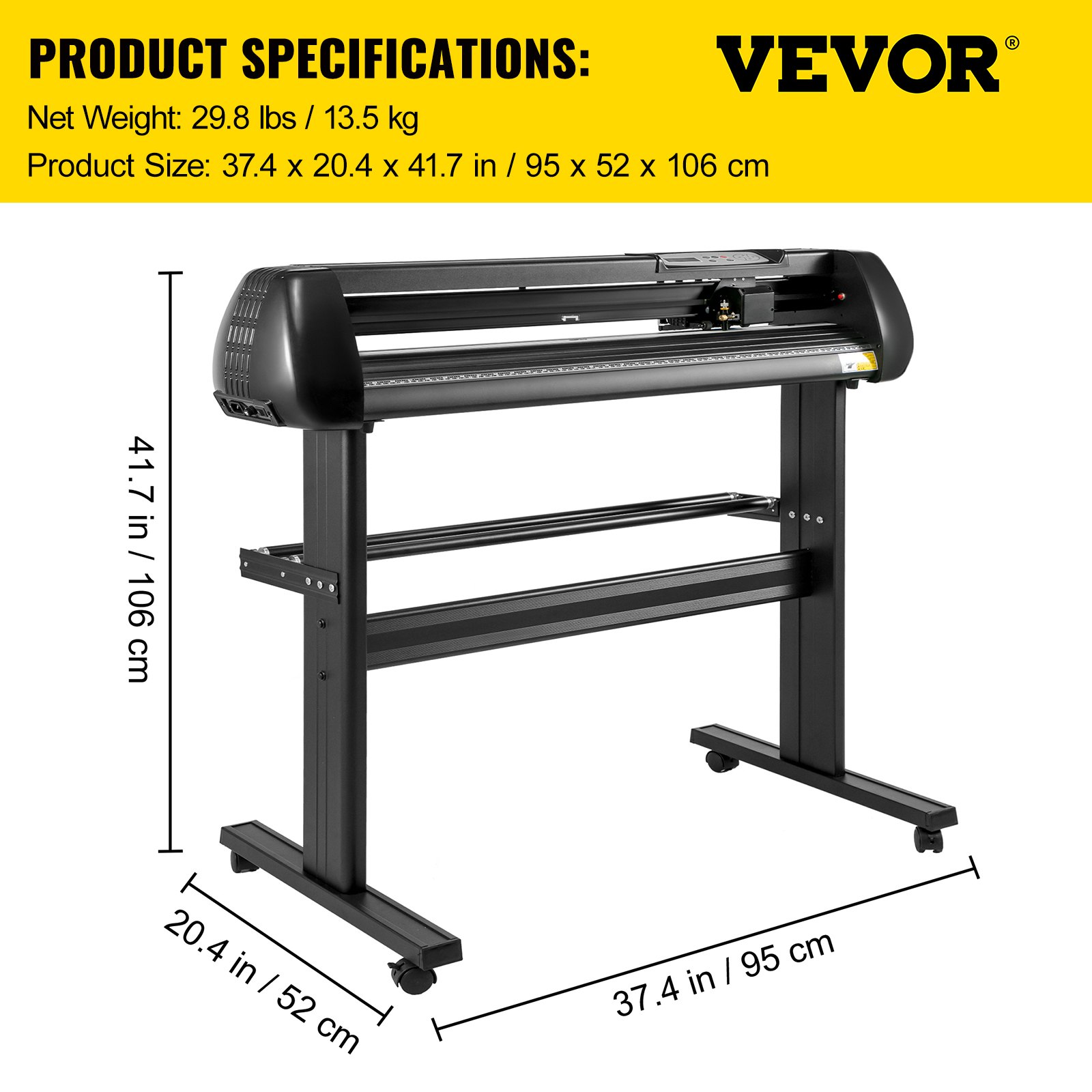

- Product Size: 37.4 x 20.4 x 41.7 in / 95 x 52 x 106 cm
- Net Weight: 29.8 lbs / 13.5 kg
