SKU: BPQ5.5KW000000001V7
Top highlights
- 1/3 phase input with 3 phase output, supports V/F and vector control for fast starting without brake changes.
- Low-noise operation with optimized PWM technology and porous heat dissipation for extended lifespan.
- User-friendly detachable panel with intuitive digital display and full-featured buttons for easy remote control.
AI Summarized from product information
Specifications
- Model A2-8055
- Power 5.5 kW
- Input Voltage AC 200-260V
- Output Voltage AC 220V
- Input Current 25A
- Output Current 36A
About this item
Description

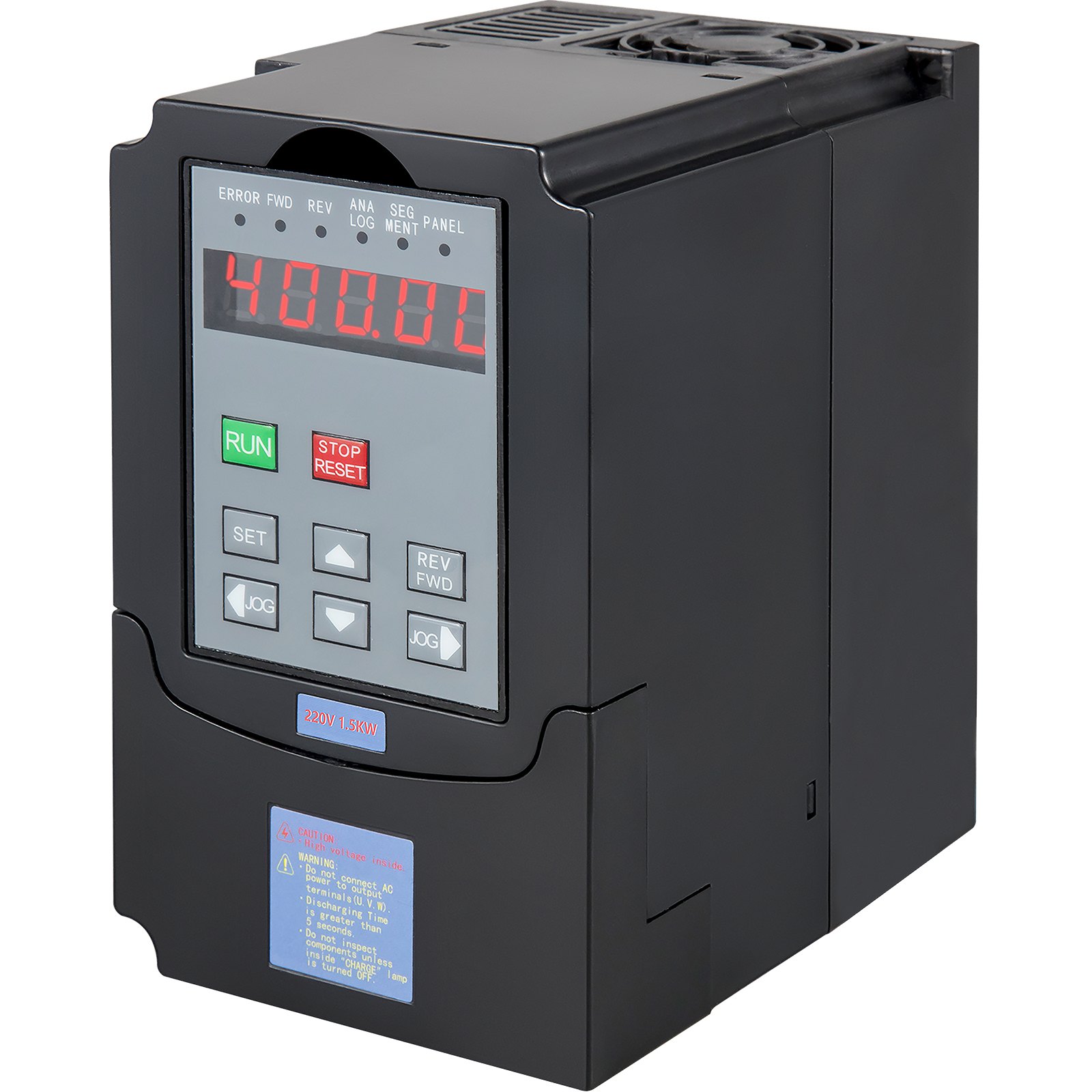

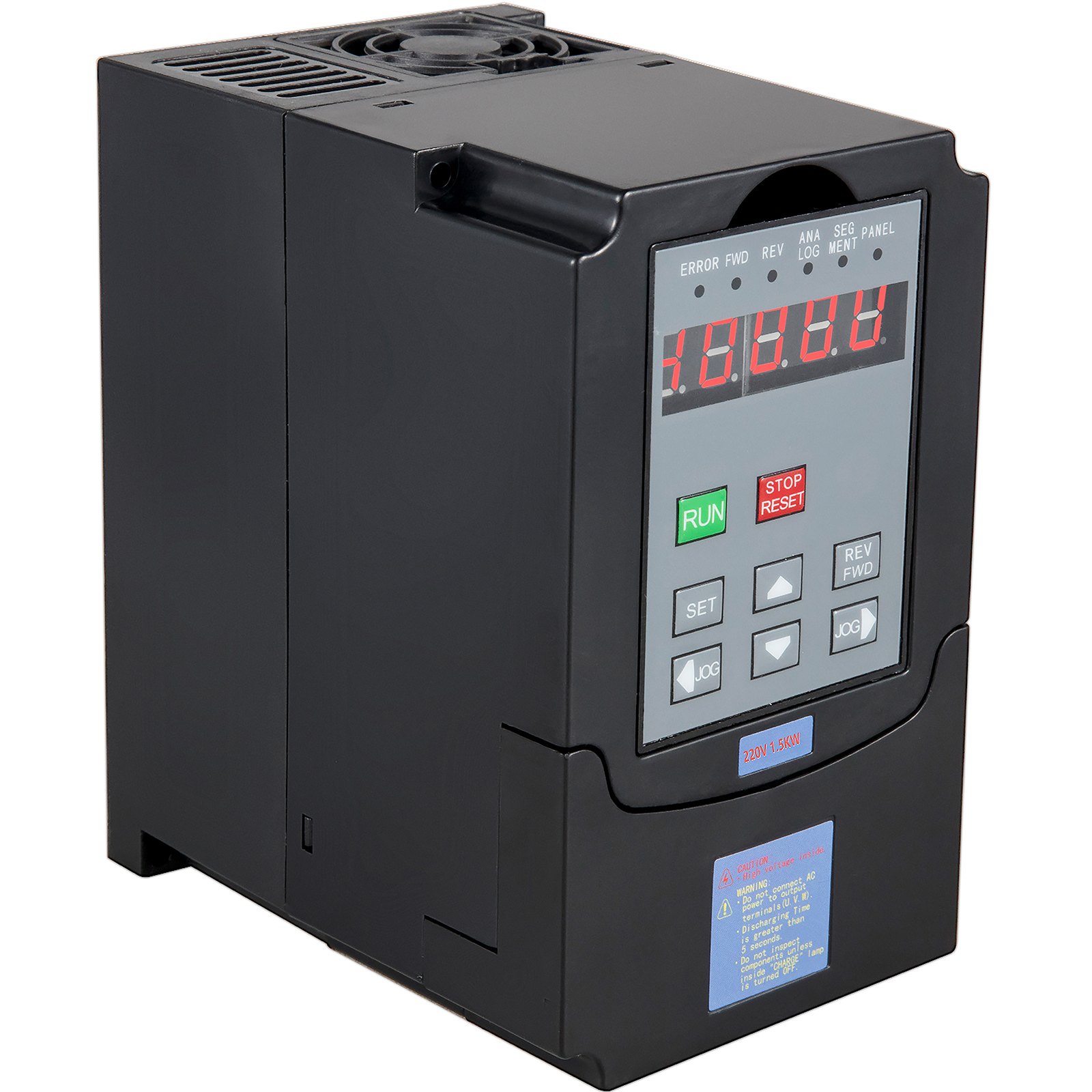

5.5 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SPWM) to perform excellently in the control system.
- Powerful Function
- Low-Noise Operation
- Smart Digital Display
- Multiple Protection
Premium Quality
This VFD drive adopts ABS flame retardant material case, which is high-impact and durable. And it uses the US intel and SILICON LAB's chip. The input for this VFD is 1 or 3 phase, and the output is 3 phase.

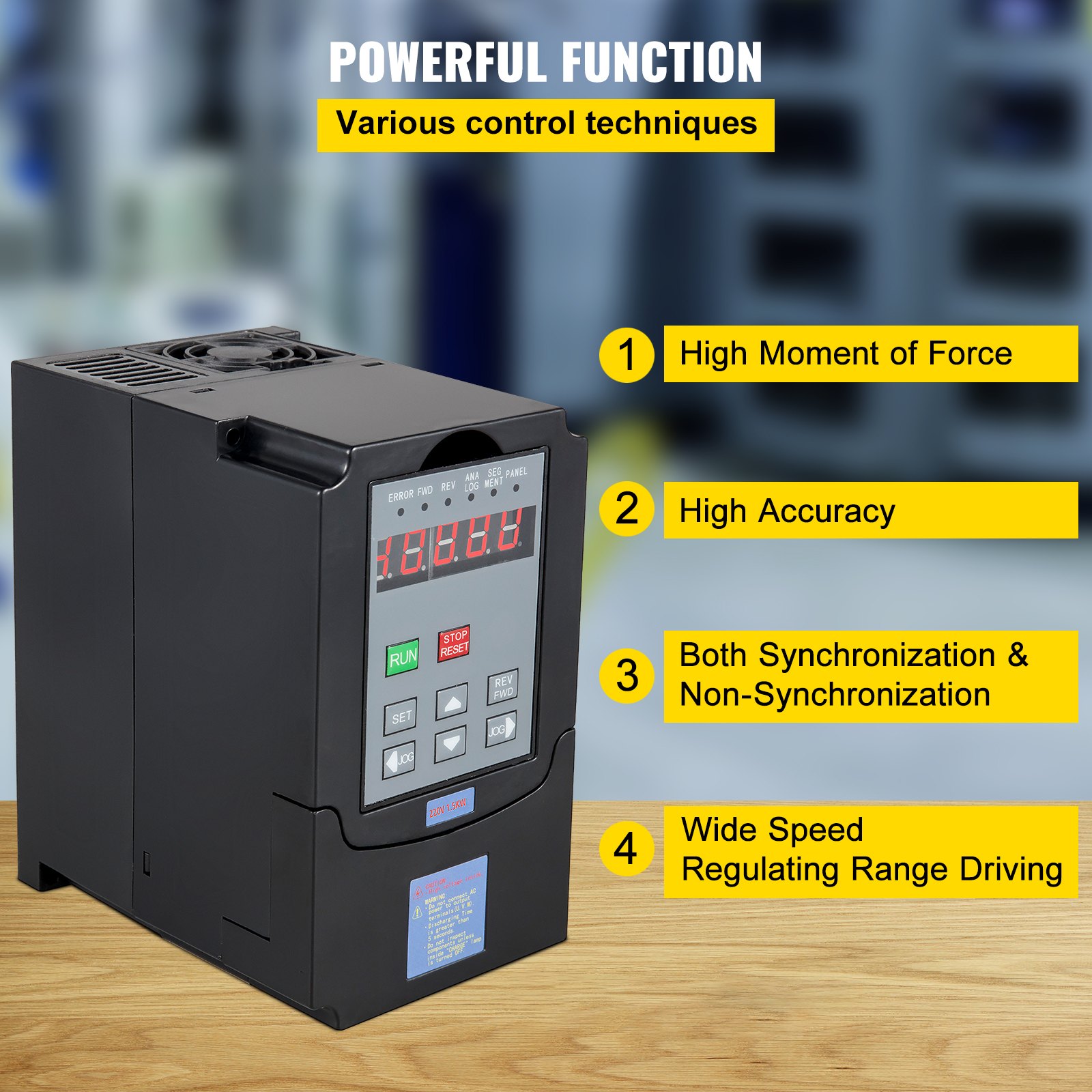

Powerful Performance
This inverter VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. In addition, it has a powerful anti-jamming capability, low output ratting torque, and low speed running ability.

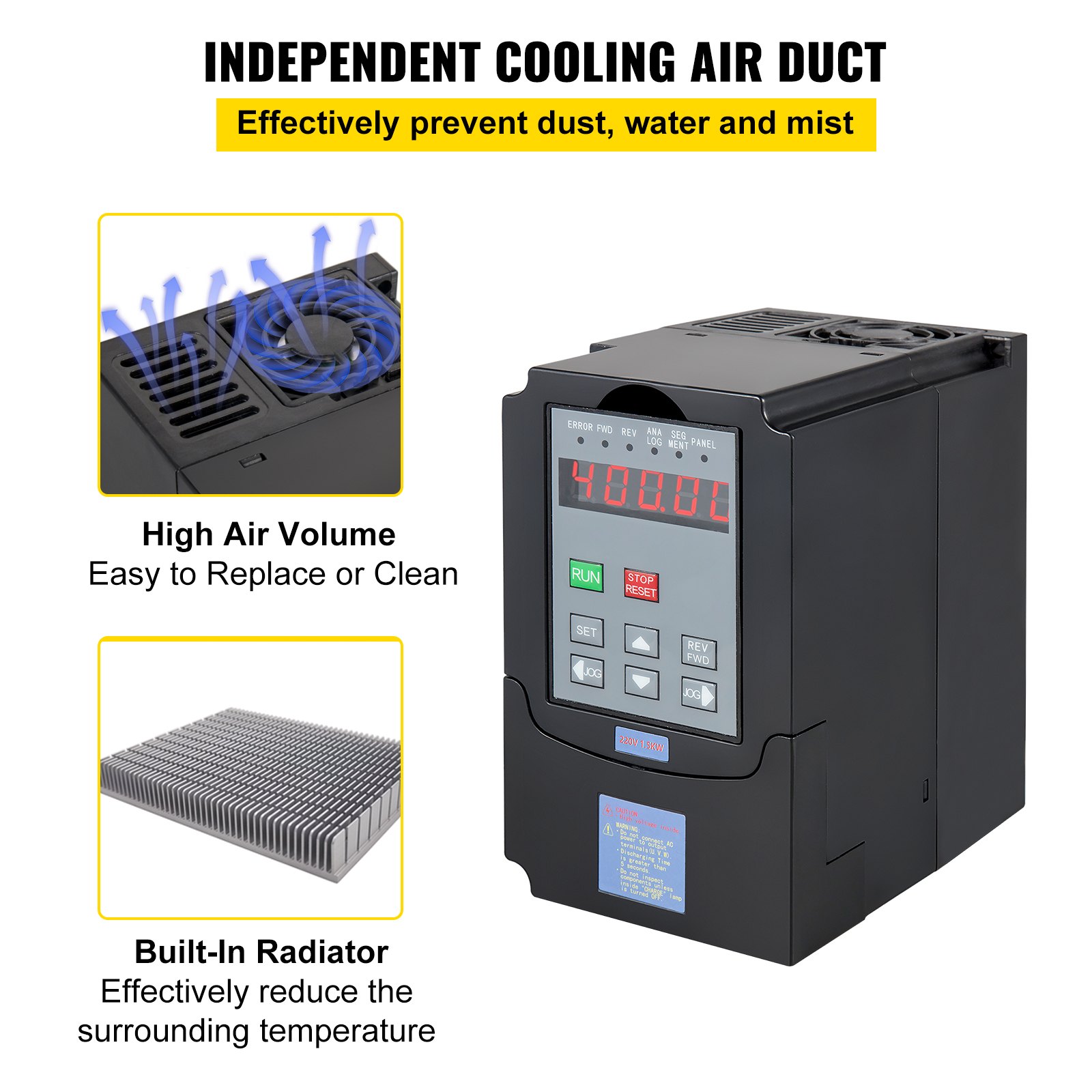

High Air Volume
The spindle VFD is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.

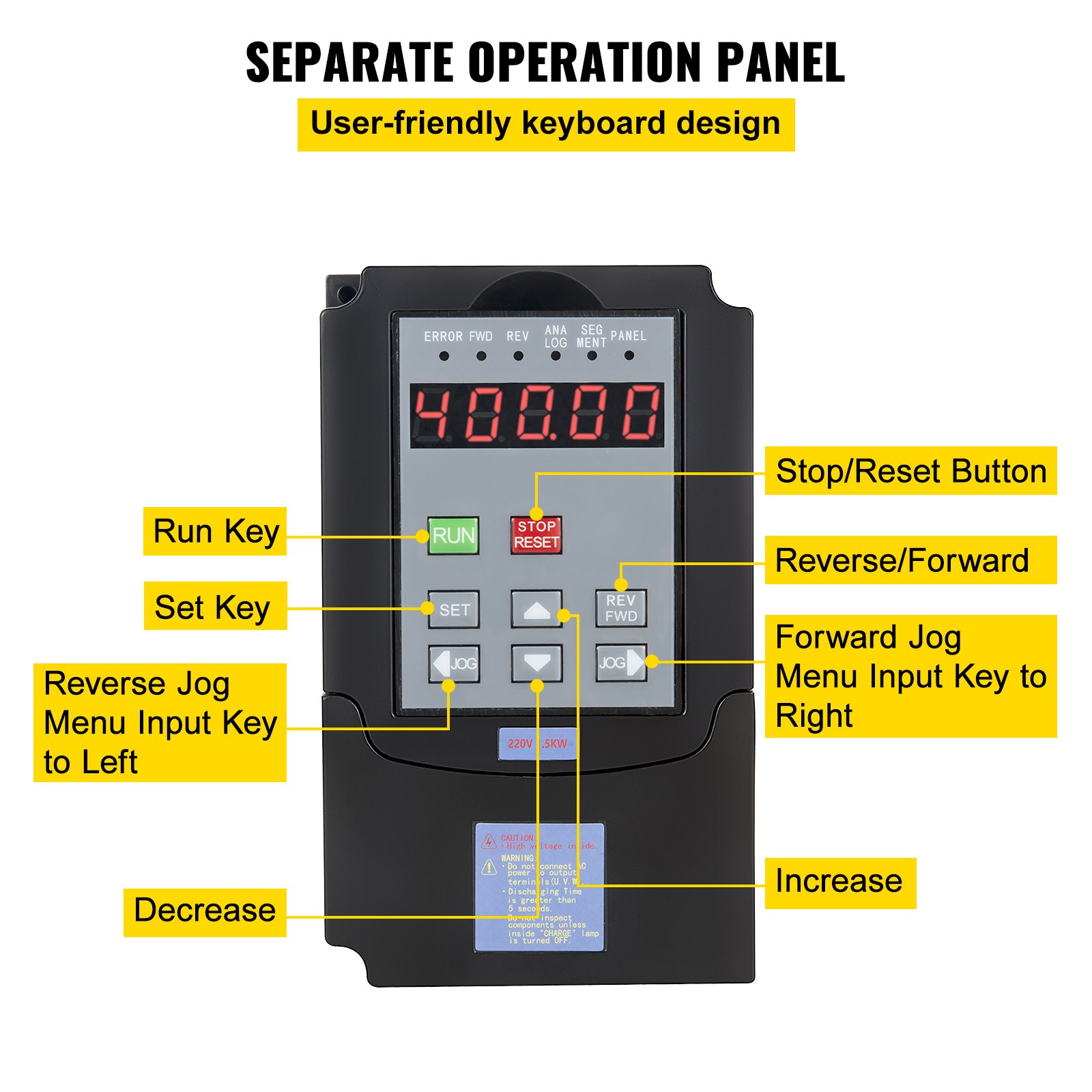

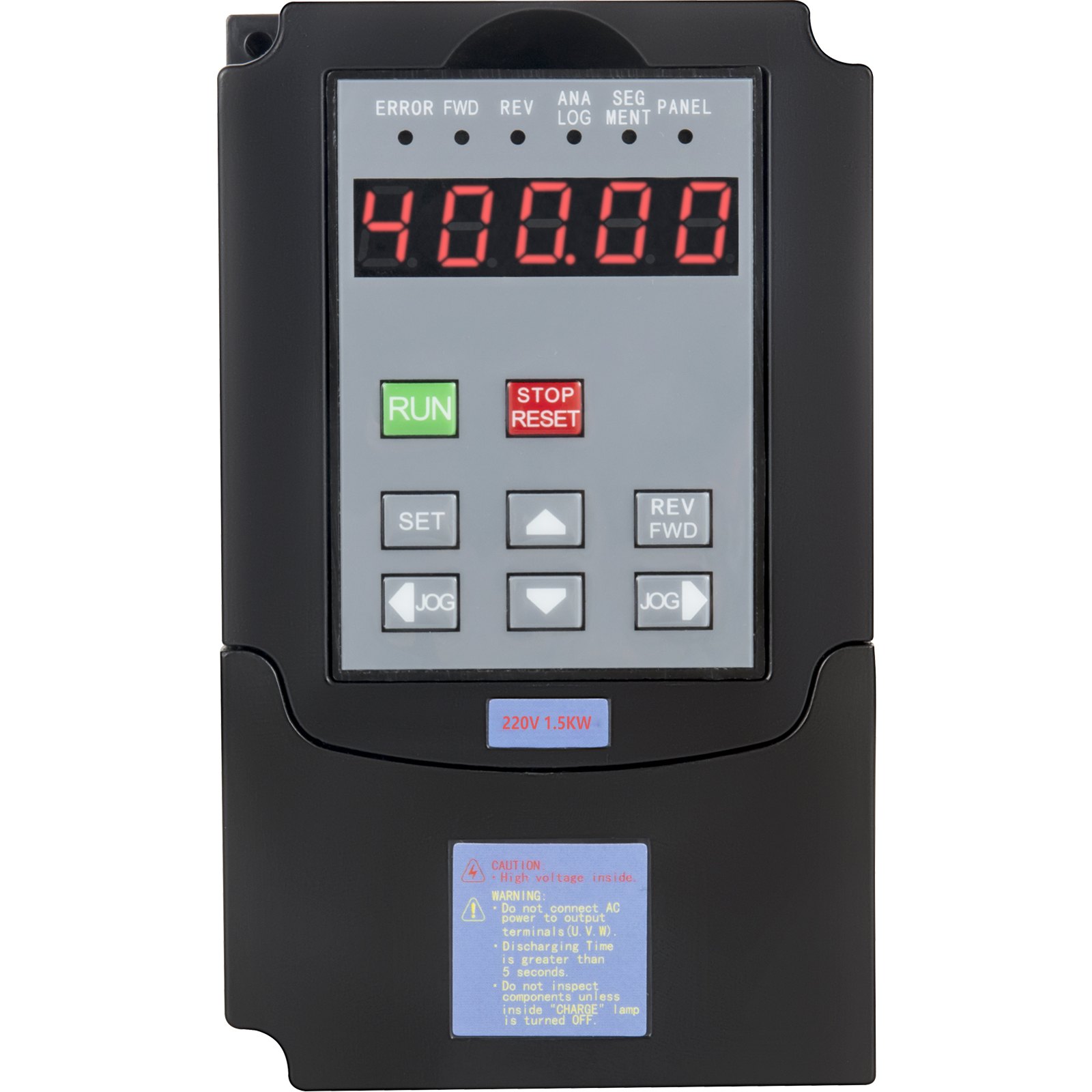

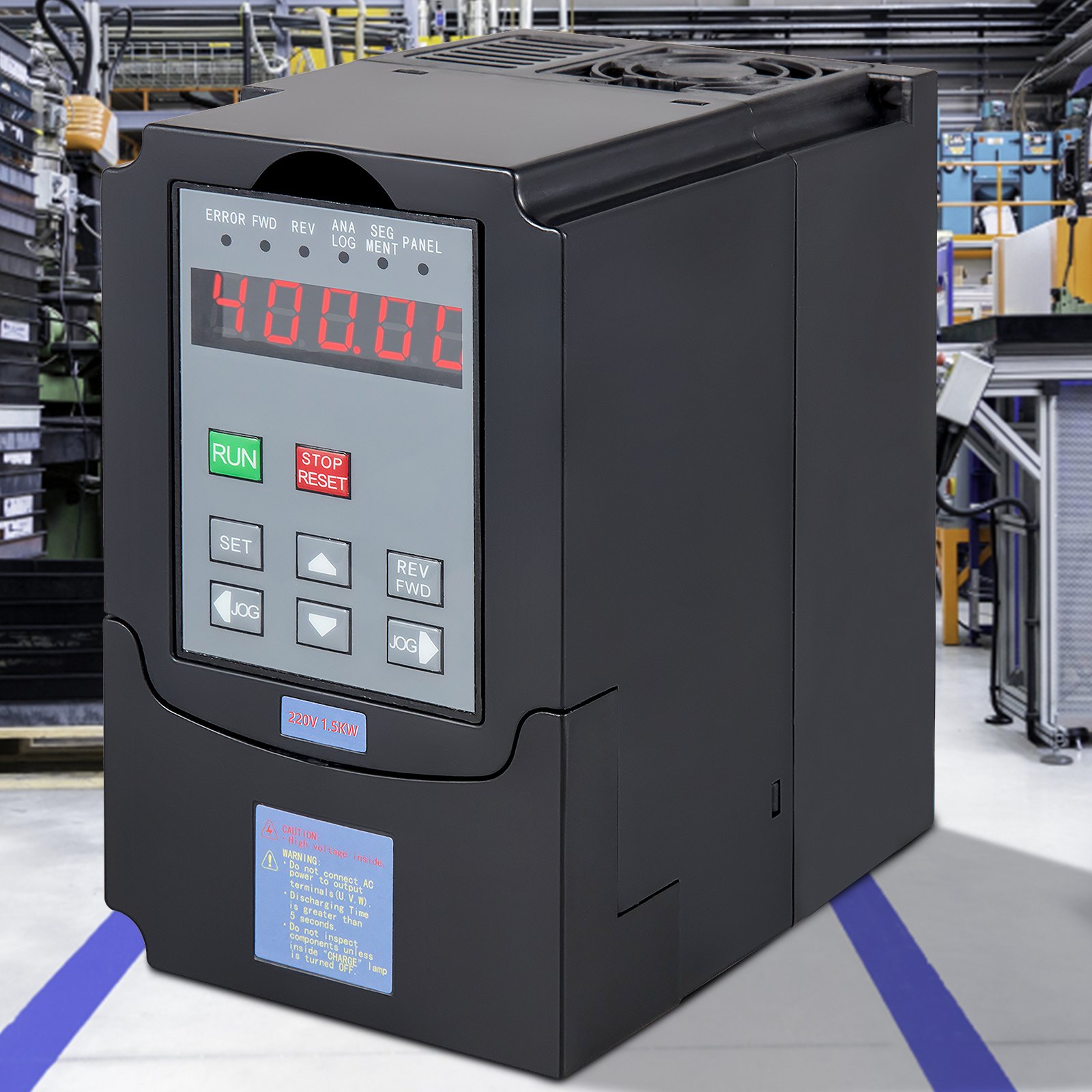

Smart Digital Display

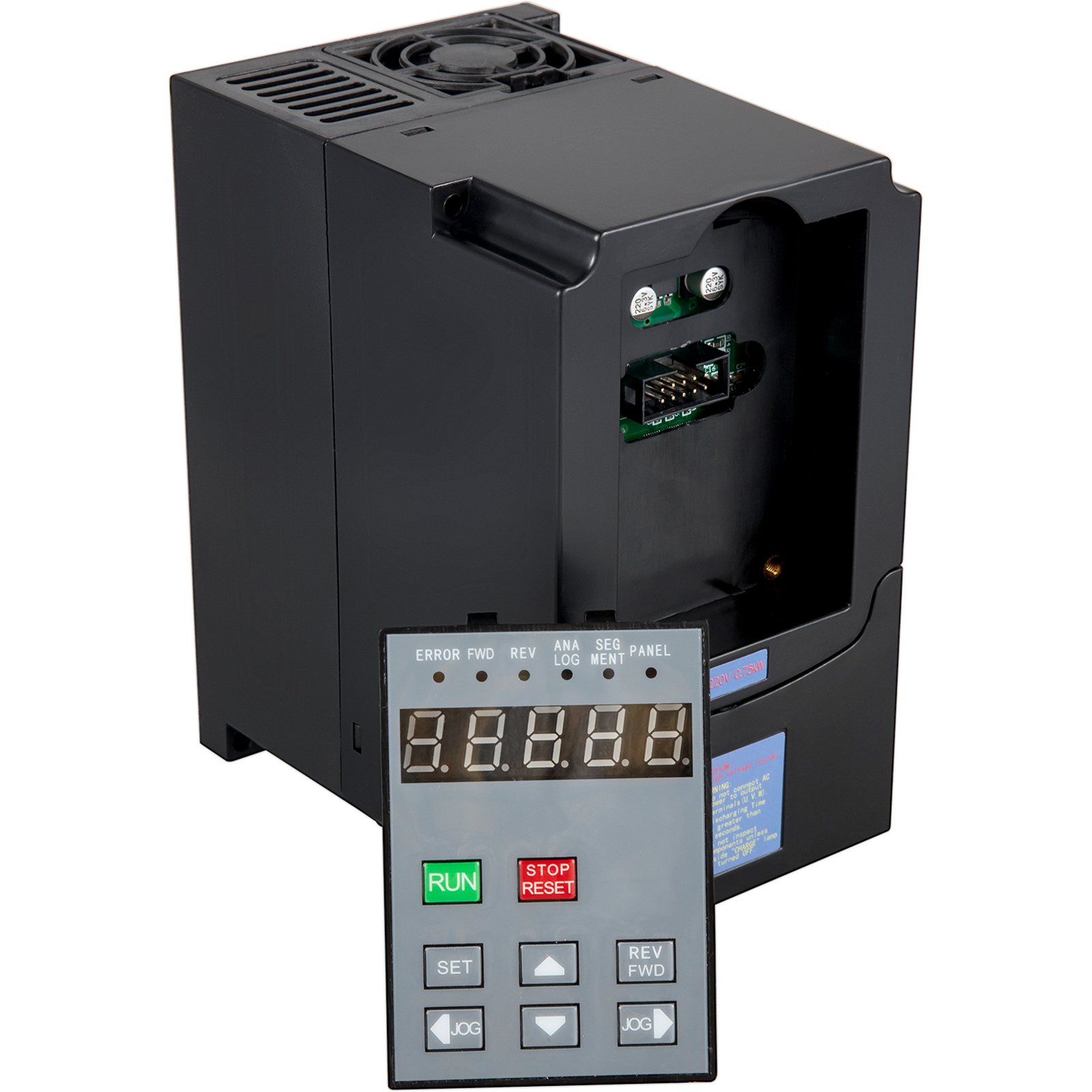

After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.

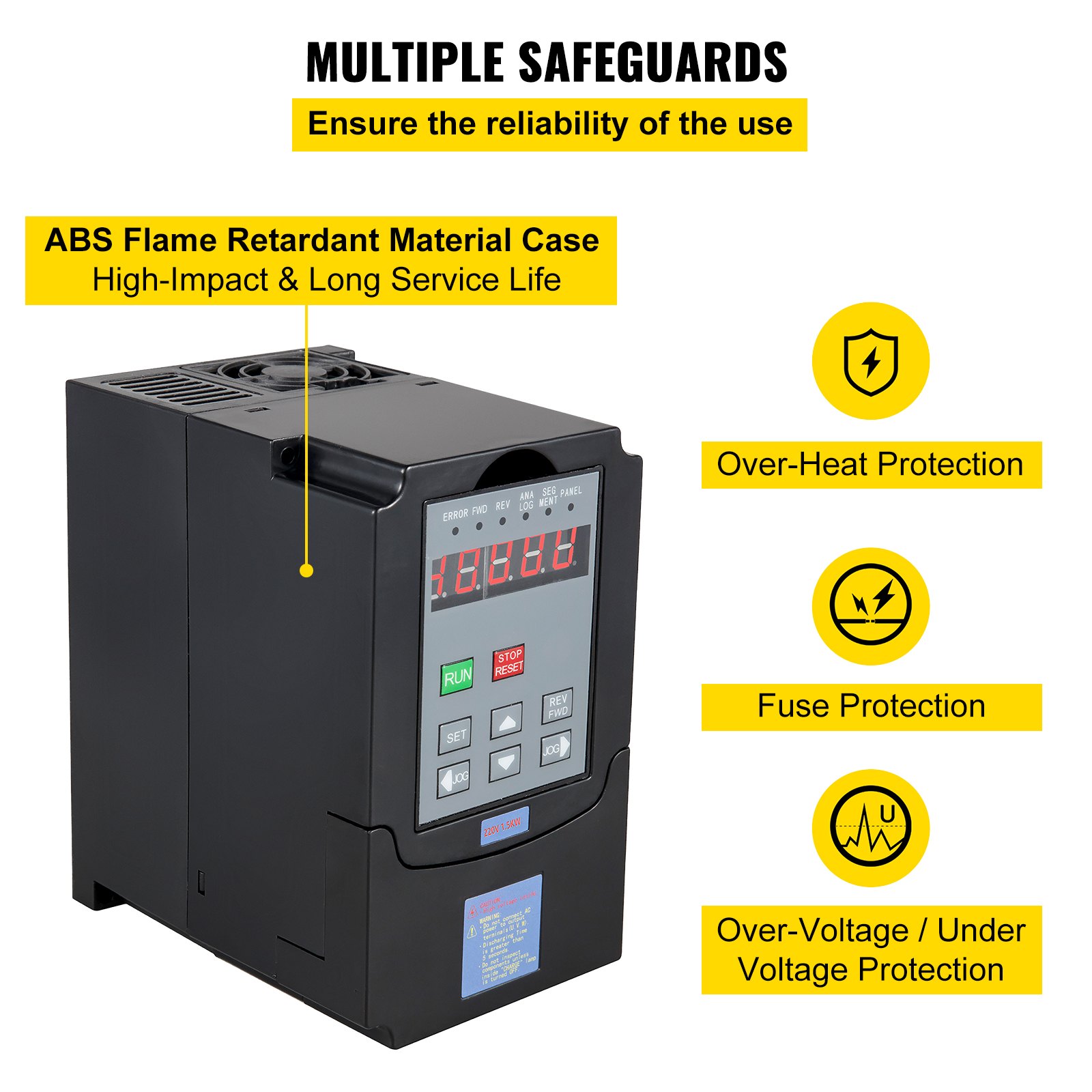

Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, restart protection, etc.

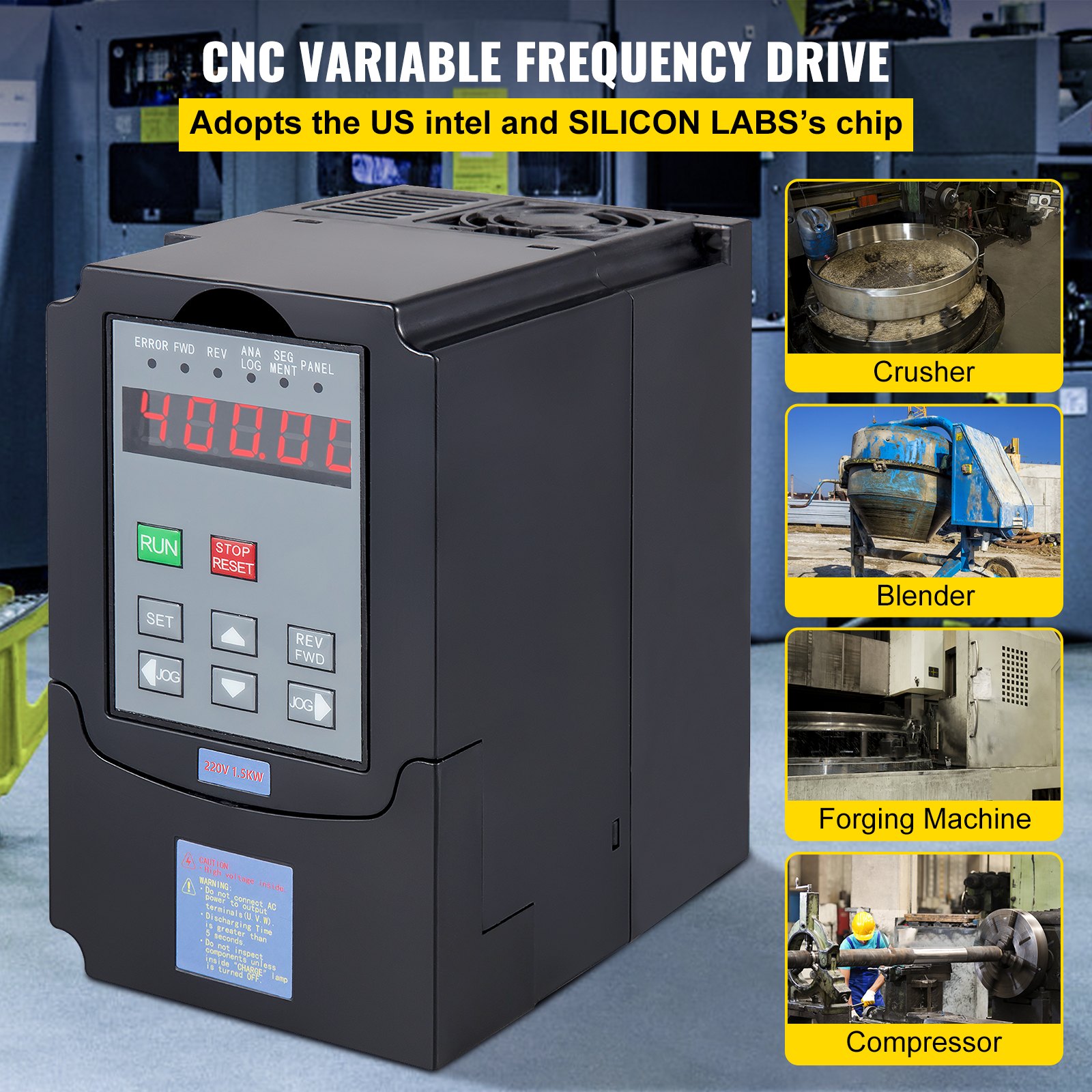

Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
- Model: A2-8055
- Power: 5.5 kW
- Input Voltage: AC 200-260V
- Output Voltage: AC 220V
- Input Current: 25A
- Output Current: 36A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 45-65 Hz
- Output Frequency: 0.1-400 Hz
- Horsepower: 7.5 HP
- Working Temperature: 14~104℉/-10 ~ 40 ℃
- Humidity: 10-95% Relative Humidity (without dew)
- Vibration: 0.4 G
- Net Weight: 5.56 lbs / 2.52 kg

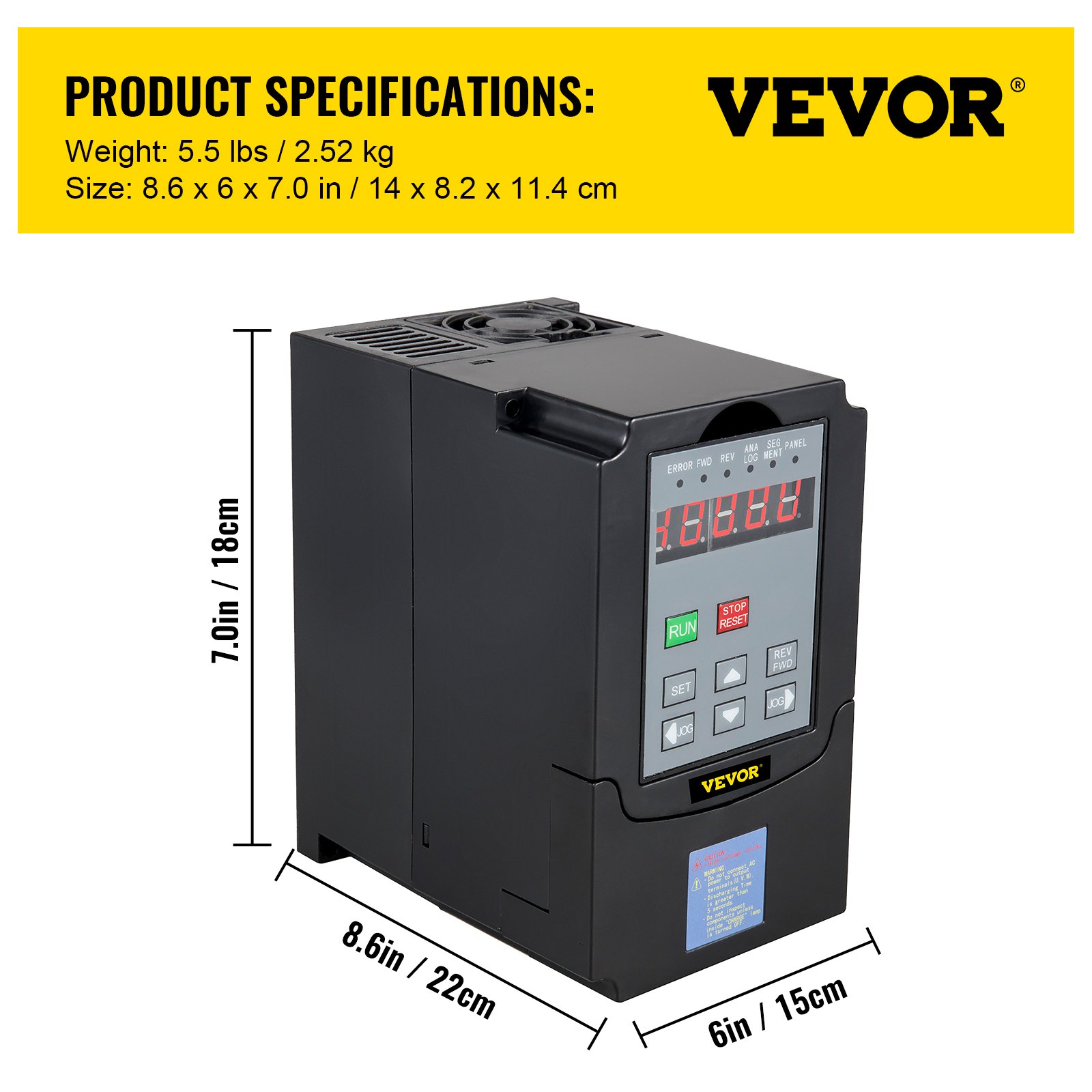

- Product Size: 5.9 x 7.1 x 8.7 in / 150 x 180 x 220 mm
- 1 x 5.5 KW Variable Frequency Drive Inverter
- 1 x English Manual
5.5 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SPWM) to perform excellently in the control system.
- Powerful Function
- Low-Noise Operation
- Smart Digital Display
- Multiple Protection
Premium Quality
This VFD drive adopts ABS flame retardant material case, which is high-impact and durable. And it uses the US intel and SILICON LAB's chip. The input for this VFD is 1 or 3 phase, and the output is 3 phase.
Powerful Performance
This inverter VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. In addition, it has a powerful anti-jamming capability, low output ratting torque, and low speed running ability.
High Air Volume
The spindle VFD is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
Smart Digital Display
After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, restart protection, etc.
Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
- 1 x 5.5 KW Variable Frequency Drive Inverter
- 1 x English Manual
- Model: A2-8055
- Power: 5.5 kW
- Input Voltage: AC 200-260V
- Output Voltage: AC 220V
- Input Current: 25A
- Output Current: 36A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 45-65 Hz
- Output Frequency: 0.1-400 Hz
- Horsepower: 7.5 HP
- Working Temperature: 14~104℉/-10 ~ 40 ℃
- Humidity: 10-95% Relative Humidity (without dew)
- Vibration: 0.4 G
- Net Weight: 5.56 lbs / 2.52 kg
- Product Size: 5.9 x 7.1 x 8.7 in / 150 x 180 x 220 mm
