Features & Details
- Technical Parameters: Spec: φ2.4 x 10.3 in (Diameter: 6.2 cm x Length: 26.1 cm); Power: 2.2KW; Voltage: 220V; Current: 7.8A; Collet Size: ER20; Bearings: 4 bearings; Frequency: 400 Hz; Speed: 24000 R/min; Runout off: less than 0.01 mm. Mainly used for engraving machine or used with frequency converter.

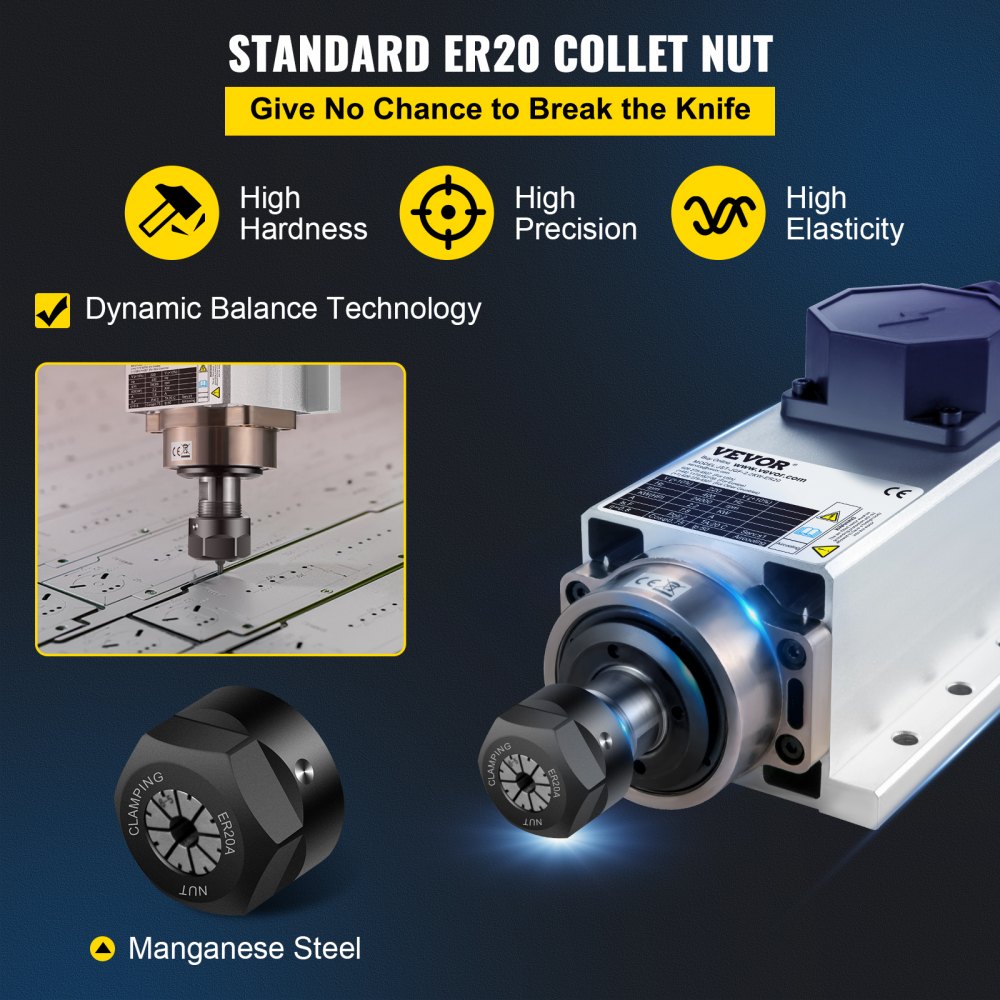

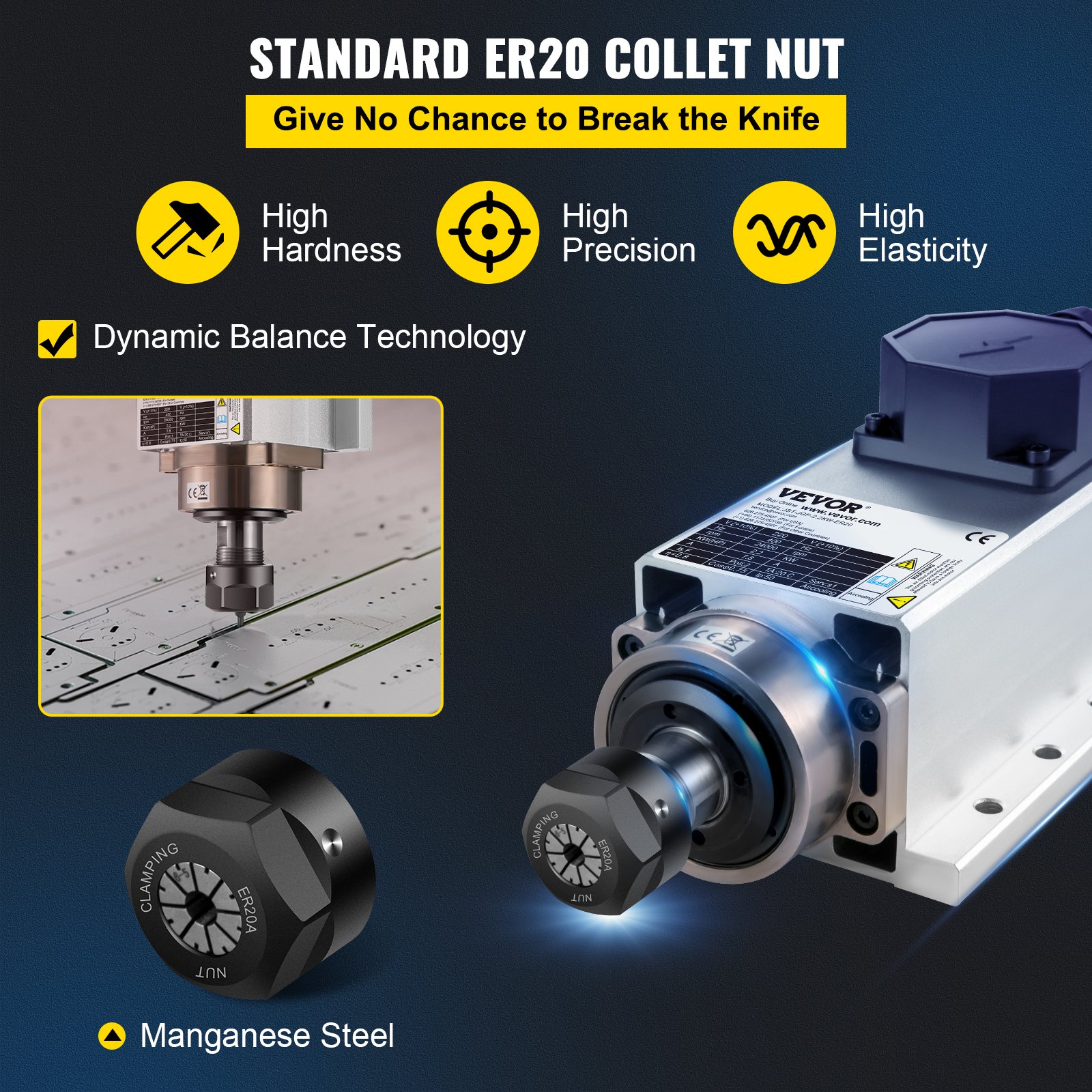

- ER20 Standard Collet: The collet of the CNC router spindle is quenched with manganese steel, and the runout is less than 0.01 mm, which has high precision and is not easy to break the knife, increasing the stability of the working process. Dynamic balance technology can effectively reduce noise during use.
- Powerful Bearing: The air spindle motor adopts imported bearings with high accuracy, precision, and durability. Significantly improve the hardness and anti-rust performance.
- Low Noise & Heat Dissipation: The dynamic balance technology can effectively reduce the noise during use. The scientifically designed air cooling system has a better heat dissipation effect to ensure smooth operation.
- Wide Application: The CNC spindle motor kit is mainly used for engraving machines or frequency converters. It uses air circulation to cool the heat and has a good heat dissipation effect.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 5 reviews
Reviews 5.0
All reviews are from verified purchases
See all 5 reviews
About this item
Product specification
- Power
- 2.2 KW
- Voltage
- 220V
- Frequency
- 400 Hz
- Speed
- 24000 R/min
- Runout off
- Less than 0.01 mm
- Collet Size (Dia.)
- 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm)
- Connection of Spindle End
- ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm)
- Bearing Model
- 7005 x 2, 7002 x 2
- Maximum Torque
- 1.2NM

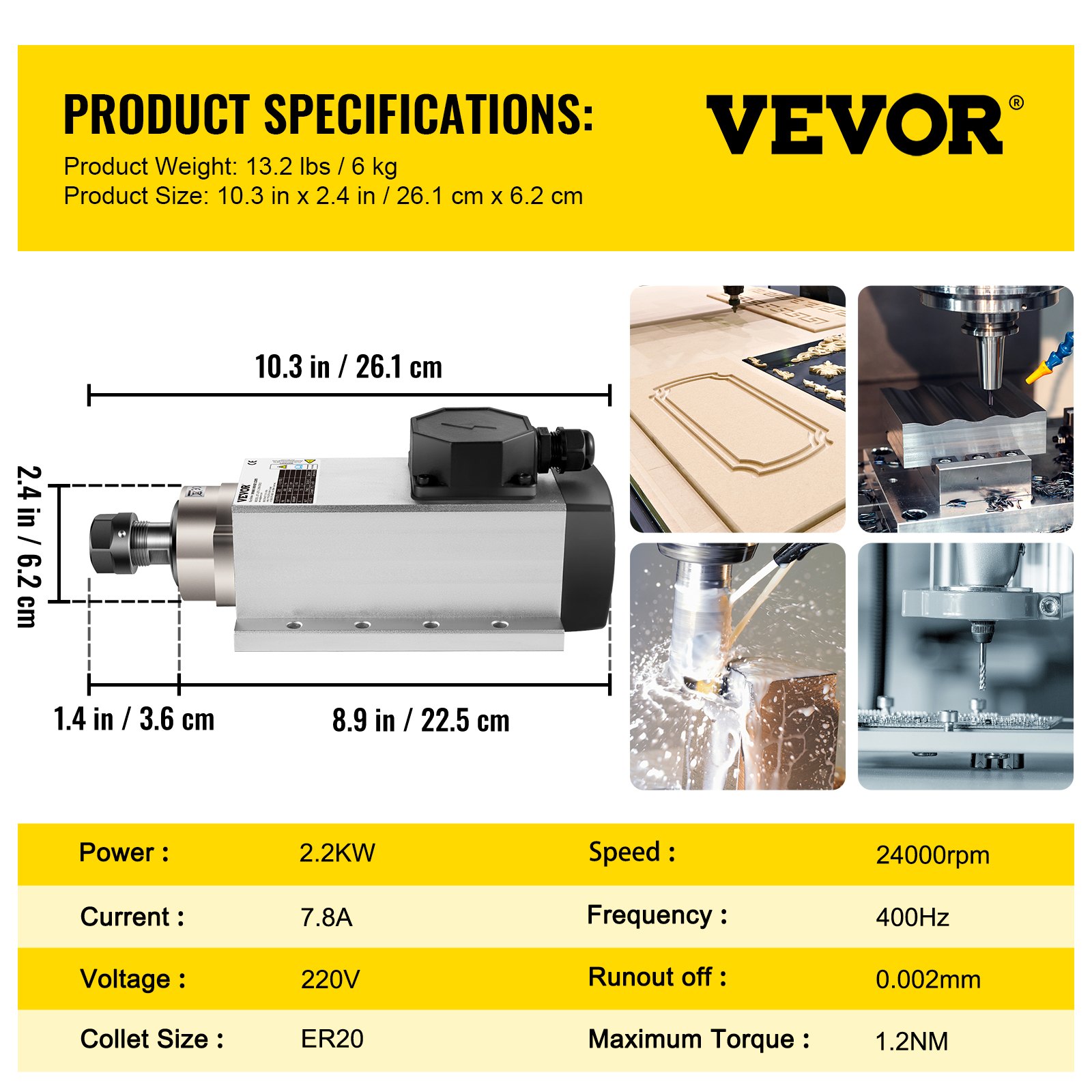

- Product Dimension
- 2.4 x 10.3 in / 6.2 x 26.1 cm
- Weight
- 13.2 lbs / 6 kg
Description

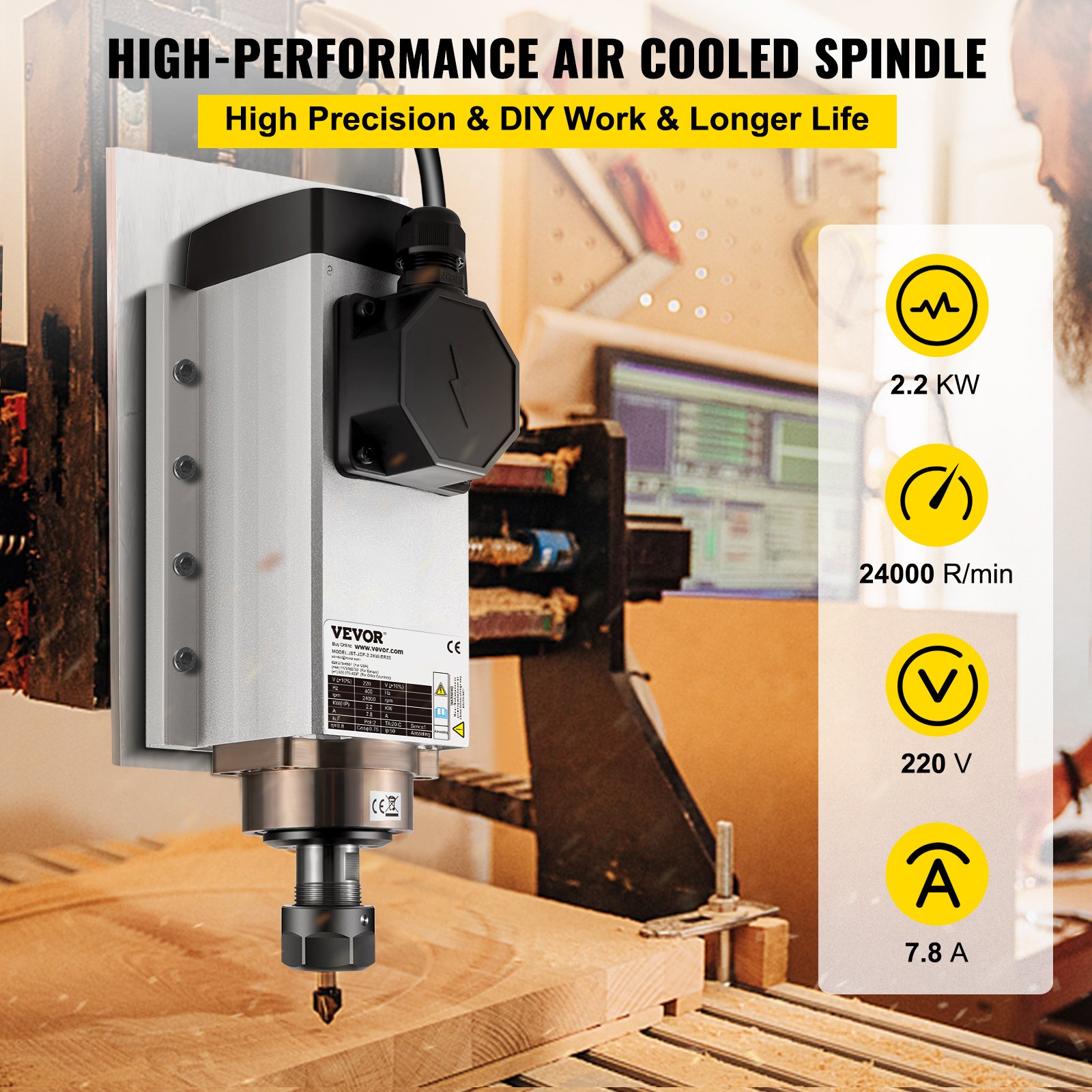

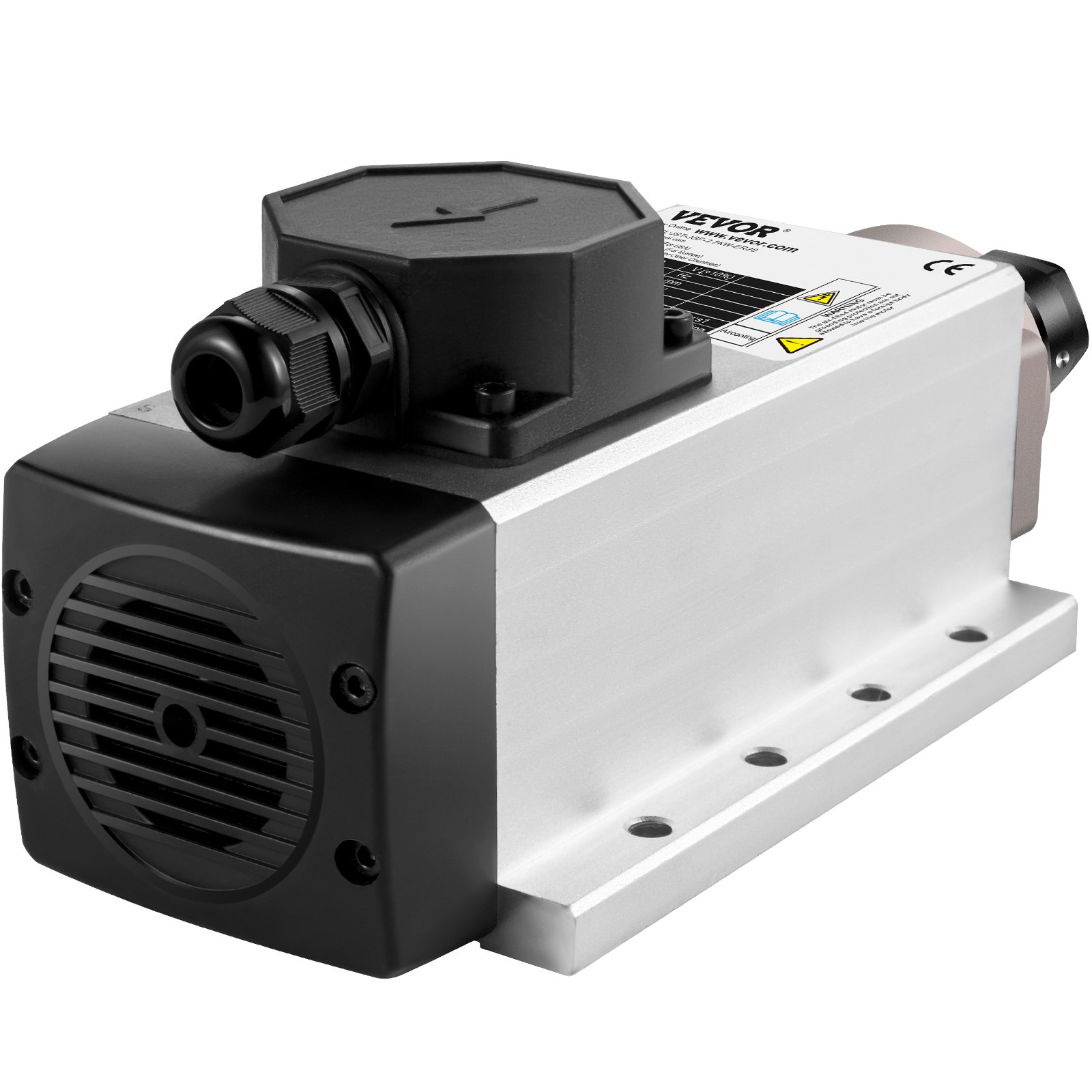

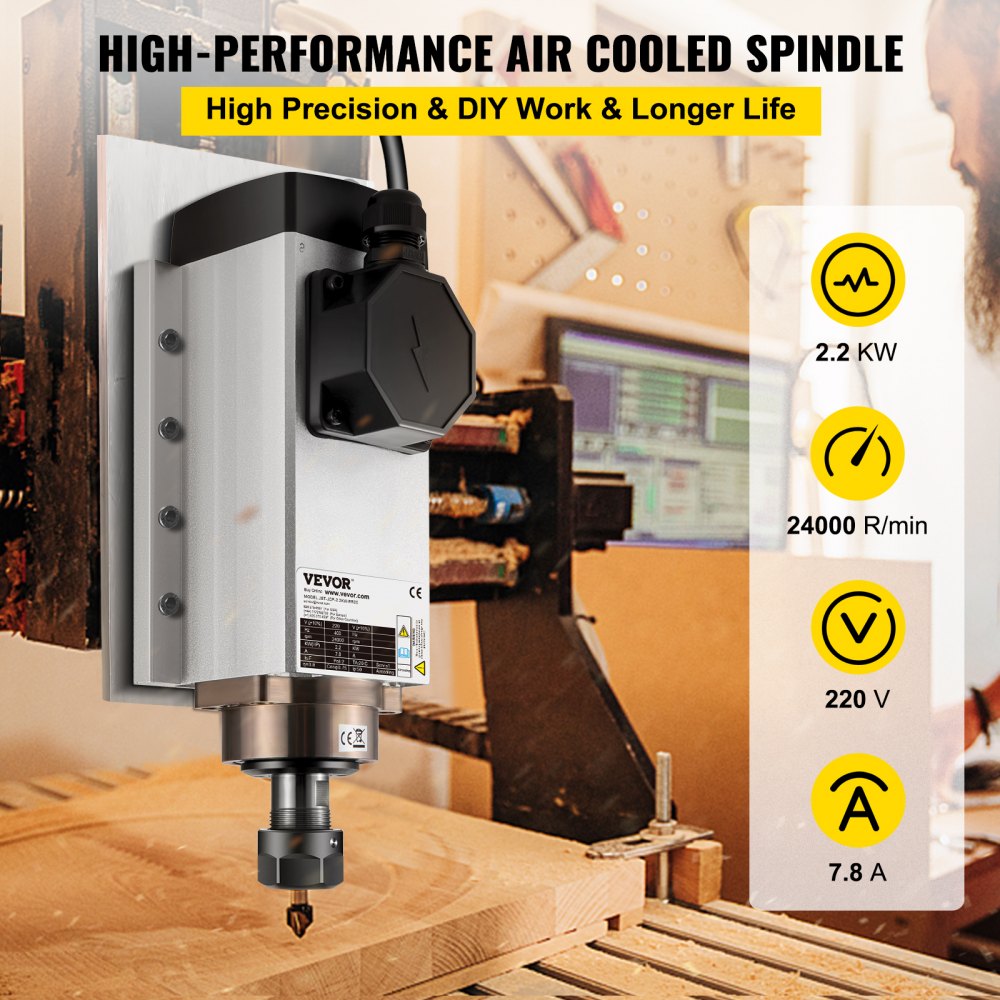

2.2KW Air Cooled Spindle Motor
ER20 Collet & Four Bearings & 24000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER20 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
Dynamic Balance Technology
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER20 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.

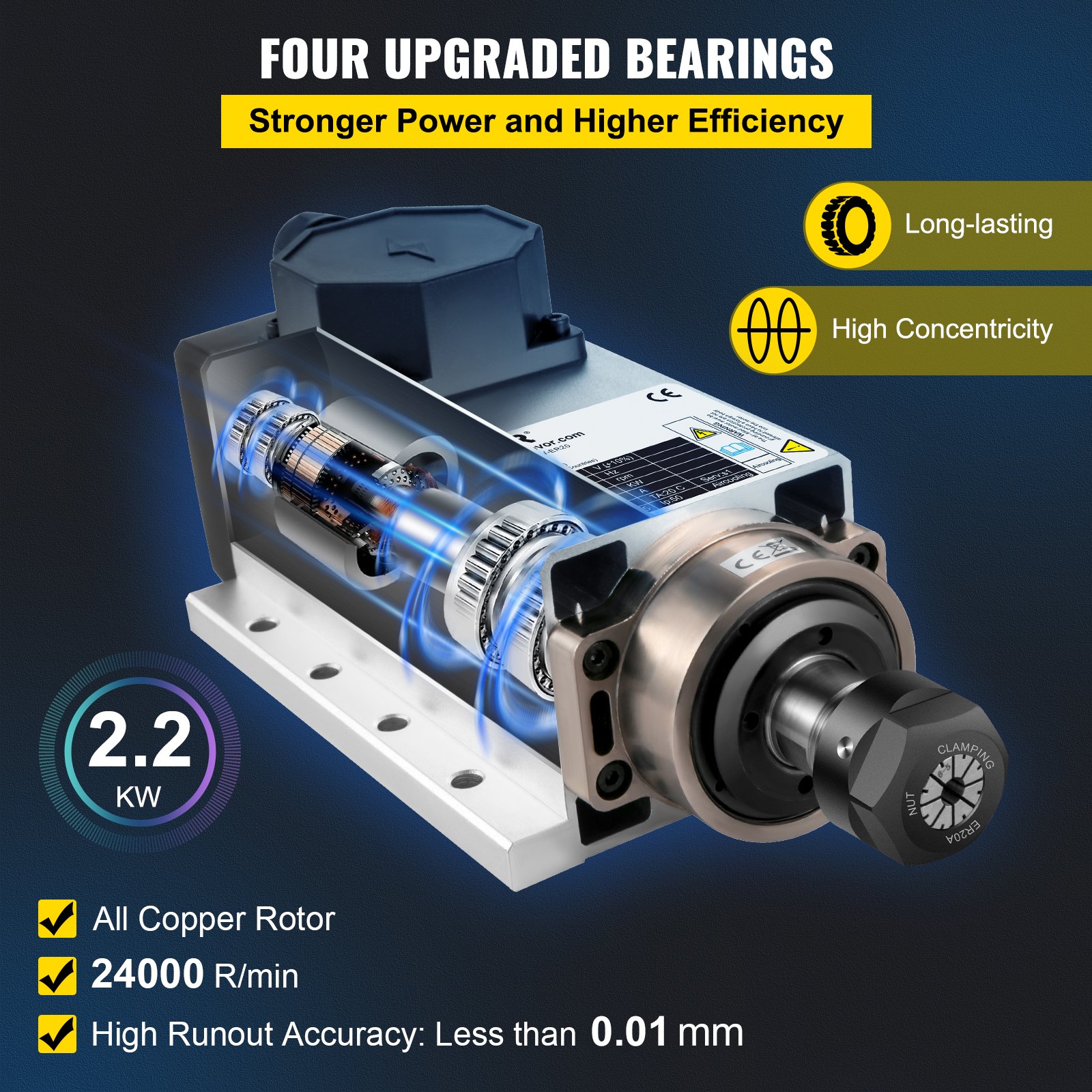

Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (24000R/min) and strong power bring higher efficiency than before.

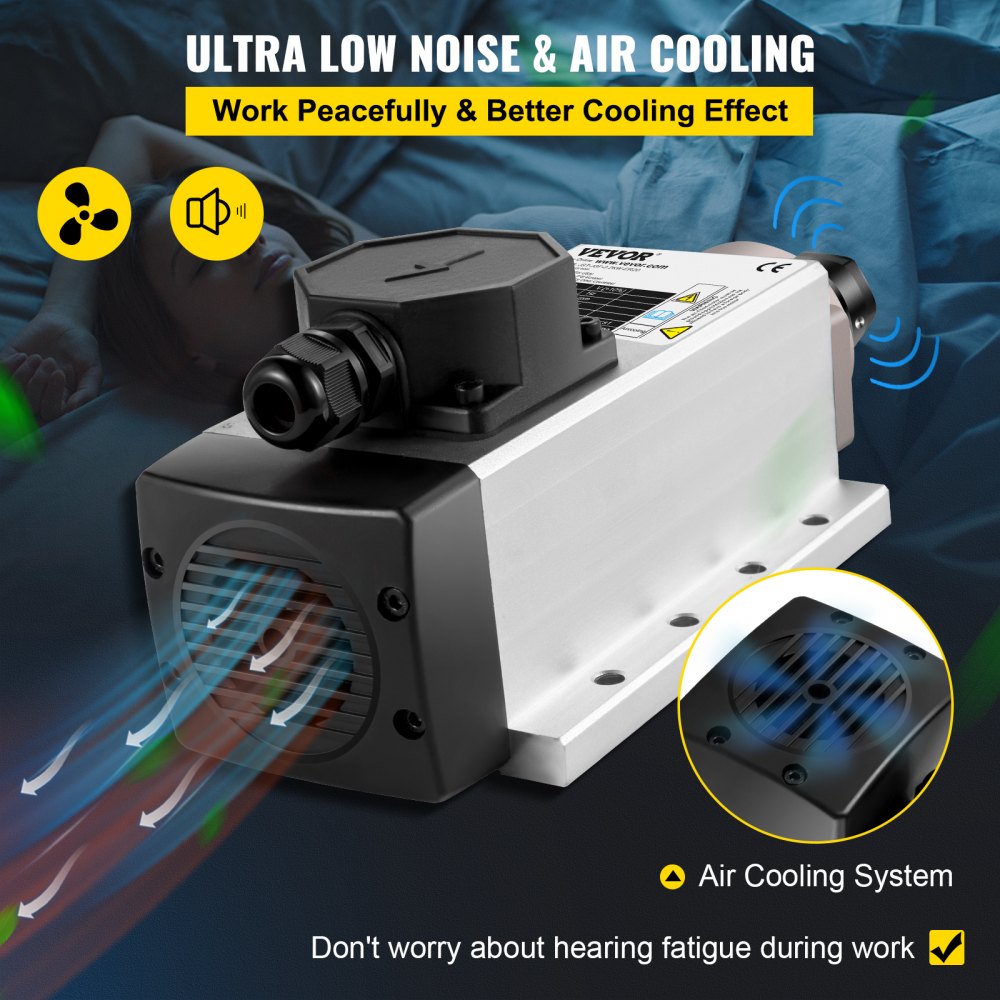

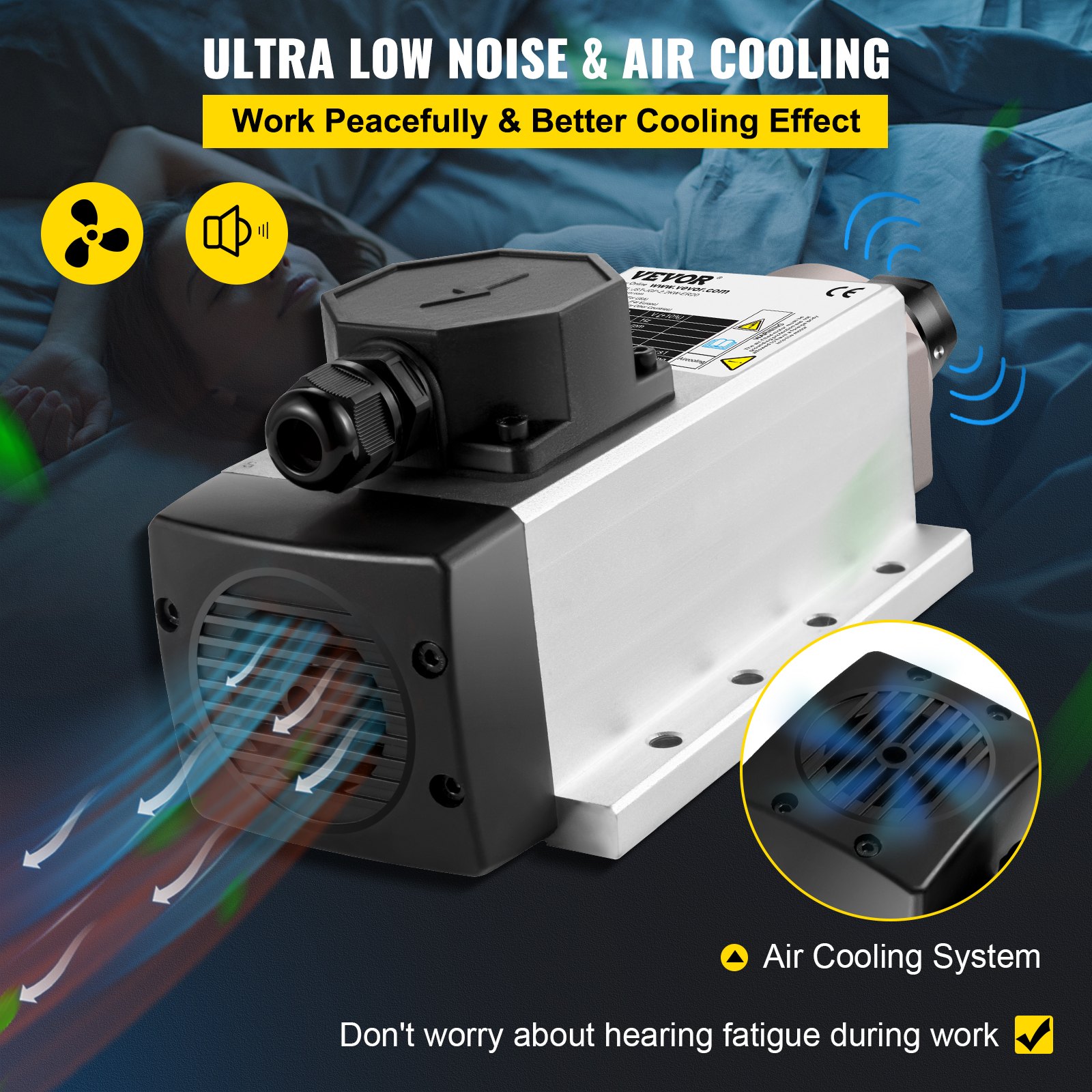

Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.

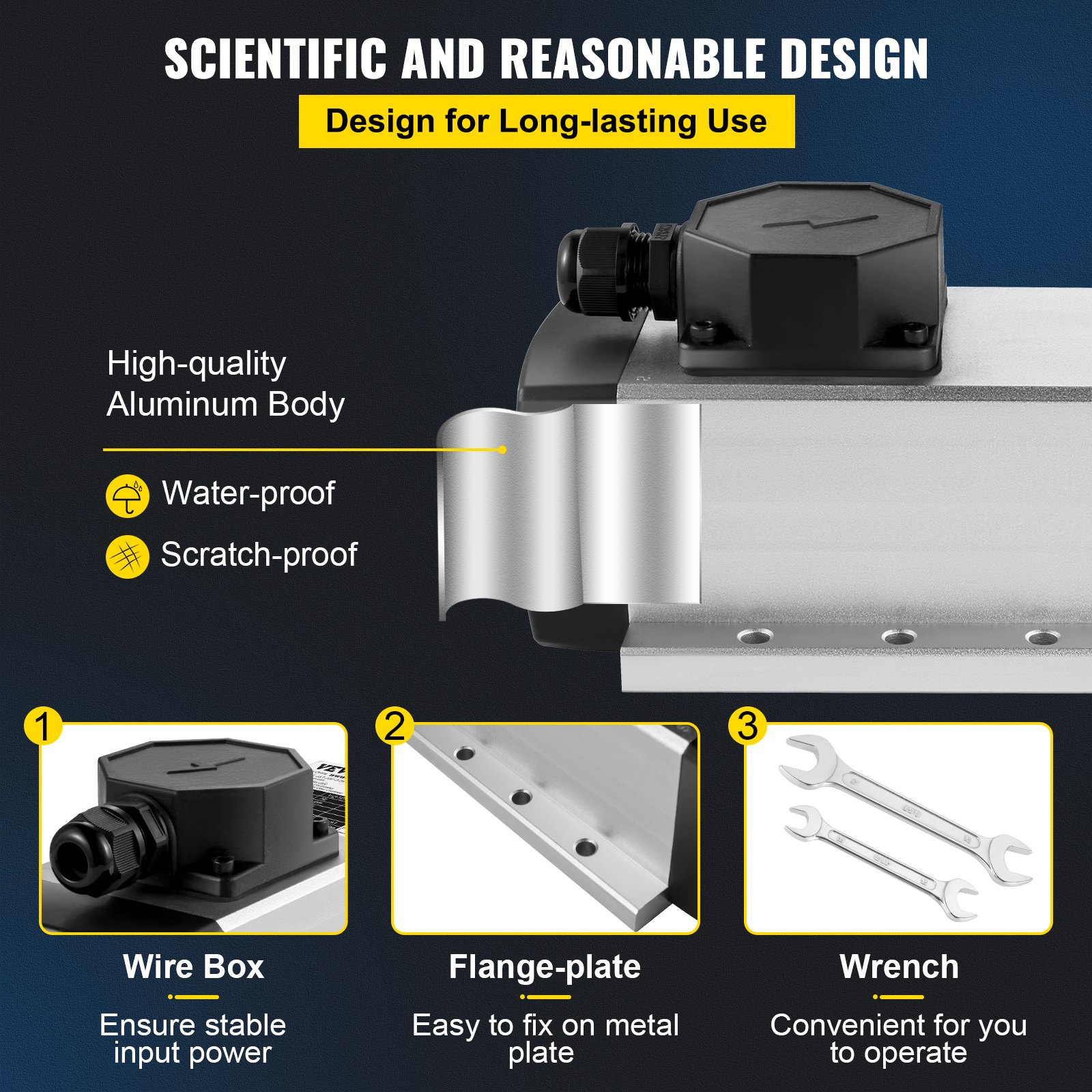

Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
- Power: 2.2 KW
- Voltage: 220V
- Frequency: 400 Hz
- Speed: 24000 R/min
- Runout off: Less than 0.01 mm
- Collet Size (Dia.): 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm)
- Connection of Spindle End: ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm)
- Bearing Model: 7005 x 2, 7002 x 2
- Maximum Torque: 1.2NM
- Product Dimension: 2.4 x 10.3 in / 6.2 x 26.1 cm
- Weight: 13.2 lbs / 6 kg

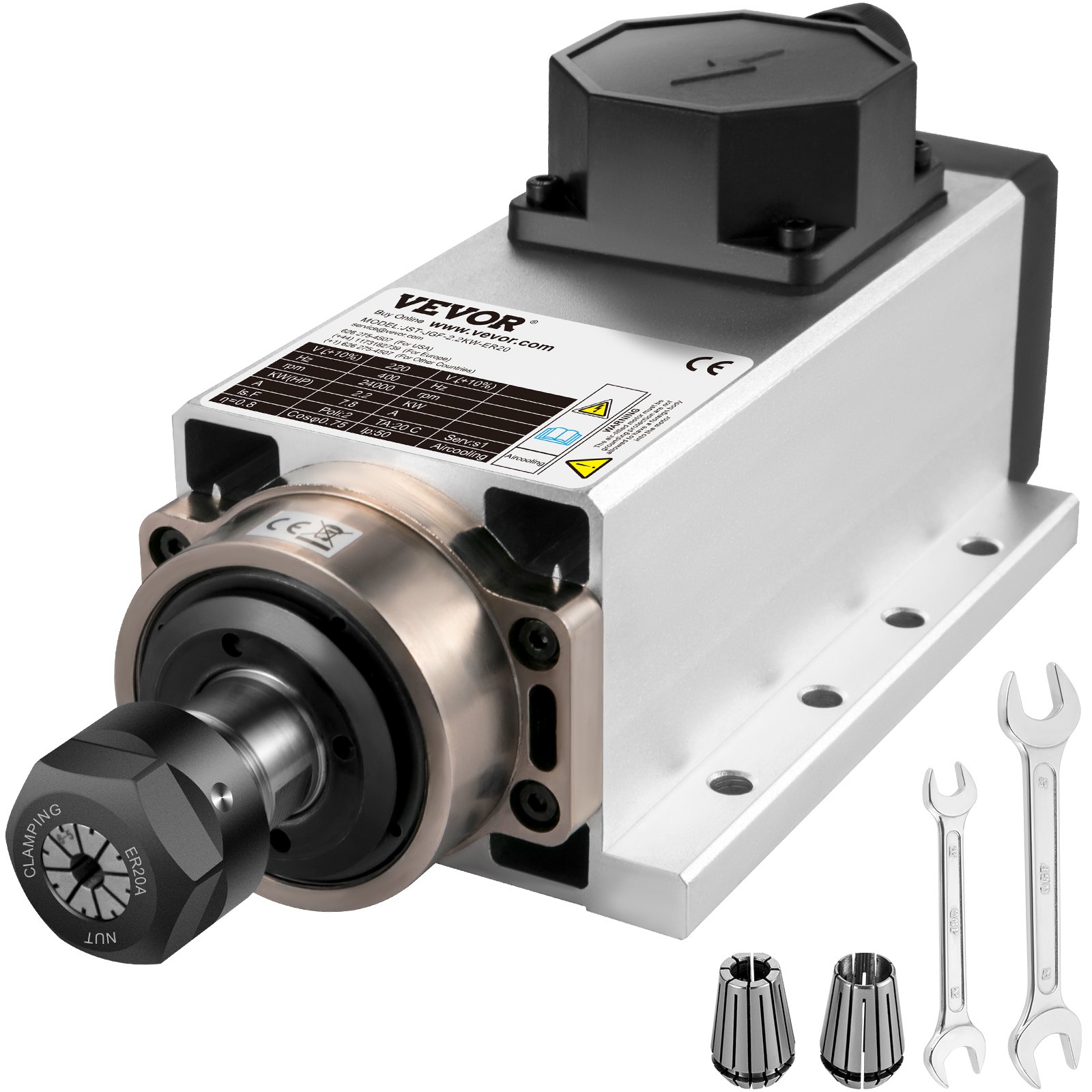

- 1 x Air Cooled Spindle Motor
- 2 x ER20 Collets
- 2 x Wrenches
2.2KW Air Cooled Spindle Motor
ER20 Collet & Four Bearings & 24000 R/min
These spindle motors adopt imported bearings and high-quality materials, and their service life is three times that of ordinary spindle motors. Widely applicable to engraving machines for wood, stone, metal, and other materials.
- Technical Parameters
- ER20 Standard Collet
- Powerful Bearing
- Low Noise & Heat Dissipation
Dynamic Balance Technology
Unlike other milling spindle motors, we use innovative and advanced dynamic balancing technology. The ER20 standard collet's advantages are excellent rigidity, full strength, unique drainage design, and high precision.
Four High-quality Bearings
The upgraded bearing has two significant advantages: superior durability and anti-rust performance. High speed (24000R/min) and strong power bring higher efficiency than before.
Noise Reduction and Air Cooling
Our CNC router spindle motor works with low noise and avoids auditory fatigue. It uses air circulation to cool the heat generated by the spindle at high speed and has a good heat dissipation effect.
Premium Material
The aluminum body ensures greater power and longer life; Unlike ordinary aluminum-clad wire, the oxygen-free copper coils can ensure high-quality processing and engraving performance.
Refined Internal Details
The CNC router spindle is a built-in wire box directly connected to the wire or VFD, effectively improving the stable and smooth operation. The upgraded wrench is provided for easy handling.
Wide Application
Air-cooled motors commonly applied materials such as wood, stone, mold & metal, etc. Suitable for machinery manufacturing, sheet metal processing, guardrails, factories, shipyards, home improvement, construction, and other fields.
- 1 x Air Cooled Spindle Motor
- 2 x ER20 Collets
- 2 x Wrenches
- Power: 2.2 KW
- Voltage: 220V
- Frequency: 400 Hz
- Speed: 24000 R/min
- Runout off: Less than 0.01 mm
- Collet Size (Dia.): 0.005" / 0.02" / 0.24" (0.125 mm / 0.5 mm / 6 mm)
- Connection of Spindle End: ER20 ø 0.125"-0.5" (3.175 mm-12.7 mm)
- Bearing Model: 7005 x 2, 7002 x 2
- Maximum Torque: 1.2NM
- Product Dimension: 2.4 x 10.3 in / 6.2 x 26.1 cm
- Weight: 13.2 lbs / 6 kg
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (5)
elke frequentieomvormer heb ik nodig voor de VEVOR 2.2kw spindle. De spindle heb ik al besteld maar weet niet welke frequentieomvormer ik moet bestellen. Ik hoor het graag
Koop een omvormer van 2,2 kW en 220 V.
By vevor
Helpful
(
9
)
which frequency controller works nice with this spindle?
It is 2.2kw 400hz controller.
By vevor
Helpful
(
3
)
Wat is het laagste toerental waarbij deze motor nog te gebruiken is. Kan deze bijvoorbeeld op 1500 of 2000 rpm werken. Wat is het geleverde koppel bij deze toerentallen indien deze bruikbaar zijn.
Nee, de minimumsnelheid is 12.000 en het risico bestaat dat hij heet wordt.
By vevor
Helpful
(
0
)
Can you put this direct on 230 Volt or only with an frequenticonverter?
Er wordt uitsluitend gebruik gemaakt van een frequentieomvormer.
By vevor
Helpful
(
0
)
What are the sizes of the 3 supplied ER20 collets?
Under specifications, it says: (dia.): 0,005 "/ 0,02" / 0,24 "(0,125 mm / 0,5 mm / 6 mm).
But this seems wrong, 0.125 and 0.5 mm collets do not make any sense.
3.175mm 6mm 12.7mm
By vevor
Helpful
(
0
)
