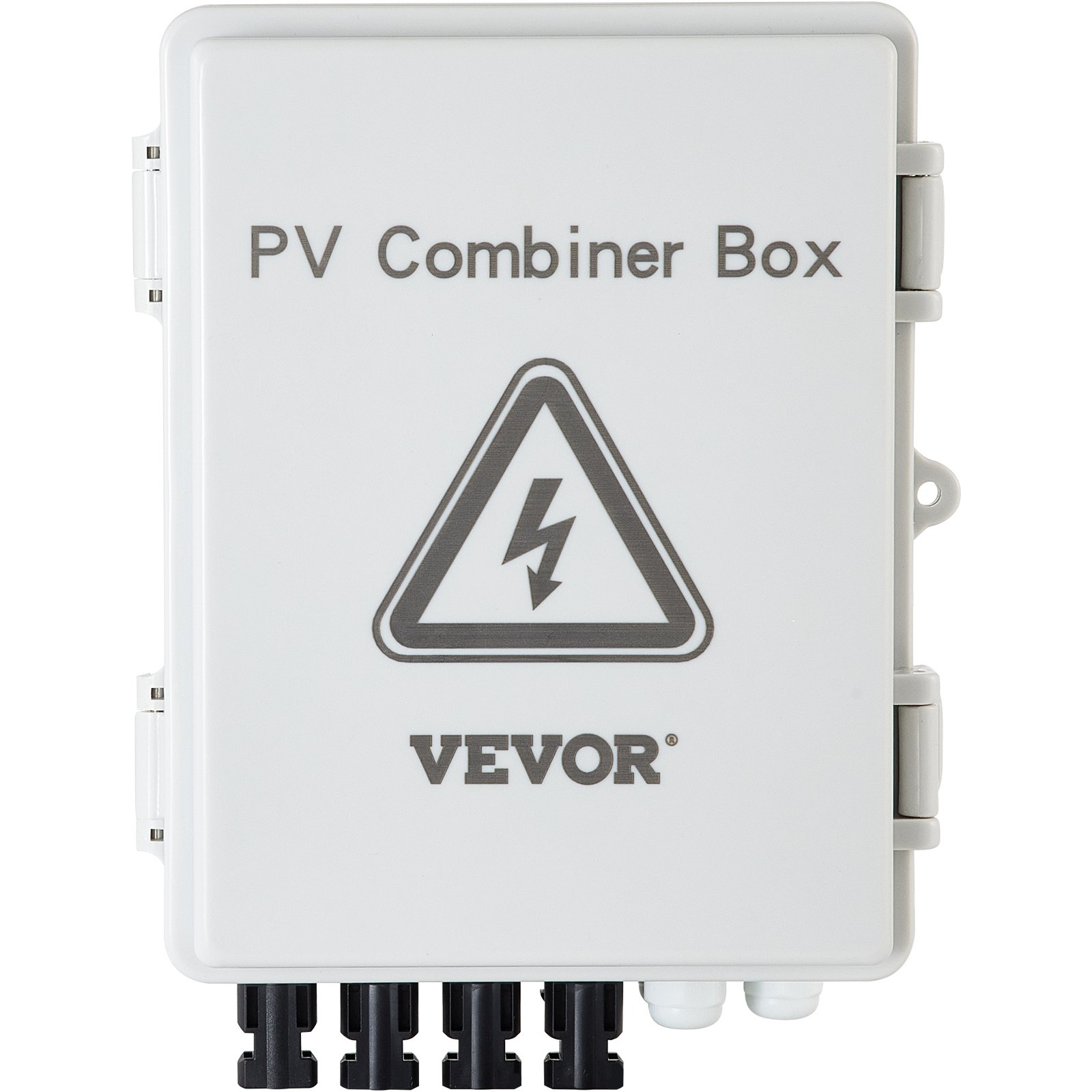

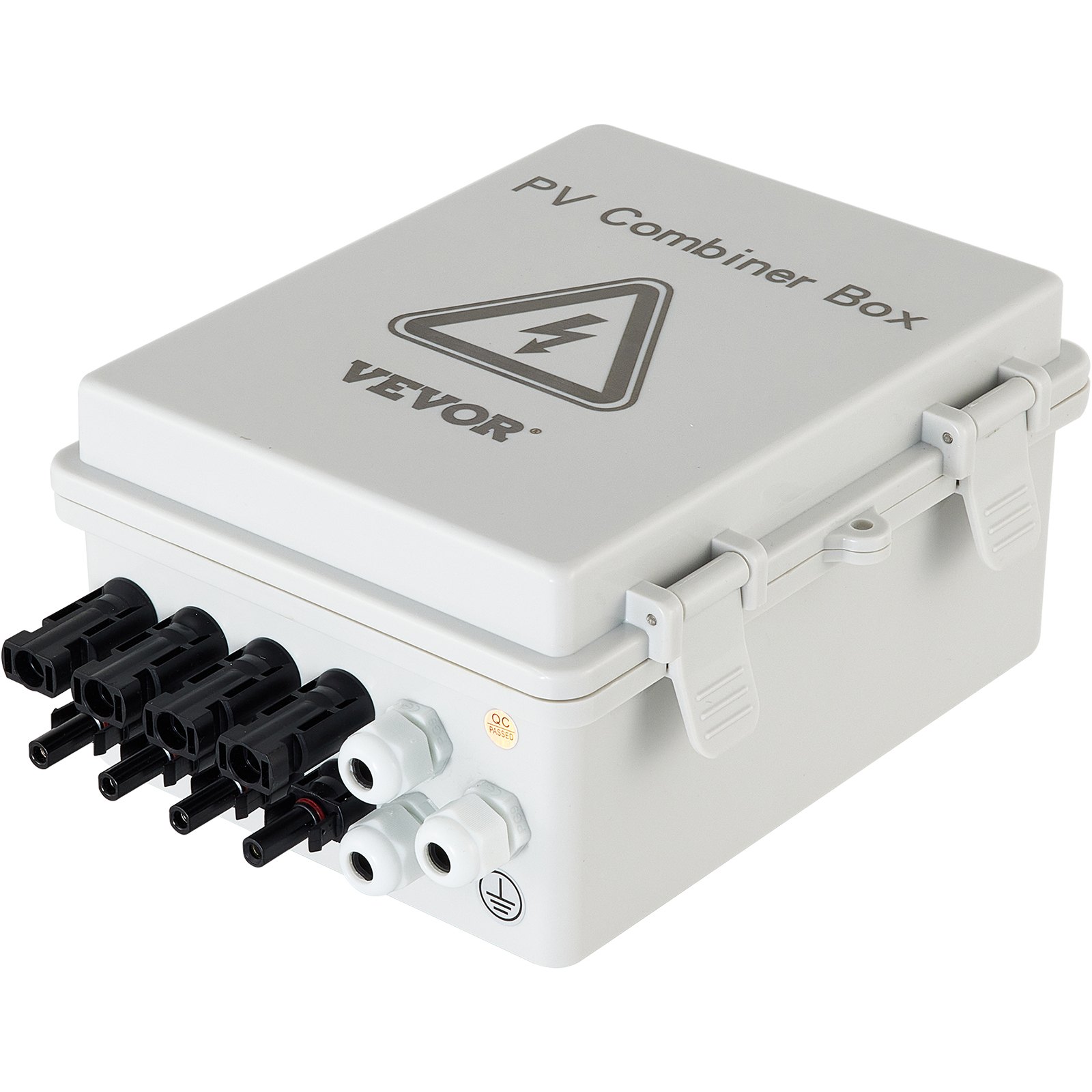

VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
+7
More
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65
VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65 VEVOR PV Combiner Box, 4 String, Solar Combiner Box with 15A Rated Current Fuse 63A Circuit Breaker Lightning Arrester and Solar Connector, ABS Plastic Case for On / Off Grid Solar Panel System, IP65

Features & Details

  • Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!
  • Professional PV Combiner Box: Featuring 4 15A DC fuses and a 63A circuit breaker, our 4 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
  • IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
  • 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.
  • Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 3 reviews

See all 3 reviews

About this item

Product specification
​Item Model Number
SP-HL-P202010-15A
Number of Inputs
4
Number of Outputs
1
Rated Operating Voltage
DC 500V
Fuse Holder Specification
DC 15A/500V
Rated Current of Fuse
DC 15A
Specification of Main Circuit Breaker
63A 2P DC500V
Surge Protector
40KA 2P DC500V
Protection Rating
IP65
Door Opening Method
Latch Opening
Mounting Plate
Detachable Mounting Plate(Material
Sealing Strip
PU Polyurethane Foam Material(Black)
Main Material
ABS Plastic Material+RAL7035 Grey-White Finish
Net Weight (including all accessories)
4.1 lbs / 1.86 kg
Overall Product External Dimensions (L x W x H)
7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
Description
VEVOR pv combiner box for 4 string 15a solar panel system with ip65 waterproof feature.

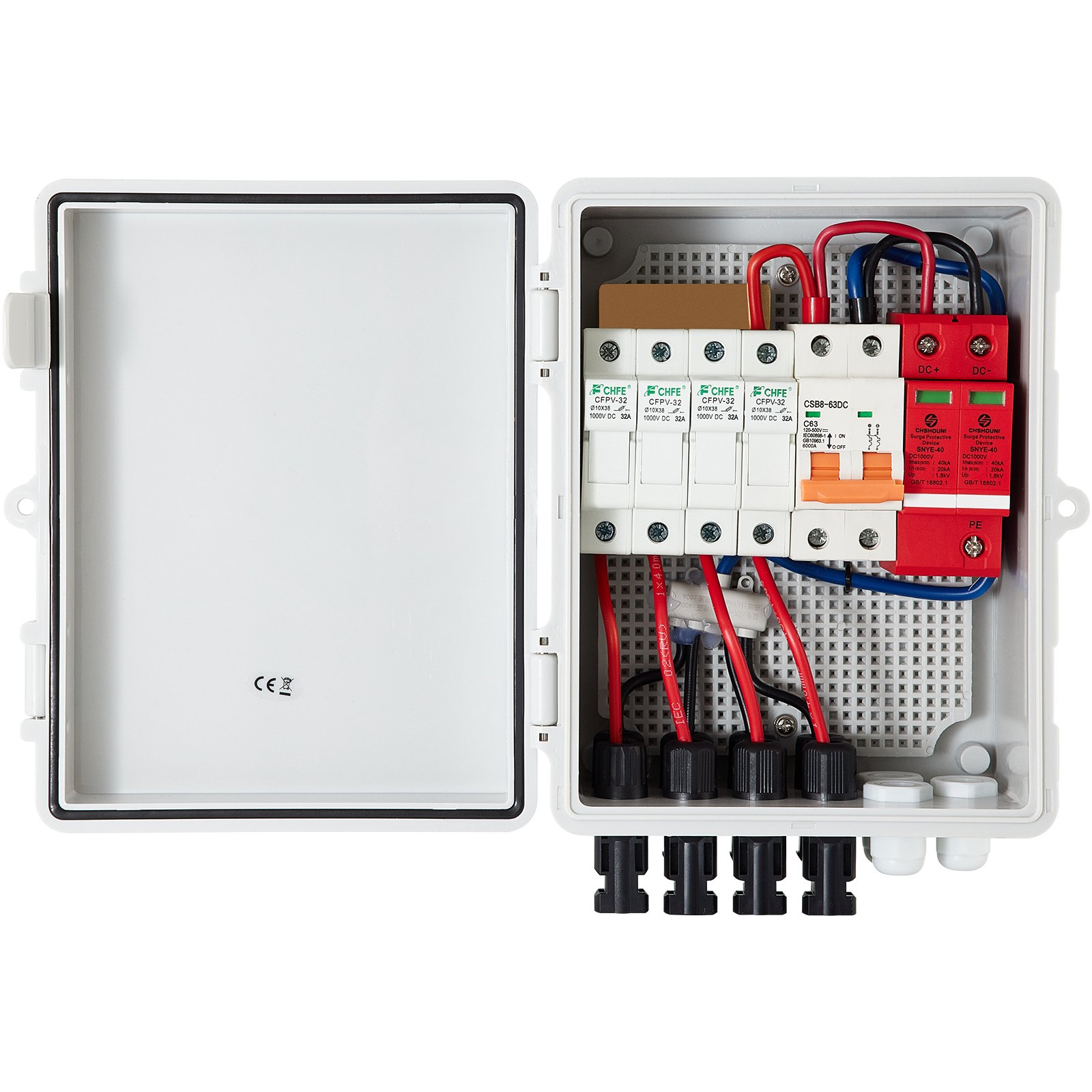

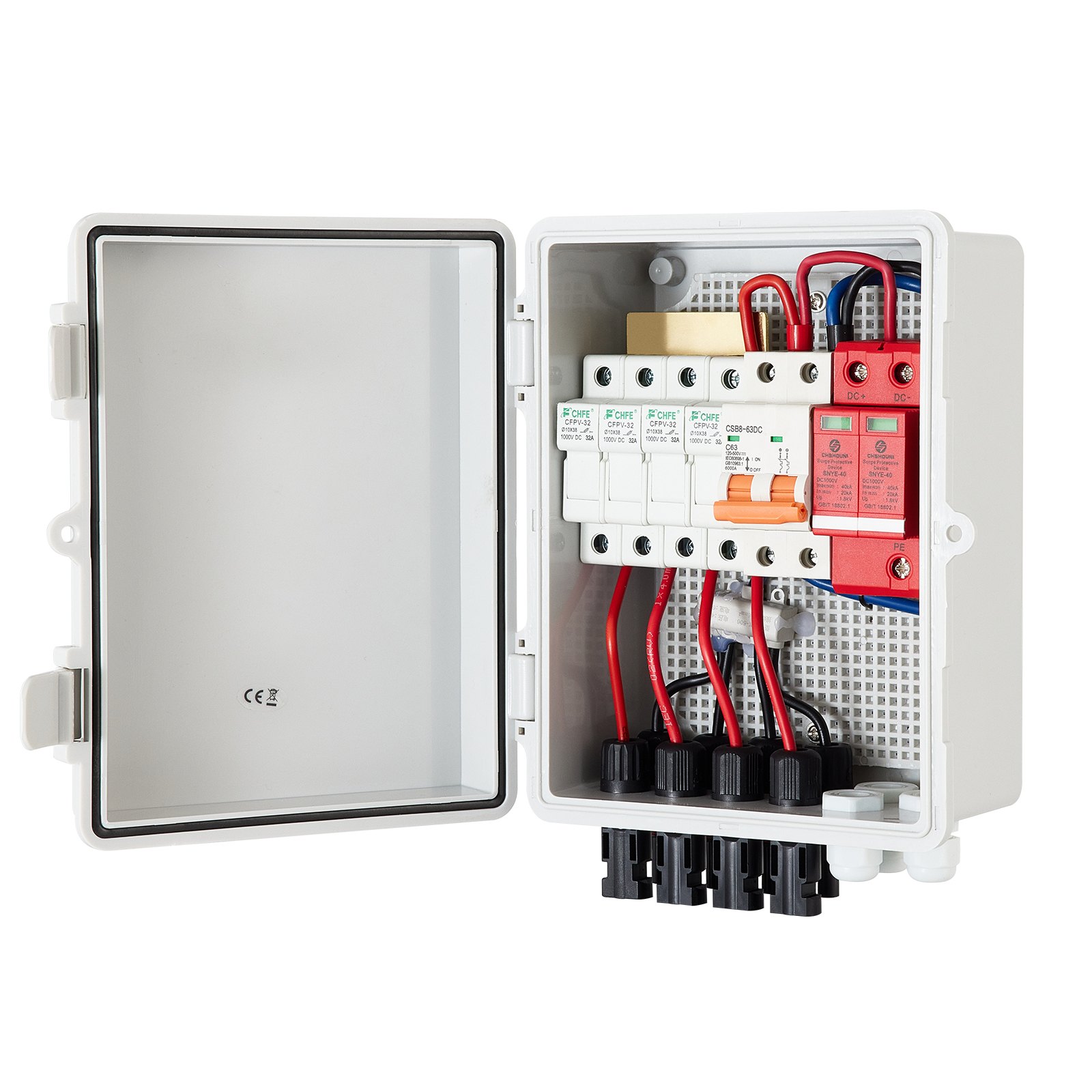

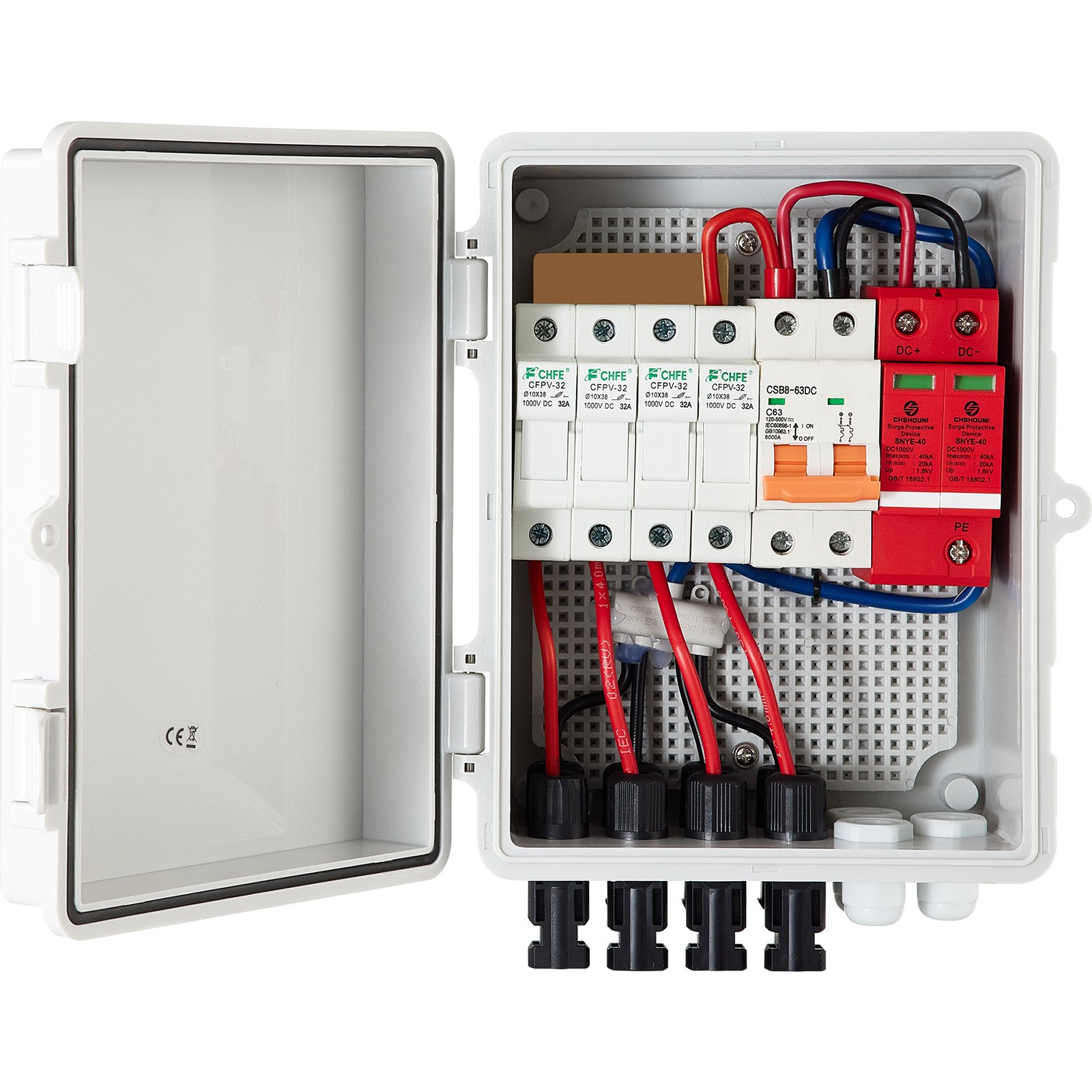

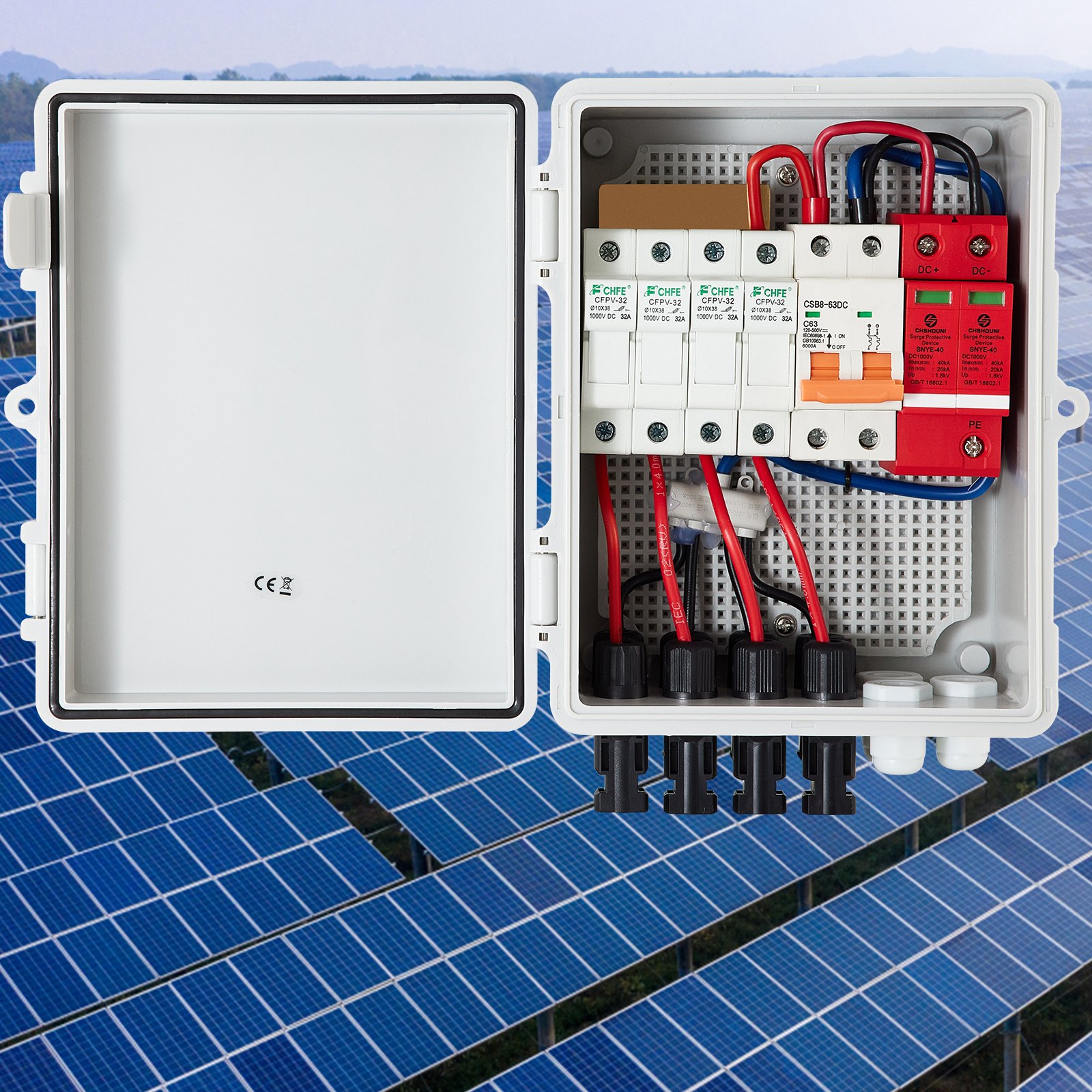

VEVOR pv combiner box with circuit breakers and wiring inside a grey enclosure.
Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
  • Durability Meets Reliability
  • IP65 Dust & Water Barrier
  • 24/7 Lightning Protection
  • Installation Made Easy
VEVOR pv combiner box with high voltage lightning arrester and protection device.
Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.

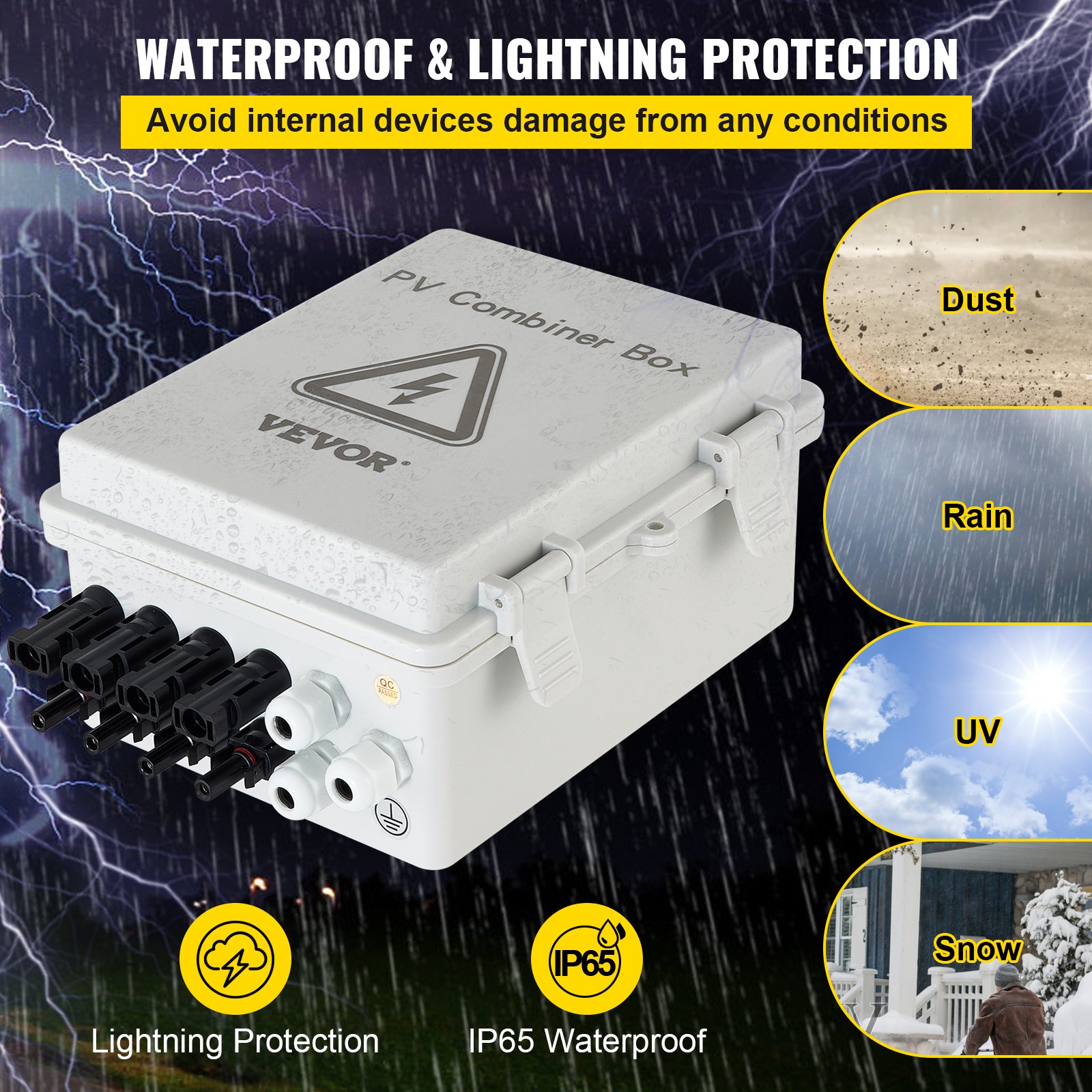

VEVOR pv combiner box with ip65 protection, suitable for outdoor use, blocks weather elements.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.

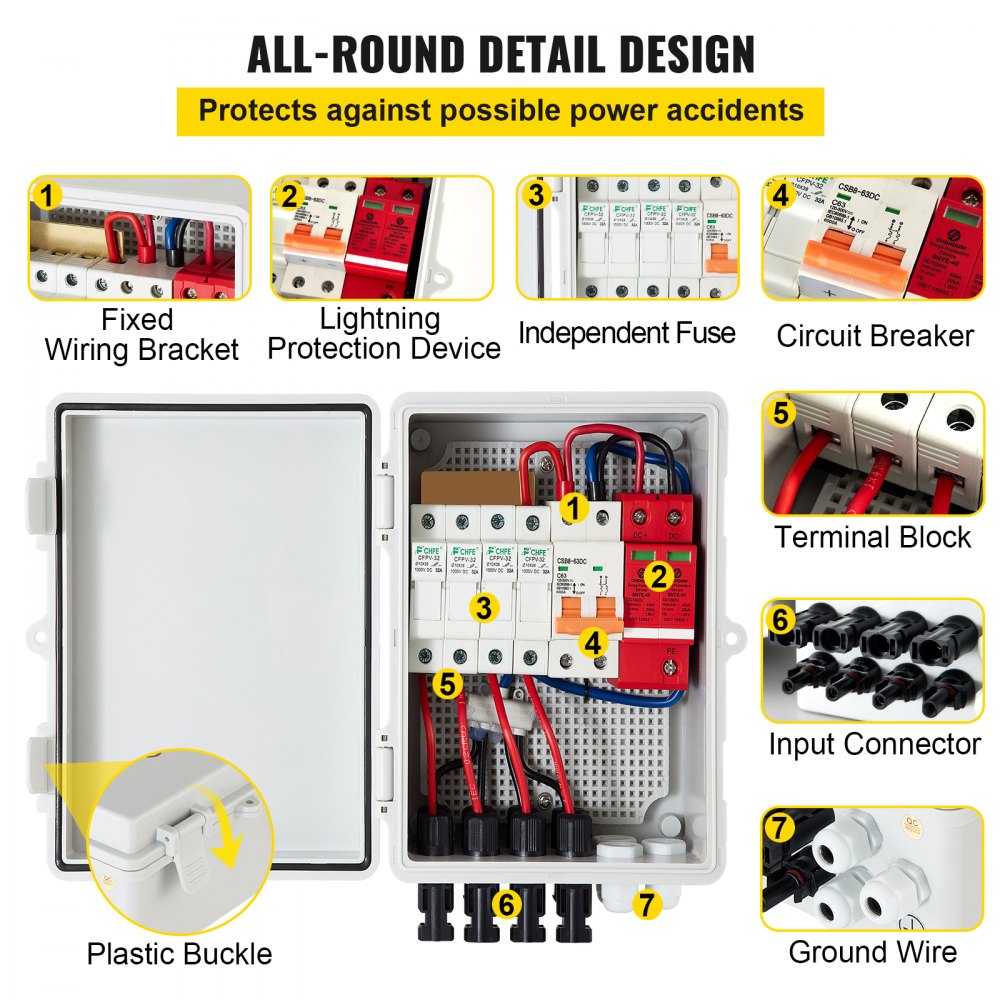

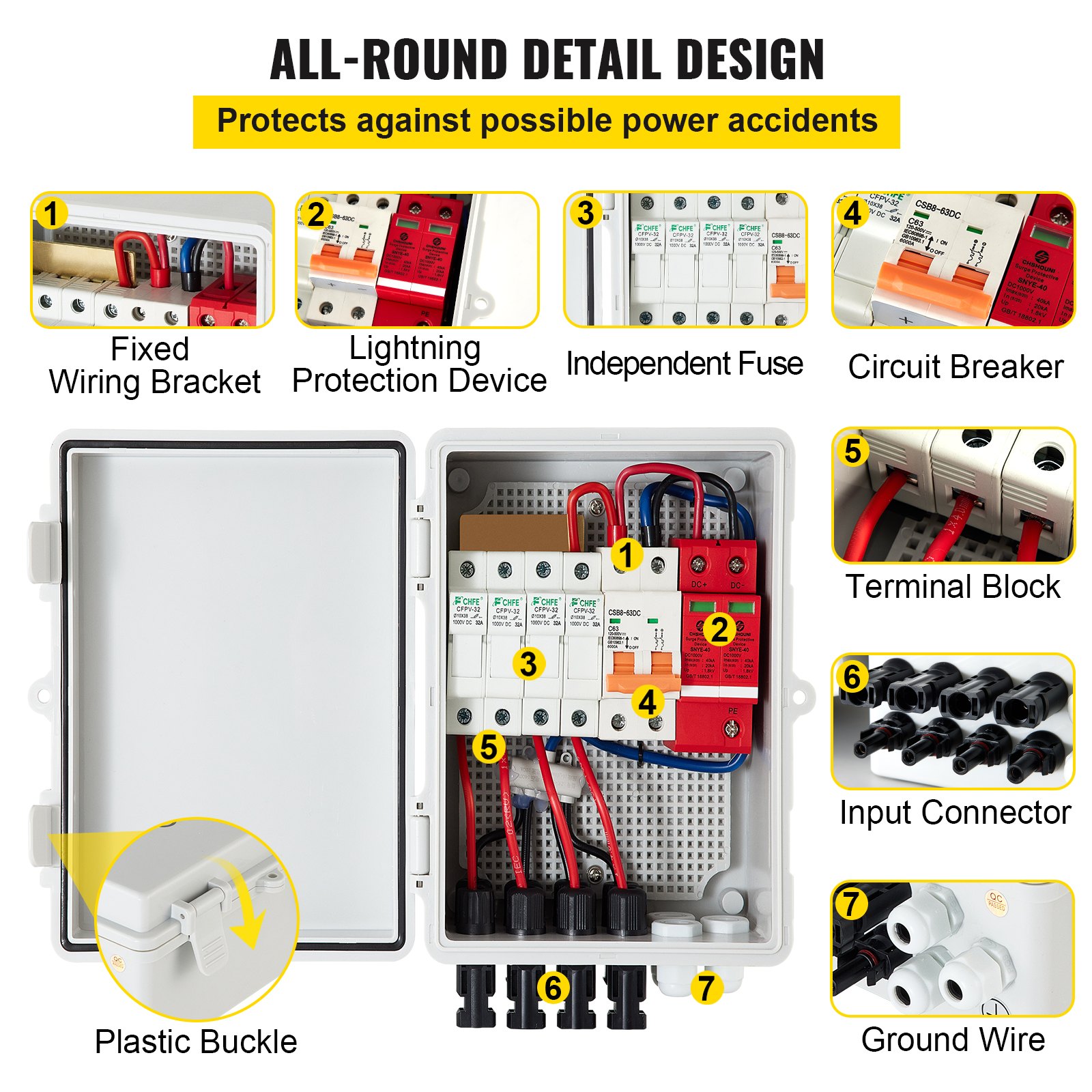

VEVOR pv combiner box showcasing thoughtful design with fuse, breaker, and wiring block.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
VEVOR pv combiner box with detailed wiring and connection components shown.

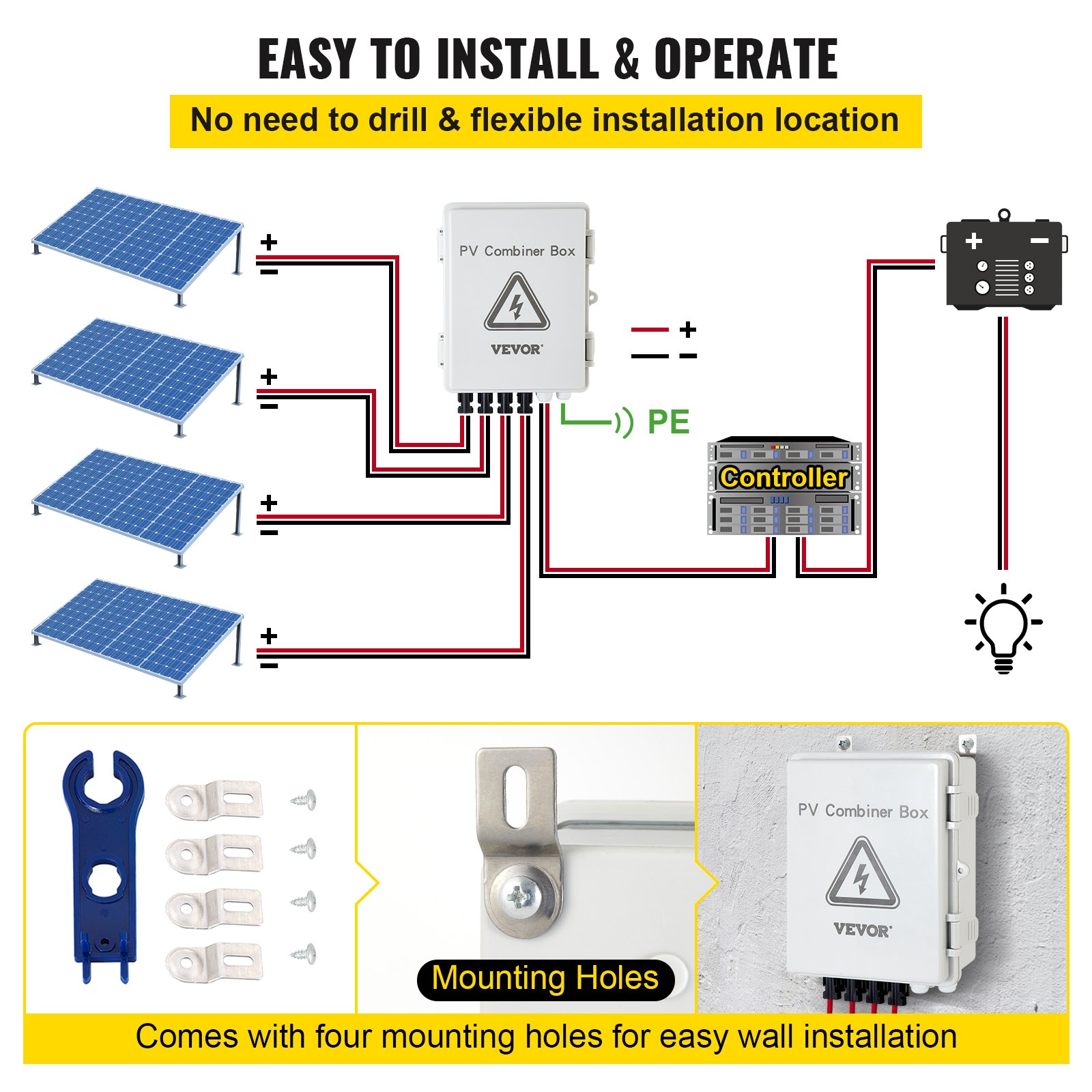

Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!

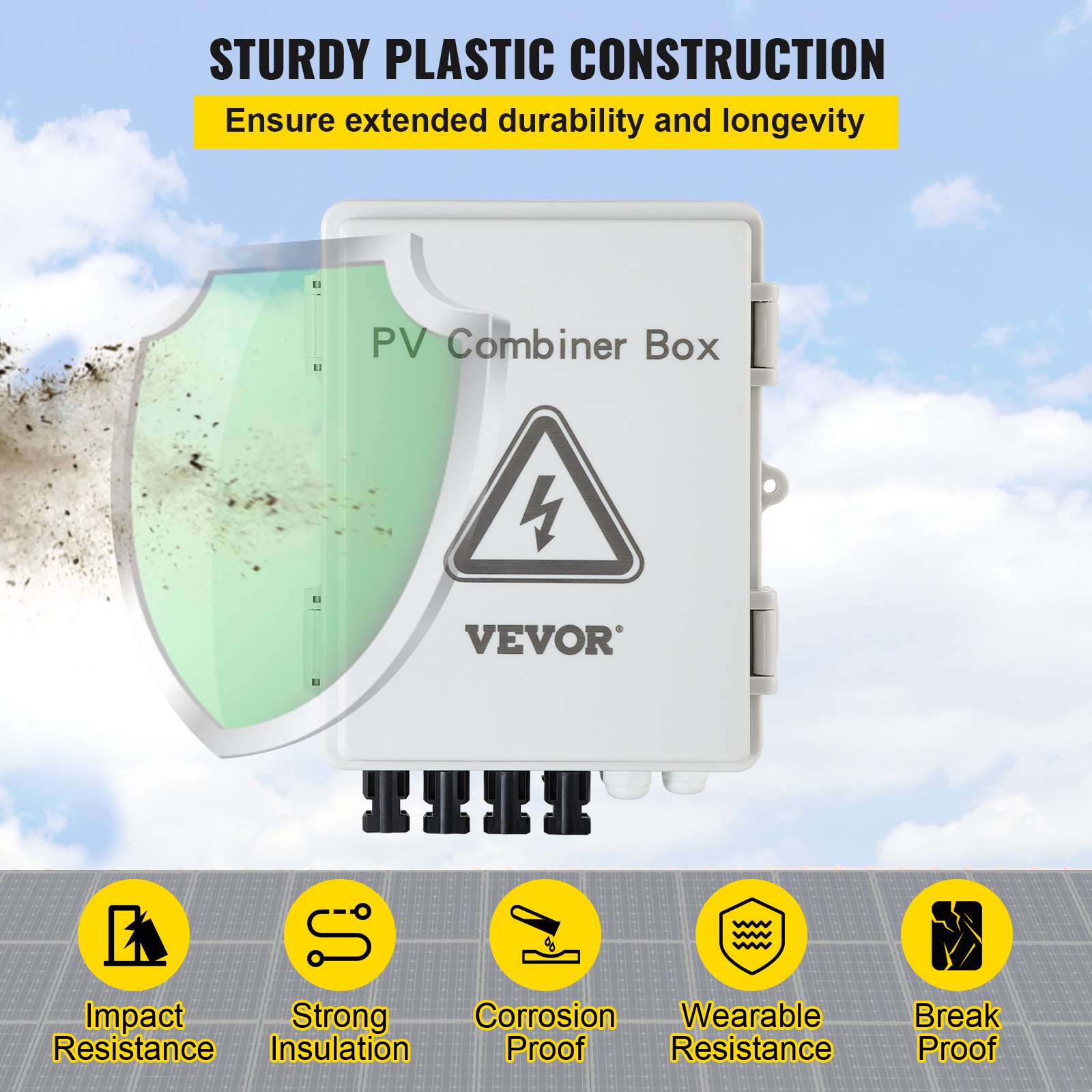

VEVOR pv combiner box, impact and wearable resistance, effortless to use.
Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!

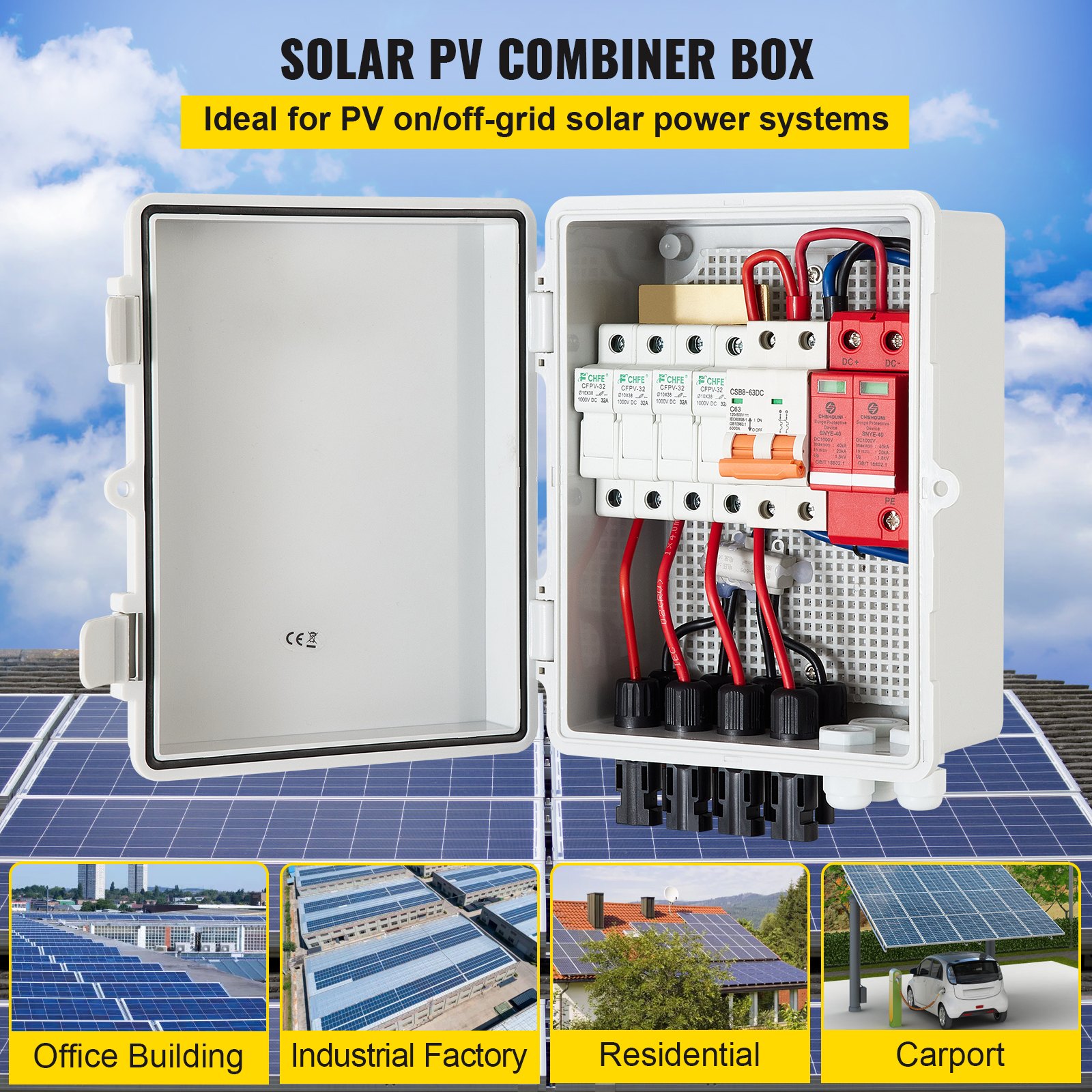

VEVOR pv combiner box with solar panels on office building, factory, house, and carport.
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!

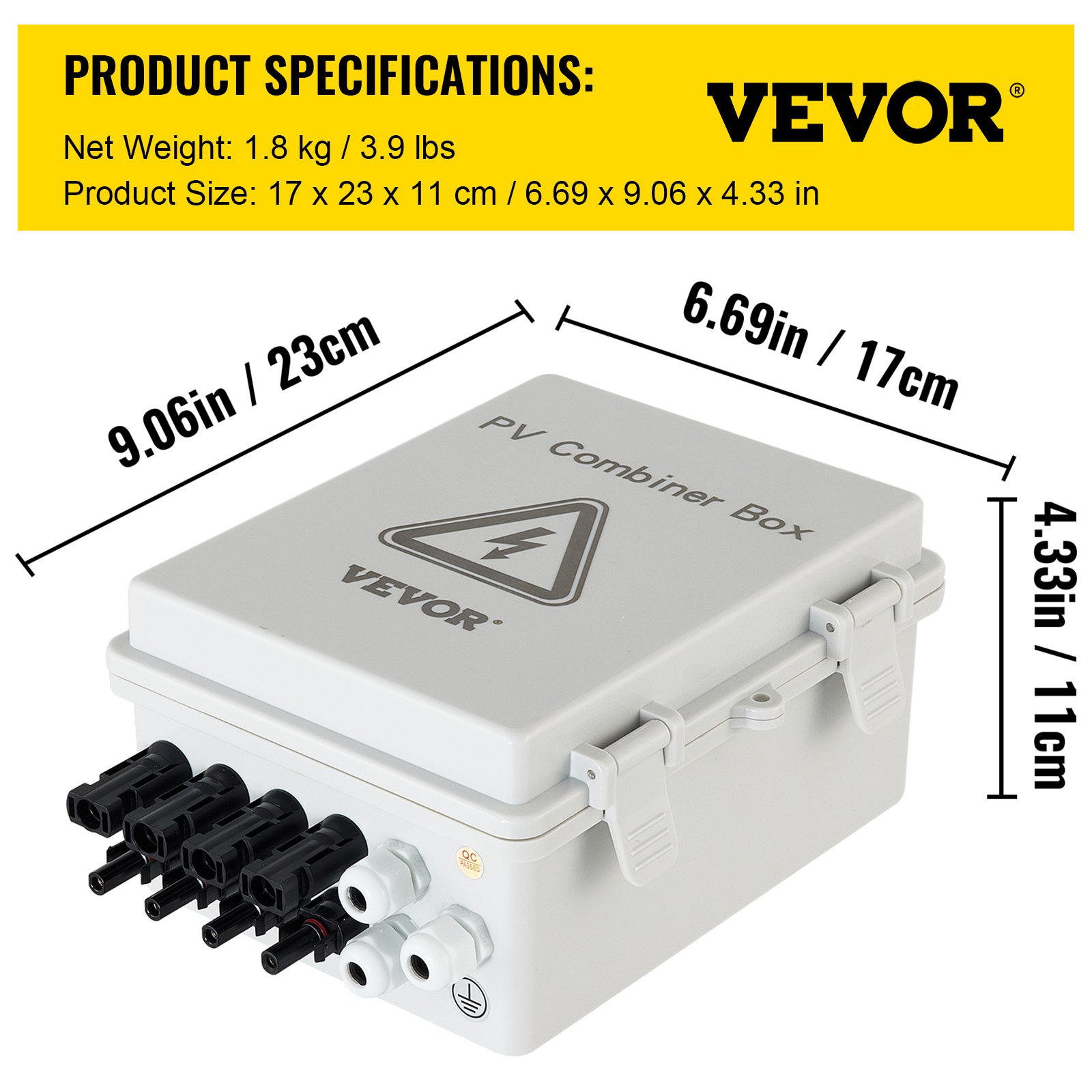

VEVOR pv combiner box dimensions: 9.06in x 6.69in x 4.33in, shown in white.
  • ​Item Model Number: SP-HL-P202010-15A
  • Number of Inputs: 4
  • Number of Outputs: 1
  • Rated Operating Voltage: DC 500V
  • Fuse Holder Specification: DC 15A/500V
  • Rated Current of Fuse: DC 15A
  • Specification of Main Circuit Breaker: 63A 2P DC500V
  • Surge Protector: 40KA 2P DC500V
  • Protection Rating: IP65
  • Door Opening Method: Latch Opening
  • Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
  • Sealing Strip: PU Polyurethane Foam Material(Black)
  • Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
  • Net Weight (including all accessories): 4.1 lbs / 1.86 kg
  • Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
VEVOR pv combiner box with wiring setup, manual, wrench, and connectors included.
  • 4 x MCB Female Connectors with Red Wire (2.5 mm²)
  • 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
  • 2 x PG13.5 Plastic Waterproof Glands
  • 1 x PG9 Plastic Waterproof Gland
  • 1 x MC4 Tool
  • 4 x Cold Rolled Steel Wall Mounting Brackets
  • 4 x Screws
VEVOR pv combiner box for 4 string 15a solar panel system with ip65 waterproof feature.
VEVOR pv combiner box with circuit breakers and wiring inside a grey enclosure.
Enhance Your Solar Setup with Our PV Combiner Box
IP65 Protection Grade & Lightning Protection & Premium ABS Material
Looking to upgrade your solar system? Look no further! Our solar combiner box streamlines connections between solar panels and inverters for easy maintenance. With lightning protection, 15A DC fuses, a circuit breaker, it supports PV grid-tied/off-grid solar power systems and solar panel systems.
  • Durability Meets Reliability
  • IP65 Dust & Water Barrier
  • 24/7 Lightning Protection
  • Installation Made Easy
VEVOR pv combiner box with high voltage lightning arrester and protection device.
Professional PV Combiner Box
With four 15A DC fuses, lightning protection, and a 500V 63A circuit breaker, our PV combiner box is engineered to streamline connections between your solar array and inverters and optimize system structure.
VEVOR pv combiner box with ip65 protection, suitable for outdoor use, blocks weather elements.
Easy Opening & Closing
Our PV combiner box features a latch design for you to easily open and close the box without the need for keys. Say goodbye to the hassle of searching for keys and hello to seamless operation, ensuring quick and convenient access whenever needed.
VEVOR pv combiner box showcasing thoughtful design with fuse, breaker, and wiring block.
Multiple Layers of Protection
With built-in safeguards, including short-circuit protection, lightning protection, overvoltage protection, overcurrent protection, and ground protection, our solar combiner box offers unparalleled peace of mind, making it the reliable choice for your solar setup.
VEVOR pv combiner box with detailed wiring and connection components shown.
Effortless Installation
Our PV combiner box comes with a complete set of installation accessories, making it a breeze to assemble and integrate into your solar panel system, ensuring seamless connections and hassle-free setup. You can install it anywhere!
VEVOR pv combiner box, impact and wearable resistance, effortless to use.
Wide Application
Whether it's for public facilities, engineering projects, residential use, industrial settings, or even recreational vehicles, our PV combiner box is the perfect fit. Trust in our PV combiner box to power up your solar projects across different fields!
VEVOR pv combiner box with solar panels on office building, factory, house, and carport.
Dual-Color Wire
Equipped with dual-color wiring in red and blue, our combiner box for solar panels ensures tidy and efficient connections. You can easily identify and connect the wires with confidence. Say goodbye to tangled and messy wiring!
VEVOR pv combiner box with wiring setup, manual, wrench, and connectors included.
  • 4 x MCB Female Connectors with Red Wire (2.5 mm²)
  • 4 x MCB Male Connectors with Blue Wire (2.5 mm²)
  • 2 x PG13.5 Plastic Waterproof Glands
  • 1 x PG9 Plastic Waterproof Gland
  • 1 x MC4 Tool
  • 4 x Cold Rolled Steel Wall Mounting Brackets
  • 4 x Screws
VEVOR pv combiner box dimensions: 9.06in x 6.69in x 4.33in, shown in white.
  • ​Item Model Number: SP-HL-P202010-15A
  • Number of Inputs: 4
  • Number of Outputs: 1
  • Rated Operating Voltage: DC 500V
  • Fuse Holder Specification: DC 15A/500V
  • Rated Current of Fuse: DC 15A
  • Specification of Main Circuit Breaker: 63A 2P DC500V
  • Surge Protector: 40KA 2P DC500V
  • Protection Rating: IP65
  • Door Opening Method: Latch Opening
  • Mounting Plate: Detachable Mounting Plate(Material: ABS Mesh Plastic Base)
  • Sealing Strip: PU Polyurethane Foam Material(Black)
  • Main Material: ABS Plastic Material+RAL7035 Grey-White Finish
  • Net Weight (including all accessories): 4.1 lbs / 1.86 kg
  • Overall Product External Dimensions (L x W x H): 7.87 x 7.87 x 3.94 in / 200 x 200 x 100 mm
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (3)

3 Questions
Ask a Question
Is this suitable for a lifepo4 battery?
Answer This Question
This is a photovoltaic combiner box. The input end is connected to the solar panel, and the output end is usually connected to the inverter or solar controller and is usually not directly connected to the battery.
By vevor
Helpful ( 1 )
Hoi, Ik ben geinteresseerd in dit product, maar zou zekeringen van 25A nodig hebben. Is dit mogelijk, of kan ik zelf de zekeringen hierin vervangen door zekeringen van 25A? Zijn de fuse holders hierin geschikt daarvoor? Op de foto zie ik 32A staan.
Answer This Question
Het is niet aan te raden de zekering te vervangen, aangezien de kabelspecificaties zijn gebaseerd op de maximale stroomsterkte van 15A.
By vevor
Helpful ( 0 )
Hoi, Ik heb een vraag Ik heb deze gekocht alleen heb er niet veel verstand van hoe je het moet aansluiten ik heb flinke accu van 100a en ik heb ook 86a accu die zou ik graag erop aan sluiten alleen ik heb nog geen controller weet niet welke ik moet nemen en weet jij het welke laat maar weten dus hoop dat je me kan helpen
Answer This Question
Hallo, het ingangseinde van dit product is verbonden met het zonnepaneel, het uitgangseinde is verbonden met de controller en de batterij is achter de controller aangesloten.
By vevor
Helpful ( 0 )
