Features & Details
- High-Quality Materials: Made of 316L stainless steel with 99% copper brazing at edges and contact points, forming a robust and leak-resistant unit that withstands high pressure and temperature. CE certified for reliable quality.

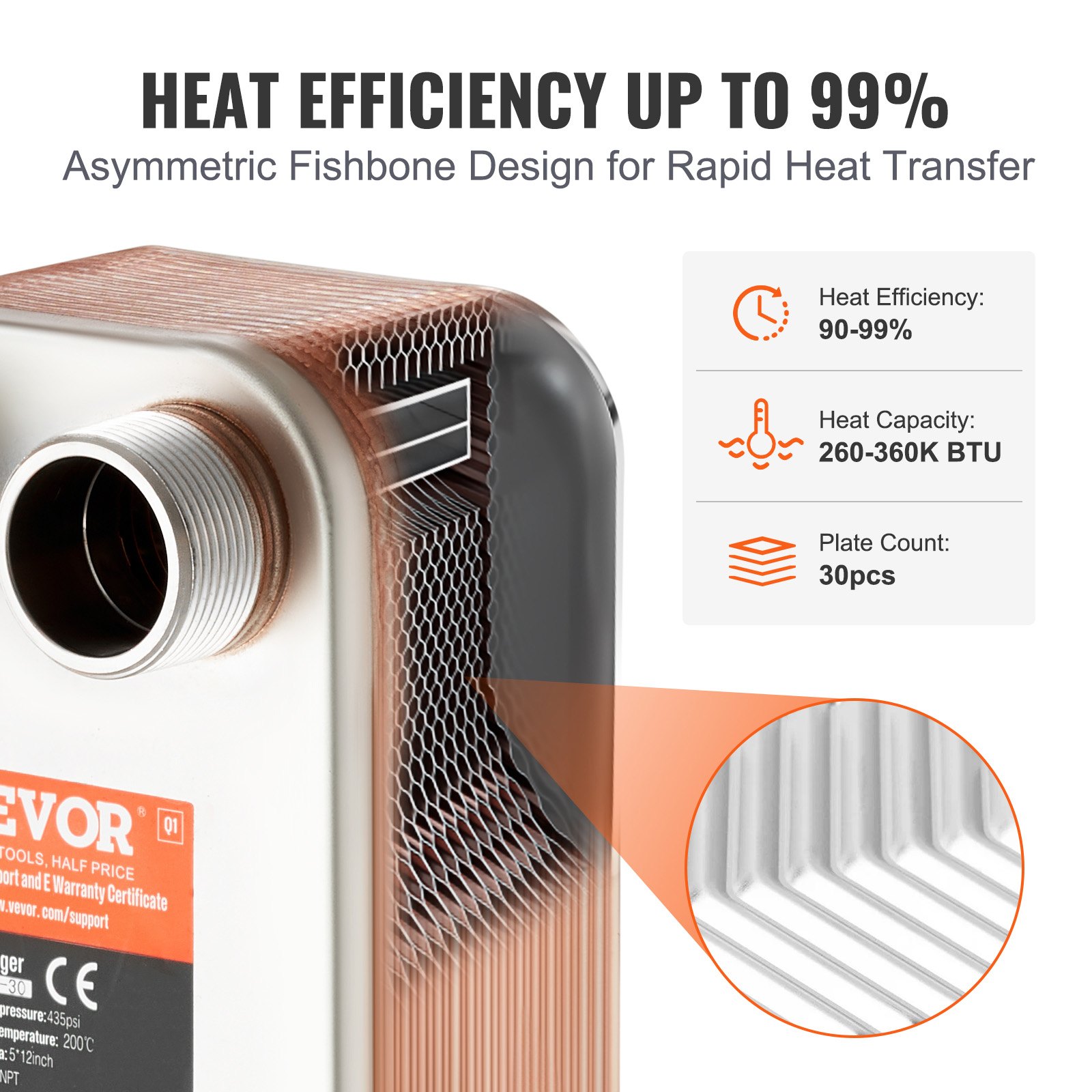

- Efficient Heat Transfer: The high-conductivity stainless steel plates feature an asymmetrical herringbone pattern, creating intense pressure turbulence for efficient heating/cooling. With up to 99% heat efficiency, it generates 260-360K BTU per hour, saving pump power and electricity, reducing overall application costs.

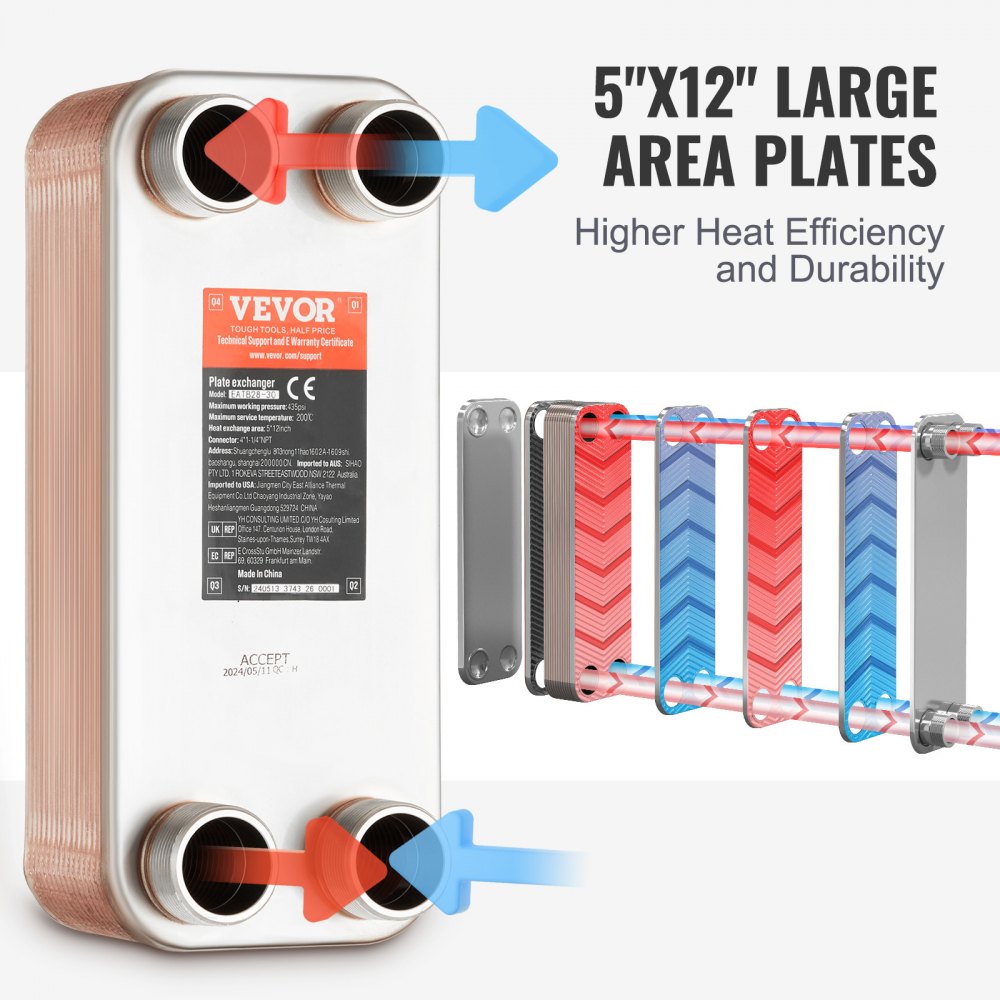

- Large Heat Exchange Area: The heat exchanger features 5”x12” plates with up to 30 plates, providing excellent heat transfer performance for maximum efficiency. Suitable for operating temperatures from -292℉ to 392℉.

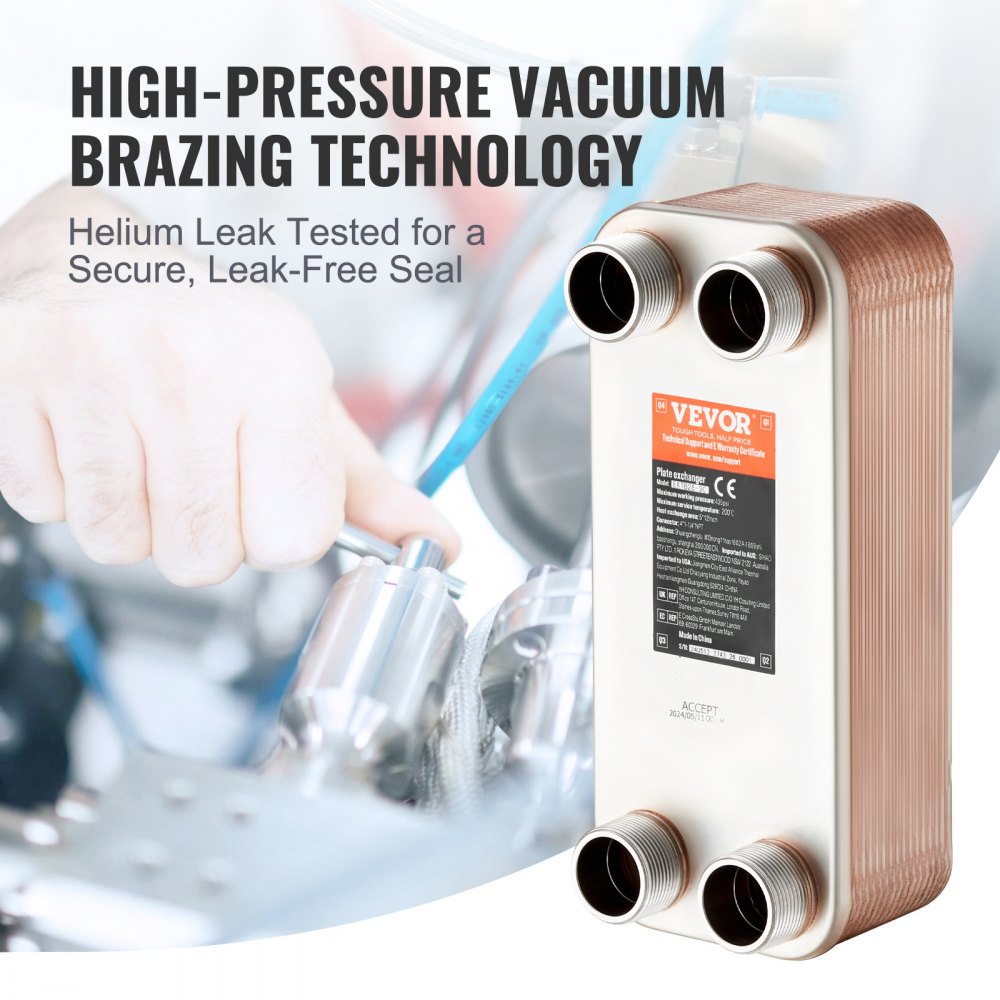

- Tight and Leak-Proof: To eliminate the possibility of micro-leaks, the heat exchanger uses high-pressure vacuum brazing and undergoes helium leak testing, ensuring long life and high reliability.

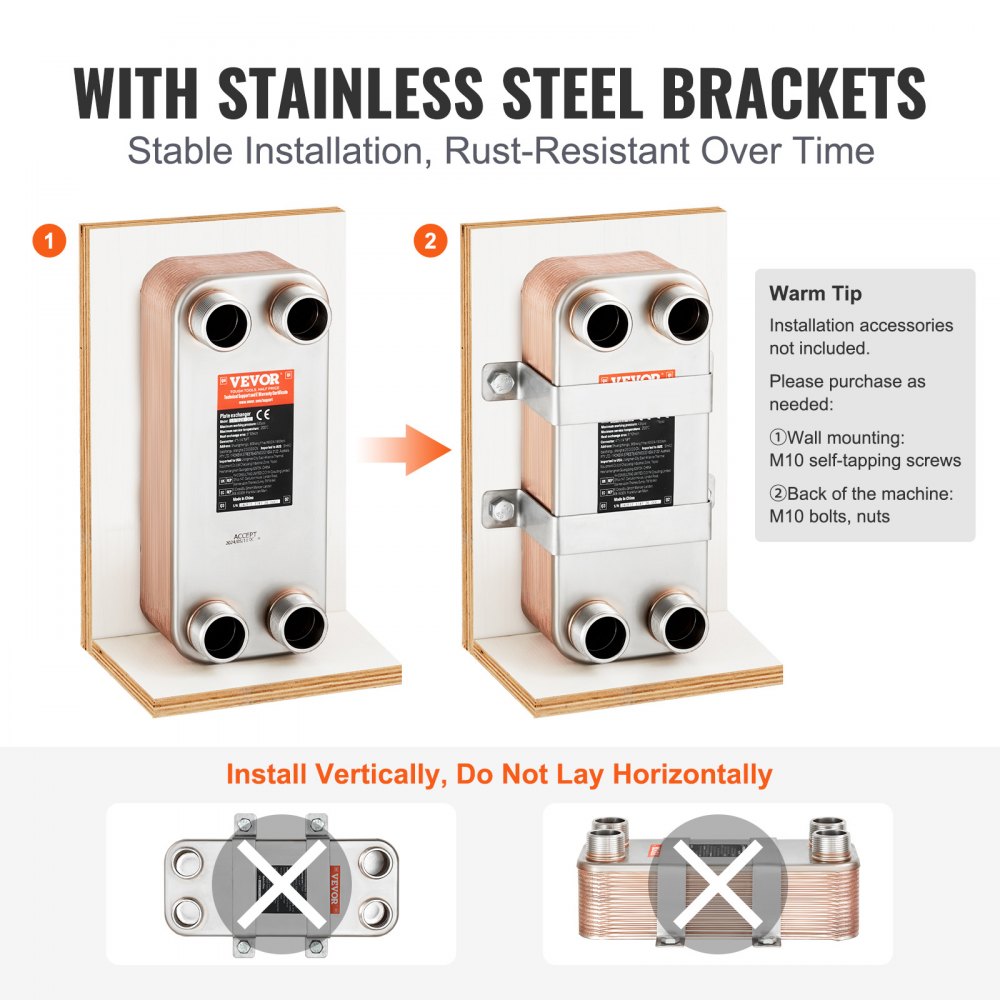

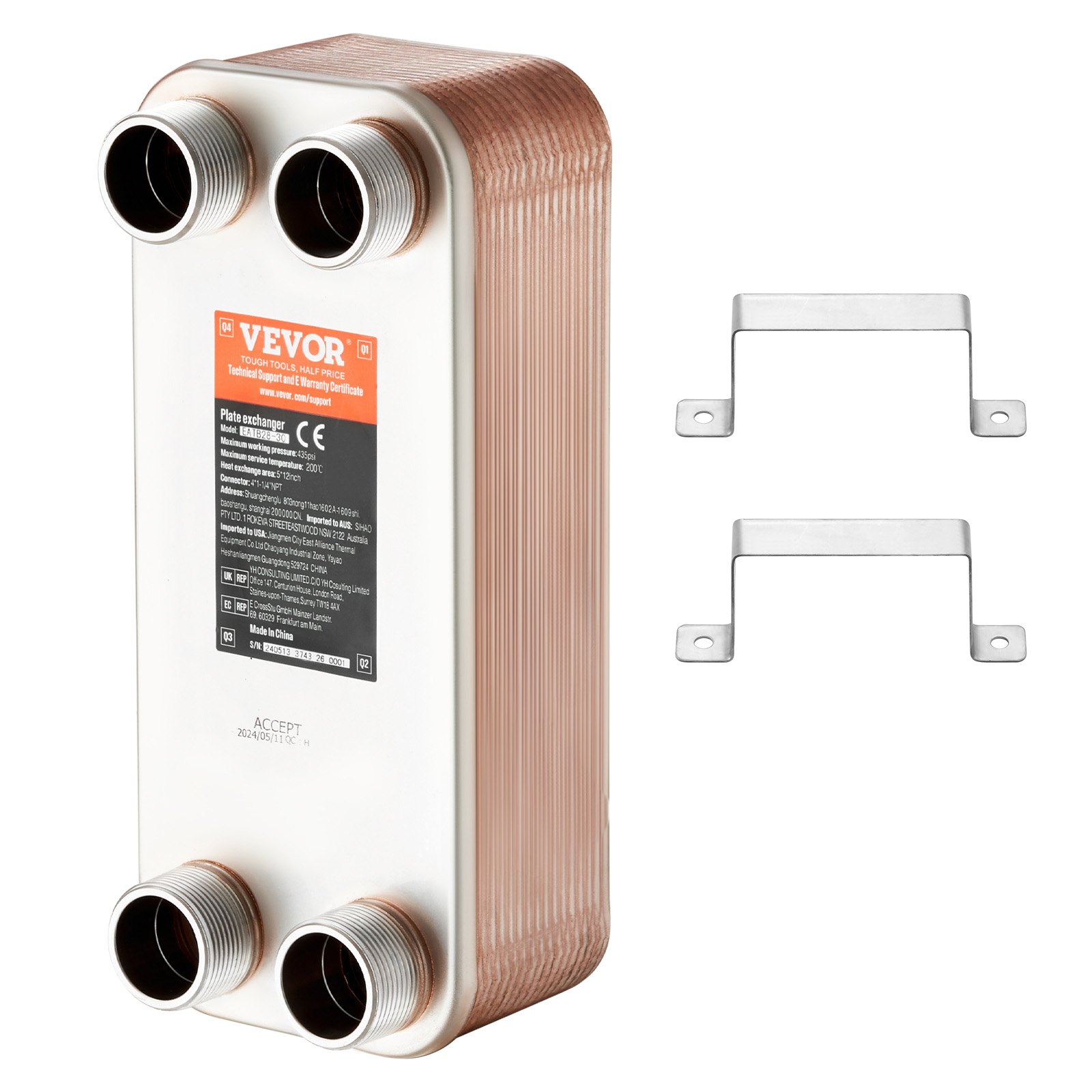

- Stable Installation: Includes two stainless steel brackets made of 304 stainless steel, offering excellent rust resistance and stability for easy and secure mounting of the heat exchanger.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 5.0
All reviews are from verified purchases
See all 1 reviews
About this item

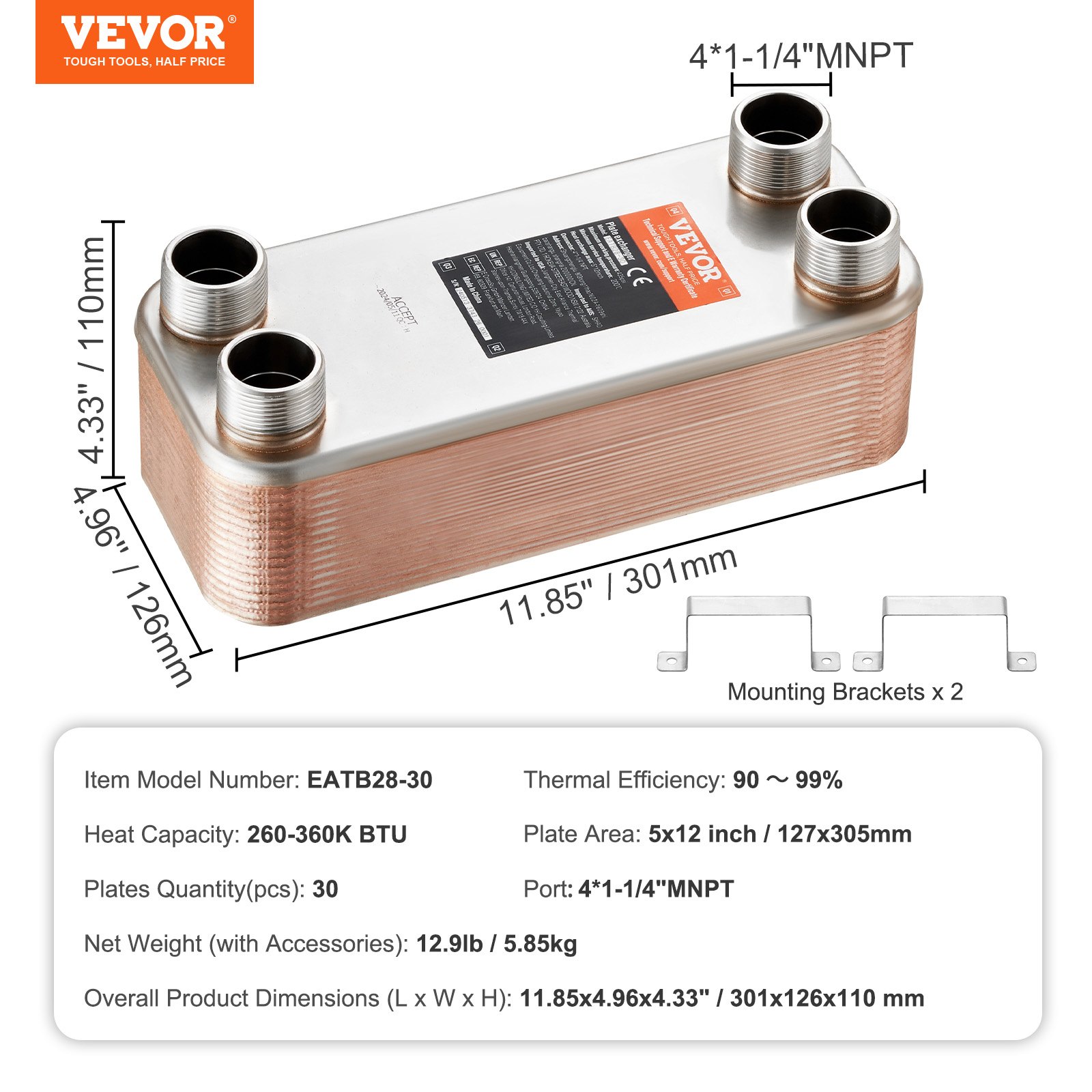

Product specification
- Model
- EATB28-30
- Thermal Efficiency
- 90～99%
- Heat Capacity
- 260-360K BTU
- Plate Area
- 5x12 inch/ 127x305mm
- Plates Quantity(pcs)
- 30
- Port
- 4*1-1/4" MNPT External Thread
- Color
- Stainless Steel + Copper Color
- Material
- 304/316 Stainless Steel, Solder
- Net Weight (with Accessories)
- 12.9lb / 5.85kg
- Product Dimensions (L x W x H)
- 11.85x4.96x4.33" / 301x126x110 mm
Description
Unleashing Ultimate Heat Efficiency

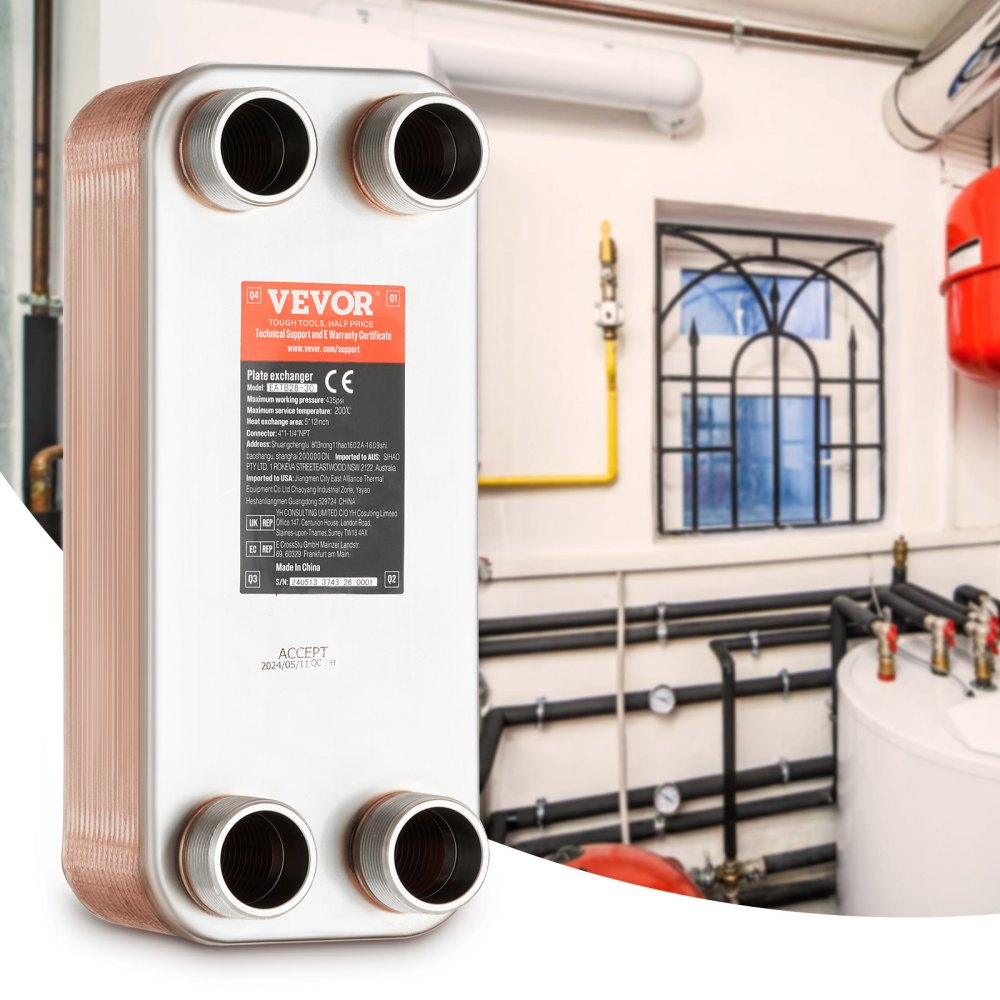

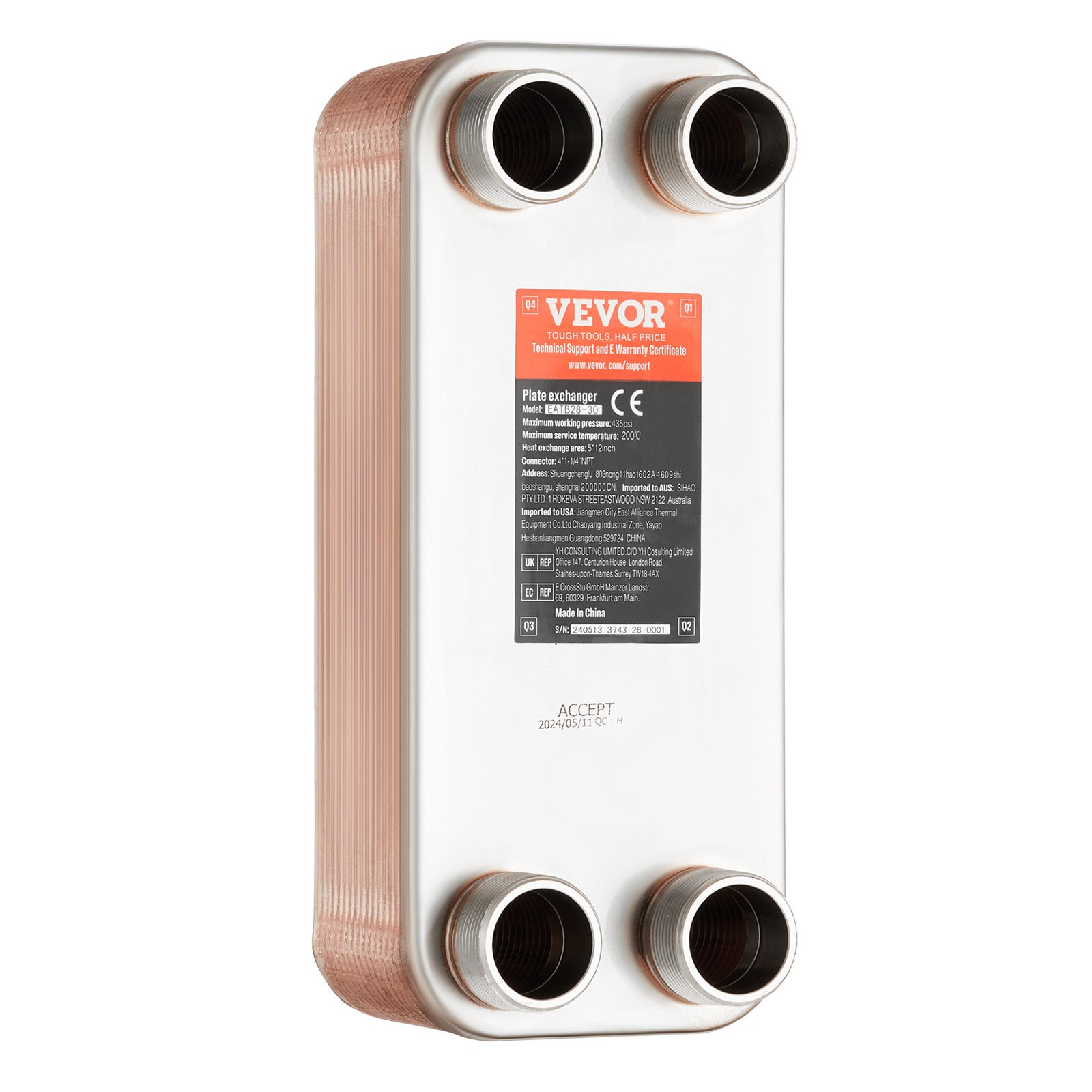

Our heat exchanger is compact and lightweight, offering excellent thermal performance. Made with 316L stainless steel and 99% copper brazing for durability, it is perfect for solar heating, oil heat recovery, engine cooling, and condensation.
Our heat exchanger features a 1 ¼” MNPT interface with smooth threads for easy and convenient connection.
This heat exchanger heats liquids with irregular plates, requiring no electricity or wood burning, providing hot water at low cost, making it cost-effective and practical.
Equipped with 4 interfaces, the heat exchanger accommodates different media needs with correct piping and operates within -292℉ to 392℉ temperature range.
Our heat exchanger comes in 4 different sizes to meet your needs.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
kan je deze gebruiken als interkoeler op een boot ? koelt via slootwater
Zijn er veel onreinigheden in het grachtwater? Ons product is een kopergezette platenwarmte-exchanger. Het hoofdlichaam is roestvast staal en de solder is zuiver rood koper. Micro-organismen kunnen ook een corrosieve invloed op de warmte-exchanger hebben, wat de oxidatie van koper kan versnellen.
