Features & Details

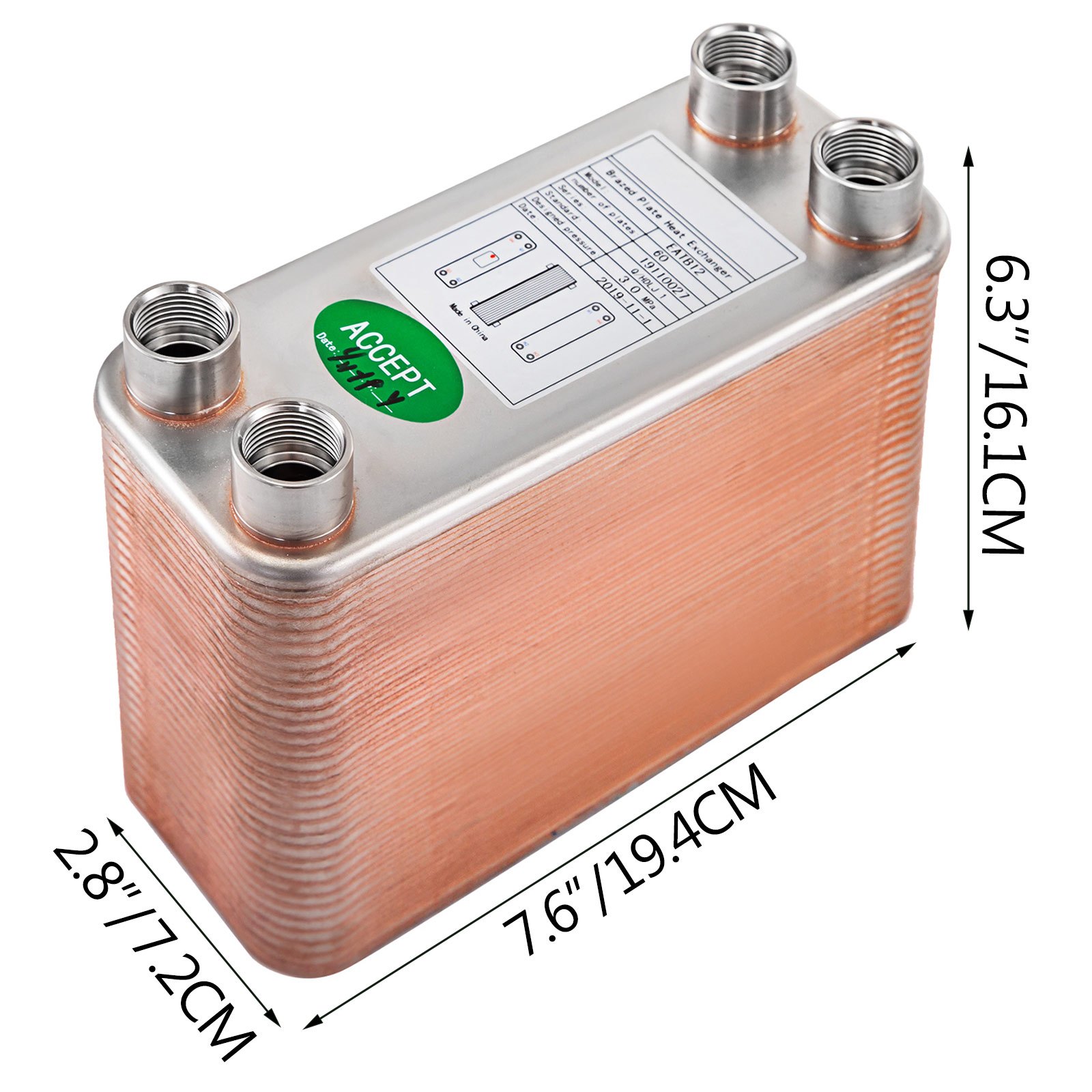

- 【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulence for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm.
- 【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
- 【ROBUST CONSTRUCTION】- This 60 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened BSP FPT ports for your easier installation.
- 【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
- 【HIGHLY VERSATILE】- This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Frequently Bought Together
Reviews 4.6
All reviews are from verified purchases
Average rating based on 8 reviews
Reviews 4.6
All reviews are from verified purchases
See all 8 reviews
About this item
Product specification
- Model
- B12-60
- Material
- 316L +99.9% Copper
- Ports
- 1/2" BSP FPT
- Plate Quantity
- 60
- Design Pressure(Max)
- 3.0 Mpa
- Test Pressure
- (Min)
- Design Temp.(℃)
- Max +225
- Design Temp.(℃)
- Min -196
- Dimension
- 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm
Description

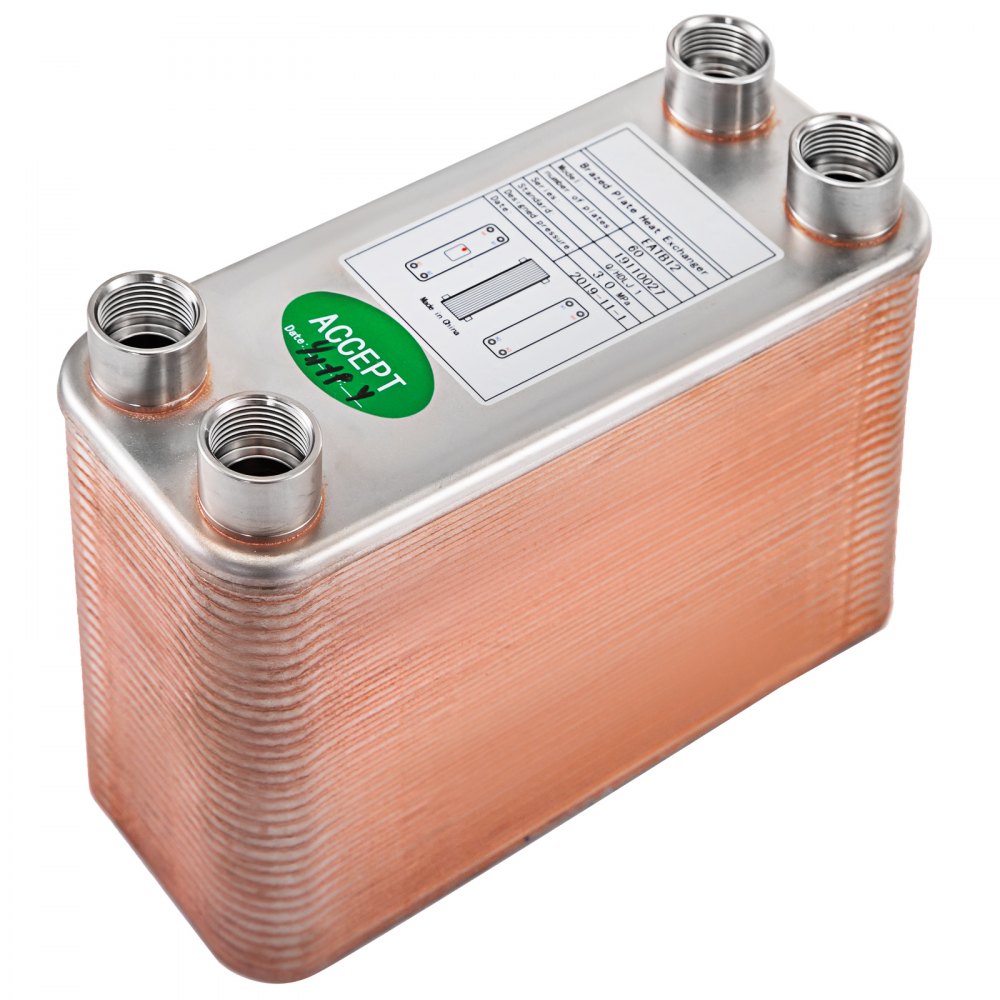

Brazed Plate Heat Exchanger 60 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
- High Thermal Efficiency
- Energy Optimized
- Robust Construction
- Compact Design

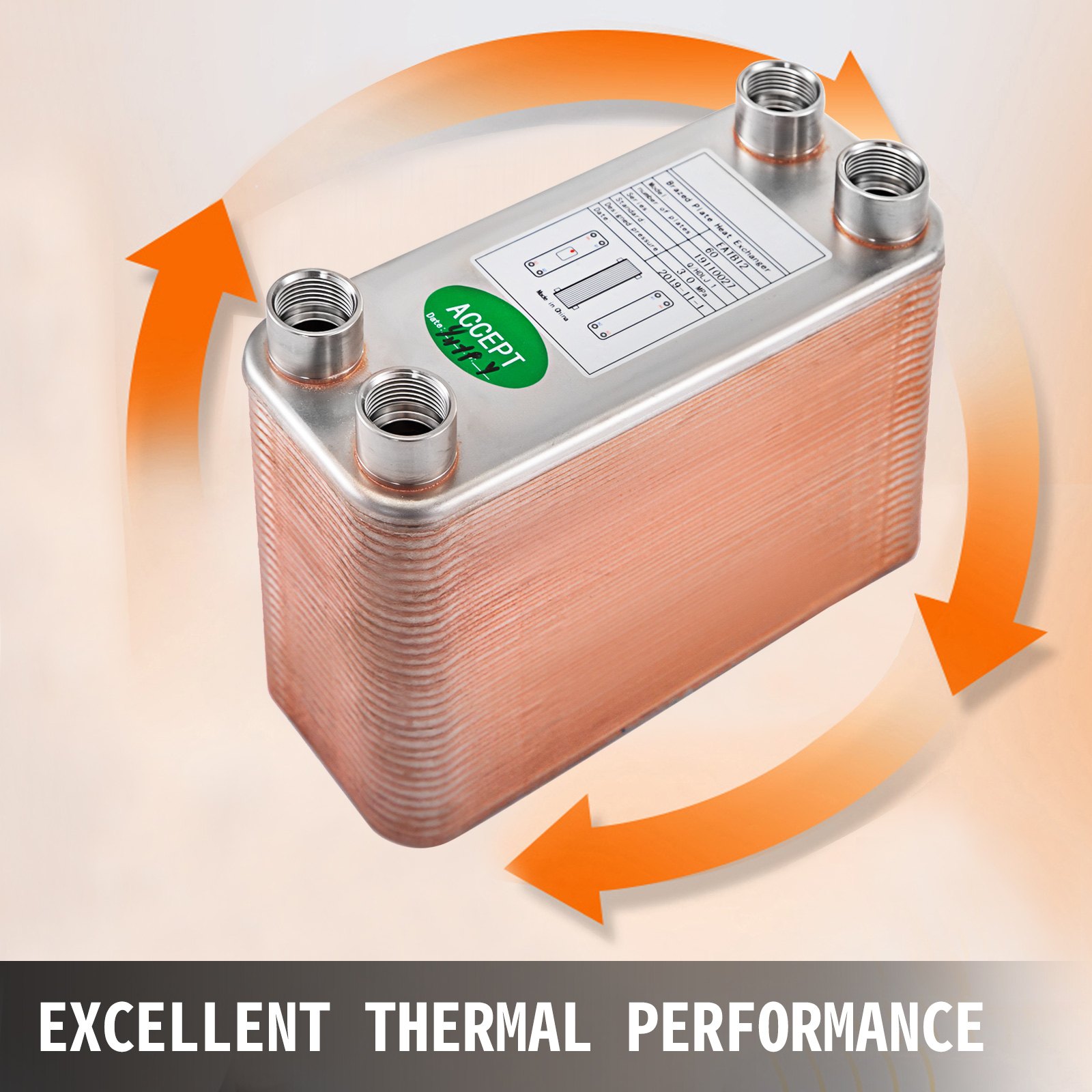

Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.

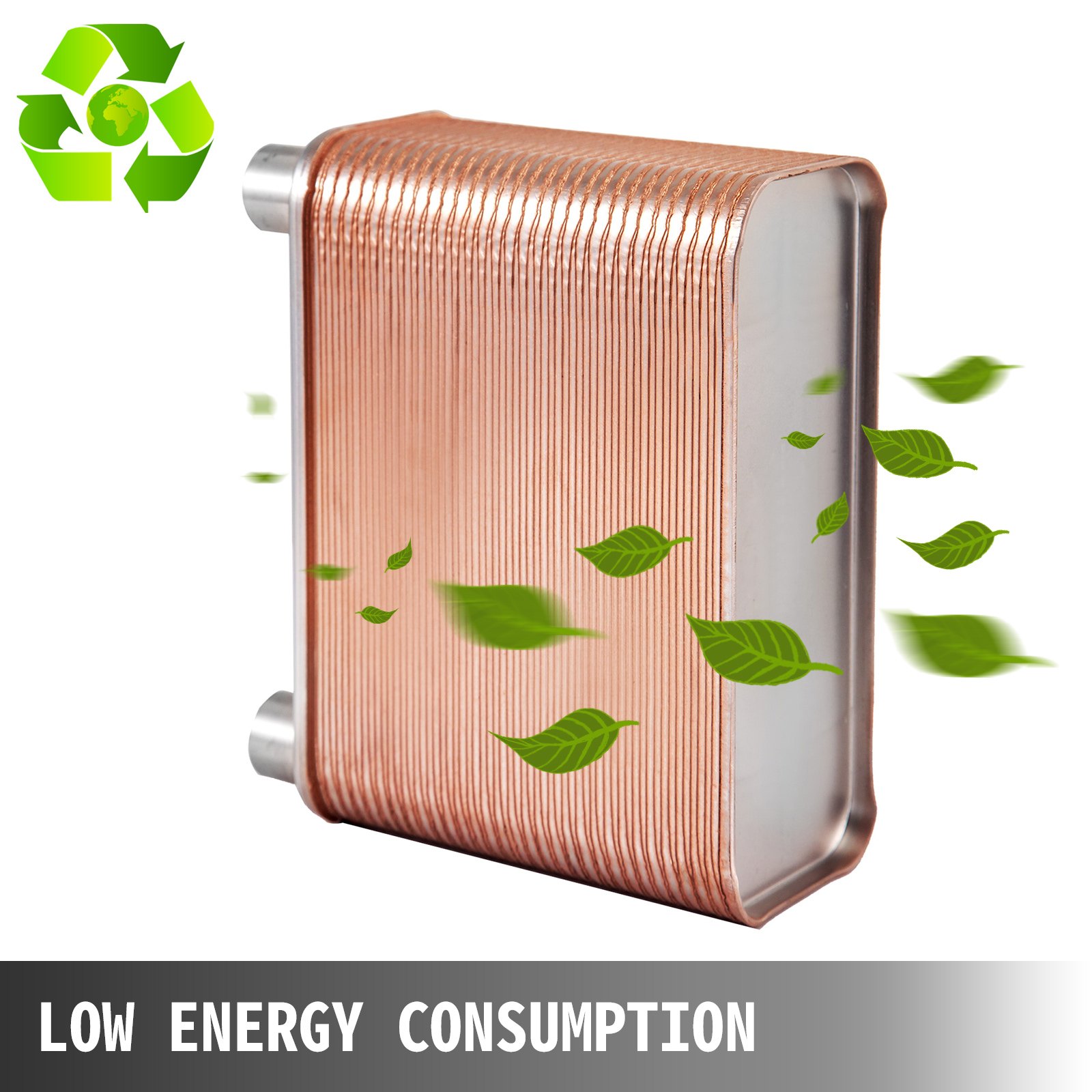

Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.

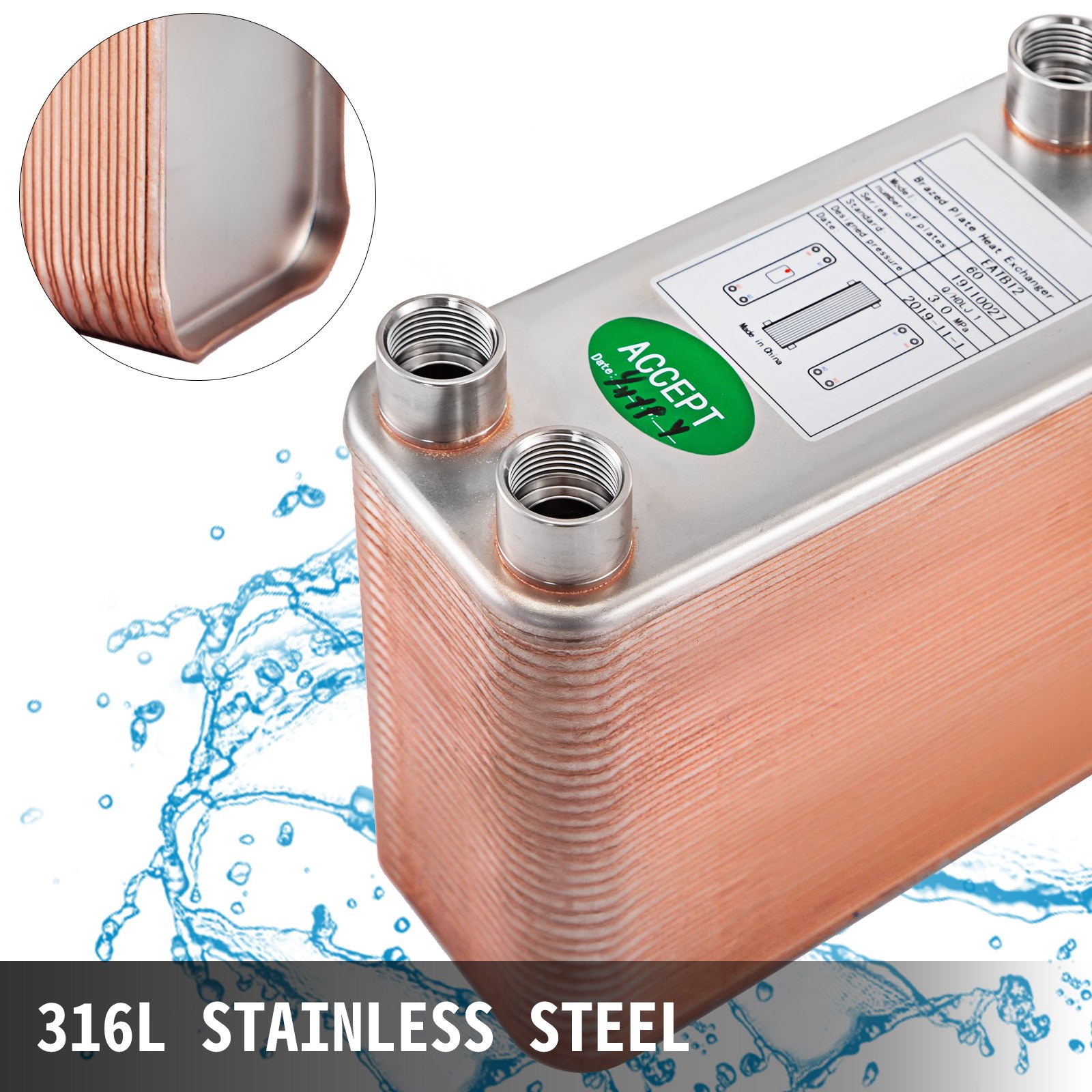

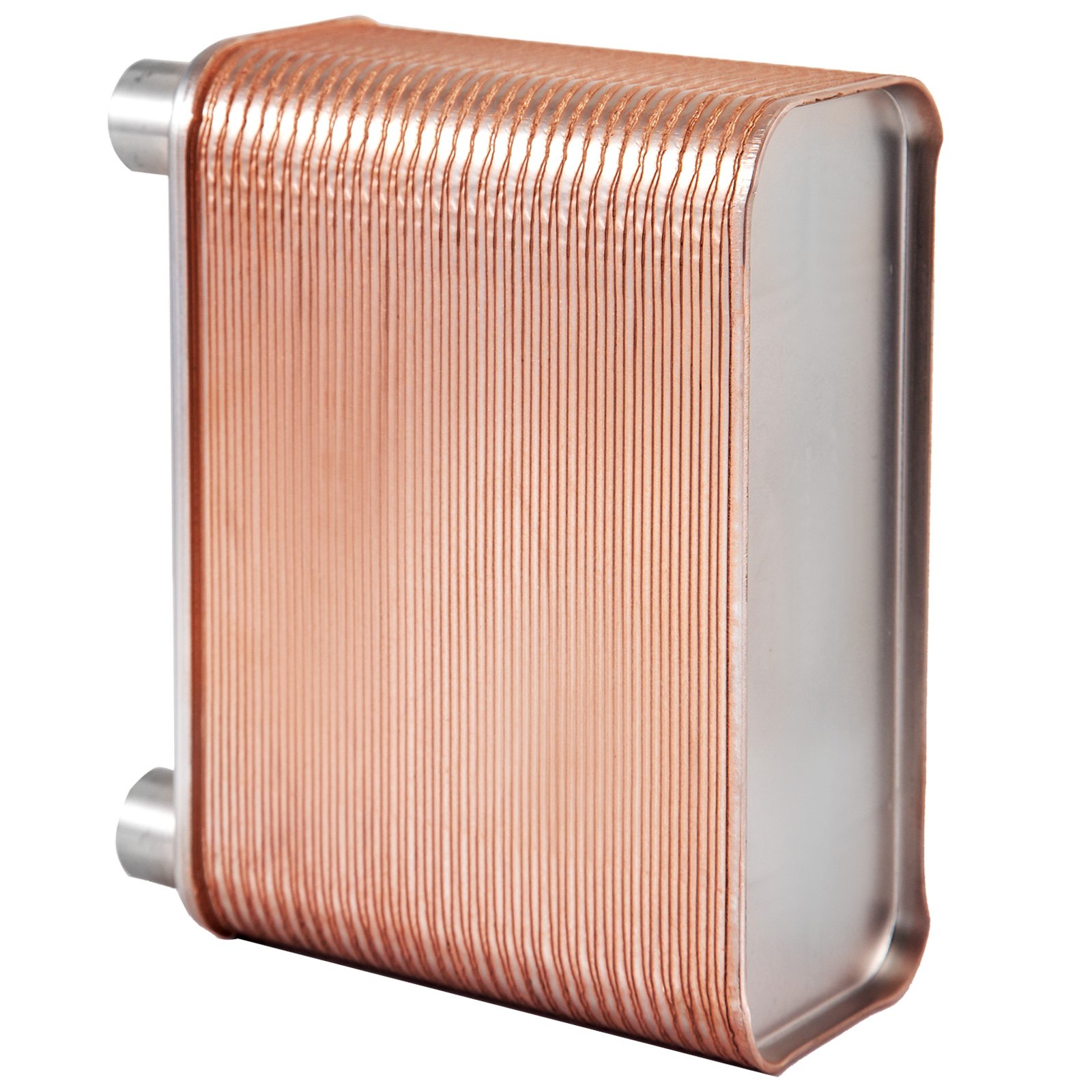

316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.

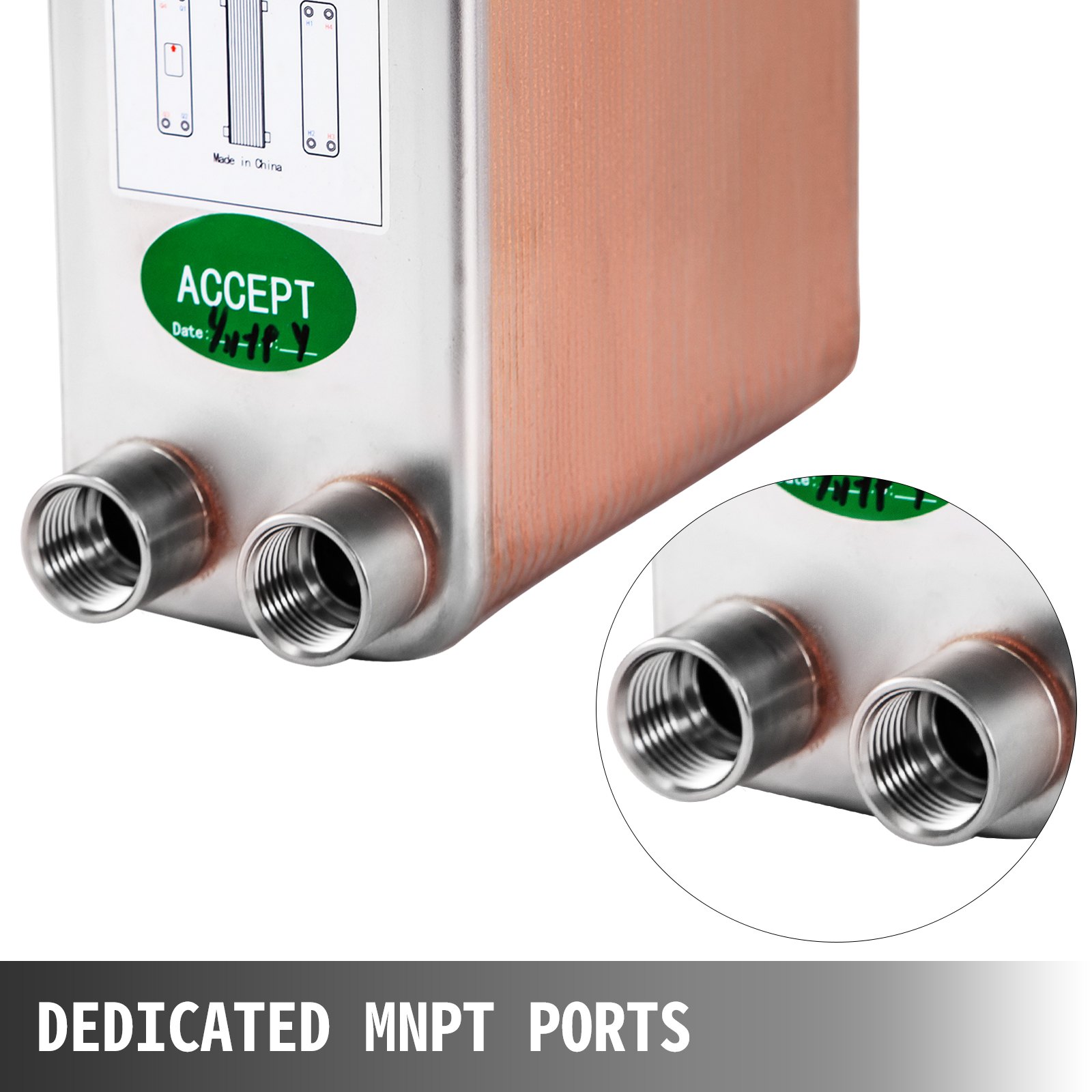

Dedicated FB Ports
Four Thickened 1/2" BSP FPT ports for your easier installation.

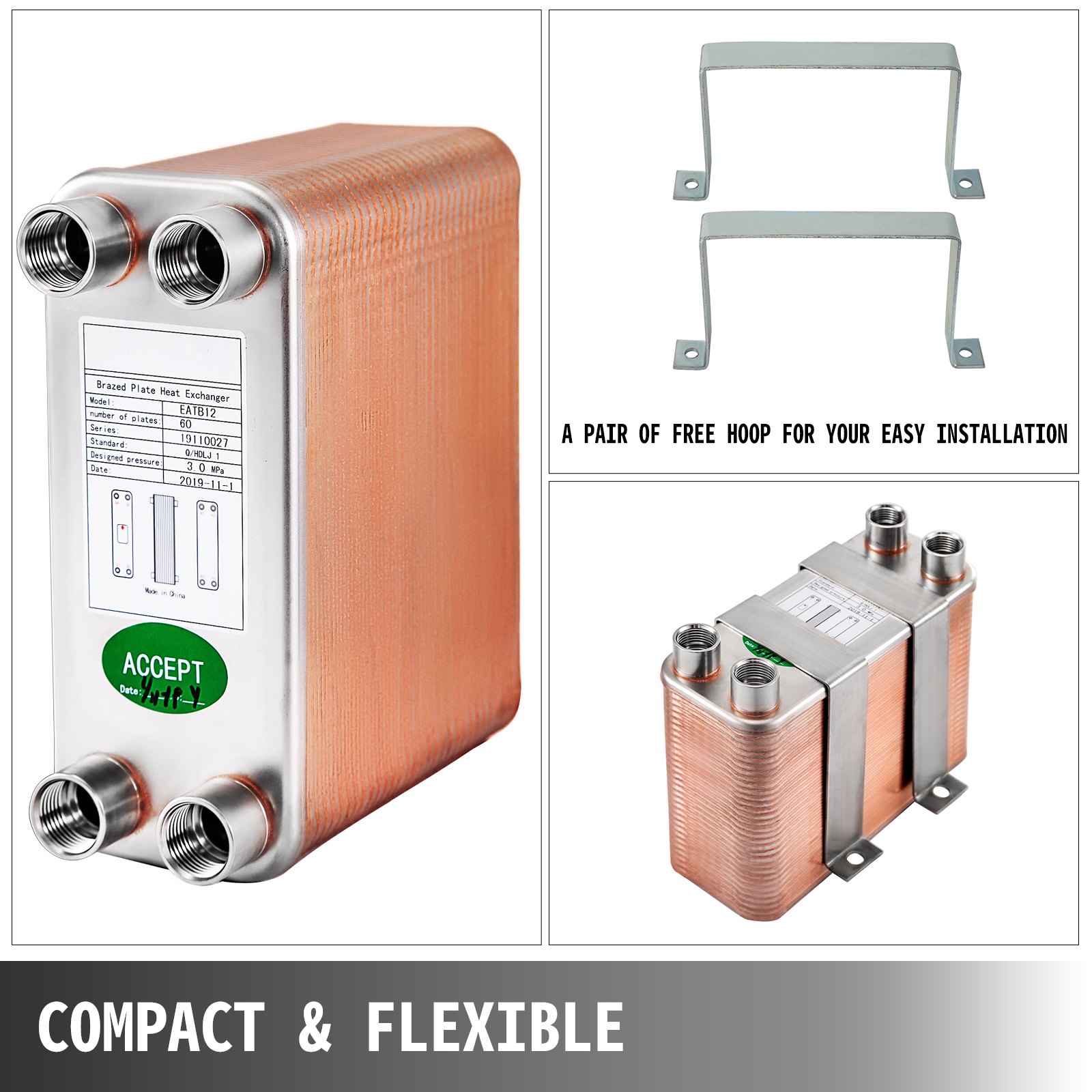

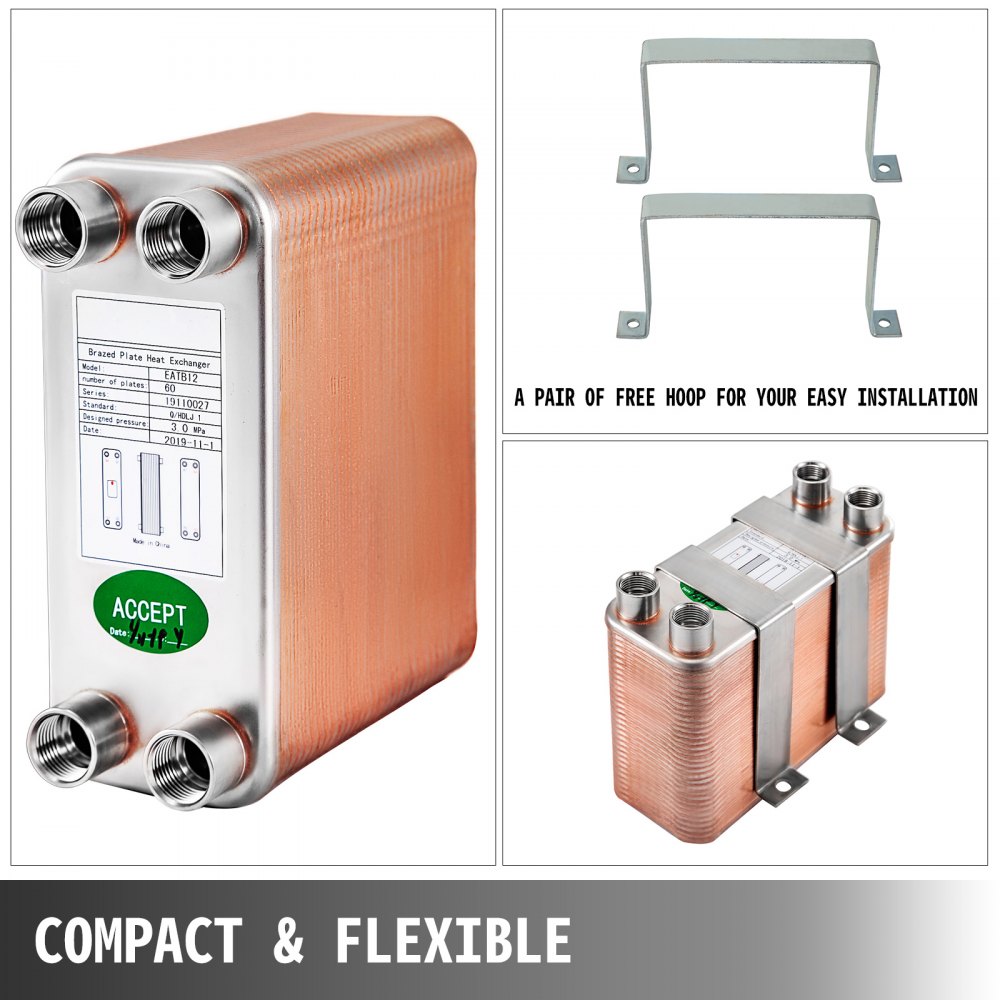

Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- Model: B12-60
- Material: 316L +99.9% Copper
- Ports: 1/2" BSP FPT
- Plate Quantity: 60
- Design Pressure(Max):3.0 Mpa
- Test Pressure:(Min):4.5 Mpa
- Design Temp.(℃): Max +225
- Design Temp.(℃): Min -196
- Dimension: 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm

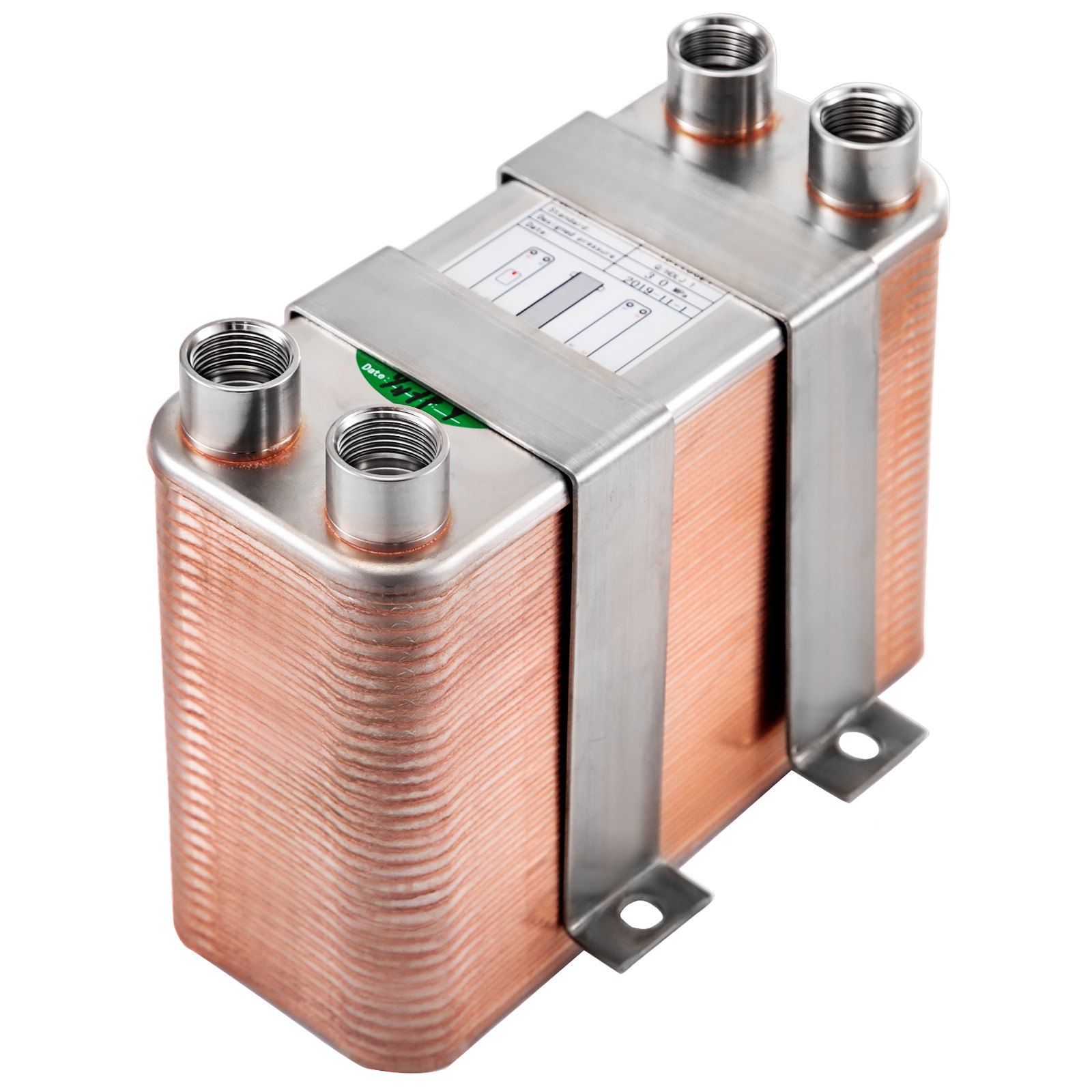

- 1 x Heat Exchanger

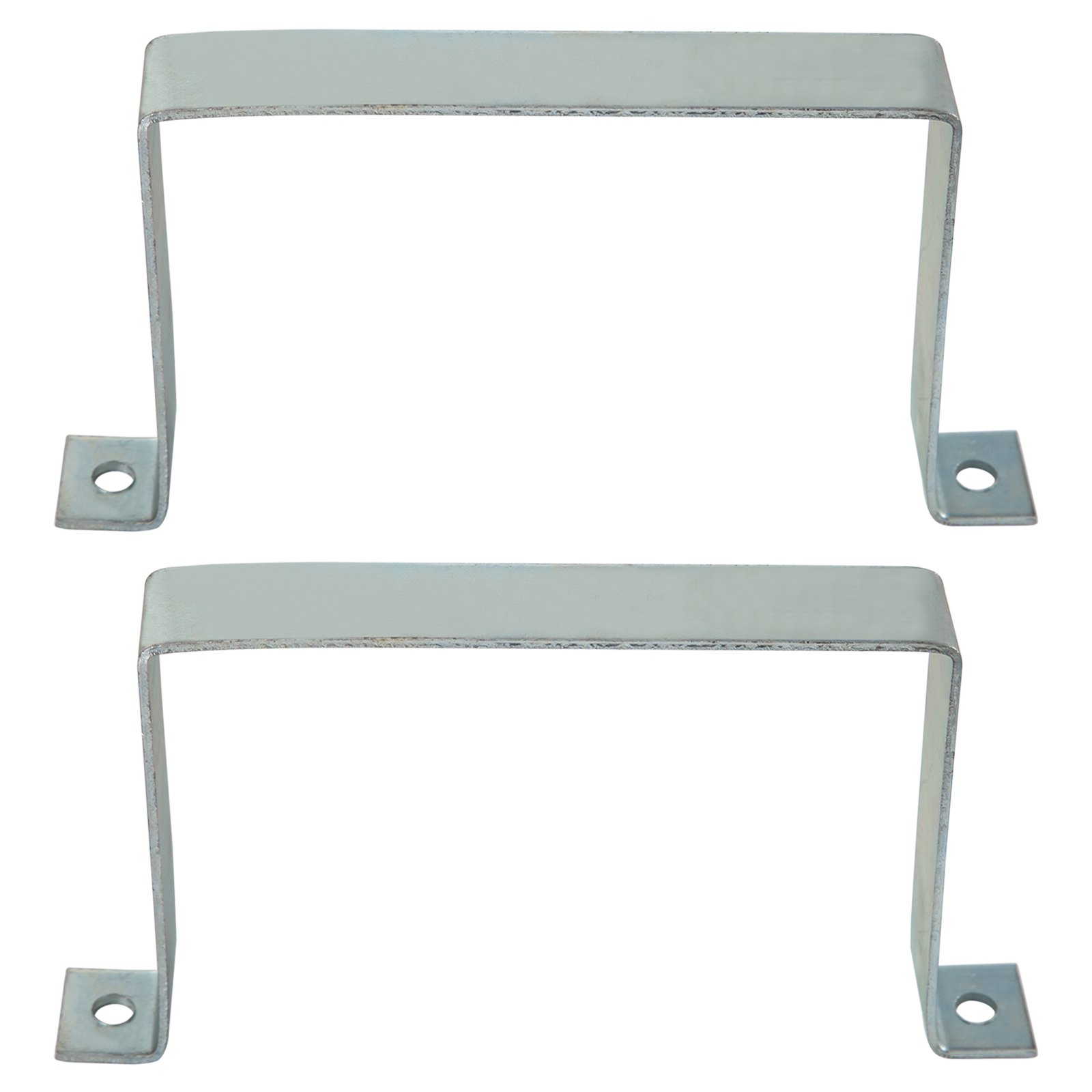

- 1 x A Pair of Hoops
Brazed Plate Heat Exchanger 60 Plate Heat Exchanger
Our brand new heat exchanger features a compact & lightweight body, offering excellent thermal performance, and 316L stainless steel+99.9% copper material can ensure its long life, so it is perfect for Solar heating, Oil unit heat recovery Engine cooling, evaporation and condensing, etc.
- High Thermal Efficiency
- Energy Optimized
- Robust Construction
- Compact Design
Excellent Thermal Performance
Extremely efficient herringbone construction for maximum heat transfer.
Low Energy Consumption
Low energy consumption due to the very low-pressure drop over the heat exchanger.
316L Stainless Steel
The heat exchanger comprises 316L stainless steel with high toughness to resist pressure, corrosion, and rust.
Dedicated FB Ports
Four Thickened 1/2" BSP FPT ports for your easier installation.
Compact & Flexible
The footprint can be as little as one-tenth that of a shell & tube heat exchanger, and its compact size means it also offers greater system design freedom.
Wide Application
Suitable for the HVAC industry, dairy/food/beverage industry, refrigeration industry, etc.
- 1 x Heat Exchanger
- 1 x A Pair of Hoops
- Model: B12-60
- Material: 316L +99.9% Copper
- Ports: 1/2" BSP FPT
- Plate Quantity: 60
- Design Pressure(Max):3.0 Mpa
- Test Pressure:(Min):4.5 Mpa
- Design Temp.(℃): Max +225
- Design Temp.(℃): Min -196
- Dimension: 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (2)
Hallo,
Kan ik dit gebruiken voor een perslucht droger,
-In en uitgang voor perslucht
-in en uitgang voor koelmiddel r134-a
Hallo, het wordt aanbevolen om ons te vertellen of de warmtewisselaar als verdamper wordt gebruikt, wat de specifieke verdampingstemperatuur is en wat de specifieke inlaat- en uitlaattemperatuur van het water is.
By vevor
Helpful
(
0
)
Kan ik dit direct in de vlammen van een houtkachel bouwen?
Hallo, nee, dit kan niet zo zijn.
By vevor
Helpful
(
0
)
