Features & Details
- Direct Drive Motor: The mini metal lathe machine adopts a direct drive motor, no belt drive, and no need to replace the belt. 800W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.

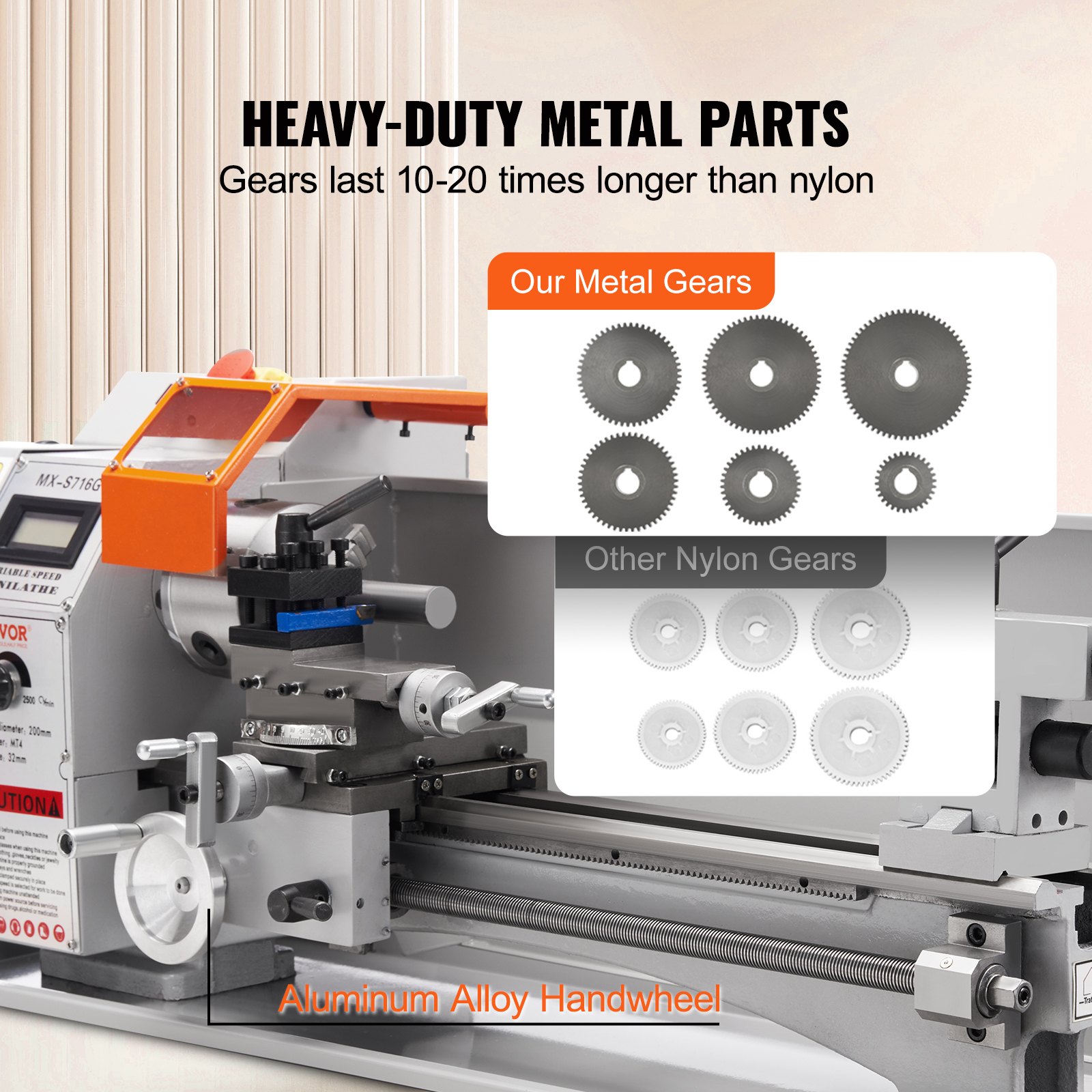

- Built to Last: The mini metal lathe is built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.

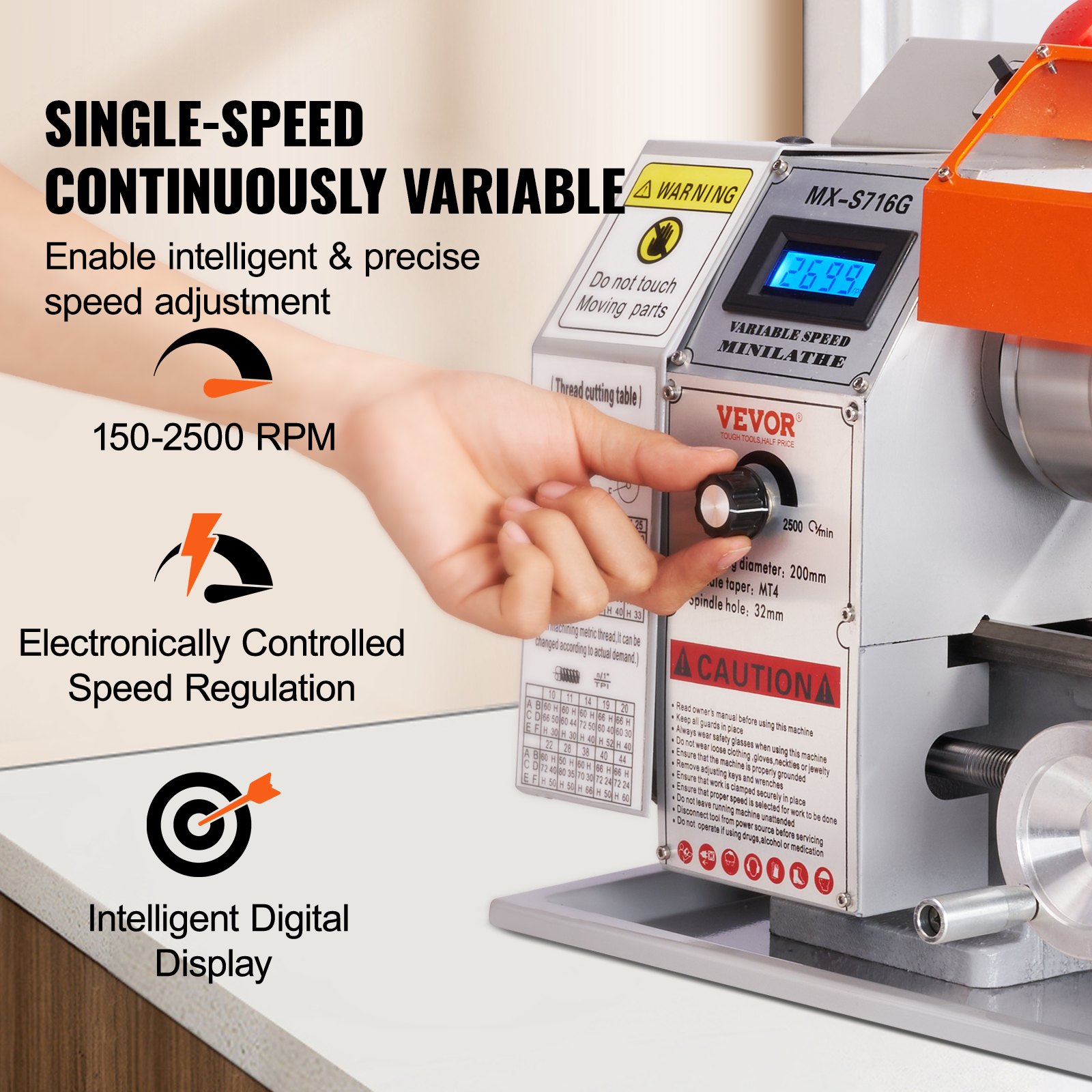

- Continuously Variable: Features a spindle that can turn in both forward and reverse directions with 150-2500 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.

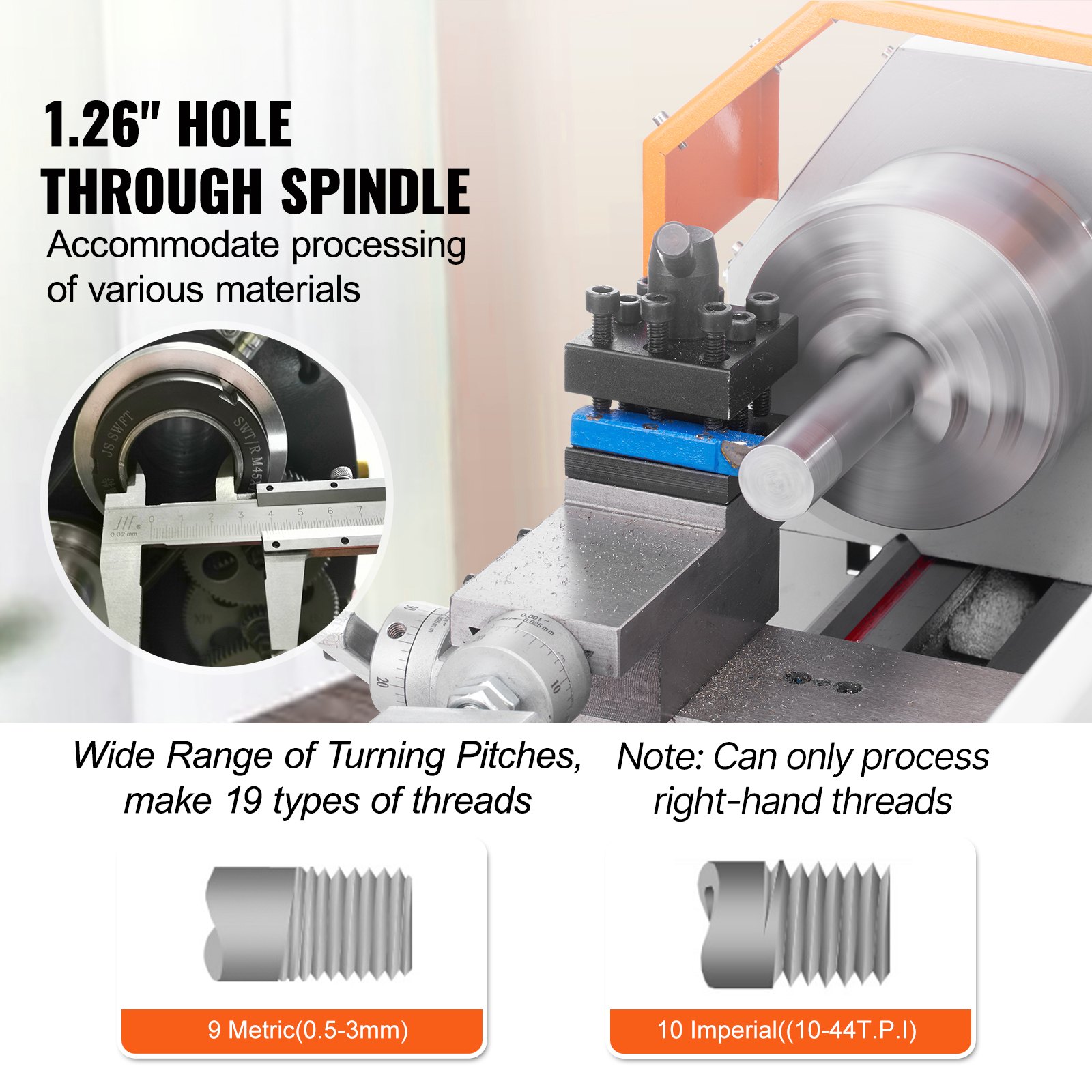

- Widely Used: 7'' x 16'' metal lathe machine can be used for processing precision parts and models. A wide range of turning pitches can create 19 kinds of threads, 9 kinds of the metric system (0.5-3 mm), and 10 kinds of the imperial system (10-44 TPI).
- Security Comes First: Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.
Frequently Bought Together
Reviews 4.5
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 4.5
All reviews are from verified purchases
See all 2 reviews
About this item

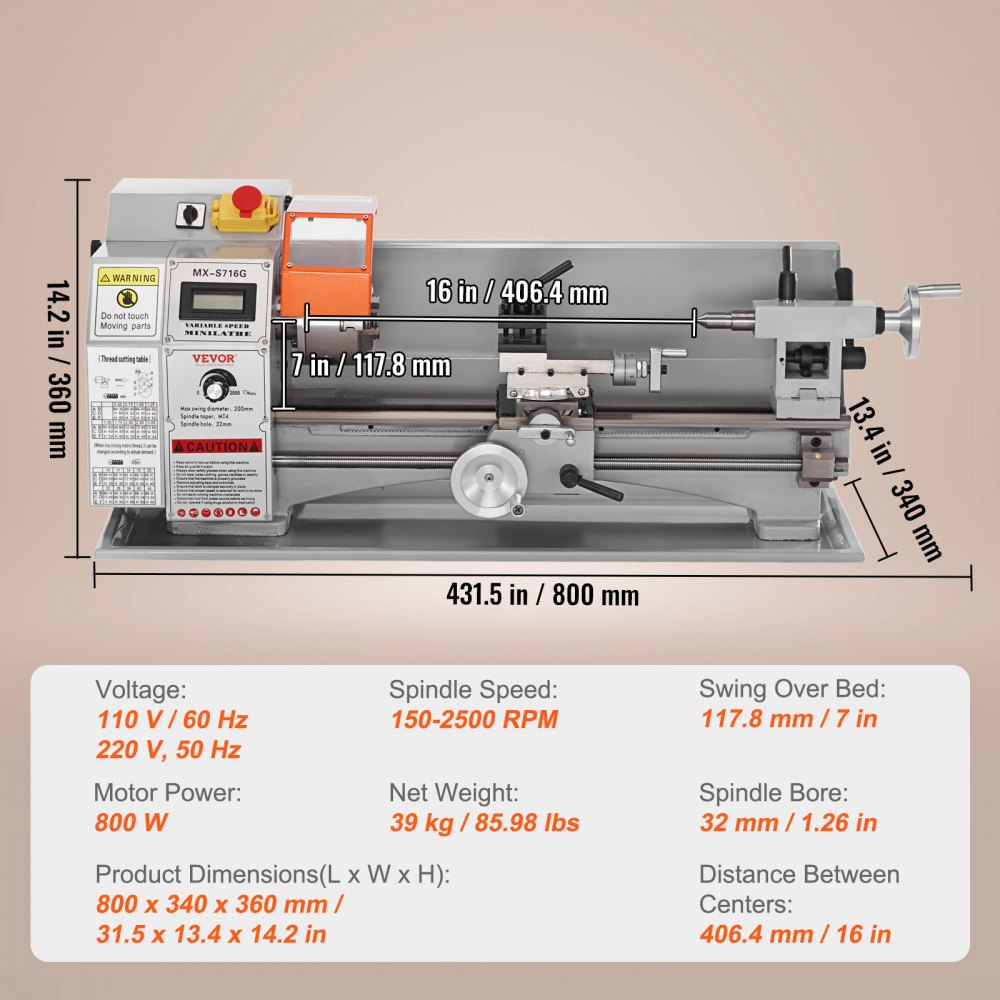

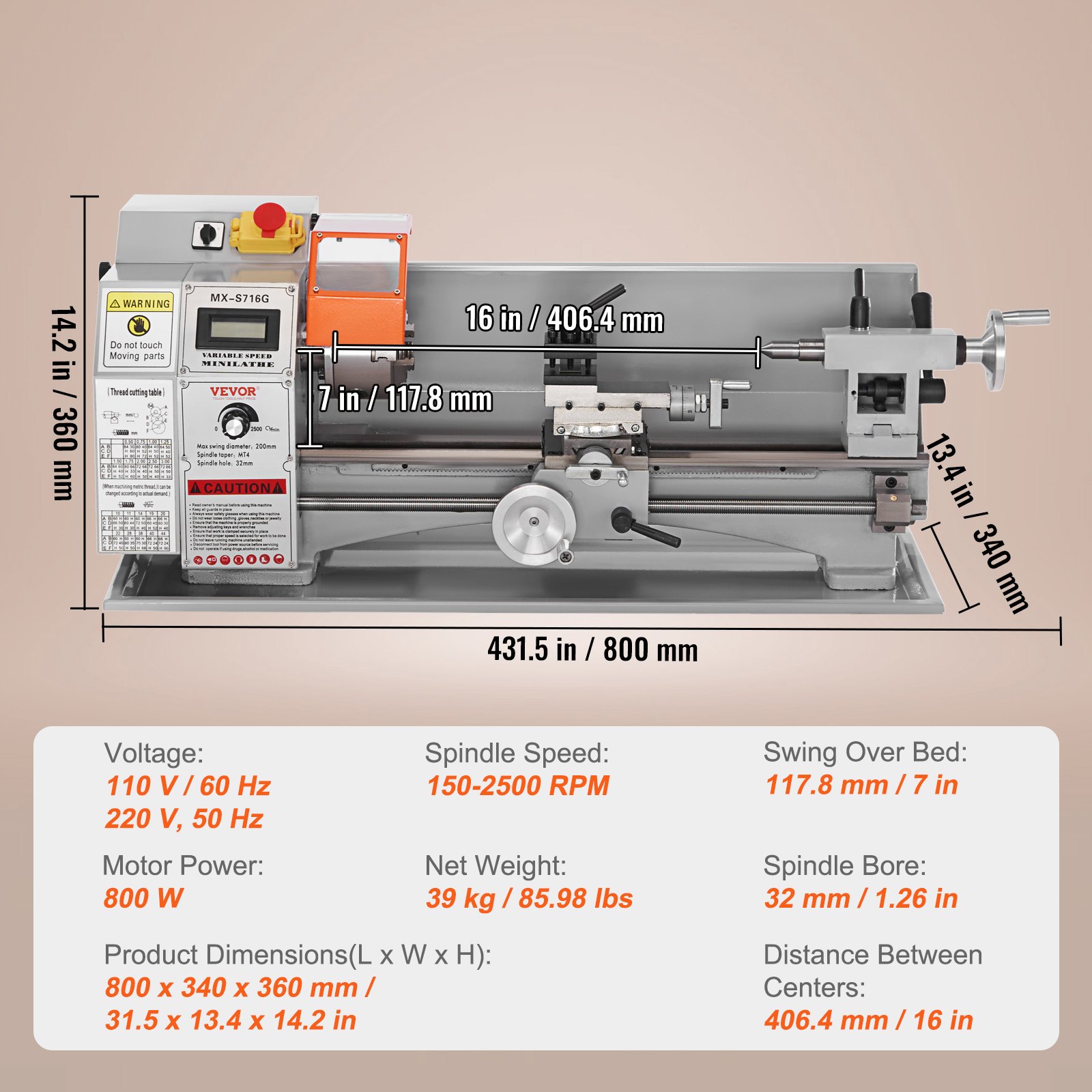

Product specification
- Model
- MX-S716G
- Main Material
- HT200 Cast Iron
- Lifespan
- 3 Years
- Spindle Speed
- 150-2500 RPM
- Hole Through Spindle Diameter
- 32 mm / 1.26 in
- Spindle Taper
- MT4
- Tail Stock Taper
- MT2
- Motor Power
- 800W
- Voltage
- 110V, 60 Hz
- Chuck Diameter
- 100 mm / 3.93 in
- Net Weight
- 39 kg / 85.98 lbs
- Product Dimensions(L x W x H)
- 800 x 340 x 360 mm / 31.5 x 13.4 x 14.2 in
Description

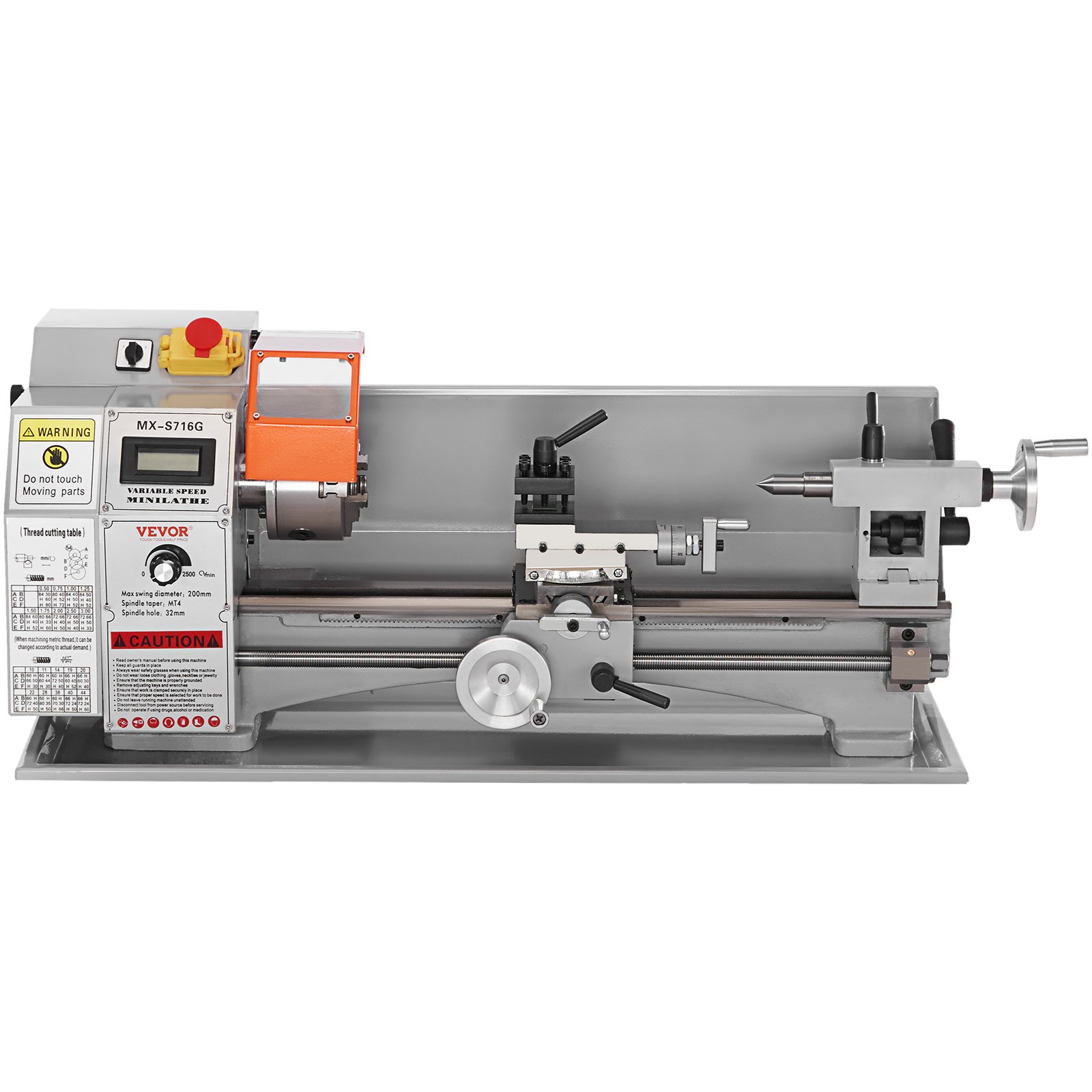

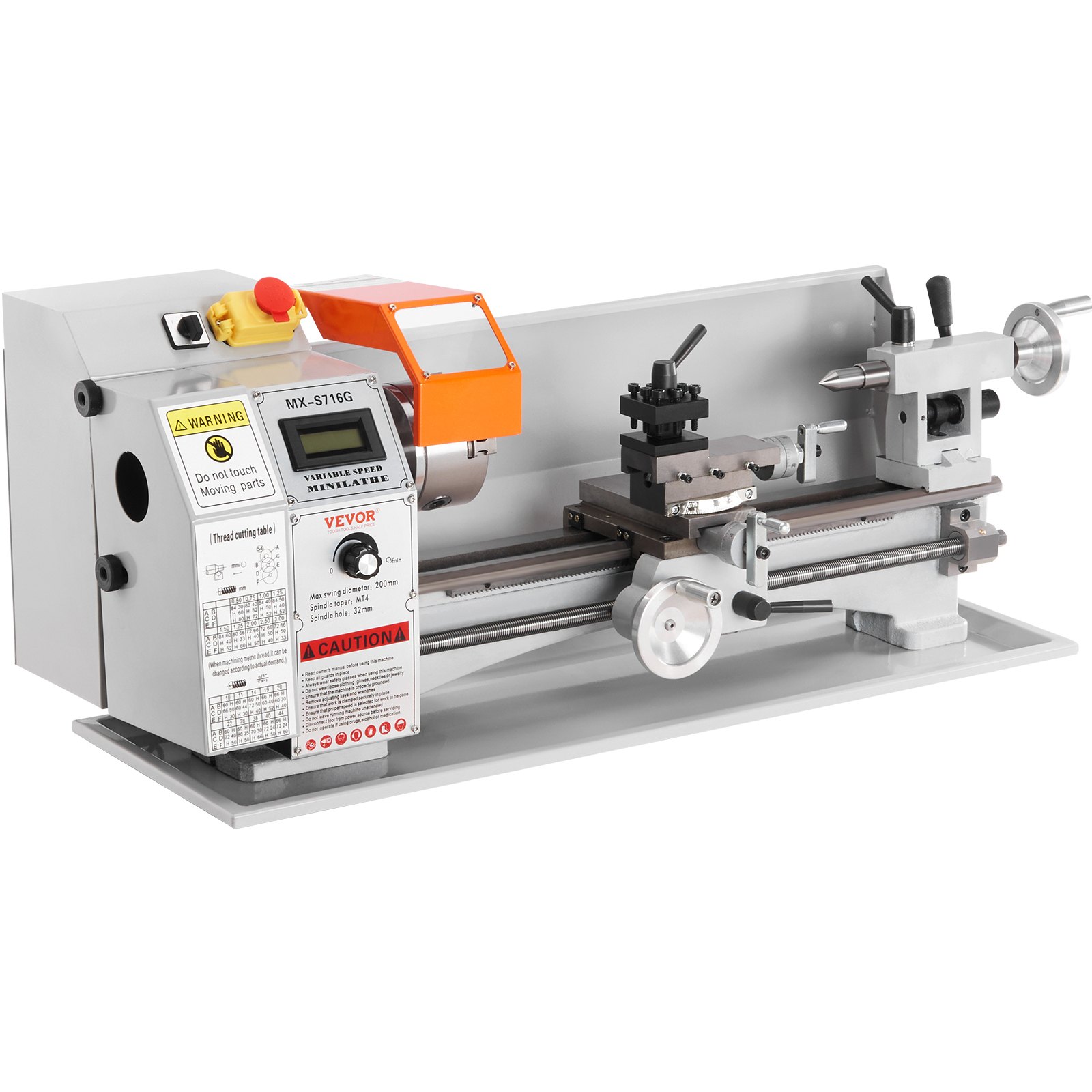

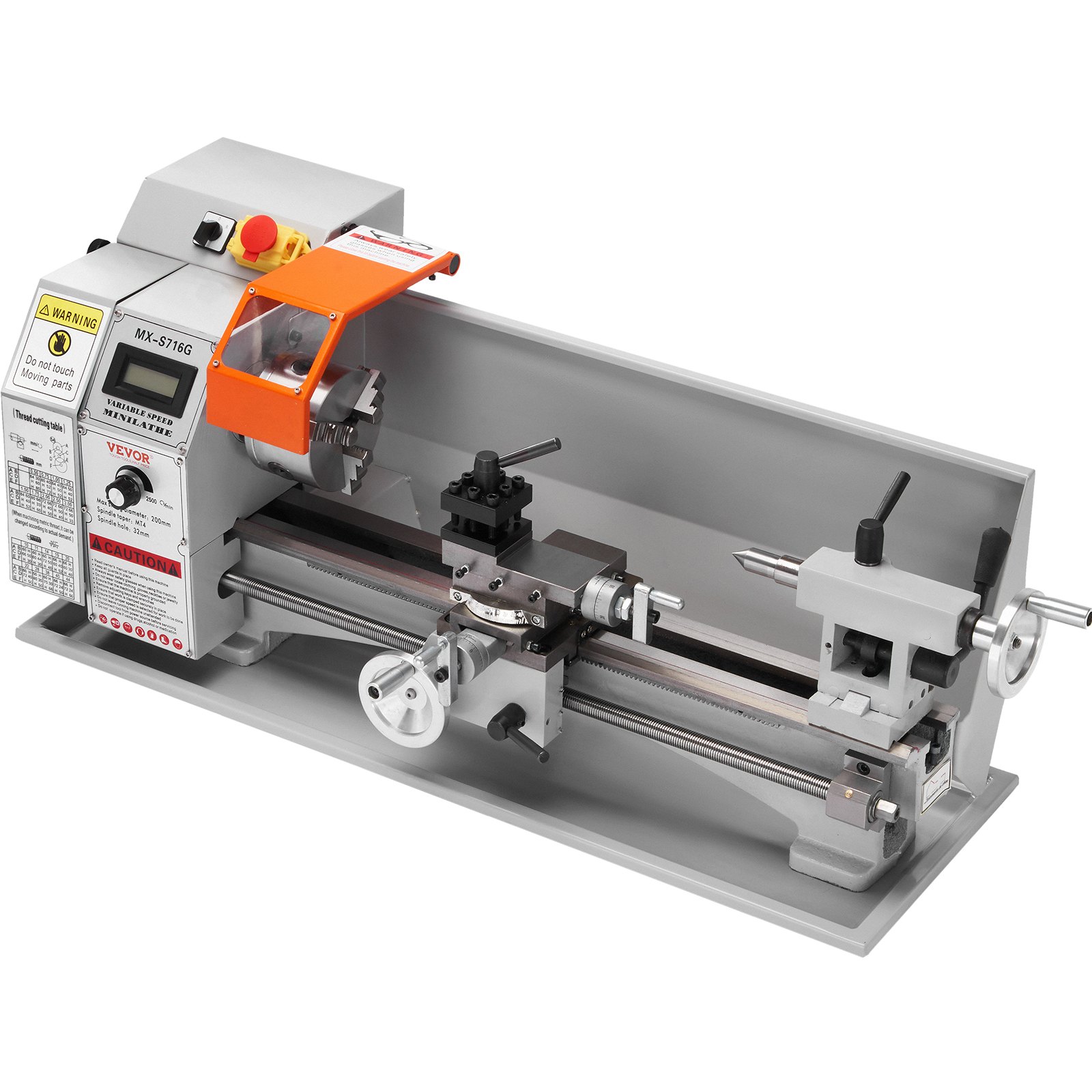

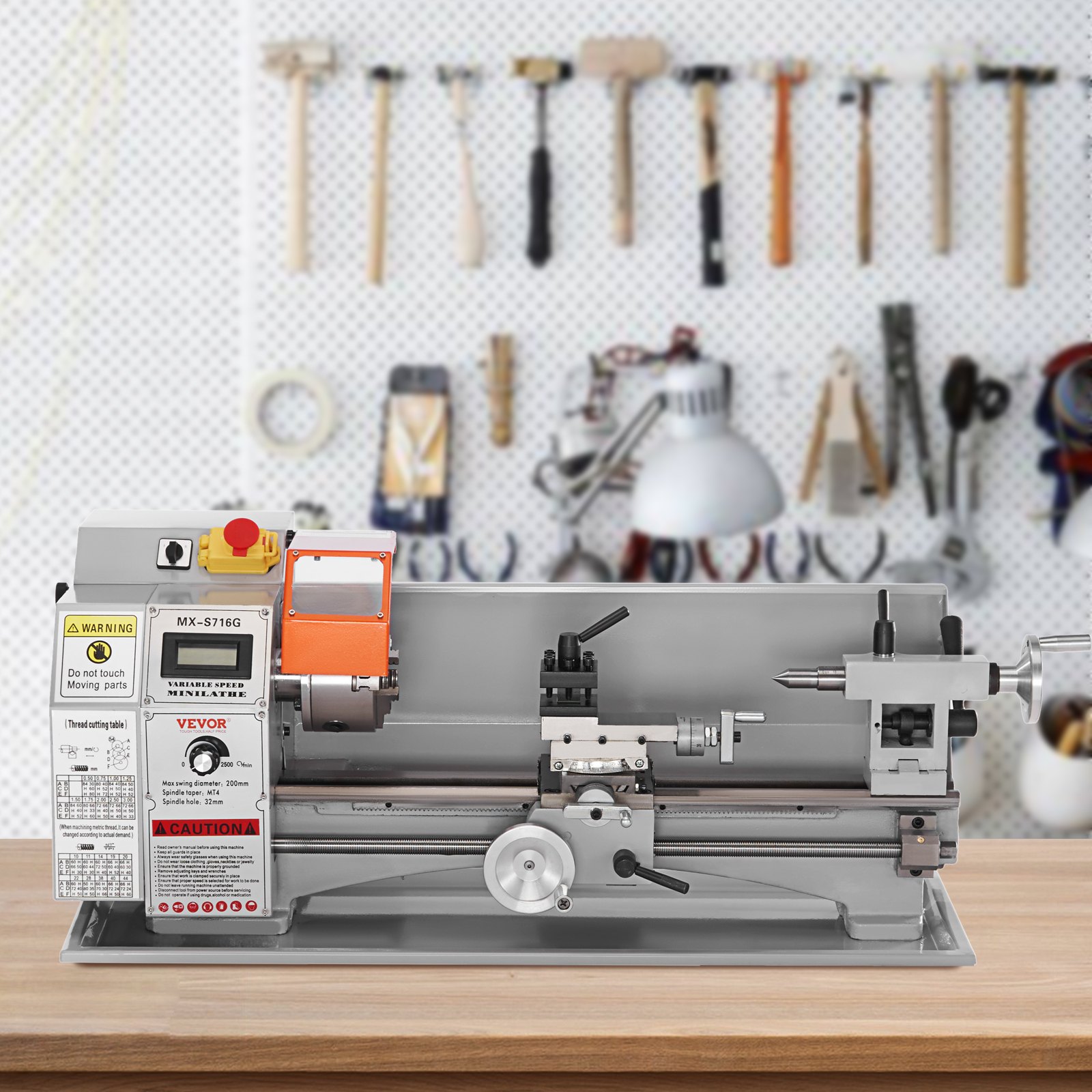

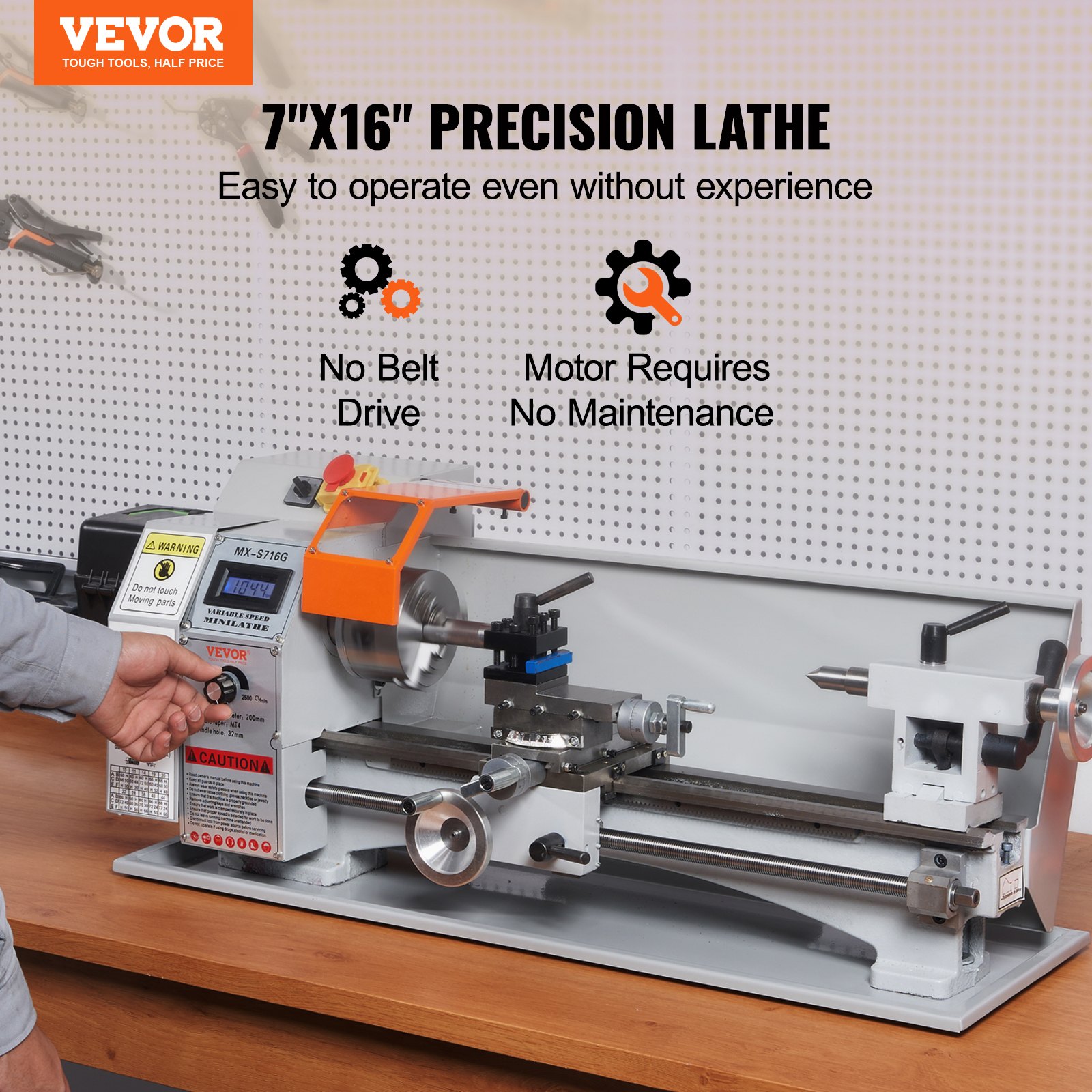

Direct Drive Motor Mini Metal Lathe
Are you ready to get more done? Our mini metal lathe measures 7 in x 16 in and features an 800W direct drive motor, no maintenance, and no belt drive. VEVOR benchtop metal lathe is specifically designed for creating complex and precise parts, simple to operate even for the novice.
Key Features
Protection Devices
Our mini metal lathe machine is designed with a probe window-type shield and power-off protection, ensuring more secure processing.
Aluminum Alloy Handwheel
The aluminum alloy handwheel is equipped with a high-precision scale for easy operation and is designed to create complex and fine parts.
Automatic Feed Screw
The V-shaped precision steel guide with the automatic feed screw and high strength ensures the parallelism of the main axis and lathe body.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Hei! Do you have this model of lathe on 230V 50Hz ?
This one is suitable.
By vevor
Helpful
(
1
)
BZDMNJSCCSFWSEYI0V2

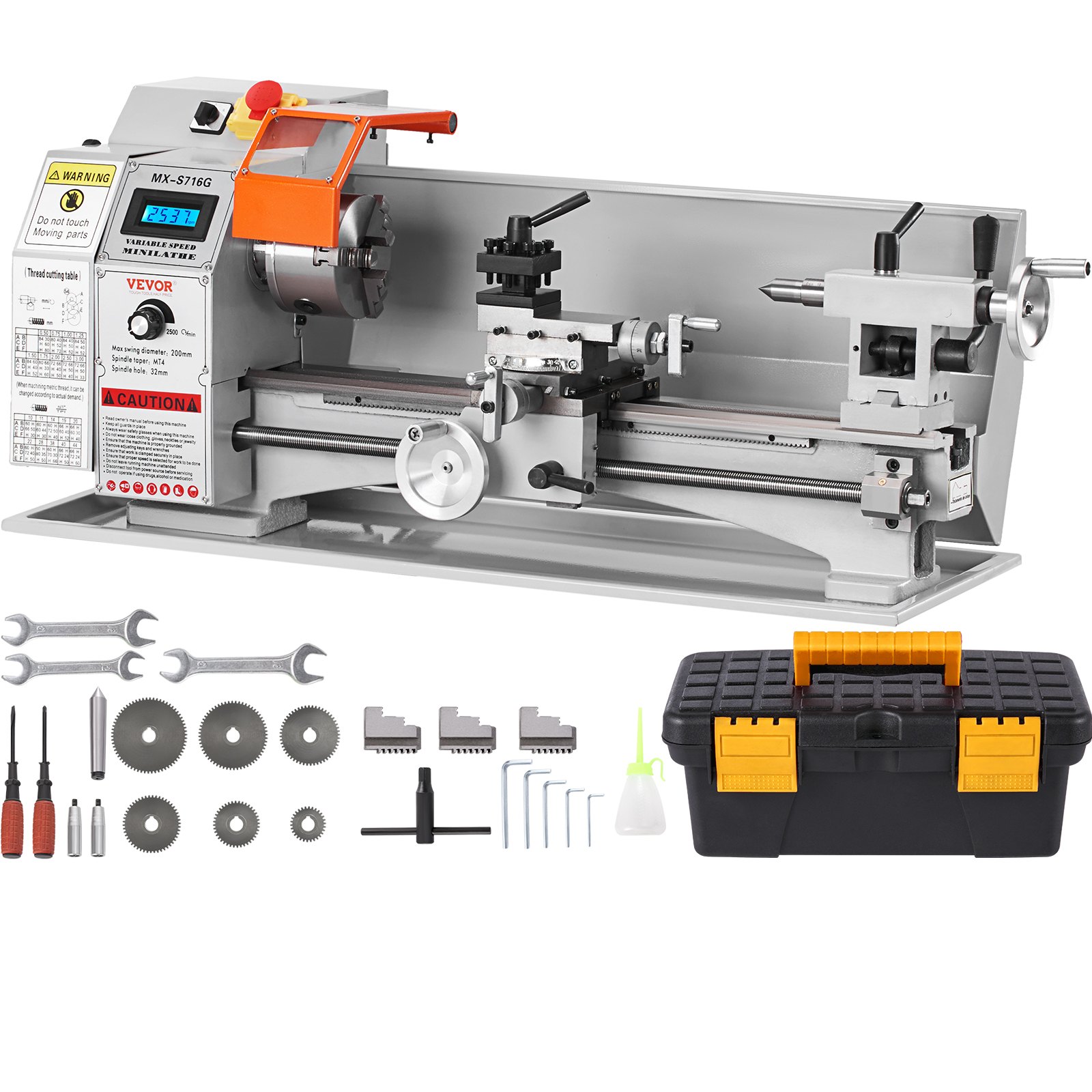

VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts
