Features & Details
- Durable Construction: The mini metal lathe is made of high-grade iron, equipped with nylon gears. This lathe machine is wear-resistant, durable, more accurate, and professional. The mini metal lathe power of motor: 1100W. The full-length splash guard provides maximum protection.

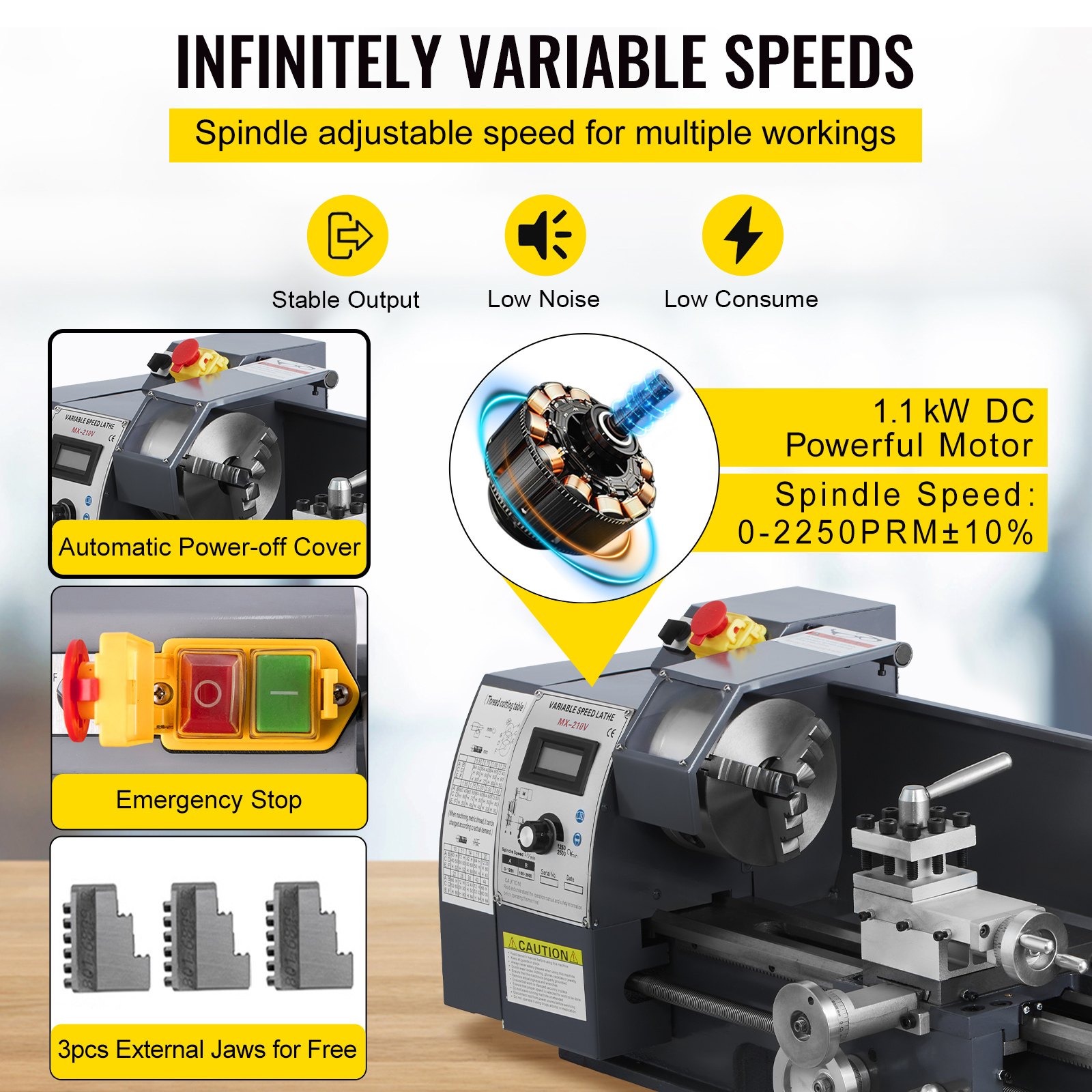

- Variable Speed Control: Spindle speed from 0-2250 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the v-slideways are obtained by raw material, heat hardening, and grinding. An emergency stop button is included.
- Effective Metal Lathe: The mini metal lathe quick change tool post can achieve internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest. 3-jaw chuck can handle both square and round objects with ease. An additional 4-jaw chuck to content your needs.
- Large Swing Range: The mini lathe machine with a 16" /400 mm long centering distance can meet your most working requirements. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm. The professional cross slide is designed with abrasive resistance, moving blades freely with a feed rod.
- Wide Application: Driven by a DC motor, this mini metal lathe cut-off tool can be used in areas such as mini precision parts processing, sample processing, and modeling works. Extra cutters for easy replacement.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 3 reviews
Reviews 5.0
All reviews are from verified purchases
See all 3 reviews
About this item
Product specification
- Power of Motor
- 1100W DC
- Volt
- 110V 60Hz
- Phase
- Single Phase
- Variable Speed
- 0 - 2250 RPM
- Swing Over Bed
- 8.27" / 210 mm
- Chuck Diameter
- 4.92" / 125 mm
- Centers Distance
- 15.75" / 400 mm
- Spindle Bore
- 1.5" / 38 mm
- Inch Thread
- 8 - 44 T.P.I
- Metric Thread
- 0.5 - 3 mm
- Tail Stock Taper
- MT2
- Spindle Taper
- MT5
- Gear Material
- Metal
- Item Weight
- 180.78 lbs / 82 kg
- Item Dimension
- 33" × 13.4" × 15.3" / 84 × 34 × 39 cm
Description

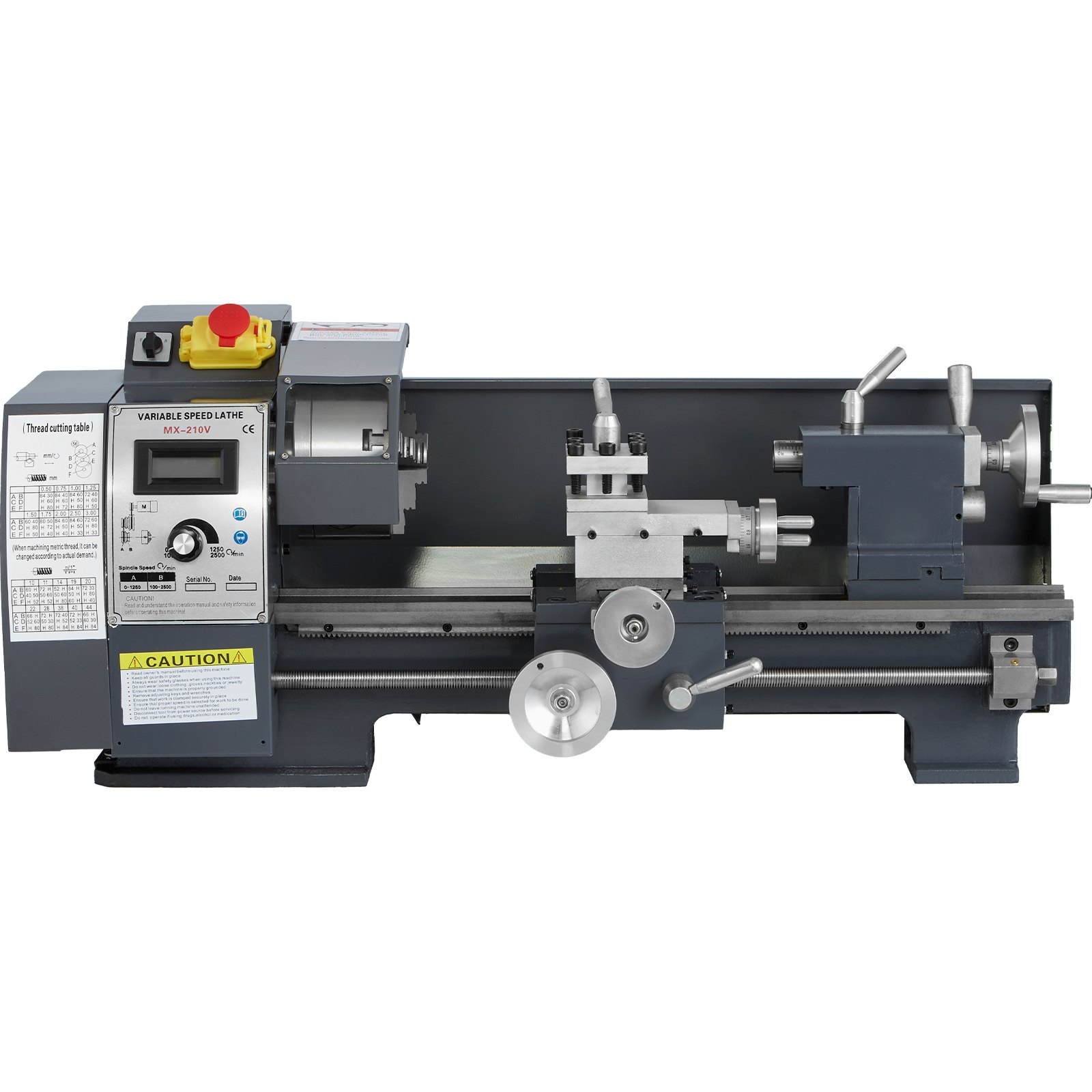

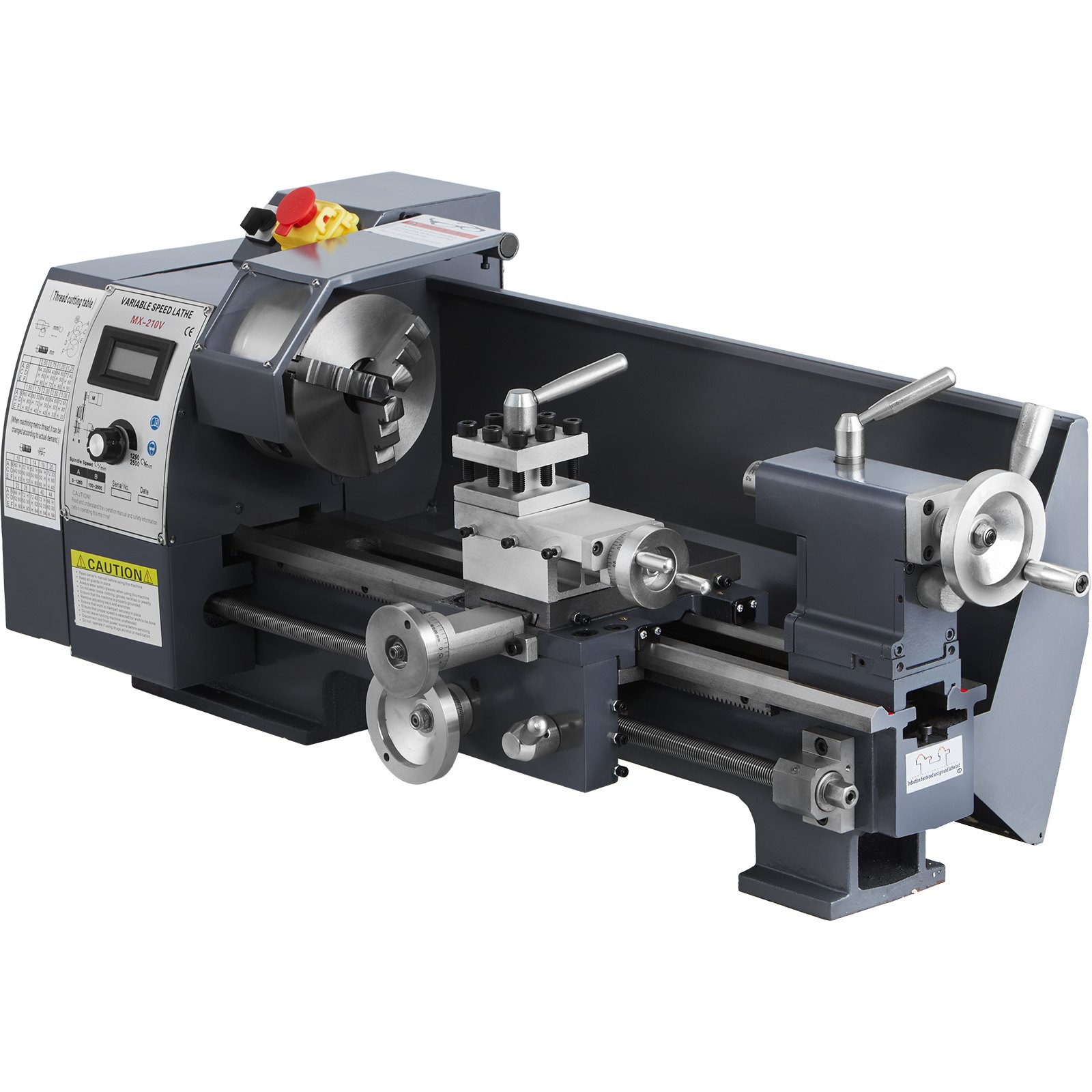

8" x 16" Variable-Speed Metal Lathe
The 8" x 16" precision mini benchtop lathe features a 4-jaw chuck, an MT2 tailstock taper, a tool rest, and a 1.5 HP motor, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable
- Durable Construction
- Variable Speed Control
- Effective Metal Lathe
- Large Swing Range
Durable Metal Lathe
Cast iron construction makes wood lathes durable, providing increased stability and smooth operation. 1100W powerful motor starts softly to offer the motor's maximize security and low noise design.
Variable Speeds
The turning speed control knob clockwise or counterclockwise to adjust the speed freely within 0-2250 RPM. MT5 Spindle. It is easy to read via a digital speed display.

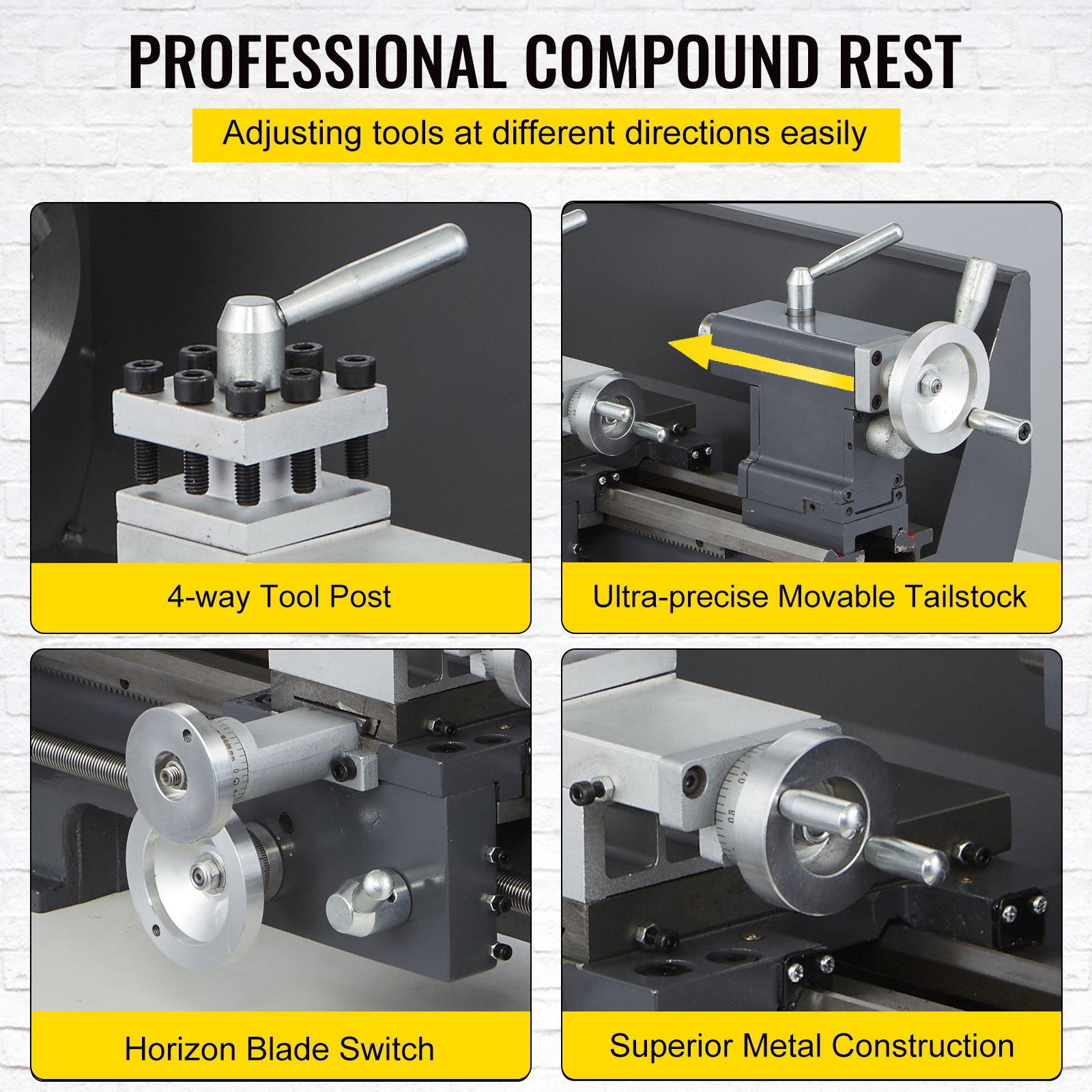

Effective Tool Post & Chuck
High accuracy chuck with repeatability to set cylindrical materials steadily. The lathe's adjustable 4-way tool post allows you to change your cutting tools easily and angles permitting beveling.

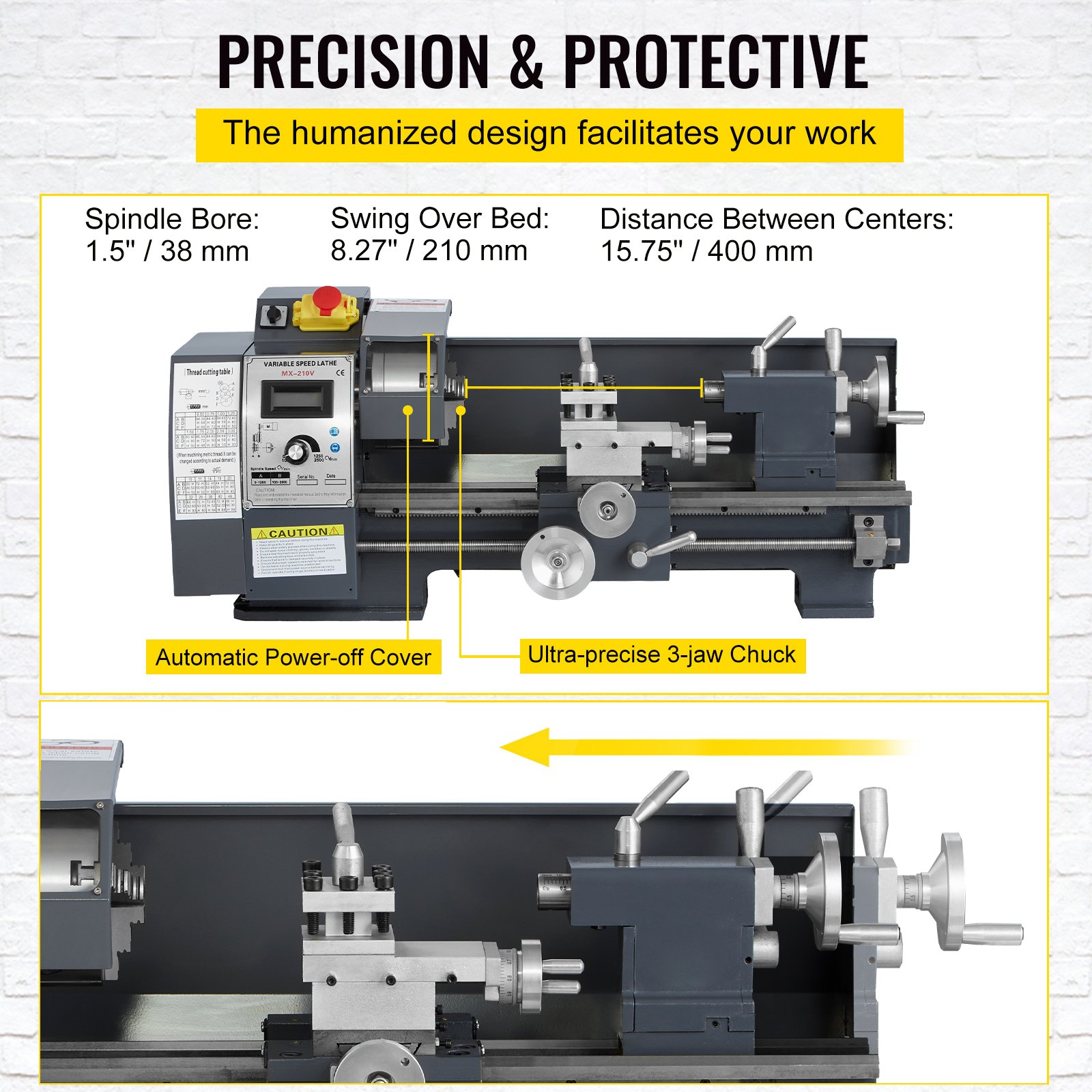

Swing Range & Accurate Tailstock
This lathe has a swing over bed of 8"/210 mm and a distance between centers of 16"/400 mm. An MT2 taper can be moving smoothly to adjust proper lengths for workpieces.
Professional Cross Slide
The lathe machine is designed with abrasive resistance, moving blades freely with a feed rod. 16 TPI reversible lead screw. The V-slideways with the distance between center: 16" / 400 mm.
Wide Application

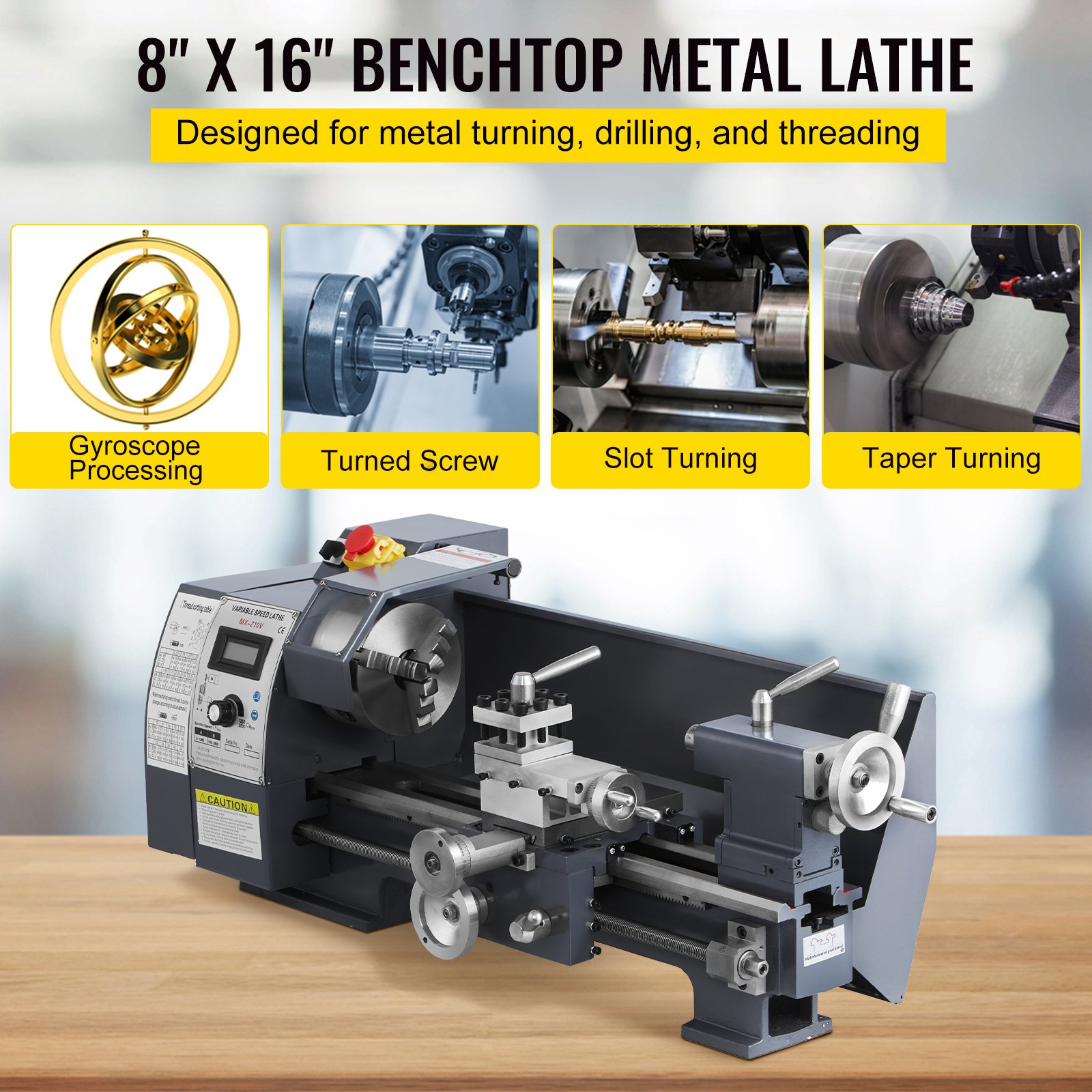

The benchtop wood lathe is suitable for many processing tasks, including turning, drilling, threading, and cutting. It's an ideal tool for use in labs, workshops, engineering, and education.
- Power of Motor: 1100W DC
- Volt: 110V 60Hz
- Phase: Single Phase
- Variable Speed: 0 - 2250 RPM
- Swing Over Bed: 8.27" / 210 mm
- Chuck Diameter: 4.92" / 125 mm
- Centers Distance: 15.75" / 400 mm
- Spindle Bore: 1.5" / 38 mm
- Inch Thread: 8 - 44 T.P.I
- Metric Thread: 0.5 - 3 mm
- Tail Stock Taper: MT2
- Spindle Taper: MT5
- Gear Material: Metal

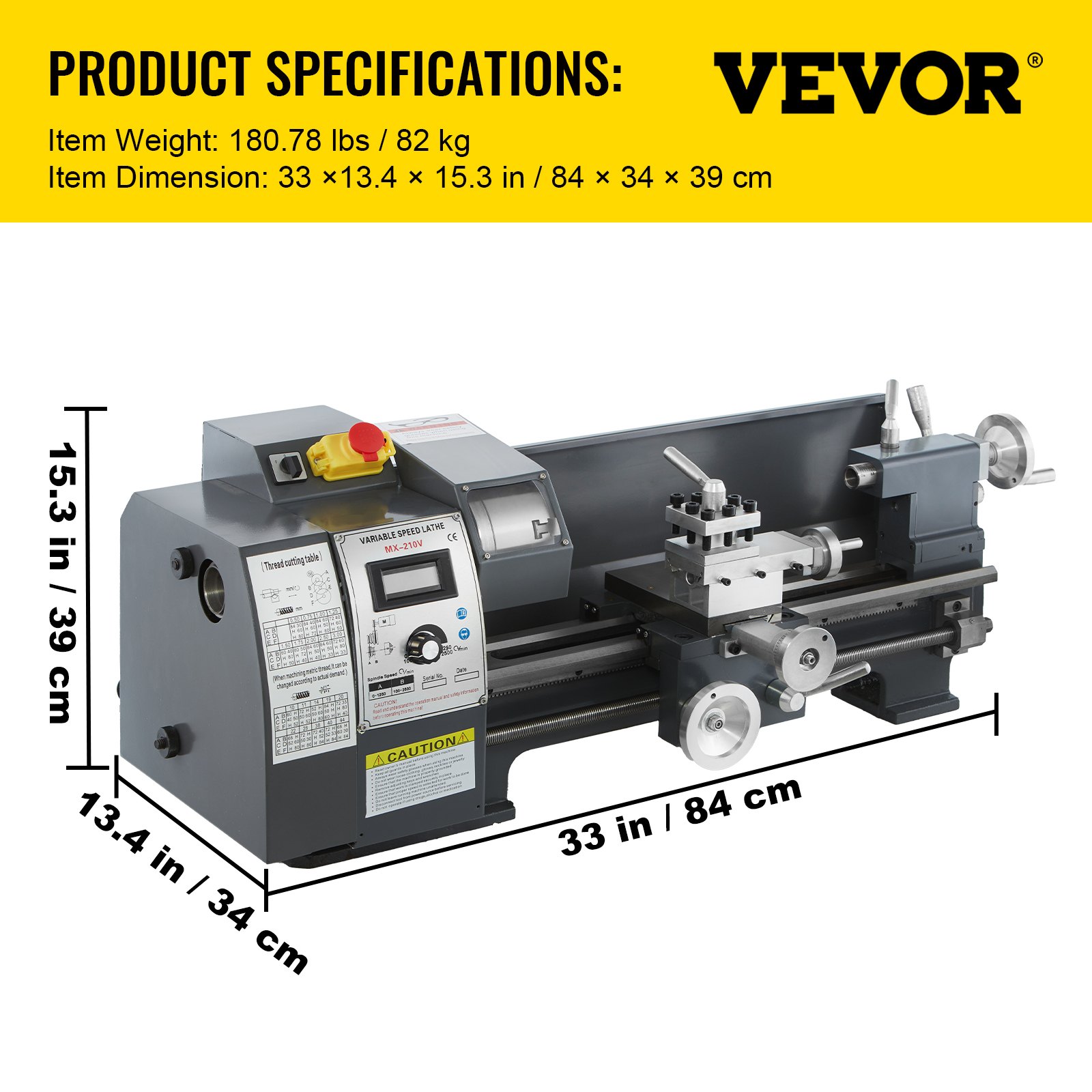

- Item Weight: 180.78 lbs / 82 kg
- Item Dimension: 33" × 13.4" × 15.3" / 84 × 34 × 39 cm

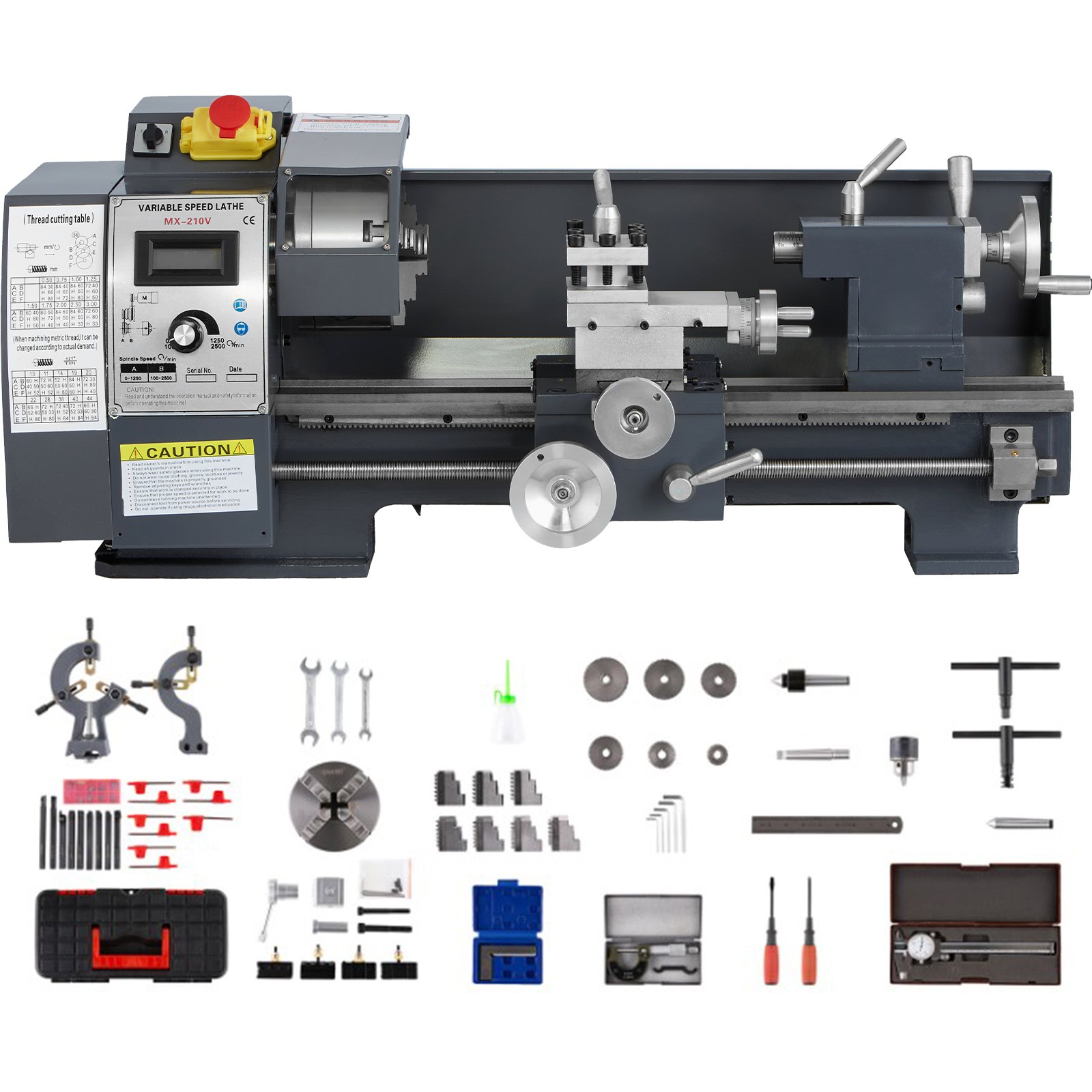

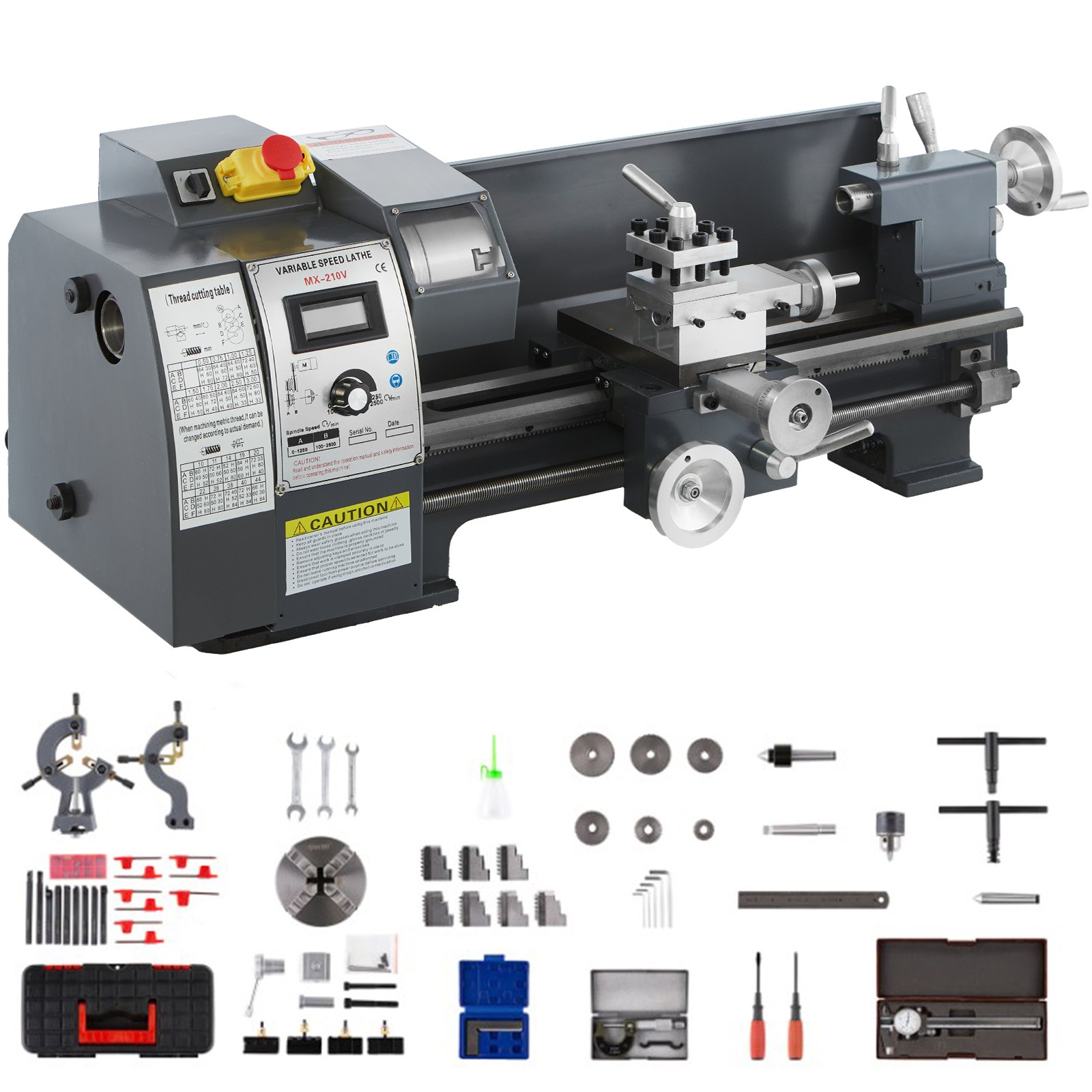

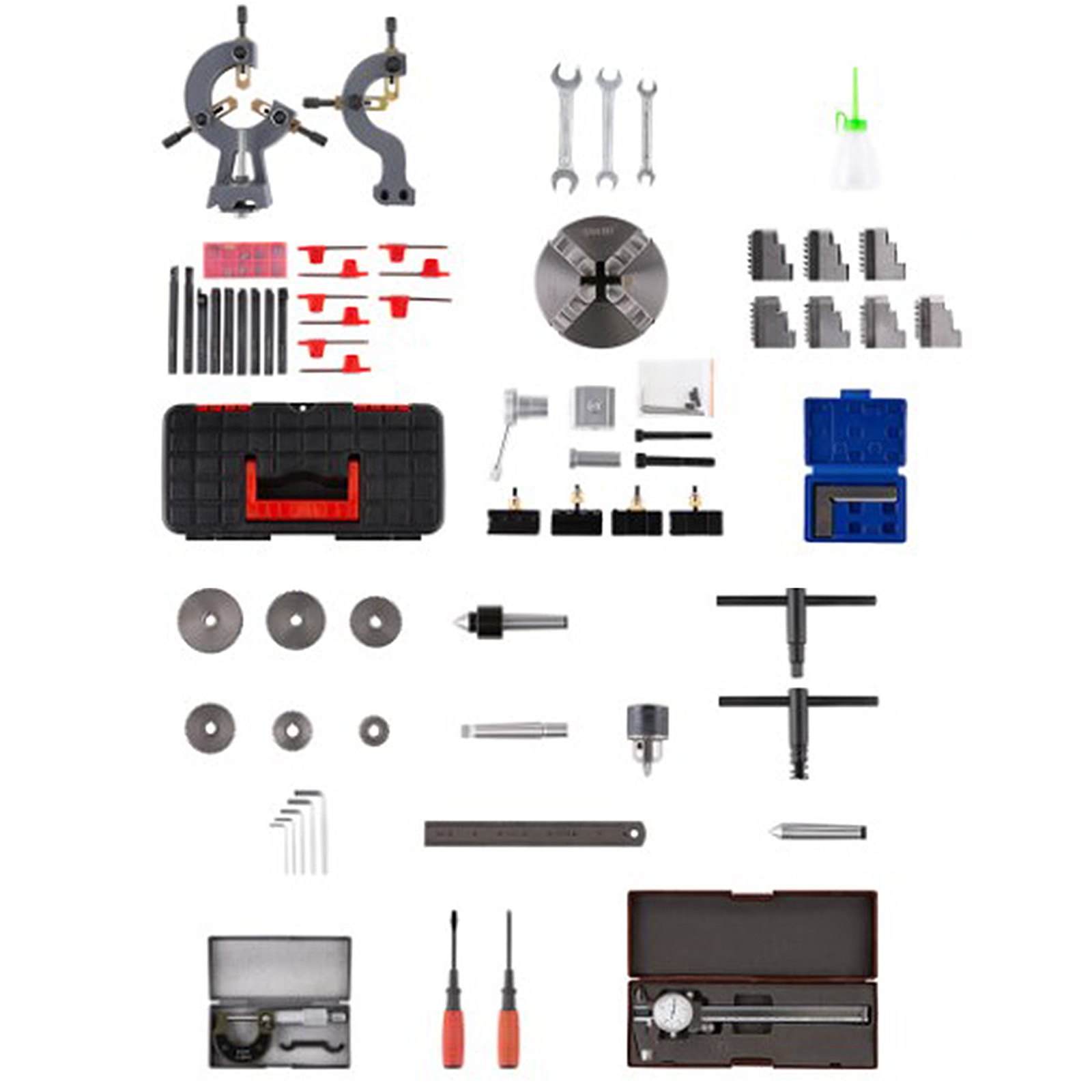

- 1 x Mini Metal Lathe
- 9 x Cutters
- 6 x Metal Gears
- 1 x 3-Jaw Chuck (on the Machine)
- 1 x 4-Jaw Chuck
- 1 x Fixed and Travelling Steadies Set
- 7 x Jaws
- 1 x Quick Change Tool Post Set
- 4 x Engineers Measuring Kit
- 1 x Accessory Kit
- 1 x Manual
8" x 16" Variable-Speed Metal Lathe
The 8" x 16" precision mini benchtop lathe features a 4-jaw chuck, an MT2 tailstock taper, a tool rest, and a 1.5 HP motor, designed to perform various types of metal turning, simple to operate. Through high-frequency quenching process and precision grinding of high-quality cast iron bed. 0-2250RPM spindle speed sublevel of two tranches spindle gear change speed control, continuously adjustable
- Durable Construction
- Variable Speed Control
- Effective Metal Lathe
- Large Swing Range
Durable Metal Lathe
Cast iron construction makes wood lathes durable, providing increased stability and smooth operation. 1100W powerful motor starts softly to offer the motor's maximize security and low noise design.
Variable Speeds
The turning speed control knob clockwise or counterclockwise to adjust the speed freely within 0-2250 RPM. MT5 Spindle. It is easy to read via a digital speed display.
Effective Tool Post & Chuck
High accuracy chuck with repeatability to set cylindrical materials steadily. The lathe's adjustable 4-way tool post allows you to change your cutting tools easily and angles permitting beveling.
Swing Range & Accurate Tailstock
This lathe has a swing over bed of 8"/210 mm and a distance between centers of 16"/400 mm. An MT2 taper can be moving smoothly to adjust proper lengths for workpieces.
Professional Cross Slide
The lathe machine is designed with abrasive resistance, moving blades freely with a feed rod. 16 TPI reversible lead screw. The V-slideways with the distance between center: 16" / 400 mm.
Wide Application
The benchtop wood lathe is suitable for many processing tasks, including turning, drilling, threading, and cutting. It's an ideal tool for use in labs, workshops, engineering, and education.
- 1 x Mini Metal Lathe
- 9 x Cutters
- 6 x Metal Gears
- 1 x 3-Jaw Chuck (on the Machine)
- 1 x 4-Jaw Chuck
- 1 x Fixed and Travelling Steadies Set
- 7 x Jaws
- 1 x Quick Change Tool Post Set
- 4 x Engineers Measuring Kit
- 1 x Accessory Kit
- 1 x Manual
- Power of Motor: 1100W DC
- Volt: 110V 60Hz
- Phase: Single Phase
- Variable Speed: 0 - 2250 RPM
- Swing Over Bed: 8.27" / 210 mm
- Chuck Diameter: 4.92" / 125 mm
- Centers Distance: 15.75" / 400 mm
- Spindle Bore: 1.5" / 38 mm
- Inch Thread: 8 - 44 T.P.I
- Metric Thread: 0.5 - 3 mm
- Tail Stock Taper: MT2
- Spindle Taper: MT5
- Gear Material: Metal
- Item Weight: 180.78 lbs / 82 kg
- Item Dimension: 33" × 13.4" × 15.3" / 84 × 34 × 39 cm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (6)
Hoi,ik kom twee waarden tegen ,namelijk power 1,1kw en motorvermogen 750Watt ,welke van de 2 is het?
Het motorvermogen van het product is 750 W DC.
By vevor
Helpful
(
4
)
kan ik ze ook zelf ophalen 8x16 inch metaal draai bank
Nee, het pakket kan niet opgehaald worden. Het kan alleen worden verzonden naar het adres dat u na aankoop heeft opgegeven.
By vevor
Helpful
(
2
)
Ik zie dat er voor deze draaibank 2 opties zijn
1. 230 volt - 750 watt 1.0 pk motor
2. 110 volt - 1100 watt 1.5 pk motor
Beide voor de prijs €1400,99
Omdat ik het gevoel heb dat voor draaibanken meer kracht altijd een plus is, vroeg ik me af of vevor.nl de 110 volt versie kan leveren. En of ik deze dan zonder probleem kan gebruiken i.c.m. bijvoorbeeld een Vevor 2000 watt spanningsomvormer?
En kunt u mij vertellen of het überhaupt zin heeft om dit zo te doen?
Hallo, de modellen van dit product die in Europa worden verkocht, zijn allemaal 220v.
By vevor
Helpful
(
1
)
Heeft de draaibank maar 1 draairichting?
Het kan vooruit en achteruit draaien.
By vevor
Helpful
(
1
)
Wat us de doorlaat van de hoofdas?
Het doorlopende gat van de spindel is 38 mm.
By vevor
Helpful
(
0
)
