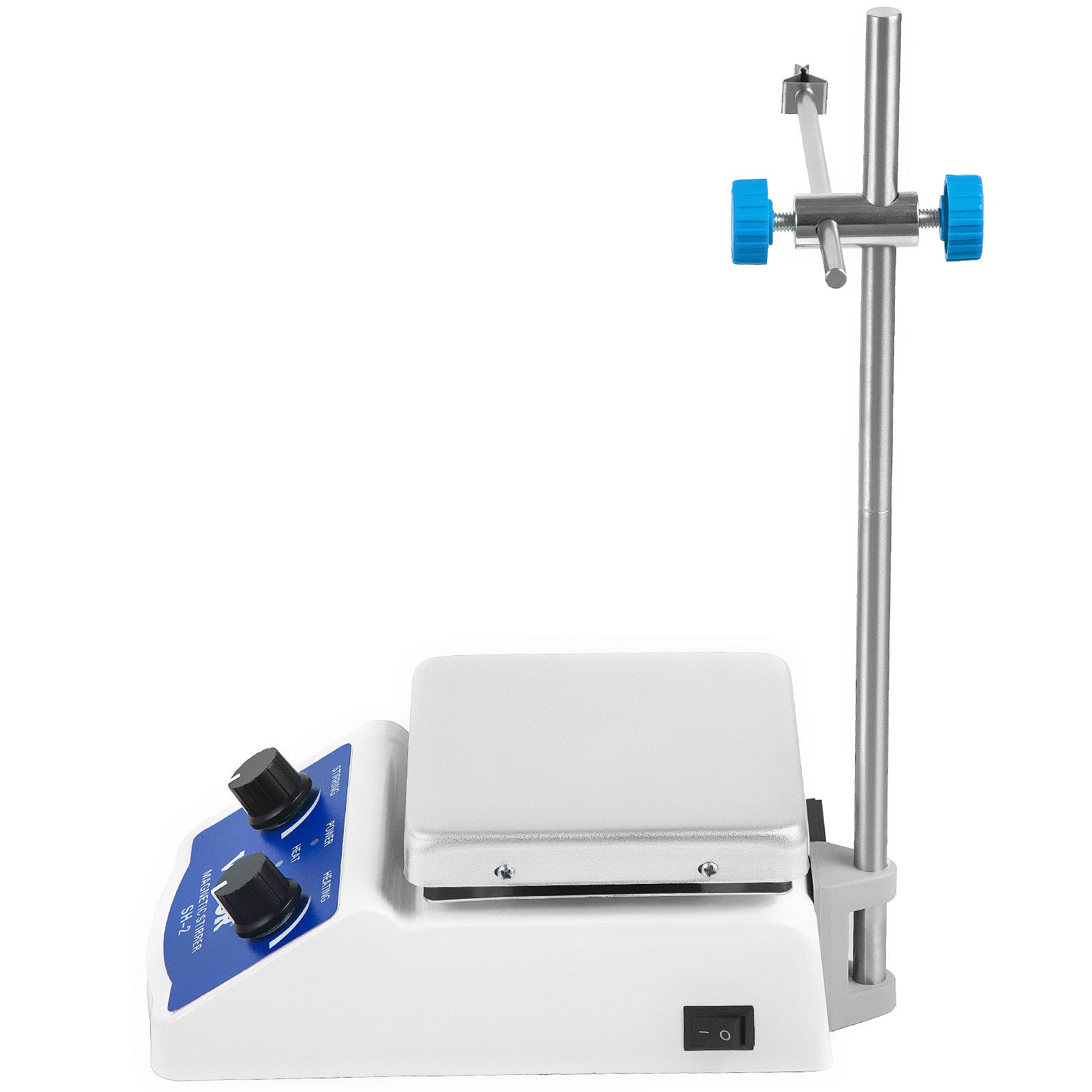

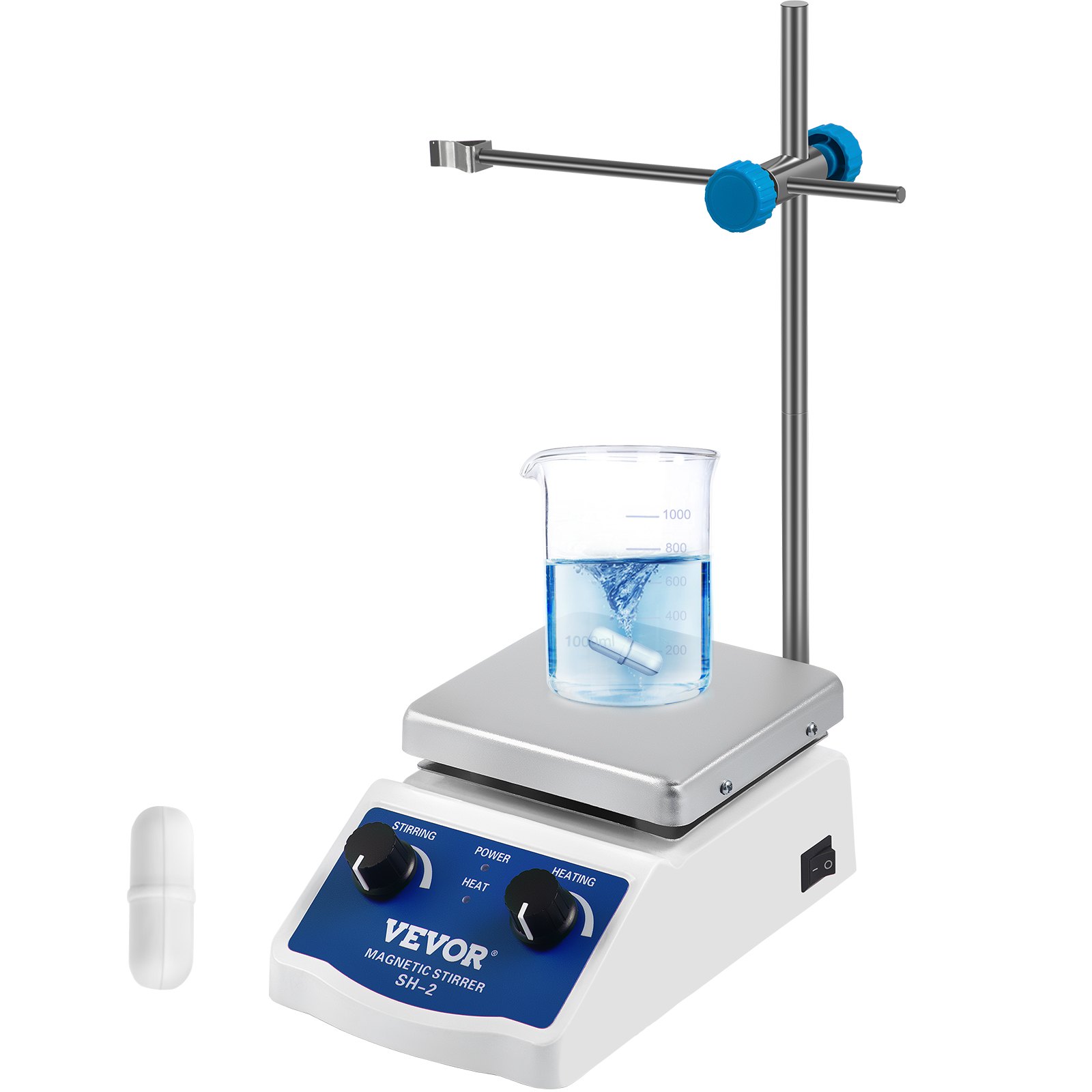

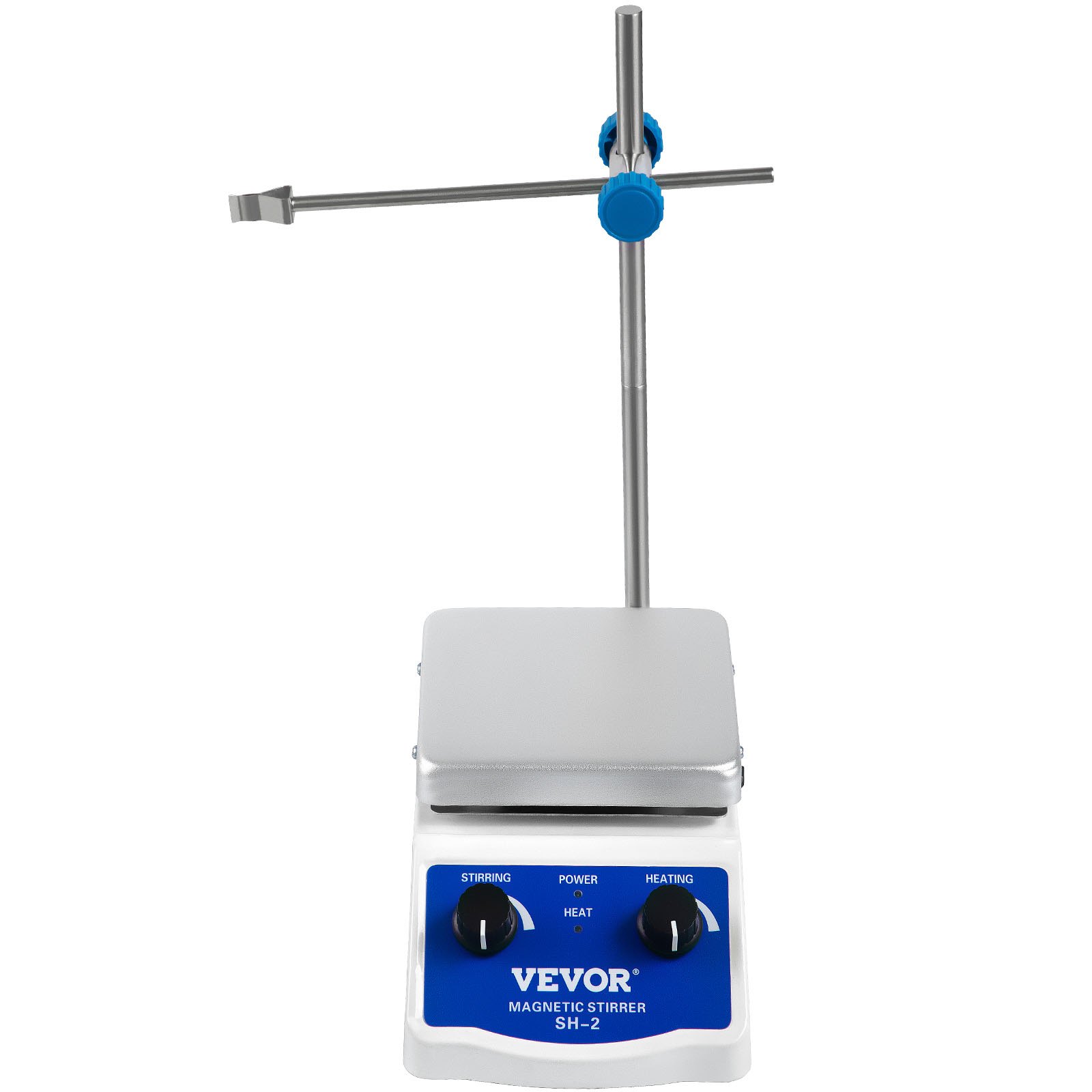

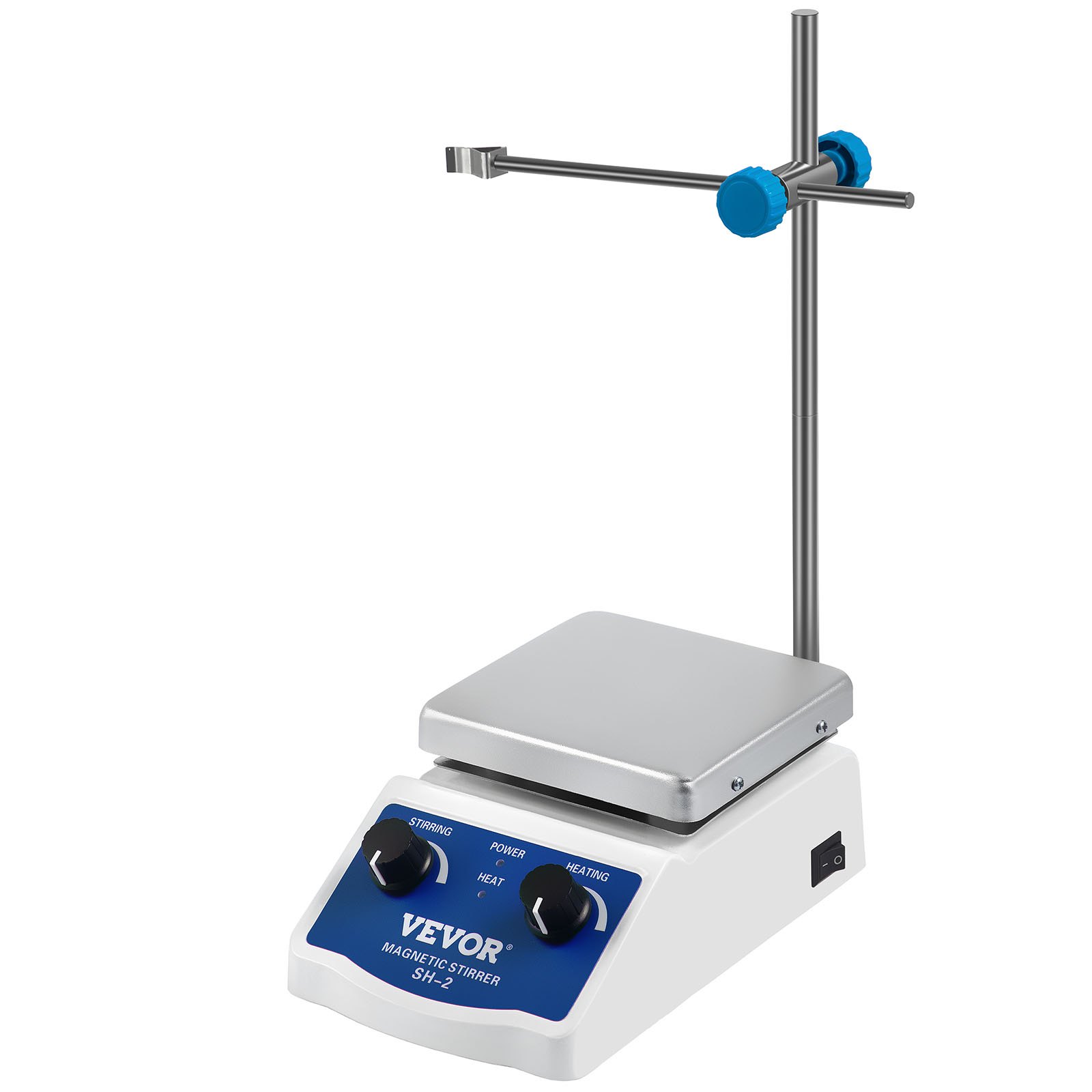

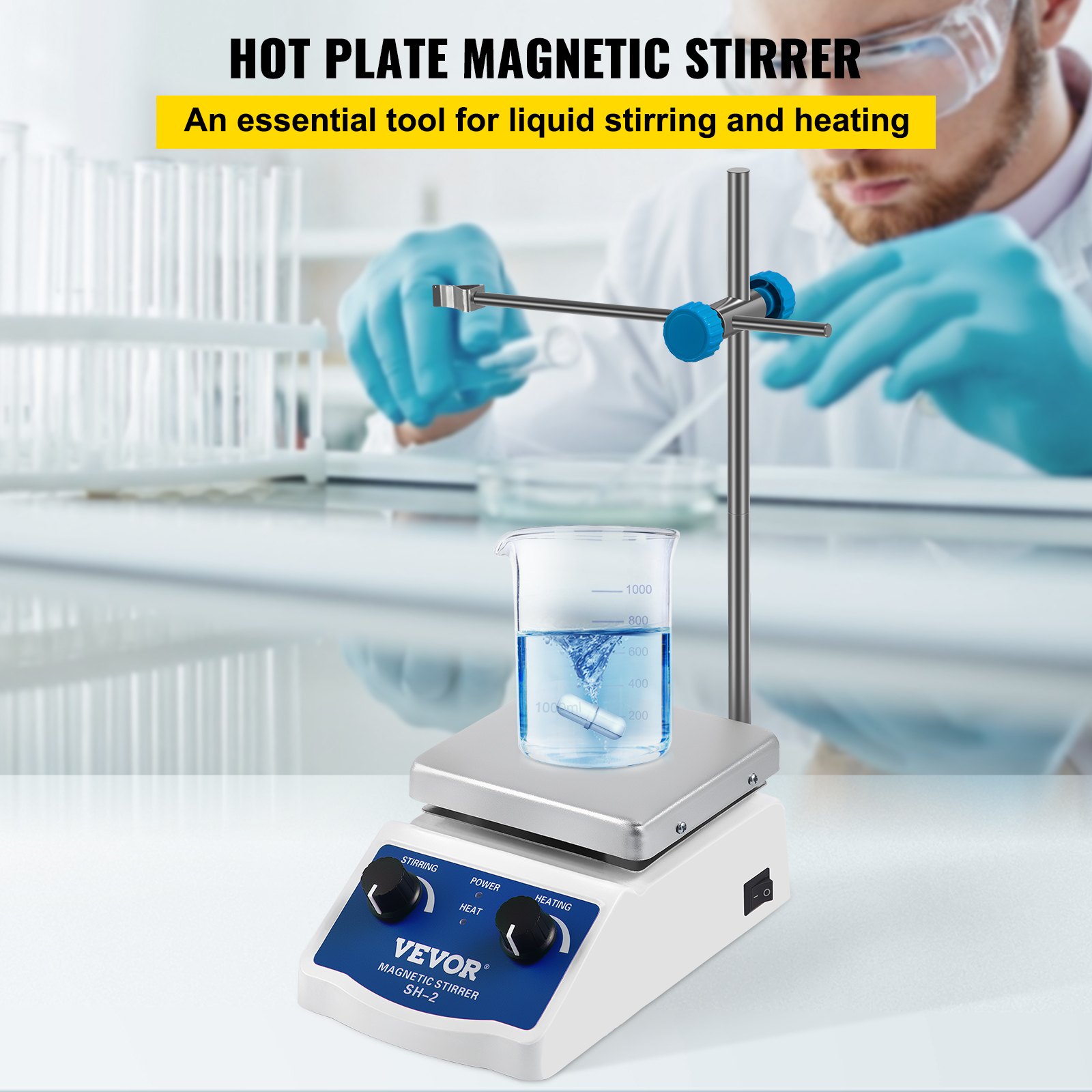

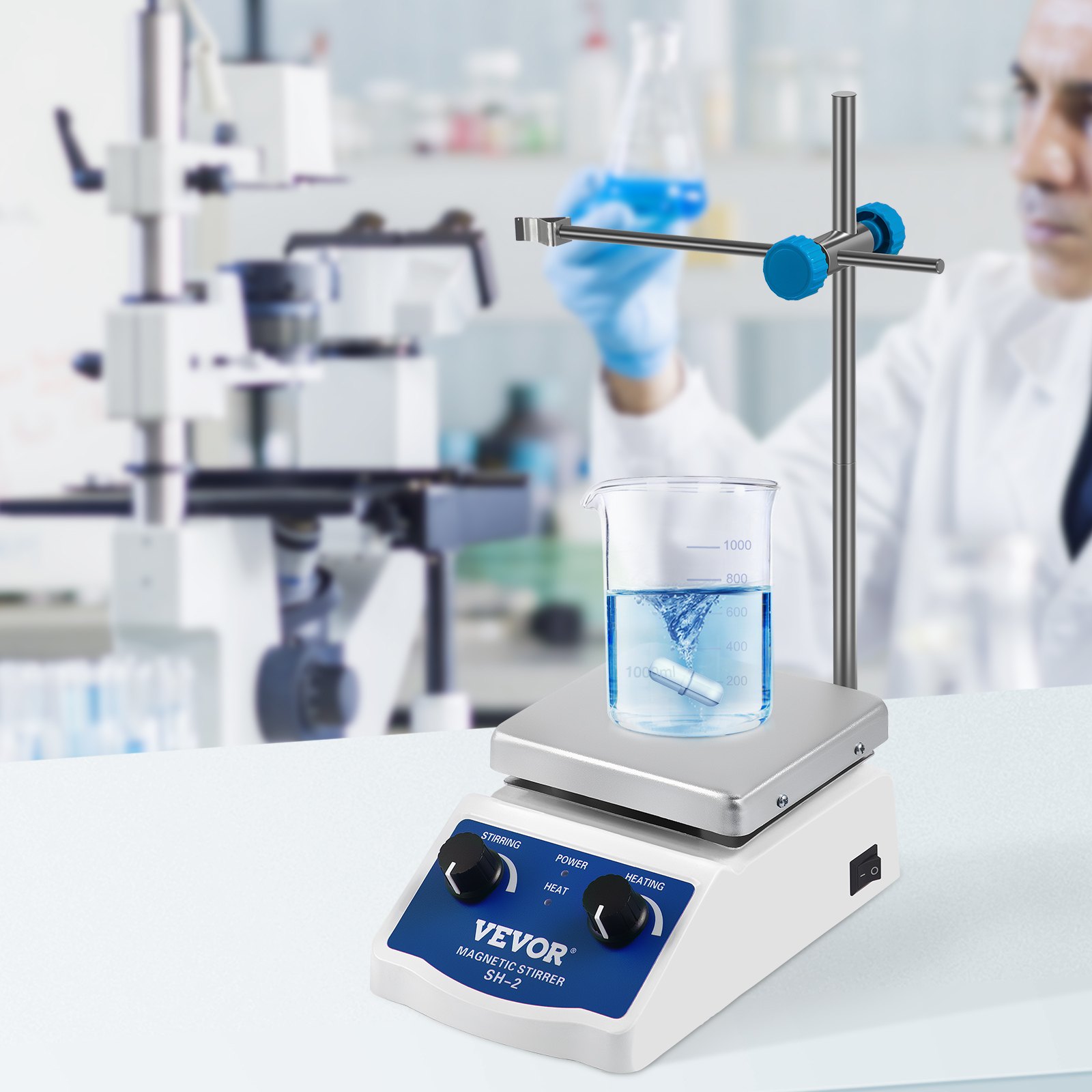

SH-2 Hot Plate Magnetic Stirrer
This heating plate magnetic stirrer contains a stainless steel hot plate and a PTFE-coated stir bar, featuring fast & even heating and stable stirring. The stirring speed can be adjusted to 2000 RPM with a powerful DC motor for more efficient stirring. Also,dual adjusting knobs give precise temperature and speed control. Our magnetic hot plate is ideal for scientific research, laboratory study, college experiment, industrial process, etc.
- Rapid Heating Hot Plate
- Stable & Stepless Stirring
- Accurate & Simple Control
- Adjustable & Secure Design
- Please Note
- 1. The magnetic stirrer must be connected with ground wire. Don't touch the aluminum surface.
- 2. Please avoid using metal container or container without flat bottom.
- 3. When stirring viscous liquid, please reduce liquid volume and stirring speed.
- 4. The hot plate mixer can work 8 hours continuously at middle speed and 4 hours in high speed.
- IMPORTANT
- 1.There is a blue speed control knob at the bottom of the unit, select clockwise to increase the speed, and counterclockwise to reduce the speed.
- 2.For the first heating, there will be some smoke, which is a normal phenomenon

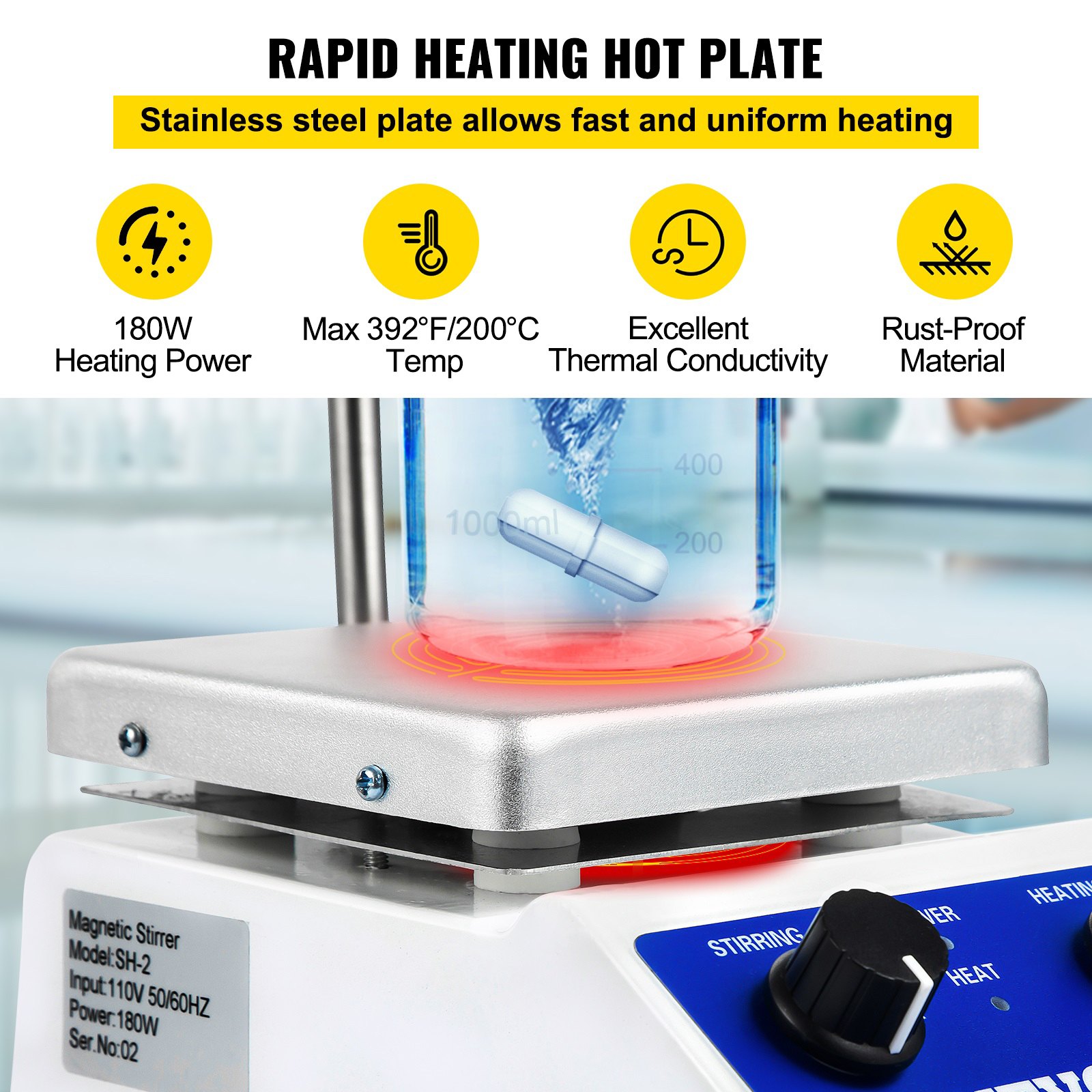

Stainless Steel Hot Plate
The stainless steel heating plate enables quick heating up and even heat transfer, with a maximum heating temperature of 392℉/200℃. Further, the heating plate is made of quality stainless steel, precluding worry about corrosion, rust, or scratch.

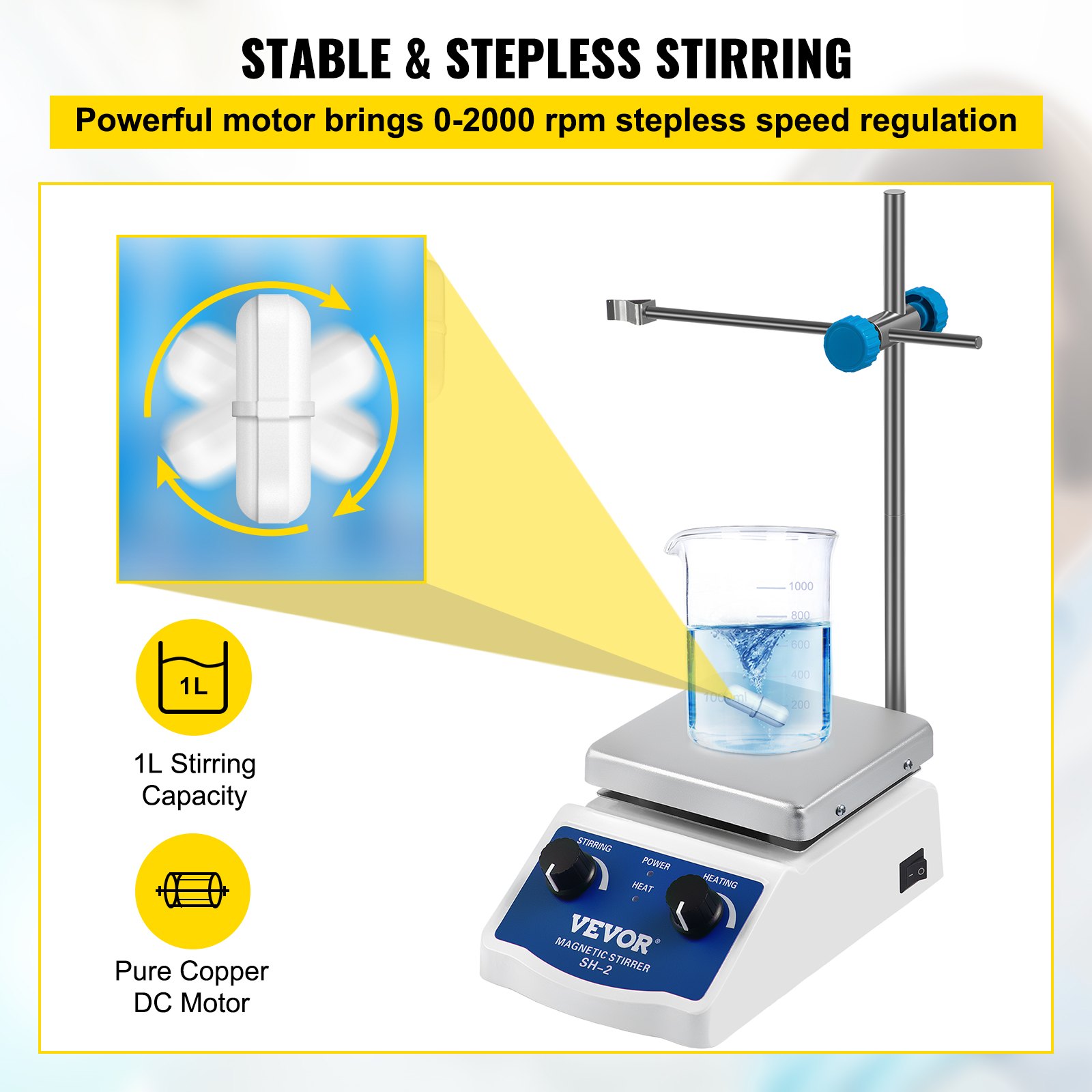

2000RPM Stirring Speed
Equipped with a powerful DC motor, The stirring speed of the hot plate magnetic stirrer can be adjusted between 0 and 2000 RPM for different needs. In addition, its 1L mixing capacity meets your needs of large-volume mixing.
Stable Liquid Stirring
The stir bar gives stable stirring with low noise even at full speed, whose PTFE coating ensures no reaction with the mixture. Four non-skid foot pads are making it placed stably on the table.

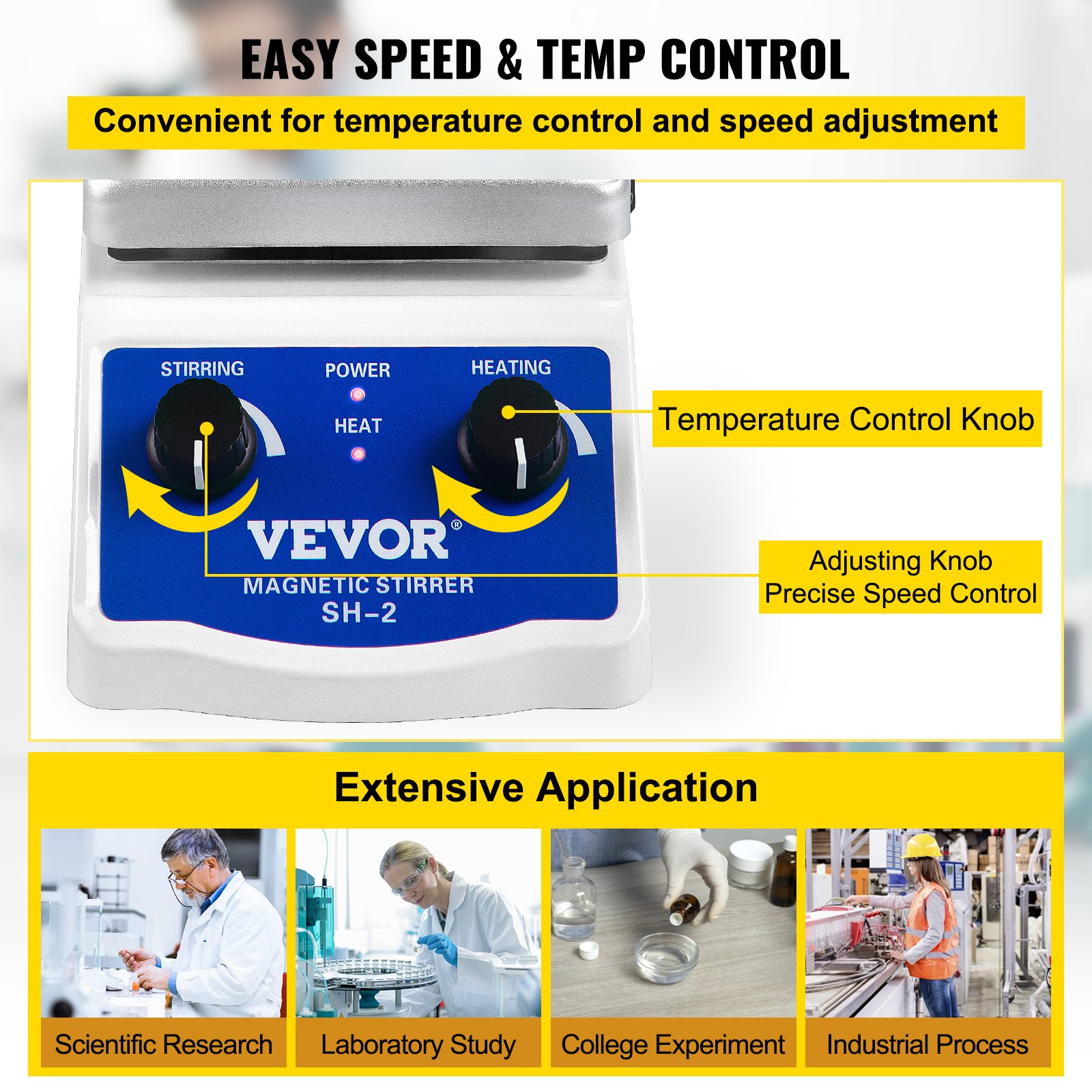

Speed & Temp Control
The digital hotplate magnetic stirrer is designed with two control knobs, which regulate the speed and temperature with great precision by turning the knob.

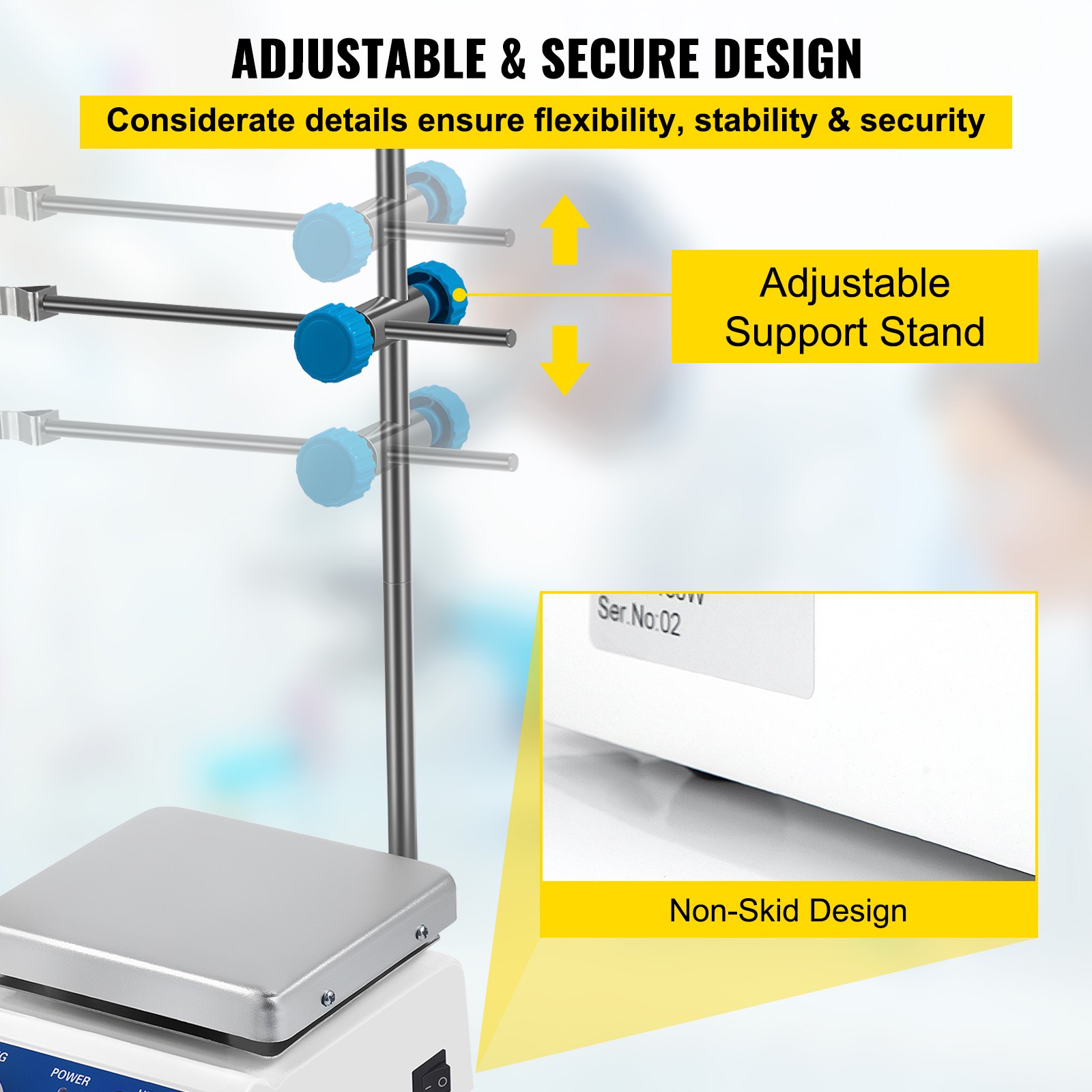

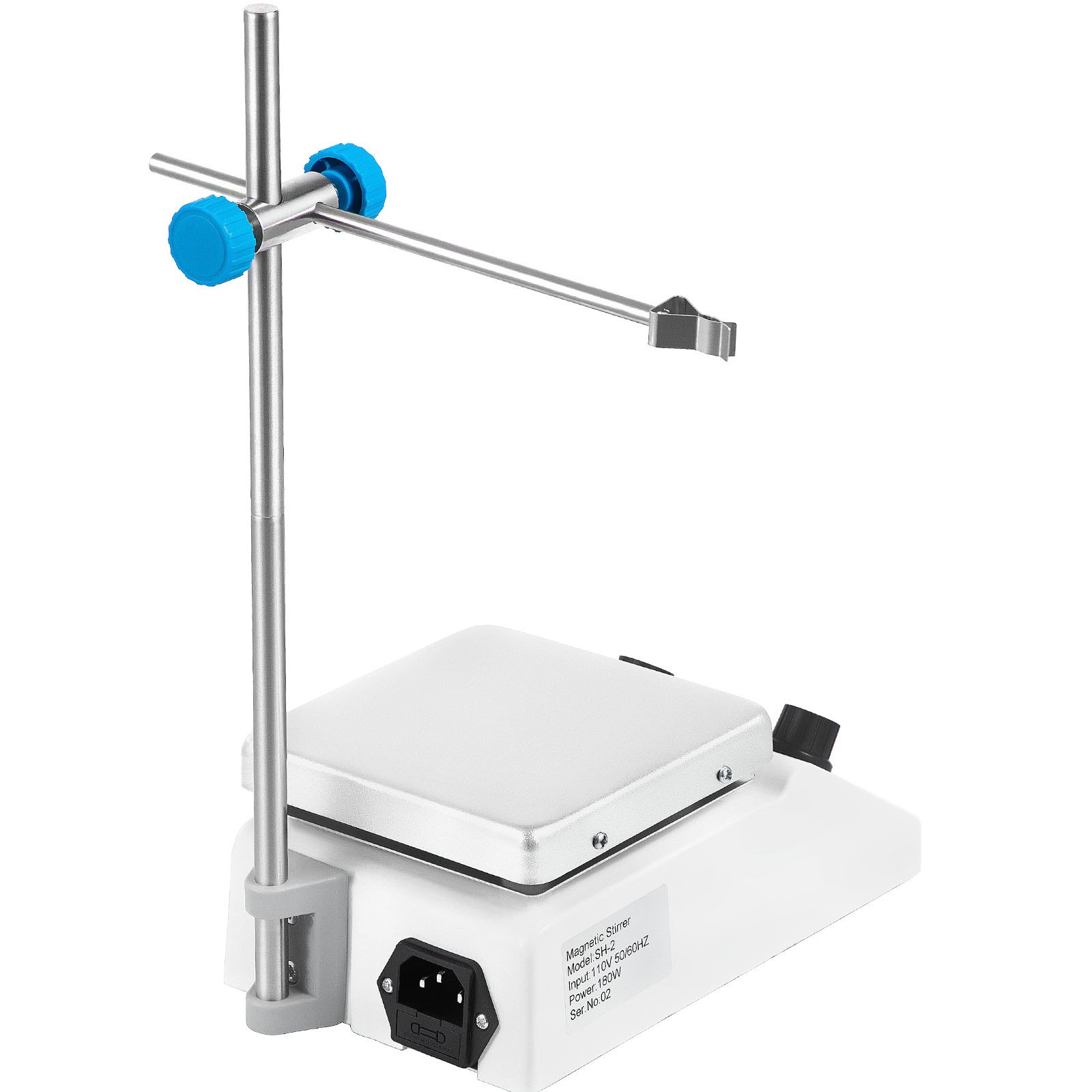

Adjustable Sensor Stand
This hot plate stirrer includes a support stand and an adjustable holder that can hold the temperature sensor to monitor the temperature precisely.
Extensive Application
The magnetic stirrer hot plate can proceed simultaneously with heating and stirring. Consequently, it is suitable for scientific research, laboratory study, industrial process, etc.
- 1 x Magnetic Stirrer
- 1 x Stirring Bar
- 1 x Support Stand
- 1 x Power Cord
- 1 x English Manual

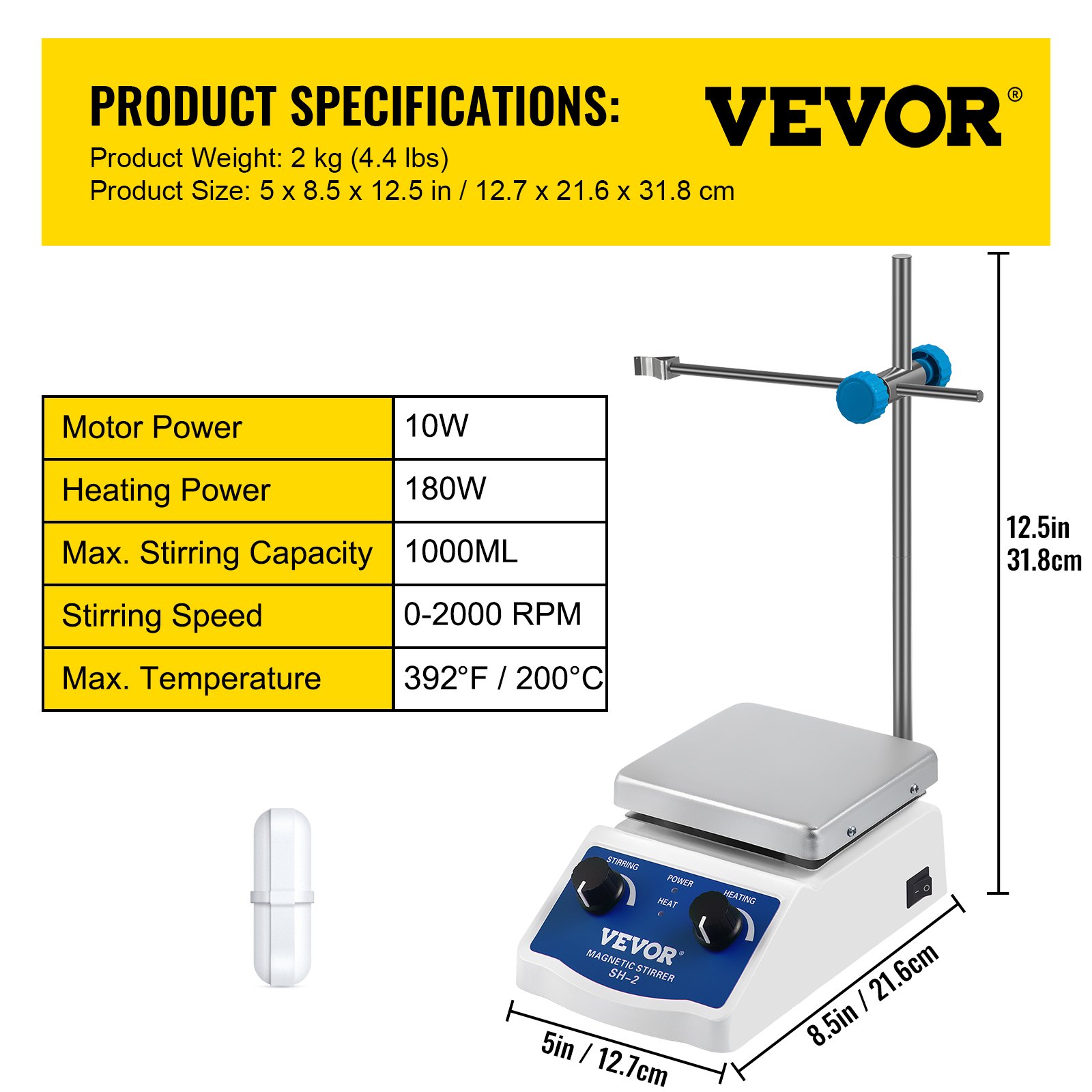

- Voltage: 220V
- Stirrer Motor Power: 10W
- Heating Power: 180W
- Maximum Heating Plate Temperature: 392℉/200℃
- Stirring Speed: 0-2000 rpm Adjustable
- Stirring Capacity: 1000mL Liquid
- Heating Plate Dimensions: 4.7" x 4.7" / 12 x 12 cm
- Height With Support Stand: About 12.6" / 32 cm
- Size: 5" x 8.5" x 12.5" / 12.7 x 21.6 x 31.8 cm
- Weight With Packaging: 5.5 lbs / 2.5 kg
