Features & Details

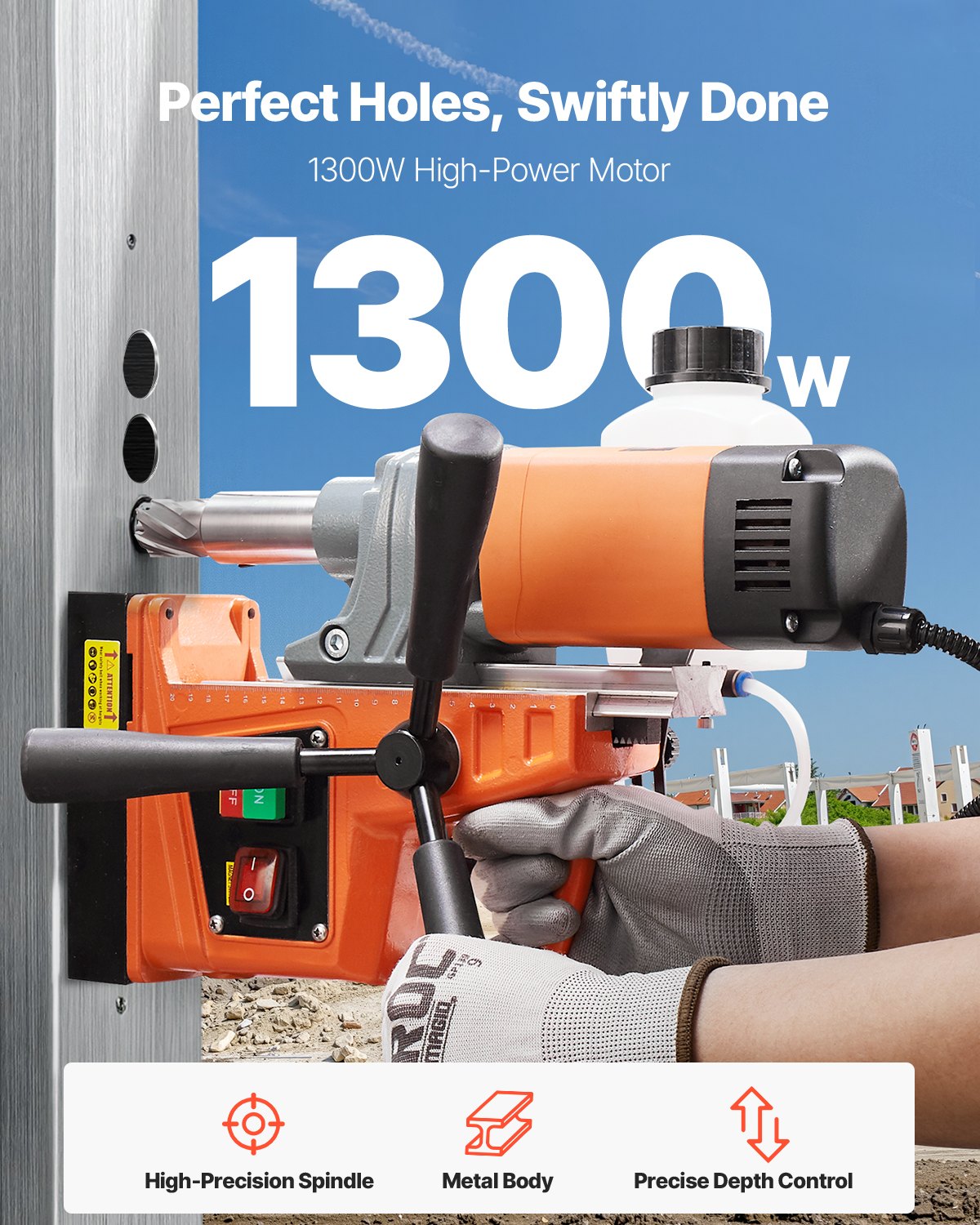

- Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm

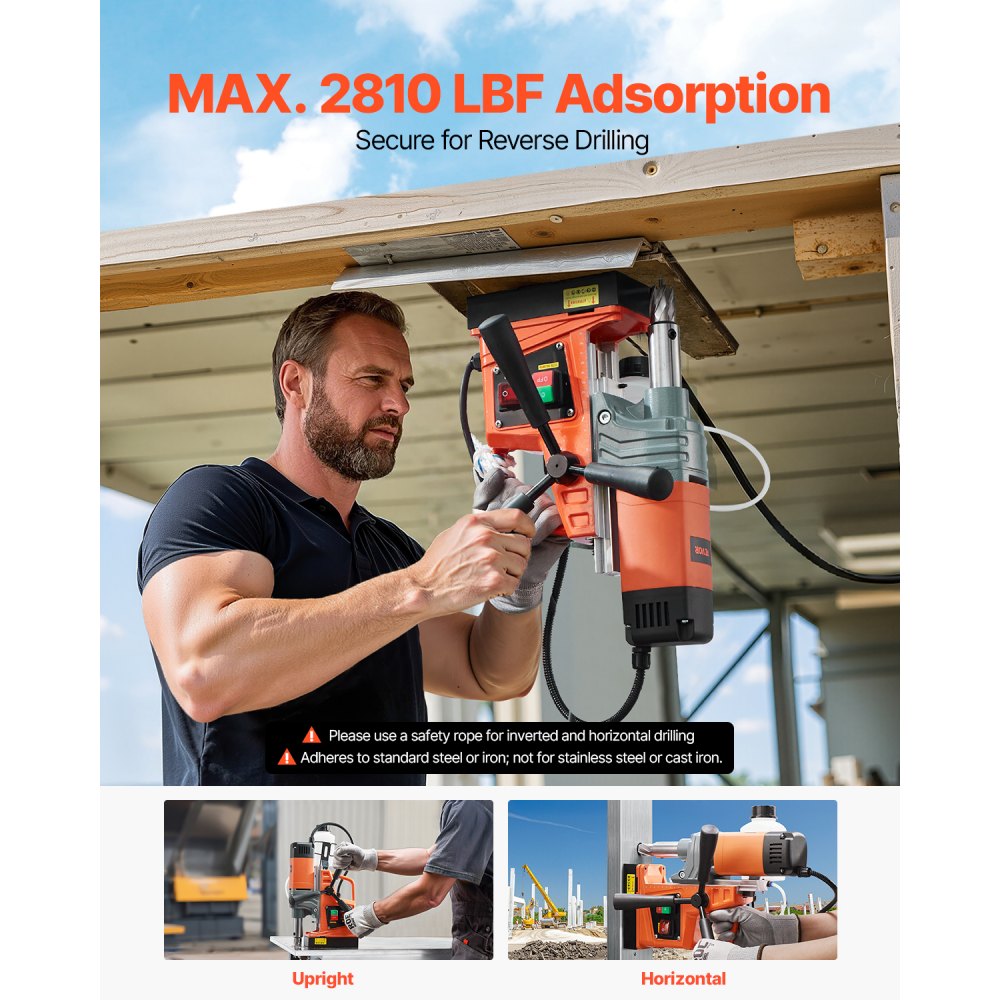

- Understand the Power: 2810 lbf / 12500N of robust force is created by the electromagnetic thickened base, featuring pure iron anchors the mag drill press solidly works at any angle stably during the drilling process

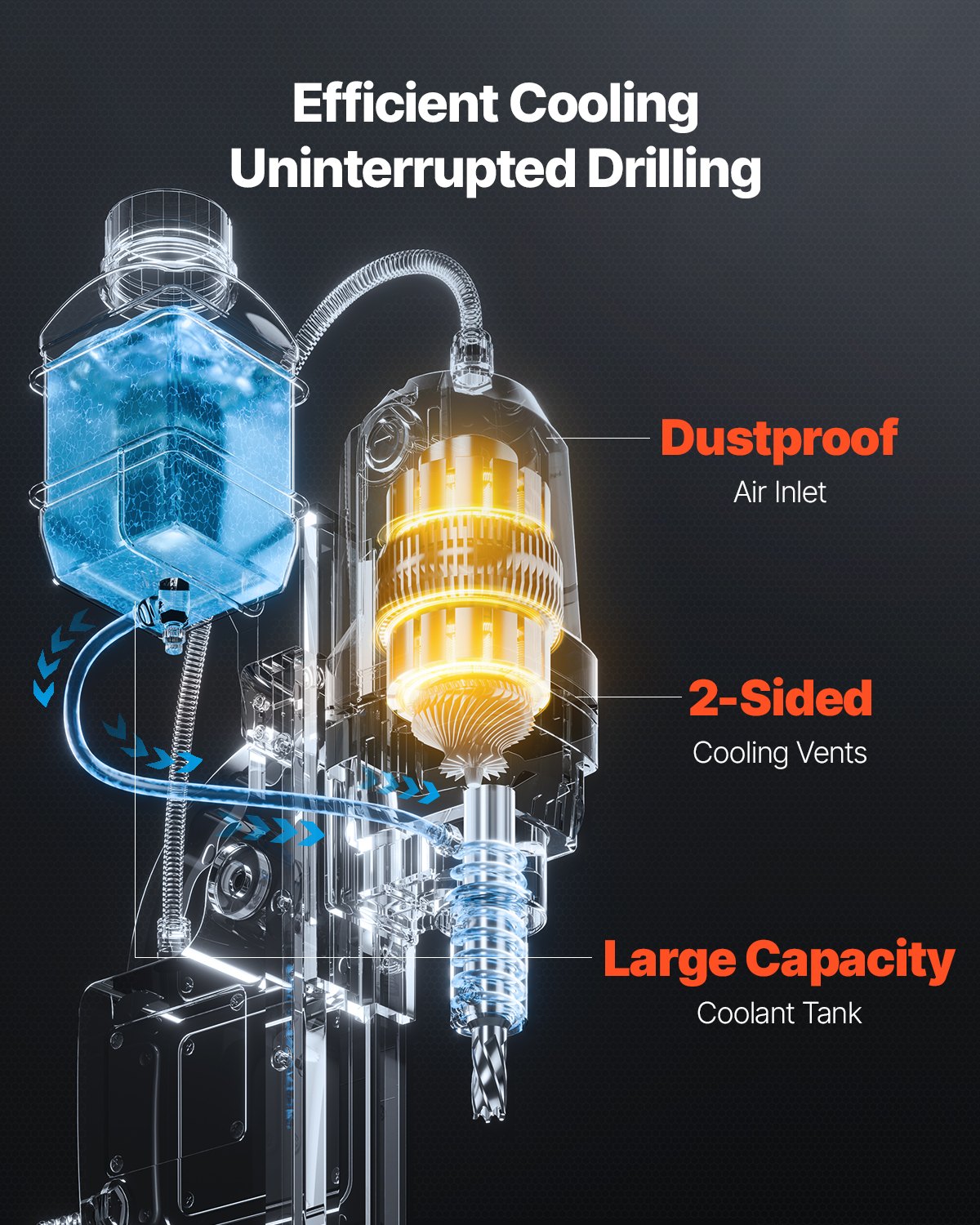

- Security and Durability: Your security comes first! That is why the combined overload protection features are in place. The cooling system features fast heat dissipation to protect operators from being hurt by instantaneous overpowering and high temperatures during drilling Besides, the premium alloy guide rail has anti-corrosion and wear resistance characteristics, significantly improving the device's service life

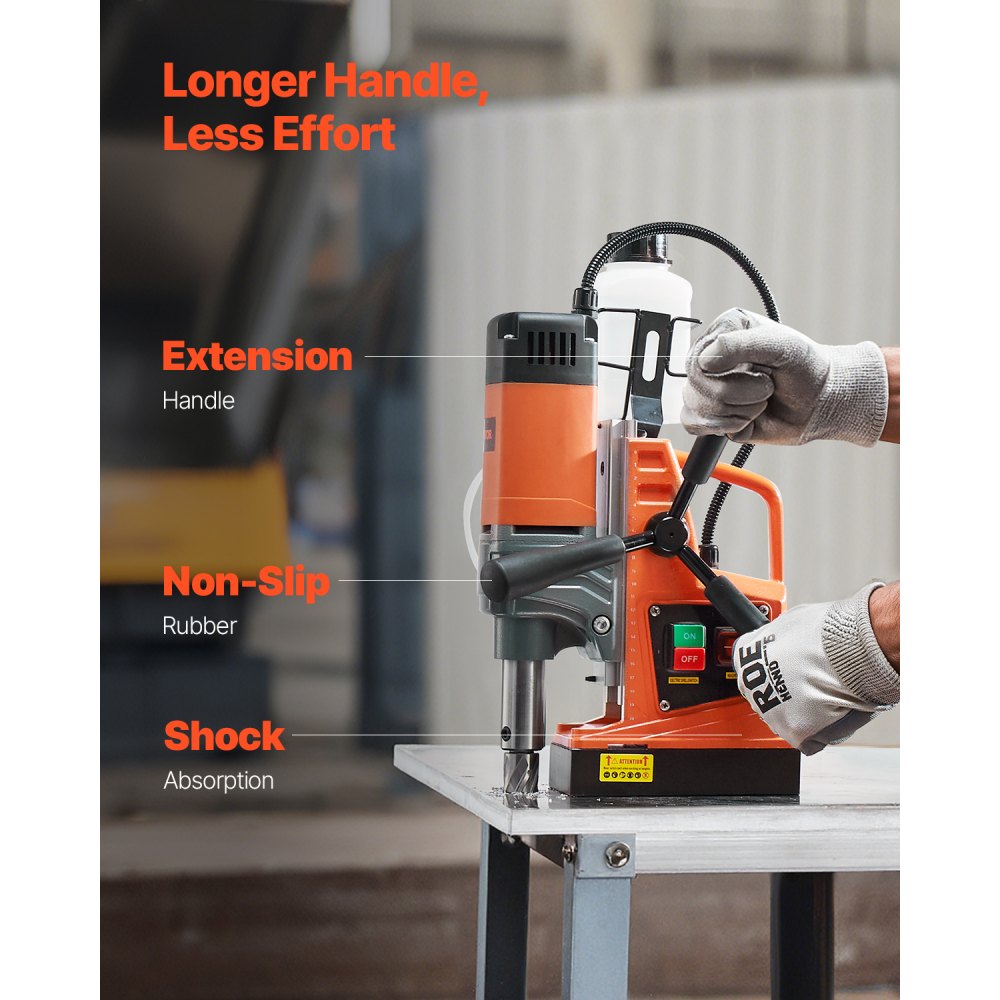

- User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort

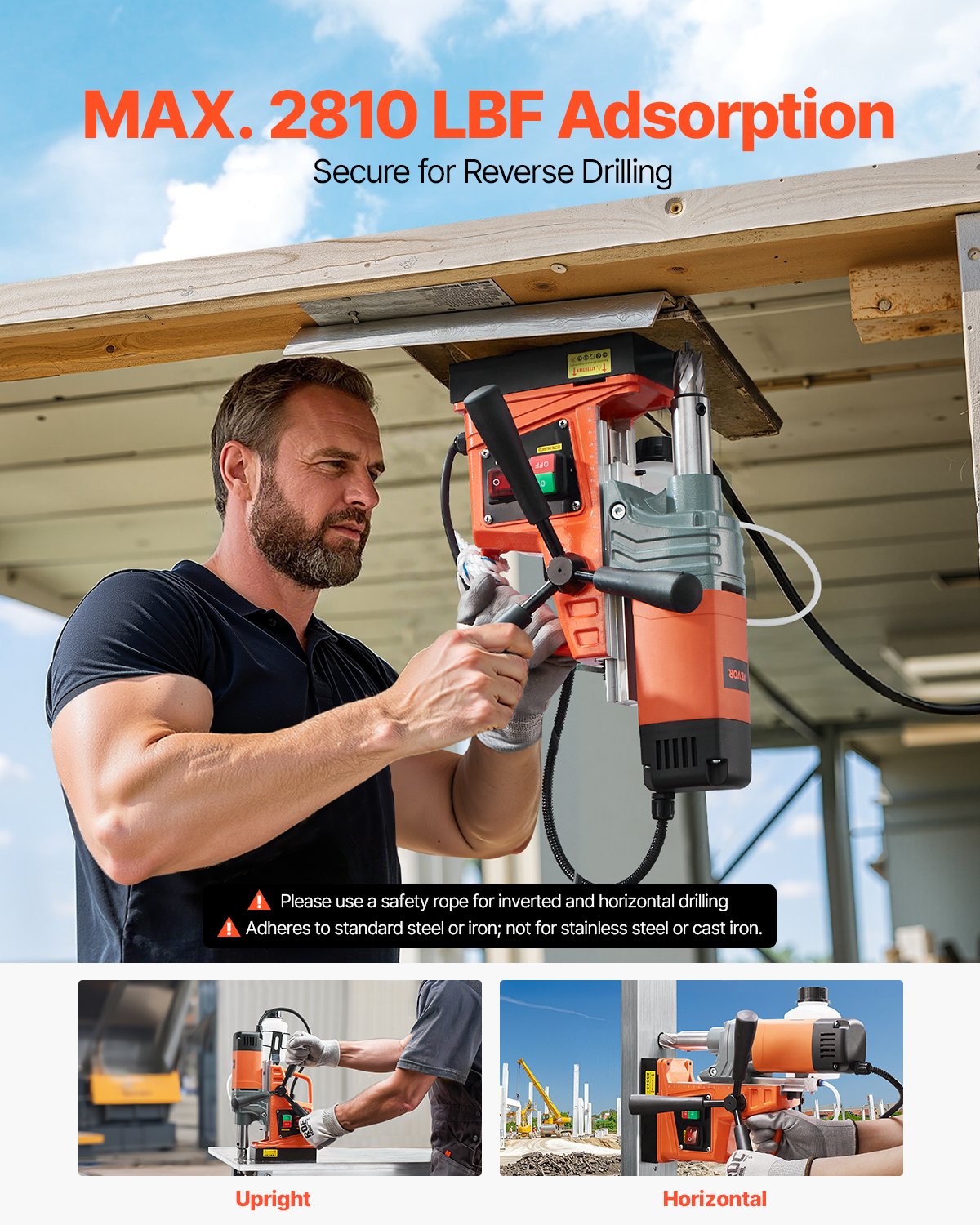

- Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 9 reviews
Reviews 4.8
All reviews are from verified purchases
See all 9 reviews
About this item

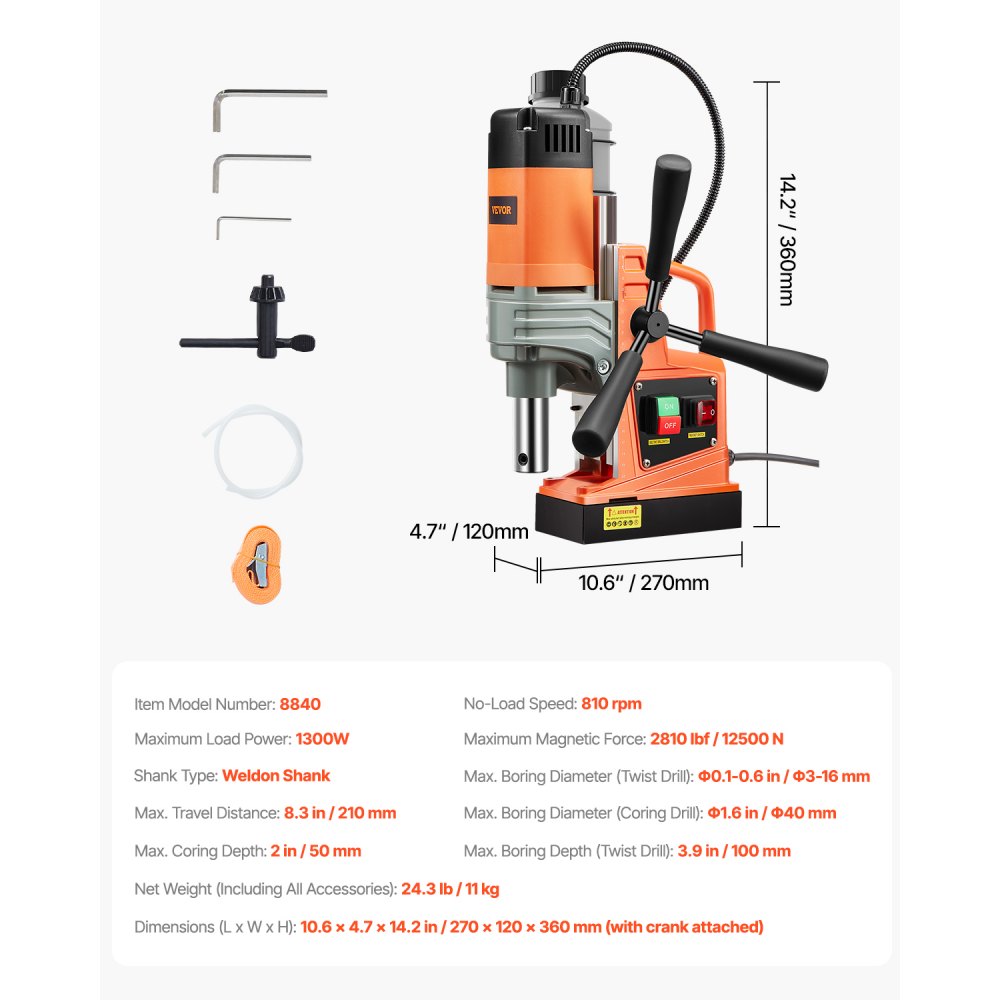

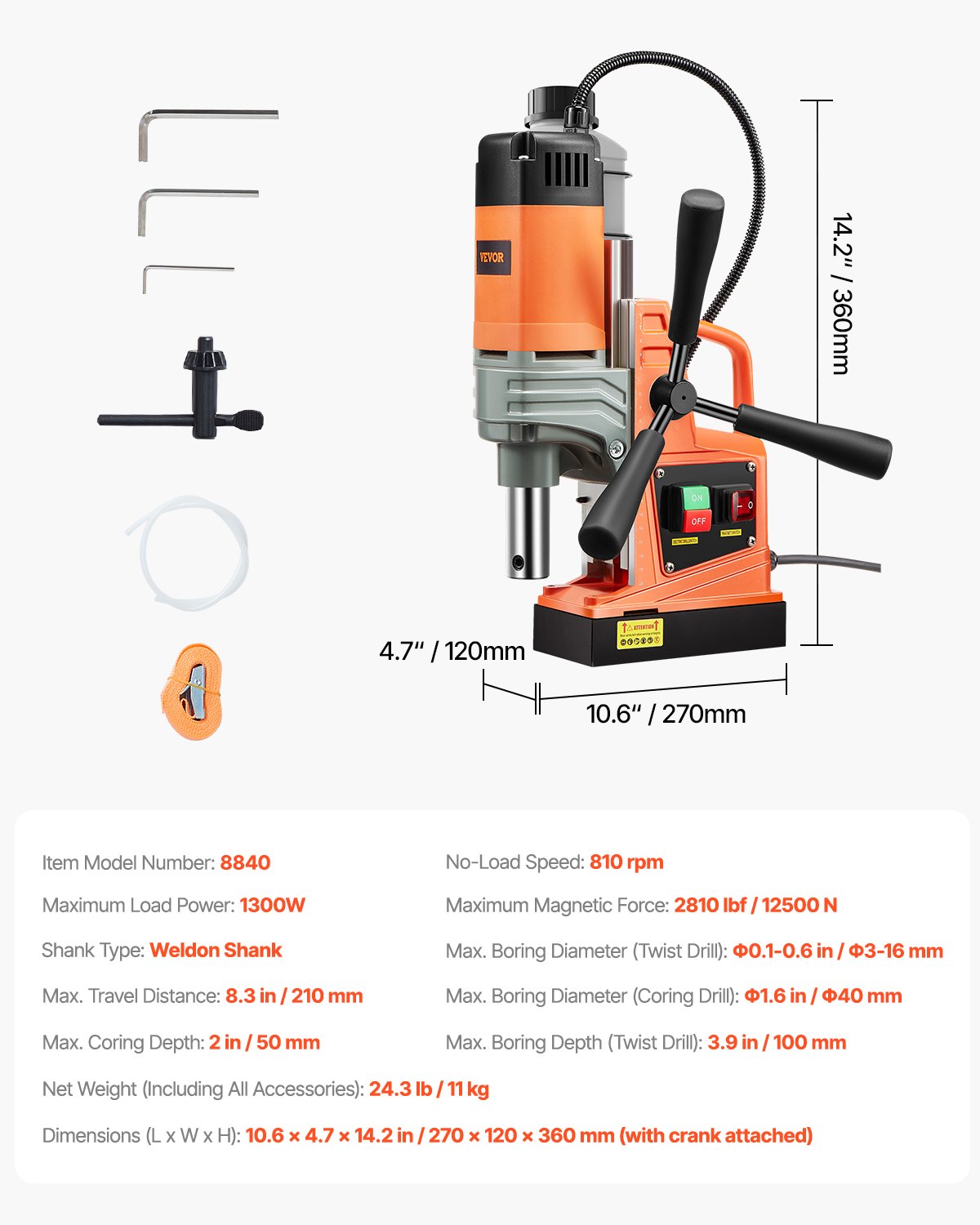

Product specification
- Item Model Number
- 8840
- Shank Type
- Weldon Shank
- Maximum Load Power
- 1300W
- Maximum Magnetic Force
- 2810 lbf / 12500 N
- No-Load Speed
- 810 rpm
- Max. Boring Diameter (Coring Drill)
- Φ1.6 in / 40 mm
- Max. Coring Depth
- 2 in / 50 mm
- Max. Boring Diameter (Twist Drill)
- Φ0.1-0.6 in / 3-16 mm
- Max. Boring Depth (Twist Drill)
- 3.9 in / 100 mm
- Max. Travel Distance
- 8.3 in / 210 mm
- Net Weight (Including All Accessories)
- 24.3 lb / 11 kg
Description
The Pinnacle of Magnetic Power
This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. Made of premium alloy, it's ideal for home assembly, industrial use, and steelwork.
Q: What is the applied voltage and size of the product?
A: The product size is 10.6x4.7x14.2in/270x120x360mm, applicable voltage/frequency is 220-240V 50/60Hz for EUR.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?

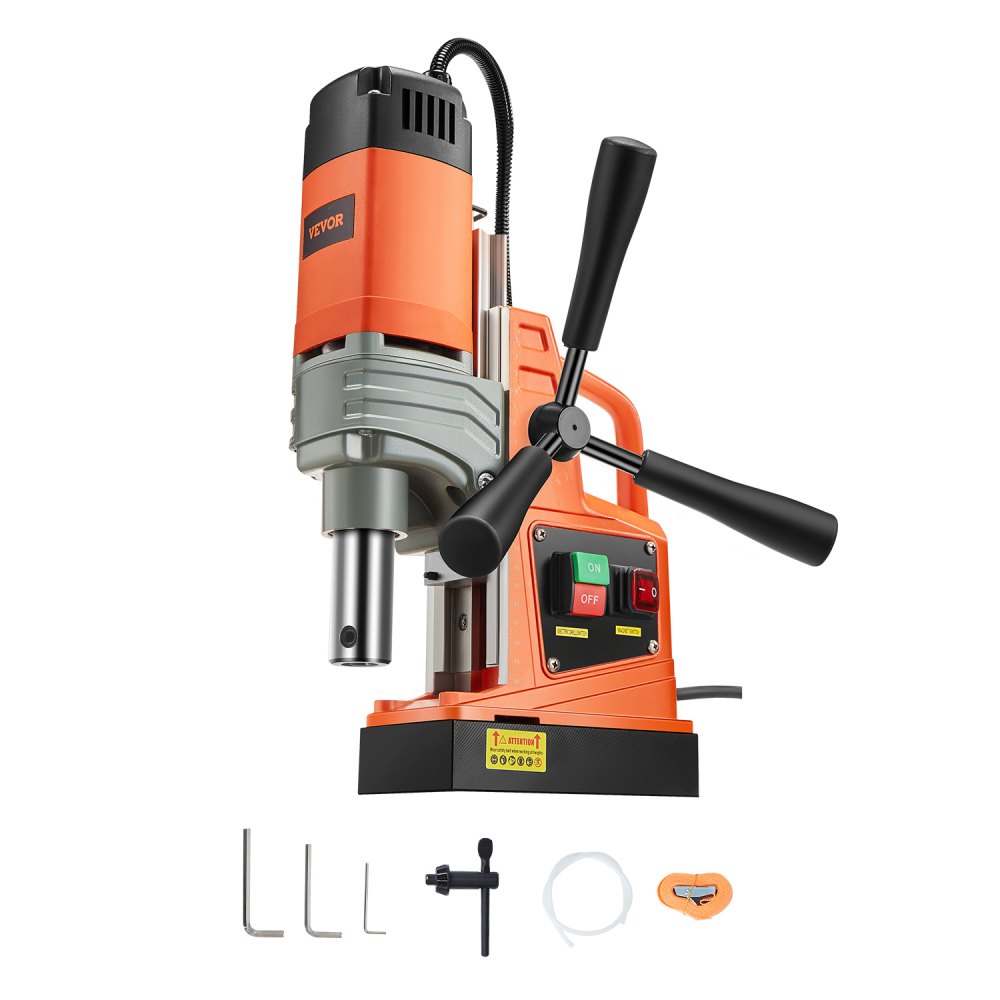

A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.
A: The product size is 10.6x4.7x14.2in/270x120x360mm, applicable voltage/frequency is 220-240V 50/60Hz for EUR.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?
A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (2)
Wat is de opname van de boorschacht? Is het weldon 3/4"?
Geschikt voor holle boren met een Weidon schacht van 3/4 inch.
By vevor
Helpful
(
0
)
La vitesse de rotation est bien de 0 à 810 tr/min ?
Non, ce produit n'est pas livré avec une régulation de vitesse.
By vevor
Helpful
(
0
)
