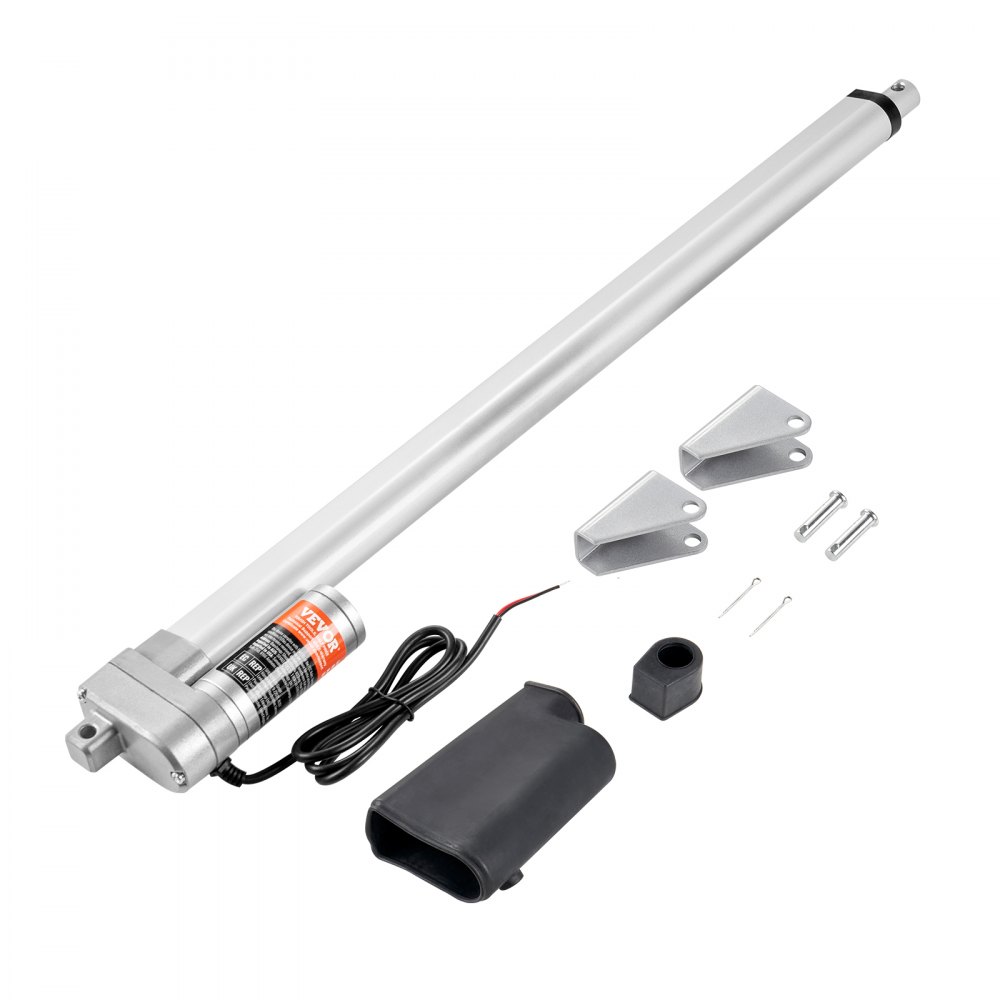

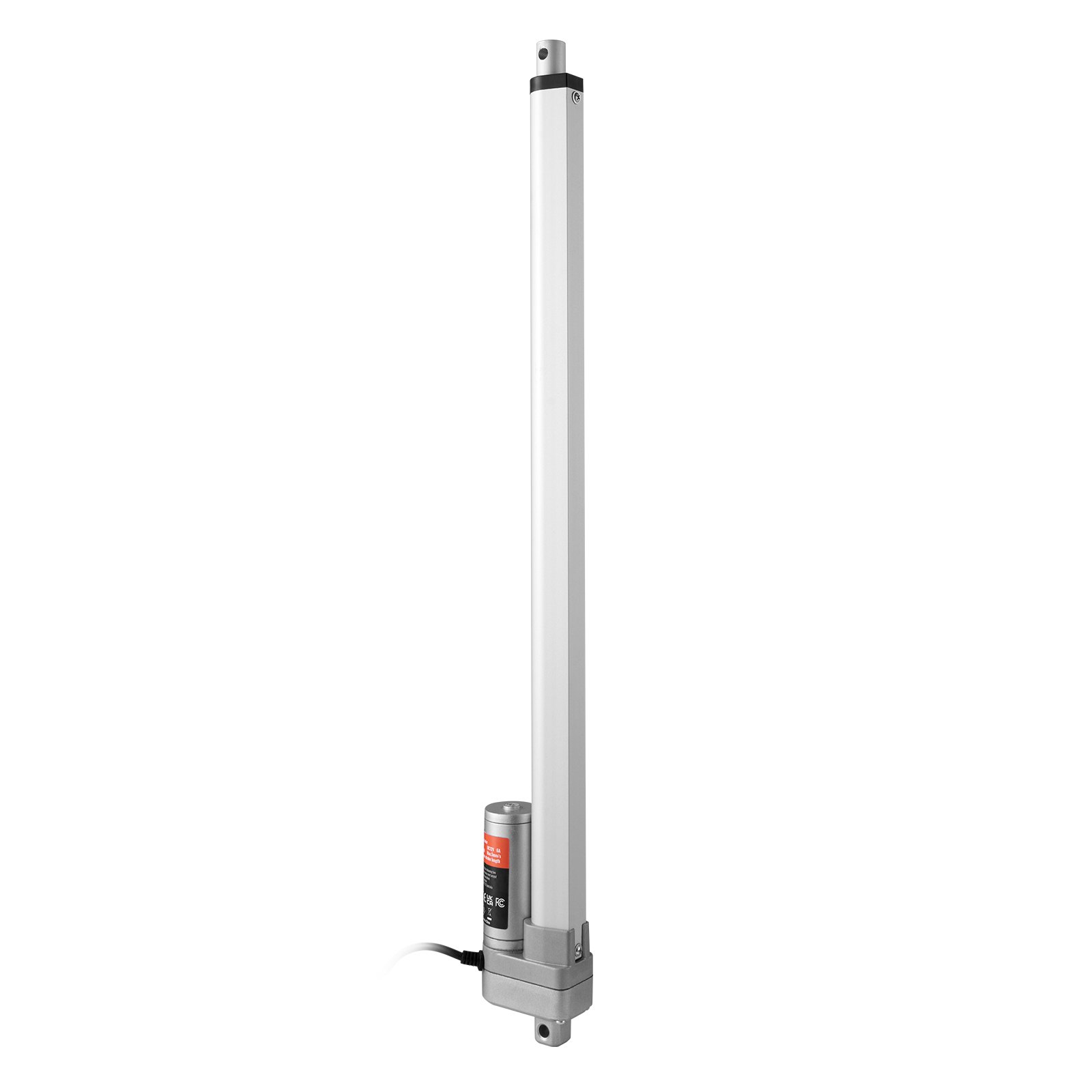

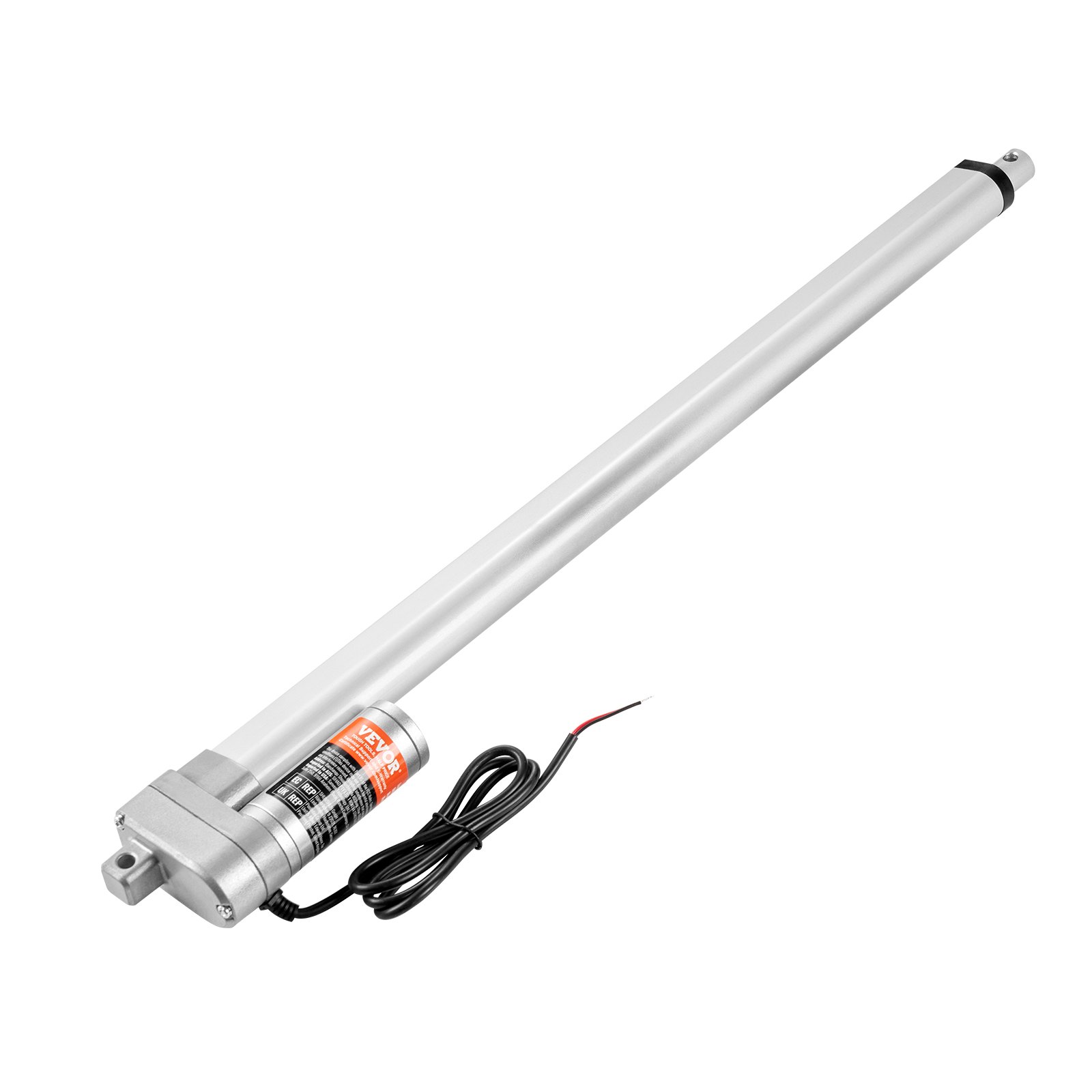

VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
+13
More
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use VEVOR Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use

Features & Details

  • Superior IP65 Protection Rating: Featuring an impressive IP65 protection rating, VEVOR's 12V linear actuator delivers excellent resistance to dust and water. It excels in moist and high humidity conditions, perfect for outdoor applications and humid environments like lawn mowers, solar panel tracking systems, and irrigation systems.
  • High Torque Output: With a torque output of 660lbs/3000N, our linear motion actuator is perfect for tasks requiring substantial torque, such as agricultural equipment, construction machinery, and industrial automation.
  • Extended Range of Motion: With a generous 20-inch (500mm) stroke, our electric linear actuator provides a longer range of motion, making it suitable for tasks requiring extensive movement.
  • Versatile Applications: With a noise level below 60db, VEVOR 12V linear actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It's versatile and ready for various tasks.

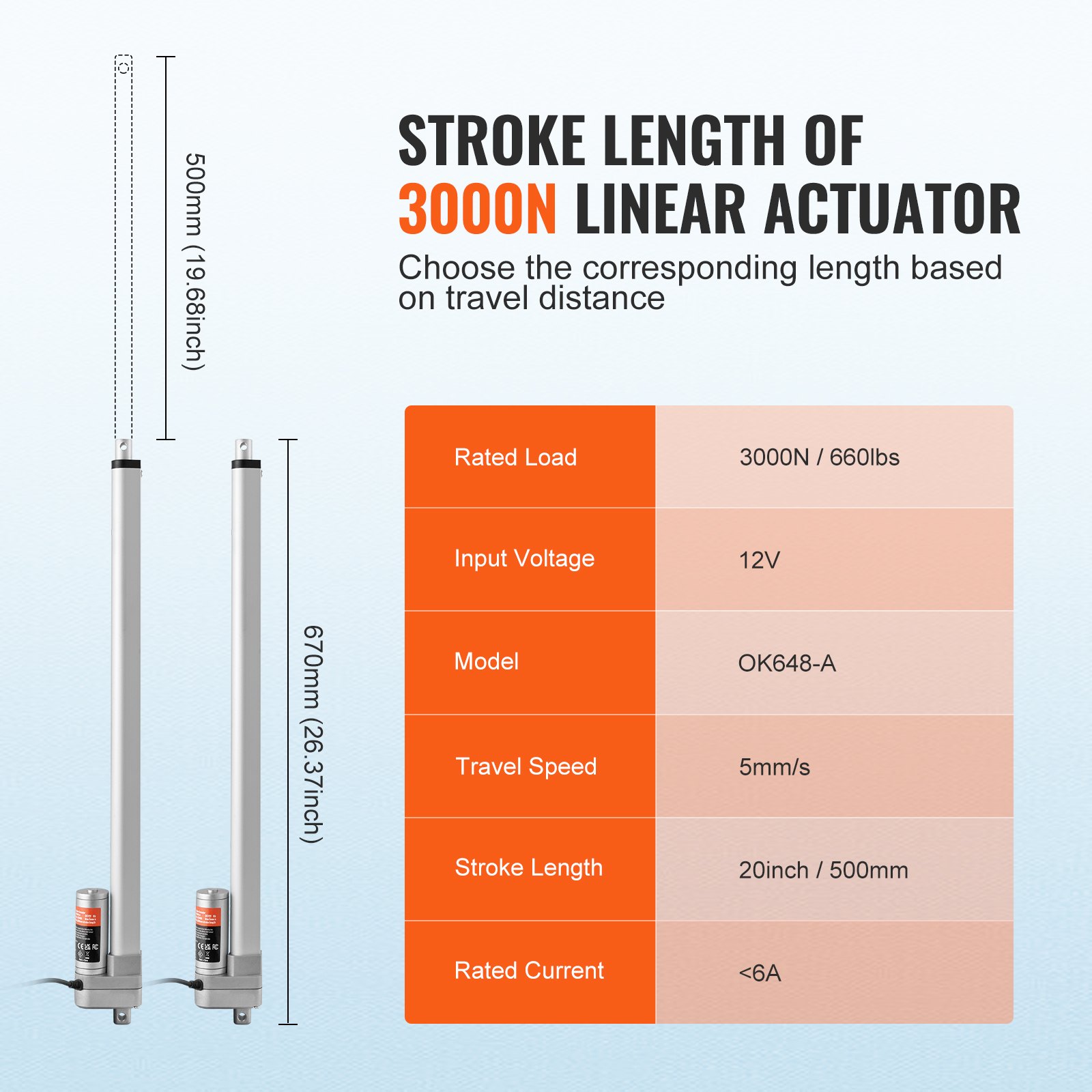

  • Key Specifications: Stroke Length: 20 inch (500mm); Travel Speed: 0.19 in/s (5mm/s); Retracted Length: 26.37" (670mm); Extended Length: 46.37" (1170mm); Current Draw: 6amps; Rated Voltage: DC12V; Duty Cycle: 25%.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews

See all 1 reviews

About this item

Product specification
Item Model Number
OK648-A
Rated Voltage
DC12V
Maximum Load/Actuation Force
3000N
Travel Speed
0.19inch/s / 5mm/s
Stroke Length
20 inch / 500 mm
Protection Class
IP65
Noise Level
≤60dB
Rated Current
<6A
Main Material
Aluminum Alloy
Net Weight
3.81 lbs / 1.73 kg (including all accessories)
Product Dimensions
26.37 x 3.03 x 1.57 inch / 670 x 77 x 40 mm
Description
Move Faster, Work Smarter: Enable Automation in Every Step
Experience durability and performance with VEVOR 12V linear actuator, boasting IP65 high protection for excellent resistance to dust and water. Coupled with 660lbs high torque output, and 20-inch extended stroke length, it is perfect for agricultural machinery, industrial automation, and more.

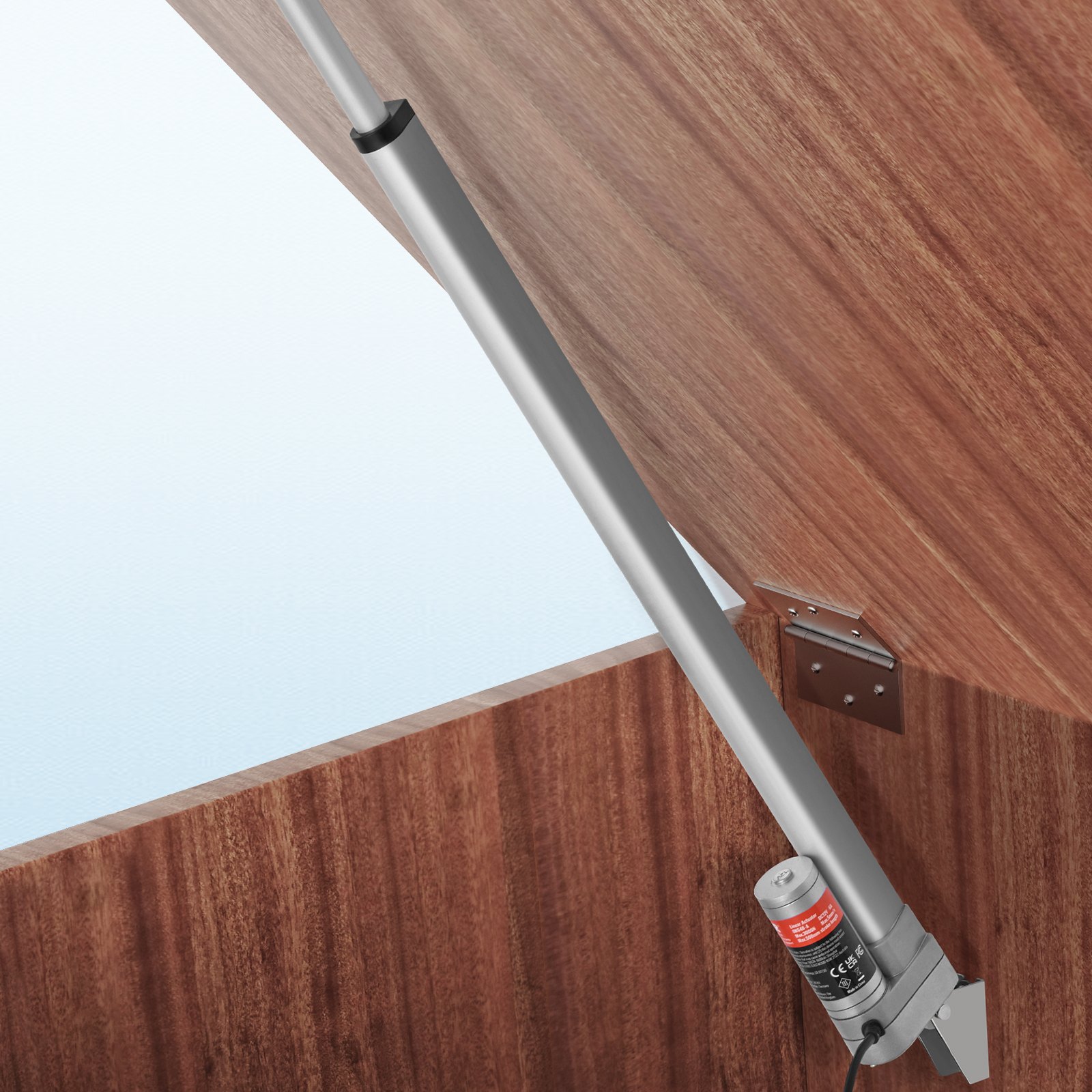

Automate your living and work with ease using our linear motion actuator. Whether it's for solar panel tracking systems, irrigation systems, mechanical equipment, or lawn mowers, it delivers a more convenient, comfortable, and intelligent living and working experience.

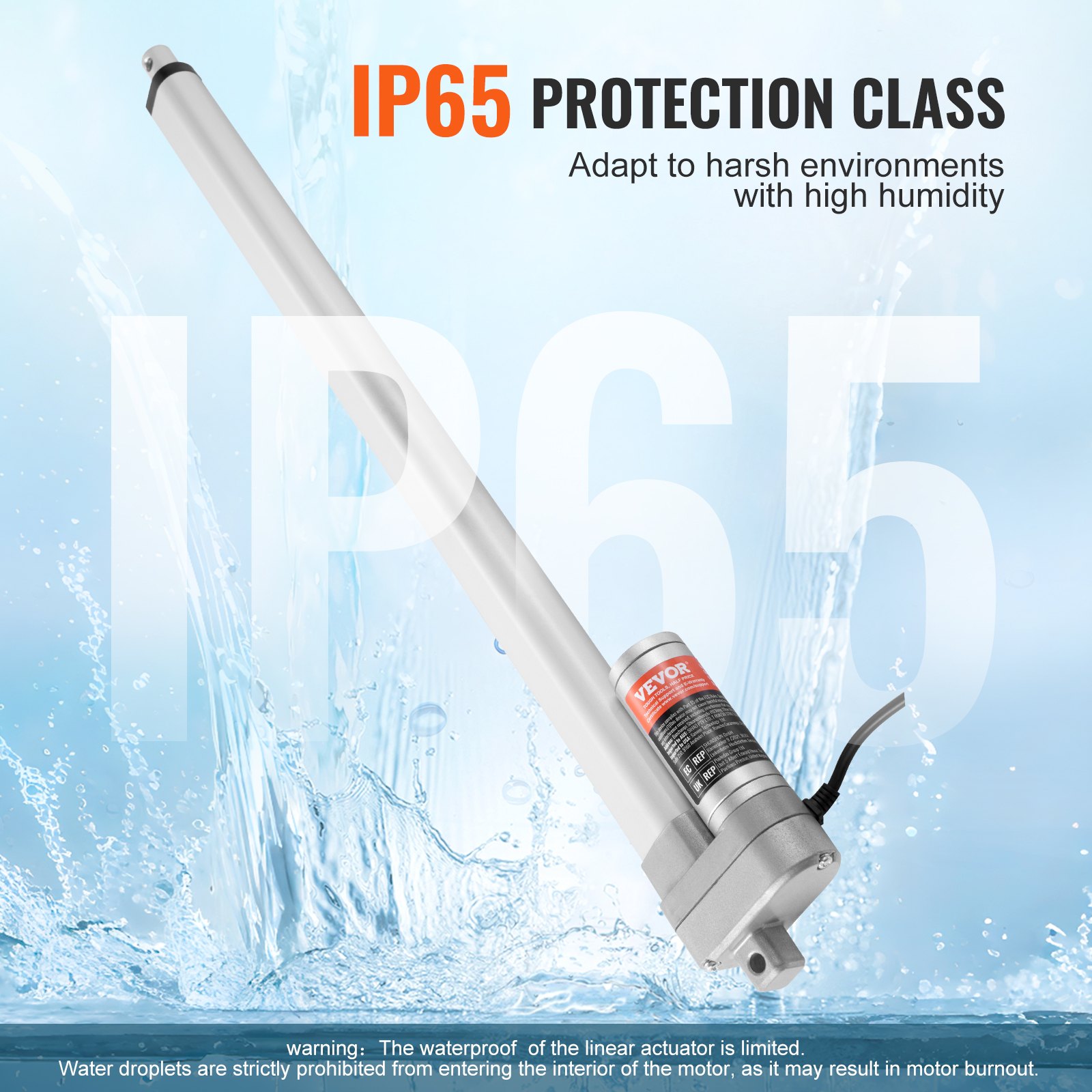

Experience unparalleled protection with our linear actuator boasting an impressive IP65 rating, ensuring superior resistance to dust and water. Perfect for outdoor use and humid environments, it's ideal for applications like lawn mowers, solar panel tracking systems, and irrigation systems.

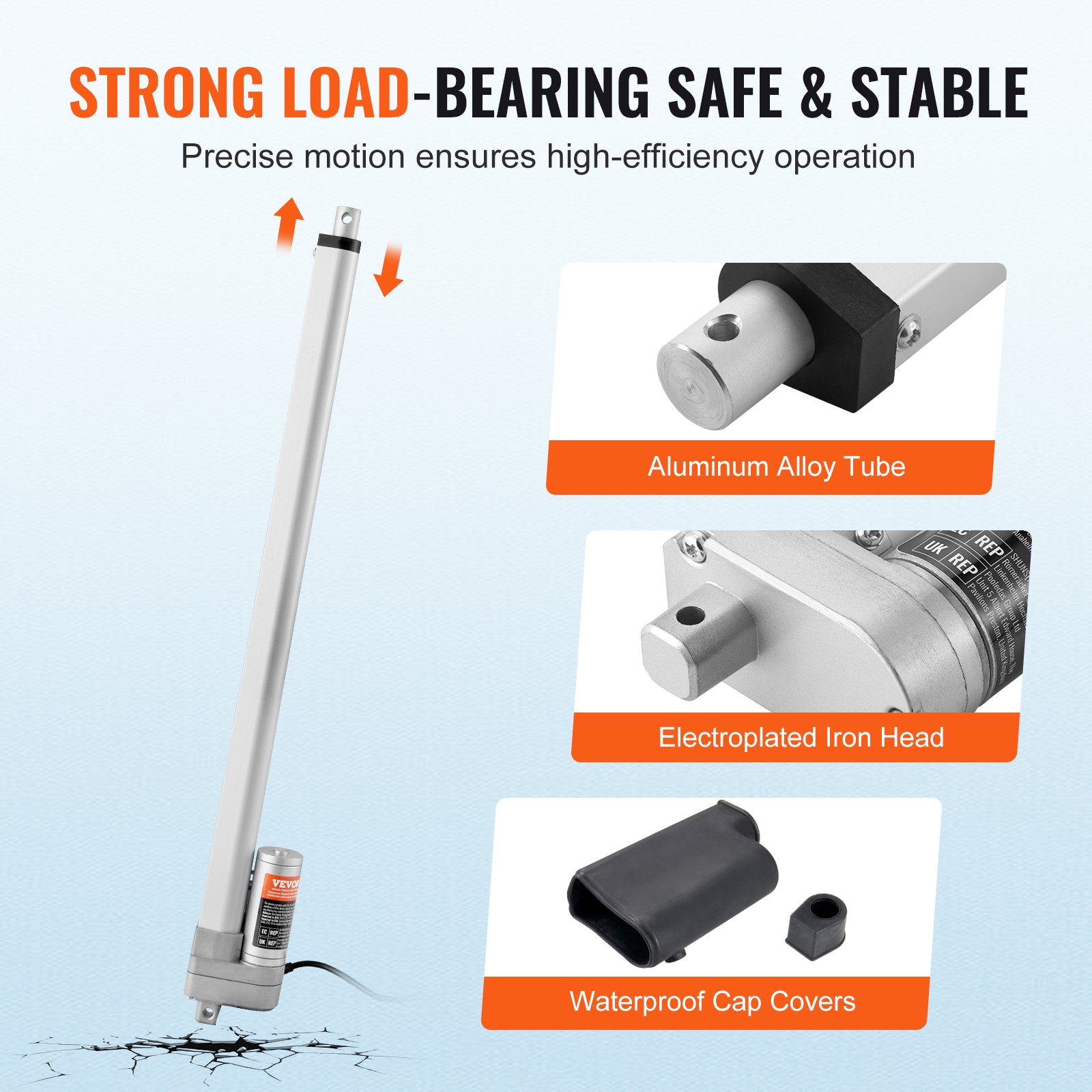

Crafted with precision and using high-quality materials, our stroke linear actuator ensures high precision and strength, significantly extending its lifespan. Engineered to endure frequent use, it maintains high stability, offering steadfast support for your various tasks.

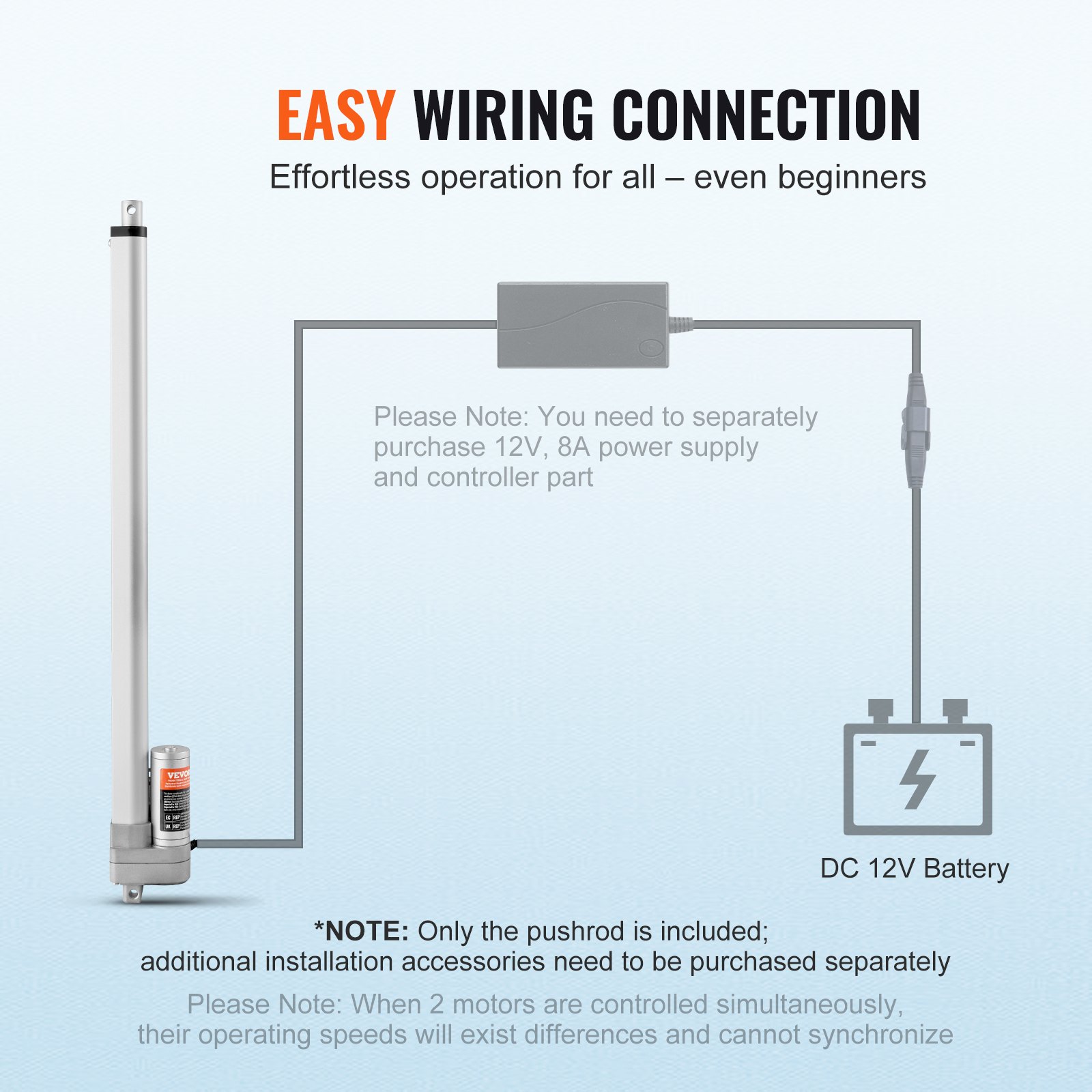

For optimal performance, we recommend using the linear actuator in conjunction with a controller, enabling more precise movement control. Please note that this product only includes the push rod; additional equipment required for installation need be purchased separately.

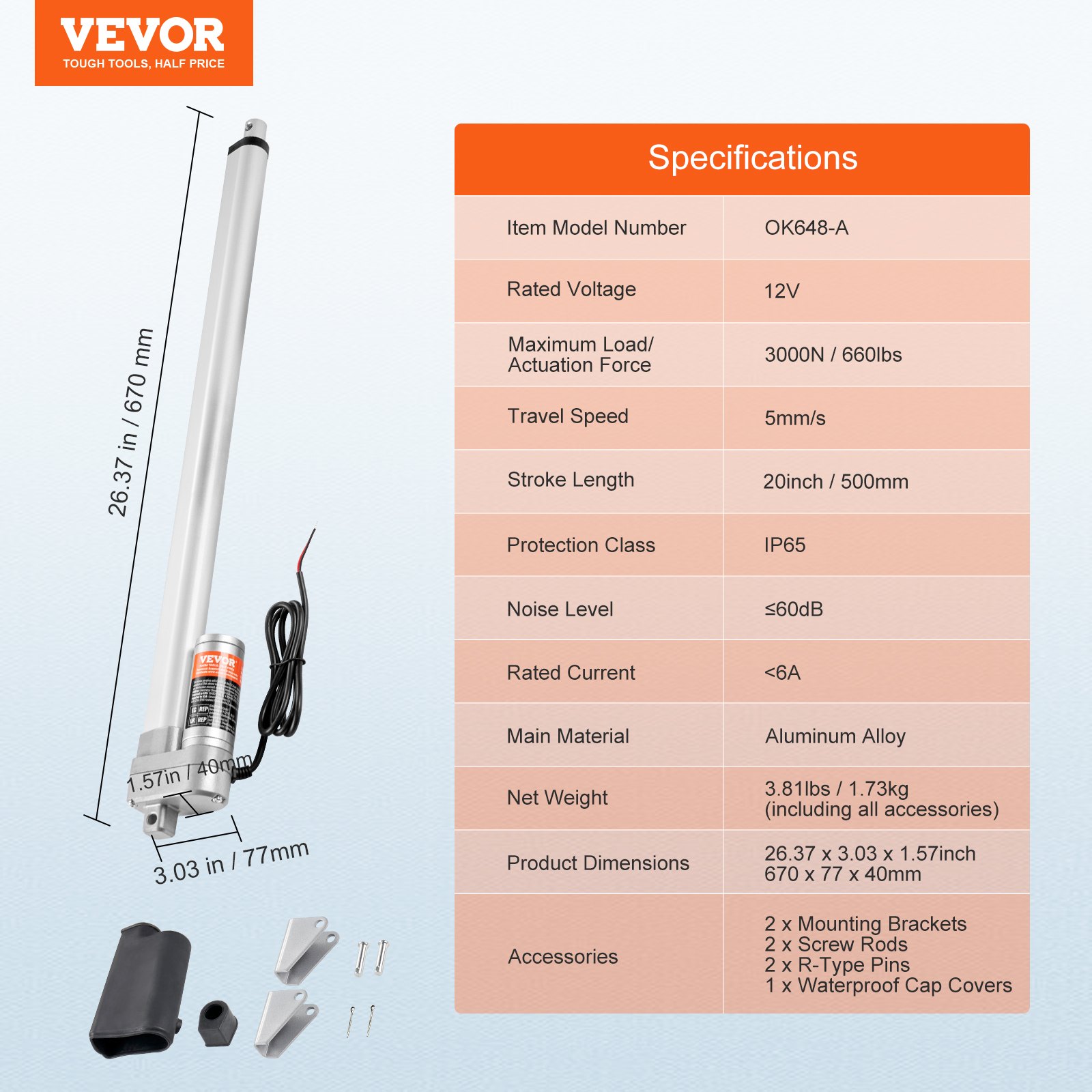

VEVOR linear actuator specifications, dimensions, accessories, and key features like 3000n load force.
VEVOR linear actuator specifications, dimensions, accessories, and key features like 3000n load force.
Product guides and documents
User manual-en (PDF) Review
