VEVOR Hydraulic Log Splitter Valve 1 Spool, 25 GPM Hydraulic Directional Control Valve, 3626PSI Hydraulic Loader Valve, Hydraulic Joystick Control Valve for Small Tractors, Loaders, Log Splitter
0 0 Reviews
74 99 €
Earn at least 2% points on purchases or save up to 15%.
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now
Features & Details

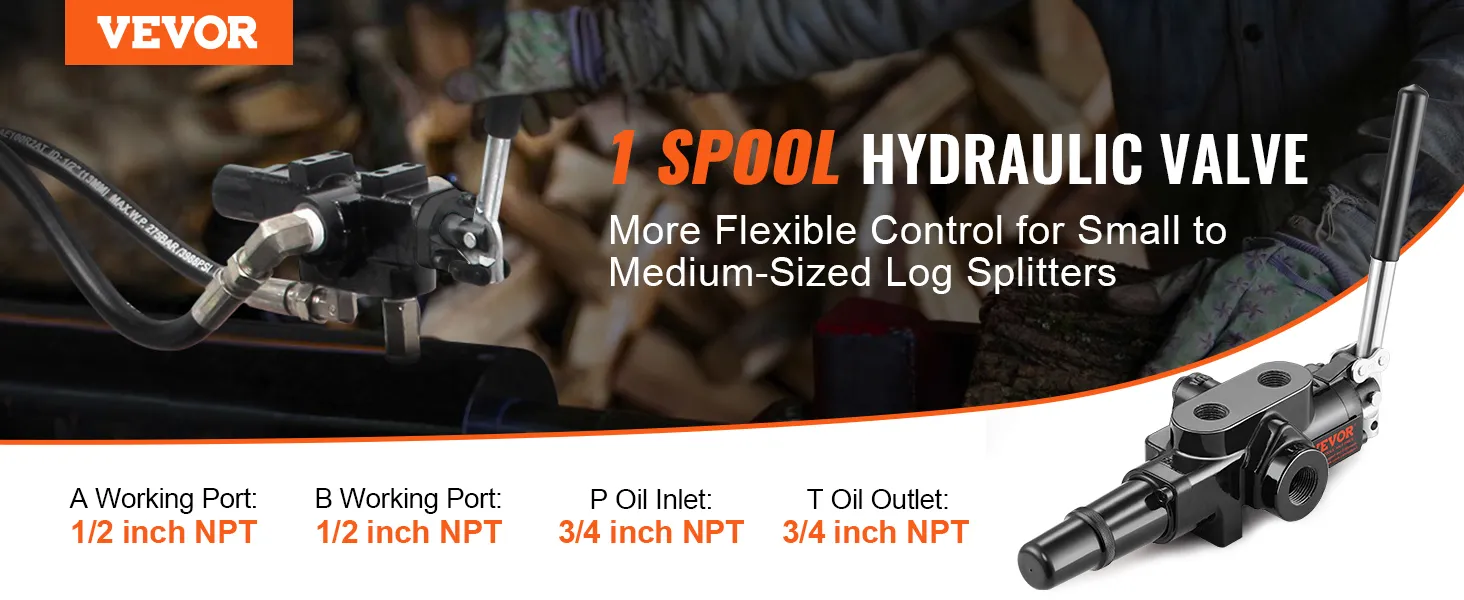

- For Small to Medium-Sized Hydraulic Log Splitters: VEVOR's 1-spool log splitter valve is an ideal replacement for leaking or malfunctioning hydraulic valves, widely used in hydraulic systems across agriculture, forestry, construction, and industry. It features a 1/2'' NPT working port and 3/4'' NPT inlet/outlet ports.
- High Flow, High Efficiency: With a high flow rate of 25 GPM (95 L / Min), this hydraulic directional control valve efficiently splits heavy and thick logs, providing ample power for various log types and sizes, ensuring precise and effective splitting.
- Built-in Spring Return: The standard spool features a spring return mechanism, automatically resetting to the neutral position. Additionally, there is a spring at the base of the handle, making joystick control smoother and easier.
- Durable and Secure: Equipped with a hydraulic safety valve, VEVOR 1-spool hydraulic loader valve can withstand up to 25 MPa / 3626 PSI maximum pressure, ensuring durability and preventing damage. Its solid vermicular graphite cast iron construction can provide long-term service.
- Simple Installation: Installing or replacing this loader control valve is straightforward. Identify the ports, connect the pipelines, and tighten each interface to complete the installation. Remember to release the hydraulic pressure before disassembling the pump or adapter for safety.
Product specification
- Item Model Number LVA1-95
- Rated Working Pressure 20 MPa, 2900 PSI
- Maximum Working Pressure 25 MPa, 3626 PSI
- Rated Flow 25 GPM / 95 L/min
- Number of Valve Spool 1PCS
- Number of Control Lever 1PCS
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

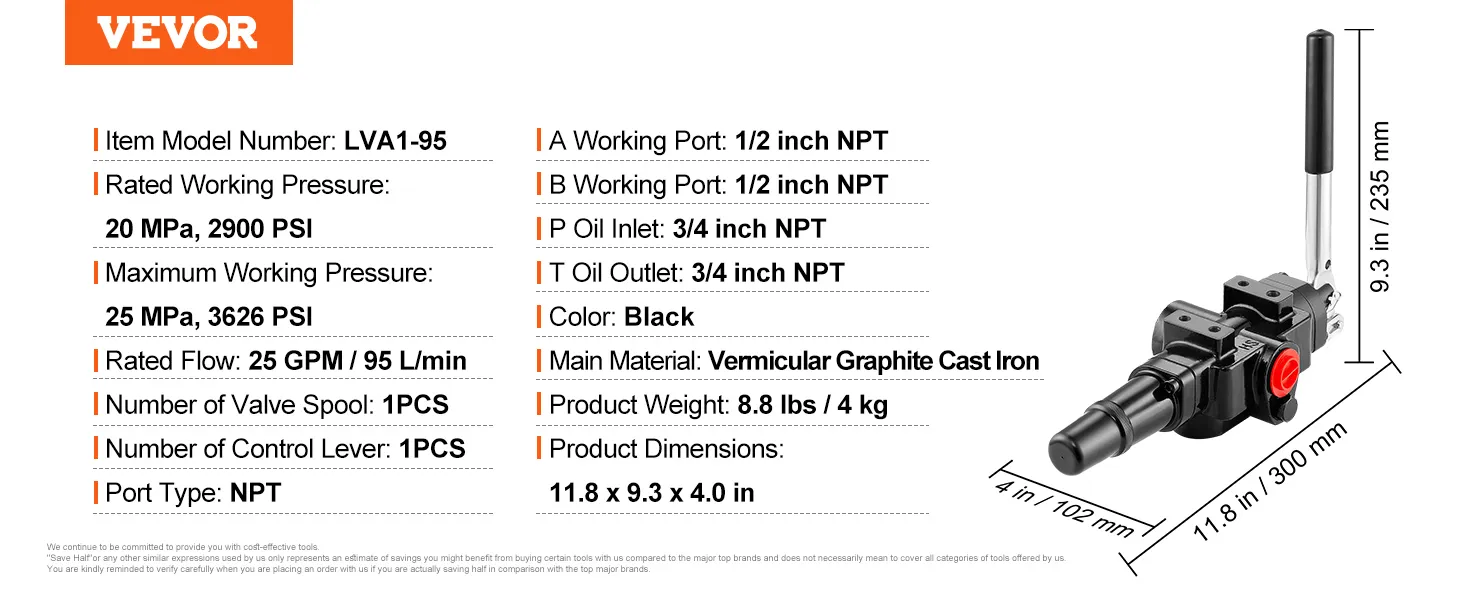

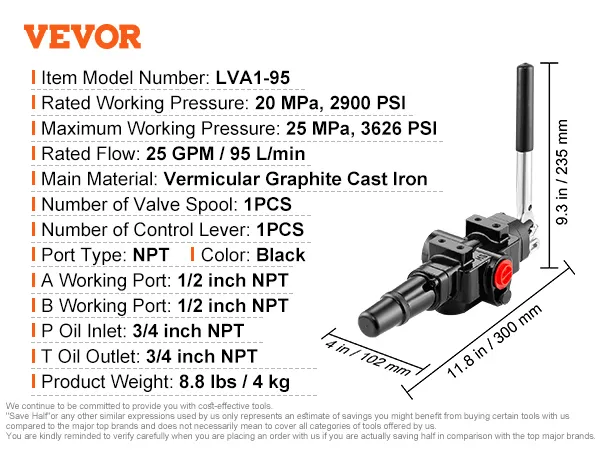

Product specification
- Item Model Number
- LVA1-95
- Rated Working Pressure
- 20 MPa, 2900 PSI
- Maximum Working Pressure
- 25 MPa, 3626 PSI
- Rated Flow
- 25 GPM / 95 L/min
- Number of Valve Spool
- 1PCS
- Number of Control Lever
- 1PCS

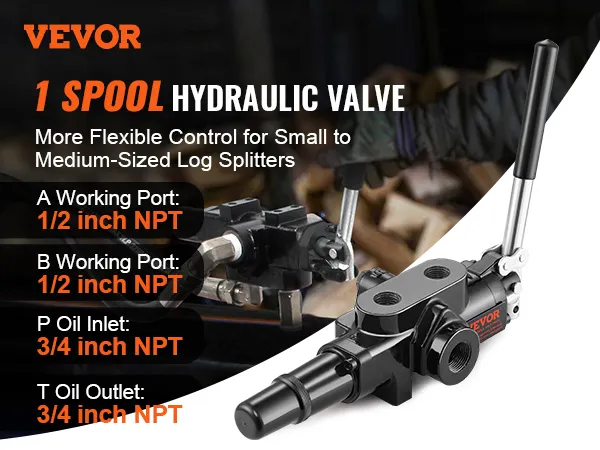

- Port Type
- NPT
- A Working Port
- 1/2 inch NPT
- B Working Port
- 1/2 inch NPT
- P Oil Inlet
- 3/4 inch NPT
- T Oil Outlet
- 3/4 inch NPT
- Color
- Black
- Main Material
- Vermicular Graphite Cast Iron
- Product Weight
- 8.8 lbs / 4 kg
- Product Dimensions
- 11.8 x 9.3 x 4.0 in / 300 x 235 x 102 mm
Description
Unleash Efficiency with VEVOR Hydraulic Log Splitters Valves
VEVOR's 1-spool hydraulic log splitters valve offers a reliable solution for replacing leaking or malfunctioning valves in hydraulic systems across various industries. Its 25GPM high flow rate ensures efficient log splitting, while the spring return and ergonomic design make operation effortless.

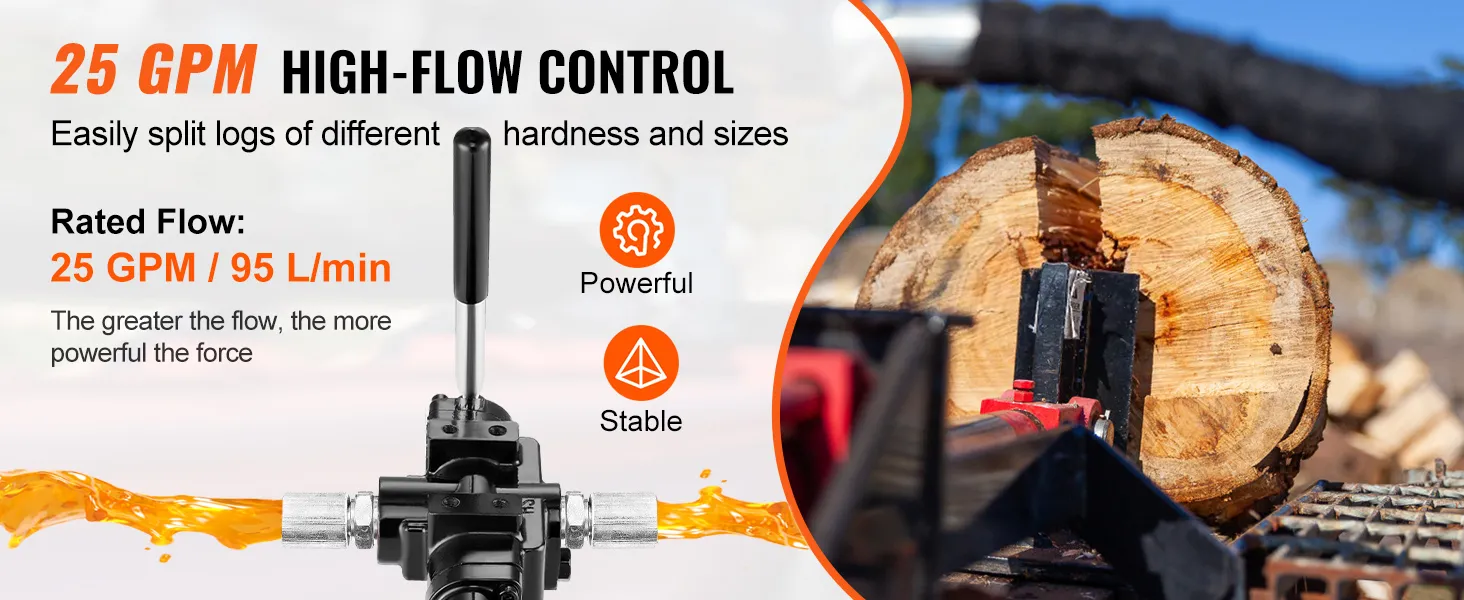

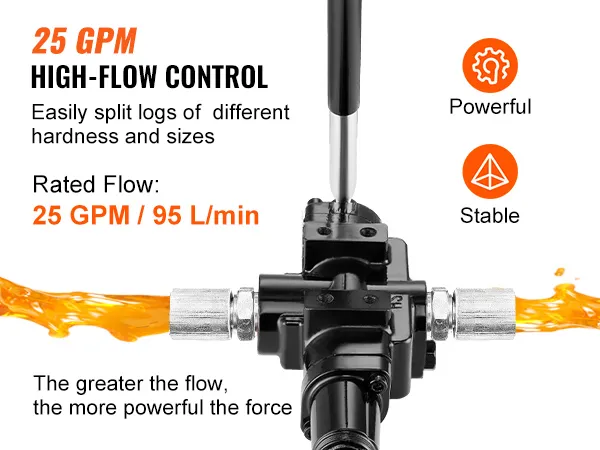

Our loader control valve features a high flow rate of 25 GPM, effortlessly handling logs of various hardness and sizes. With greater flow comes greater power, ensuring you can complete tasks efficiently in minimal time.

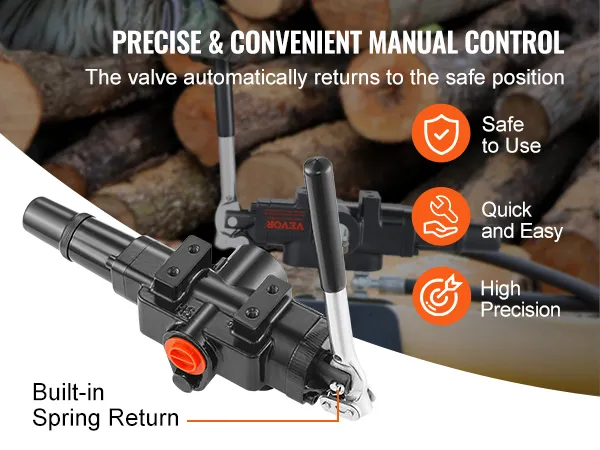

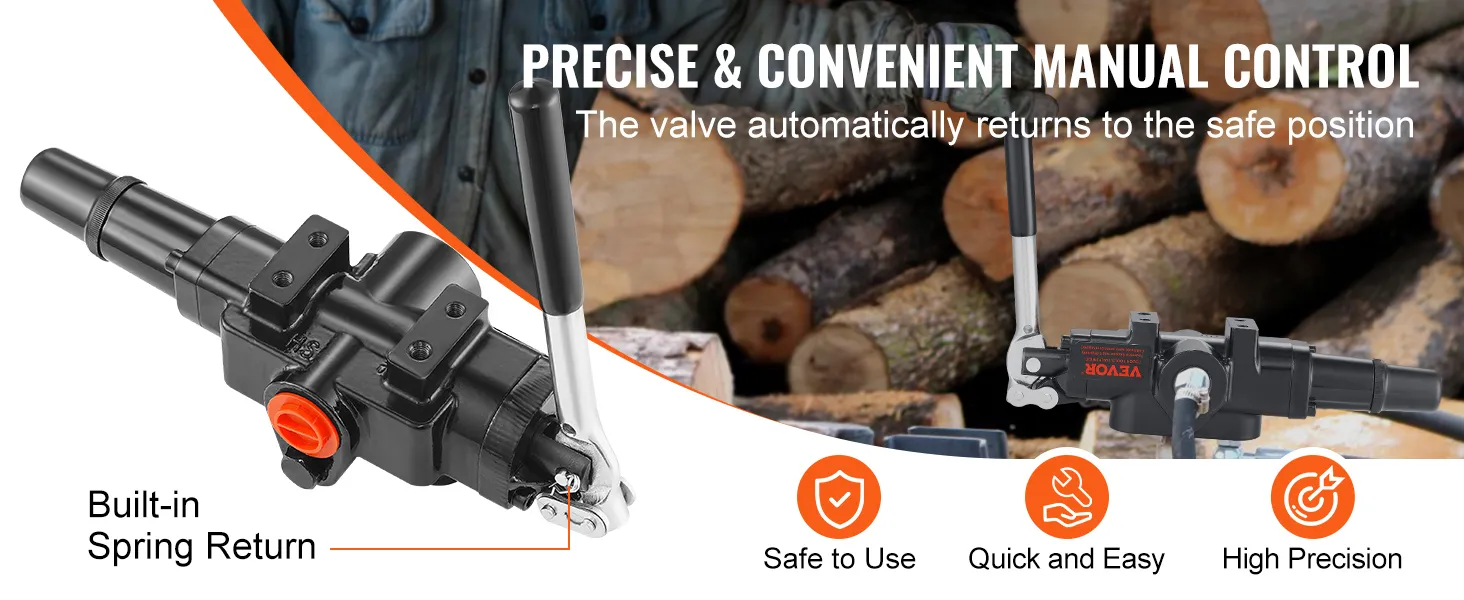

The standard spool that automatically resets to the neutral position with a built-in spring return mechanism. Additionally, the handle comes with spring at the bottom, enhancing joystick control for effortless operation.

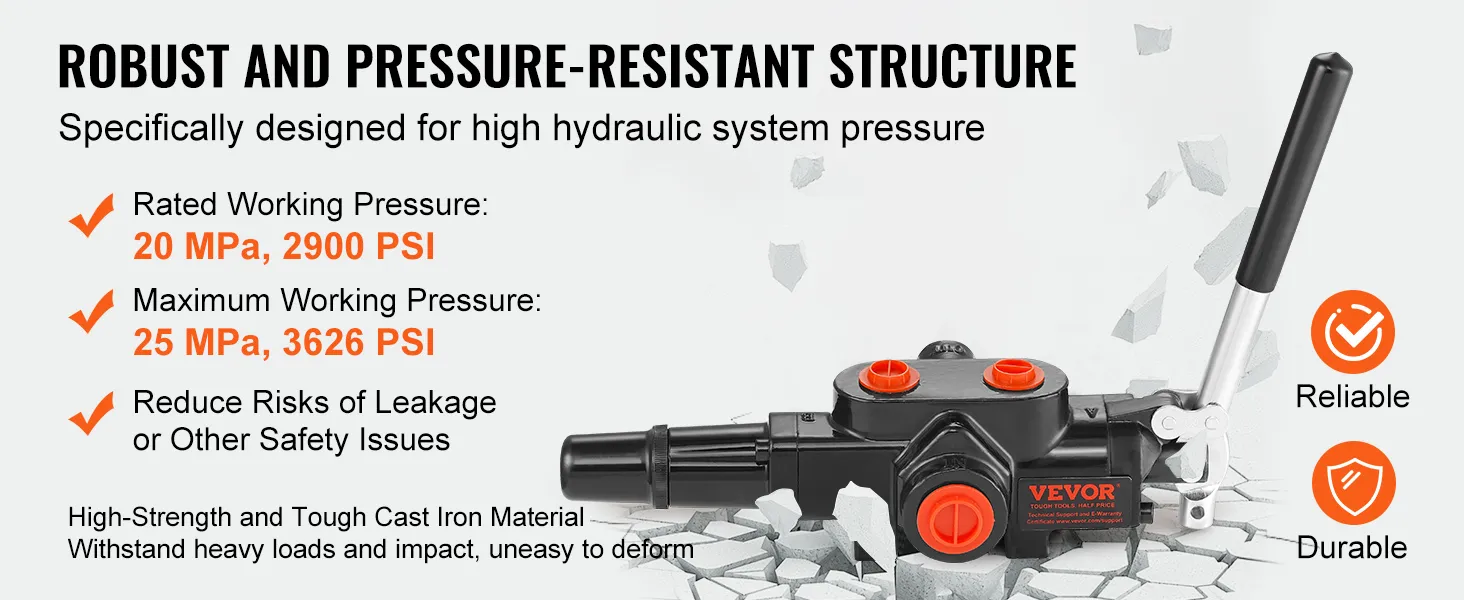

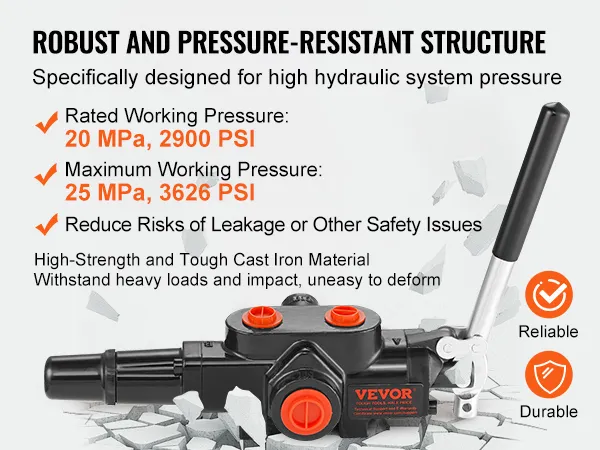

This precision-designed hydraulic directional valve can withstand a maximum of 25 MPa (3626 PSI) without deformation, ensuring the handle remains intact and free from internal damage, making it suitable for long-term high-pressure operations.

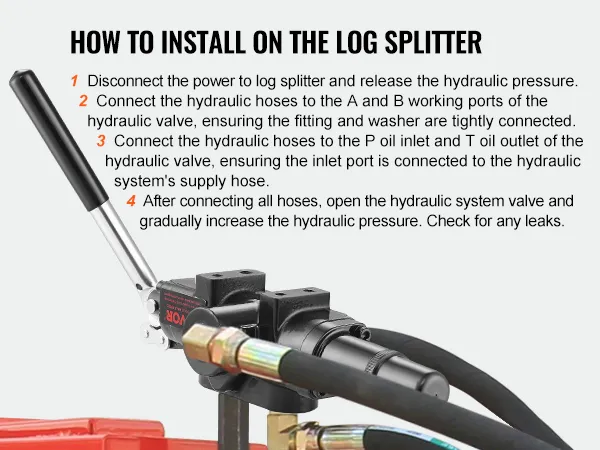

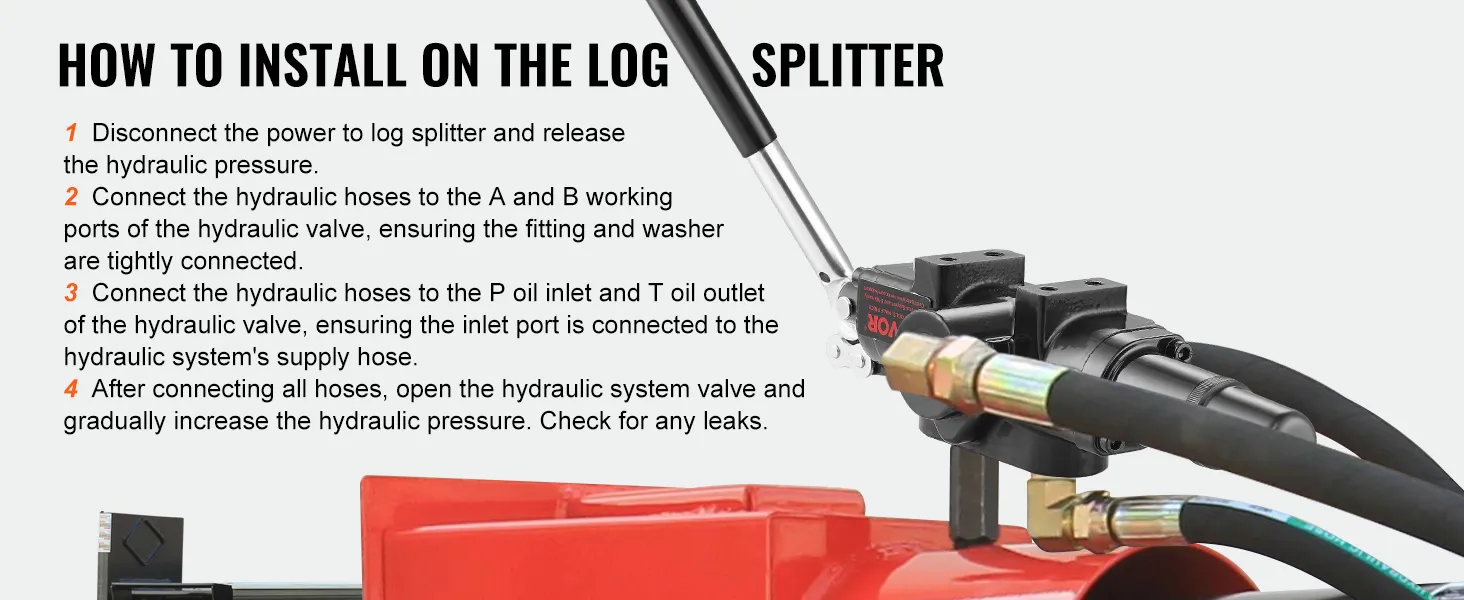

Installing or replacing this loader control valve is a breeze. Simply identify the ports, connect the pipelines, and tighten each interface to complete the installation. (Reminder: Release hydraulic pressure before disassembling the pump or adapter.)
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Kan ik deze gebuiken voor een hydrolische topstang?
Ja, dat kan
Als dit antwoord uw probleem niet heeft opgelost, neem dan opnieuw contact met ons op voor hulp.
