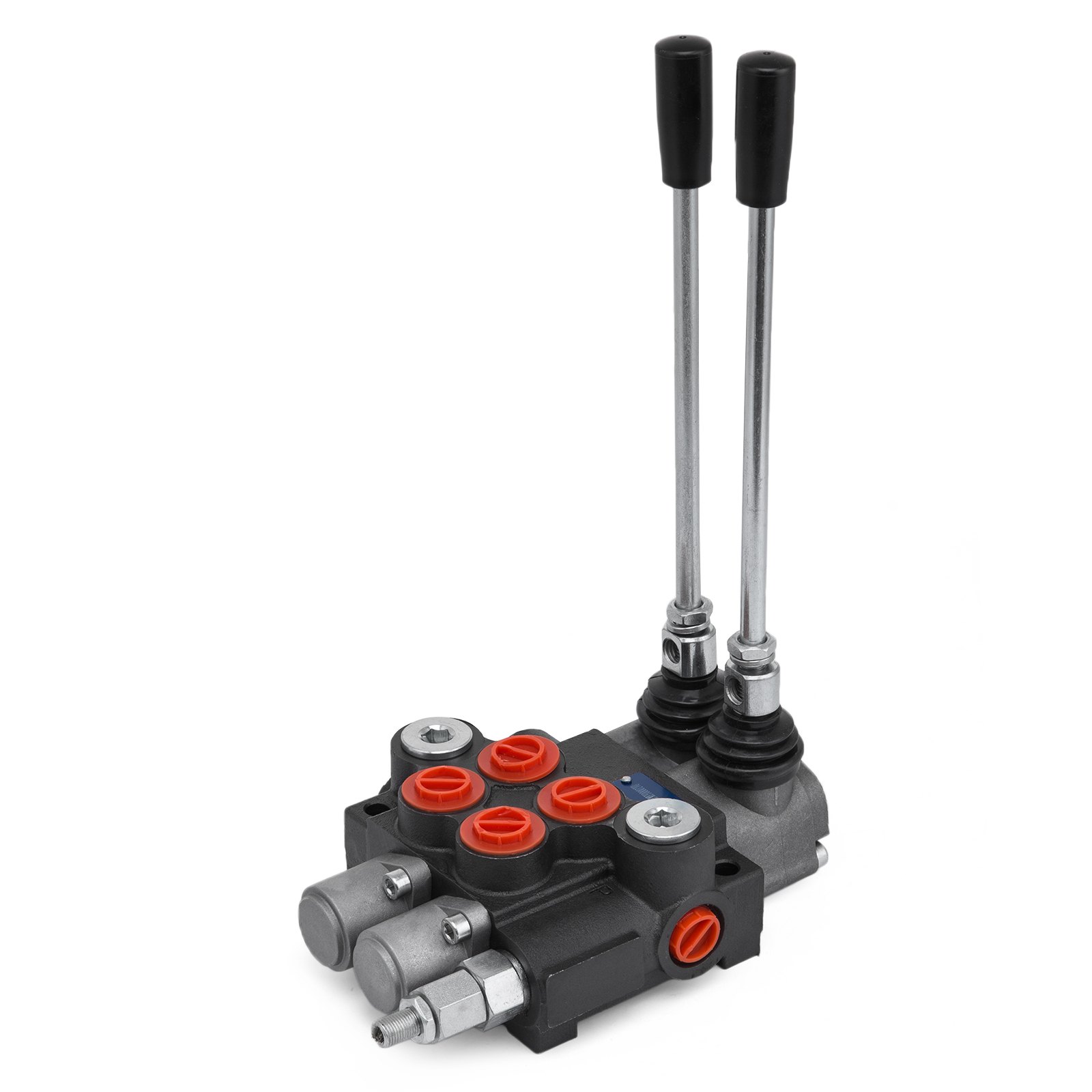

2 Spool Directional Hydraulic Control Valve
The compact design of the 2-spool valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.
- Solid Construction
- Excellent Performance
- Spring Return
- Inner Check/Relief Valve

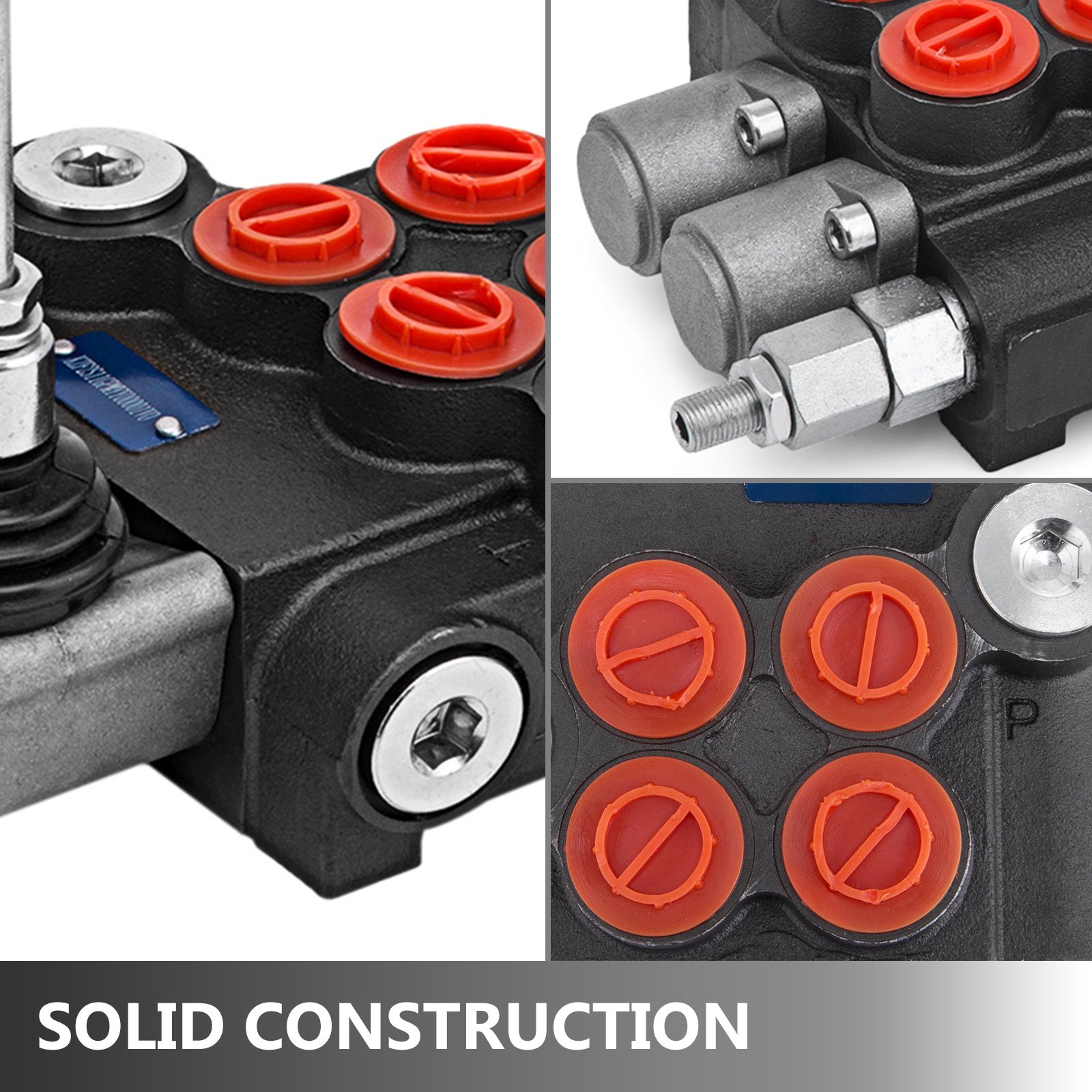

Solid Construction
Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

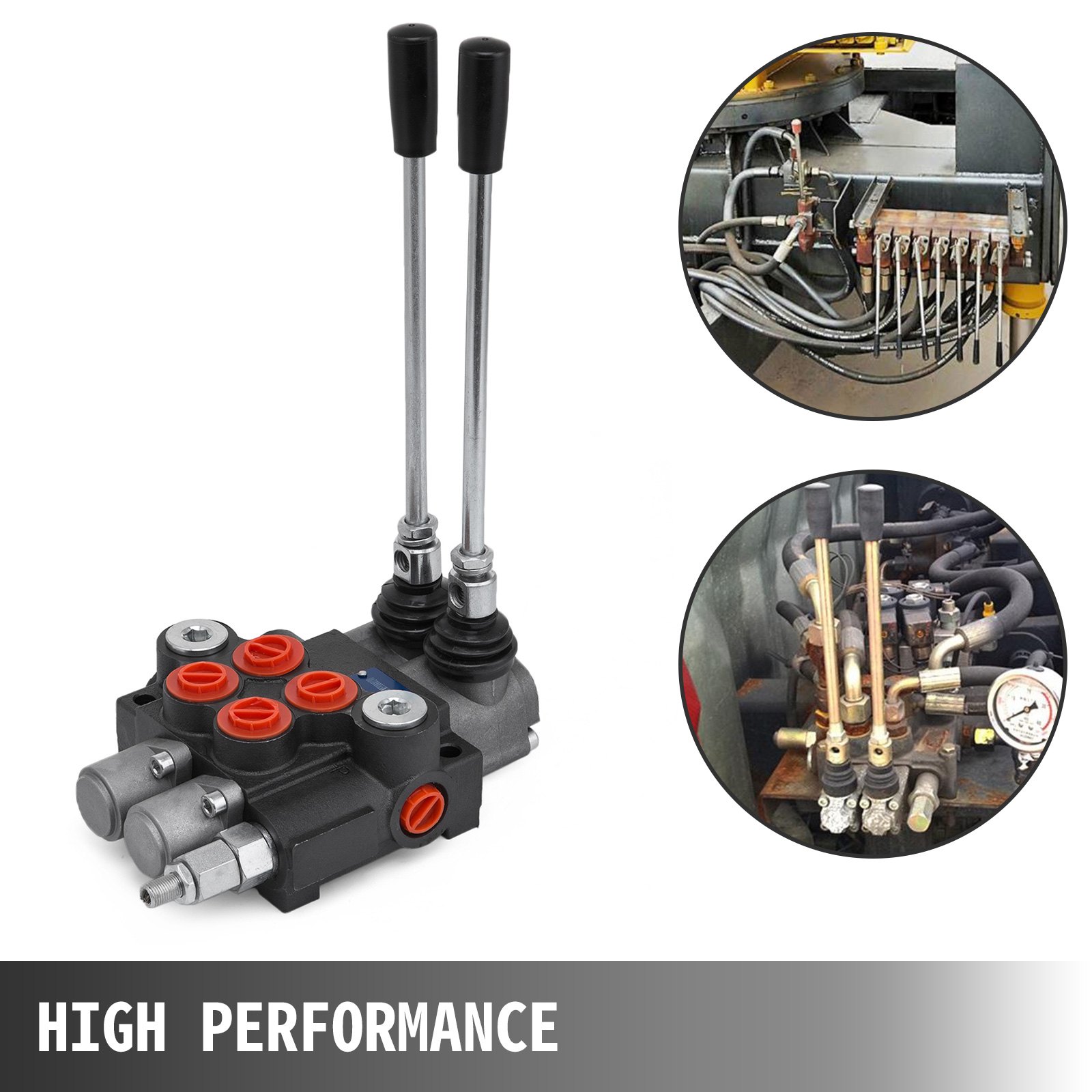

High Performance
The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.

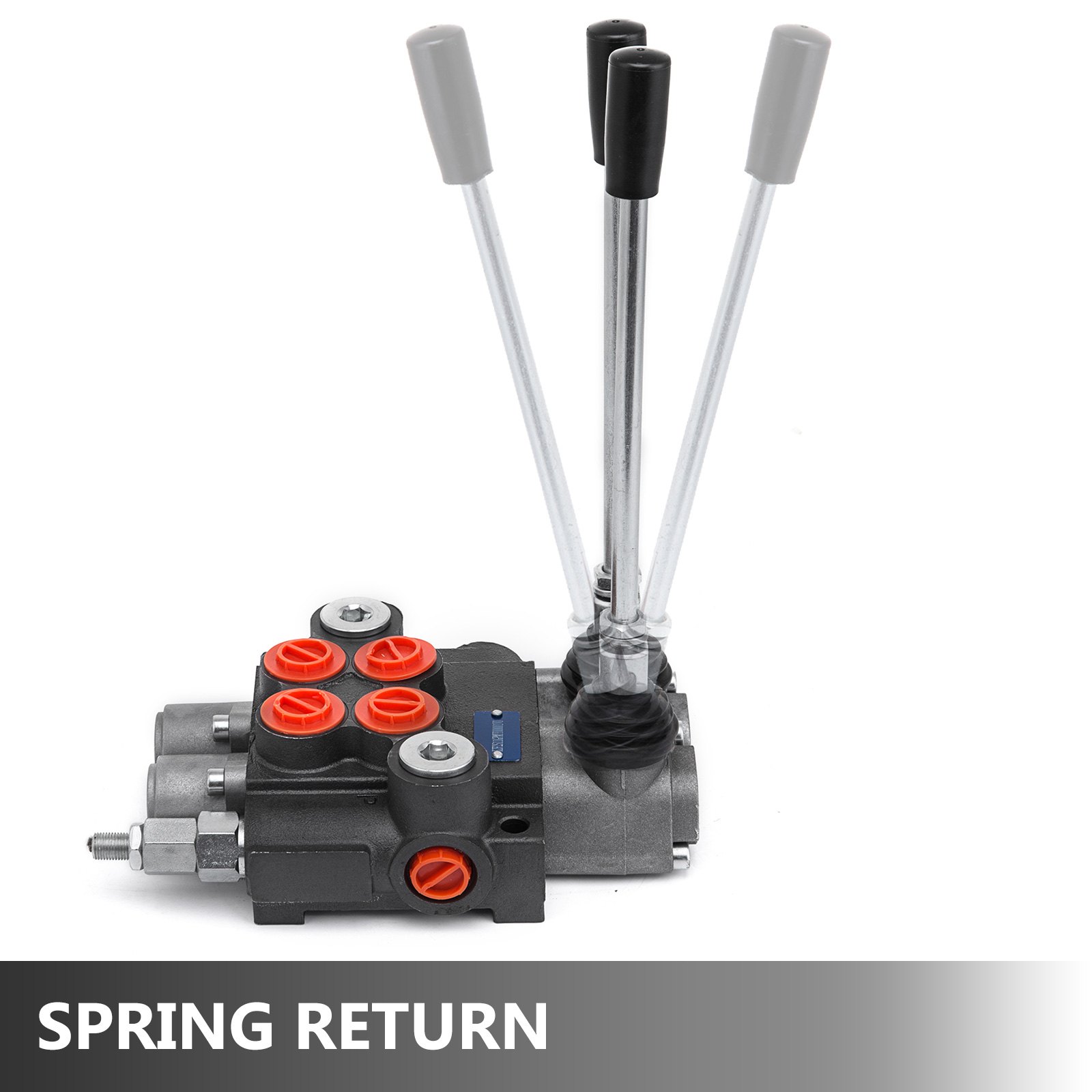

Spring Return
All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

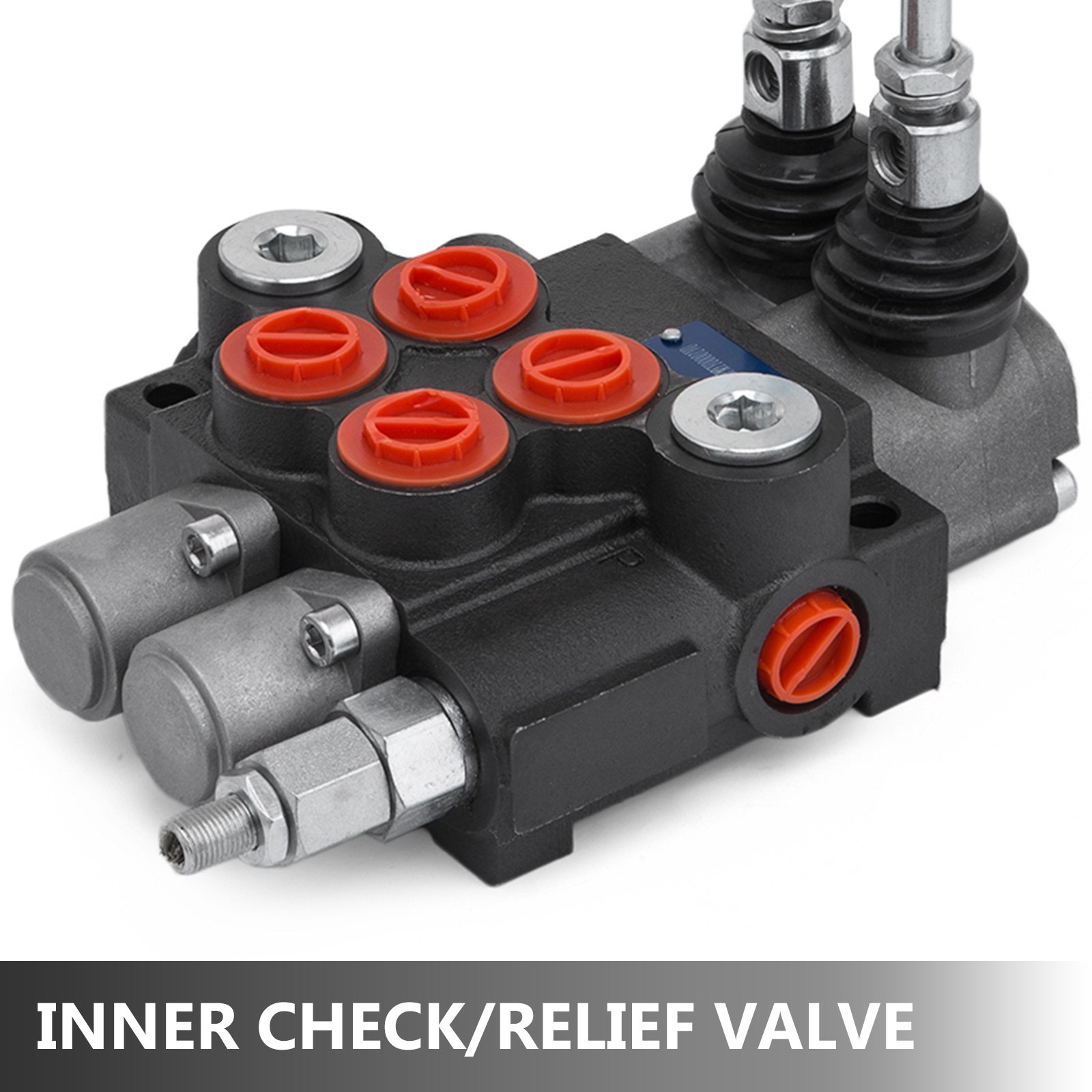

Inner Check/Relief Valve
The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

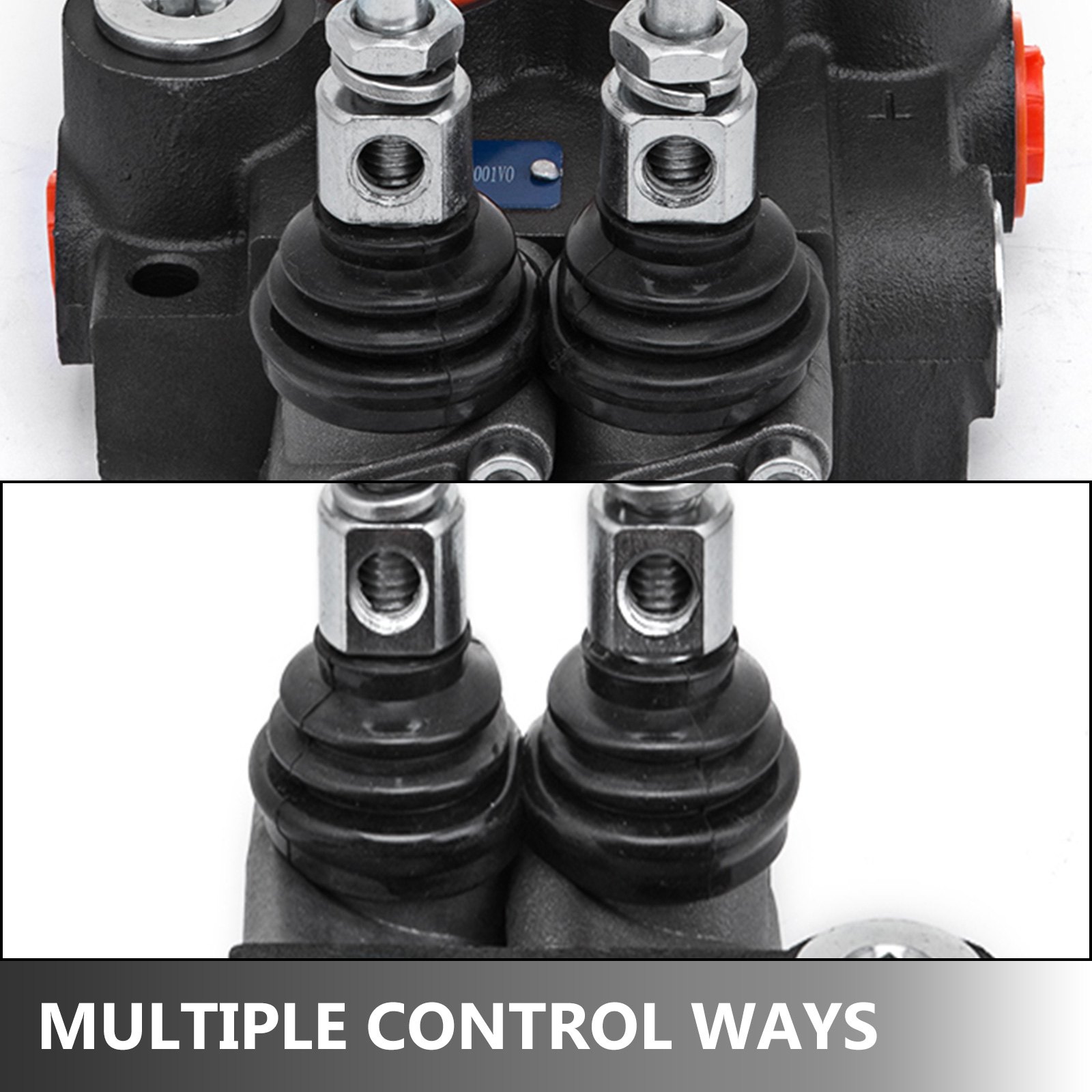

Multiple Control Ways
We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.
Wide Application
The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
- 1 x 2 Spool Hydraulic Directional Control Valve 11 GPM Double Acting Cylinder Spool
- Max operating pressure: 3600psi
- Nominal flow: 11gpm (40l/min)
- Relief valve: Adjustable
- Center system: Open
- A, B ports: 3/8" BSPP
- P, T, N port: 1/2" BSPP
- Weight: 14lb (6.3 kg)

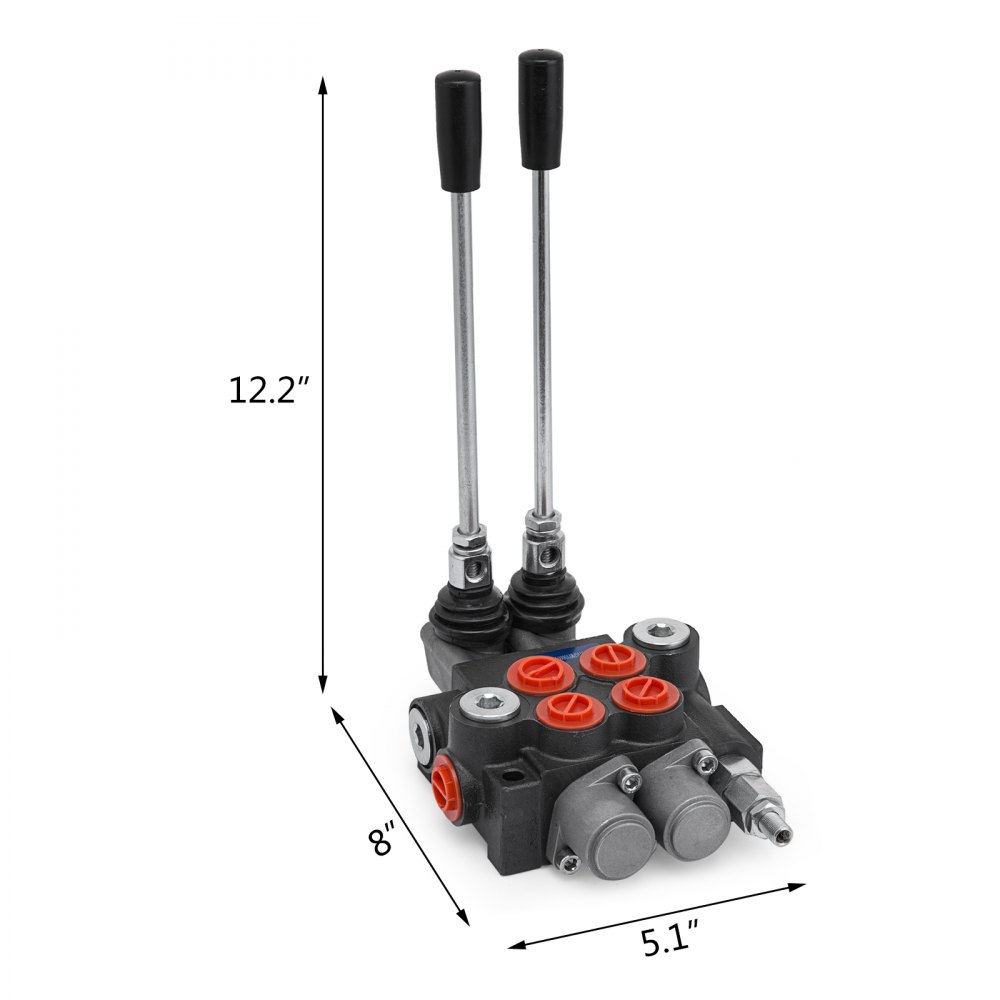

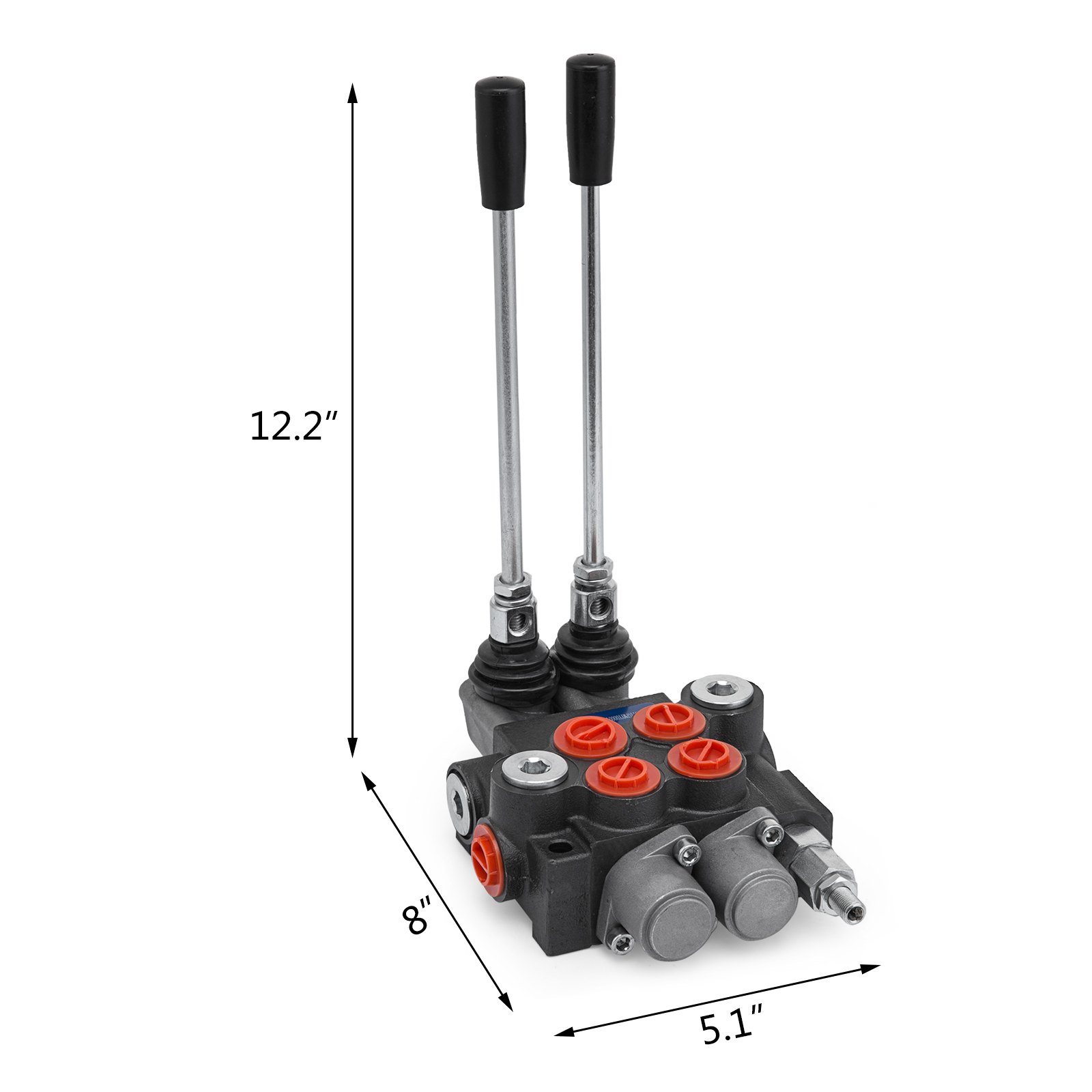

- Dimensions: 12.2''x8x5.1'' / 31x20.3x12.95 cm
