Features & Details
- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 10-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; it is a single-acting pump for power up and gravity down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple with operating instructions and it comes with a 15ft remote for long-distance control. In addition, we offer you one extra SAE#6 connector for replacement.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item

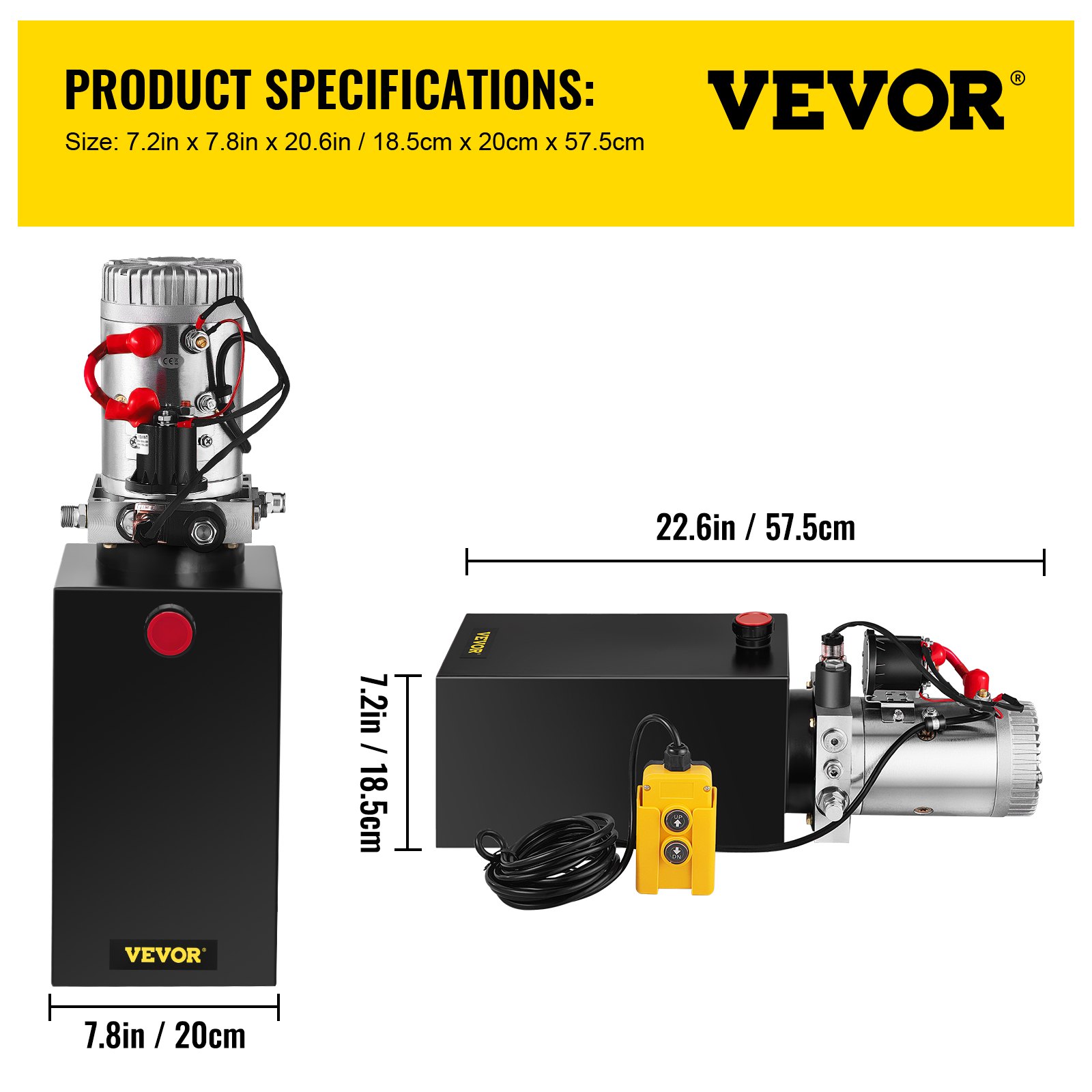

Product specification
- Model
- 10QSAMHP
- Tank Material
- Metal
- Tank Capacity
- 10L/ 10Quart/ 2.5 Gal
- Flow
- 2.0 GPM
- Max. Relief Valve Setting A Port
- 3200 PSI
- Max. Relief Valve Setting B Port
- 1500 PSI
- Rated Speed
- 2850R/MIN
- Voltage
- DC12V
- Power
- 1.6KW (Rated), 3.0KW (Max)
- Duty
- 3 Min
- Traffic
- 1.1 cc/r
- Rotation
- Clockwise
- Connector
- SAE # 6
- Mount Position
- Horizontal/ Vertical
- Control
- Solenoid and Handheld Pendant
- Pendant Control Length
- 15ft/ 4.5 m
Description

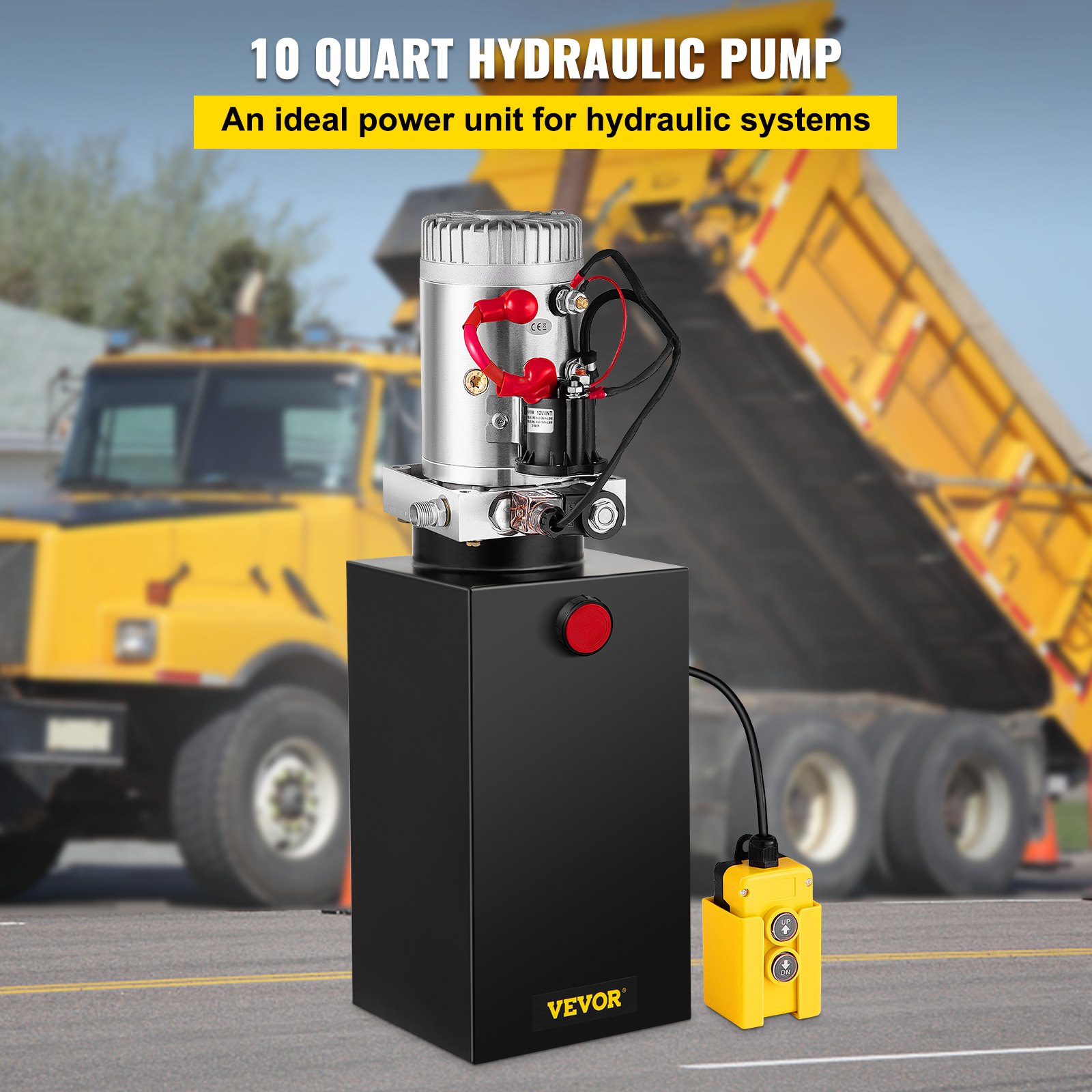

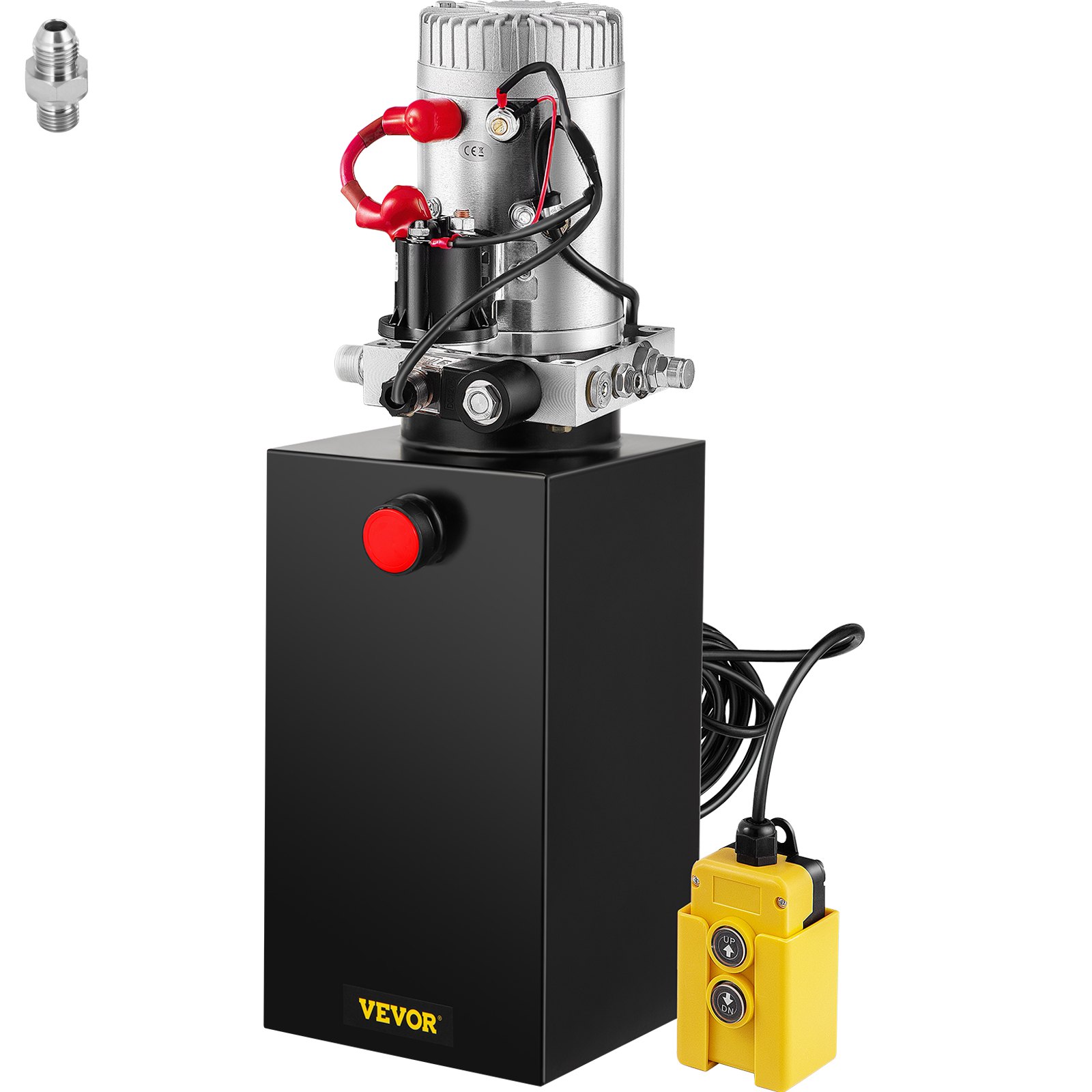

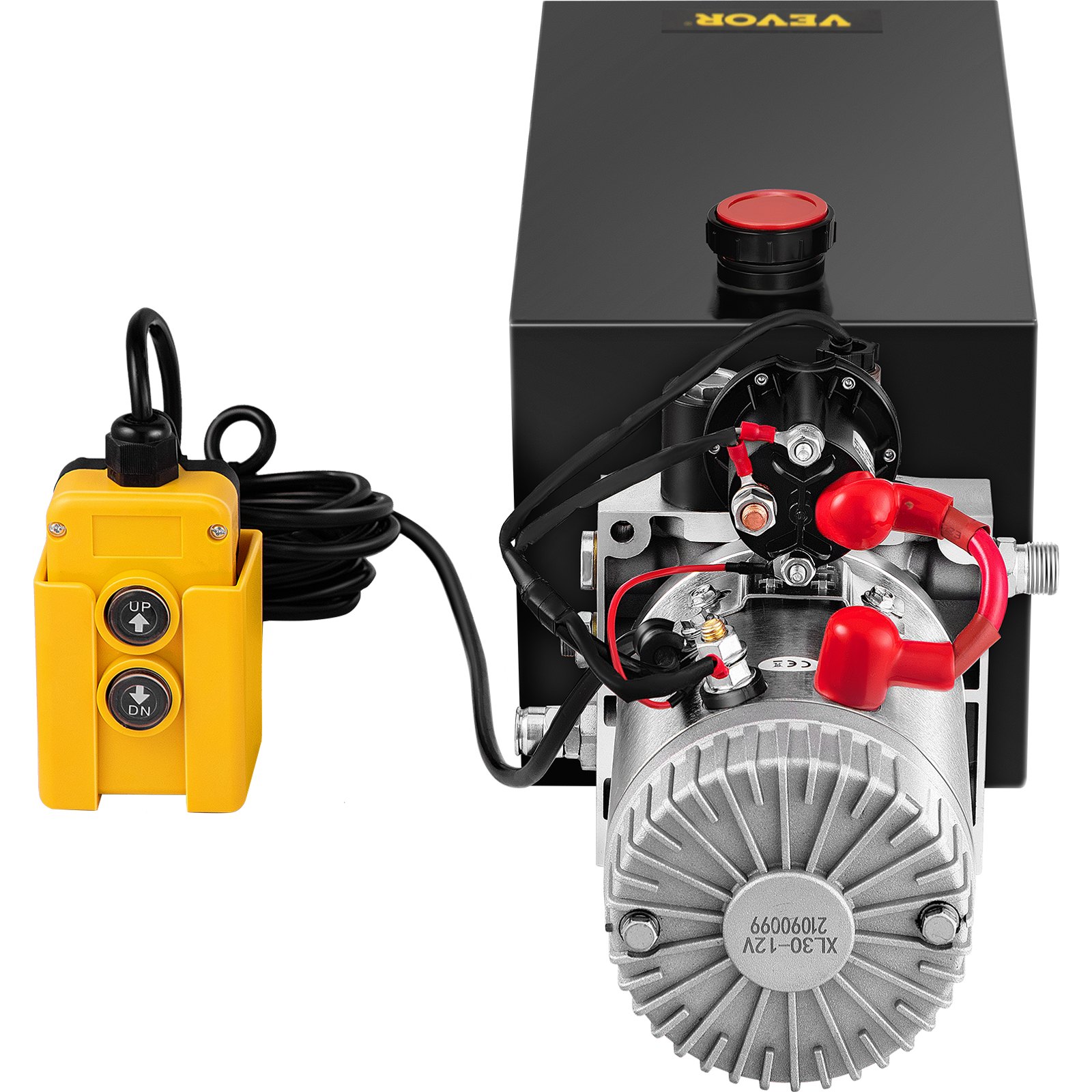

10 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 10-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application

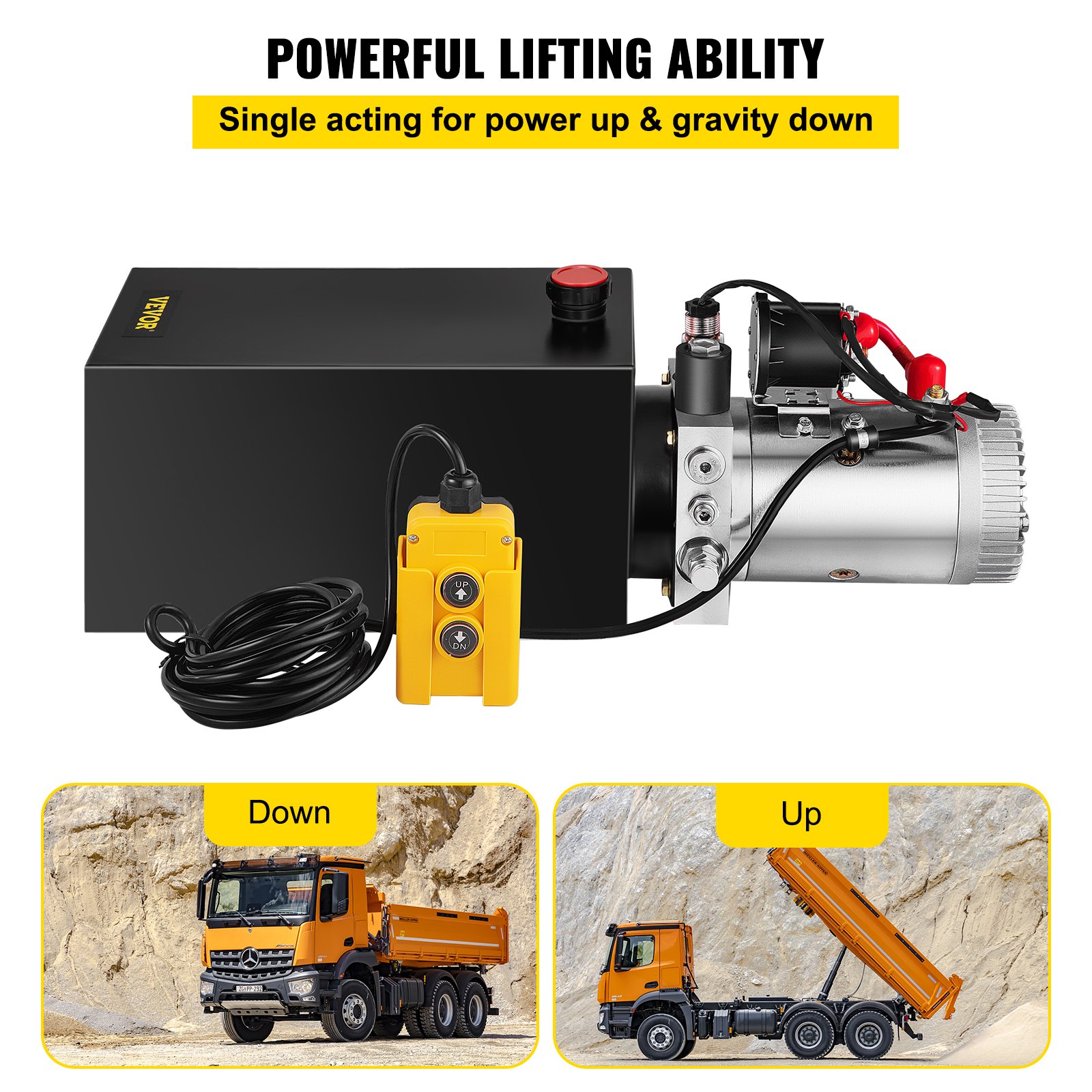

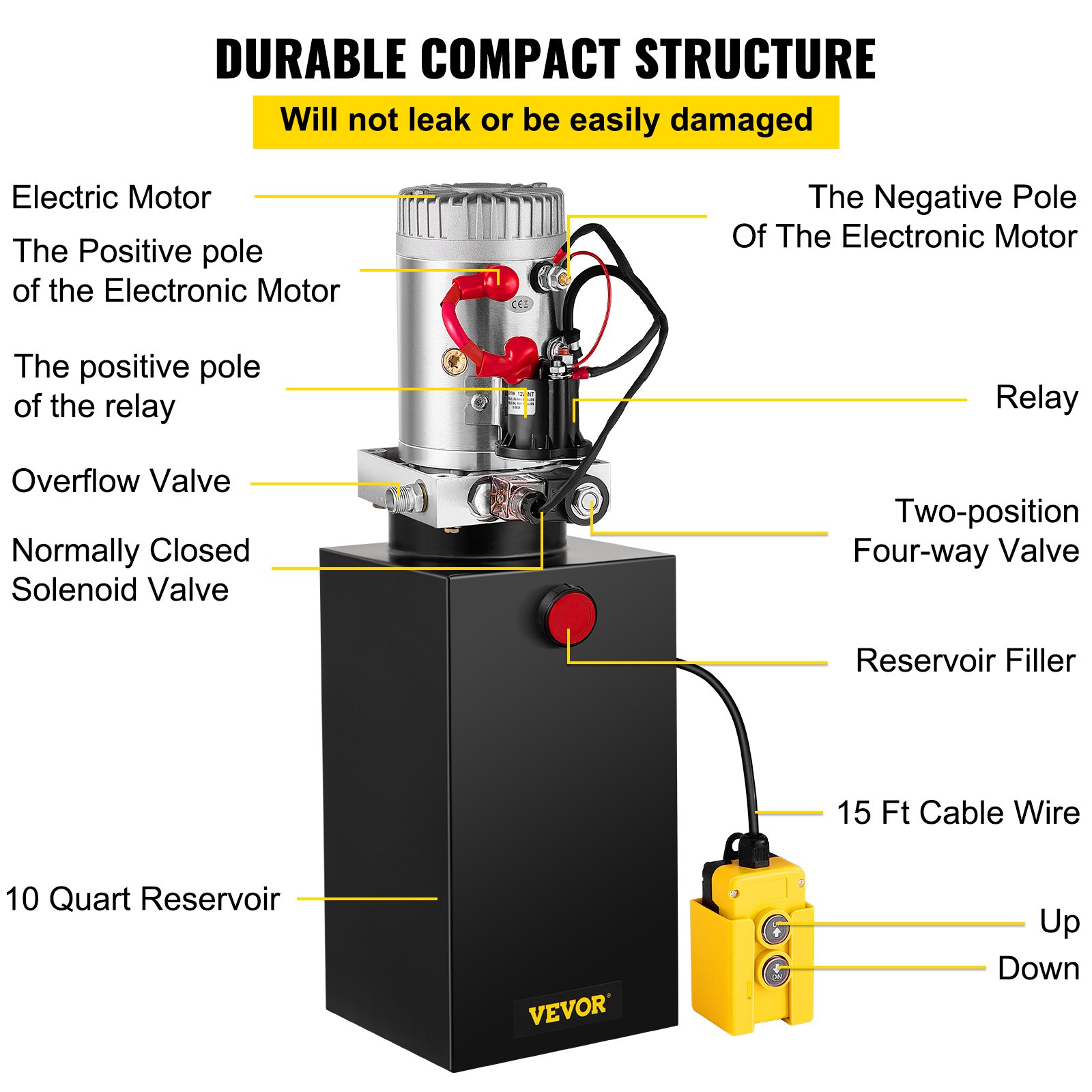

Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 10-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The rated speed: 2850 r/min.
Convenient Design

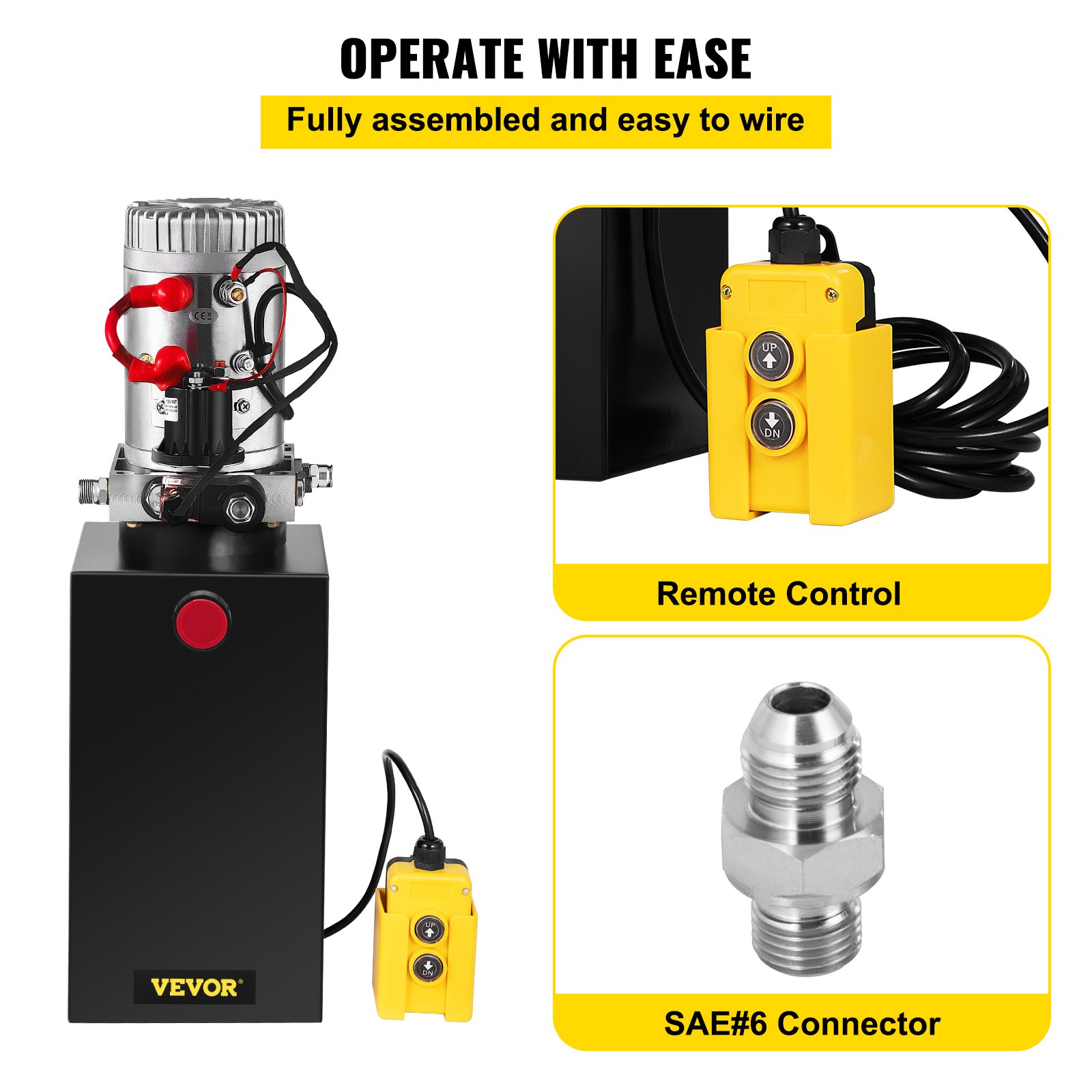

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation

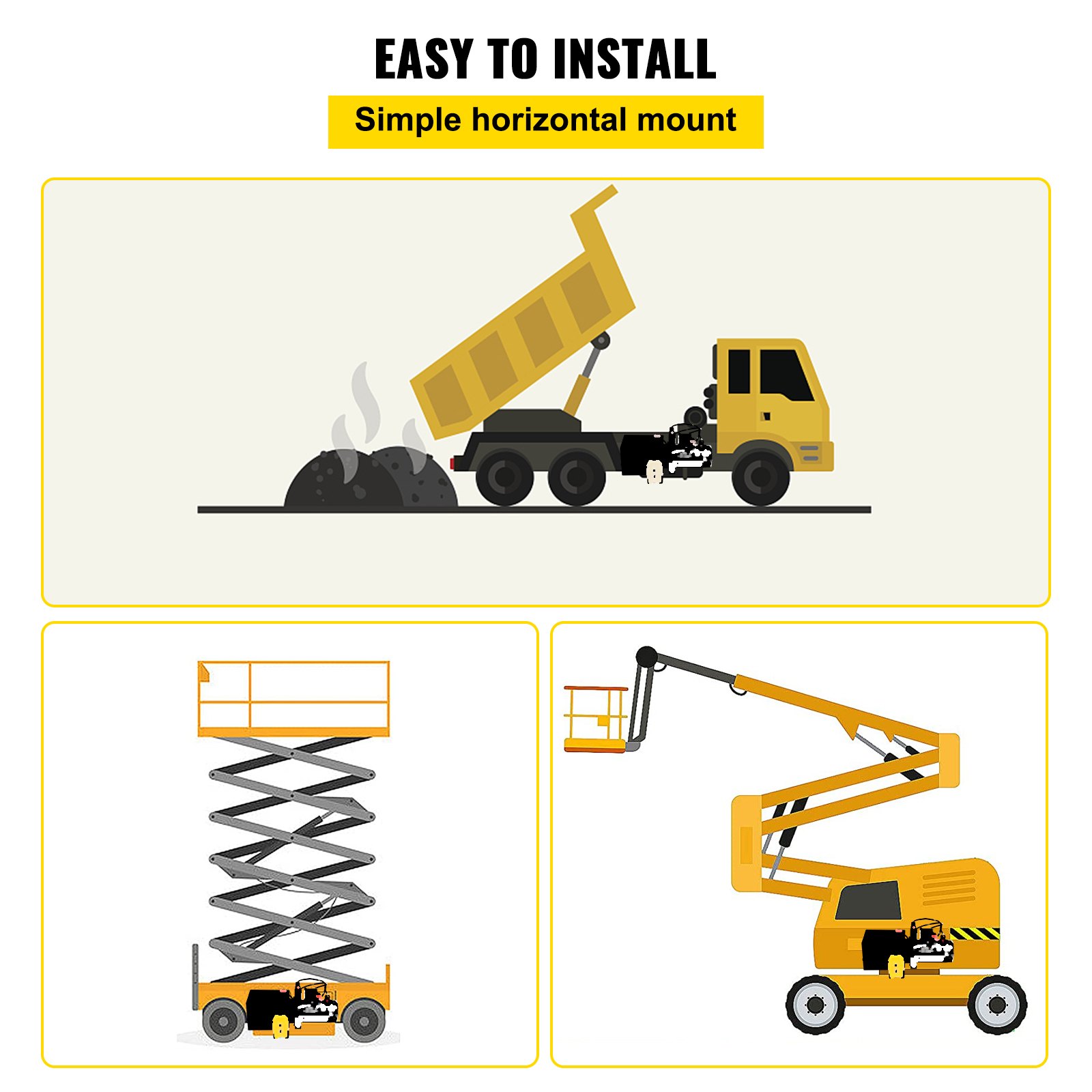

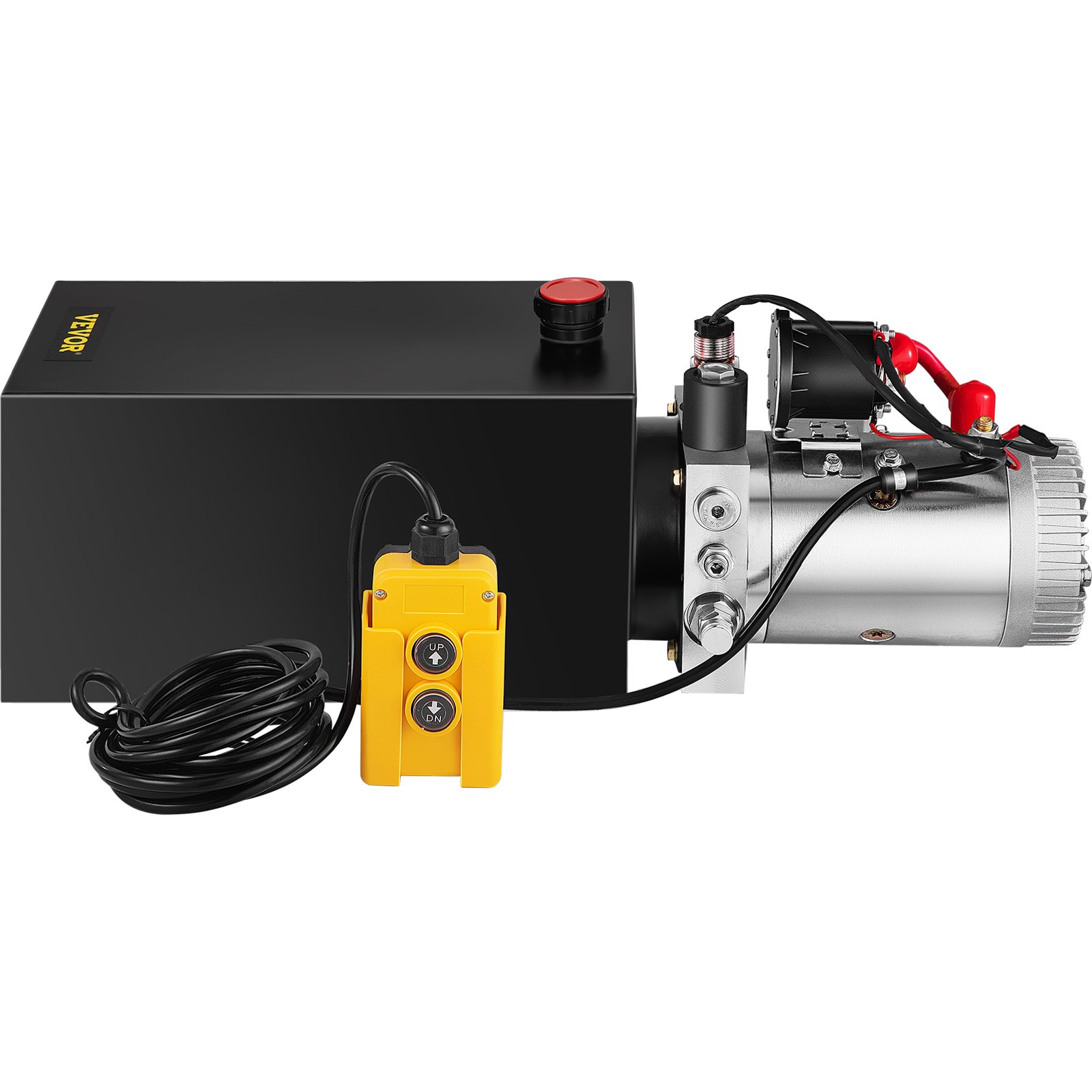

All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
- Model: 10QSAMHP
- Tank Material: Metal
- Tank Capacity: 10L/ 10Quart/ 2.5 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
- 1 x 10 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- Several Related Accessories (Including a Connector)
10 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 10-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application
Single-Acting Power Unit
This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 10-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The rated speed: 2850 r/min.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
- 1 x 10 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- Several Related Accessories (Including a Connector)
- Model: 10QSAMHP
- Tank Material: Metal
- Tank Capacity: 10L/ 10Quart/ 2.5 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Does this pump require a car battery or can it be run directly from a 12V power supply. How many amps should the power supply be able to deliver?
The recommended power supply is 12v, 20A.
