Features & Details
- CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. The 15000mW laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. CNC engraving materials: foam, wood, plastic, acrylic, resin, carbon fiber, etc. Laser engraving materials: wood, paper, plastic, leather, rubber, PVC, horn, crab shell, ivory, resin, painted metal surfaces, etc.
- Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.
- Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.32 Nm torque) and 775 DC 24V spindle motors with a rotational speed of 10000 r/min. And the engraving machine supports Windows 7, 8, 10, 11, Linux, macOS, and other systems. You can directly import JPG, BMP, PNG, and DXF files for laser engraving. The CNC software supports G-code files for tool-based engraving, relief carving, and cutting.
- Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.
- Sturdy Material: The frame is made of aluminum alloy and bakelite for strength and precision, with thickened side plates to improve X-axis accuracy and durability for all-day use. CNC engraving parameters: Non-metals: Feed rate 100-300 mm/min, soft metals: 20-100 mm/min; single cutting depth: non-metals 0.5-1.0 mm, soft metals 0.1-0.3 mm. Laser engraving parameters: Combustible materials: speed 1000-1500 mm/min, power 30%-100%; non-combustible materials: speed 200-800 mm/min, power 70%-100%.
Frequently Bought Together
Reviews 4.2
All reviews are from verified purchases
Average rating based on 8 reviews
Reviews 4.2
All reviews are from verified purchases
See all 8 reviews
About this item
Product specification
- Model
- VG-S3018 Pro
- Effective Working Area(X x Y x Z)
- 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials
- Aluminum Profile & Bakelite
- Input Power
- DC 24V 5A
- Driving Units
- T8 Stainless Steel Screws
- Spindle Speed
- 10000 rpm
- Stepping Motor
- 12V; Torque
- Control Software
- GRBL Control
- Cutter Diameter
- 0.125" / 3.175 mm
- Positioning Accuracy
- 0.003 inch/ 0.07 mm
- Item Dimension
- 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
Description

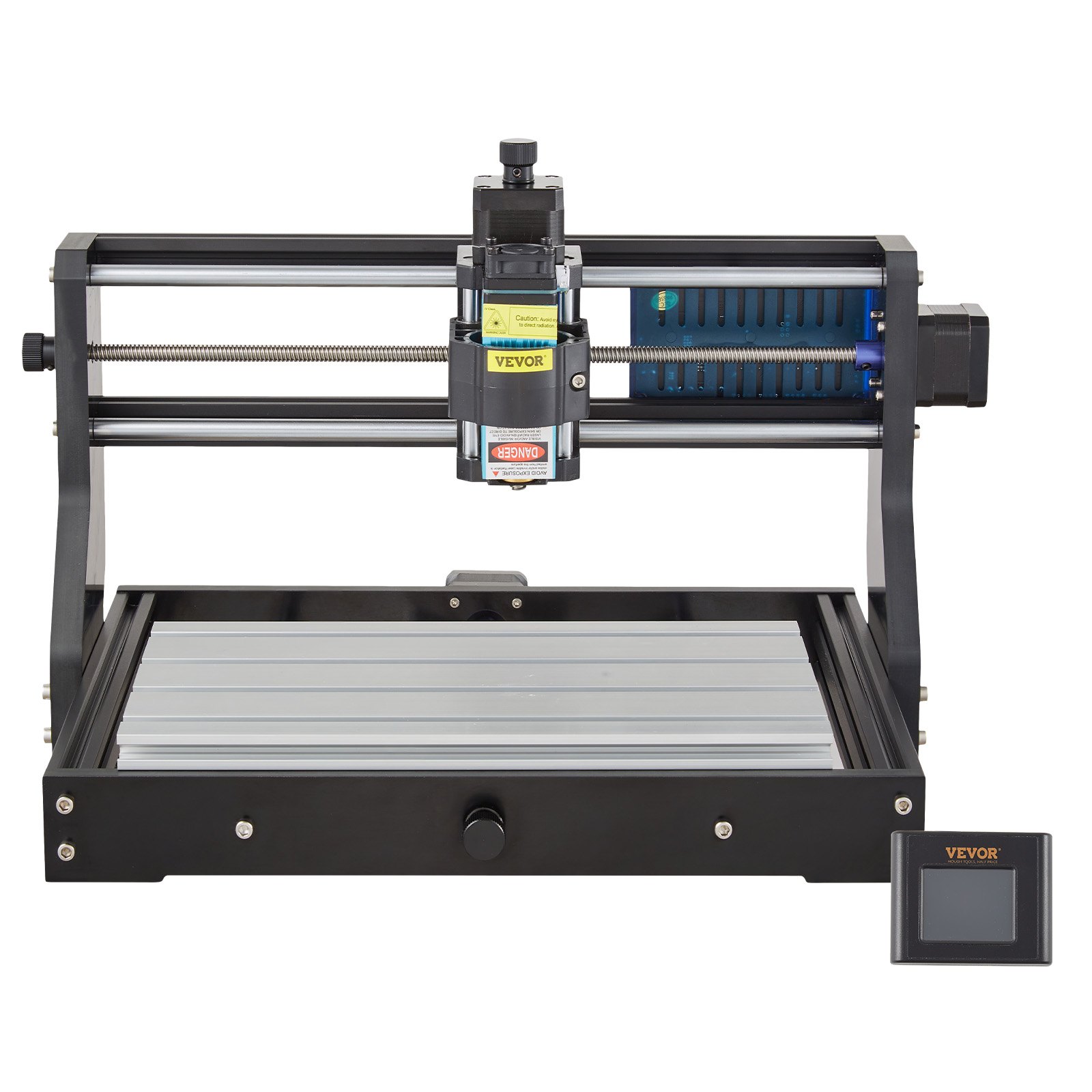

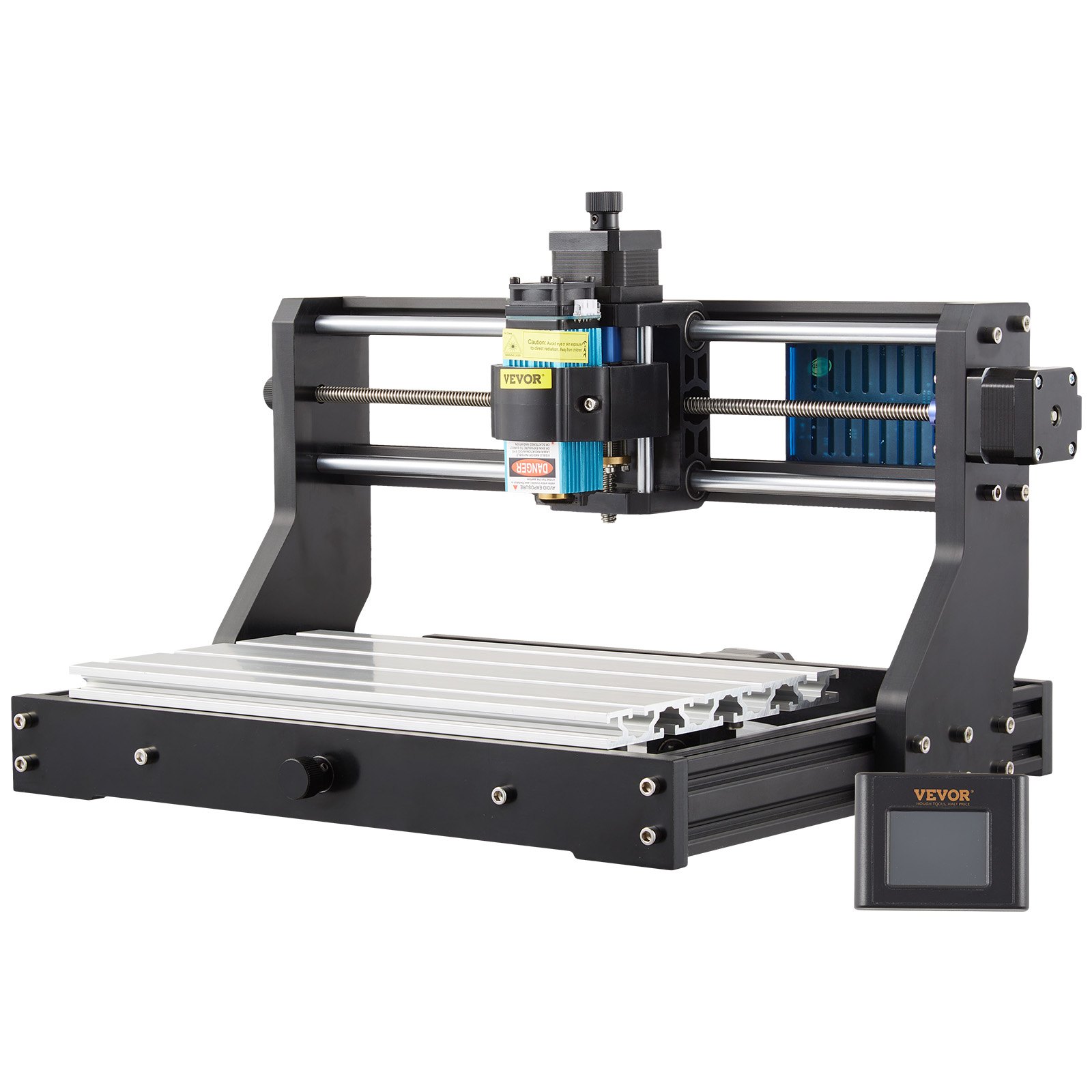

CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave foam, wood, plastic, acrylic, resin, carbon fiber, etc., which is an excellent affordable self-learning engraving tool!
- Note: The goods will be delivered from UK or Germany, and UK is the first choice. If the stock in the UK warehouse is used up, the goods will be delivered from Germany, and then the delivery time will be extended.
- CNC 3018 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Board
- Sturdy Material

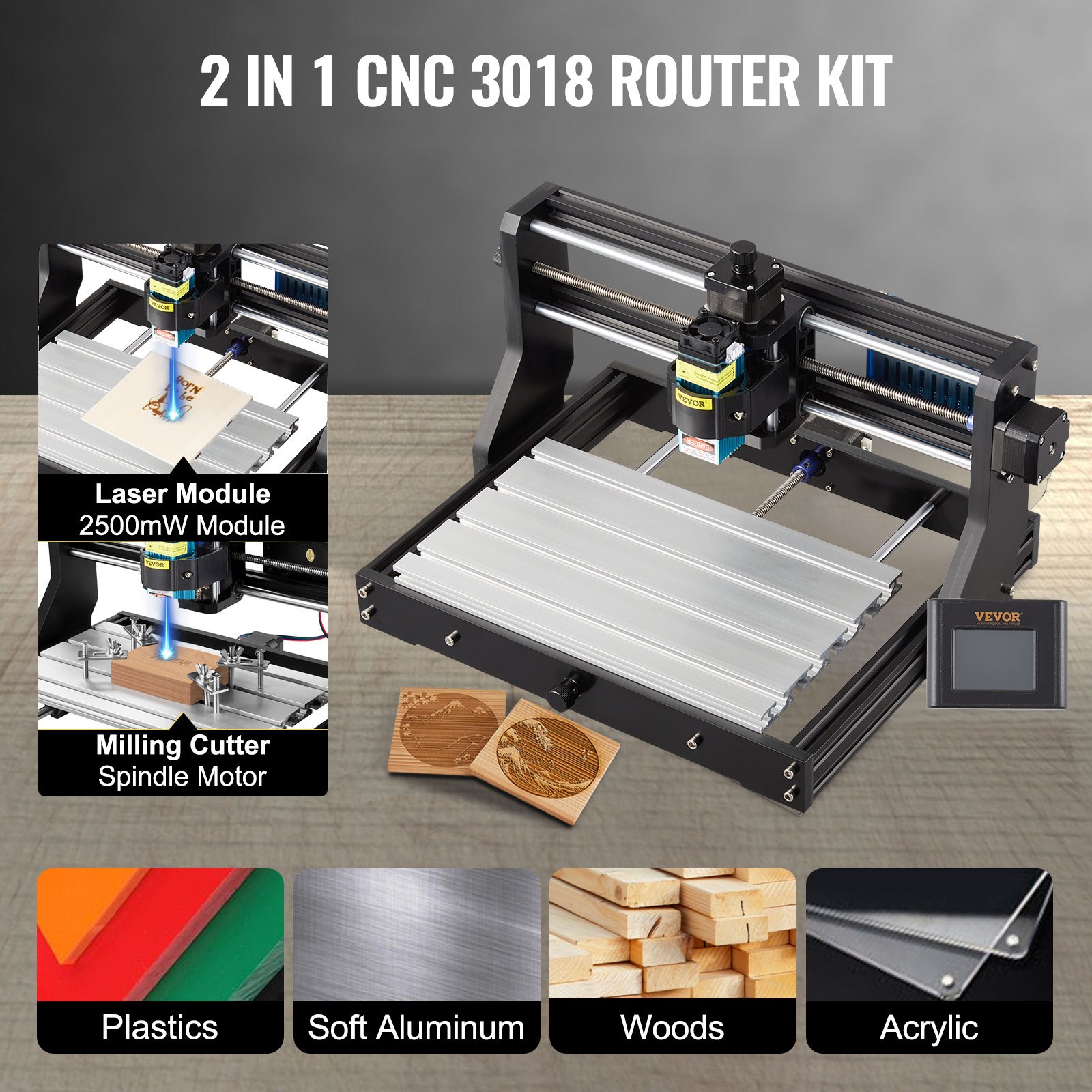

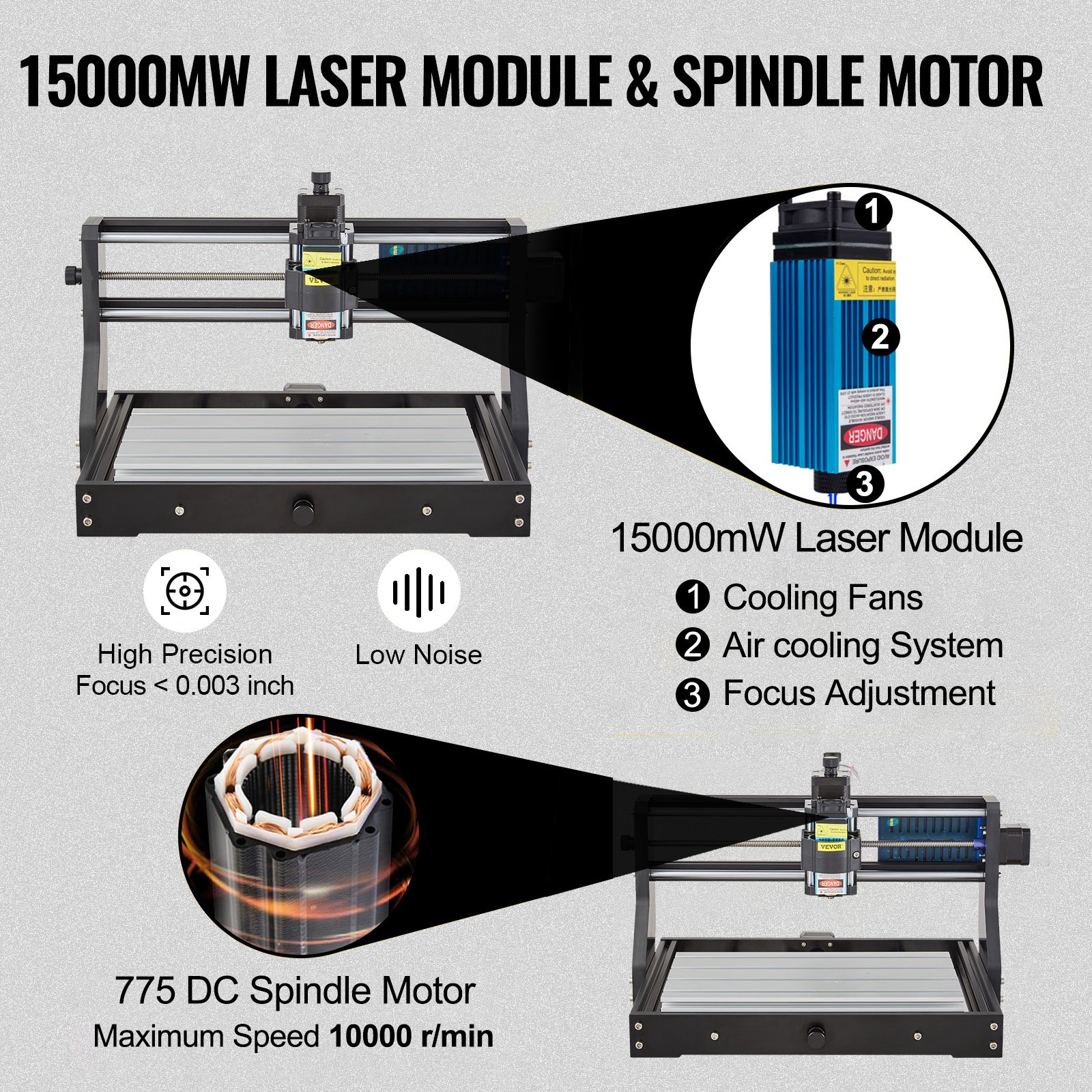

15000mW Laser Module & Spindle Motor
The 15000mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.

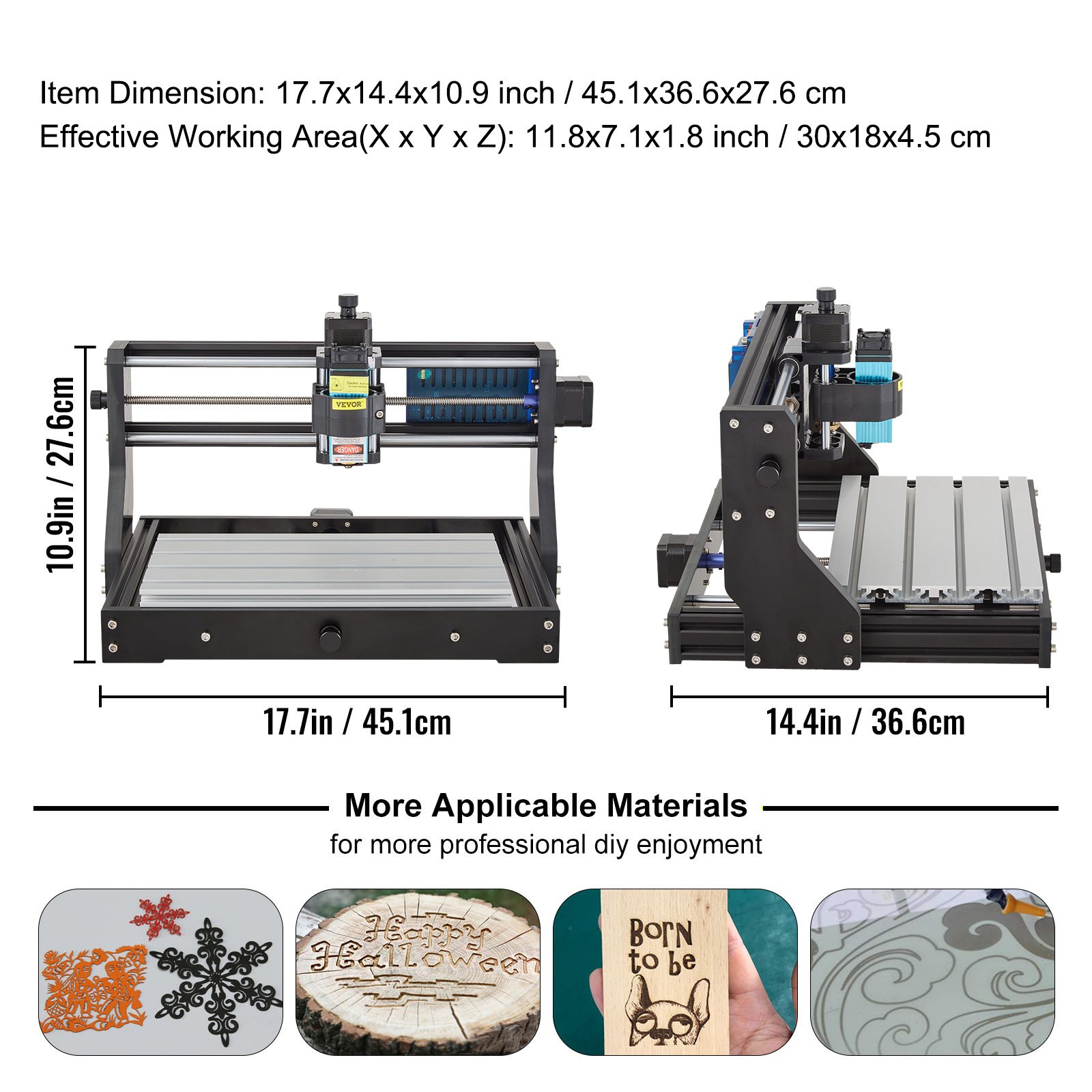

Large Working Area

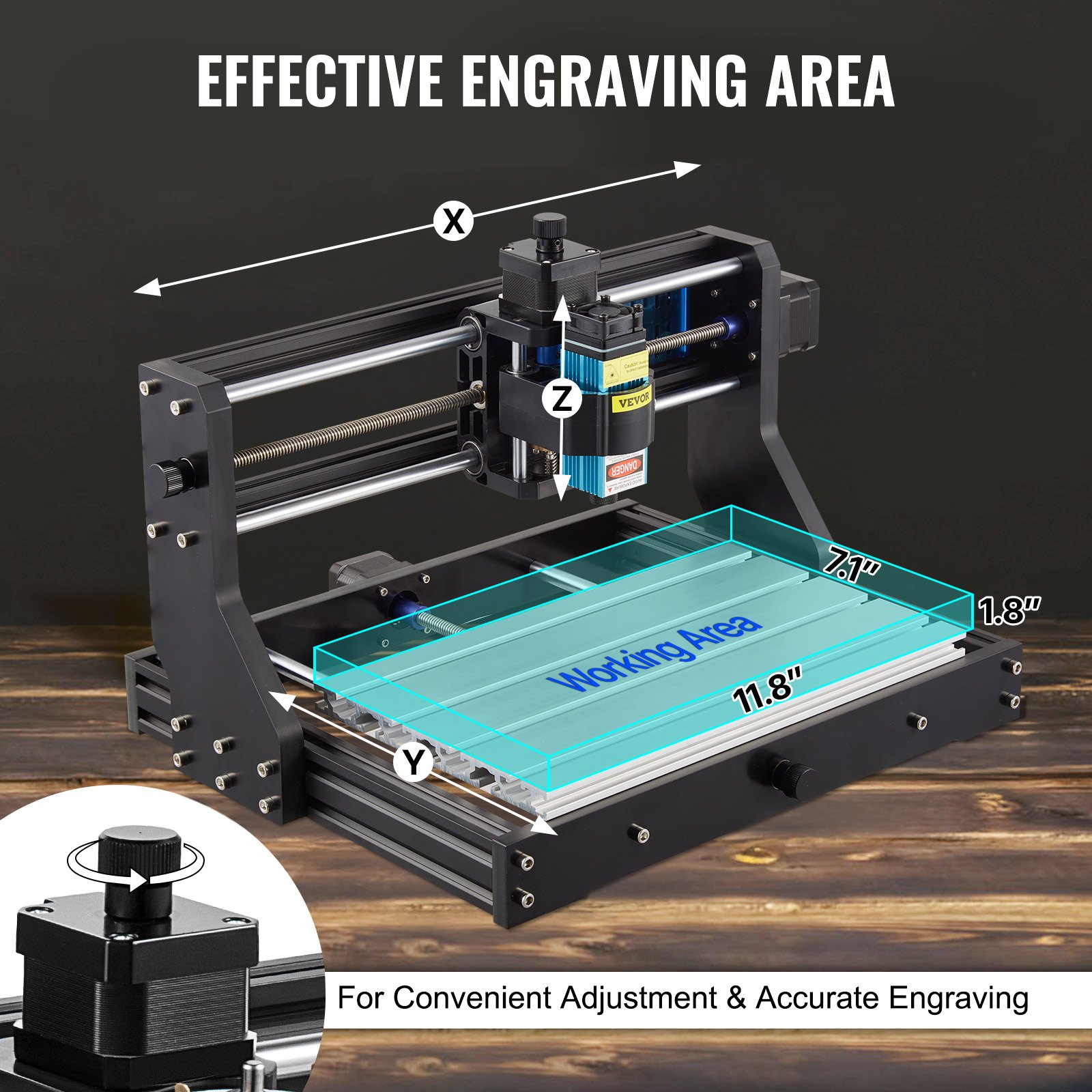

The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board

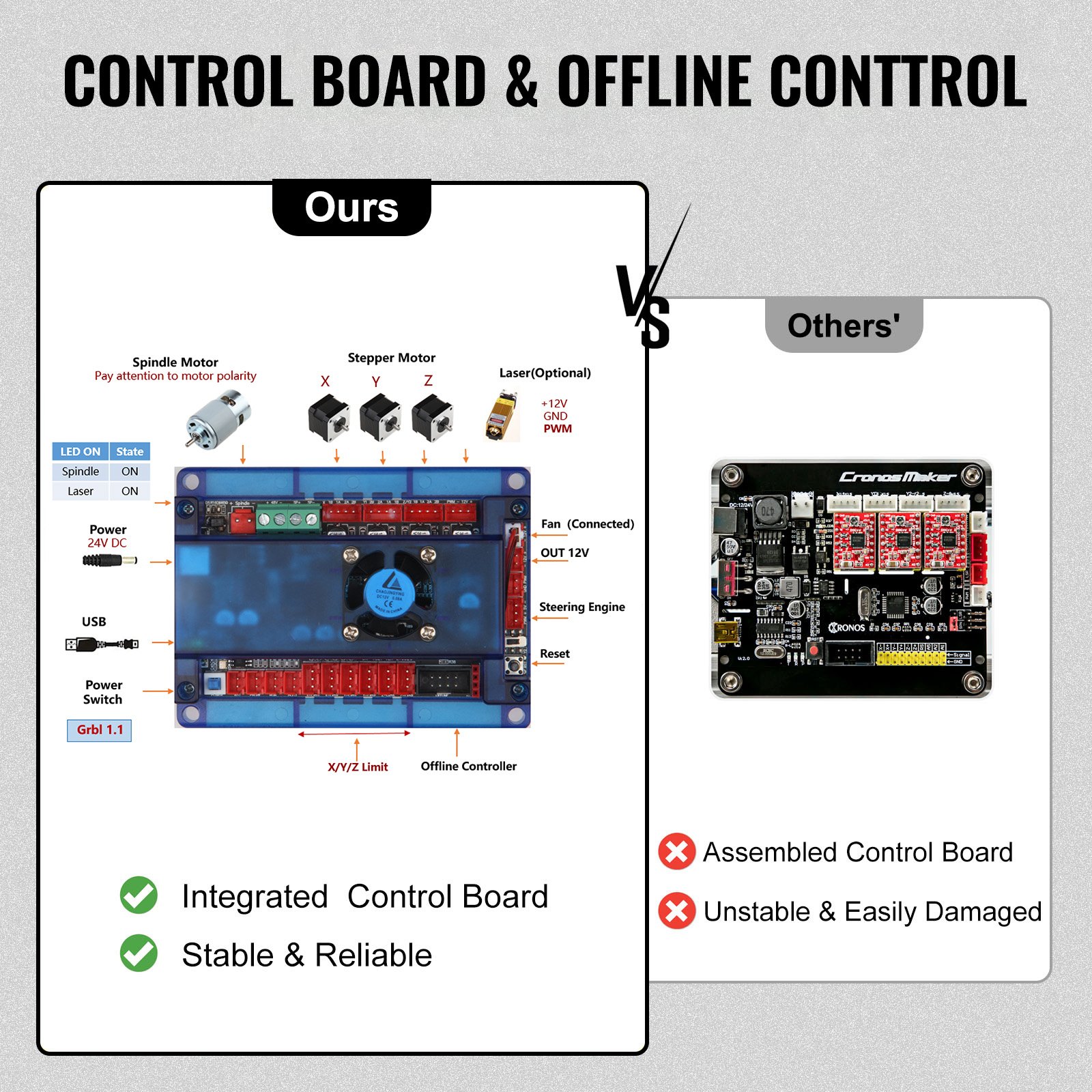

The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality

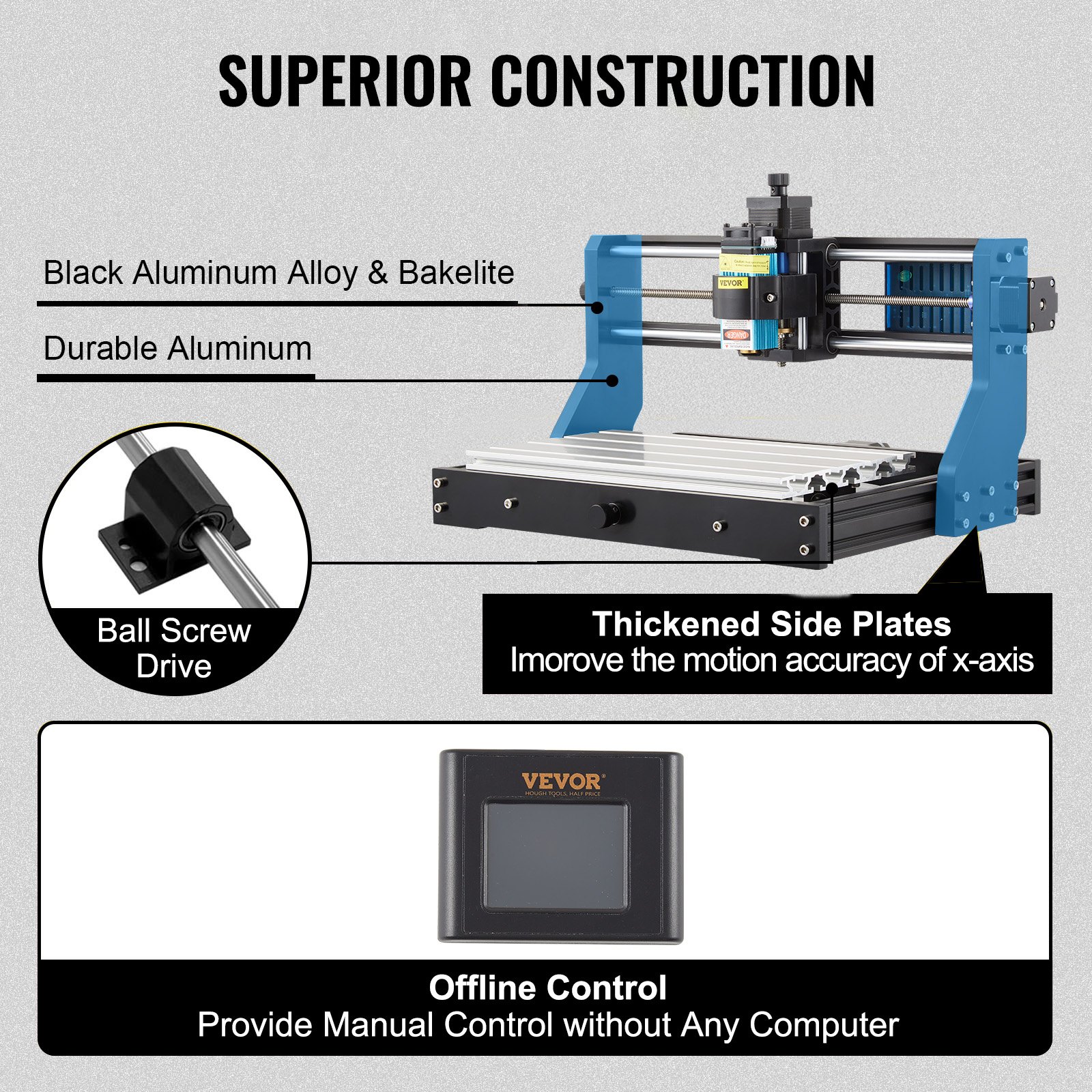

Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc.
- Model: VG-S3018 Pro
- Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials: Aluminum Profile & Bakelite
- Input Power: DC 24V 5A
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: 12V; Torque: 0.32 N/m
- Control Software: GRBL Control
- Cutter Diameter: 0.125" / 3.175 mm
- Positioning Accuracy: 0.003 inch/ 0.07 mm
- Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm

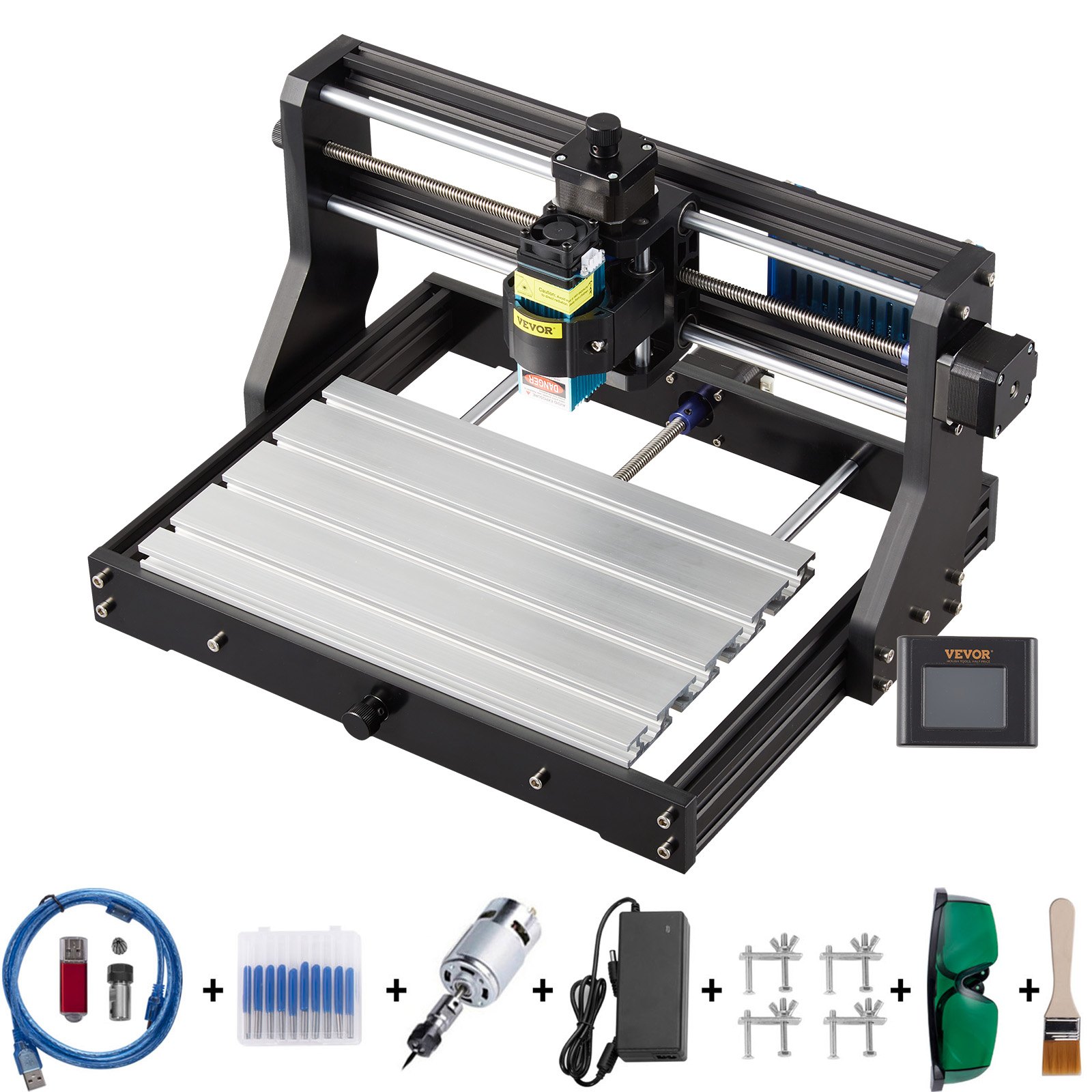

- 1 x 3018 CNC Router Kit
- 1 x 15000mw Laser Module
- 1 x Spindle
- 1 x U-Disk (Software & Instruction)
- 1 x Set of Milling Cutter
- 1 x Pair of Protective Glasses
- 1 x USB Cable
- 1 x Power Supply
- 1 x Set of Tools
- 1 x Brush
- 1 x Card Reader
- 1 x Manual
CNC 3018 Engraving Machine
Easy to Use & Upgrade Material & Complete Accessories
This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminum and bakelite. It features a USB port, GRBL control board, and an offline controller, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave foam, wood, plastic, acrylic, resin, carbon fiber, etc., which is an excellent affordable self-learning engraving tool!
- Note: The goods will be delivered from UK or Germany, and UK is the first choice. If the stock in the UK warehouse is used up, the goods will be delivered from Germany, and then the delivery time will be extended.
- CNC 3018 Router Machine
- Large Working Area
- Excellent Motor
- Upgraded Control Board
- Sturdy Material
15000mW Laser Module & Spindle Motor
The 15000mW laser module and 775 DC spindle motor on the Z-axis can realize a high speed. There are three stepper motors on three axes for smooth movement.
Large Working Area
The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, improving working efficiency.
Functional Control Board
The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.
Extraordinary Quality
Constructed with aluminum alloy and bakelite materials, the CNC 3018 Pro is characterized by good appearance, high precision, and durability.
Easy to Install
We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.
Wide Application
This CNC engraving machine can engrave foam, wood, plastic, acrylic, resin, carbon fiber, and etc.
- 1 x 3018 CNC Router Kit
- 1 x 15000mw Laser Module
- 1 x Spindle
- 1 x U-Disk (Software & Instruction)
- 1 x Set of Milling Cutter
- 1 x Pair of Protective Glasses
- 1 x USB Cable
- 1 x Power Supply
- 1 x Set of Tools
- 1 x Brush
- 1 x Card Reader
- 1 x Manual
- Model: VG-S3018 Pro
- Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 30 x 18 x 4.5 cm
- Materials: Aluminum Profile & Bakelite
- Input Power: DC 24V 5A
- Driving Units: T8 Stainless Steel Screws
- Spindle Speed: 10000 rpm
- Stepping Motor: 12V; Torque: 0.32 N/m
- Control Software: GRBL Control
- Cutter Diameter: 0.125" / 3.175 mm
- Positioning Accuracy: 0.003 inch/ 0.07 mm
- Item Dimension: 15.7" x 11.8" x 9.4" / 400 x 300 x 240 mm
