Features & Details

  • Key Parameters: Power: 1.5KW, Horsepower: 2HP, Input Current: 7.5A. Input Phase: Single-phase 220V or Three-phase 220V ; Output Phase: Three-phase 220V. Input Frequency: 40-60Hz ; Output Frequency: 0-400Hz.
  • Intuitive Display and Button: Our variable frequency drive (VFD) features an intuitive display and easy-to-use buttons, allowing users to get started quickly. The detachable panel can be connected to the corresponding interface for remote control, providing added convenience and flexibility.
  • Safety & Durability Redefined: The VFD stands out with a comprehensive protection system, safeguarding against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and enhance the longevity of the VFD. It ensures rapid cooling during extended use with its multi-sided and multi-hole design.
  • Master of Versatility: Our VFD is ideal for driving three-phase motors in diverse machinery, including CNC routers, CNC machines, milling machines, drilling machines, compressors, pumps, grinders, elevators, centrifuges, and other speed control machines. For heavier motor loads, please choose a higher-powered VFD for best results.
  • Friendly Reminder: The motor power should not exceed that of the variable frequency drive, and having a lower power doesn't matter. Depending on the different load, power needs to be downgraded for optimal usage, especially under high-load situations.

Frequently Bought Together

Reviews 4.3
All reviews are from verified purchases
Average rating based on 3 reviews

See all 3 reviews

About this item

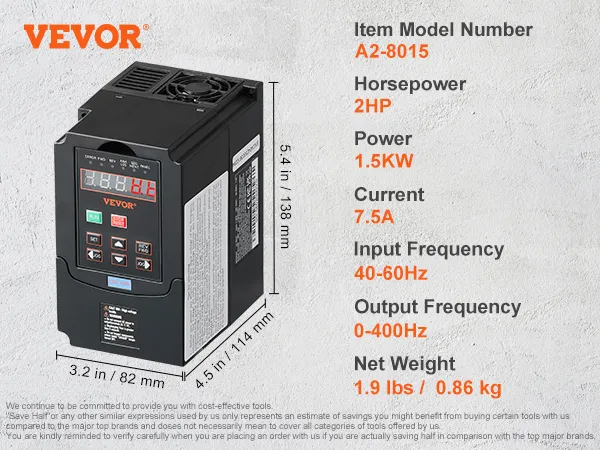

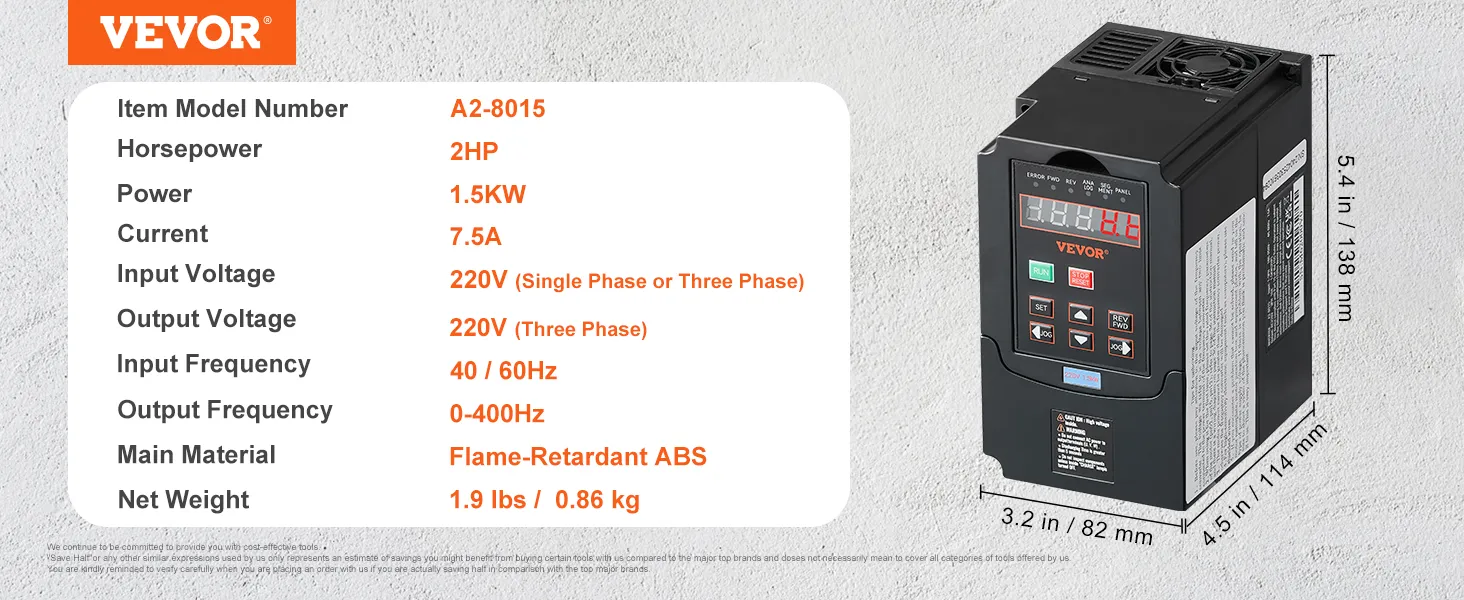

Product specification
Item Model Number
A2-8015
Input Voltage
220V (Single Phase or Three Phase)
Input Current
7.5A
Output Voltage
220V (Three Phase)
Power
1.5KW
Input Frequency
40-60Hz
Output Frequency
0-400Hz
Horsepower
2HP
Main Material
Flame-Retardant ABS
Net Weight
1.9 lbs / 0.86 kg
Product Dimensions
5.4 x 3.2 x 4.5 inch / 138 x 82 x 114 mm
Description
1.5KW, 7.5A, 2HP Variable Frequency Drive

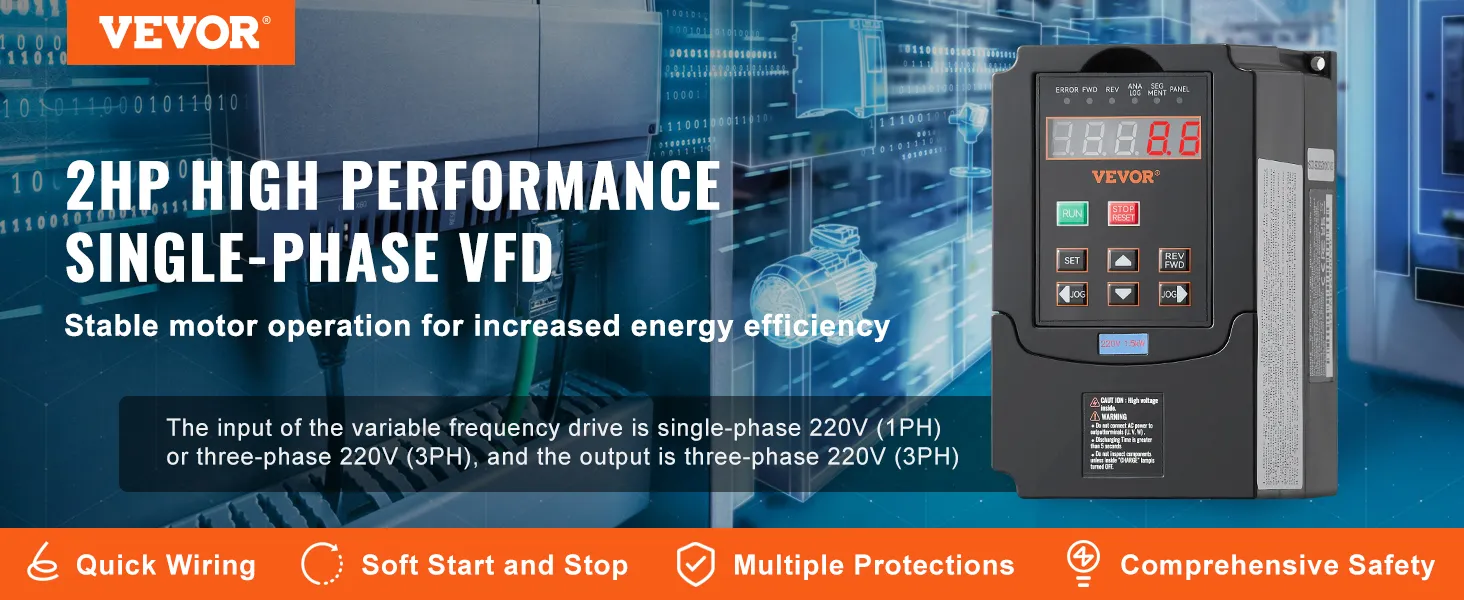

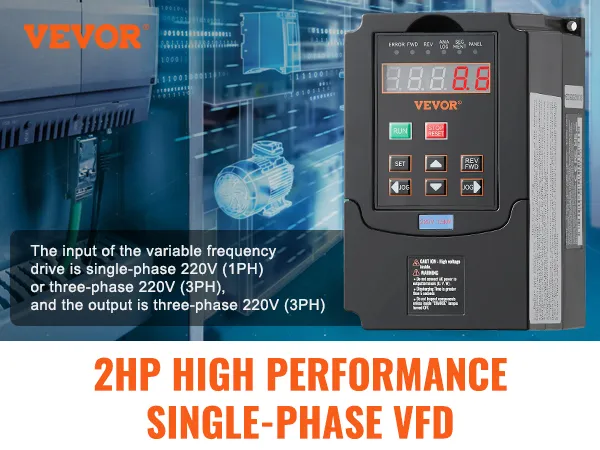

The input of the variable frequency drive is single-phase 220V (1PH) or three-phase 220V (3PH), and the output is three-phase 220V (3PH). With easy wiring, intuitive display, and comprehensive protections, it simplifies operations, enhances energy efficiency, and minimizes machinery faults.

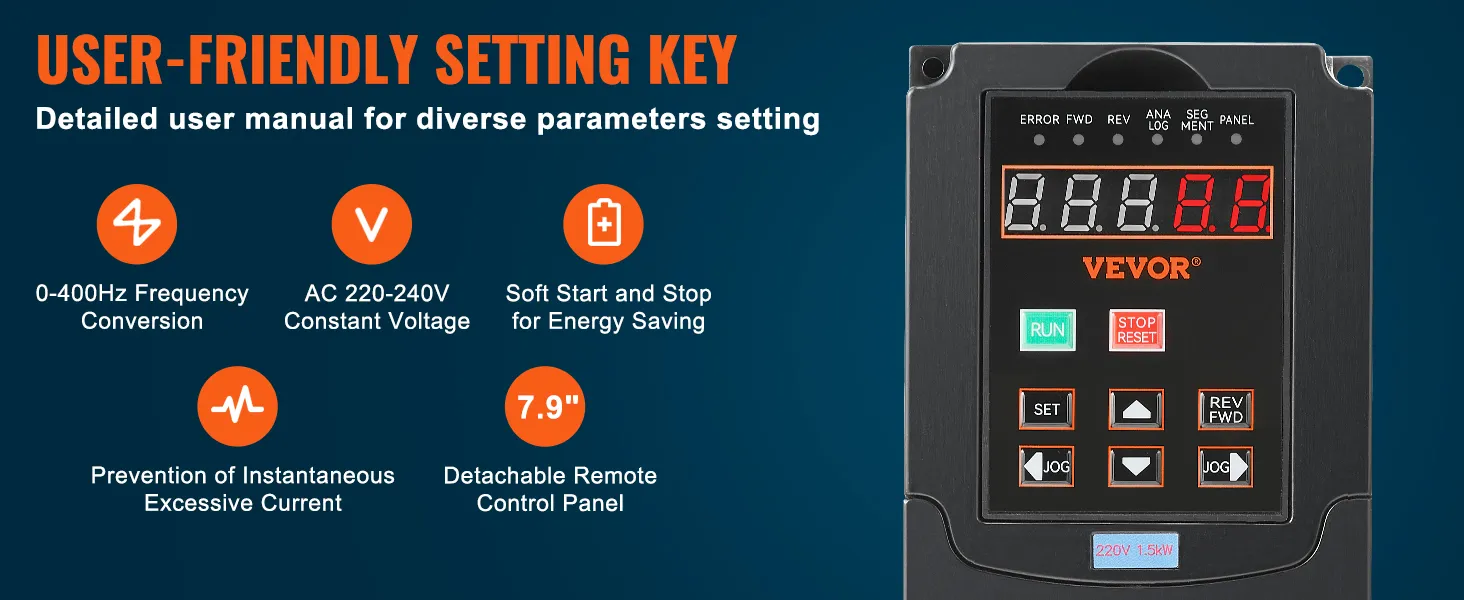

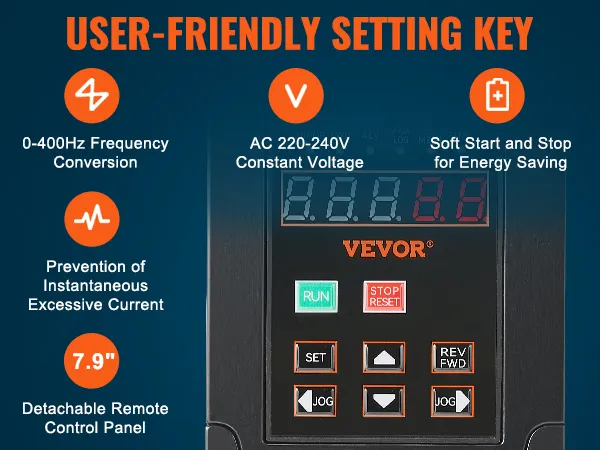

The variable frequency drive is designed with user-friendliness, featuring an intuitive display and easy-to-use buttons for a quick and hassle-free start. It also includes a detachable panel that can be connected to the corresponding interface for remote control, offering added convenience.

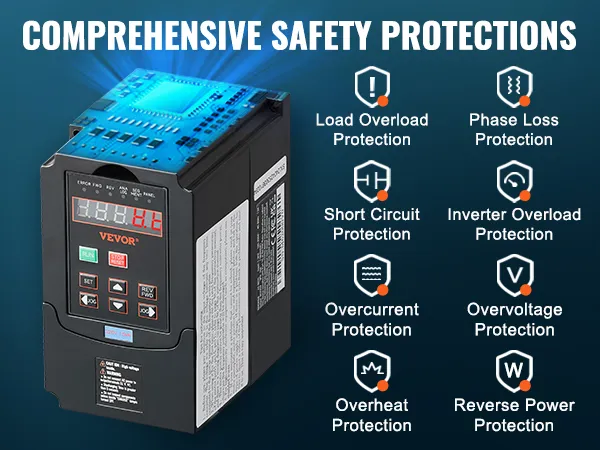

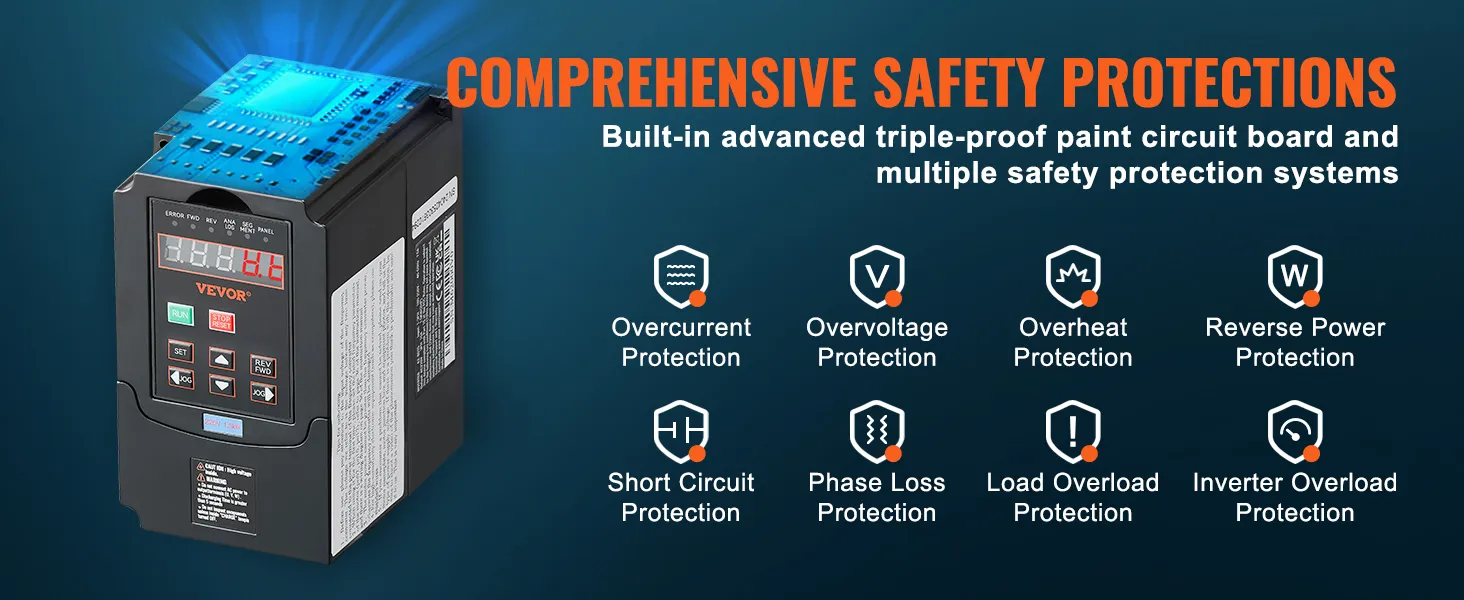

Our VFD comes with intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss. It is mainly made of flame-retardant ABS, ensuring high performance and quality from the inside out, giving you peace of mind during use.

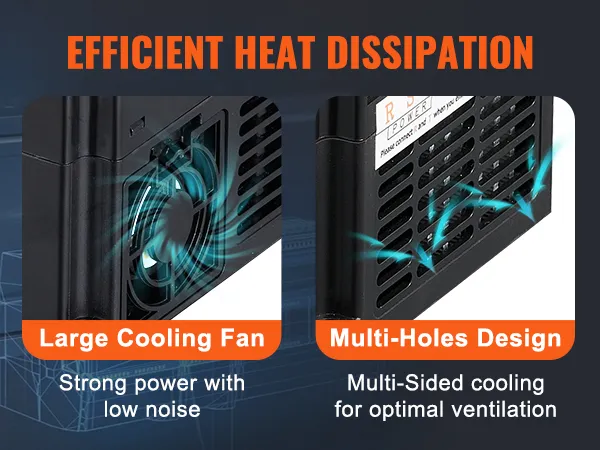

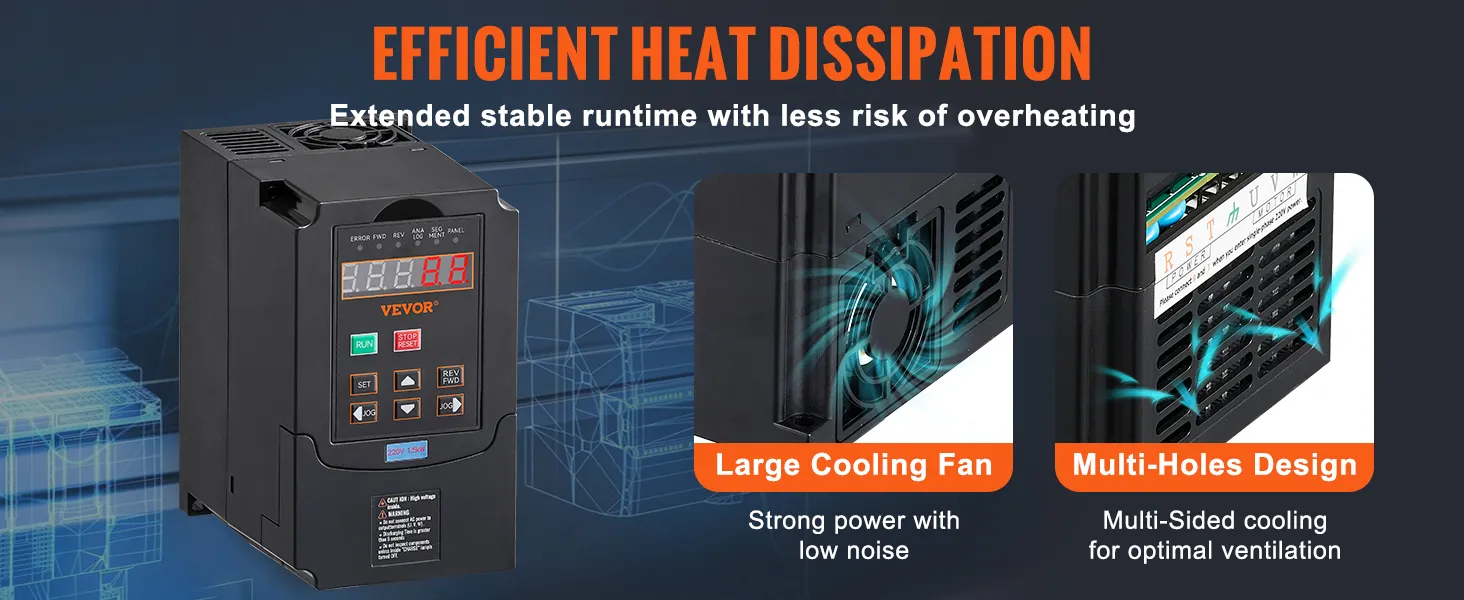

Stable and efficient operation relies on large cooling fans and a multi-hole heat dissipation design, preventing overheating and overloading during extended operation.
Installation Tips: ①Turn off power when connecting wires ②For VFD protection, press red 'Stop' button and power off when not in use. ③ Avoid installation in humid or high-temperature environment. ④For optimal performance with heavier motor loads, consider selecting a higher-powered VFD.
Product guides and documents
User manual-en (PDF) Review

Questions and Answers (4)

4 Questions
Ask a Question
Is het nog mogelijk de motor met een klok of iets dergelijks aan te sturen ? M.a.w. moet er na het opkomen van de spanning telkens op de 'RUN' knop van de omvormer gedrukt worden of niet ?
Answer This Question
Het wordt aanbevolen om een ​​externe controller te gebruiken om de start van de omvormer te regelen, of deze kan rechtstreeks worden ingeschakeld via de externe bedieningsfunctie.
By vevor
Helpful ( 3 )
Betreft frequentieregelaar VDF 0,75KW. Begrijp ik het goed dat ik met dit toestel een driefasige motor die nu op 220 draait kan laten werken op 220 monofase. Gewoon aansluiten en gedaan?? De motor is 0,75 KW maar jullie toestel is niet op voorraad, mag dit ook deze van 1,5 kw zijn voor een motor van 0,75KW. Bedankt voor jullie antwoord
Answer This Question

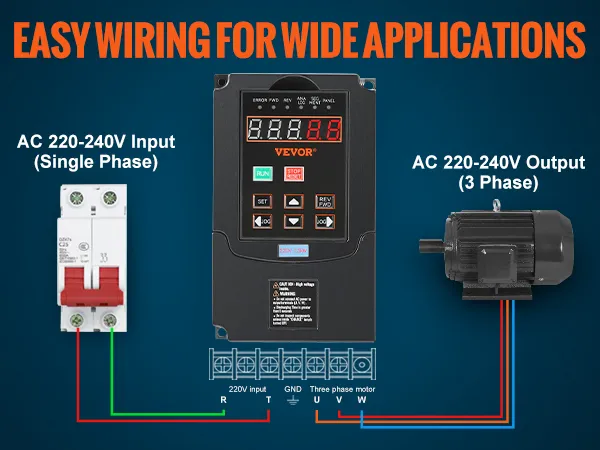

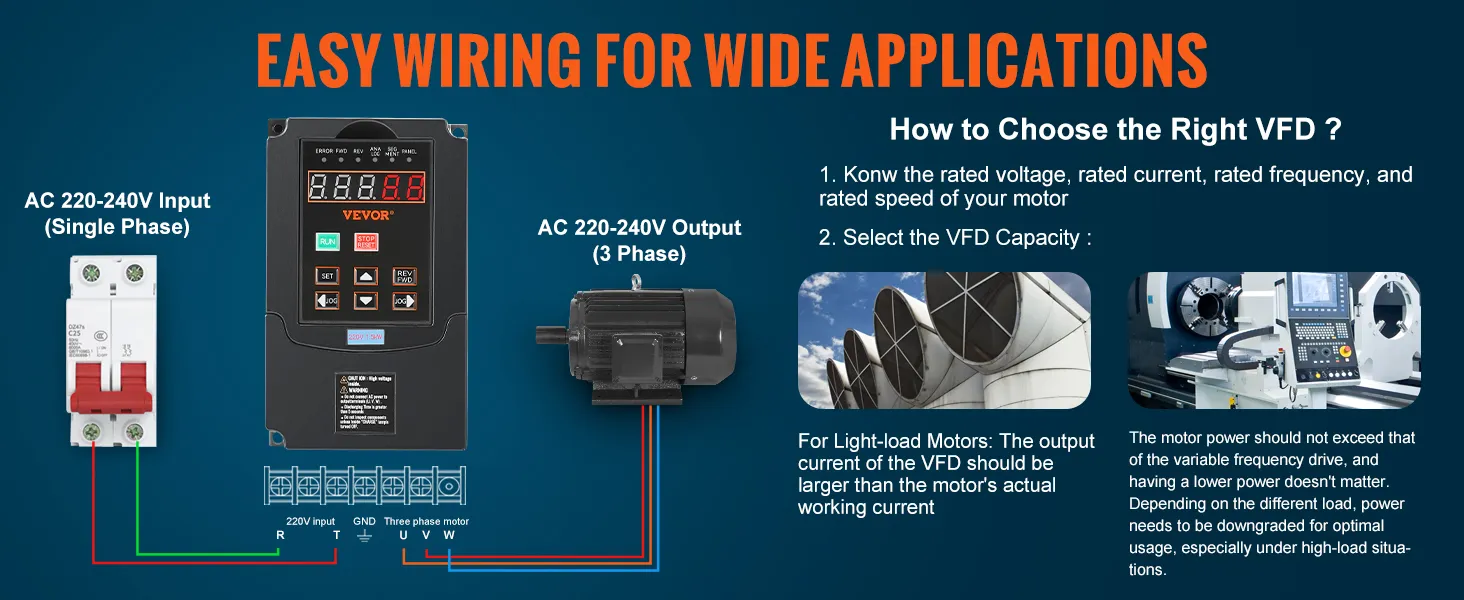

Als uw motor eenfasig 220V is, sluit deze dan aan op R en T. Als S leeg is, hoeft u deze niet aan te sluiten. Als uw motor 3-fasen 220V is, sluit u deze aan op RST. De drie draden van de motor zijn verbonden met U, V en W.
By vevor
Helpful ( 2 )
Beste medewerker kan ik hier ook een 220 v motor aansturen ( snelheid ) Zo ja ( zonder condensator of met ) ? mvrgr
Answer This Question
Het kan de snelheid regelen, maar de motor moet een driefasige asynchrone motor zijn met een spanningsniveau van 220 volt, dat wil zeggen dat er geen condensatoren op de motor mogen zitten.
By vevor
Helpful ( 1 )
Voor de zekerheid : Ik wil een motor van 380 volt aansluiten op deze frequentieomvormer en de motor dus aandrijven met 220 Volt. Als ik het goed begrijp kan dat. Zo ja : heb ik nog andere aansturing nodig ? Zo nee : welke omvormer is wel geschikt?
Answer This Question
Er kan een 380 volt motor mee worden aangestuurd, maar de bedrading van de motor moet worden aangepast naar een 3-fase 220 volt modus. Anders zal het koppel van de motor bij hoge snelheid sterk afnemen.
By vevor
Helpful ( 0 )
