Features & Details
- High Splicing Efficiency: VEVOR fiber fusion splicer features 4 high-precision motors and clad alignment, enabling rapid splicing in just 6s and quick heating in 13s, with a fusion loss as low as 0.01 dB (MM). It features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers.
- High-Definition Display: 5-inch color touch screen offers multiple display modes and clear viewing. It offers an independent 330x X or Y magnification display, double-click to zoom up to 1100x ; and simultaneous 200x X/Y display—ensuring clear and visible fiber cores.
- Extended Operation Time: 7800mAh high-capacity rechargeable battery allows for over 260 continuous fusion splicing and heating cycles on a full charge. The side USB port enables convenient data transfer and charging. Don't worry about running out of power during critical tasks anymore!
- Sturdy and Durable: Our fiber optic fusion splicer surface is made of sturdy ABS and PC material - lightweight, compact and durable. It is dustproof, shatterproof, and shockproof, suitable for dry climates, snowstorms, high altitudes, and high-temperature environments.
- Professional All-in-One Kit: Keep your accessories neatly organized with the portable case. The VEVOR optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, heat shrink tubes, brush, cotton swabs, and other essential tools.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 4 reviews
Reviews 5.0
All reviews are from verified purchases
See all 4 reviews
About this item

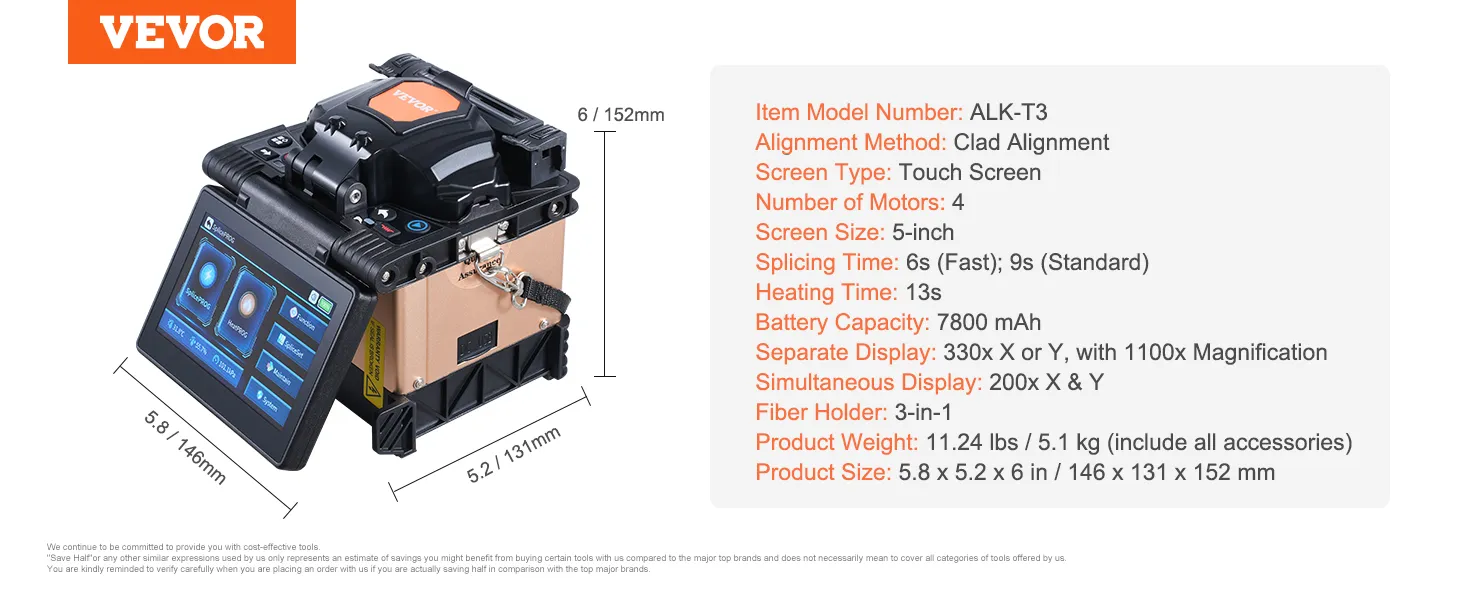

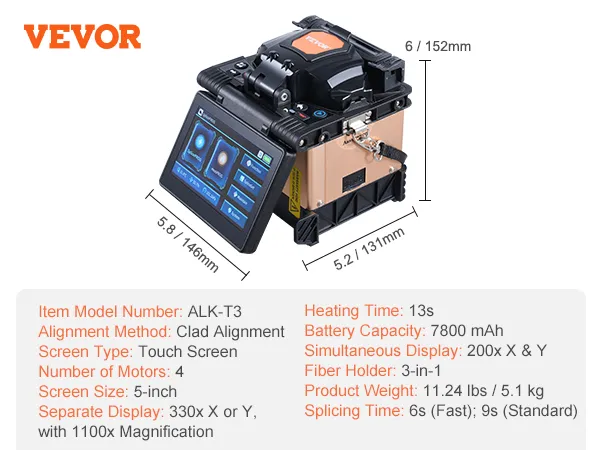

Product specification
- Item Model Number
- ALK-T3
- Alignment Method
- Clad Alignment
- Screen Type
- Touch Screen
- Number of Motors
- 4
- Screen Size
- 5-inch
- Splicing Time
- 6s (Fast); 9s (Standard)
- Heating Time
- 13s
- Battery Capacity
- 7800 mAh
- Separate Display
- 330x X or Y, with 1100x Magnification
- Simultaneous Display
- 200x X & Y
- Fiber Holder
- 3-in-1
- Product Weight
- 11.24 lbs / 5.1 kg (include all accessories)
- Product Size
- 5.8 x 5.2 x 6 in / 146 x 131 x 152 mm
Description
Achieve High Speed, Reliable and Efficient Fiber Fusion！

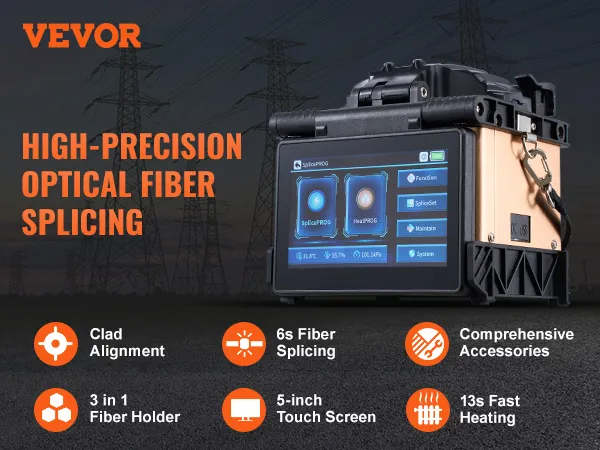

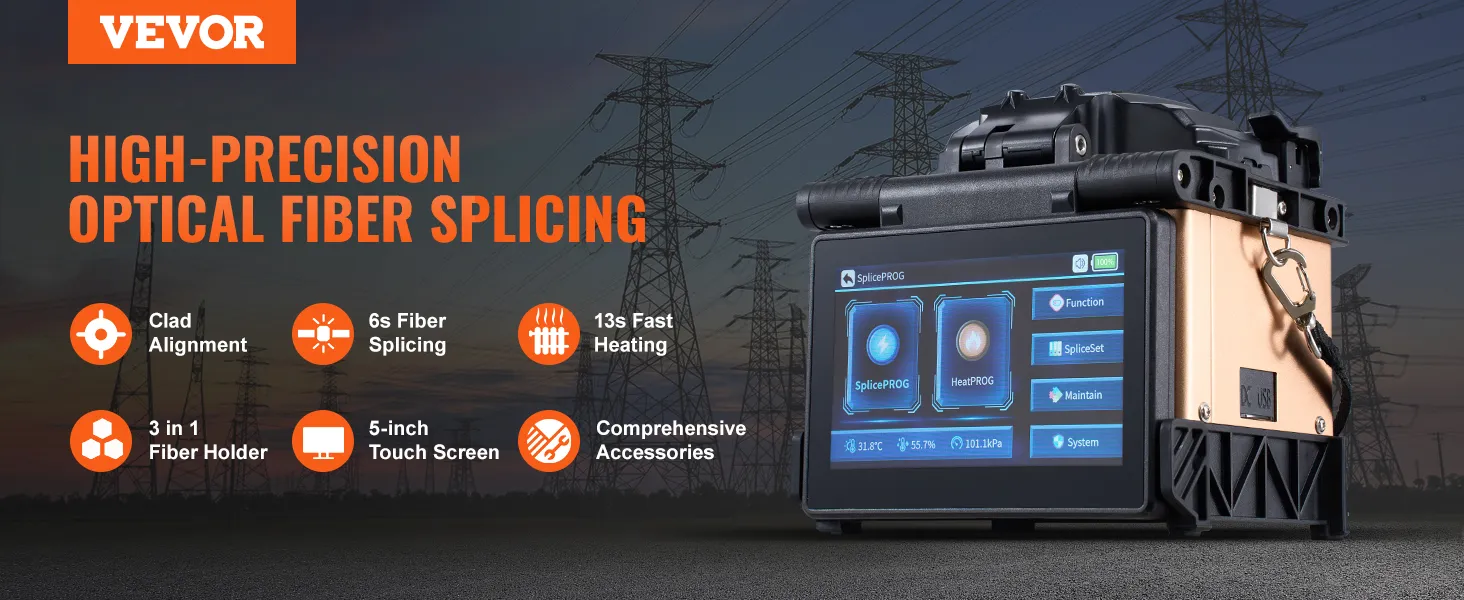

Equipped with clad alignment tech, 4 high-precision motors, 3-in-1 fiber holder, VEVOR fiber fusion splicer ensures fast splicing in just 6s and quick heating in 13s. With fusion loss as low as 0.01dB, it delivers clear and stable connections, suitable for a wide range of fiber optic projects.

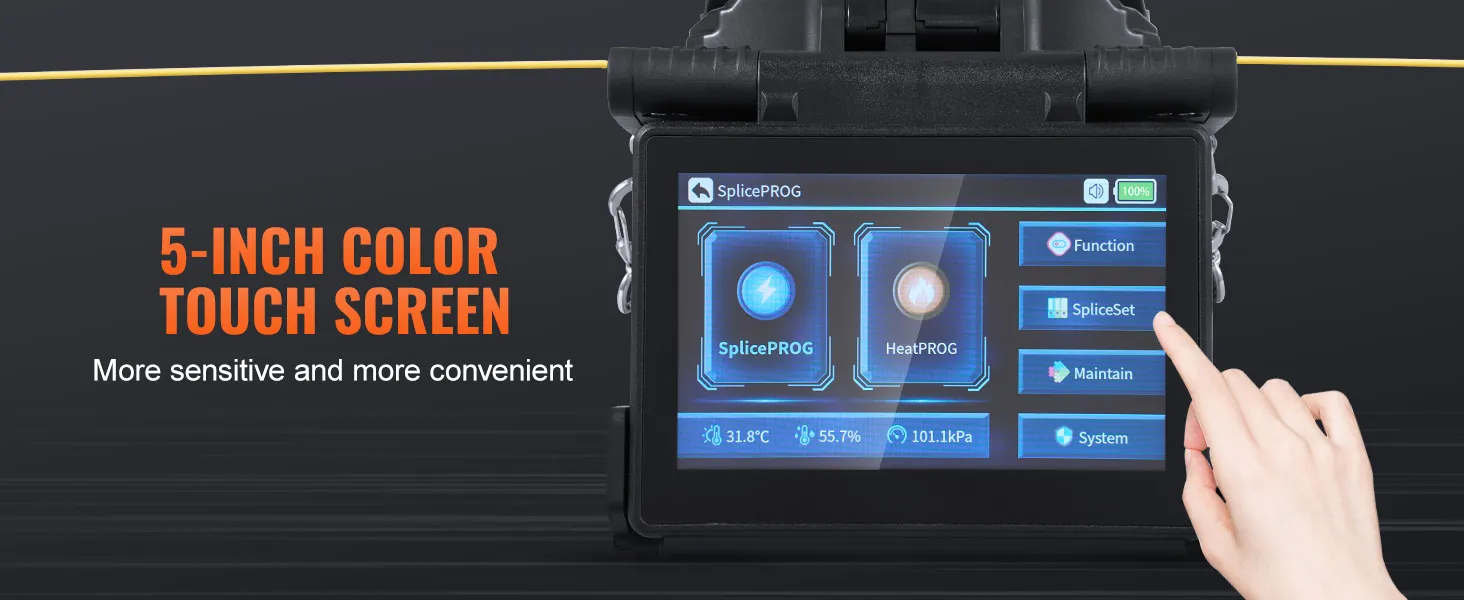

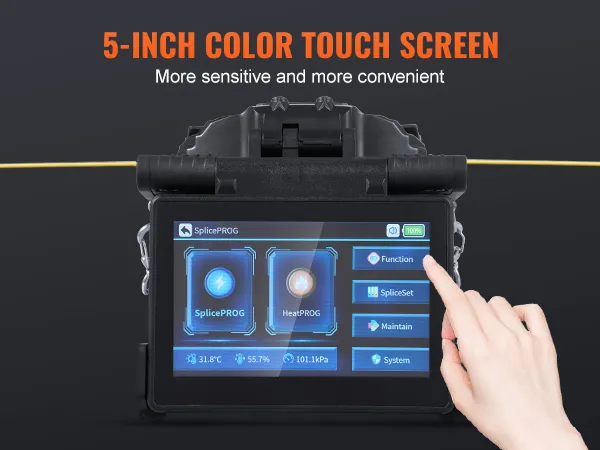

Featuring a 5-inch color touch screen with a user-friendly interface, this fiber optic fusion splicer offers multiple display modes to meet various needs, making it easy to monitor every detail throughout the splicing process.

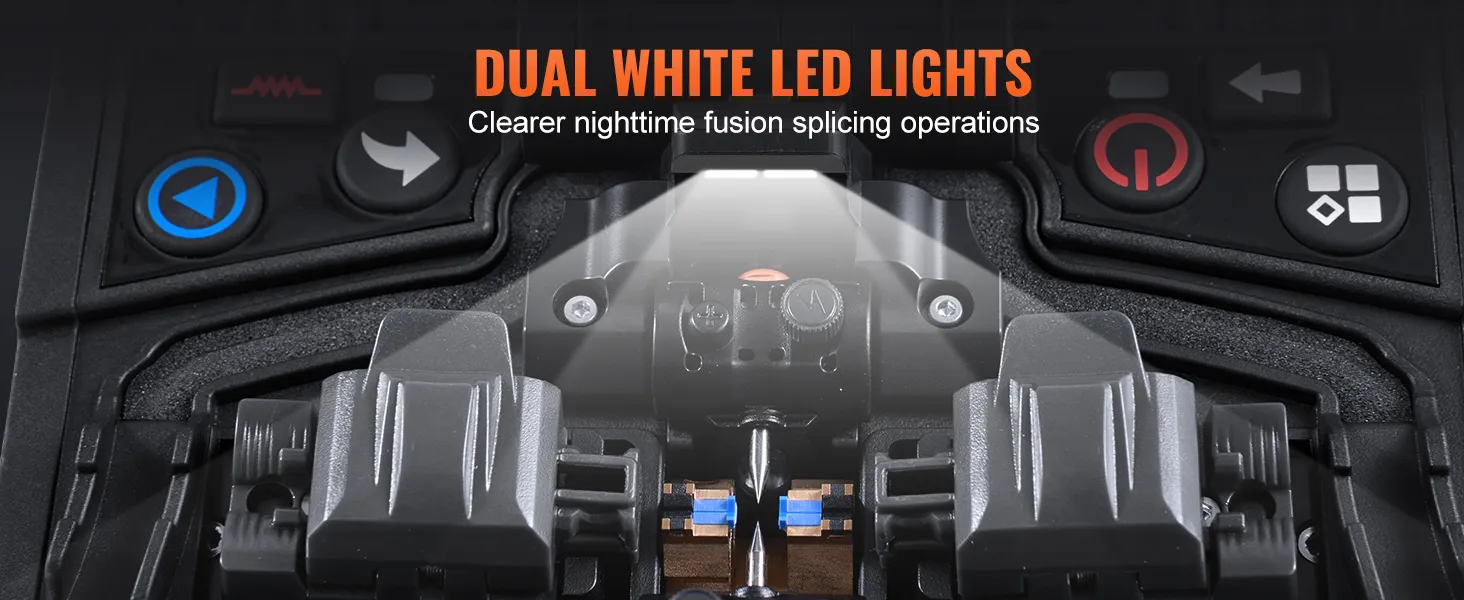

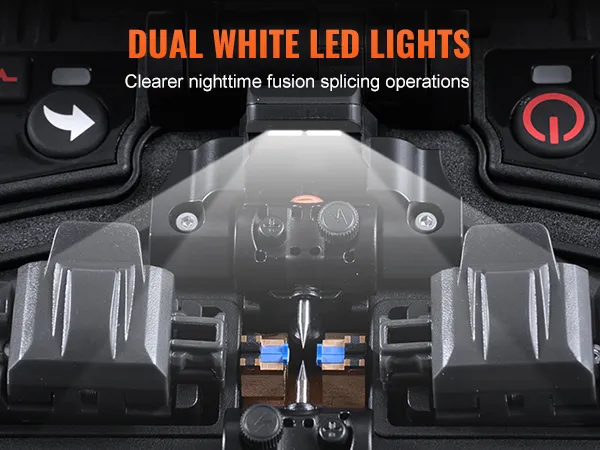

Built-in dual LED lights provide excellent illumination, this optical fusion splicer allows precise fiber alignment even in low-light or outdoor conditions. Operate with confidence, no matter the lighting situation.

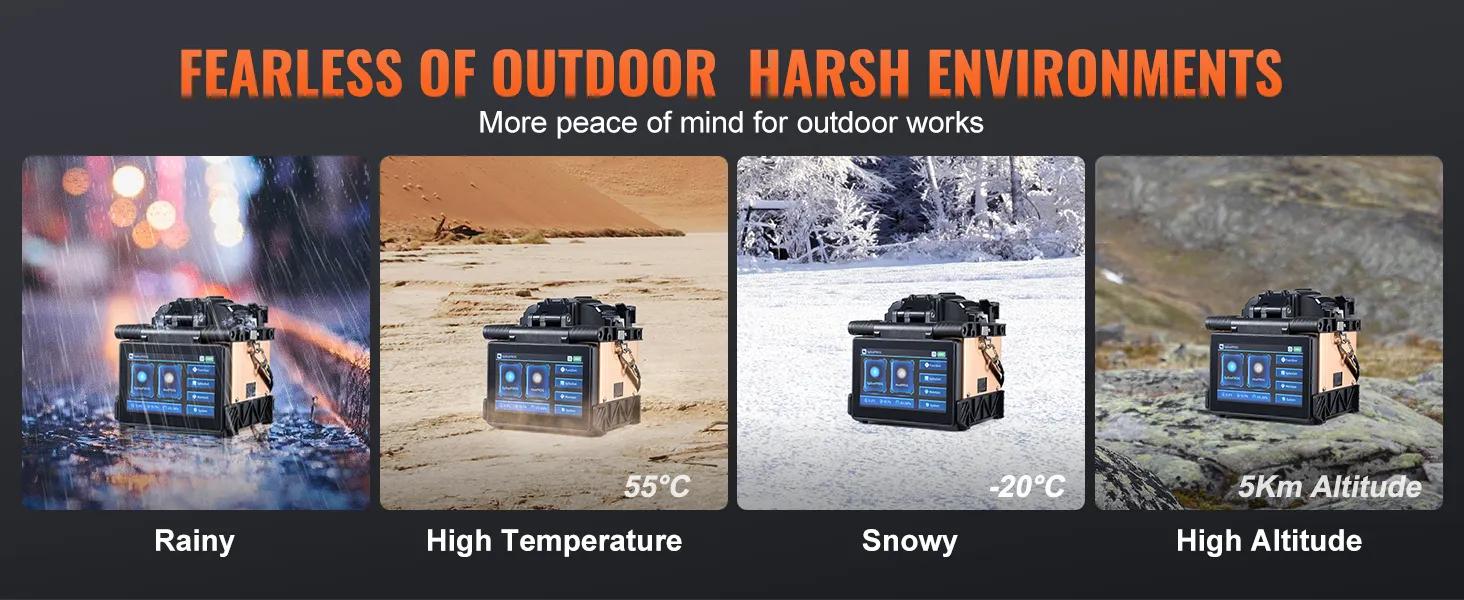

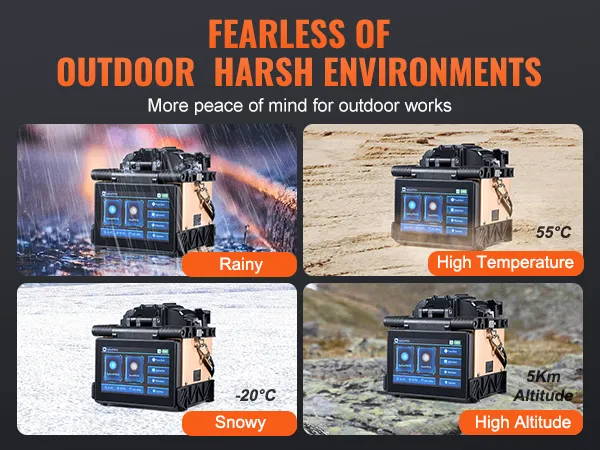

Designed with reinforced protection, this clad alignment fusion splicer performs reliably in extreme conditions, including rain, high temperatures, snowstorms, and high altitudes, making it ideal for challenging outdoor applications.

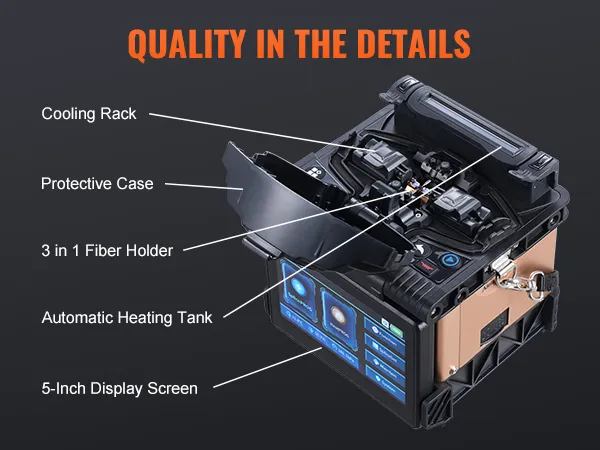

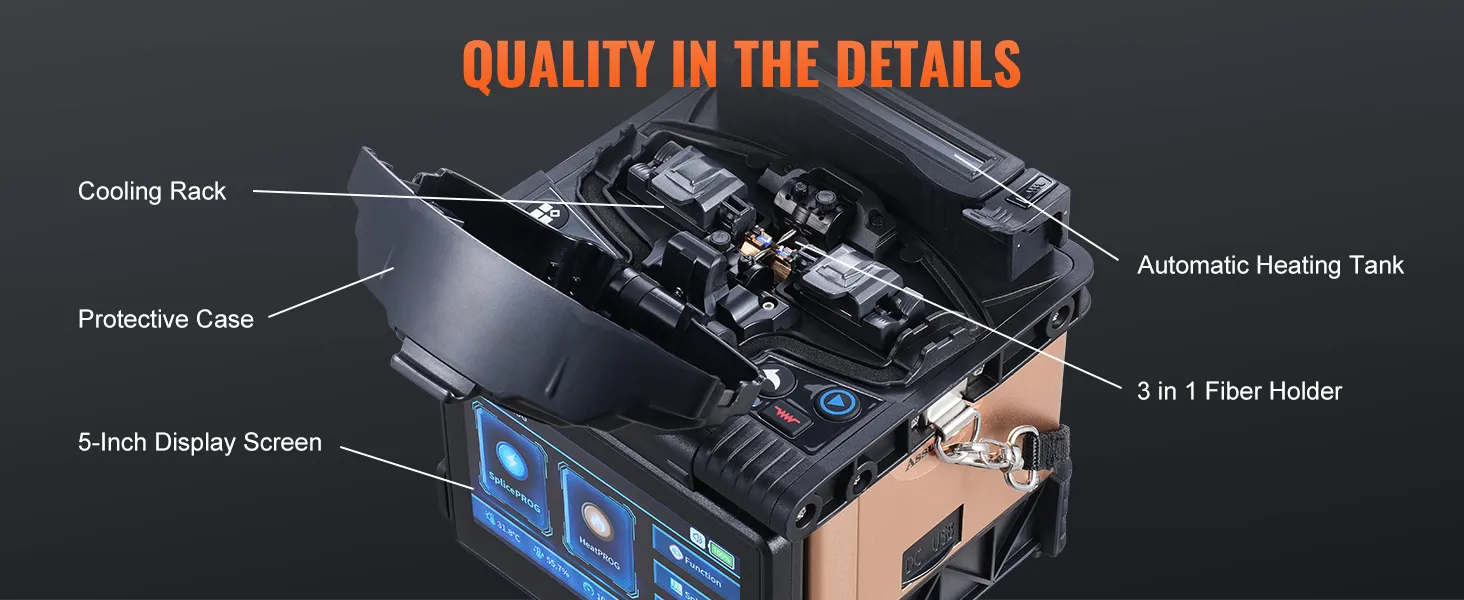

Thoughtful features such as a cooling rack, protective case, automatic cleaning tank, and 3 in 1 fiber holder enhance portability and safety, elevating the overall user experience and reflecting professional-grade quality.
