VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
+13
More
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers
VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers VEVOR Fiber Fusion Splicer 6 Motors, Core & Clad Alignment Fibers Optic Splicer with 6s Fast Splicing and 13s Heating, 5" LCD Screen, 3 in 1 Fiber Holder, 7800mAh Battery for SM MM DS NZDS Fibers

Features & Details

  • Fast Splicing & Heating: VEVOR fiber fusion splicer features 6 high-precision motors, advanced core and cladding alignment technology, enabling rapid 6s splicing, 13s standard splicing, and 13s fast heating, with a fusion loss as low as 0.01 dB (MM).

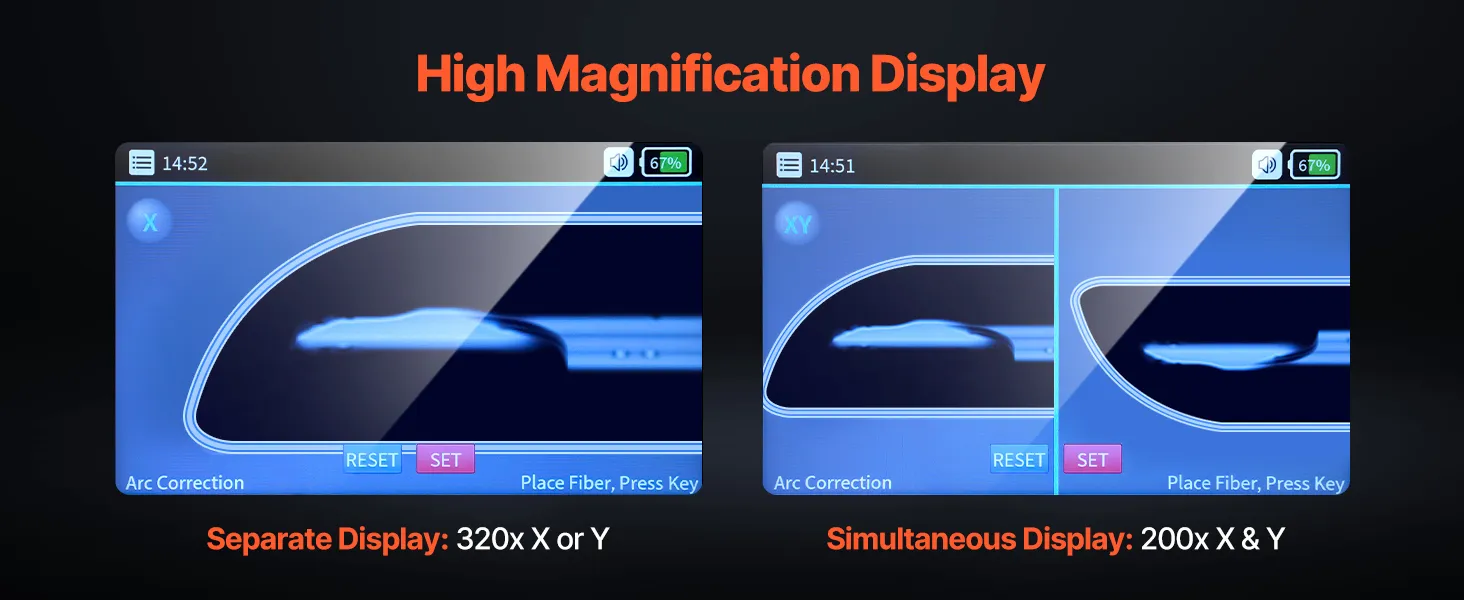

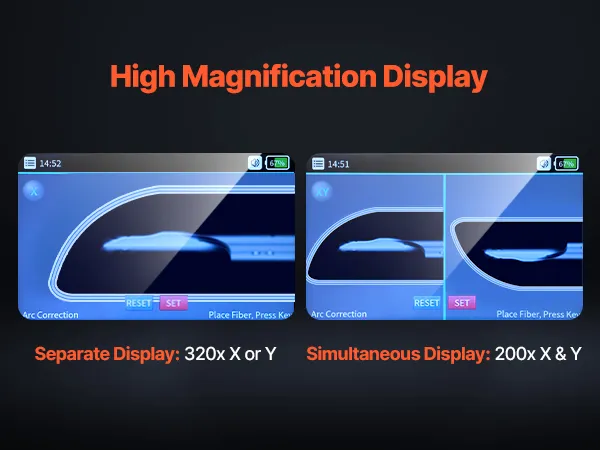

  • High-Definition Display: 5-inch digital LCD screen offers intuitive display and real-time monitoring of the splicing process. It offers an independent 320x X or Y display or simultaneous 200x X/Y display—ensuring clear and visible fiber cores.
  • User-Friendly Designs: Our fiber optic fusion splicer features a 3-in-1 fiber holder, compatible with SM, MM, DS, NZDS, pigtail fiber, bare fiber, patch cable, etc. And it also includes built-in VFL and OPM Function, effectively measuring connection losses, verifying continuity, and helping evaluate fiber link transmission quality.
  • Extended Operation Time: 7800mAh high-capacity rechargeable battery allows up to 260 continuous fusion splicing and heating cycles on a full charge, reducing the need for frequent recharging. Built with durable yet lightweight materials, it is compact, dustproof and shockproof, making it ideal for various working environments.
  • All-in-One Kit: Keep your accessories neatly organized with the portable case. The optical fusion splicer kit includes a fiber fusion splicer, fiber cleaver, fiber stripper, 3-hole miller pliers, alcohol bottle, air blower, cooling tray, 100pcs heat shrink tubes, brush, 50 pcs cotton swabs, 2pcs spare electrodes and other essential tools.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 4 reviews

See all 4 reviews

About this item

Product specification
Item Model Number
ALK-T8
Alignment Method
Core Alignment / Clad Alignment
Number of Motors
6
Screen Type
LCD Screen
Screen Size
5-inch
Splicing Time
9s (Fast); 13s (Standard)
Heating Time
13s
Battery Capacity
7800 mAh
Separate Display
320x X or Y
Simultaneous Display
200x X & Y
Fiber Holder
3-in-1
Net Weight
11.8 lbs / 5.34 kg
Product Size
7.9 x 5.7 x 5 inch / 200 x 144 x 128 mm
Description
Experience Fast, Reliable, and Efficient Fiber Splicing!
Equipped with core and clad alignment tech, 6 high-precision motors, 3-in-1 fiber holder, our fiber fusion splicer ensures fast splicing in just 6s and quick heating in 13s. With 5-inch LCD screen and low fusion loss, it delivers clear and stable connections, suitable for a wide range of fibers.

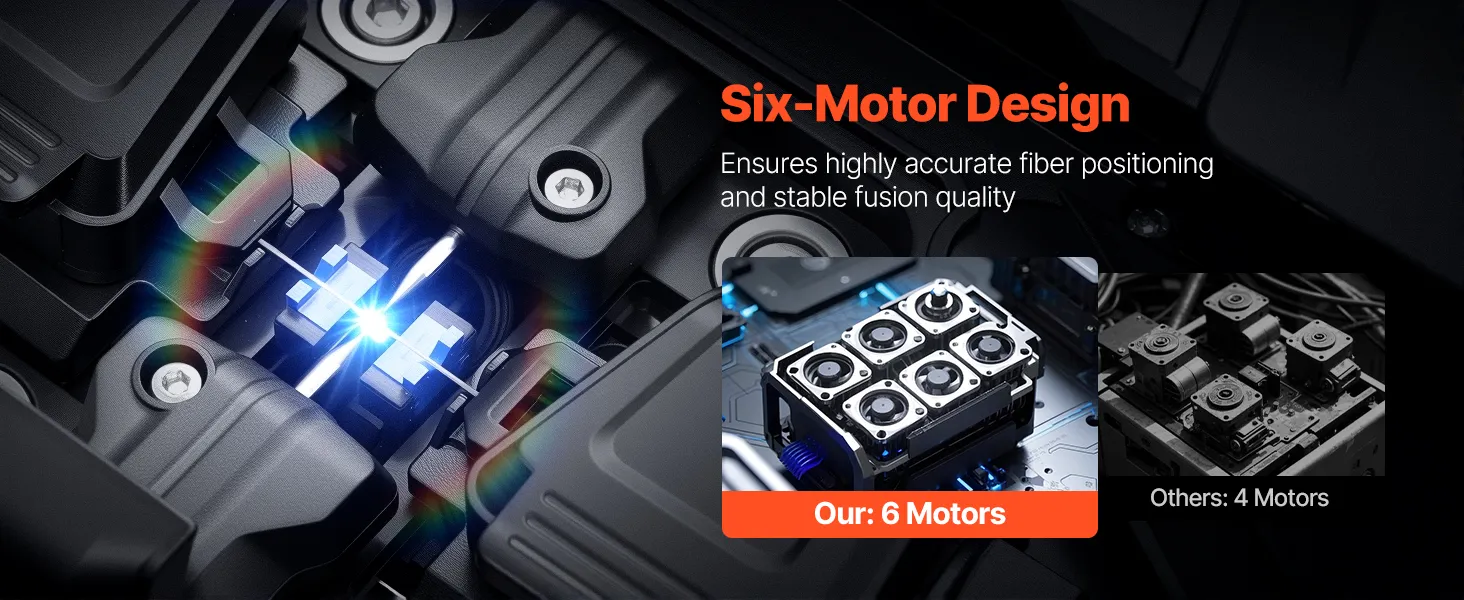

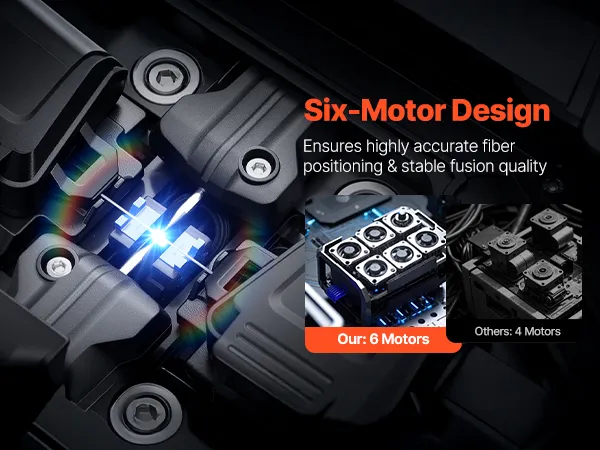

Our fiber optic splicer is equipped with 6 high-precision motors, ensuring highly accurate fiber positioning and stable fusion quality. Compared to standard 4-motor designs, our 6 motors deliver enhanced alignment accuracy, faster splicing speeds, and lower loss rates.
Featuring a 5-inch LCD screen with a user-friendly interface, this fiber optic fusion splicer offers clear and intuitive display to meet various needs, making it easy to monitor every detail throughout the splicing process.

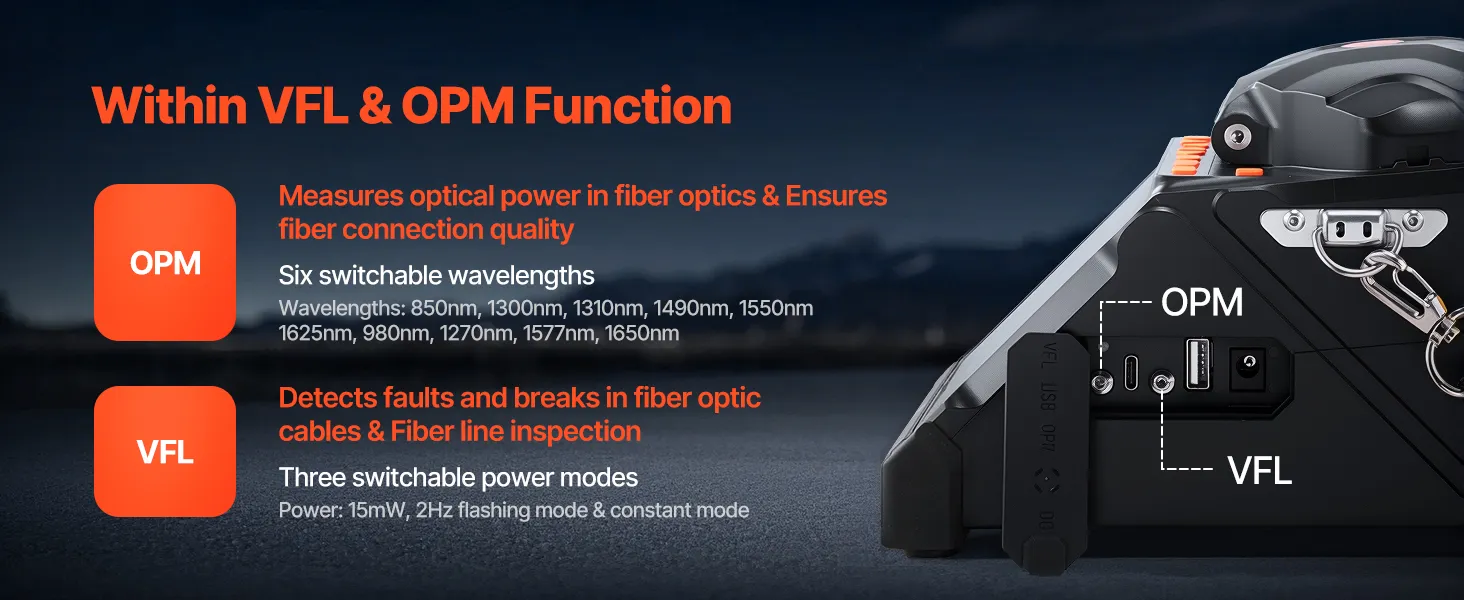

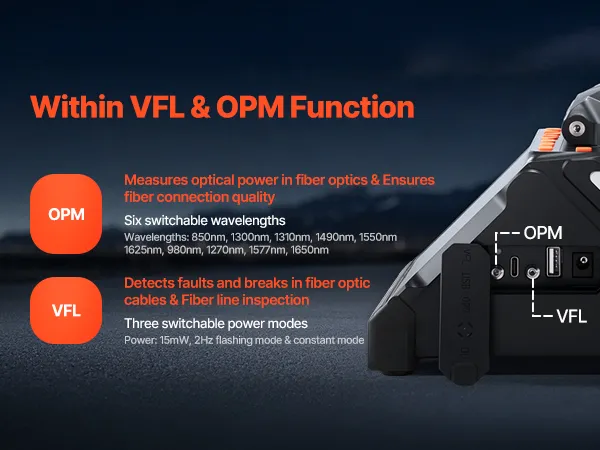

Our optical fusion splicer is equipped with VFL (Visual Fault Locator) for quick detection of fiber faults, breaks, and fiber line inspections. The OPM (Optical Power Meter) precisely measures optical power levels and ensures stable connection quality.

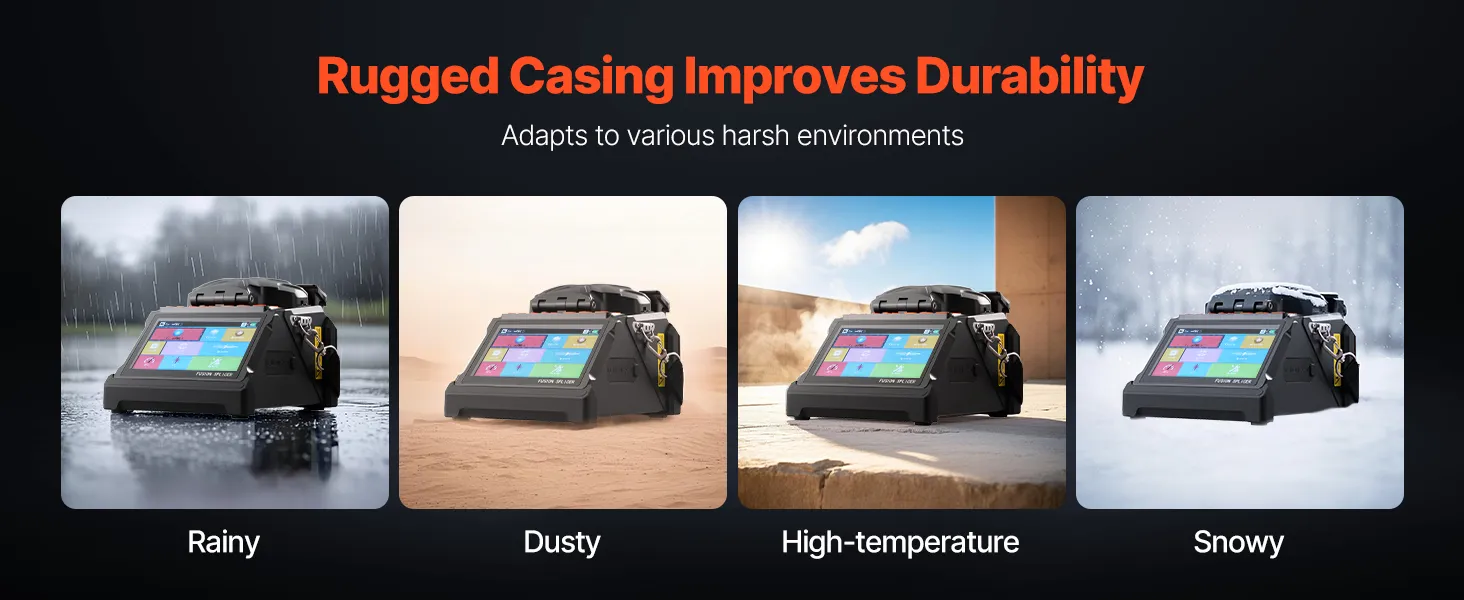

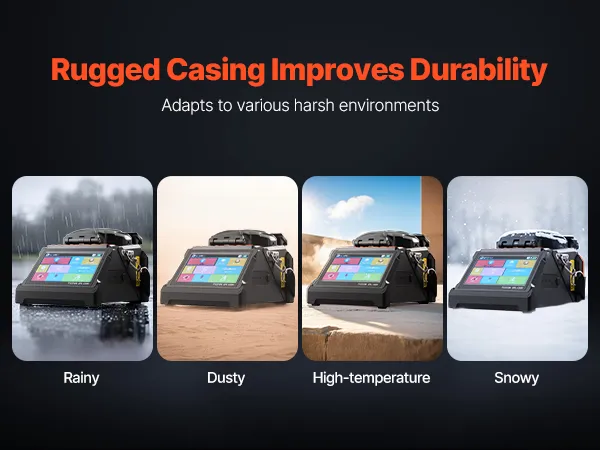

Built with sturdy material and casting, this core clad alignment fusion splicer ensures reliable performance in rainy, dusty, high-temperature, and snowy conditions, making it ideal for challenging outdoor applications.
