Features & Details
- Stable and Stellar Performance: Electrical Connection: AC 220V/50Hz; Wire cross-section: 0.1-8 mm²; Wire Length Range: 1-100,000 mm; Cutting Tolerance: ±(0.002*L) mm. The wire stripper machine is great for you, who may have a lot of wire to strip. With an LCD on the top, you can set values to get precise and fast cuttings.
- Optional Stripping Degree: Wire can be fully or partially stripped, or even stripped in the middle, as you wish, for the easier pressure welding process and multipole connection.
- Simple Operation: The electric wire stripping machine features a microcomputer designed to take steps of the stripping process as programmed. It saves you plenty of time you might spend on trifles. You need to set the numbers, and then it takes over.
- Tidy the Mess Up: It is equipped with a wire straightener, setting the wire in order before slipping it into the inlet.
- Wide Application: The scrap wire stripping machine is the perfect choice to deal with wires of various types, including PVC, Teflon, silicone cables, glass fibers, etc. And it is widely used in the electronics industry, electrical industry, motors industry, and so on.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 5.0
All reviews are from verified purchases
See all 1 reviews
About this item
Product specification
- Model
- SWT508-JE
- Power
- AC 220V, 50 Hz
- Wattage
- 300W
- Cutting Length
- 1-100,000 mm
- Cutting Tolerance
- ±(0.002*L) mm
- Stripping Length
- Thrum 0-50; Wire Ends 0-50 mm
- Middle Strip Cut
- Eleven Place Strip
- Cutting Wire Core Section
- 0.1-8 mm²
- Max. Duct Diameter
- 8 mm
- Blade Material
- Hard Tungsten Steel
- Peeling Capacity (a/hour)
- L=100 mm, 4000-5000 PCS/h
- Certification
- CE
- Gross Weight
- 70.55 lb (32 kg)
Description

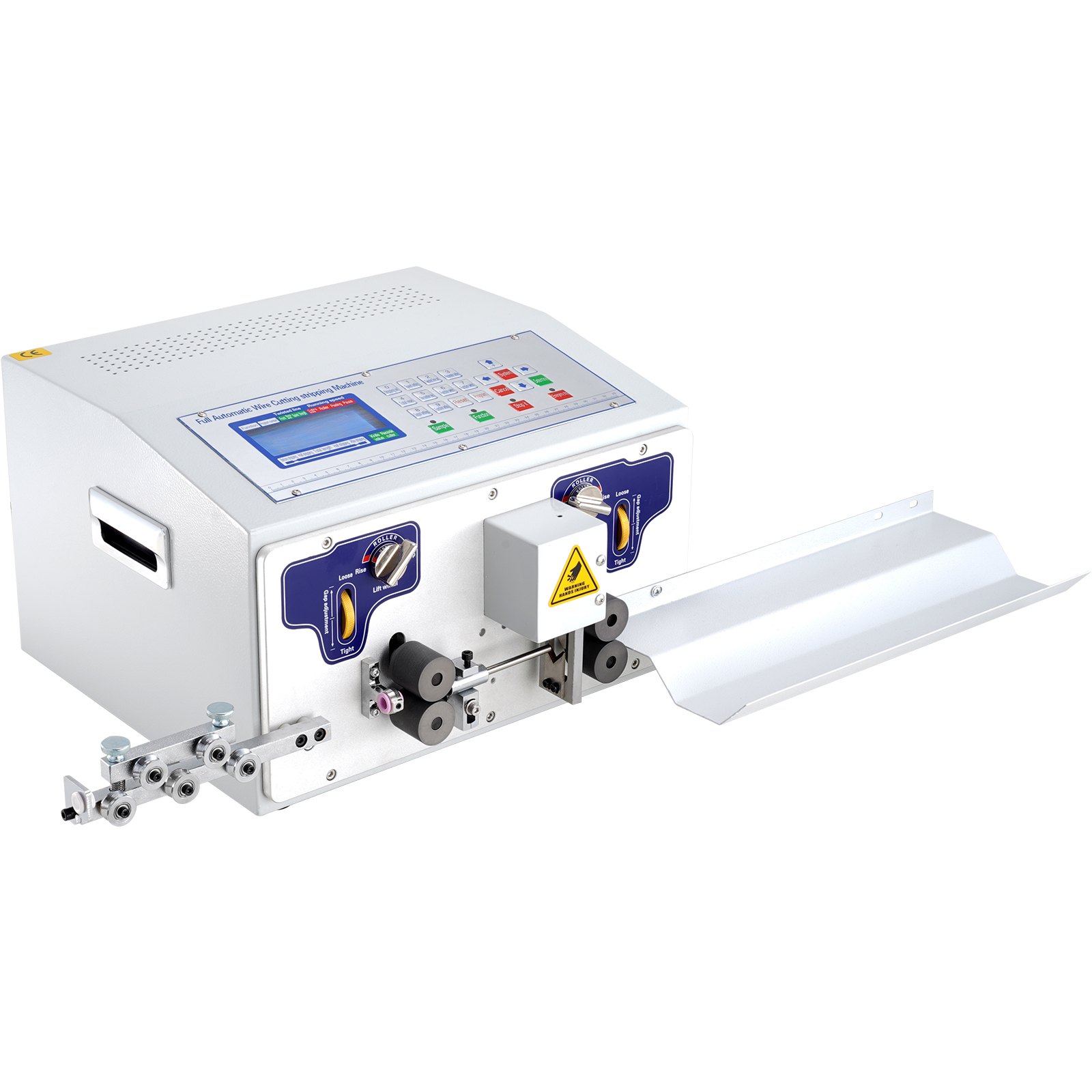

Automatic Wire Stripping Machine
300W & Hard Tungsten Steel Blade & CE Listed
If you need to strip a lot of wire or you do so regularly, the SWT508-JE automatic machine with maximum cross-sections of 8 mm², cutting length of 100,000 mm, head-stripping length of 50 mm and tail-stripping length of 50 mm will save you a lot of time and make the process much more lucrative.
- Stable and Stellar Performance
- Optional Stripping Degree
- Simple Operation
- Tidy the Mess Up

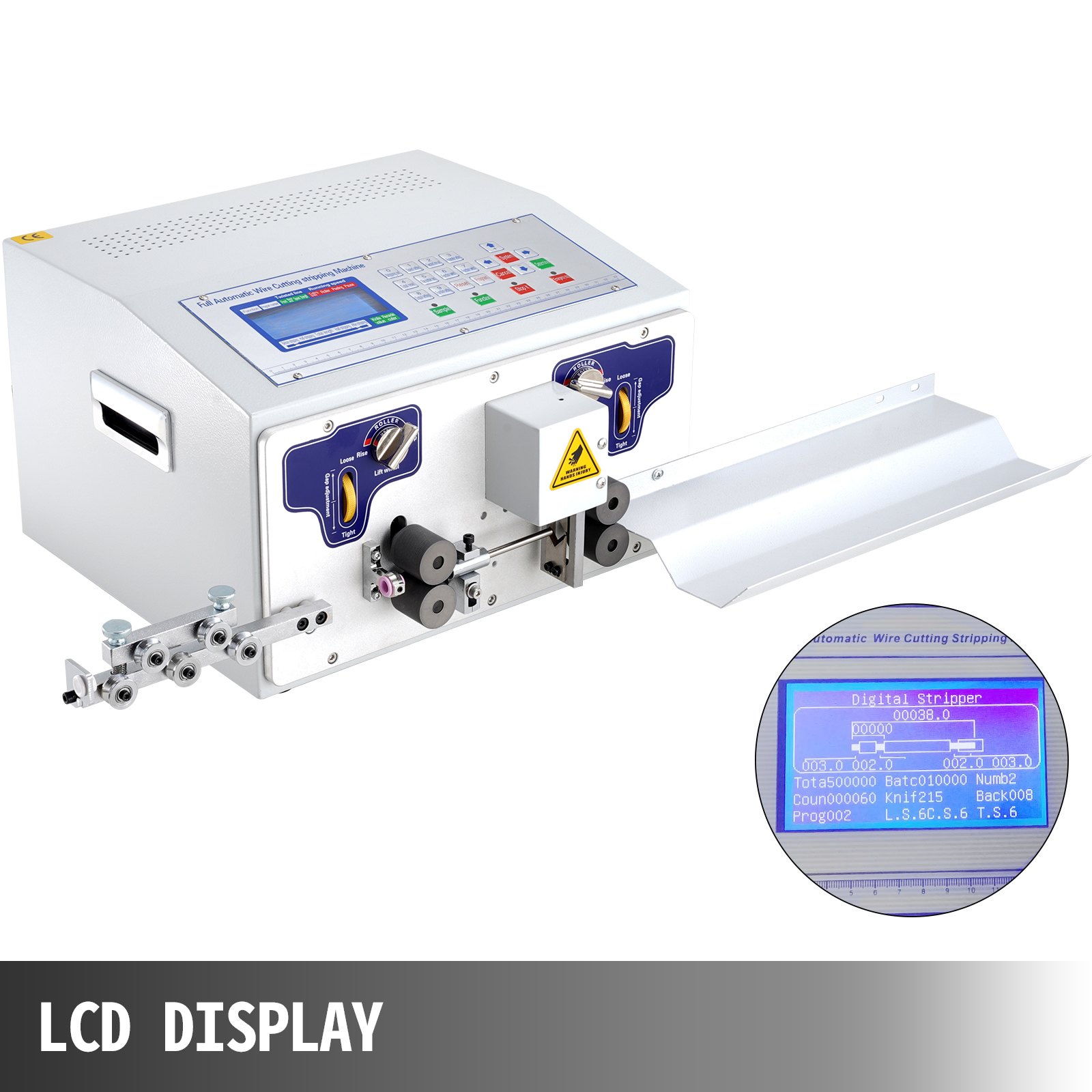

LCD Screen
An LCD is embedded on the top of the cable stripping machine, giving the maximum transparency thanks to simple adjustment settings for important parameters.

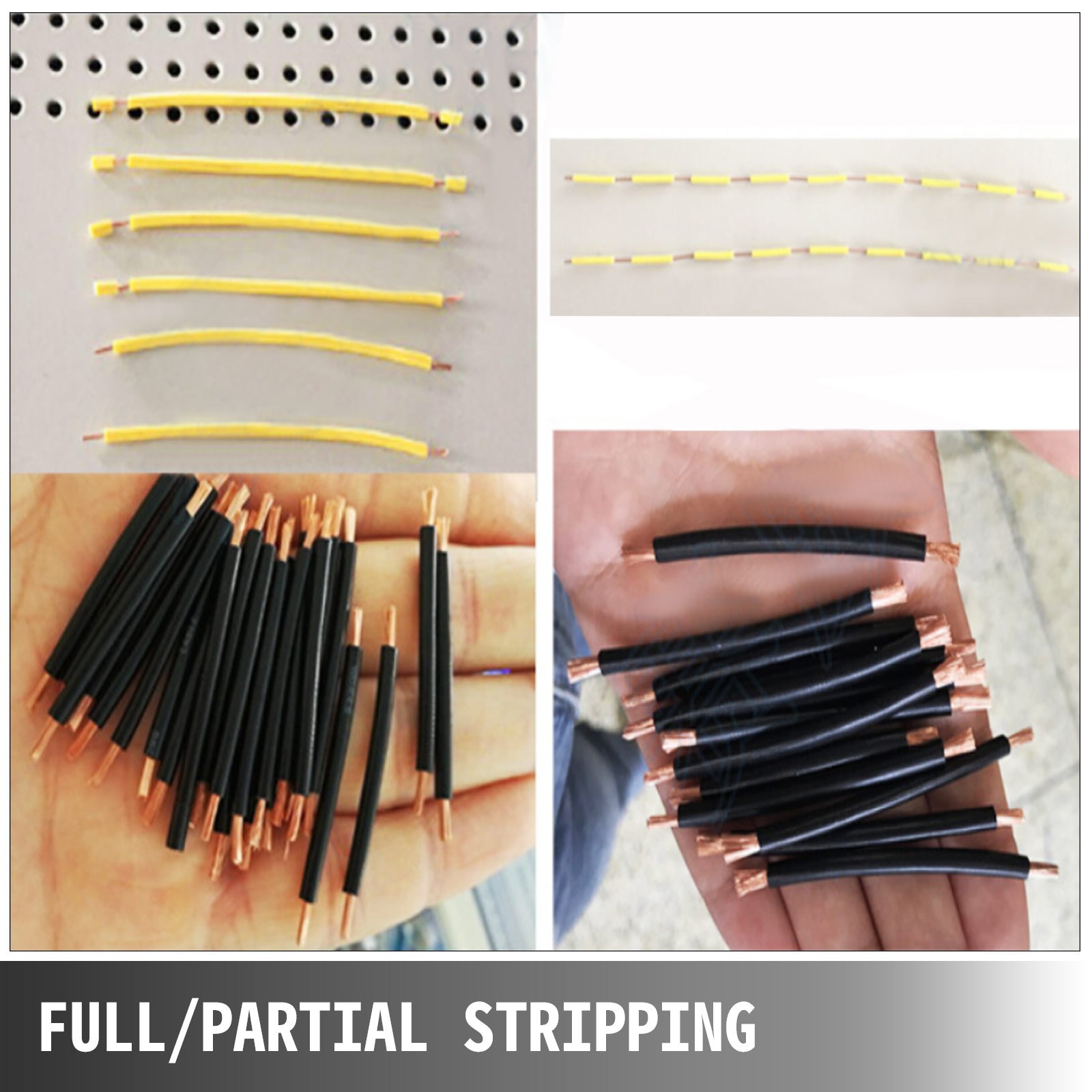

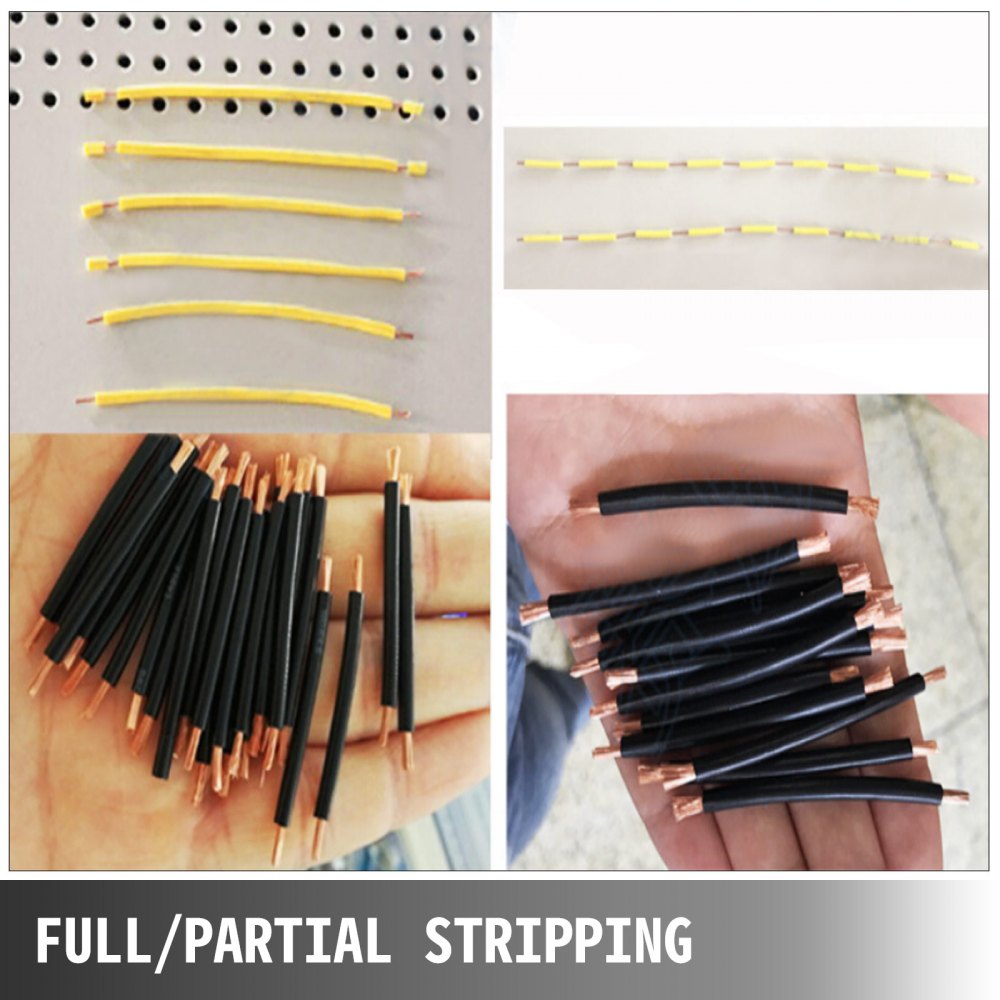

Full/Partial Stripping
The automatic wire stripping machine can fully or partially cut the ends of coatings or sections in the middle. That helps if you want to weld the wire to terminals.

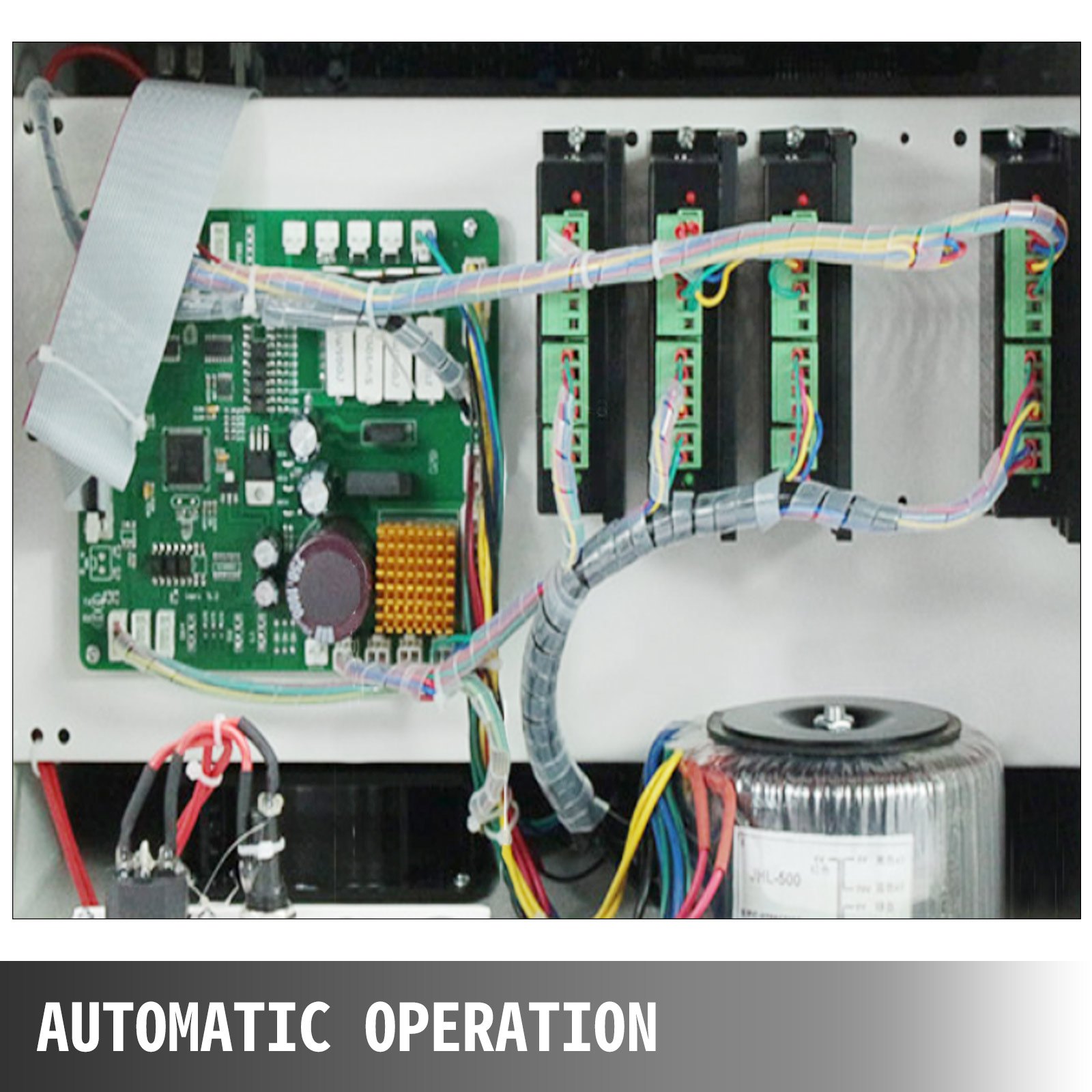

Automatic Operation
The copper wire stripping machine runs under the control of a micro-computer, which bears higher precision and speed than manual labor.

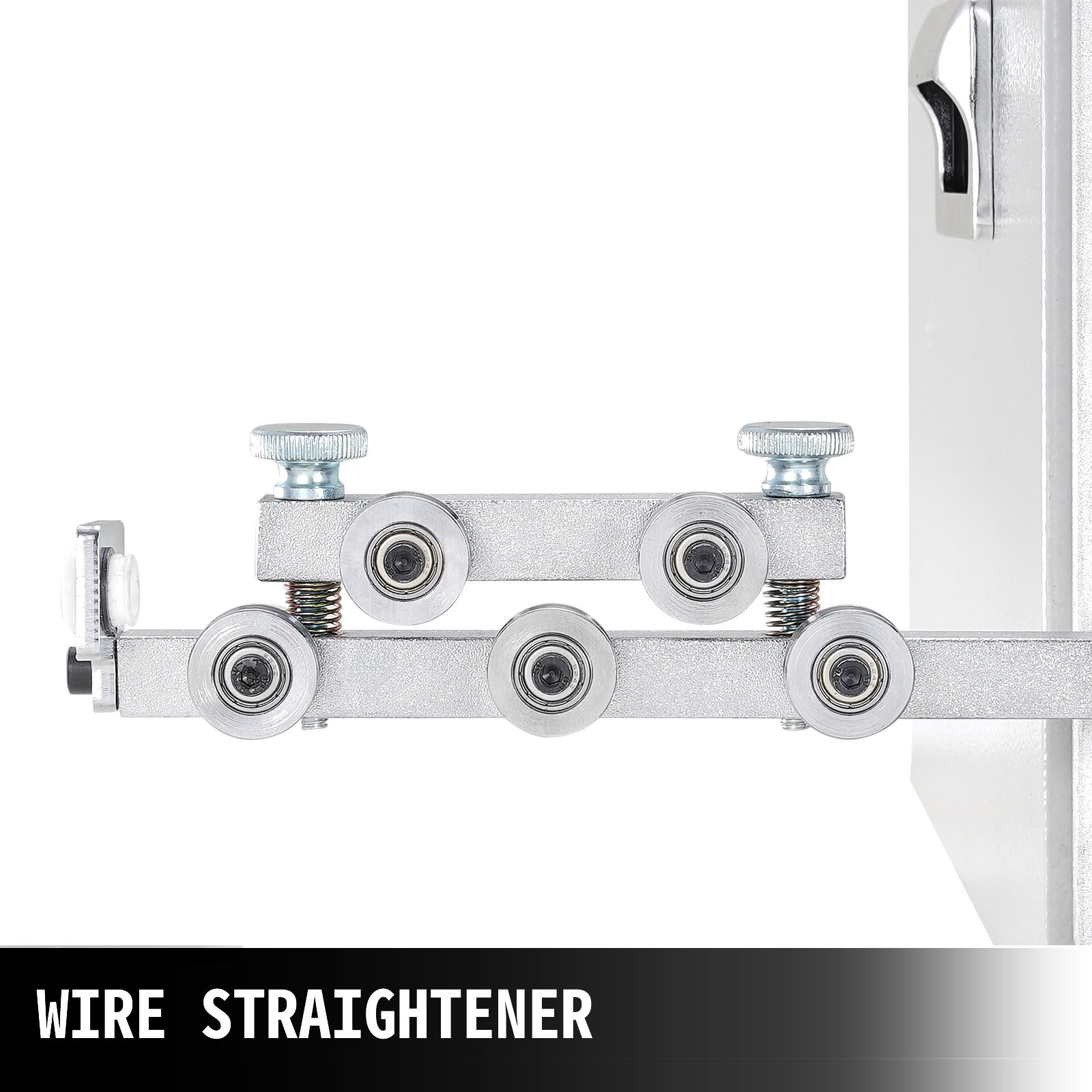

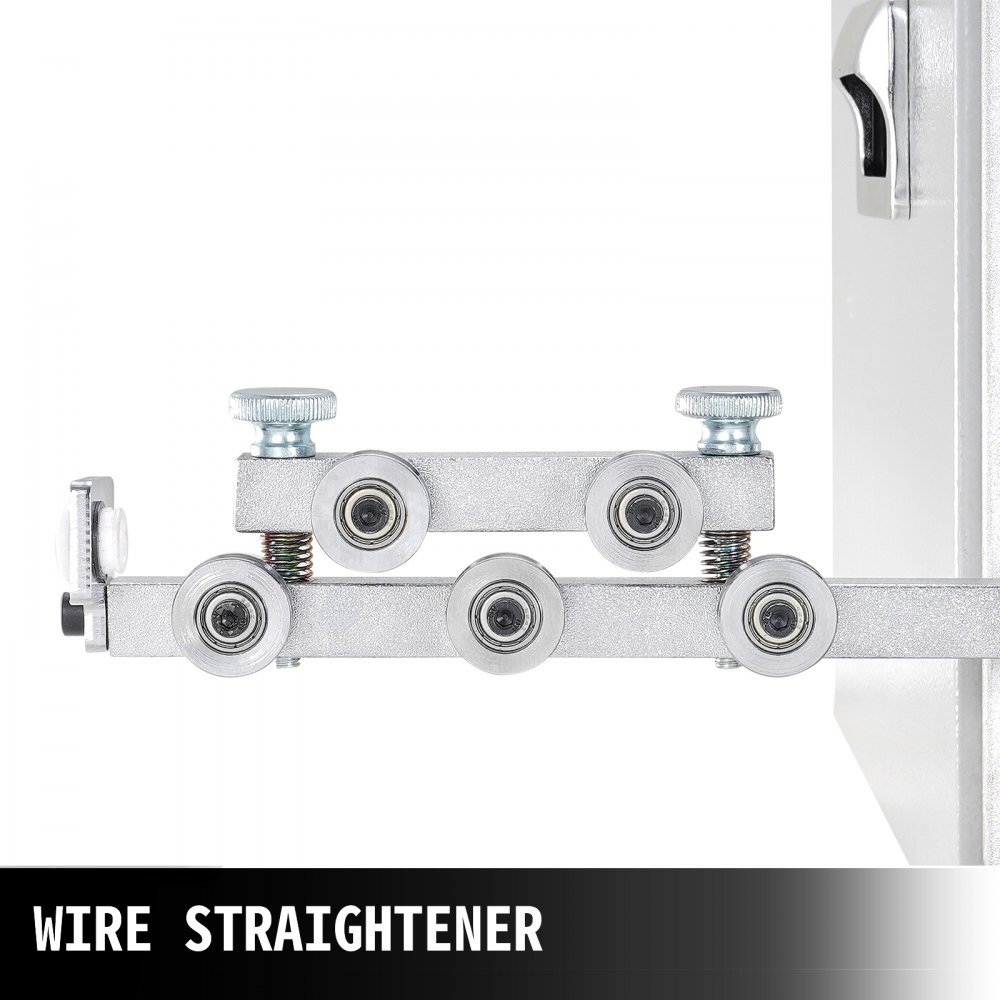

Wire Straightener
The scrap wire stripping tool works more smoothly with a straightener that set the wire in order before it is fed into the inlet.

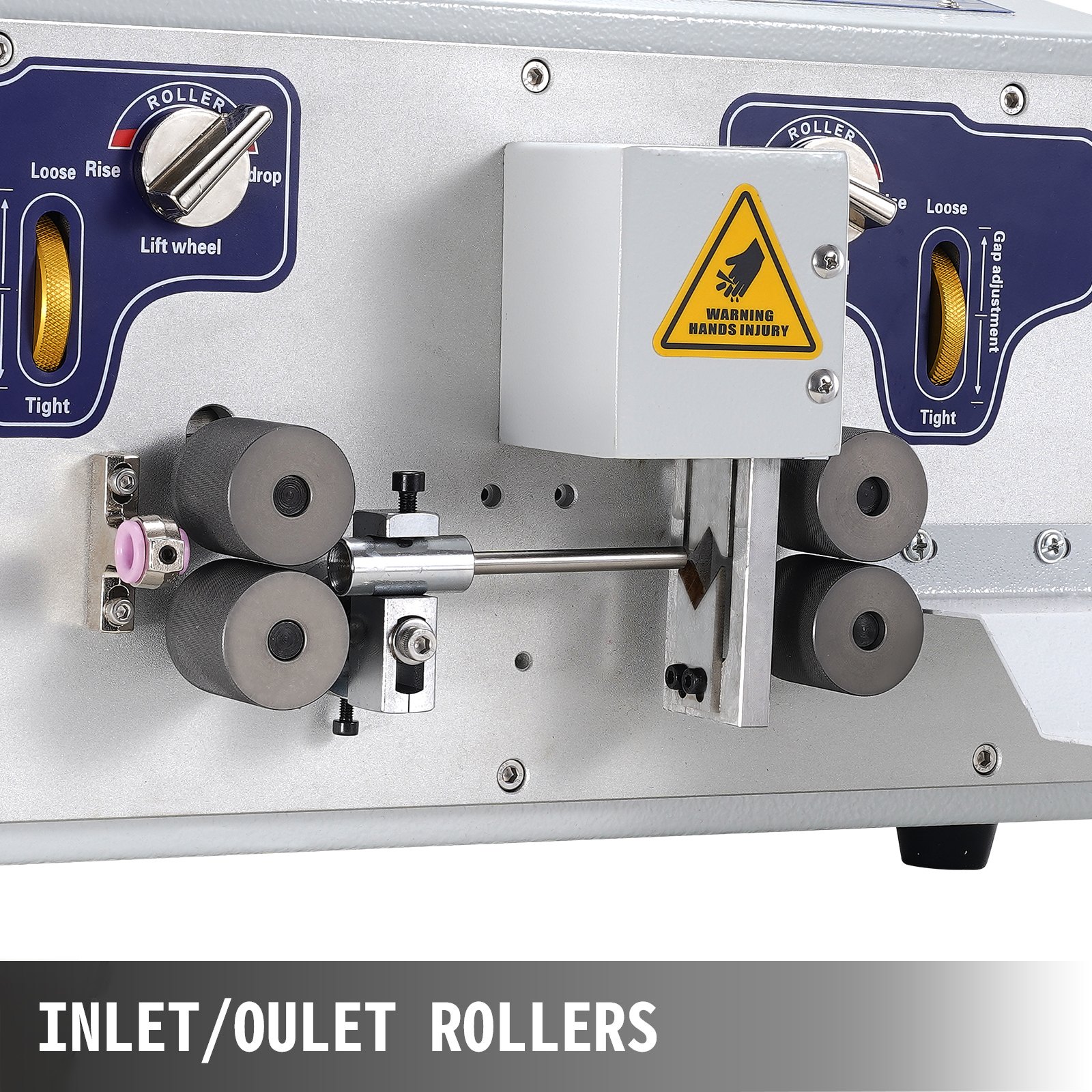

Inlet/Outlet Rollers
The electric wire stripping tool features an inlet roller and an outlet one. You can adjust their pressure by turning the orange switches beyond them account for wires of different materials.

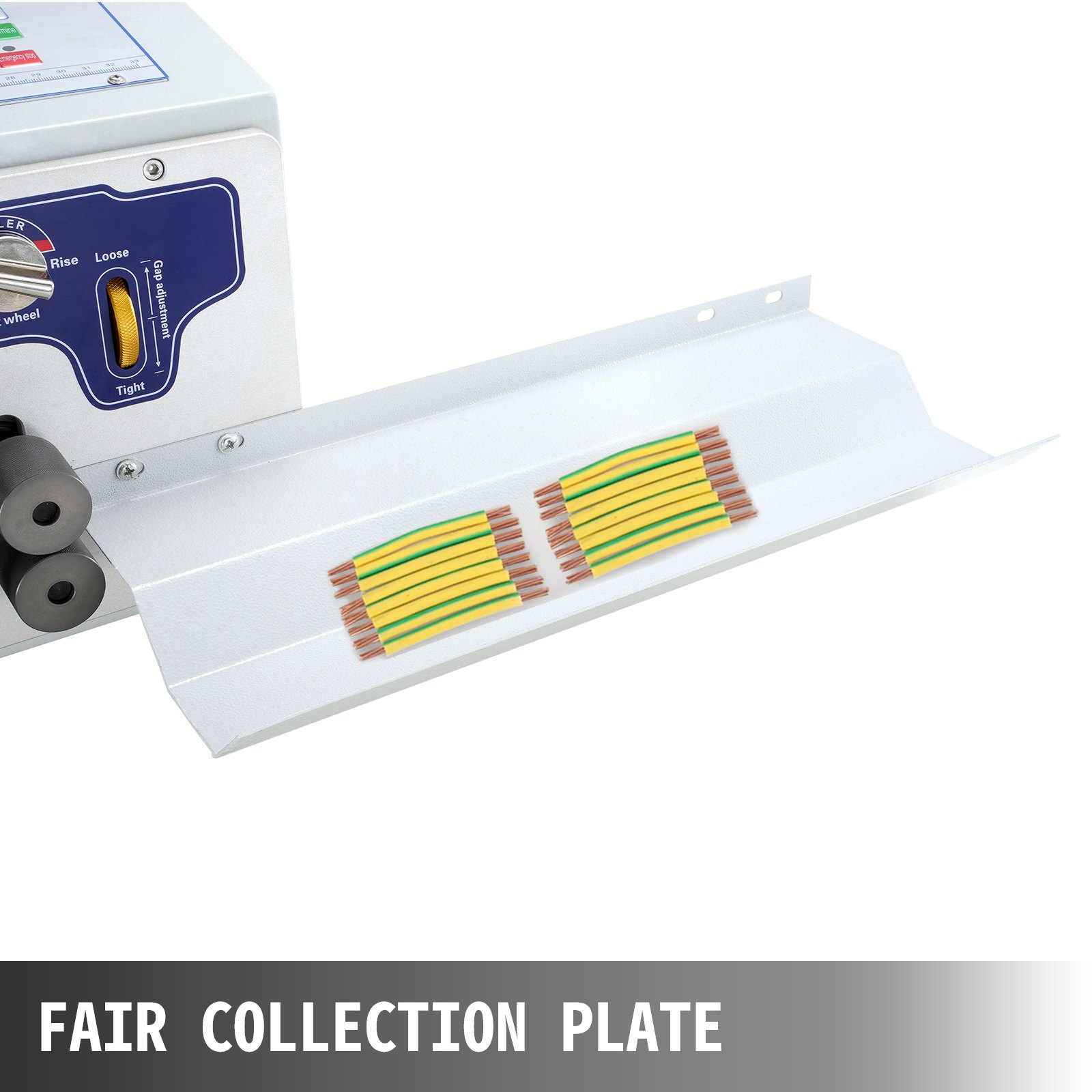

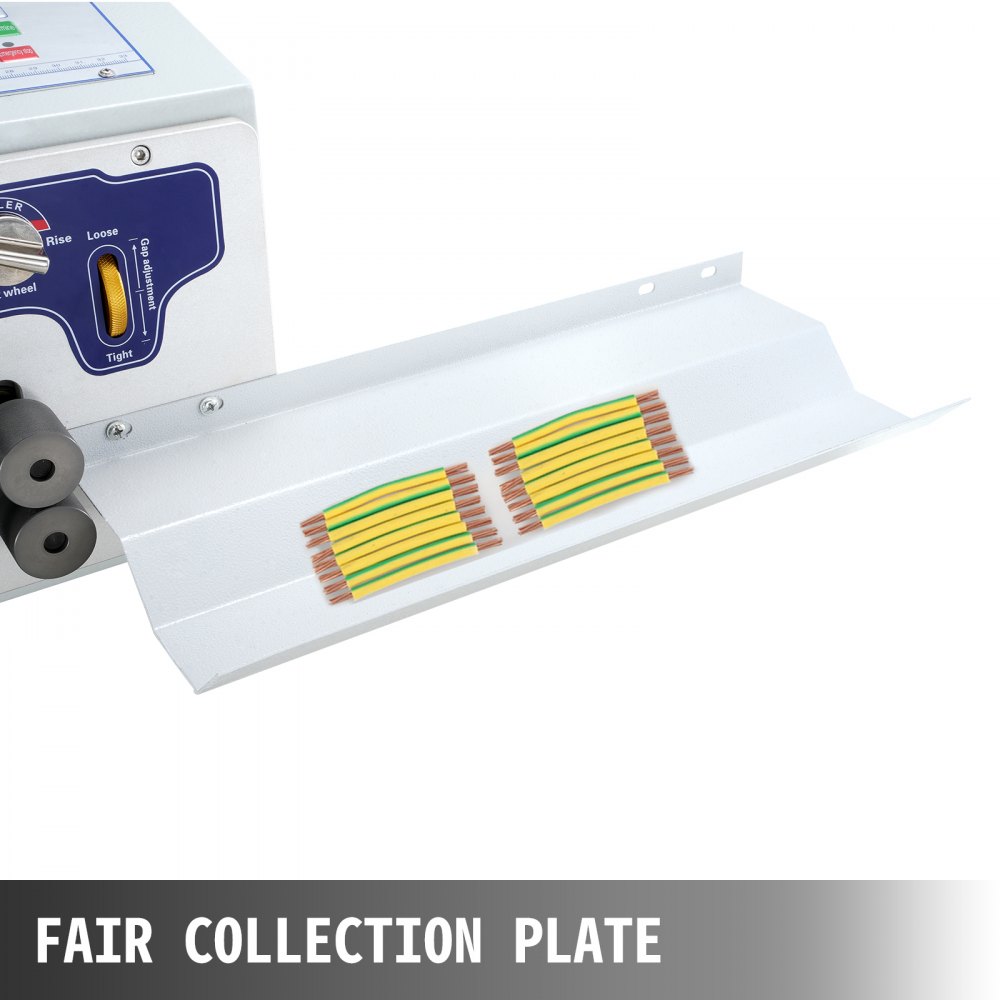

Fair Collection Plate
The electrical wire stripper comes with a fair collection plate. Instead of getting segments all over your workbench, the stripping machine can pour directly into the plate.
- Model: SWT508-JE
- Power: AC 220V, 50 Hz
- Wattage: 300W
- Cutting Length: 1-100,000 mm
- Cutting Tolerance: ±(0.002*L) mm
- Stripping Length: Thrum 0-50; Wire Ends 0-50 mm
- Middle Strip Cut: Eleven Place Strip
- Cutting Wire Core Section: 0.1-8 mm²
- Max. Duct Diameter: 8 mm
- Blade Material: Hard Tungsten Steel
- Peeling Capacity (a/hour) : L=100 mm, 4000-5000 PCS/h
- Certification: CE
- Gross Weight: 70.55 lb (32 kg)

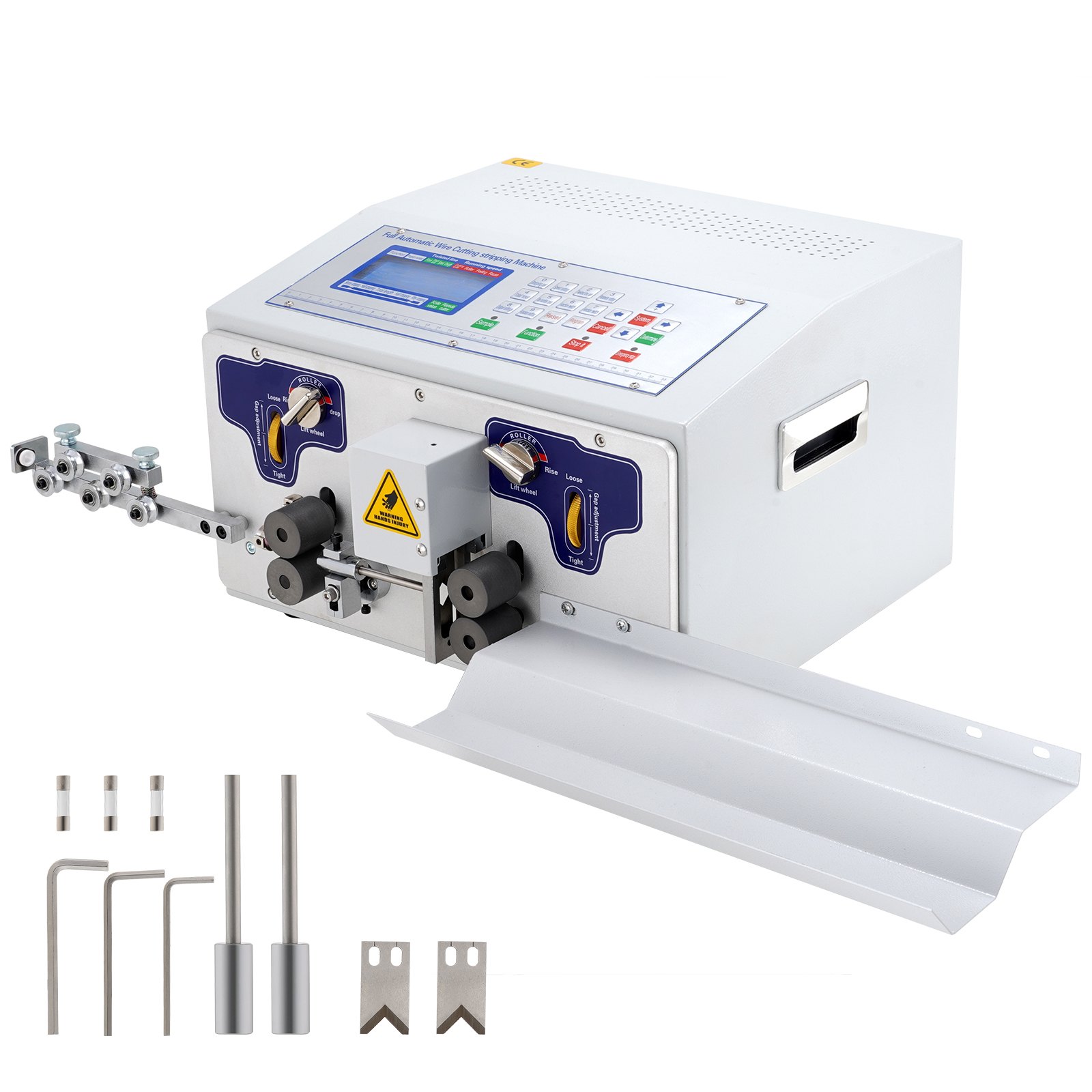

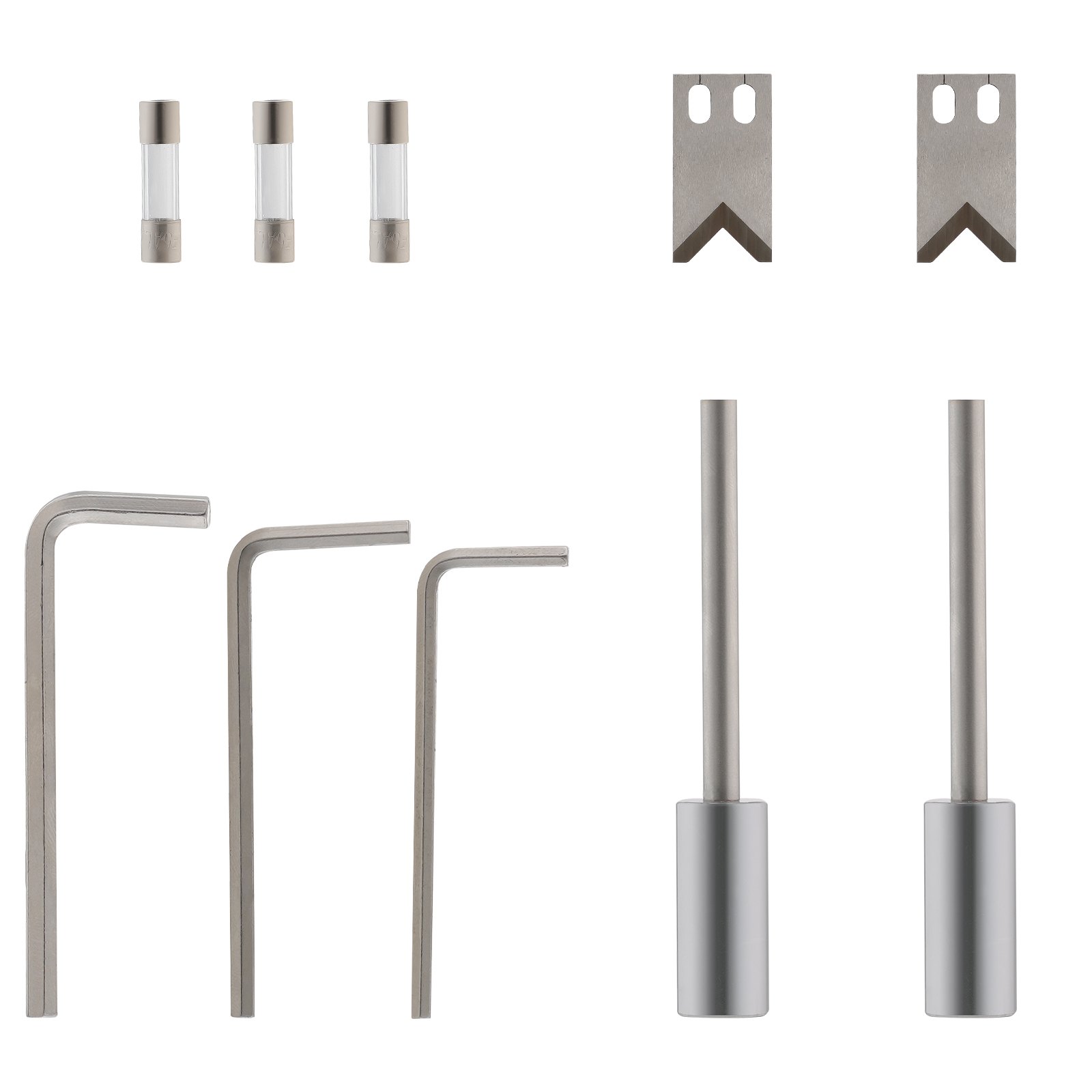

- 1 x Wire Stripping Machine
- 1 x Wire Straightener
- 1 x Collection Plate
- 2 x Blades
- 1 x Manual
Automatic Wire Stripping Machine
300W & Hard Tungsten Steel Blade & CE Listed
If you need to strip a lot of wire or you do so regularly, the SWT508-JE automatic machine with maximum cross-sections of 8 mm², cutting length of 100,000 mm, head-stripping length of 50 mm and tail-stripping length of 50 mm will save you a lot of time and make the process much more lucrative.
- Stable and Stellar Performance
- Optional Stripping Degree
- Simple Operation
- Tidy the Mess Up
LCD Screen
An LCD is embedded on the top of the cable stripping machine, giving the maximum transparency thanks to simple adjustment settings for important parameters.
Full/Partial Stripping
The automatic wire stripping machine can fully or partially cut the ends of coatings or sections in the middle. That helps if you want to weld the wire to terminals.
Automatic Operation
The copper wire stripping machine runs under the control of a micro-computer, which bears higher precision and speed than manual labor.
Wire Straightener
The scrap wire stripping tool works more smoothly with a straightener that set the wire in order before it is fed into the inlet.
Inlet/Outlet Rollers
The electric wire stripping tool features an inlet roller and an outlet one. You can adjust their pressure by turning the orange switches beyond them account for wires of different materials.
Fair Collection Plate
The electrical wire stripper comes with a fair collection plate. Instead of getting segments all over your workbench, the stripping machine can pour directly into the plate.
- 1 x Wire Stripping Machine
- 1 x Wire Straightener
- 1 x Collection Plate
- 2 x Blades
- 1 x Manual
- Model: SWT508-JE
- Power: AC 220V, 50 Hz
- Wattage: 300W
- Cutting Length: 1-100,000 mm
- Cutting Tolerance: ±(0.002*L) mm
- Stripping Length: Thrum 0-50; Wire Ends 0-50 mm
- Middle Strip Cut: Eleven Place Strip
- Cutting Wire Core Section: 0.1-8 mm²
- Max. Duct Diameter: 8 mm
- Blade Material: Hard Tungsten Steel
- Peeling Capacity (a/hour) : L=100 mm, 4000-5000 PCS/h
- Certification: CE
- Gross Weight: 70.55 lb (32 kg)
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (4)
Kan deze machine ook platte (telefoon) kabel strippen ?
Nee, dat kan niet.
By vevor
Helpful
(
0
)
Zijn er voor de stripmachine SWT 508-JE losse messen en andere onderdelen bij te bestellen.
Zo ja, wat is het art.nr. van een set messen en wat is de prijs daarvan.
Sorry, we verkopen geen extra onderdelen. Deze moeten lokaal worden gekocht.
By vevor
Helpful
(
0
)
Kan je ook alleen lengtes draad afknippen zonder strippen?
Ja, het kan zo zijn.
By vevor
Helpful
(
0
)
hebben jullie ook automatische kabelstripmachines voor meerdere aders
We hebben dit product momenteel niet.
By vevor
Helpful
(
0
)
