Features & Details

• 【TRUSTED PERFORMANCE】- 28-inch cutting plotter enjoys a good reputation for its robust performance. The maximum paper feed: 28.3" / 720 mm, the maximum cutting width: 24.8" / 630 mm, cutter pressure: 10-500g, cutting speed: 10-800 mm/s, memory: 2MB, repetition accuracy: 0.0004" / 0.01 mm.
• 【HIGH COMPATIBILITY】- The vinyl printer is available with COMPIM and USB interface for easier connection. The machine supports DM/PL, HP/GL language. System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32 & 64). Not compatible with the Mac system.

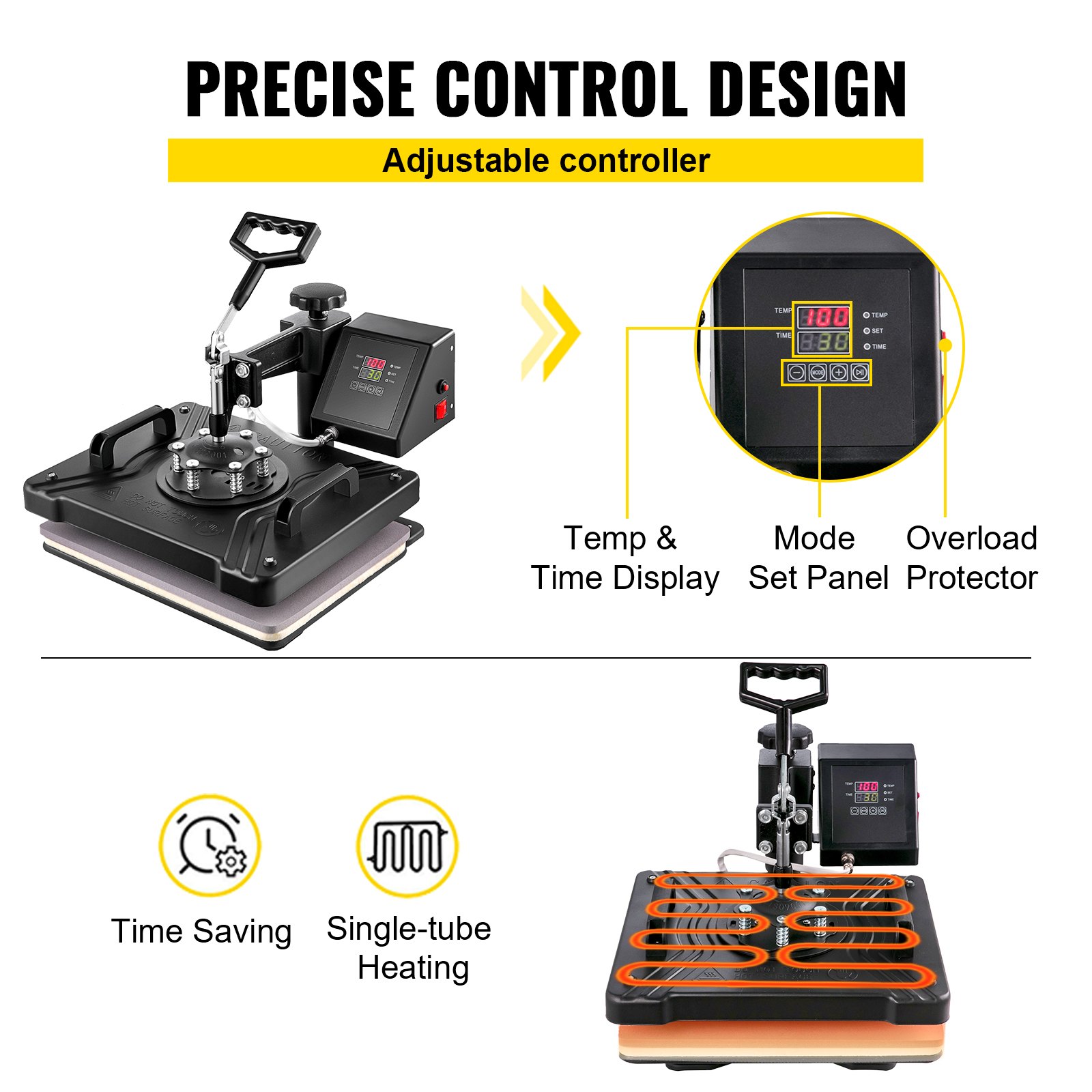

• 【DIGITAL CONTROL OF BOTH】- For vinyl cutter plotter: illuminated LCD screen and large control panel to adjust cutting pressure from 10 to 500g, and cutting speed 10-800 mm/s. For cap press: LCD screen display with easy-to-operate buttons makes it simple to set desired parameters as needed. It is equipped with an audible alarm, which reminds the heat press of stopping heating.

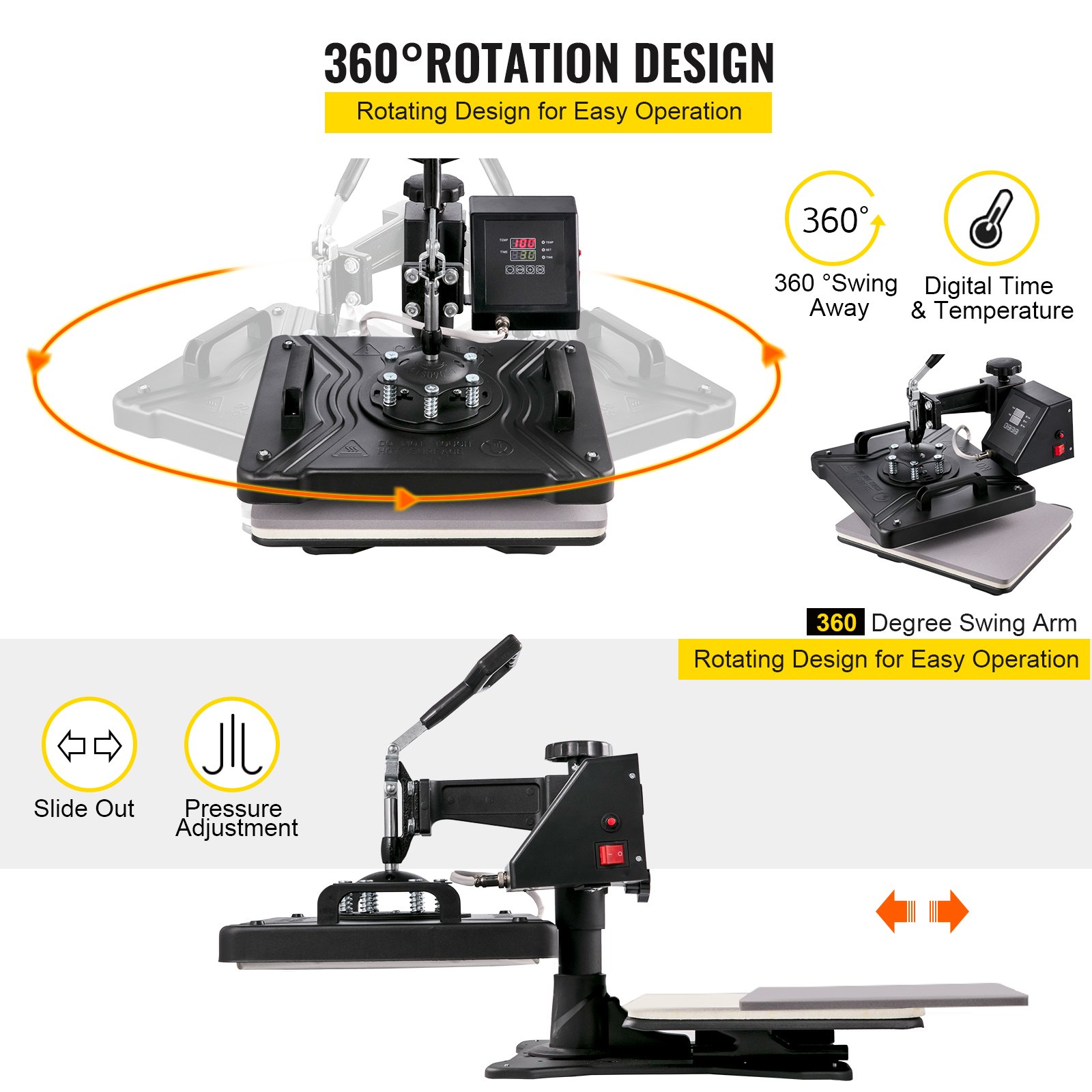

• 【360°SWING AWAY FEATURE】- The heat press’s swing arm is fully rotated 360 degrees, allowing the heating element to move to the side, reducing the chance of accidental contact. Making the pressure to be applied directly & evenly downwards enhances the quality of transfer further.

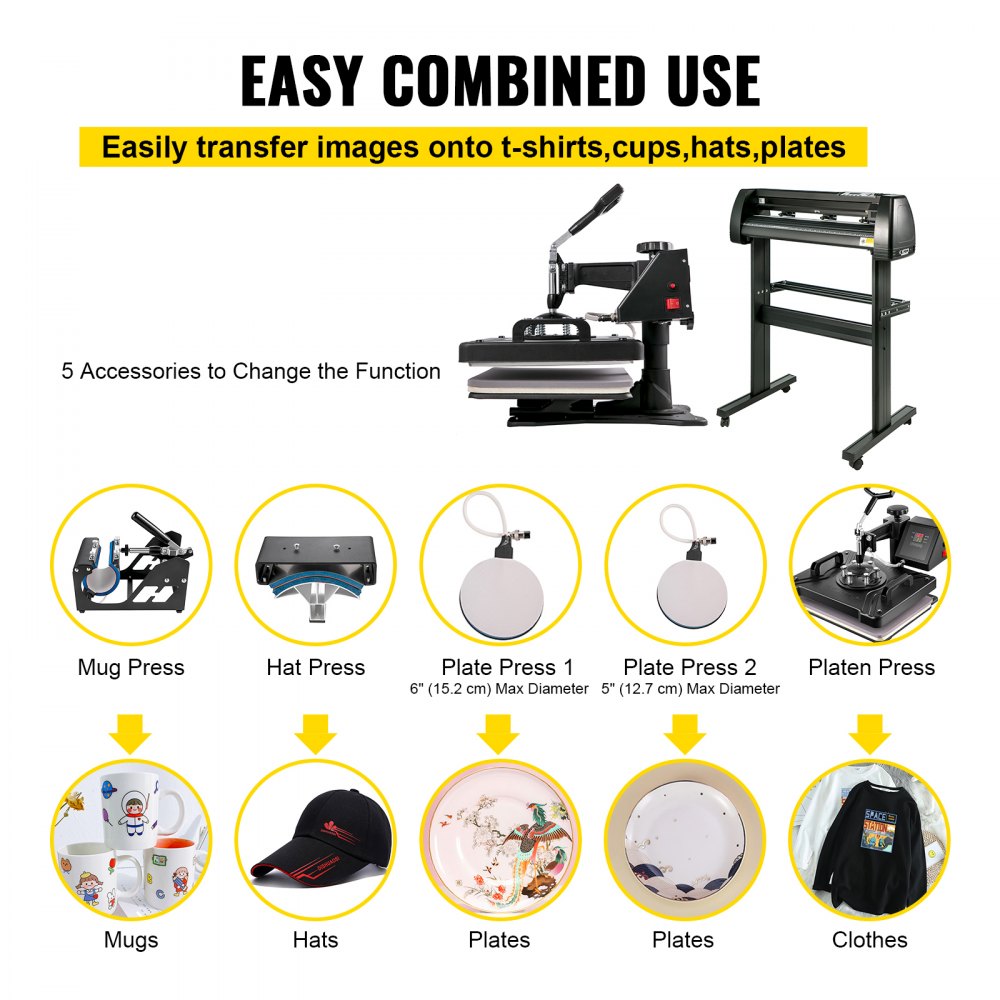

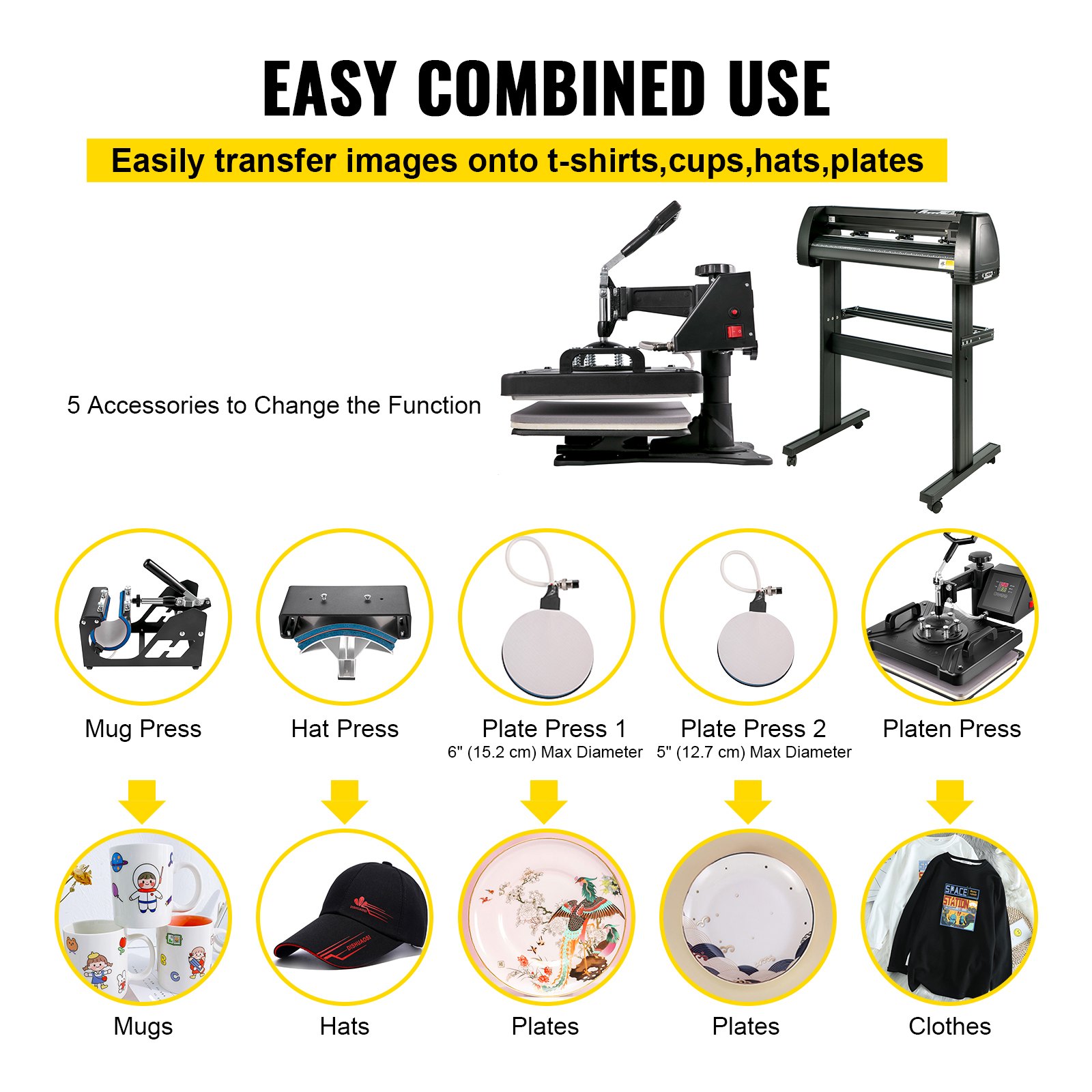

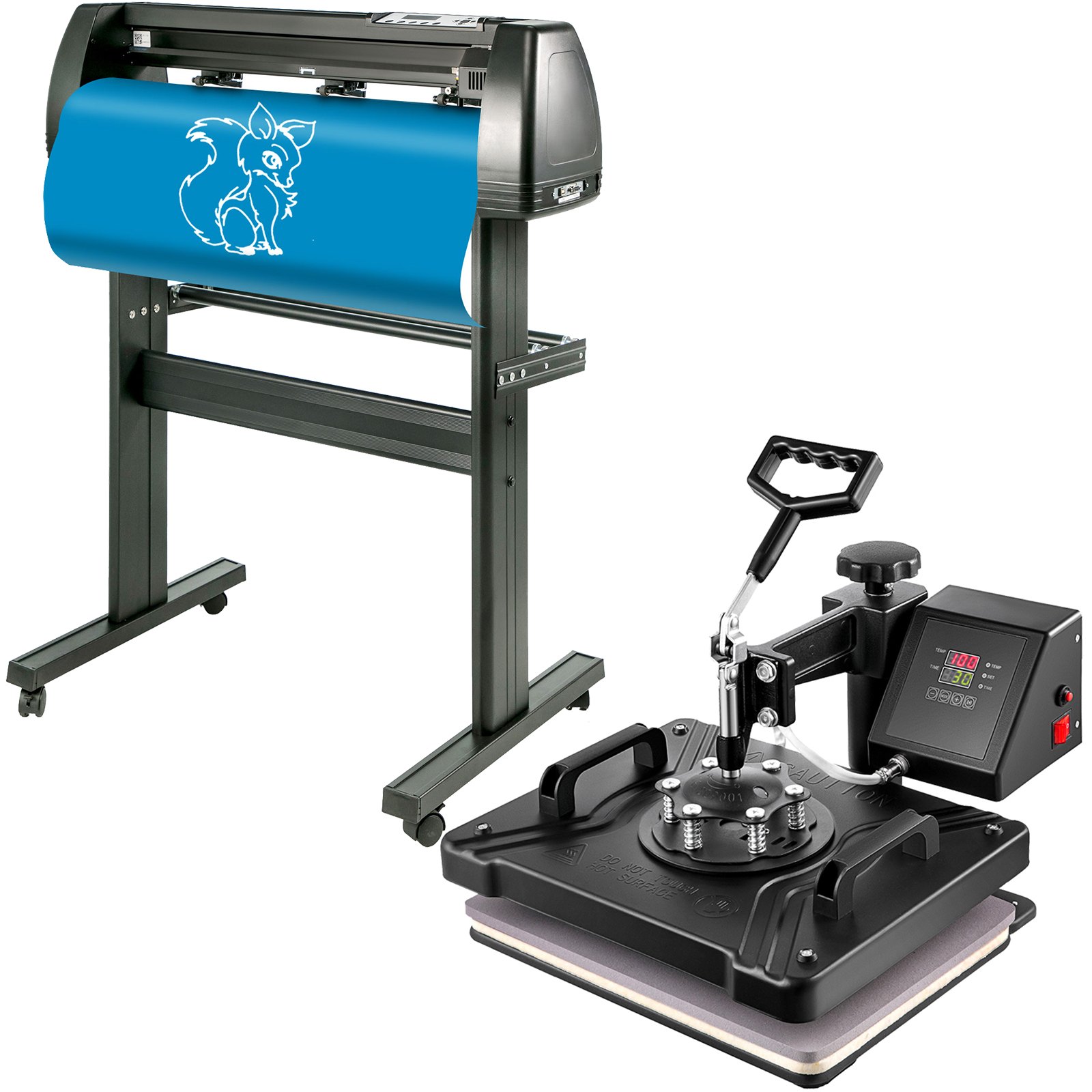

• 【GOOD COMBINED USE】- You can make the most out of the vinyl cutter & heat press to enjoy creating and transferring professional customized designs and signs, giving you the ability to use your fonts, import custom artwork, and draw your shapes on various products.

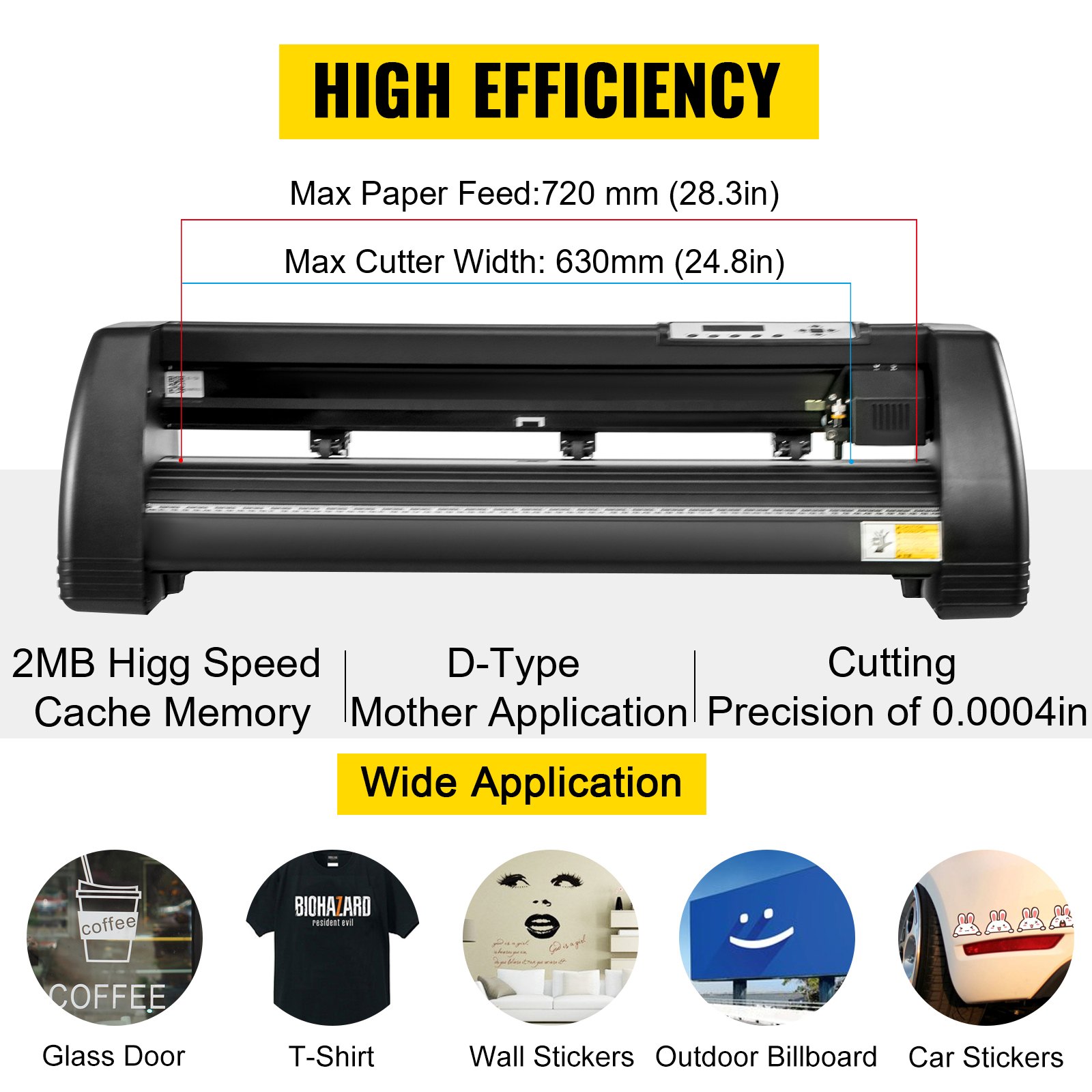

Feeding and Cutting Capacity

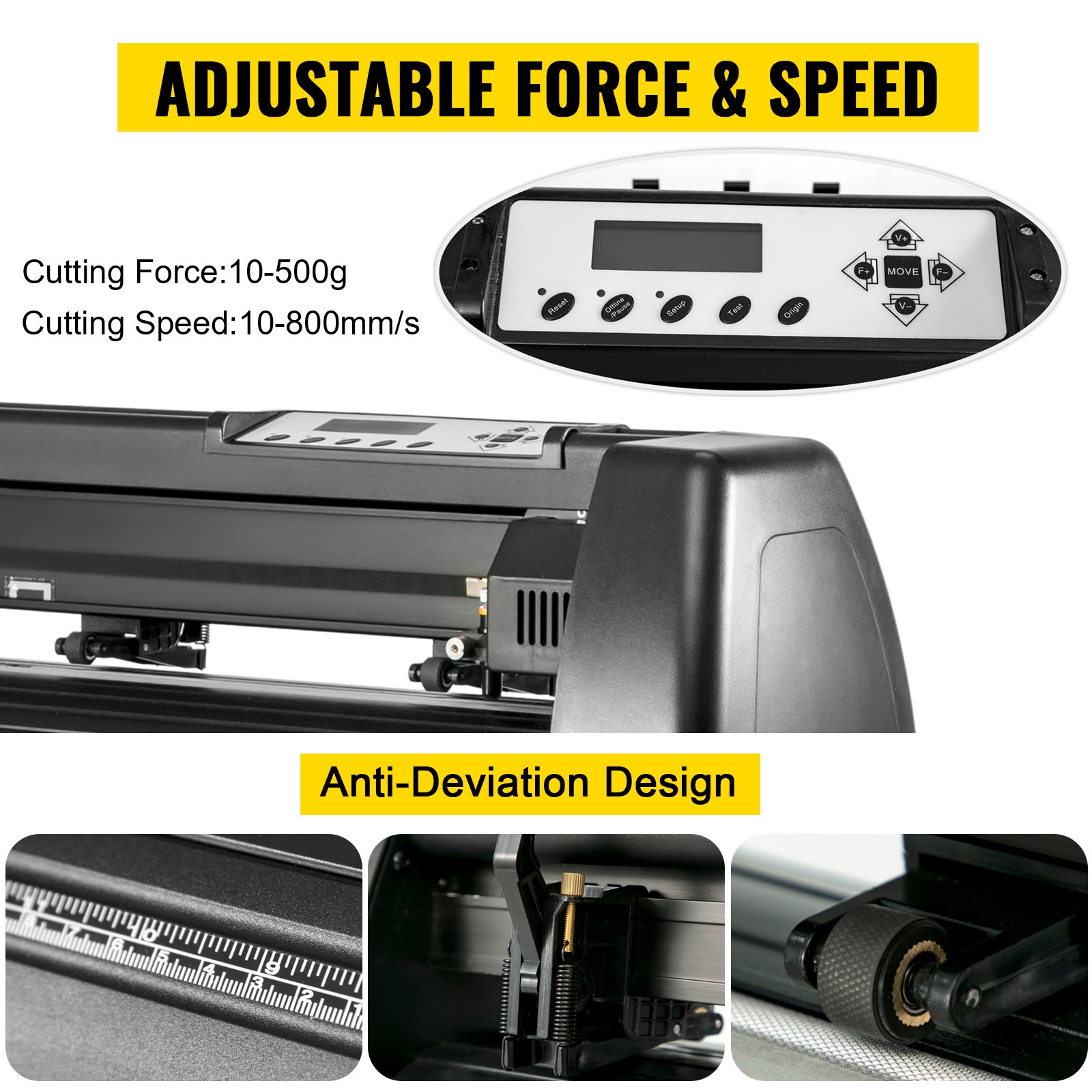

• Professional vinyl cutting plotter. Maximum paper feeding capacity: 720 mm (28.3 inch). Maximum actual cutting width: 630 mm (24.8 inch). Advanced design allows adjustment of cutting force and speed while working.

Large 12" x 15" Transfer Element

• Heat platen provides a big surface to transfer onto flat surfaced items such as T-shirts, ceramic plates, mouse pads, jigsaw puzzles etc. 4/5" thick heating board with built-in structural support to maintain flatness. Warms up quickly and offers even heating.

Signmaster Software

• Extremely easy-to-use program with endless possibilities allows you to cut virtually any shape or design with your cutting machine. Gives you the ability to use your fonts, import custom artwork, and draw on your own shapes!

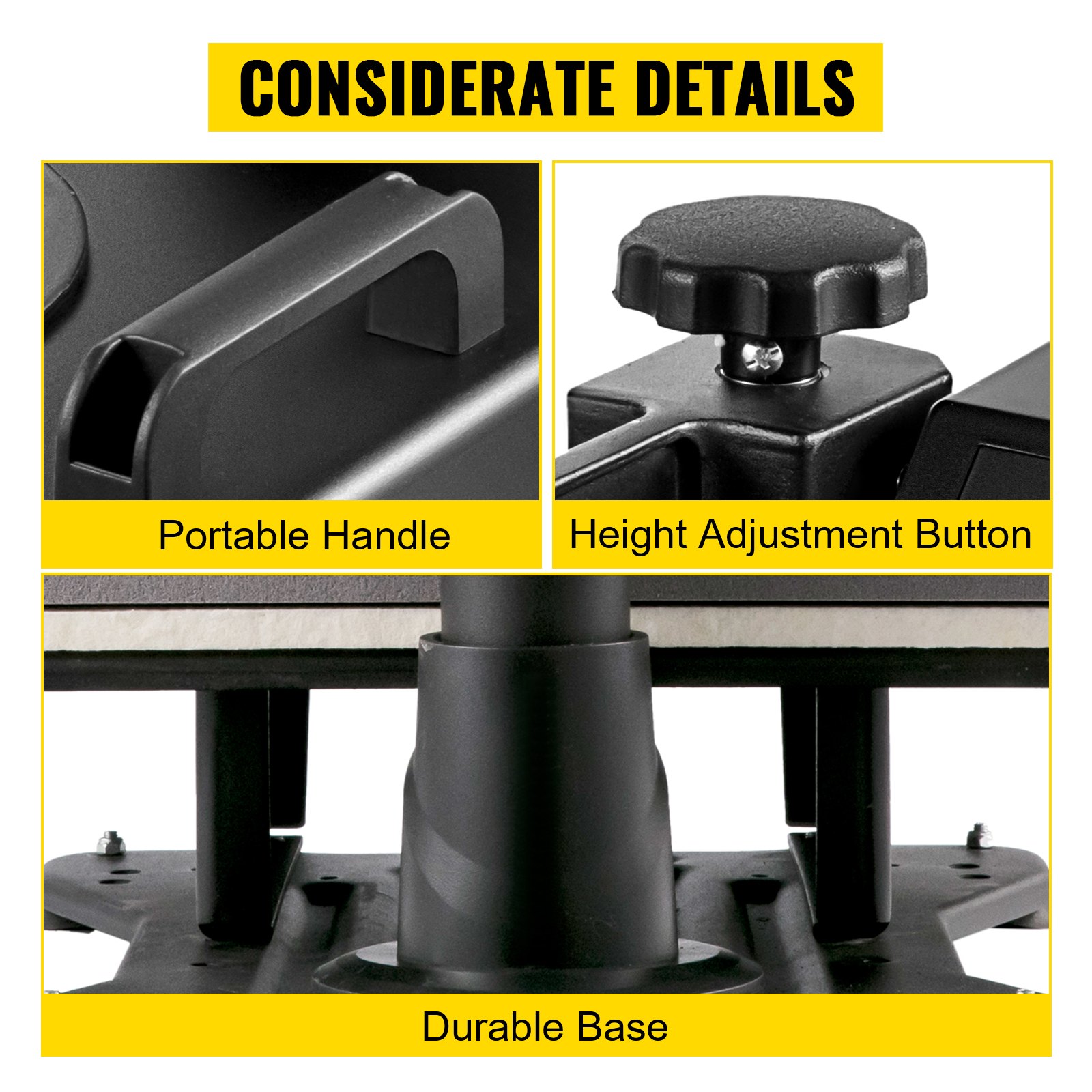

Humanized Design

• Full-range adjustment knob allows heat transfer pressure to be adjusted according to material thickness. Comfortable 2 4/5" long rubber grip for everyday use. Detachable lower platform is elevated with dual supports. Easy exchange to other elements.

Overload Protector Replacement

• A small red button on the control box of heat press will pop-up when voltage is unstable or too high, thus providing protection for control box as well as heat platen.

Power and USB Interface

• USB connection of vinyl cutter is accomplished through serial conversation to support the long-distance data transmission. Equipped with 110V 60Hz power cable, perfectly used in USA.

5 in 1 15" x 12" Heat Press Machine

• Temperature Range: 200-450 °F（95-232 °C）
• Timer Control: 0 - 999 seconds
• Adjustable Height: 13 1/2" to 17"
• Wattage: 1250W
• Power Input: 220V
• Cord Length: 4.5"
• Platen Press (telfon-coated): 12" x 15" (38X30cm)
• Hat/Cap Press: 6"x 3" (curved)
• Mug Press:3"-3.5"diameter (11OZ)
• Plate Press #1: 5" max diameter
• Plate Press #2: 6" max diameter

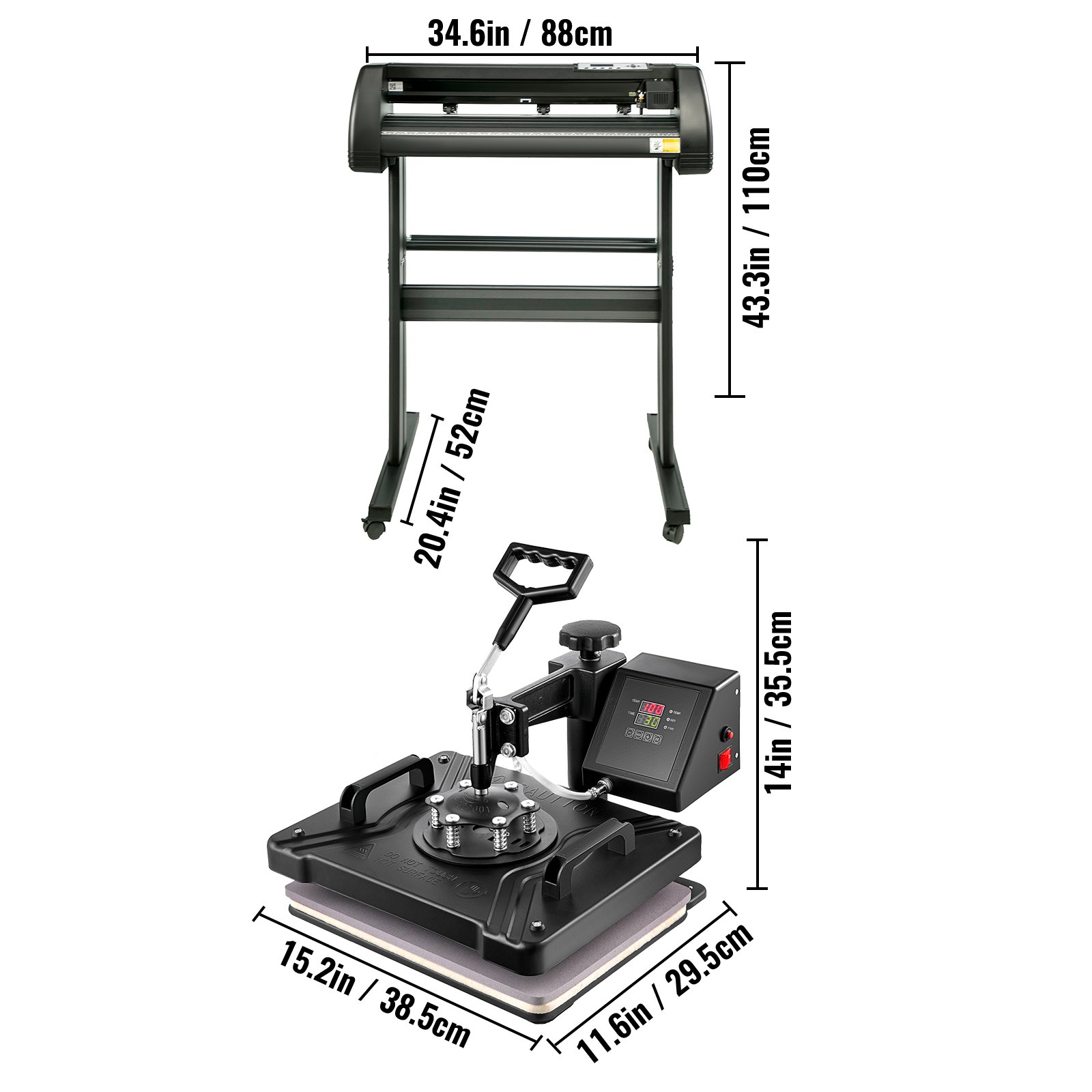

• Product Size：38.5 x 29.5 x 35.5 cm/15.15 x 11.61 x 13.97 inch
• Package Size：47.5 x 45 x 52 cm/18.7 x 17.72 x 22.83 inch


28 Inch Vinyl Cutter Machines with Signmaster Software

• Voltage: 220V AC, 50 Hz
• Blade Types: Standard, Roland Compatible, 2 mm Dia
• Software: Signmaster
• Motor Type: Stepper motor
• Interface: USB port
• Max Paper Feed: 720 mm (28.3 inch)
• Max Cutter Width: 630 mm (24.8 inch)
• Cutter Pressure: 10-500g
• Cutting Speed: 10-800 mm per second
• Number of Pinch Rollers: 3
• Memory: 128K-2M
• Positioning: Manual
• Language: DM/PL, HP/GL
• Repetition Accuracy: 0.0004" (0.01 mm)
• System: Pentium processor-based PC or compatible computer (Windows), Windows XP/Vista/7/8/10 (32& 64)
• Gross Weight: 41.8 lb (19 kg)
• Package Dimensions (L x W x H): 37.4" x 13.4" x 16.5" (95 x 34 x 42 cm)

• 28" Vinyl Cutter Model: 28 Inch
• Max Paper Feed: 28.3" / 720 mm
• Max Cutter Width: 24.8" / 630 mm
• Cutter Pressure: 10-500g
• Cutting Speed: 0.4"-31.5"/s / 10-800 mm/s
• Memory: 2 MB
• Repetition Accuracy: 0.0004" / 0.01 mm
• 5 In 1 Heat Press Model: 5 In 1 Multifunctional
• Power Input: 110V
• Wattage: 1200W
• Temperature Range: 200-450 °F / 95-232 °C
• Timer Control: 0 - 999 seconds
• Adjustable Height: 13.5"-17" / 34.3-43.2 cm
• Platen Press (Teflon-Coated): 12" x 15" / 29 x 38 cm
• Hat/Cap Press: 6" x 3" / 15 x 7.6 cm (Curved)
• Mug Press: 3"-3.5" / 7.6 x 8.9 cm Diameter (11 OZ)
• Plate Press #1: 5" / 12.7 cm Max Diameter
• Plate Press #2: 6" / 15.2 cm Max Diameter

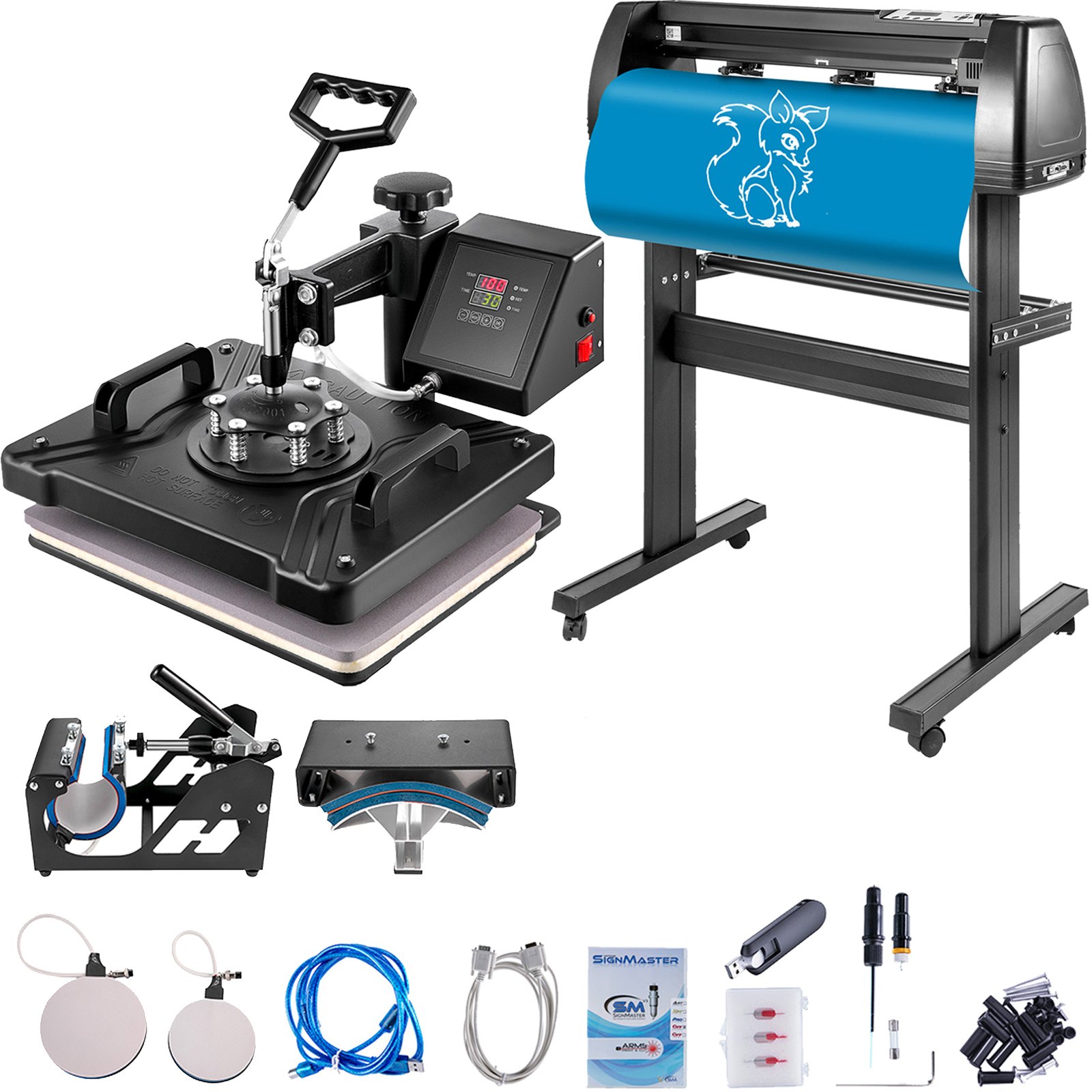

• 1 x 28 Inch Vinyl Cutter Plotter Machine
• 1 x SIGNMASTER Software
• 1 x Blades Holder
• 3 x Blades
• 1 x Pen Holder
• 3 x Cables (USB/Serial/Power Cord)
• 1 x USB Flash Disk
• 1 x Floor Stand Kit
• 1 x Fully-Assembled Heat Press
• 1 x Hat Press
• 1 x Mug Press
• 2 x Plate Presses
• 1 x Removable Silicone Pad & Cotton Pad
• 1 x Screwdriver
• 1 x Wrench
• 1 x Power Cord
• 2 x User Manuals
• T-Shirts, Cups, and Hats are NOT Included.
