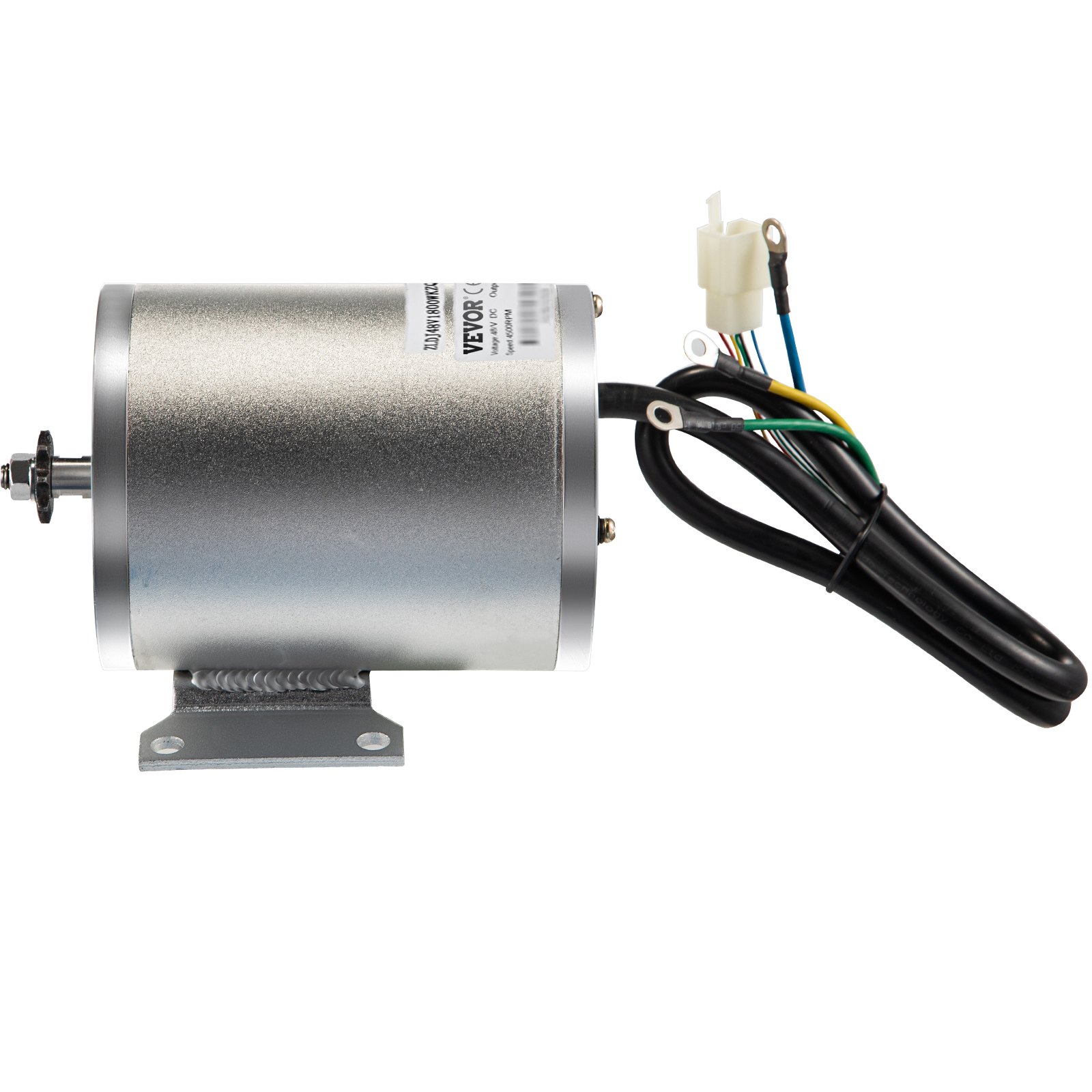

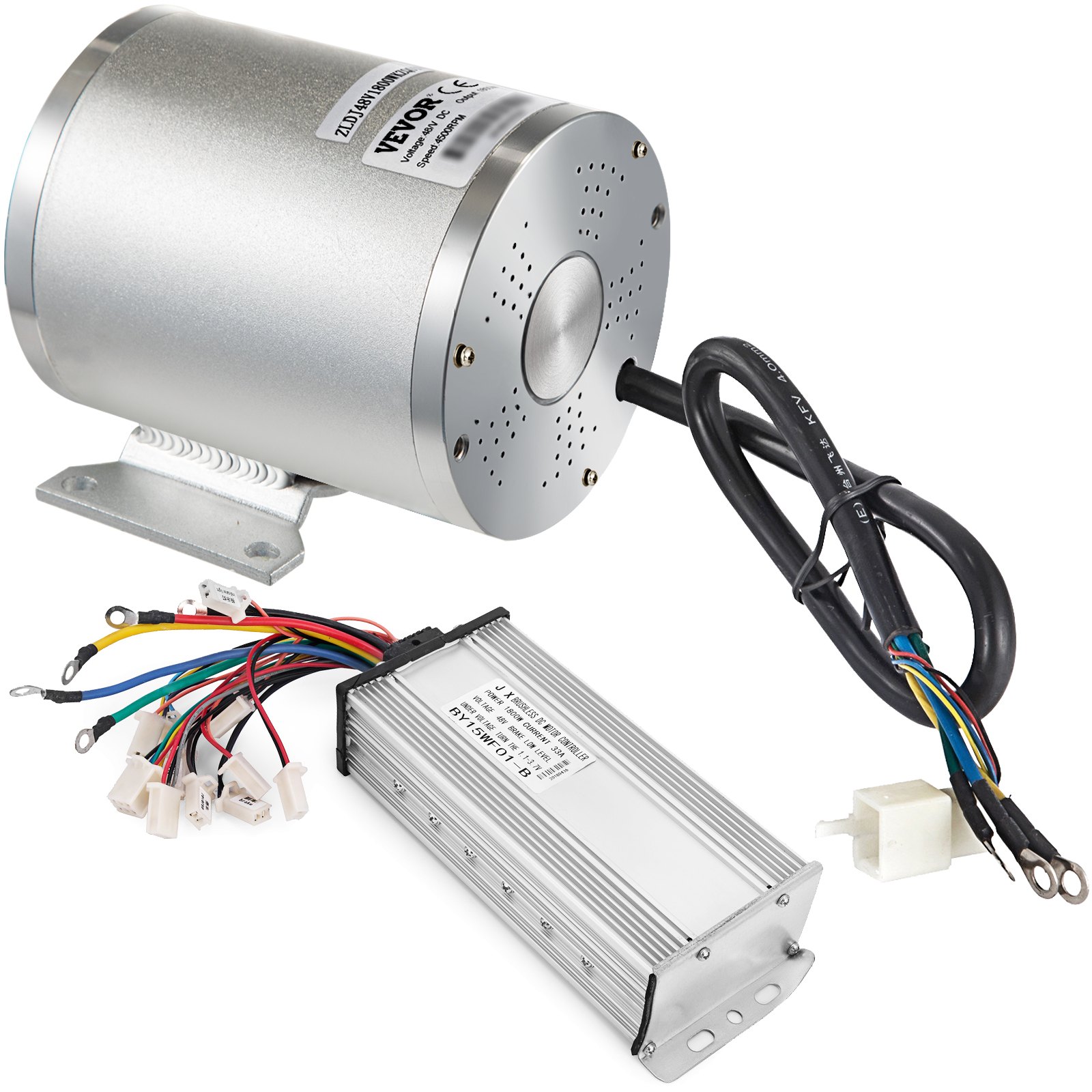

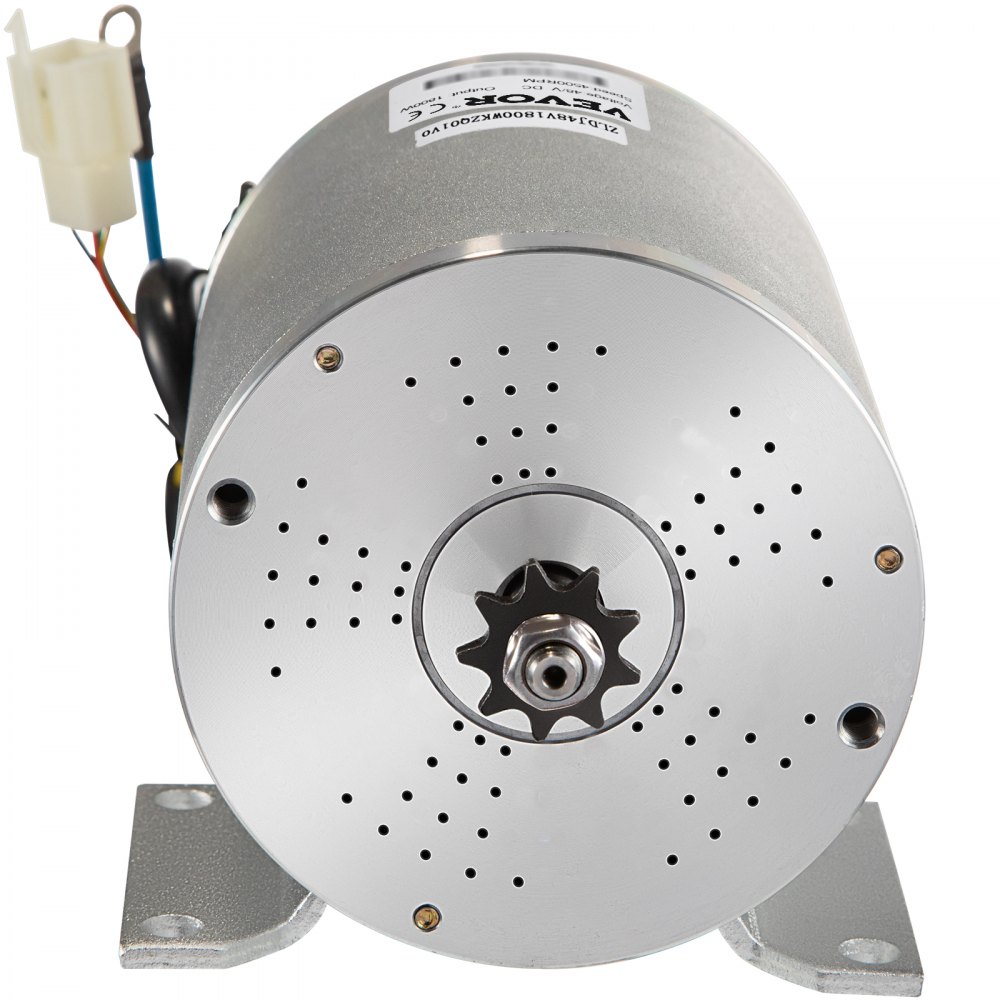

VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
1800WWSDJJKZQJTSBV0

VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

See All Customer Reviews
7 Reviews 5 answered questions
128.99€
128.99
Price including VATSee details
Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

  • Fundamental Parameters: This brushless go kart motor is powerful and efficient. Input Voltage: 48V DC, Output Power: 1800W, Rated Current: 33A, Rated Speed: 4500 RPM, Maximum Speed: 5200 RPM, Sprocket: T8F-9T, Maximum Current: 37.5A. Package includes: 1 x Brushless DC Motor, 1 x Speed Controller,1 x Throttle Grip, 1 x Screw Set, 2 x Wrench.
  • 1800W Brushless Motor: The dc electric go kart brushless motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor features high-tech components, a clean finish for water resistance, and high working efficiency. Get ready to leave the competition in the dust.
  • Sturdy Aluminum Construction: The electric brushless dc motor kit features an aluminum alloy shell that resists heat, cold, and deformation, ensuring it will not rust easily. This dc electric motor is a forward and backward rotation motor so that you can switch rotation gears effortlessly.
  • Speed Controller Included: This dc electric motor brushless comes with a controller to provide speed control at a desirable range, speed adjustment method: Potentiometer. Model: BY15WF01-A, Current: 33A, Phase Degree: 120°, Conversion Efficiency: 90%, Under Voltage Protection Voltage: 41±0.5V.
  • Multiple Application: The brushless motor outshines the brushed motor due to its high efficiency, power conservation, low noise, long lifespan, and stable operation. It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, etc. Get up to speed with a brushless motor.
See More See Less

Frequently Bought Together

People Who Bought This Item Also Bought

VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
Only 1 Left, order soon
Description Specification Questions and Answers Reviews
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

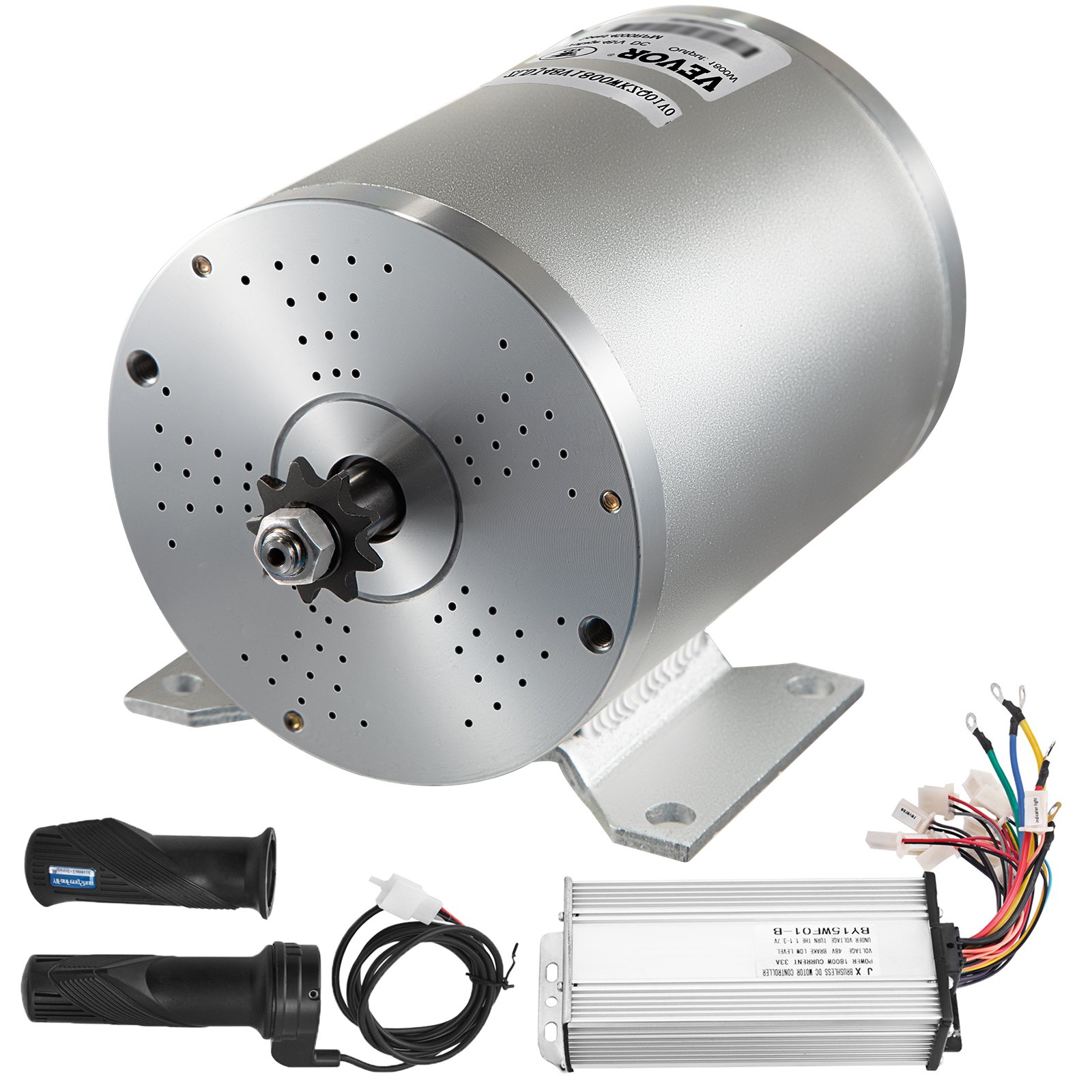

48V 1800W Brushless DC Motor Kit
4500 RPM & Speed Controller & Throttle Grip
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.
  • Fundamental Parameters
  • 1800W Brushless Motor
  • Sturdy Aluminum Construction
  • Speed Controller Included
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

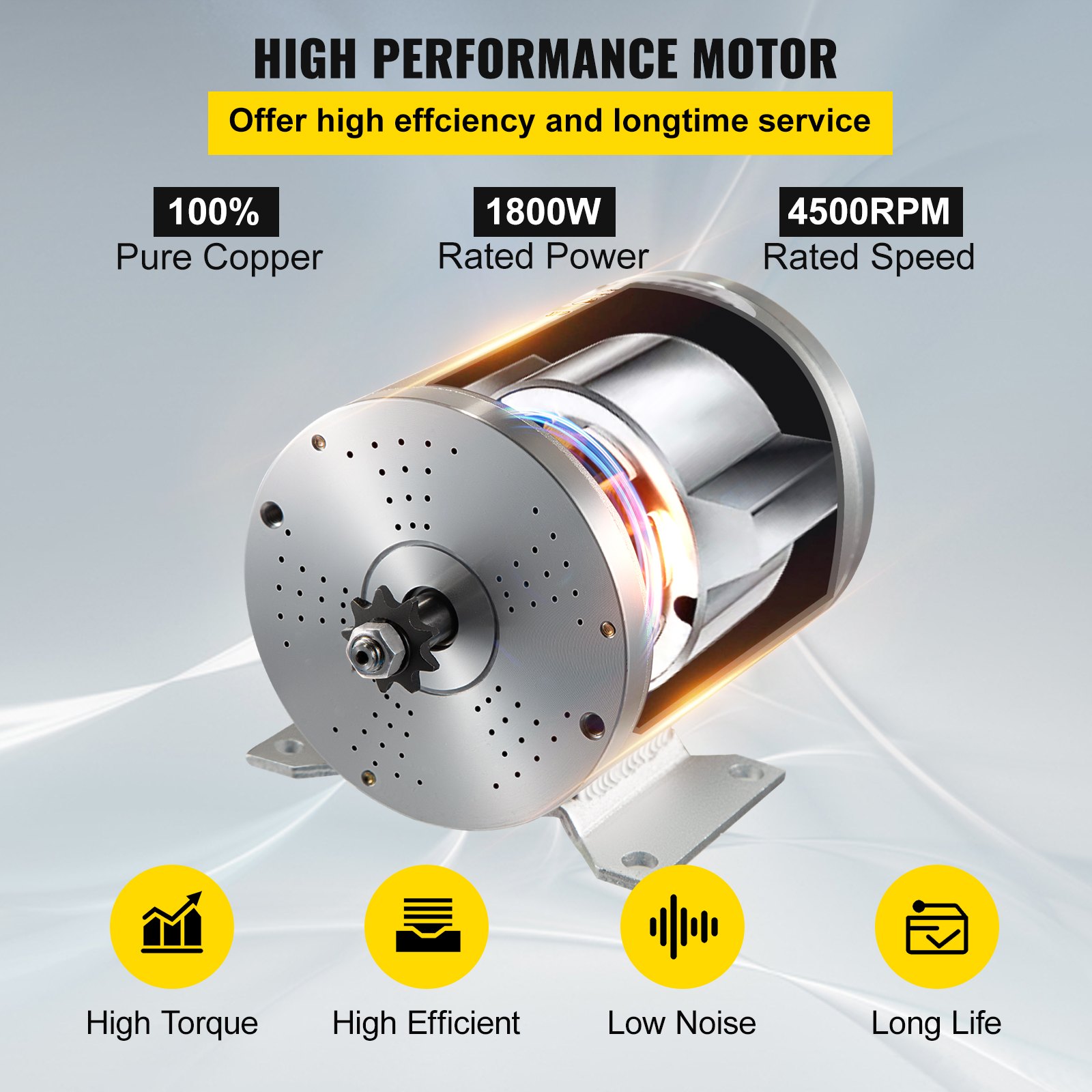

Pure Copper Motor
The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
4500 RPM High Speed
This dc brushless motor kit runs at 1800W, the rated speed is 4500RPM, and the maximum speed is 5200 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

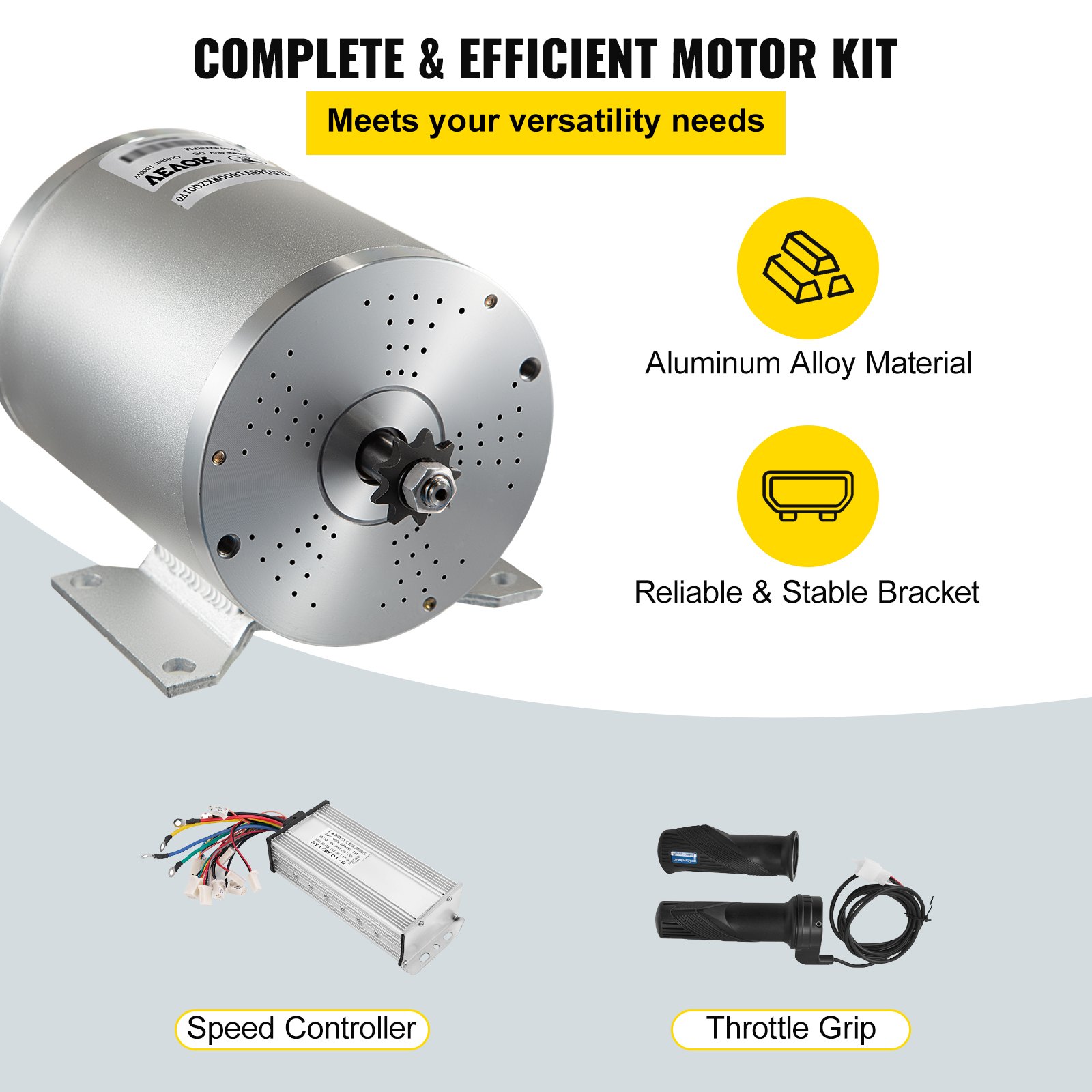

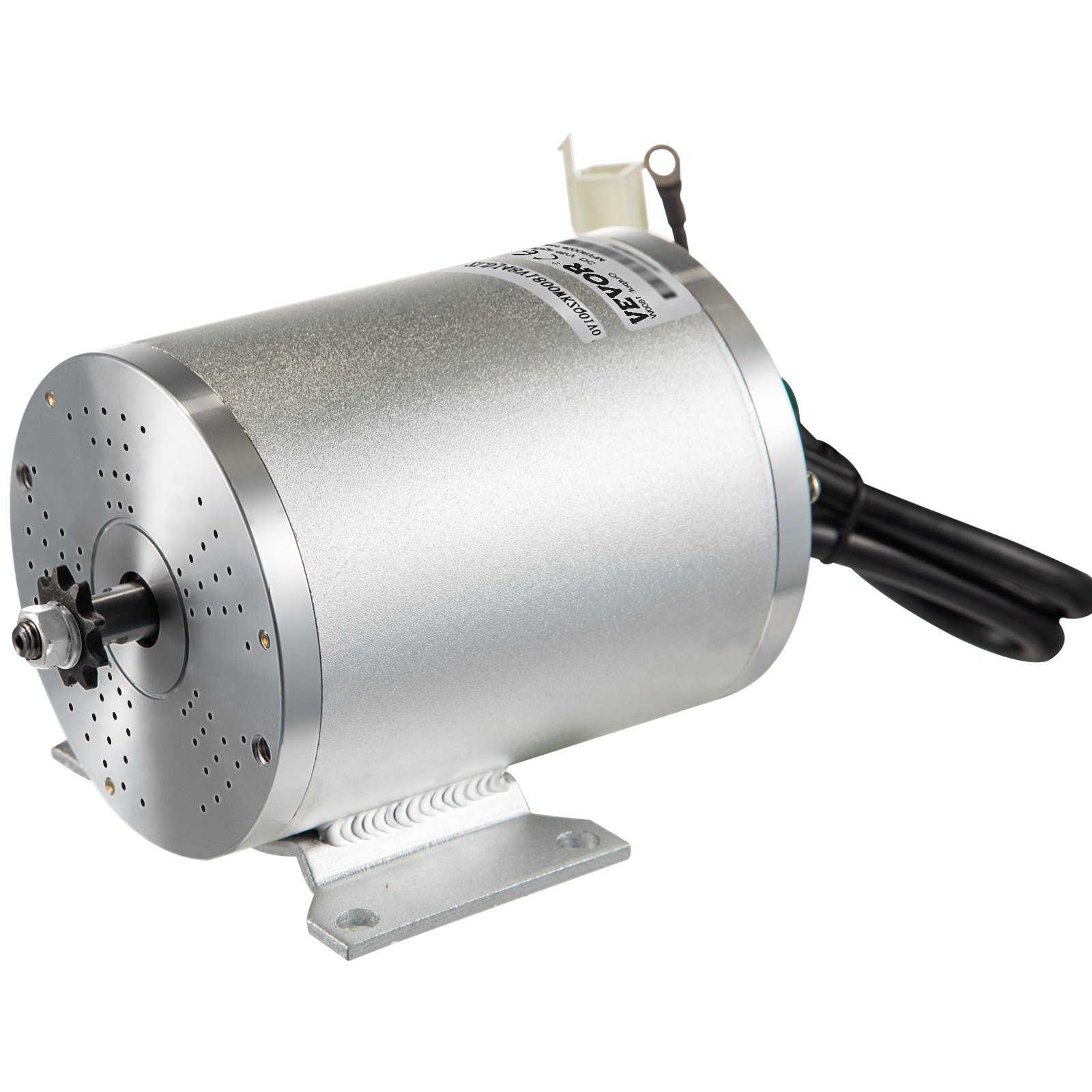

Durable Aluminum Alloy Shell
The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

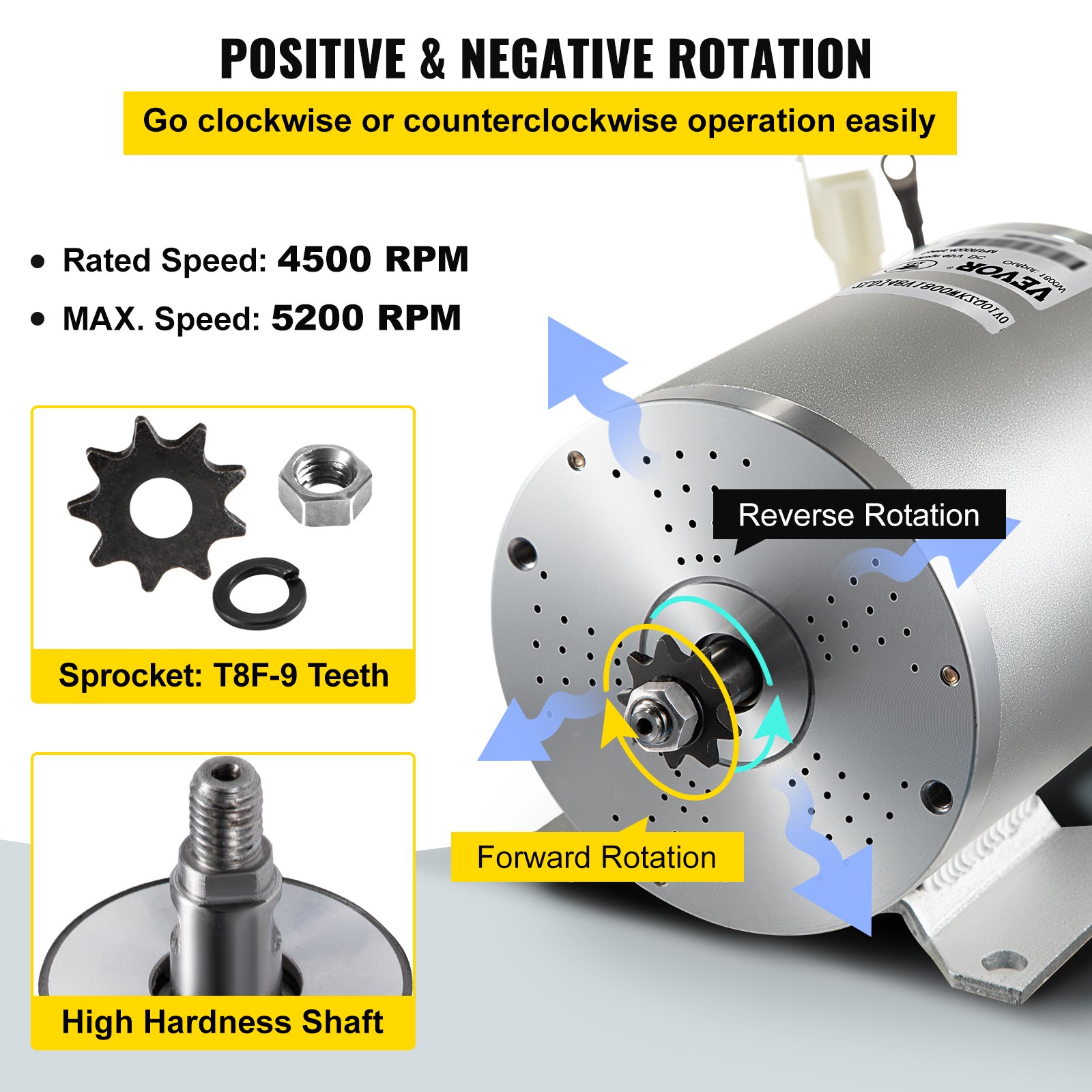

Dual-Direction Design
You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

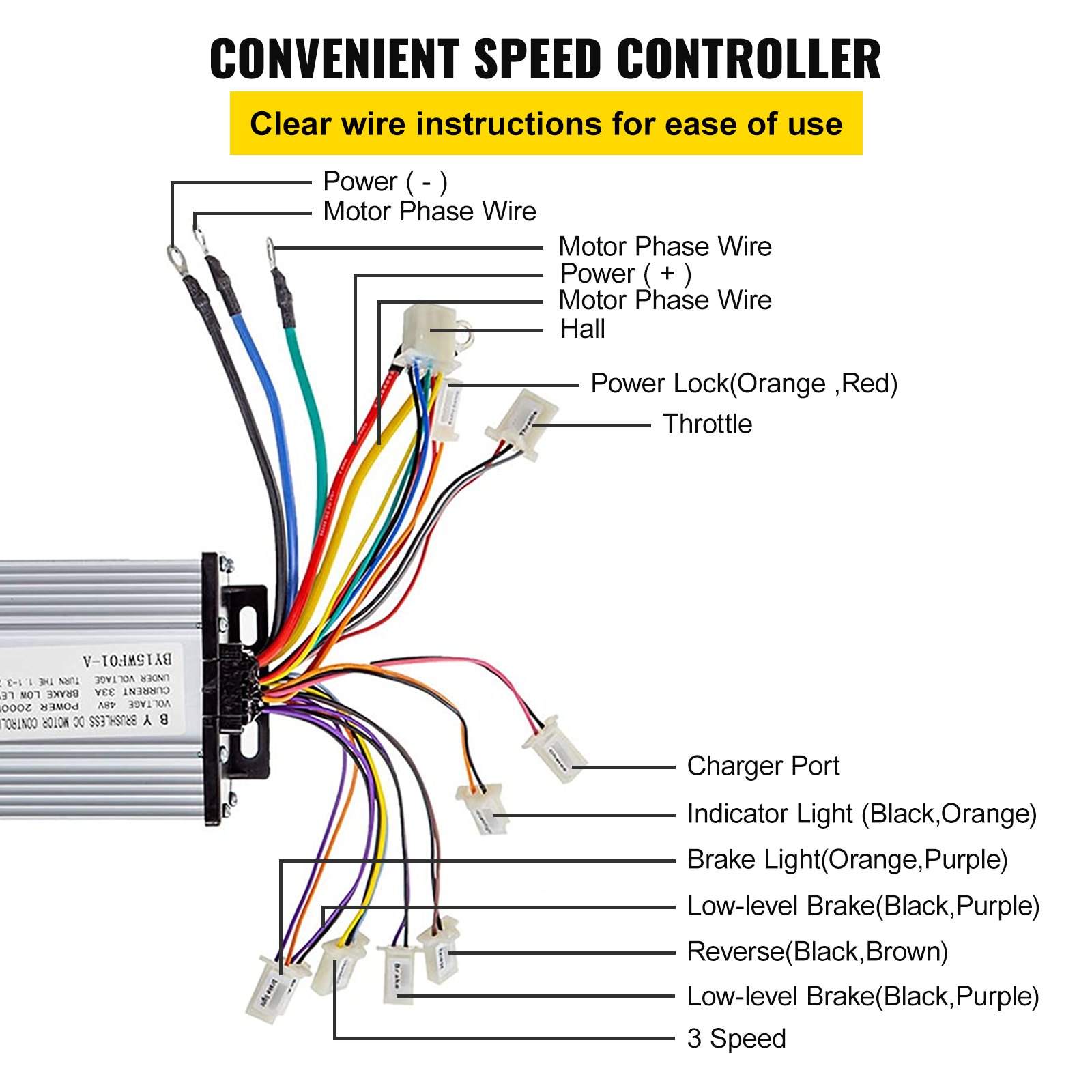

Simple Speed Control
The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

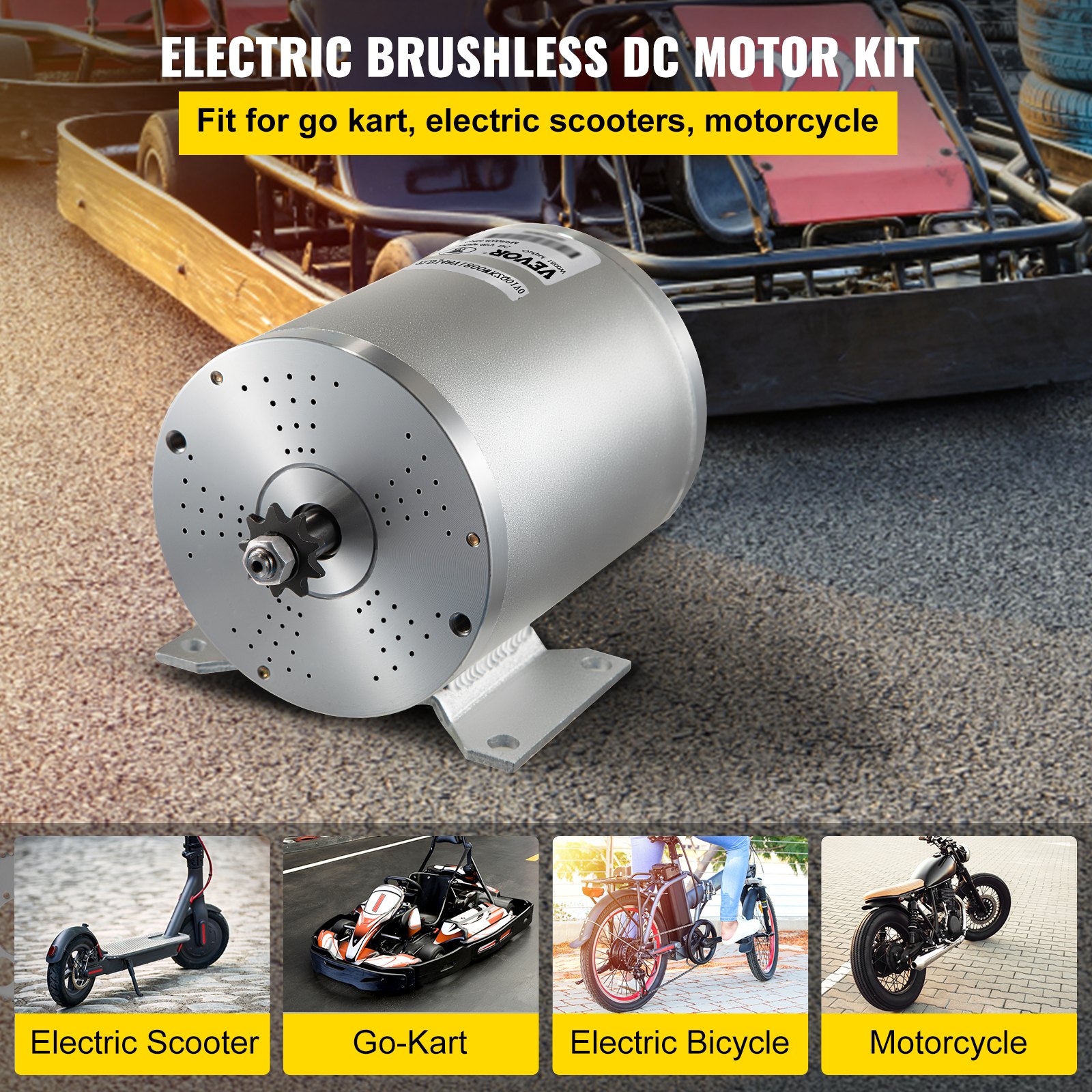

Wide Application
Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
  • Motor
  • Model: MY1020D
  • Input Voltage: 48V DC
  • Output Power: 1800W
  • Rated Current: 33A
  • Rated Speed: 4500 RPM
  • Maximum Speed: 5200 RPM
  • Sprocket: T8F-9T
  • Horsepower: 2.4 HP
  • Rated Torque: 4.0 N.m / 566.44 oz.in
  • Maximum Current: 37.5A
  • No-load Current: ≤ 3.5A
  • Peak Efficiency: ≥ 85%
  • Working Temperature: < 120 °C / 248 ℉
  • Shaft Length: 5.28'' / 134 mm
  • Net Weight: 9.26 lbs / 4.2 kg
  • Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm

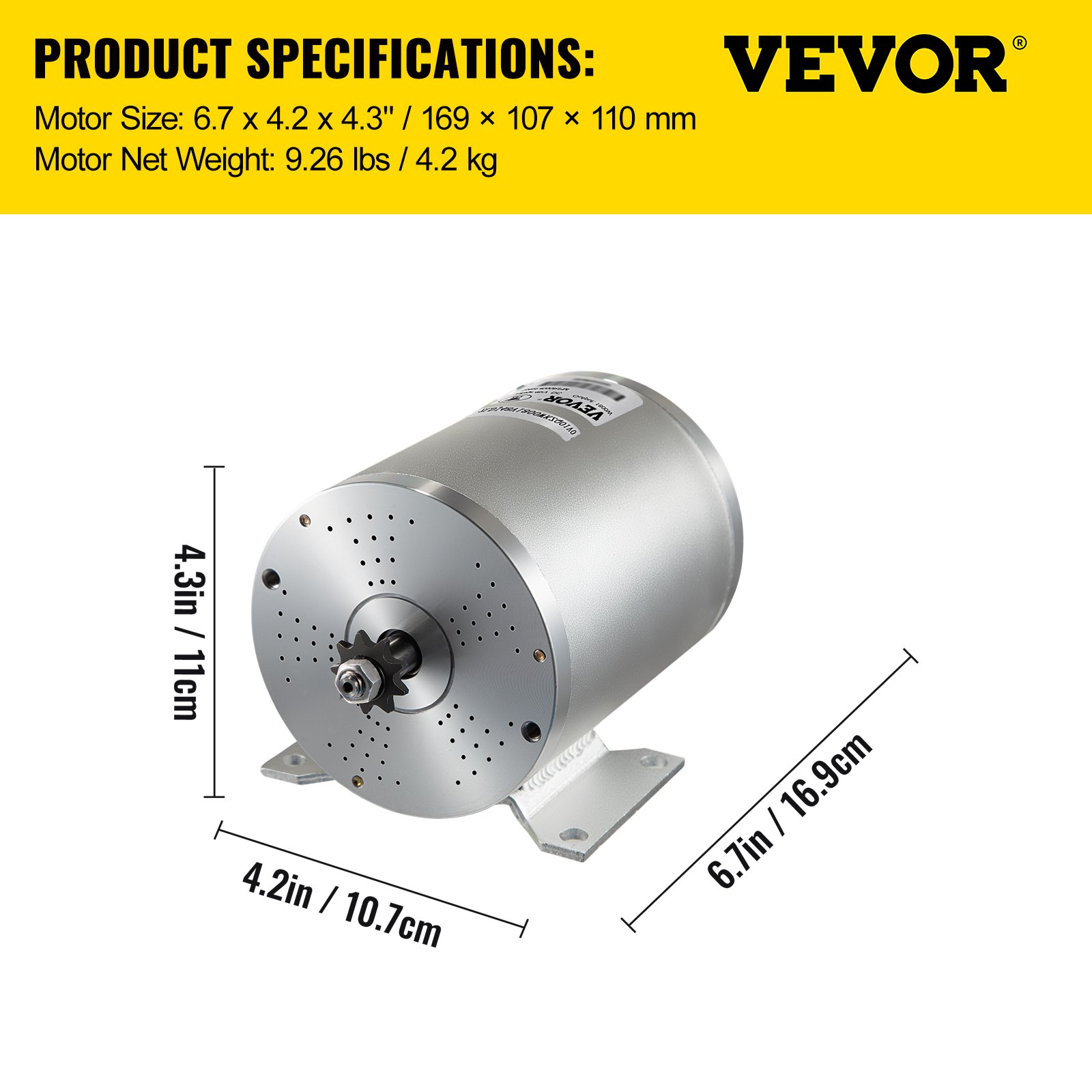

  • Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
  • Controller
  • Model: BY15WF01-A
  • Current: 33A
  • Phase Degree: 120°
  • Conversion Efficiency: 90%
  • Under Voltage Protection Voltage: 41±0.5V
  • Throttle Grip
  • Style: Striae & Round
  • Operating voltage: 5V
  • Adjustment range: Minimum ≤ 1.0V; highest ≥ 4.0V
  • Function: high, medium and low grades governor
  • Speed Regulator (Throttle): 1-4.3V
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
  • 1 x Brushless DC Motor
  • 1 x Speed Controller
  • 1 x Throttle Grip
  • 1 x Screw Set
  • 2 x Wrench
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
48V 1800W Brushless DC Motor Kit
4500 RPM & Speed Controller & Throttle Grip
This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.
  • Fundamental Parameters
  • 1800W Brushless Motor
  • Sturdy Aluminum Construction
  • Speed Controller Included
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
Pure Copper Motor
The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
4500 RPM High Speed
This dc brushless motor kit runs at 1800W, the rated speed is 4500RPM, and the maximum speed is 5200 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
Durable Aluminum Alloy Shell
The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit

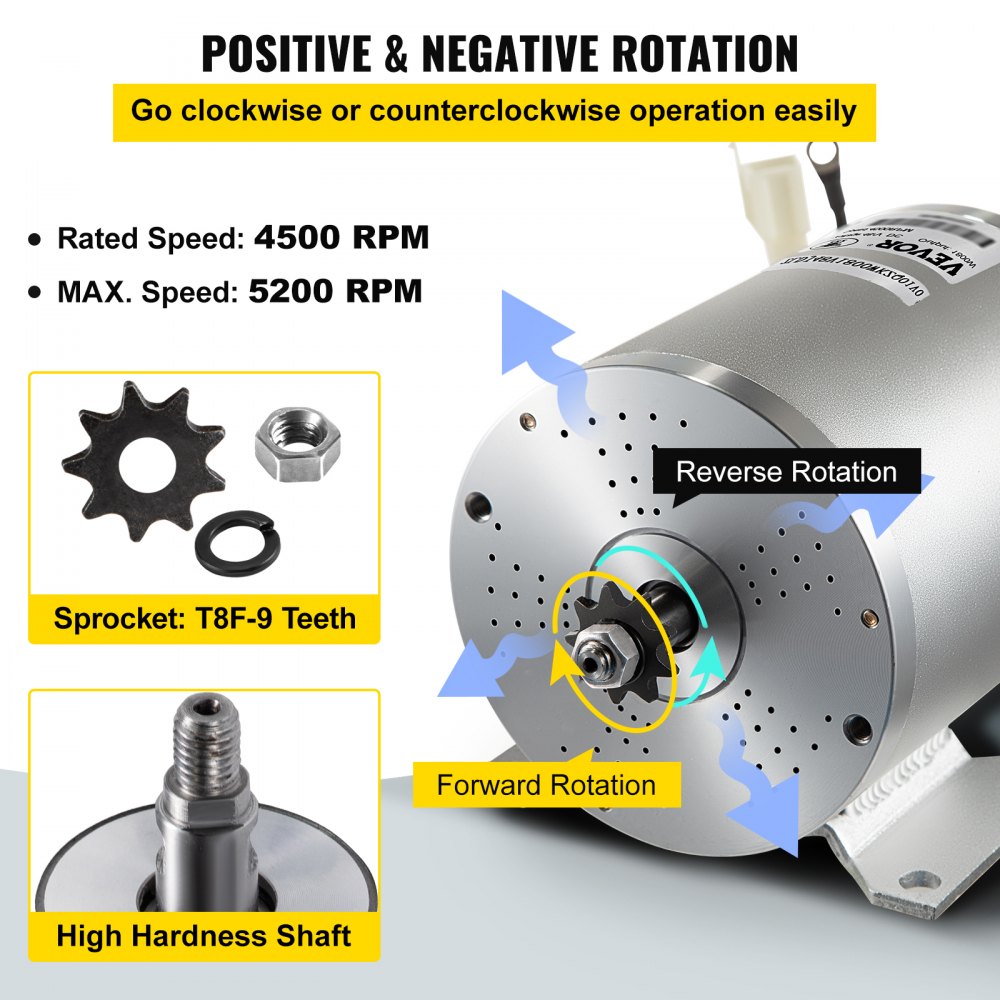

Dual-Direction Design
You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
Simple Speed Control
The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
Wide Application
Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
  • 1 x Brushless DC Motor
  • 1 x Speed Controller
  • 1 x Throttle Grip
  • 1 x Screw Set
  • 2 x Wrench
VEVOR 1800w electric brushless dc motor kit 48V, brushless motor dc High Speed Brushless Motor with 32A Speed Controller and Throttle Grip Kit
  • Motor
  • Model: MY1020D
  • Input Voltage: 48V DC
  • Output Power: 1800W
  • Rated Current: 33A
  • Rated Speed: 4500 RPM
  • Maximum Speed: 5200 RPM
  • Sprocket: T8F-9T
  • Horsepower: 2.4 HP
  • Rated Torque: 4.0 N.m / 566.44 oz.in
  • Maximum Current: 37.5A
  • No-load Current: ≤ 3.5A
  • Peak Efficiency: ≥ 85%
  • Working Temperature: < 120 °C / 248 ℉
  • Shaft Length: 5.28'' / 134 mm
  • Net Weight: 9.26 lbs / 4.2 kg
  • Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm
  • Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
  • Controller
  • Model: BY15WF01-A
  • Current: 33A
  • Phase Degree: 120°
  • Conversion Efficiency: 90%
  • Under Voltage Protection Voltage: 41±0.5V
  • Throttle Grip
  • Style: Striae & Round
  • Operating voltage: 5V
  • Adjustment range: Minimum ≤ 1.0V; highest ≥ 4.0V
  • Function: high, medium and low grades governor
  • Speed Regulator (Throttle): 1-4.3V

Specification

Motor
Model
MY1020D
Input Voltage
48V DC
Output Power
1800W
Rated Current
33A
Rated Speed
4500 RPM
Maximum Speed
5200 RPM
Sprocket
T8F-9T
Horsepower
2.4 HP
Rated Torque
4.0 N.m / 566.44 oz.in
Maximum Current
37.5A
No-load Current
≤ 3.5A
Peak Efficiency
≥ 85%
Working Temperature
< 120 °C / 248 ℉
Shaft Length
5.28'' / 134 mm
Net Weight
9.26 lbs / 4.2 kg
Mount Bracket Size
2.2 x 4'' / 56 x 102 mm
Dimensions(L x W x H)
6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
Controller
Model
BY15WF01-A
Current
33A
Phase Degree
120°
Conversion Efficiency
90%
Under Voltage Protection Voltage
41±0.5V
Throttle Grip
Style
Striae & Round
Operating voltage
5V
Adjustment range
Minimum ≤ 1.0V; highest ≥ 4.0V
Function
high, medium and low grades governor
Speed Regulator (Throttle)
1-4.3V
Questions and Answers
5 Questions
or Ask a Question
Hoeveel Amps moet de motor hebben, en moet er dus in de batterijen zitten?Want bij de specificaties staat er een maximum van 32A maar dat is voor de motor controller toch? Hoeveel amperes moet dus de motor hebben voor hij op zijn piek performence loopt?
Answer This Question
De motorpiekwaarde is 42A. U moet de batterij zelf matchen. Vertel de batterijverkoper de gegevens en zij zullen het meestal oplossen.
By vevor
Helpful ( 0 )
kan ik deze motor op 36 volt en 1000 watt lopen?
Answer This Question
Dit kan niet, de 41V van de machine is onderspanningsbeveiliging.
By vevor
Helpful ( 1 )
Hoeveel torque produceerd deze motor?
Answer This Question
Meer informatie is te vinden in de bestanden in de link: https://d2v0huudrf11kh.cloudfront.net/vevor-center-goods/1800WWSDJJKZQJTSBV0_1680139530048.pdf
By vevor
Helpful ( 6 )
Kun je normale auto accu’s gebruiken voor deze motor?
Answer This Question
Werkt zolang de accuspanning tussen 48V en 54V ligt.
By vevor
Helpful ( 0 )
Kun je deze borstelloze motor gebruiken om stroom mee op te wekken?
Answer This Question
Nee, je kunt deze borstelloze motor niet gebruiken om stroom op te wekken.
By vevor
Helpful ( 0 )

Customer Reviews

4.7 Out of 5
Based on 7 reviews

Ratings by Features

  • 4.7
  • 4.5
  • 4.6
  • 4.5
  • See More See Less
7 Review(s)
Clear filters
joezeitouny joezeitouny
Mr
Good engine. Reasonable price. I am in the process of converting my outboard from petrol to electric and used this engine. It works perfect, compares to a 3HP petrol engine. Can be improved by making it more resistant to corrosion and water.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Stacey Dickinson Stacey Dickinson
Used in evo powerboard
Worked perfectly no faults, fit as it should no base plate on it like most rear chain driven scooters need
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Ben Ben
motor 2000w 1800w stappen motors
Heb niet alles getest, vermogen rendement, duurzaamheid. Goeie kwaliteit/prijs, en wat ik getest heb, werkt prima, zoals belooft. Verzending varieert, van enkele dagen tot ongeveer 10 dagen. Via de mail krijg je de status van je bestelling.
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
GP GP
Mr
Product received exactly as hope for and in very sort time. Well done all. Not so sure about not having enough caractures in my notes though
See More See Less
Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful
Jessica H. Jessica H.
Work good
It did what it need to do
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
TD TD
Lack of documentation, so be prepared. Otherwise great!
As noted by others the most frustrating part is the lack of documentation. You have to reverse engineer by taking the controller apart and following the wires. Even then it's a bit of luck to figure it all out. Once you wire the controller correctly it's an impressive DC motor/Controller for a DIY project. This motor has a lot of kick. Very happy with result, and has been great for the first couple days using it on a DIY go kart I've been building.Addendum: After figuring out the wiring I ran across the above picture of a similar product. Surprisingly, it appears to be the correct wiring diagram - correct number of wires, correct wire color, but use at your own risk. Hope this helps save another buyer some frustration. Good Luck!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful
Rolly Rolly
Monster Motor; Too excited to tell my projects!
This is a huge electric motor! Please proceed with caution..It's a wonderful beast of a motor...Looks proper; but a monster she is!
See More See Less
Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful
