VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
+12
More
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats
VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats VEVOR Hydraulic Outboard Steering Kit, 300HP, Marine Boat Hydraulic Steering System, with Helm Pump Two-Way Lock Cylinder and 26 Feet Hydraulic Steering Hose, for Single Station Single-Engine Boats

Features & Details

  • 300 HP Hydraulic Steering Kit: Our 300 HP boat hydraulic steering system includes a hydraulic steering cylinder, a low-friction hydraulic pump, two 26ft high-pressure hoses, and a complete set of accessories. It's the perfect replacement for aging or damaged hydraulic steering systems. Enjoy unmatched control and stability on your maritime journeys！

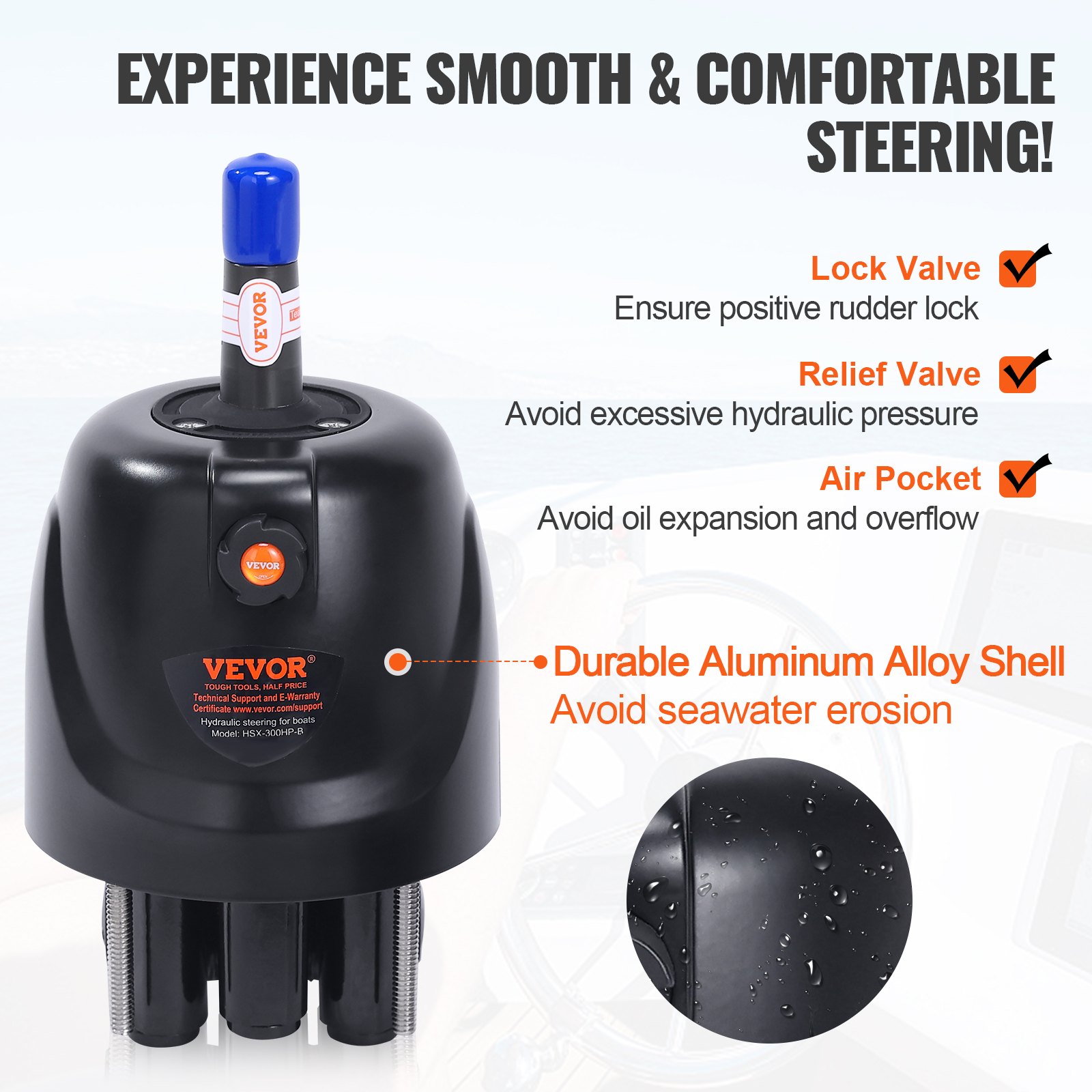

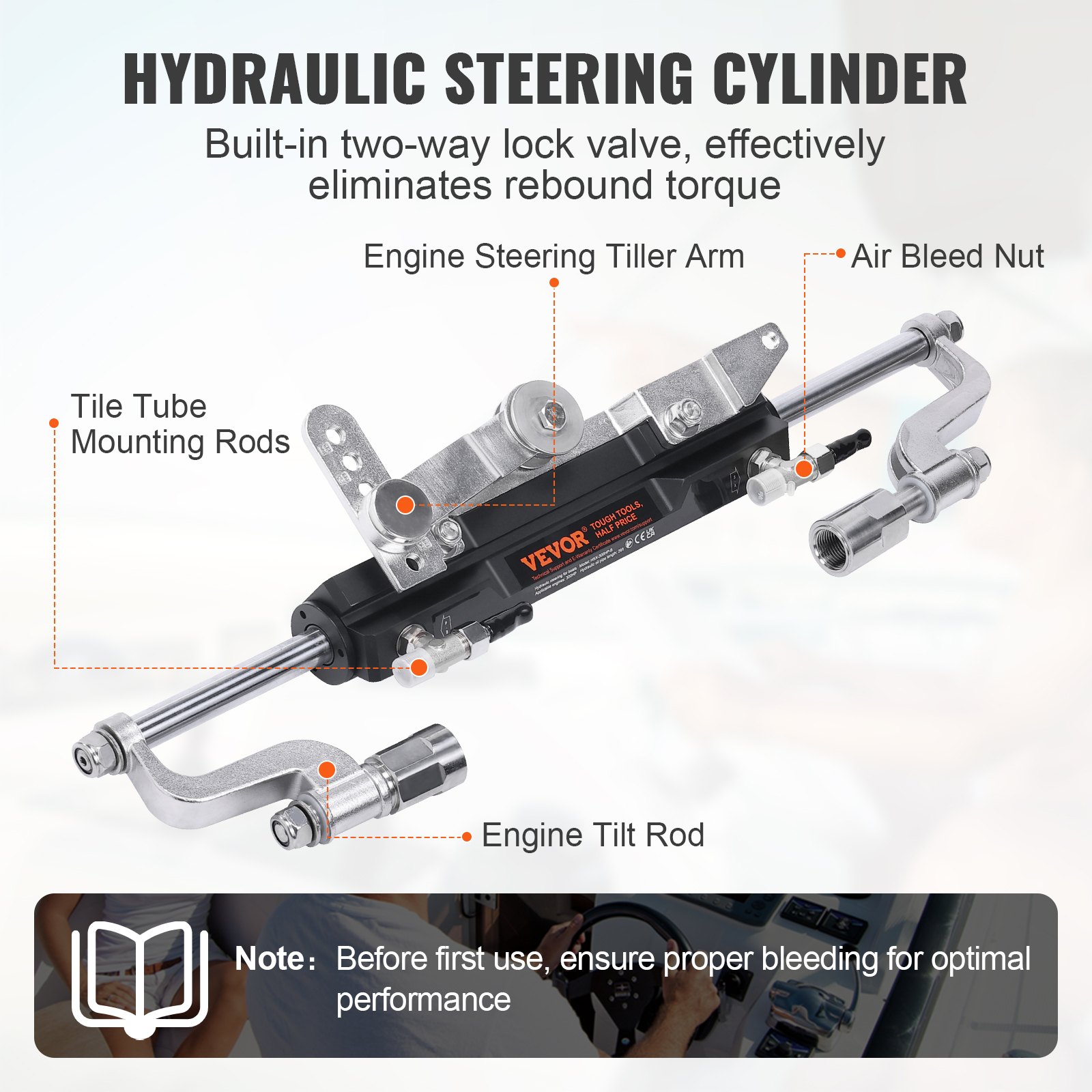

  • Two-Way Locking Valve: Our advanced hydraulic pump features a built-in dual-directional valve, replaceable shaft seals, a relief valve, and an air pocket. This not only enhances reliability, security, and durability but also reduces long-term operational and maintenance costs while optimizing overall system efficiency and performance. Upgrade now for peace of mind on your maritime adventures.
  • 2x26FT Hydraulic Hoses: With a maximum working pressure of 200 bar and reinforced with thick nylon tubing, our hydraulic hoses are built to withstand heavy loads without risking rupture or leakage, ensuring swift and dependable response to every steering maneuver. Equipped with quick-fit 5/16" fittings, these hoses offer effortless installation flexibility across various vessel types. Dominate the waters with precision and ease.

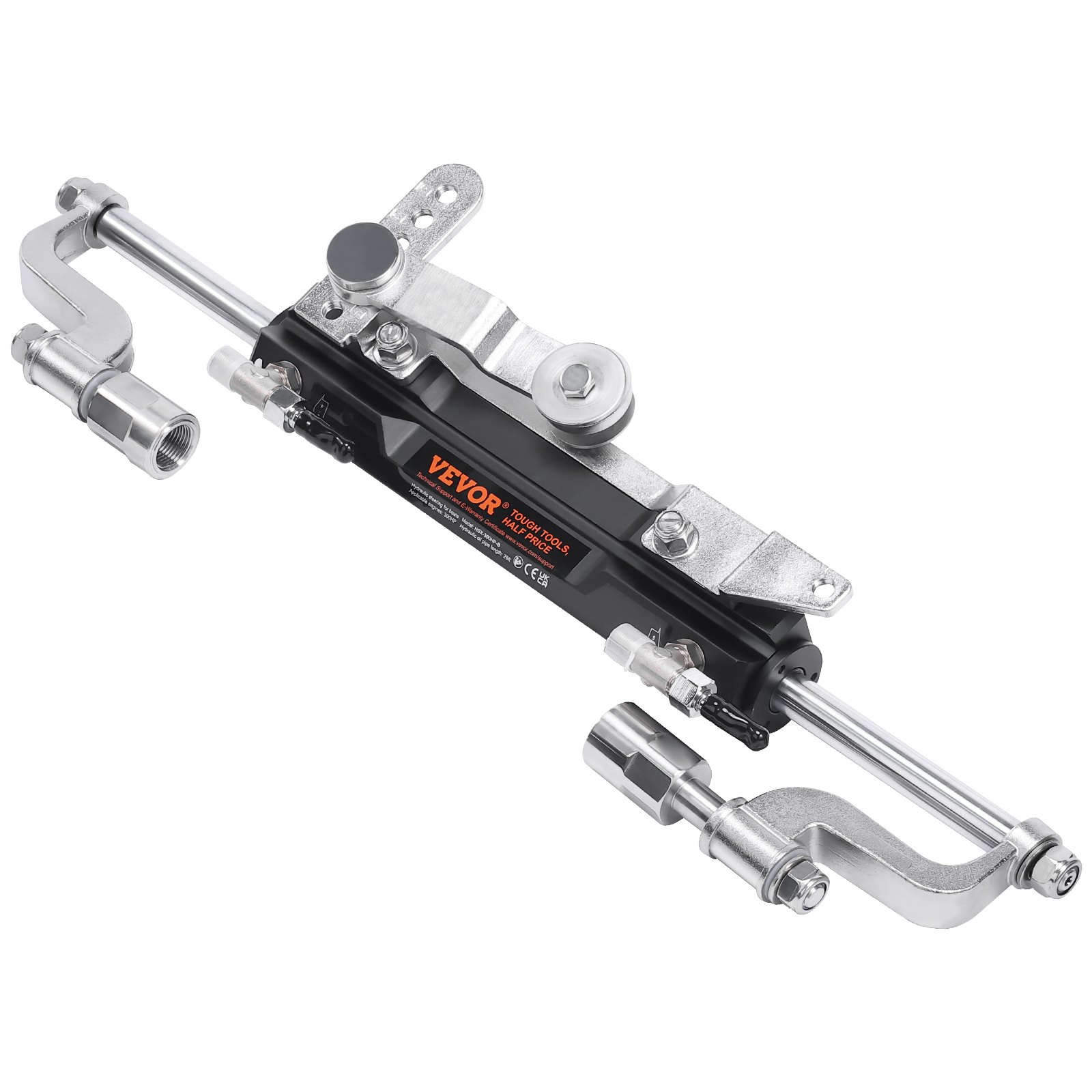

  • High-Performance Steering Cylinder: Our hydraulic steering cylinder boasts an impressive output force of 470kgf and is perfect for most splash wells, ensuring optimal engine operation without space constraints. Its sturdy structure and efficient seals allow it to withstand harsh environments with ease. Gear up for precise steering control and durability that stands the test of time.

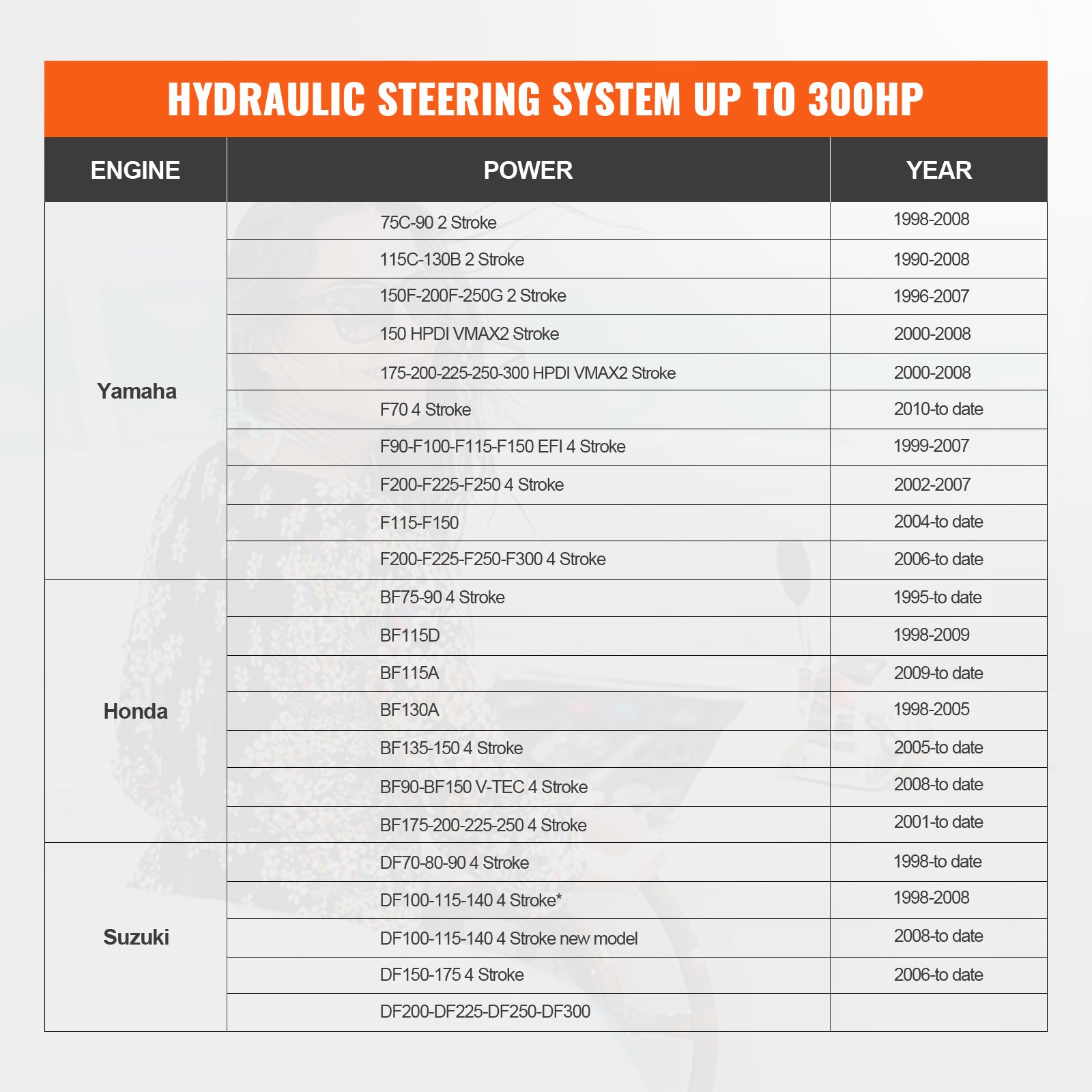

  • Engineered for Versatility: Our marine hydraulic steering system is compatible with outboard motors up to 300HP and seamlessly integrates with a range of top brands, including Yamaha, Suzuki, Honda, Mercury, Nissan, and Tohatsu. Our outboard hydraulic steering kit ensures smooth and precise steering control for an exceptional boating experience.

Frequently Bought Together

Reviews 4.6
All reviews are from verified purchases
Average rating based on 5 reviews

See all 5 reviews

About this item

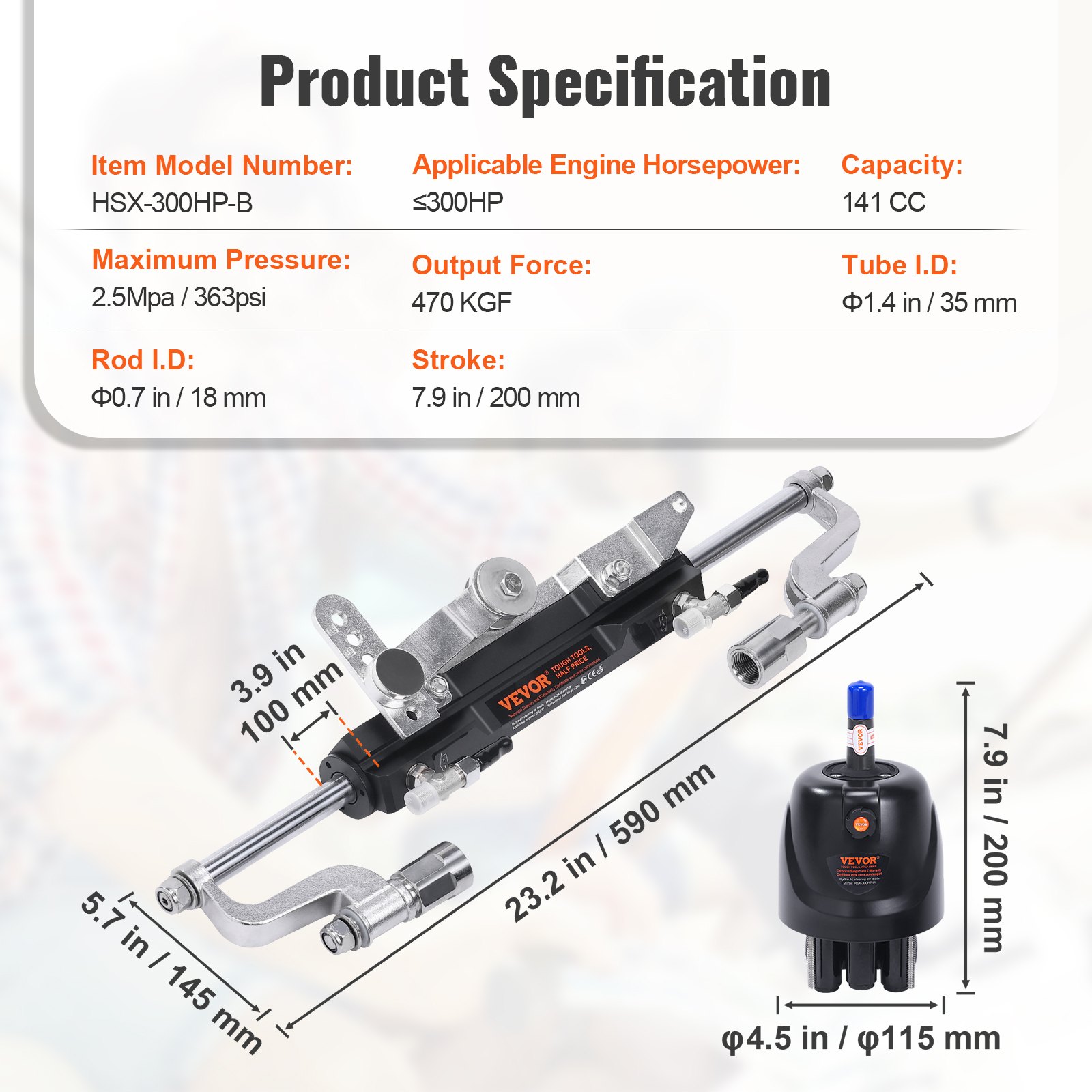

Product specification
Item Model Number
HSX-300HP-B
Applicable Engine Horsepower
≤300HP
Maximum Pressure
2.5Mpa/363psi
Output Force
470 KGF
Capacity
141 cc
Tube I.D
Φ1.4 in/35 mm
Rod I.D
Φ0.7 in/18 mm
Stroke
7.9 in/200 mm
Description
300HP Hydraulic Outboard Steering System Kit
VEVOR outboard steering kit next to luxury yacht, ideal for lifeboats, yachts, fishing boats, and small sailing boats.
VEVOR outboard steering kit next to luxury yacht, ideal for lifeboats, yachts, fishing boats, and small sailing boats.
Our kit enables the installation of a hydraulic steering system on engines up to 300HP. The rudder shaft features an aluminum alloy shell to withstand harsh marine environments. The hydraulic steering cylinder includes a two-way locking valve, bringing you high-end maritime quality.
replaceable shaft seal for VEVOR outboard steering kit, showing easy maintenance and dimensions.
replaceable shaft seal for VEVOR outboard steering kit, showing easy maintenance and dimensions.
Our boat hydraulic steering system features a detachable oil seal design, simplifying future inspections and maintenance. It ensures that performance declines due to aging or damaged oil seals can be easily avoided, keeping your system running smoothly and efficiently.

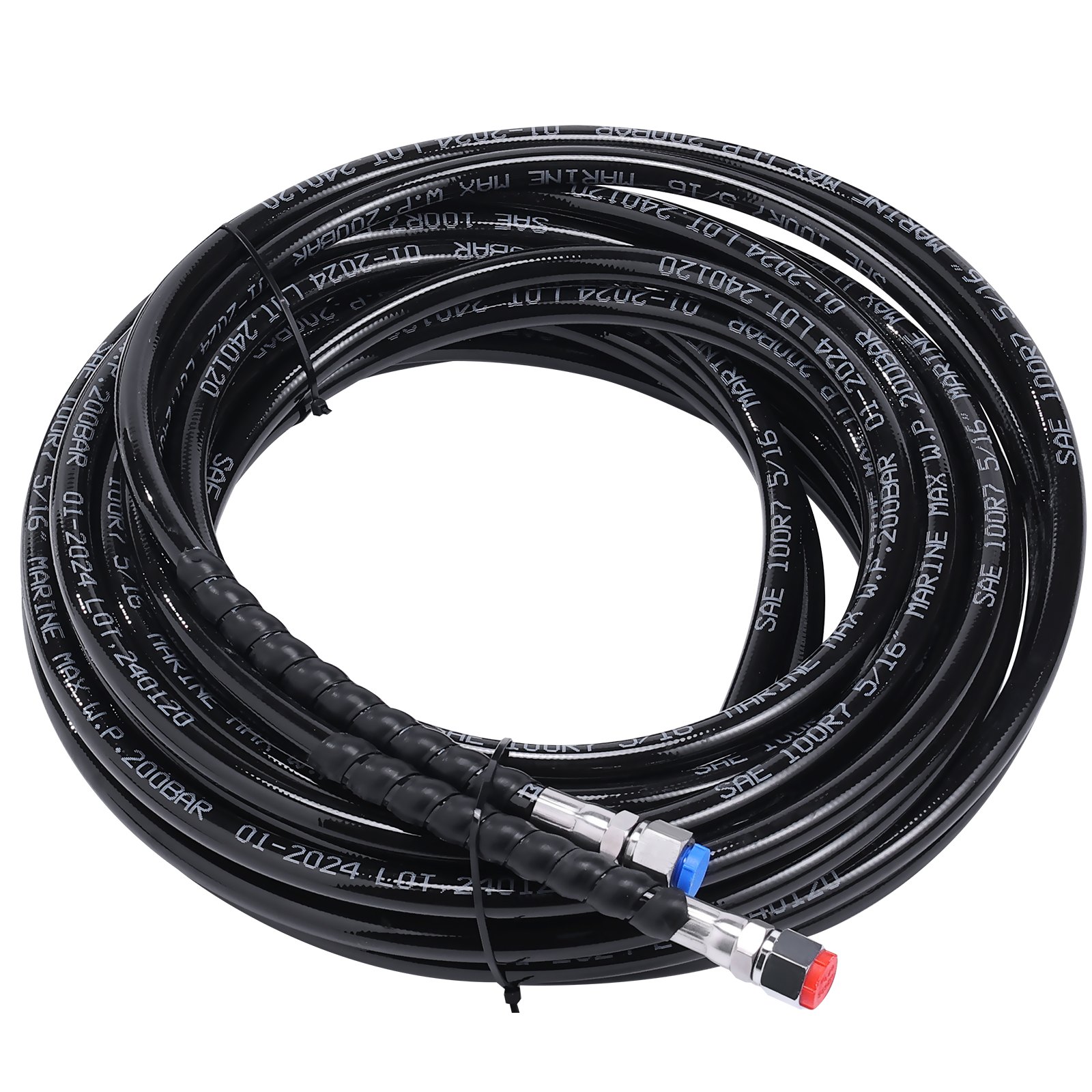

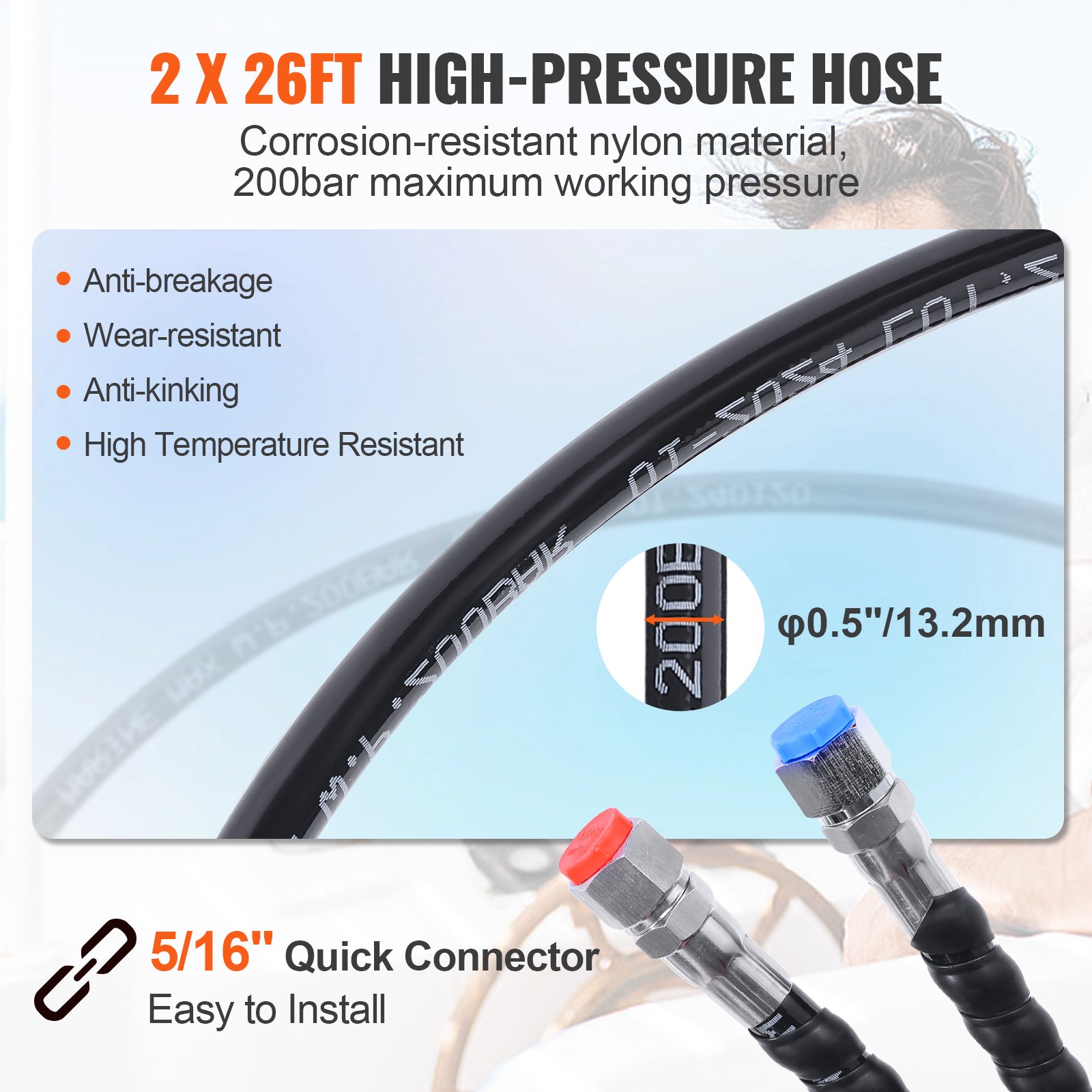

sae 100r7 standard compliant VEVOR outboard steering kit, 26 ft hose, 200 bar max pressure.
sae 100r7 standard compliant VEVOR outboard steering kit, 26 ft hose, 200 bar max pressure.
Our hydraulic steering for boats comes with 26 ft hoses, tailoring your system to perfection by cutting the hoses to meet your specific needs. Plus, with quick-fit 5/16" fittings, installation becomes a snap – fast, effortless, and designed for repeated use.

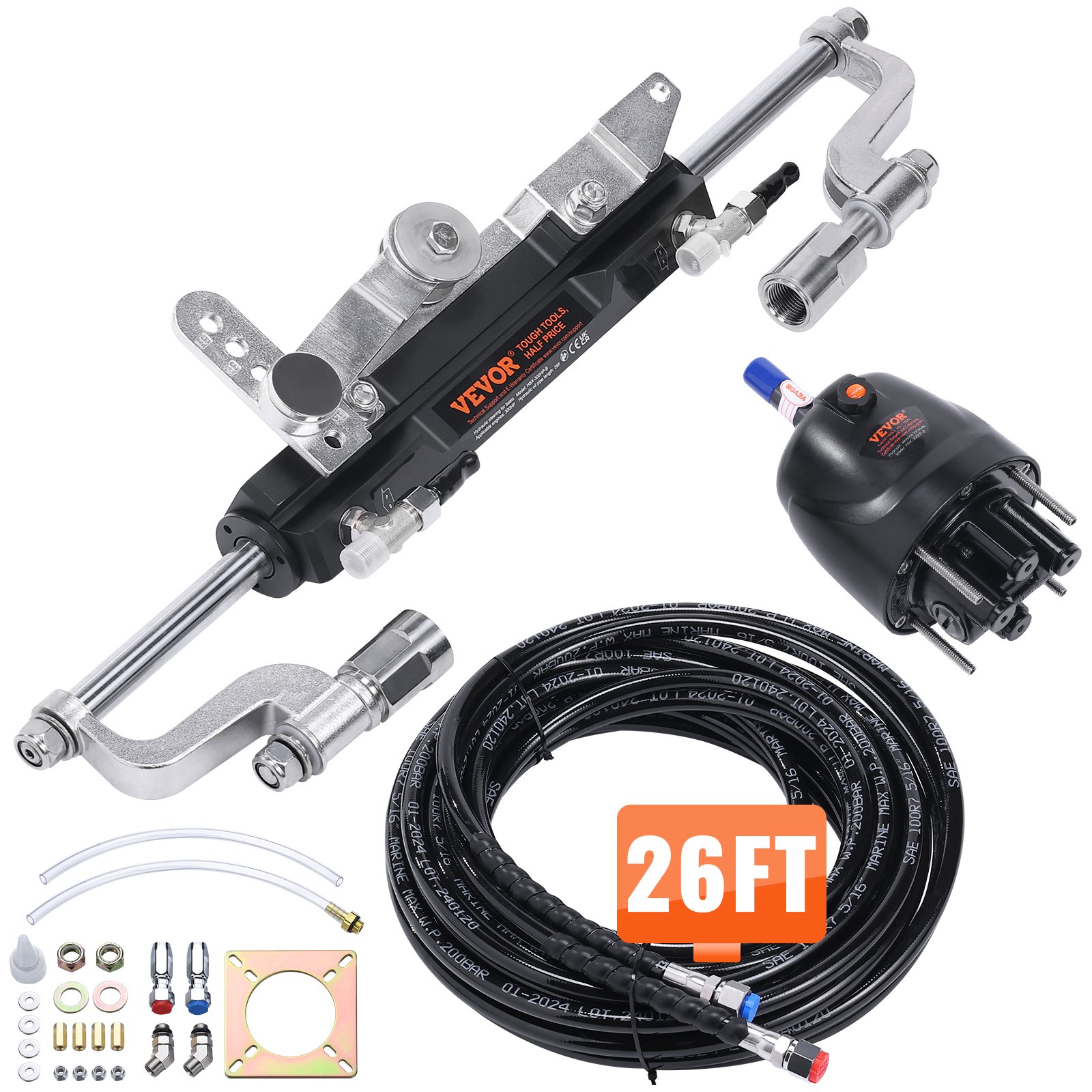

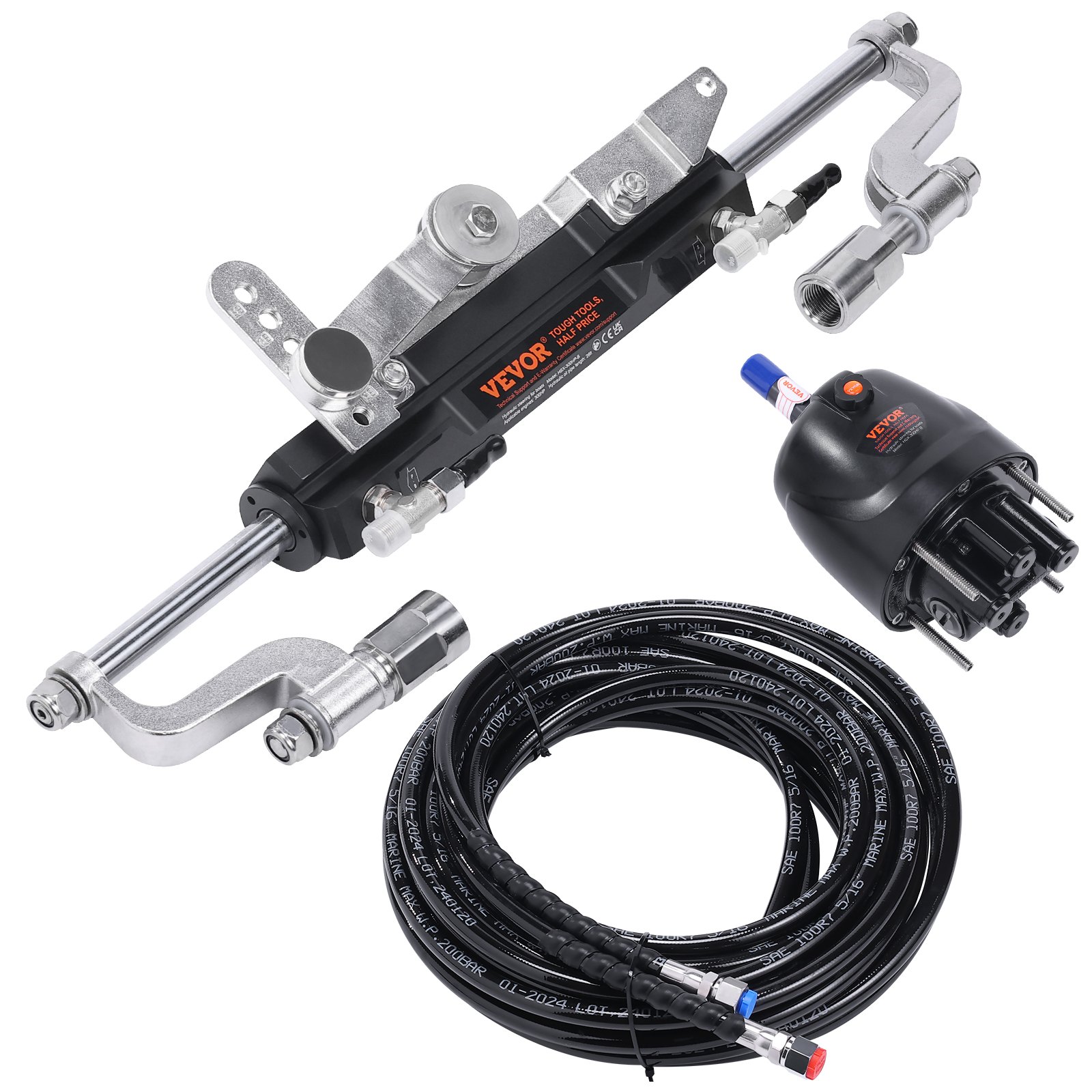

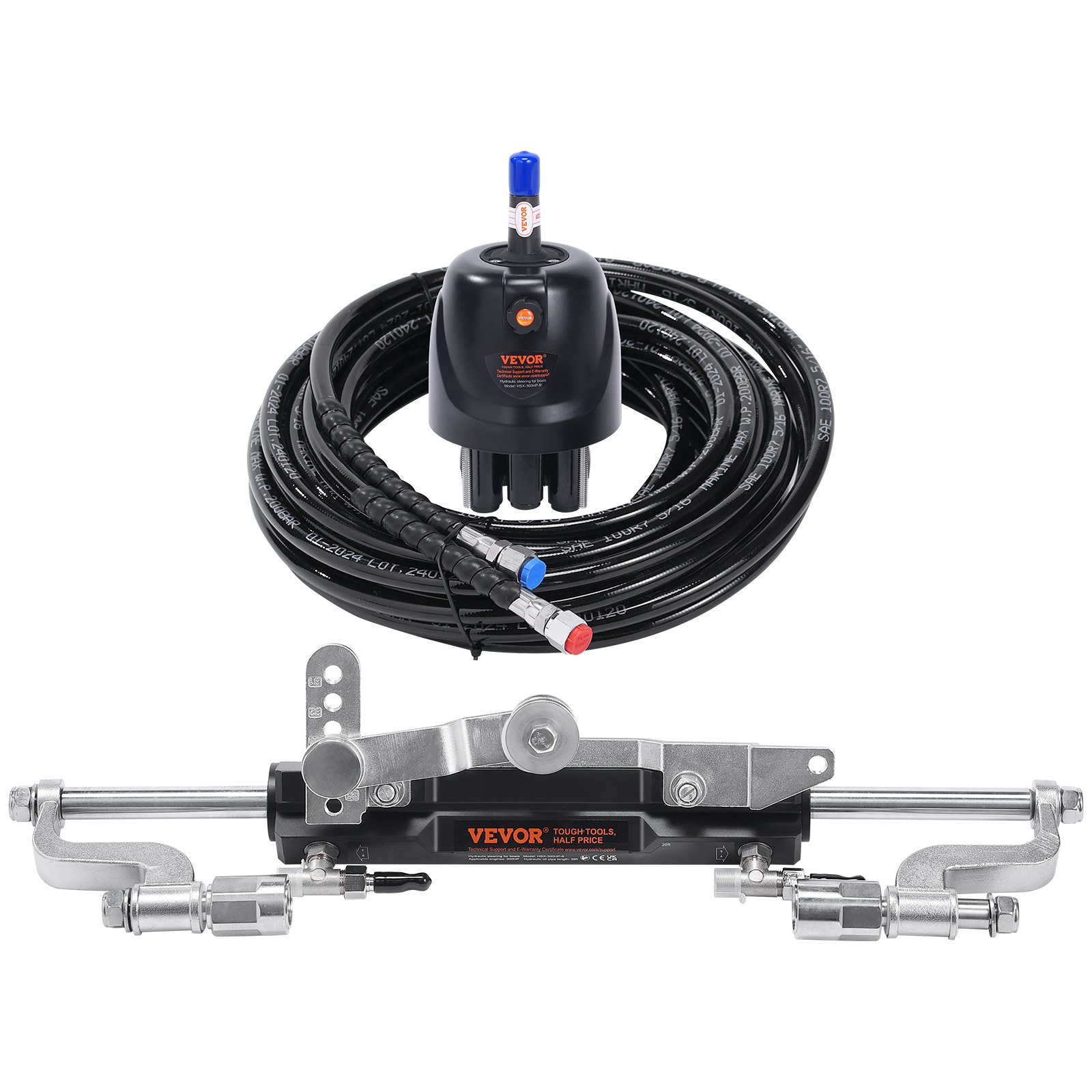

VEVOR outboard steering kit components: hydraulic pump, steering cylinder, oil hoses, accessories.
VEVOR outboard steering kit components: hydraulic pump, steering cylinder, oil hoses, accessories.
Our marine hydraulic steering kit provides everything you need for a seamless setup and maintenance experience. Inside, you'll find a hydraulic steering cylinder, a hydraulic pump, two 26-foot hydraulic hoses, and a comprehensive accessory kit for all your installation needs.
VEVOR outboard steering kit hydraulic refueling and air bleeding instructions with filler port details.
VEVOR outboard steering kit hydraulic refueling and air bleeding instructions with filler port details.
Before using our outboard hydraulic steering kit, it is necessary to fill it with oil and purge any air. If performance decreases or response delays, check the hydraulic fluid and conduct an air purge. We highly recommend consulting and following the user manual.
VEVOR outboard steering kit with hydraulic steering pump, high-pressure oil hoses, and specifications.
VEVOR outboard steering kit with hydraulic steering pump, high-pressure oil hoses, and specifications.
