VEVOR Split Charge Relay Kit, 5mtr 12V, Automatic Dual Battery Isolator Kit with 140AMP Voltage Sense Relay VSR, Compatible with RV Marine Car Vehicle Truck Caravan Camper Yacht ATV UTV Boats Workshop
4.6 441 Reviews
45 90 €
Each when you buy 0+.
Shop
Get -% off for new user
Get 5,00€ Off 99,00€+ Orders on Your First 3 App Orders.
Download Now

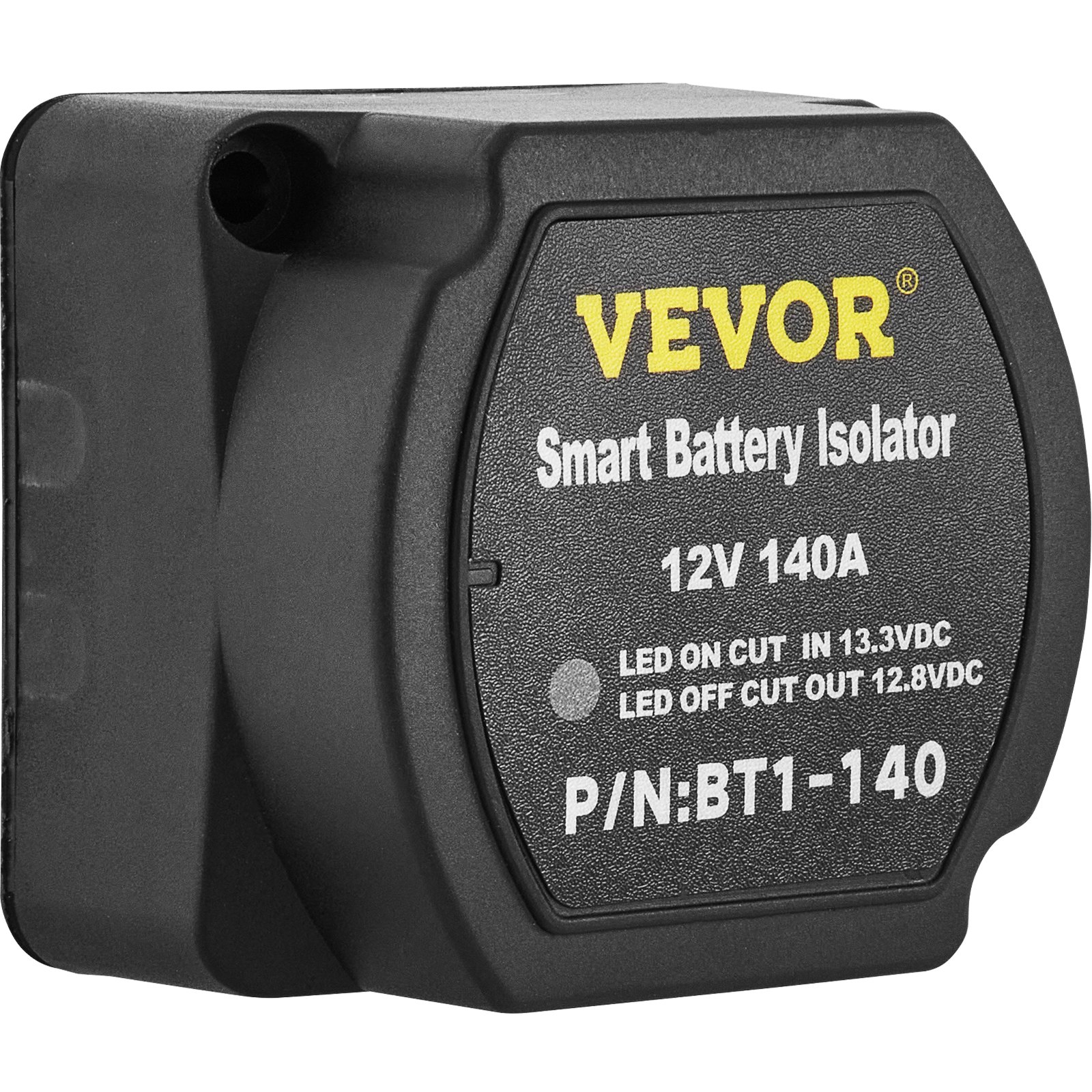

- Dual Battery Isolator: The smart battery isolator cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off. Note: This product is not suitable for lithium batteries.
- Easy to Install: This split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Besides, we have detailed instructions for you to complete the installation easily and flawlessly.
- Rugged & Durable: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage. You will always be prepared and confident to take on any challenge.
- Superb IP65 Waterproof: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.
- Fit Various Vehicles: This isolator kit 12v has a compact size of 2.66" x 2.11" x 2.66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.
Frequently Bought Together
Reviews
About this item
Questions and Answers
Explore
Reviews
4.6 Out of 5
How customer reviews and ratings work?
Details
How customer reviews and ratings work?
Customer Reviews, including Product Star Ratings help customers to learn more about the product and decide whether it is the right product for them.
Our overall rating is not a simple average. We prioritize authentic, trustworthy reviews and filter out duplicates or invalid content before calculating the final score. This helps ensure the rating truly reflects real customer experiences.
Review this product
Share your thoughts with other customers
Top Reviews
Translate all reviews to English
romeo_221 Todo lo necesario para la instalación
Indicator Light 5 m
Estupendo producto 100% recomendable y extraordinario trato en servicio al cliente.
Con este pack ahoras dinero teniendo todo lo necesario para la instalación.
0 people found this helpful
Translate review to English
Henri Kerselaers Werkt nog steeds perfect !!!
Indicator Light 5 m
Werkt nog steeds perfect !!!
0 people found this helpful
Translate review to English
Juho Huotari Toimiva setti
Indicator Light 5 m
Asennettu vw transporter pakettiautoon. Helppo asentaa ja toimi ainakin 2viikon reissun ajan.
0 people found this helpful
Translate review to English
Ma*** Camper project
Indicator Light 5 m
Great for DIY camper projects for 2nd battery
0 people found this helpful
About this item
Description
12V 140A Split Charge Relay Kit
Complete Accessories & Weather Resistance & Smart Charging
VEVOR dual battery isolator kit enables your accessories to run from a separate battery while the engine is not running on your vehicle. In the meantime, it keeps your main battery charged and ensures your vehicle is always ready to go. We provide all the accessories needed for a complete installation. The VEVOR split charge relay kit fits perfectly into most cars, RVs, trucks, caravans, ships, boats, yachts, etc. Charge up optimally and stand up to the toughest challenges with VEVOR.
- Dual Battery Isolator
- Easy to Install
- Rugged & Durable
- Superb IP65 Waterproof
- Fit Various Vehicles

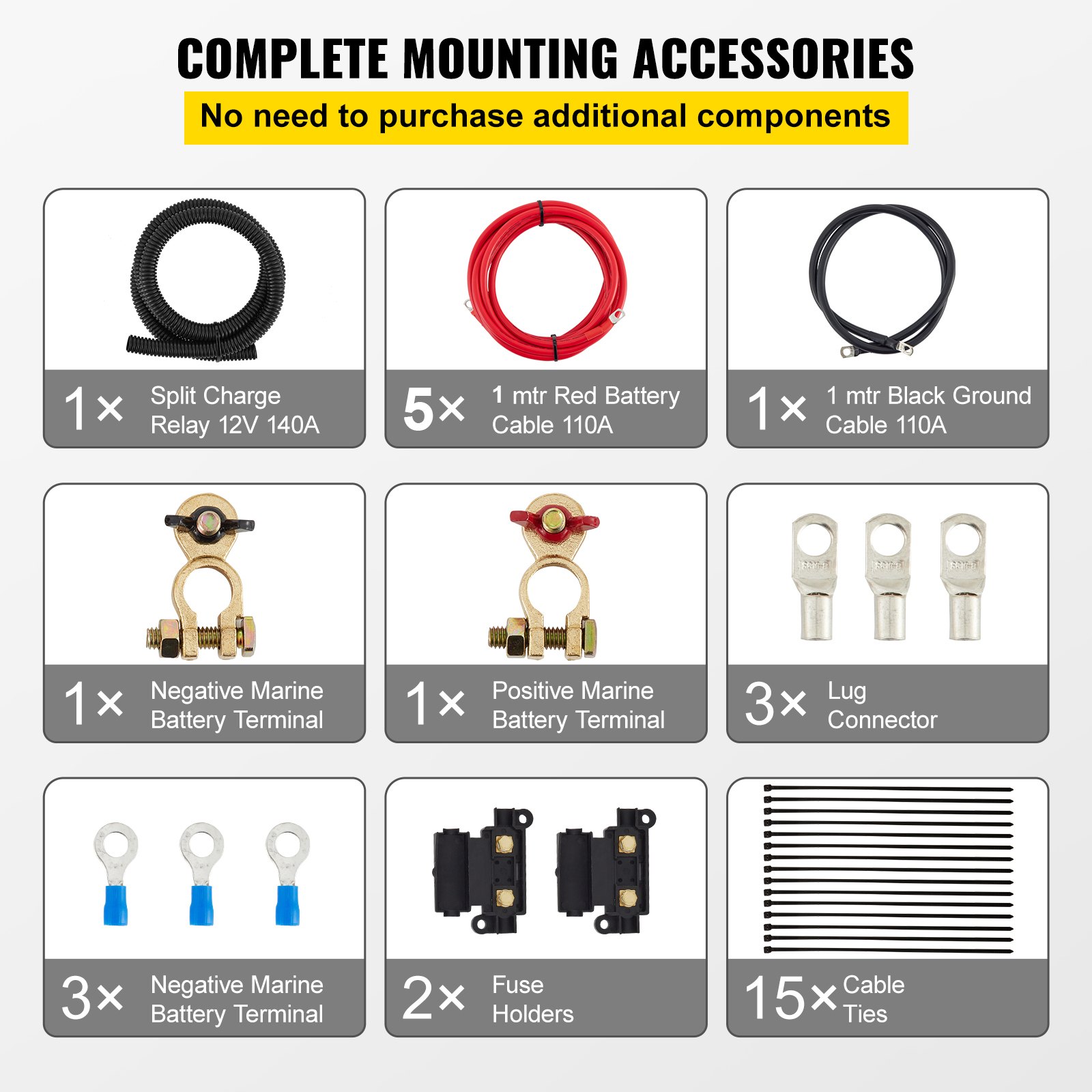

All Accessories Included
The split charger relay kit is equipped with all parts needed for a complete installation, including screws, cable ties, etc.
Simple to Connect

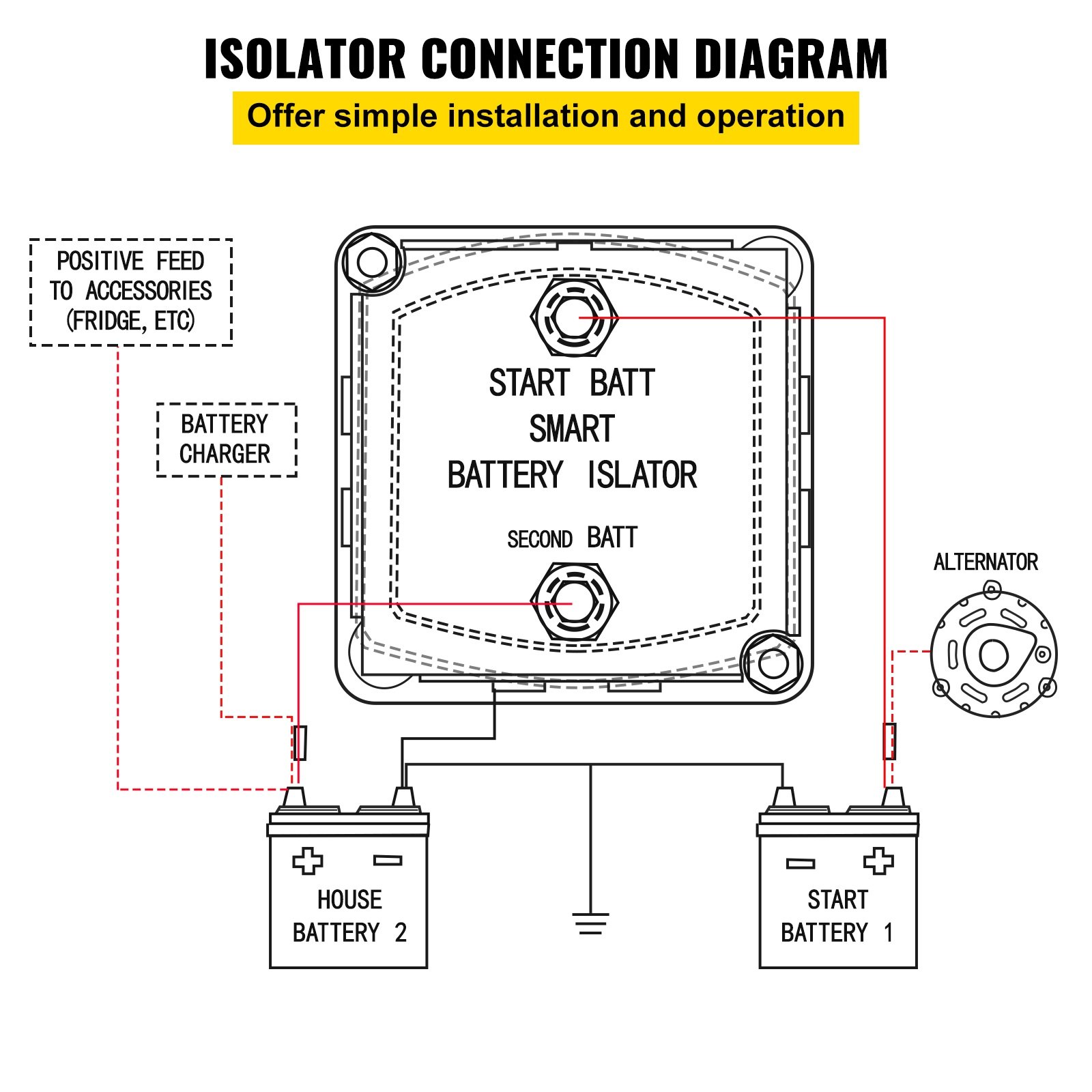

No alternator or ignition connection is needed. An easy 3-wire connection at the battery can be used with the existing wiring in the vehicle.

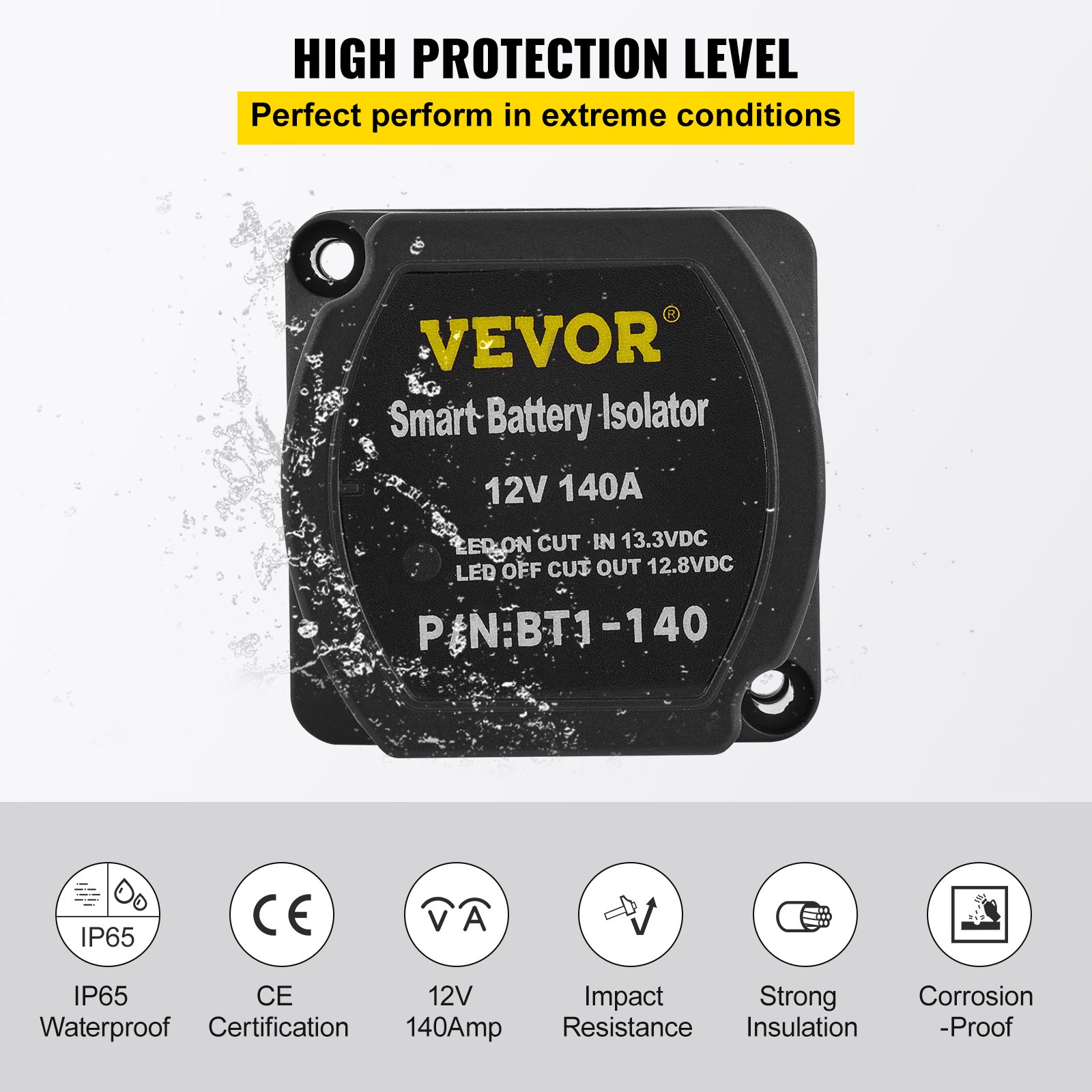

IP65 Waterproof Grade
The IP65 protection level ensures the split charger can be used optimally and remains protected from dust, rain, vibration, etc.

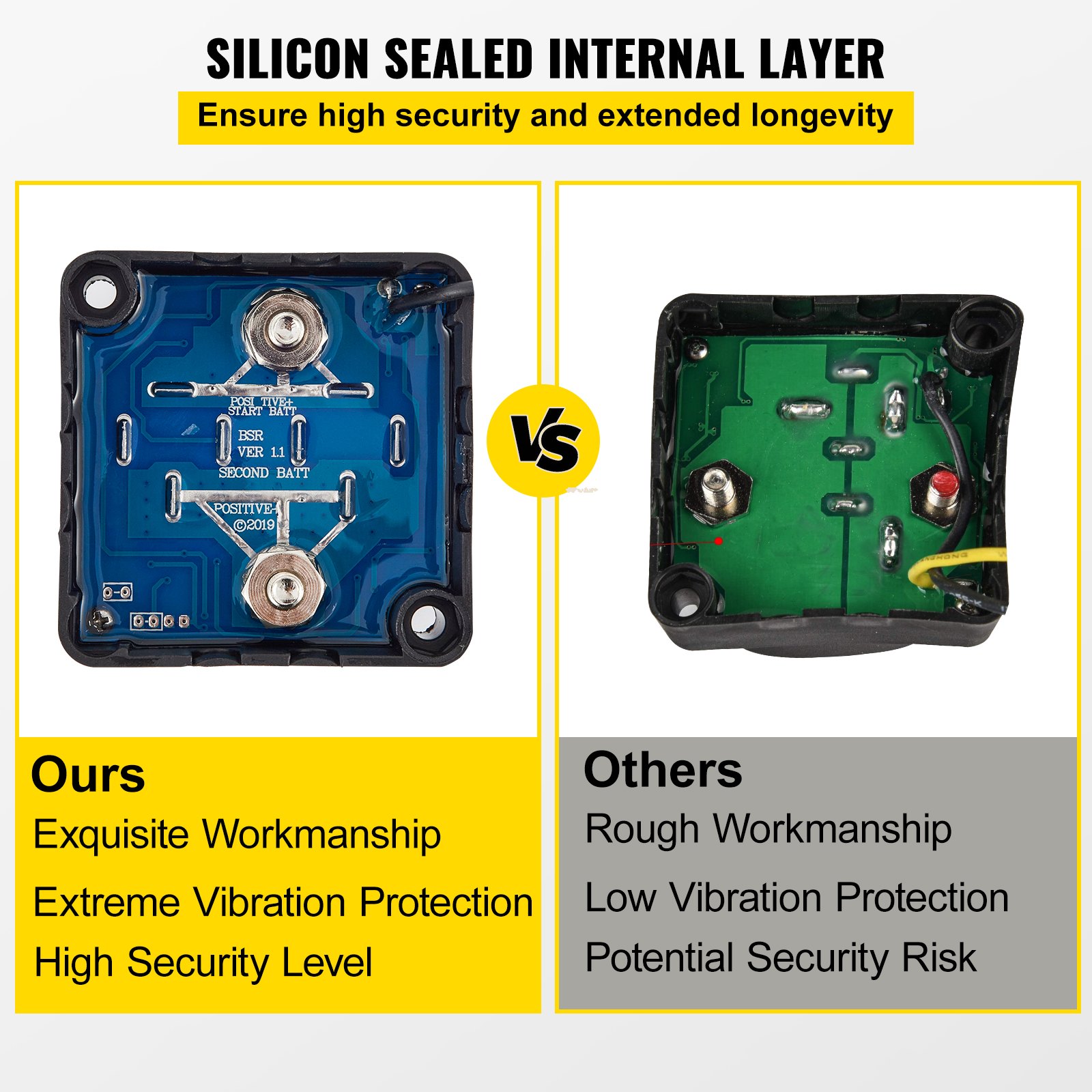

High-Quality Internal Layer
Silicone sealed inner layer is more secure and has anti-vibration capabilities. The plastic shell has high impact strength.
Thickened Battery Cable
The battery cable uses a pure flame retardant copper core and can be used for a long time. Length: 5 Meters.

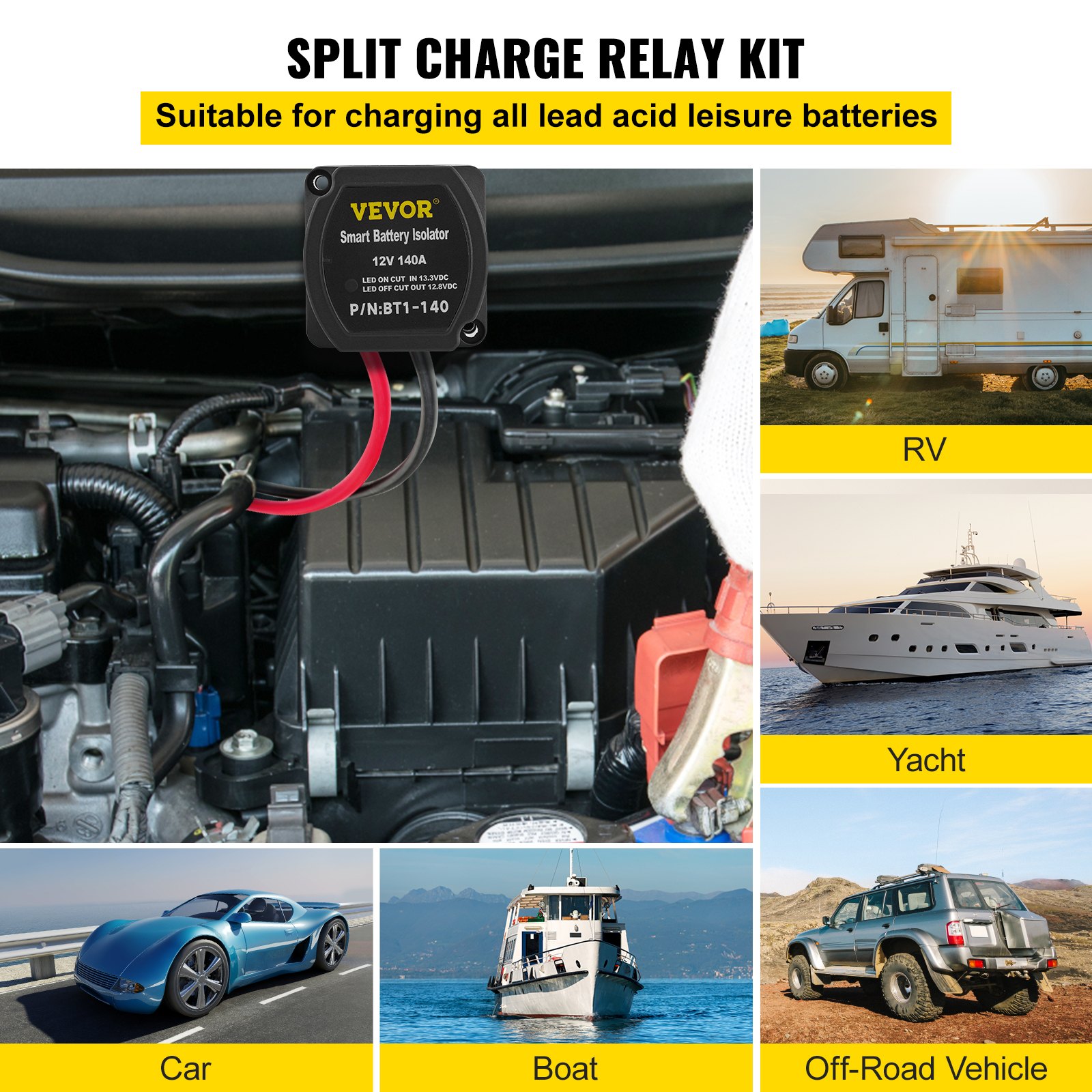

Wide Compatibility
The 12v split charge relay kit is ideal for installation into ATVs, UTVs, trucks, motor homes, and camping applications.

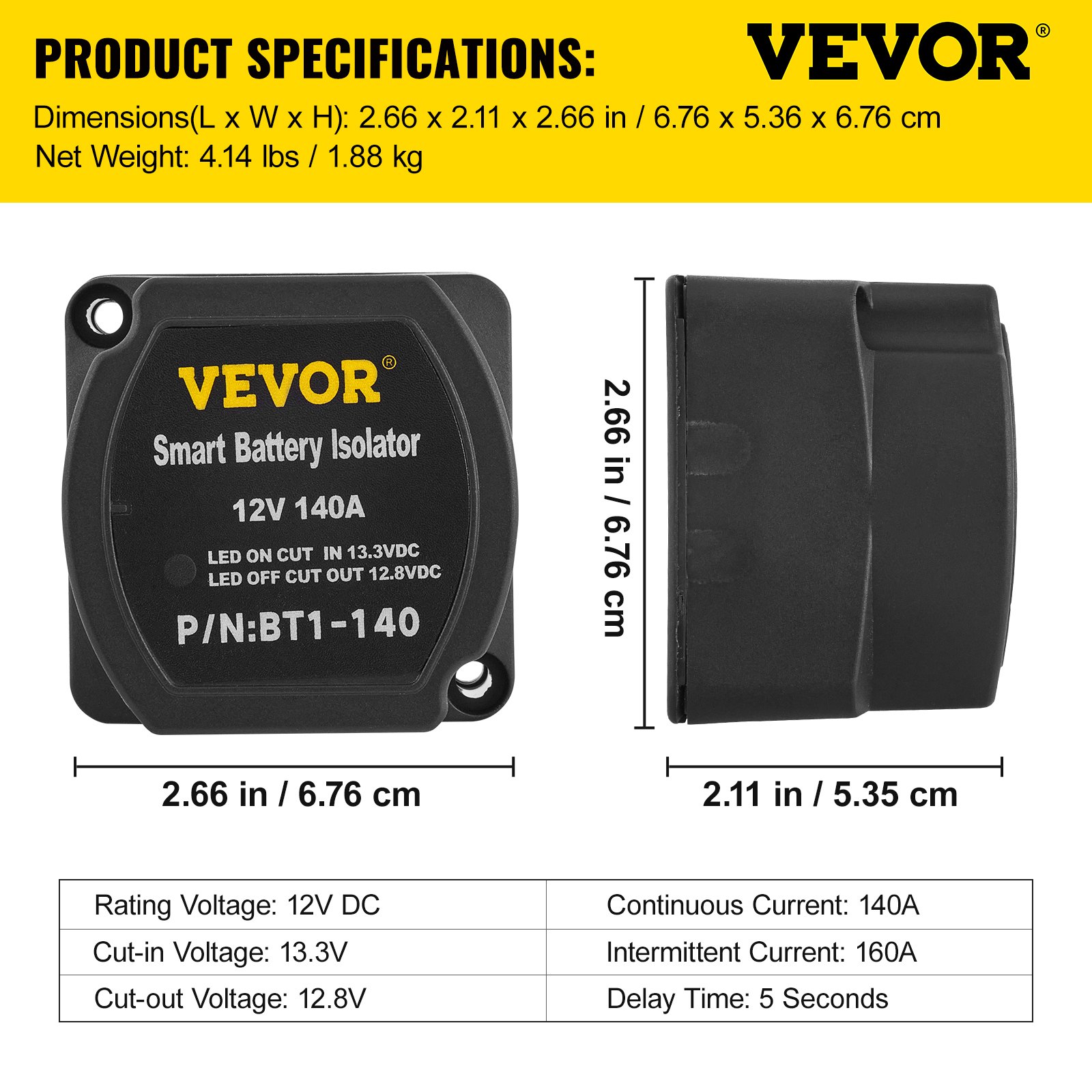

- Model: JDQTJ-5M
- Rating Voltage: 12V DC
- Continuous Current: 140A
- Intermittent Current: 160A
- Cut-in Voltage: 13.3V
- Cut-out Voltage: 12.8V
- IP Rating: IP65
- Material: Nylon Plastic
- Current Draw-Charging: 280mA
- Current Draw-Standby: 8mA
- Power Studs: M6 Stainless Steel
- Delay Time: 5 Seconds
- Disengage Delay: About 5-10 Seconds
- Operation Temperature Range: -30 to 105℃ / -22 to 221℉
- Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm
- Net Weight: 4.14 lbs / 1.88 kg

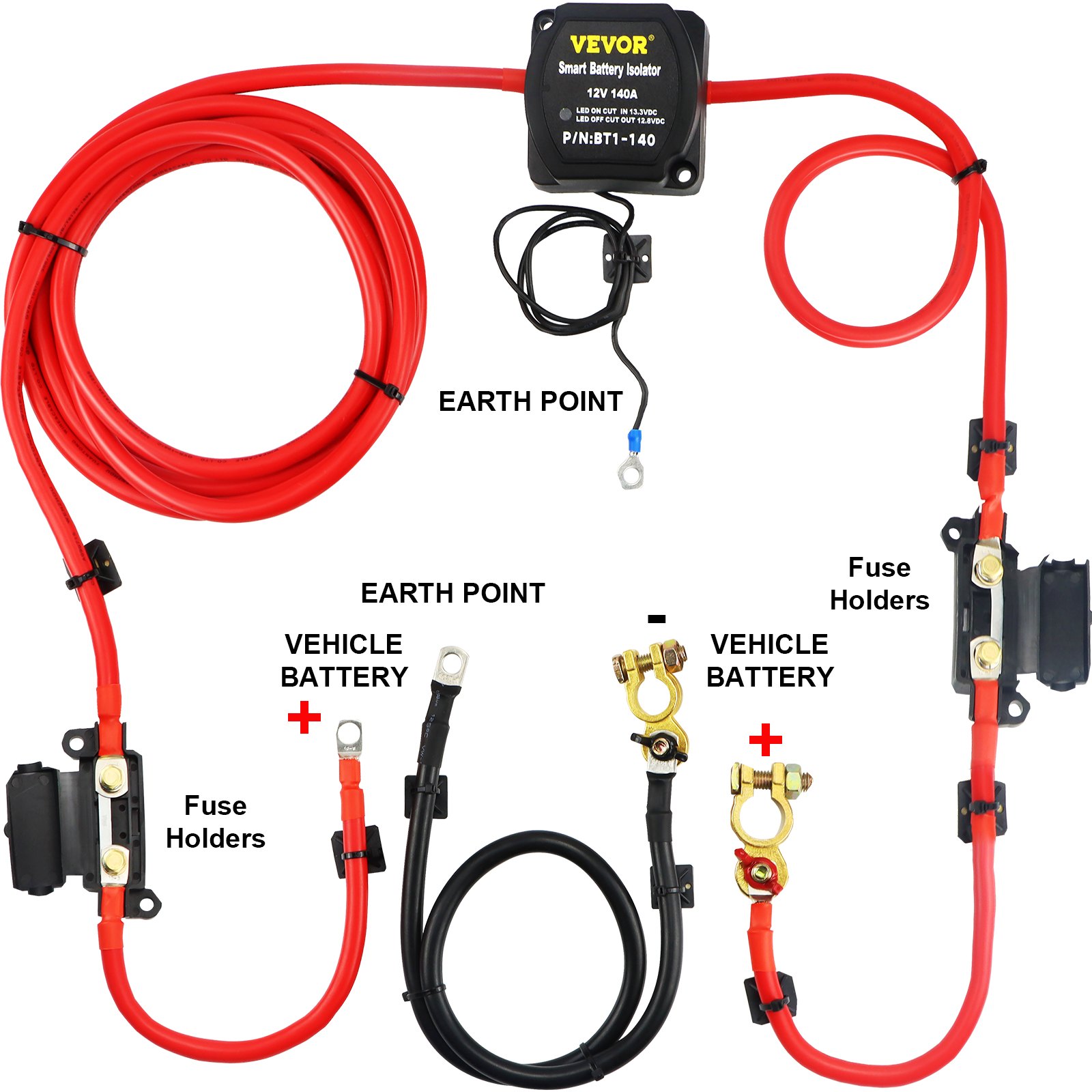

- 1 x Split Charge Relay
- 1 x 5 mtr Red Battery Cable 110A
- 1 x 1 mtr Black Ground Cable 110A
- 1 x Negative Marine Battery Terminal
- 1 x Positive Marine Battery Terminal
- 2 x Fuse Holders
- 3 x Lug Connector
- 3 x Insulated Blue Ring Terminal
- 15 x Cable Ties
- 2 x 250 mm Red 110A Cable
- 2 x Shrink Tube
- 1 x Drill Bit
- 1 x Black Split Conduit
- 1 x Set of Screws
12V 140A Split Charge Relay Kit
Complete Accessories & Weather Resistance & Smart Charging
VEVOR dual battery isolator kit enables your accessories to run from a separate battery while the engine is not running on your vehicle. In the meantime, it keeps your main battery charged and ensures your vehicle is always ready to go. We provide all the accessories needed for a complete installation. The VEVOR split charge relay kit fits perfectly into most cars, RVs, trucks, caravans, ships, boats, yachts, etc. Charge up optimally and stand up to the toughest challenges with VEVOR.
- Dual Battery Isolator
- Easy to Install
- Rugged & Durable
- Superb IP65 Waterproof
- Fit Various Vehicles
All Accessories Included
The split charger relay kit is equipped with all parts needed for a complete installation, including screws, cable ties, etc.
Simple to Connect
No alternator or ignition connection is needed. An easy 3-wire connection at the battery can be used with the existing wiring in the vehicle.
IP65 Waterproof Grade
The IP65 protection level ensures the split charger can be used optimally and remains protected from dust, rain, vibration, etc.
High-Quality Internal Layer
Silicone sealed inner layer is more secure and has anti-vibration capabilities. The plastic shell has high impact strength.
Thickened Battery Cable
The battery cable uses a pure flame retardant copper core and can be used for a long time. Length: 5 Meters.
Wide Compatibility
The 12v split charge relay kit is ideal for installation into ATVs, UTVs, trucks, motor homes, and camping applications.
- 1 x Split Charge Relay
- 1 x 5 mtr Red Battery Cable 110A
- 1 x 1 mtr Black Ground Cable 110A
- 1 x Negative Marine Battery Terminal
- 1 x Positive Marine Battery Terminal
- 2 x Fuse Holders
- 3 x Lug Connector
- 3 x Insulated Blue Ring Terminal
- 15 x Cable Ties
- 2 x 250 mm Red 110A Cable
- 2 x Shrink Tube
- 1 x Drill Bit
- 1 x Black Split Conduit
- 1 x Set of Screws
- Model: JDQTJ-5M
- Rating Voltage: 12V DC
- Continuous Current: 140A
- Intermittent Current: 160A
- Cut-in Voltage: 13.3V
- Cut-out Voltage: 12.8V
- IP Rating: IP65
- Material: Nylon Plastic
- Current Draw-Charging: 280mA
- Current Draw-Standby: 8mA
- Power Studs: M6 Stainless Steel
- Delay Time: 5 Seconds
- Disengage Delay: About 5-10 Seconds
- Operation Temperature Range: -30 to 105℃ / -22 to 221℉
- Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm
- Net Weight: 4.14 lbs / 1.88 kg
