Features & Details

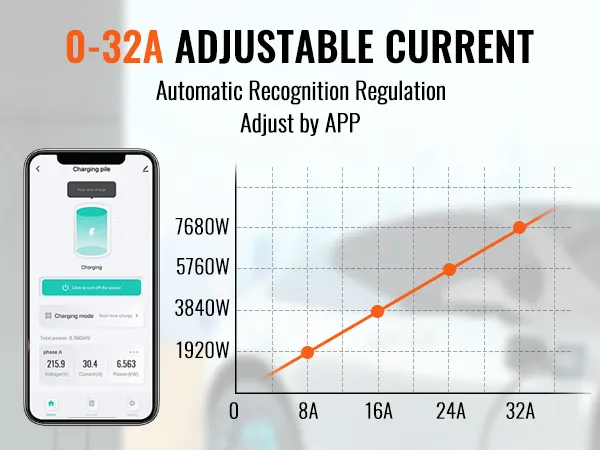

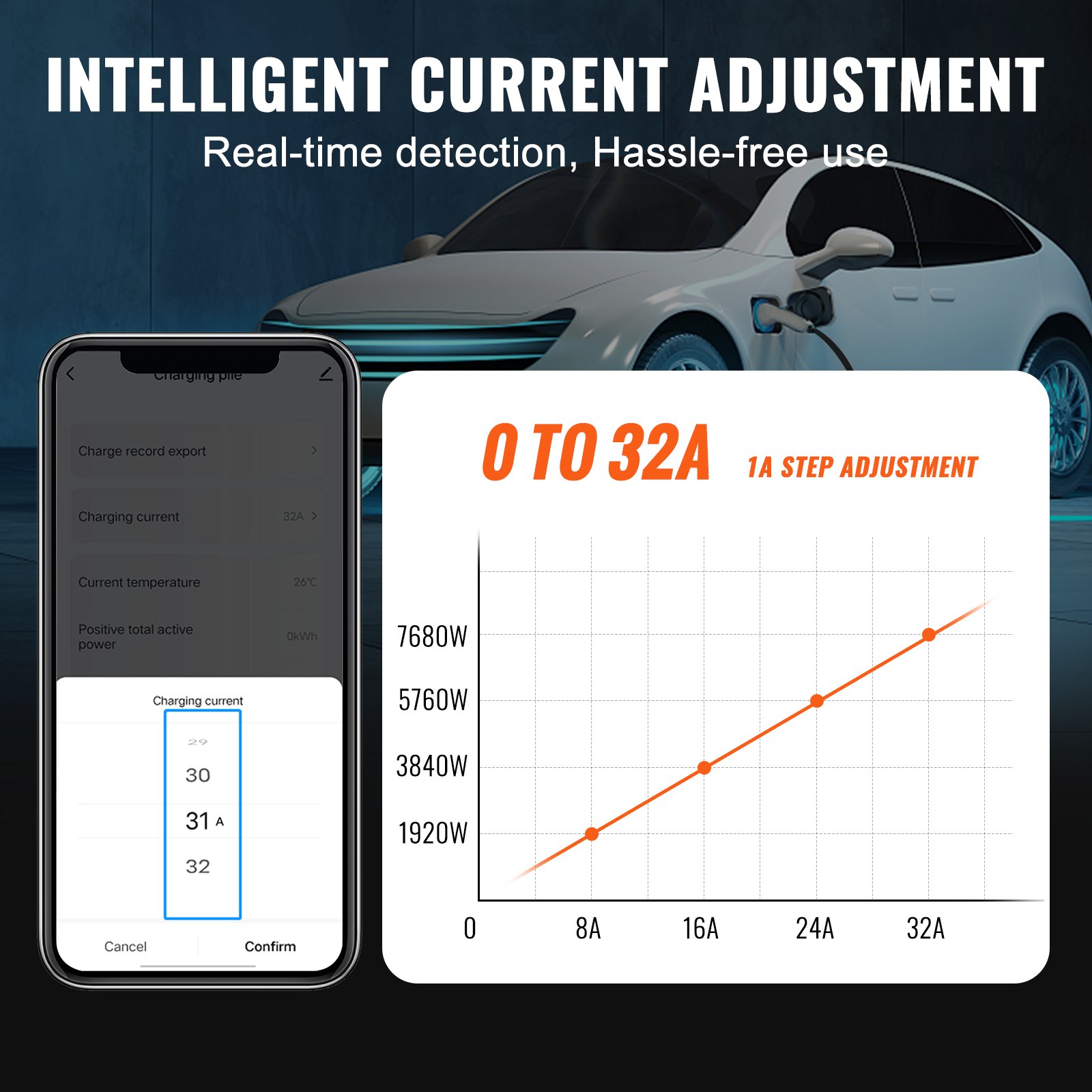

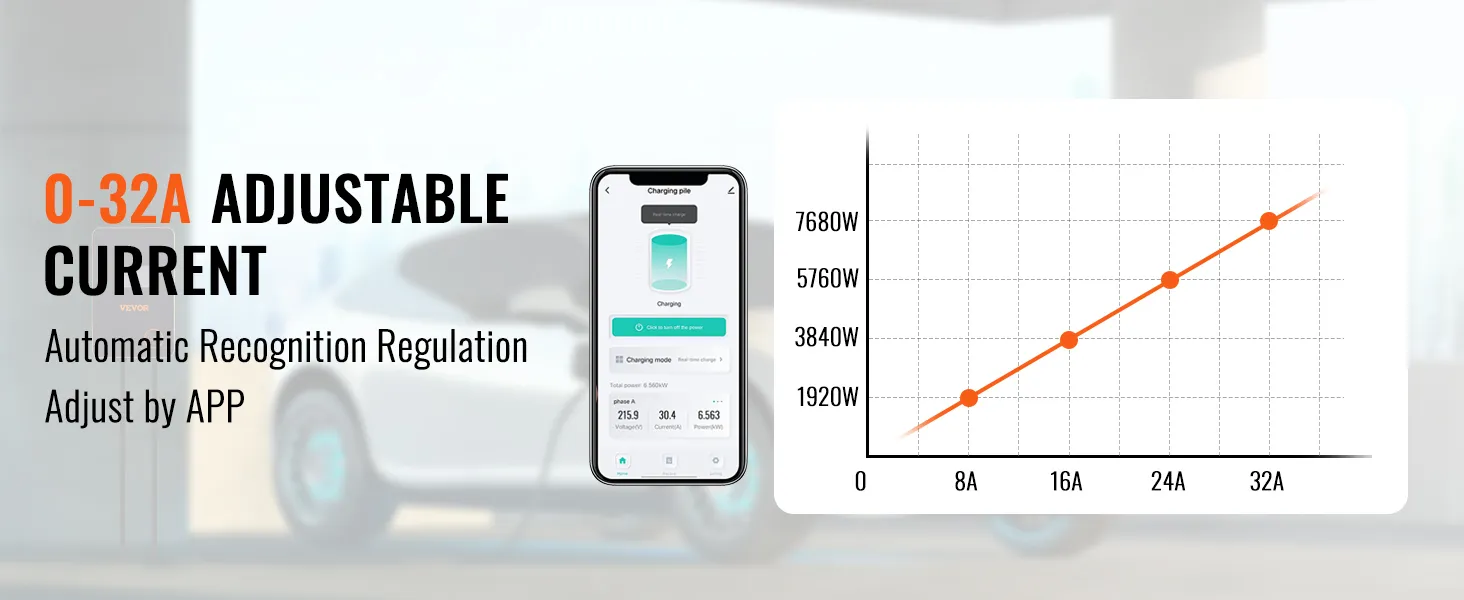

- Intelligent Recognition Function: Our EV charging station type 2 can intelligently identify the user's home circuit. If the circuit can not withstand the charging power, it will automatically switch to the appropriate power charging. You won't have anything to worry about! Adjustment Unit: 1A, adjustment Range: 0-32A.

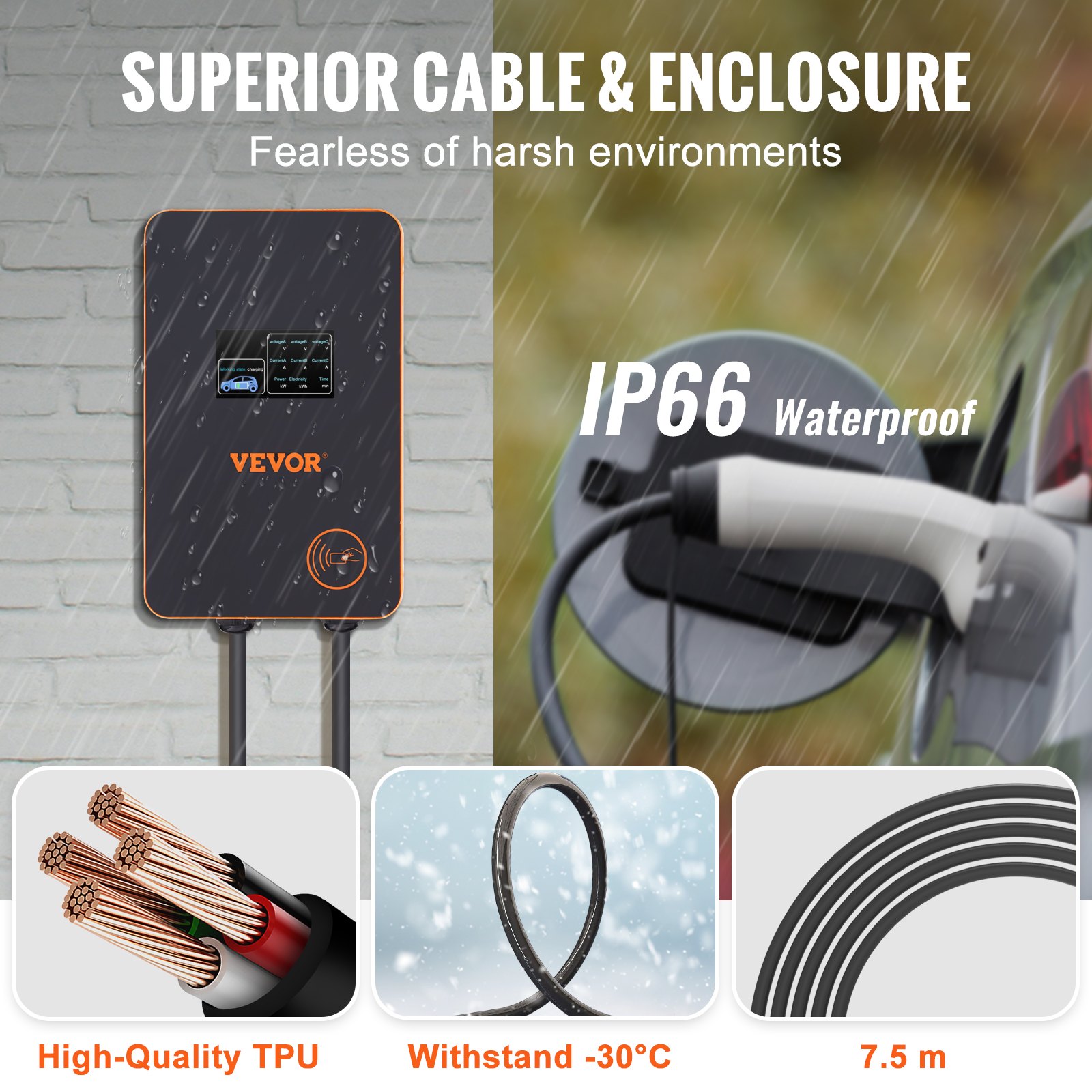

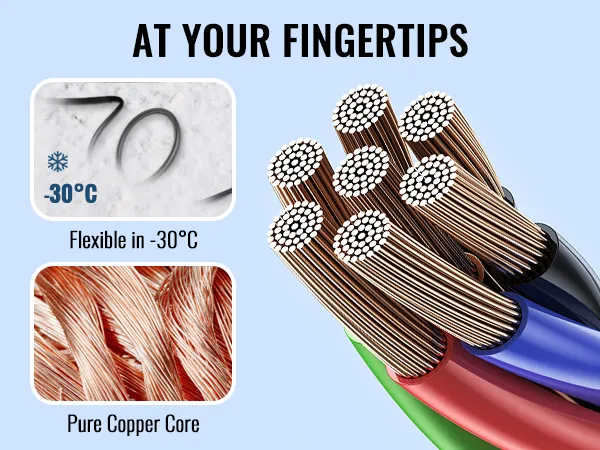

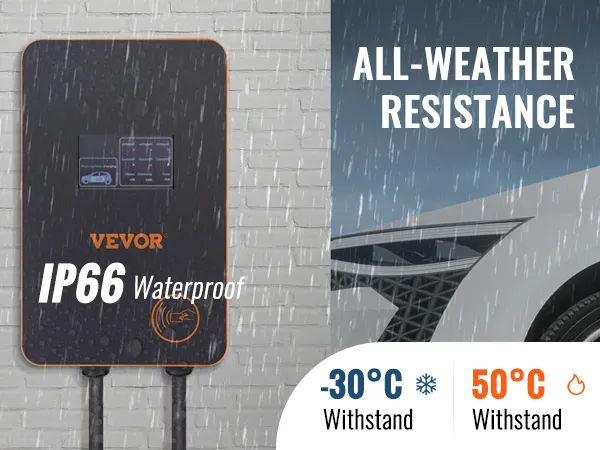

- Above and Beyond TPU: Our charging cable is made of high-quality TPU, which is flexible even at -30℃. The extra-long charging cable reaches as far as 7.5 m, meeting all your needs. Besides, the enclosure features sheet metal & acrylic material, with an IP66 protection level to withstand harsh weather conditions. No matter where you are, you will be ready for anything!

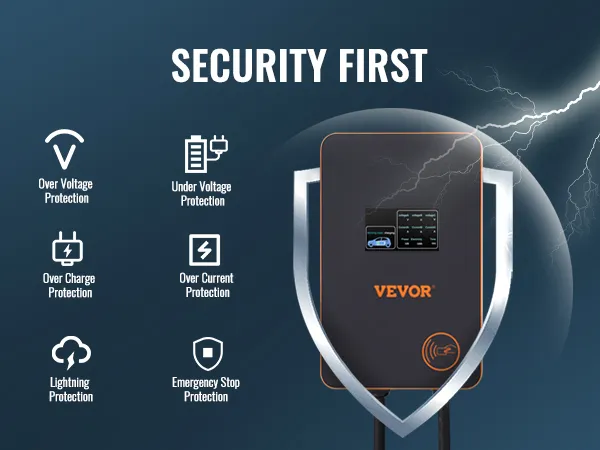

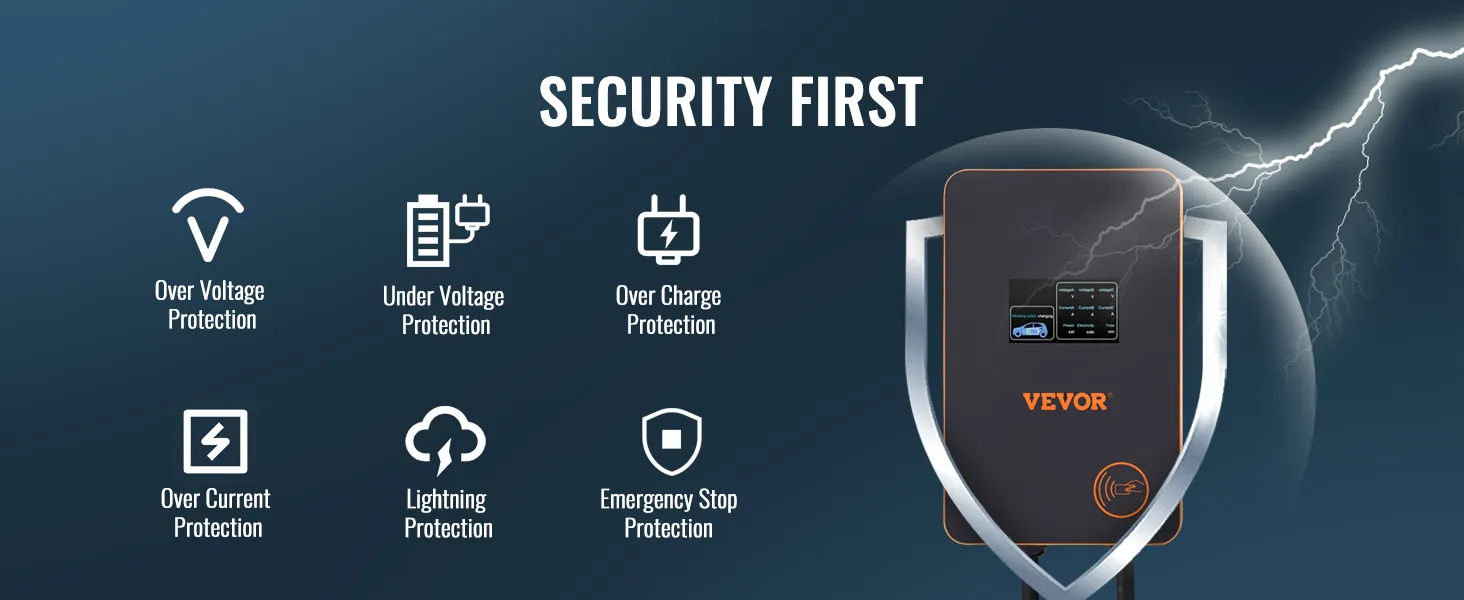

- Security is Our Priority: Your security is our primary concern! That is why this smart EV charger is TUV certified. It is equipped with various protection features to keep users and equipment secure. Features include over voltage / under voltage / over charge / over current / emergency stop protection / lightning protection.

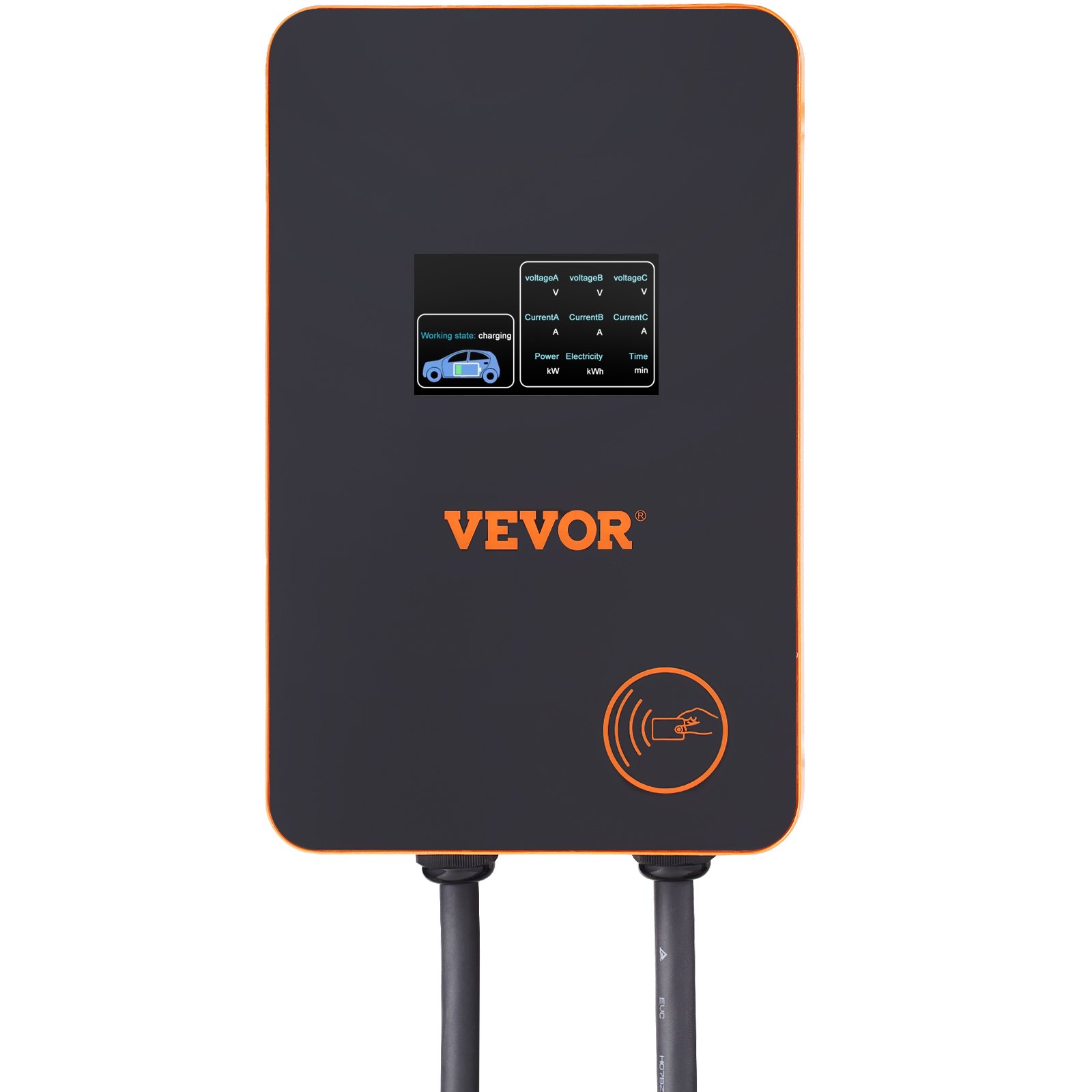

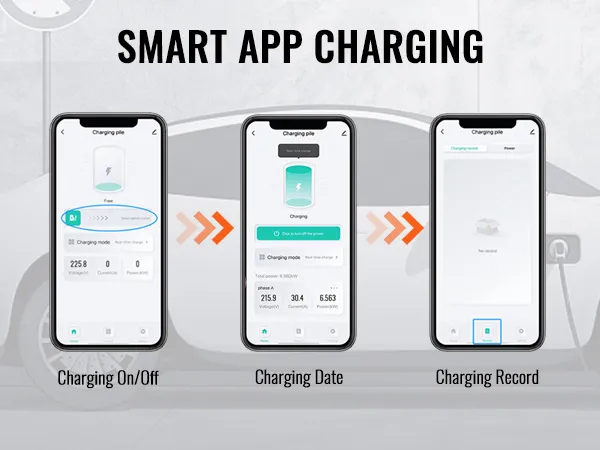

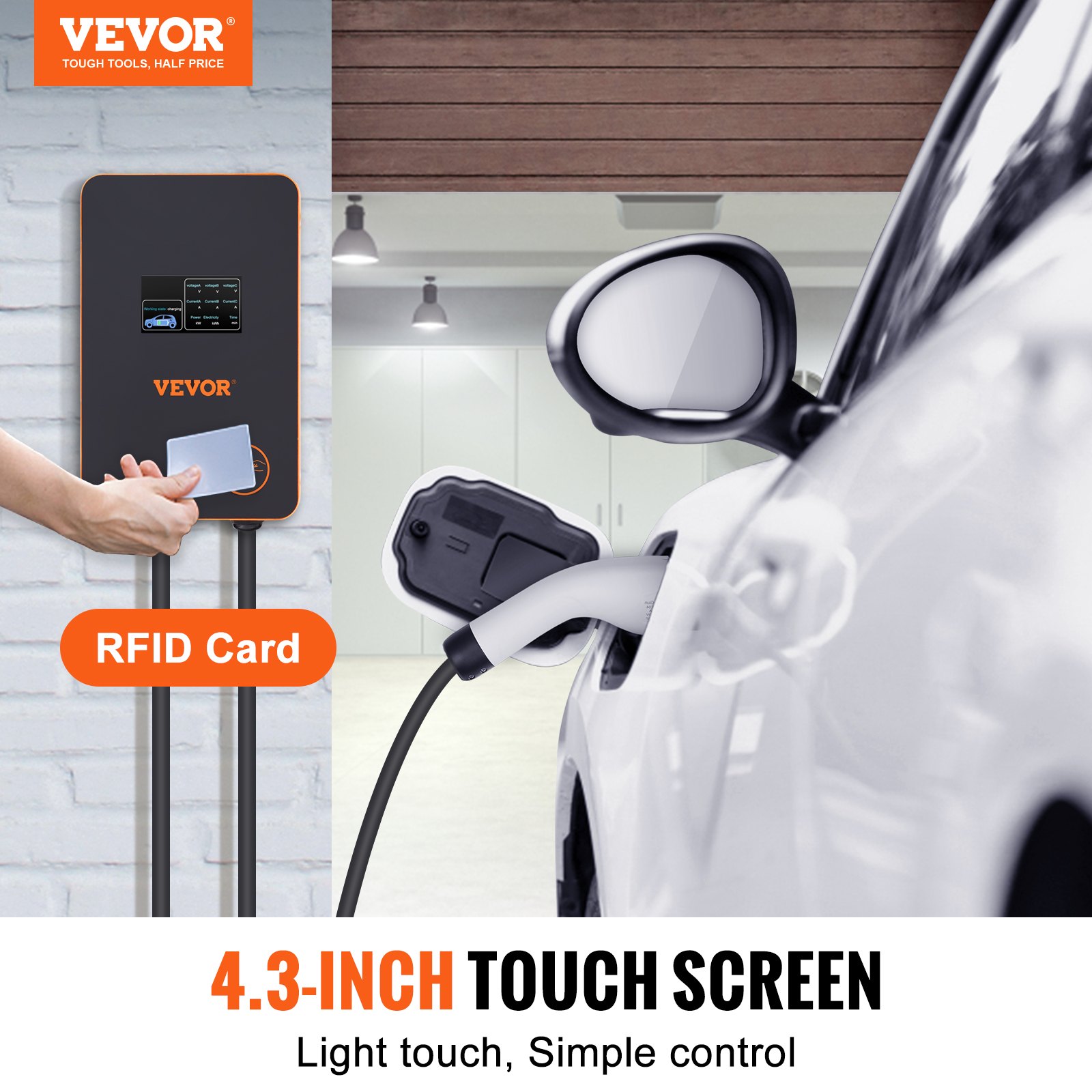

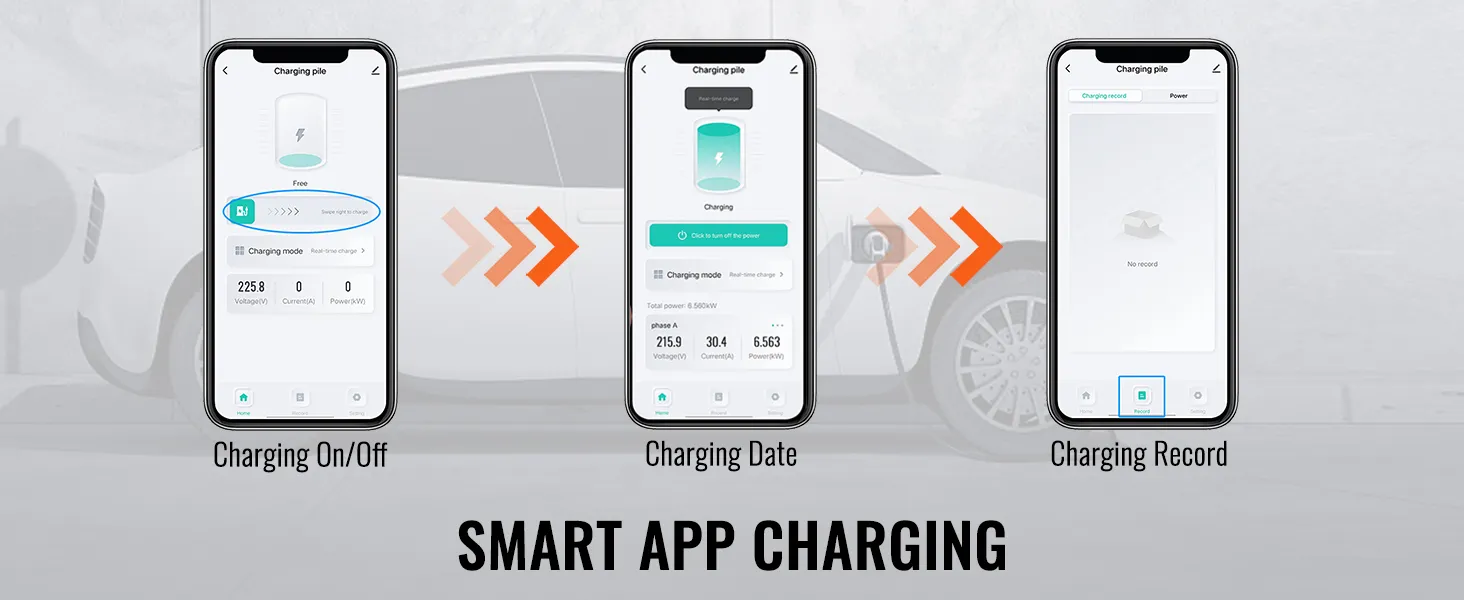

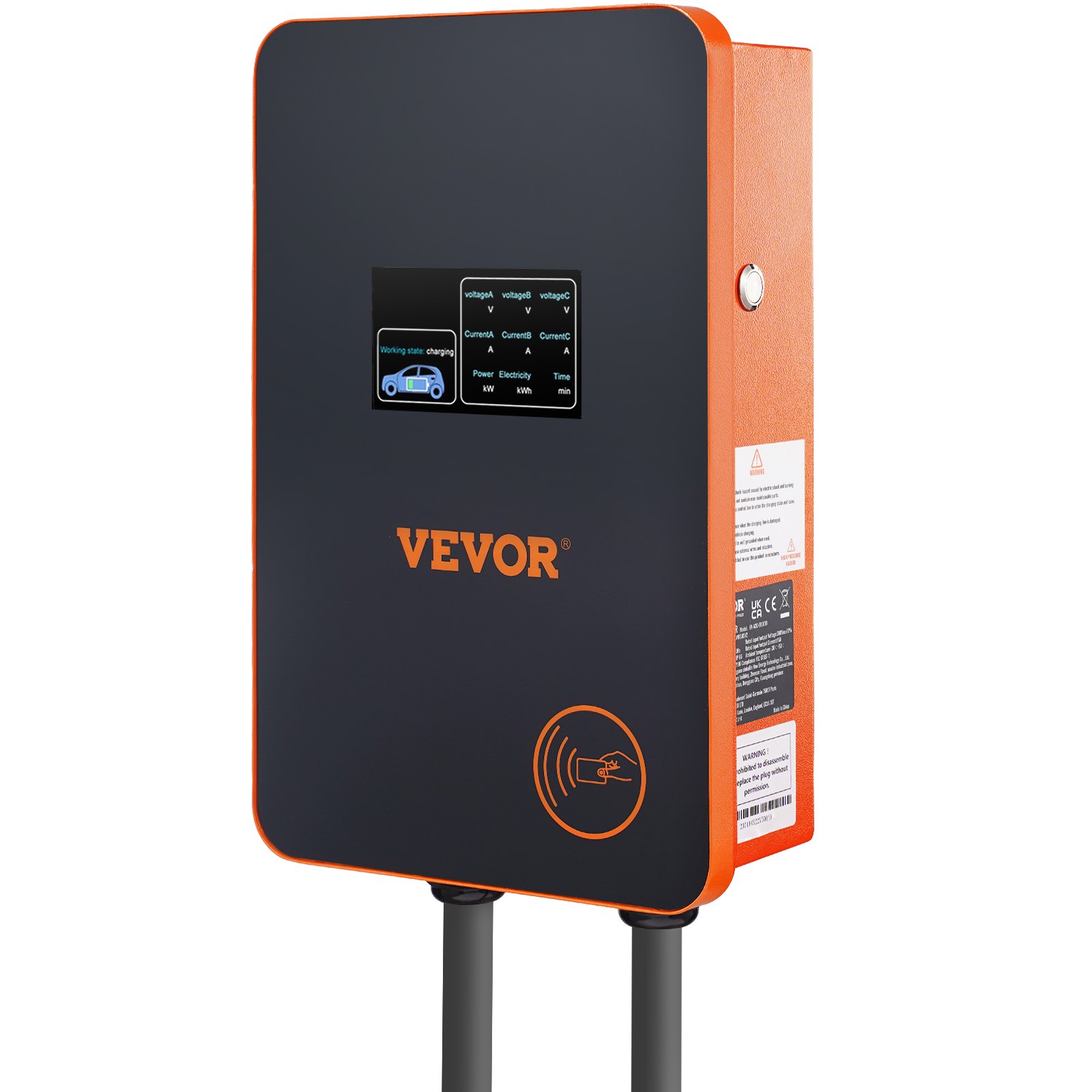

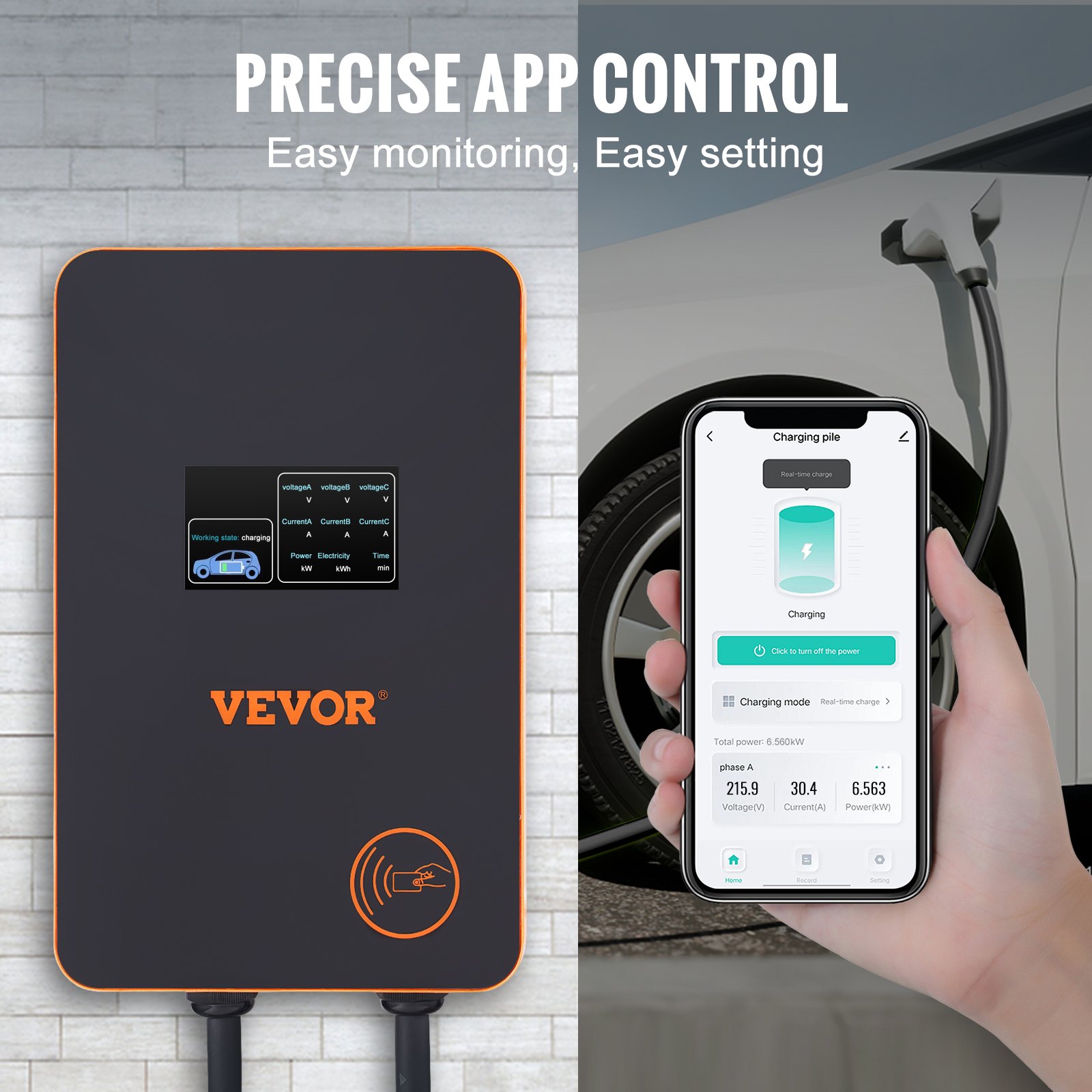

- Real-Time Monitoring: This home vehicle charging station has a built-in intelligent App to directly monitor the charge status and power consumption. Designed with a 4.3-inch touchscreen to easily control the current / mode setting, order / password charging, changing password, and charging interface.

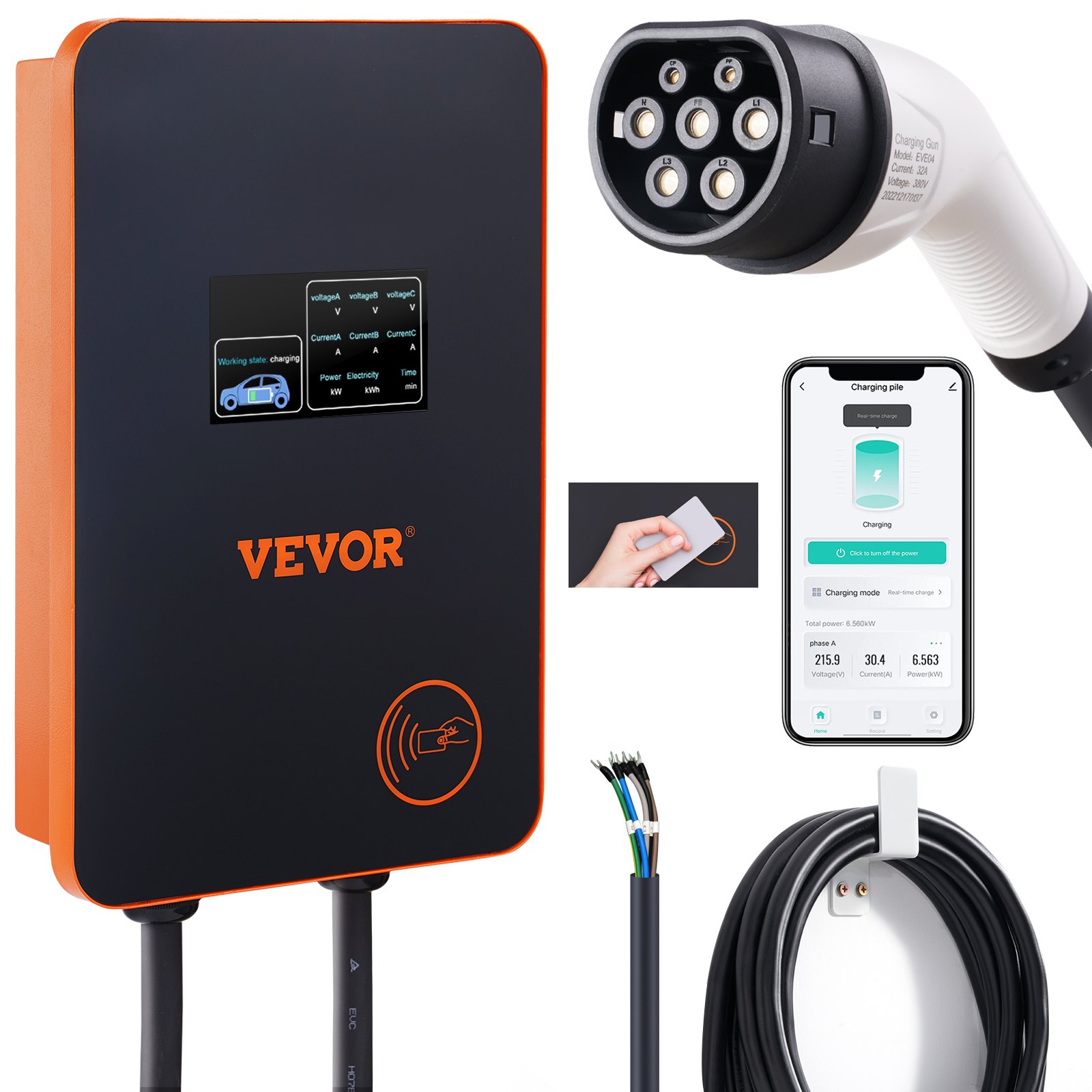

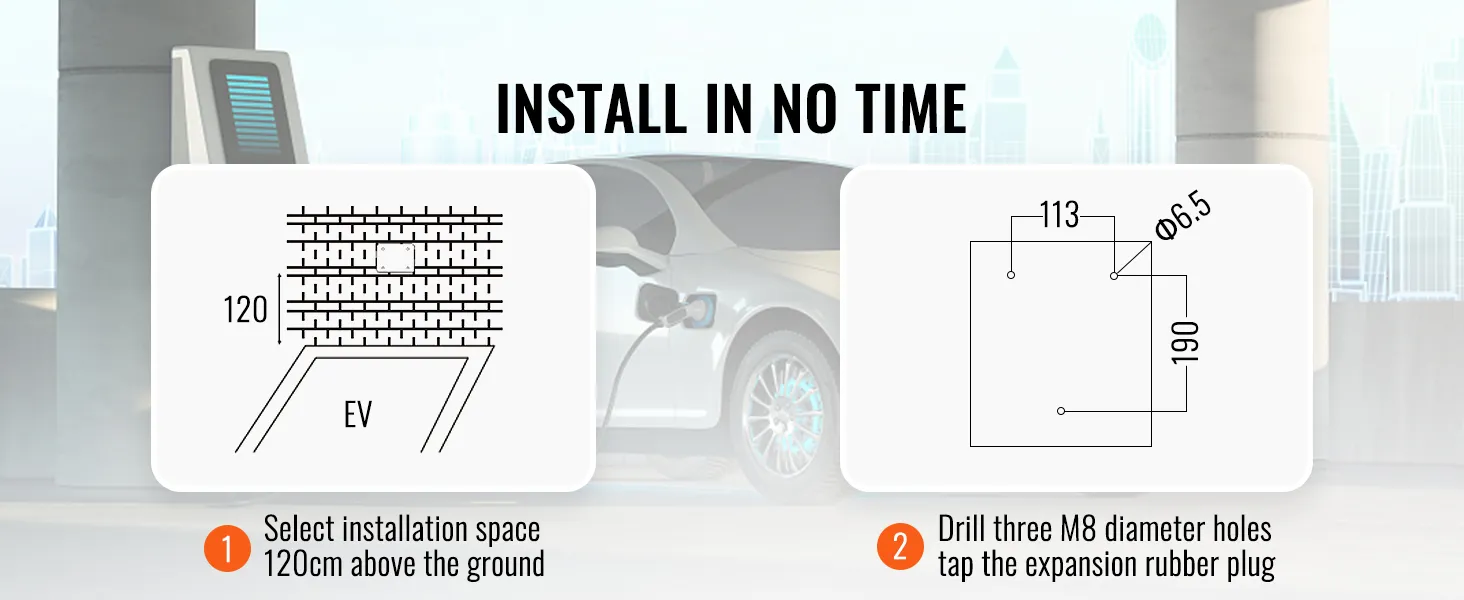

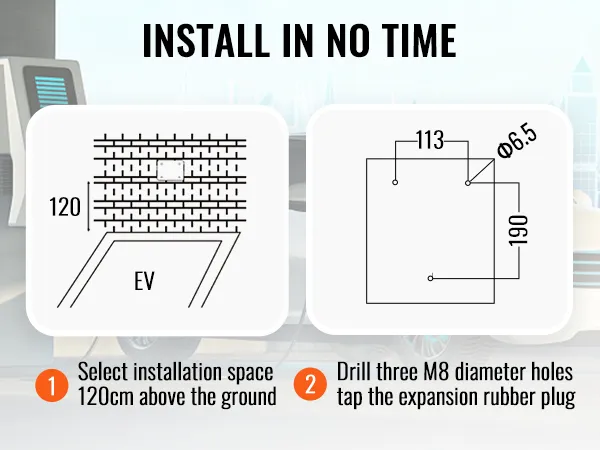

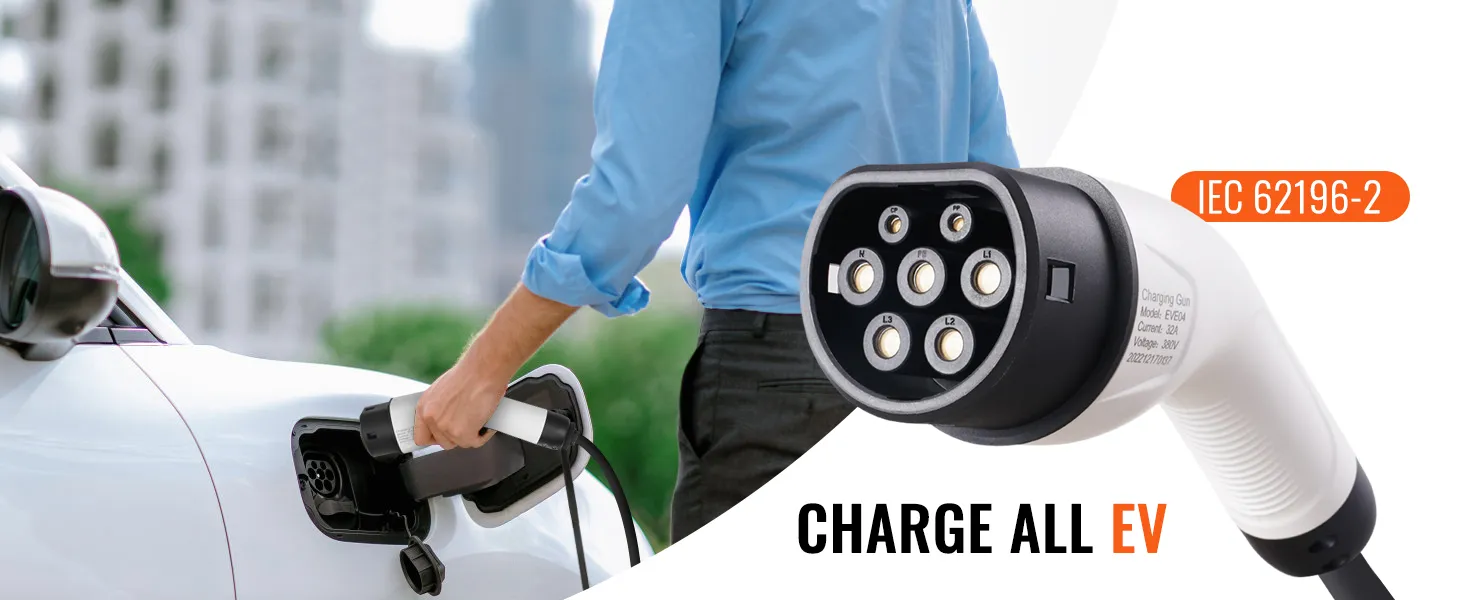

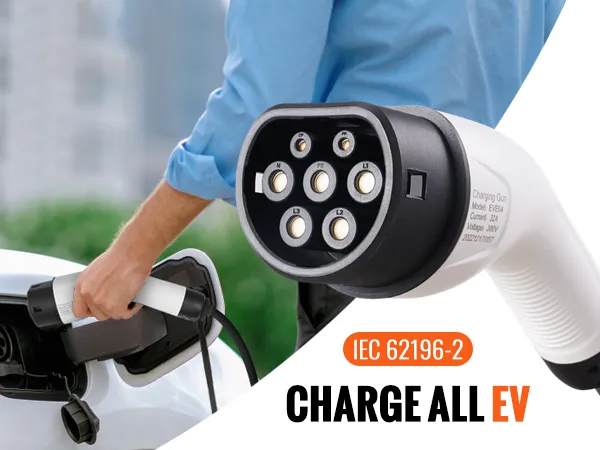

- Everything You Need: We provide you with complete accessories to make installation effortless, including 2 x RFID cards(M1 card), 3 x M8*60 expansion screws, 1 x charging cable hook, and 1 x certificate of conformity. The electric car charger is compatible with most electric vehicles and plug-in hybrid vehicles that comply with the IEC 62196 standard. Get ready to charge up and hit the road again!
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews
Reviews 5.0
All reviews are from verified purchases
See all 1 reviews
About this item
Product specification
- Model
- EV-A30-EU022B
- Voltage
- 220-240V/380-400V, 50 Hz
- Power Output
- 7.4 kW/ 22 kW
- Maximum Output Current
- 32A
- IP Rating
- IP66
- Standard of Reference
- IEC 62196-2

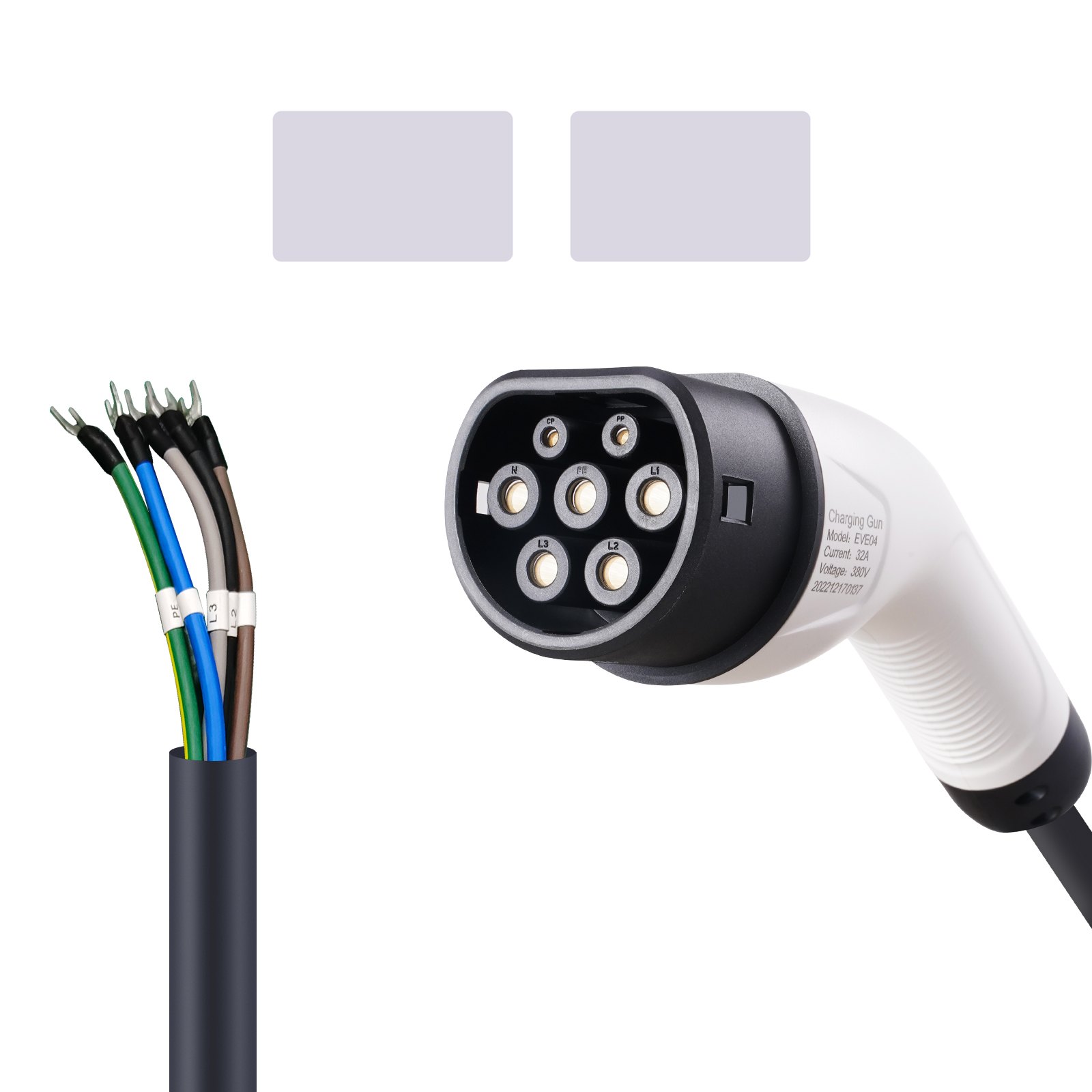

- Charging Cable
- 7.5 m / 24.6 ft(5*6㎟+1*0.5㎟, TPU)
- Input Cable
- 1.5 m / 5 ft(5*6㎟, PVC)
- Protection Function
- Fire Protection, Over Current, Over Voltage, Under Voltage, Ground Protection, Over Temperature Protection, Self Monitoring and Recovery, Emergency Stop
- Liquid Crystal Screen
- 4.3-inch Touchscreen
- Certification
- TUV
- Charging Mode

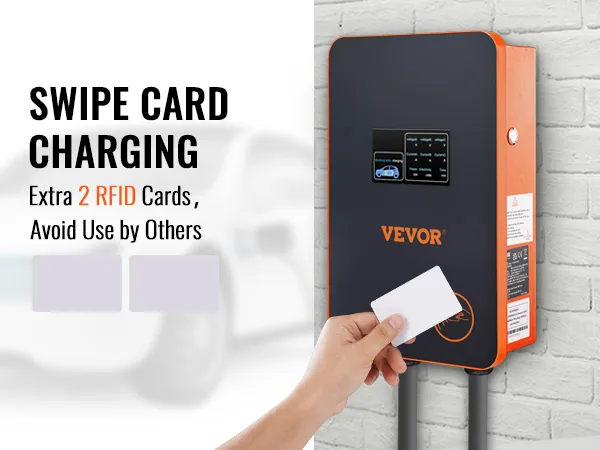

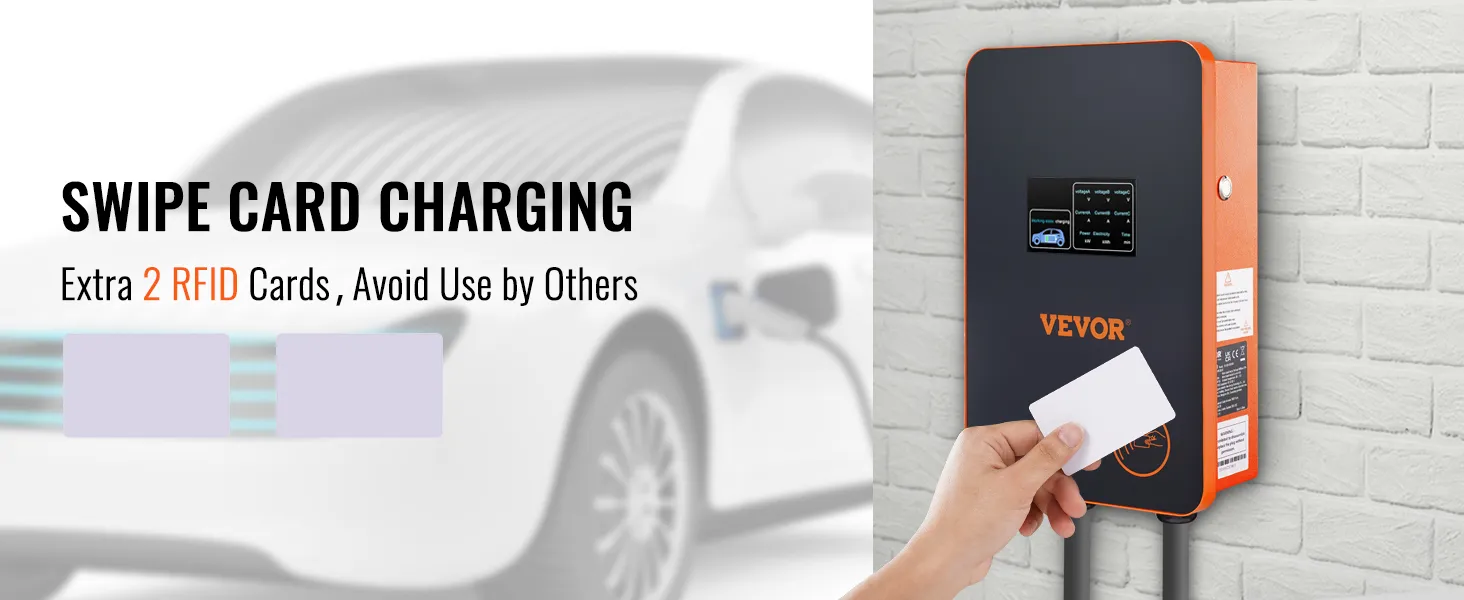

- Swipe Card Charging / APP Charging / Password Charging / Appointment Charging
- Charging Interface
- European Standard Charging Gun
- Enclosure Material
- Sheet Metal & Acrylic
- Operating Temperature
- -30 to 50℃ / -22 to 122℉
- Relative Humidity
- 5%-95% No Condensation

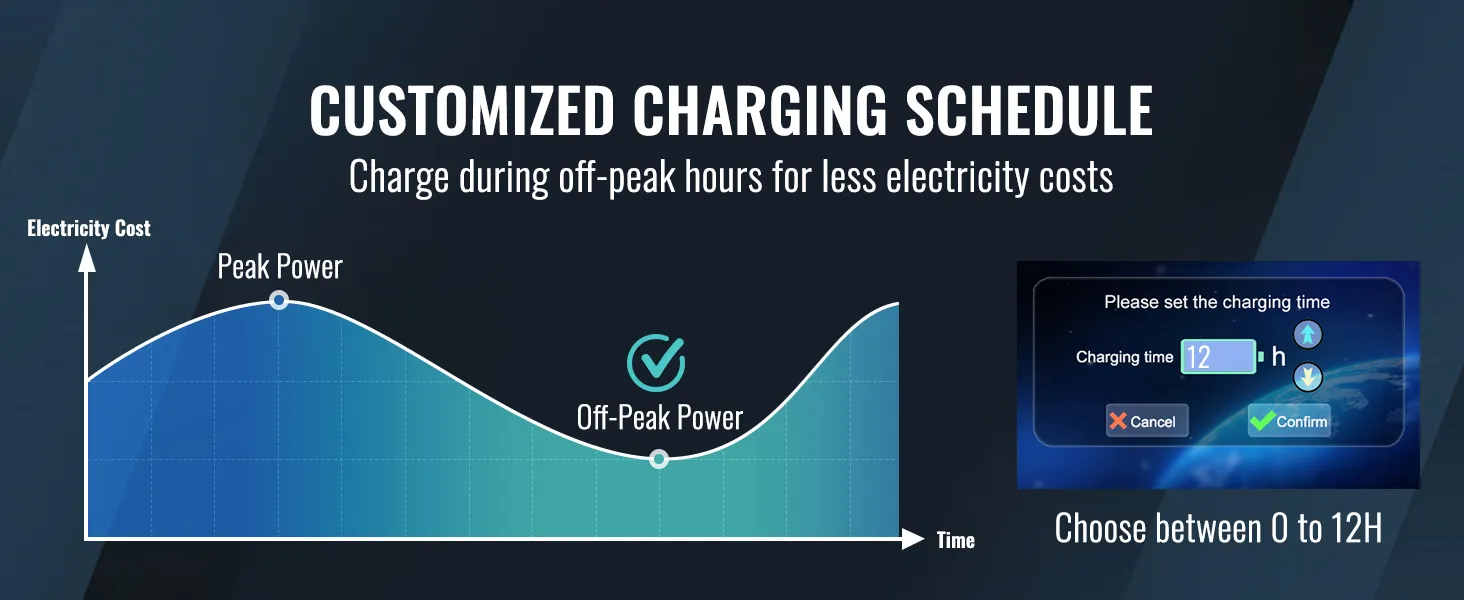

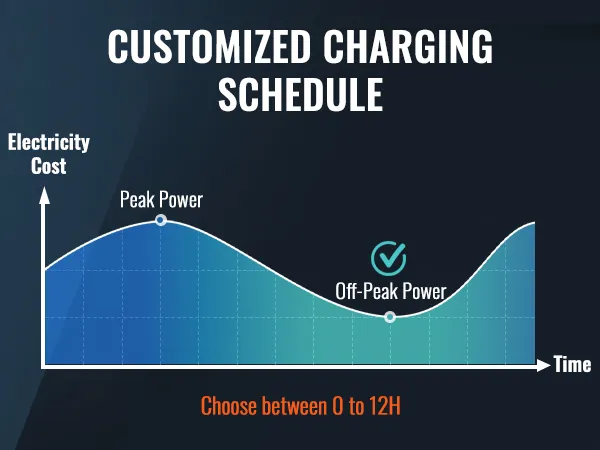

- Mechanical Timing
- 1-12 Hours

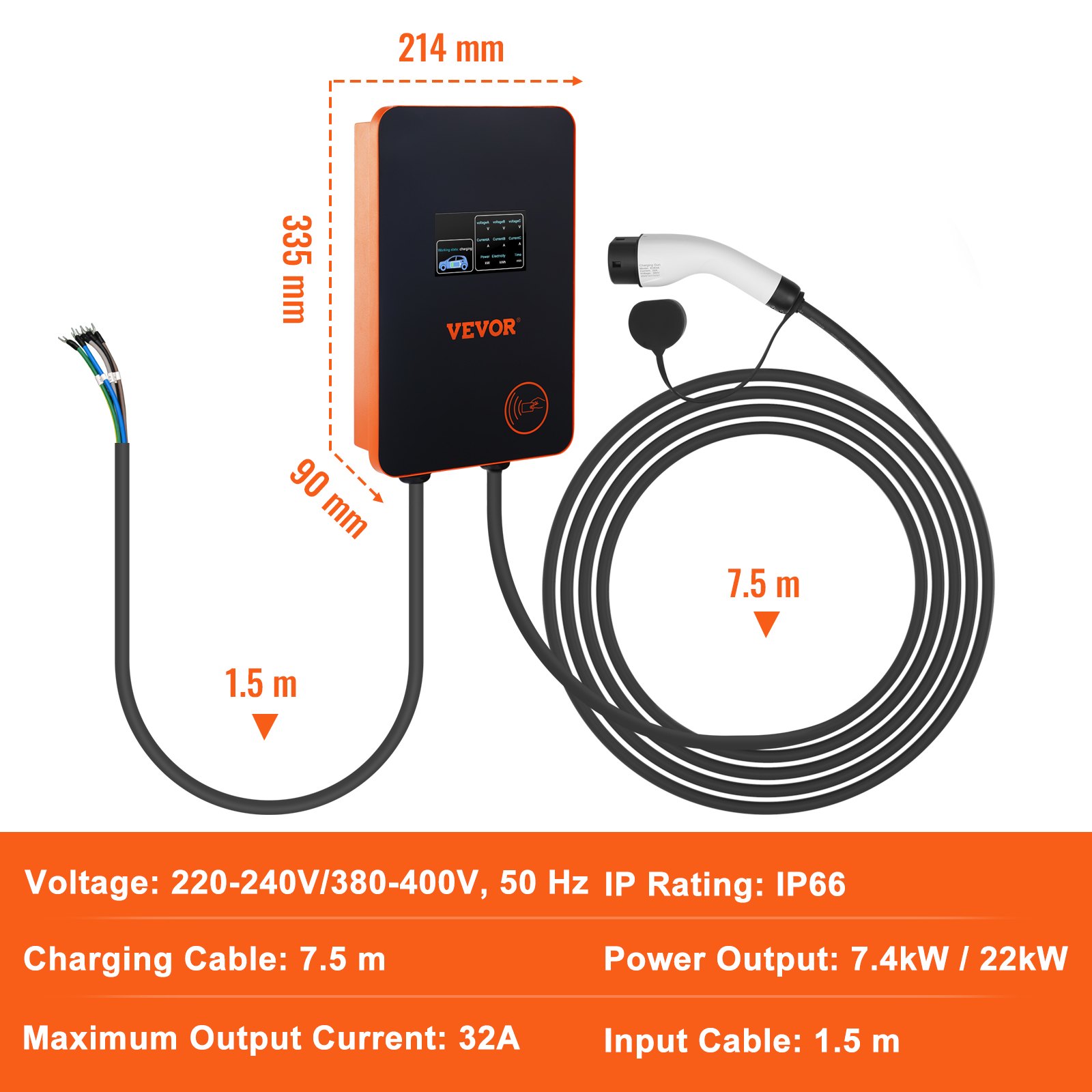

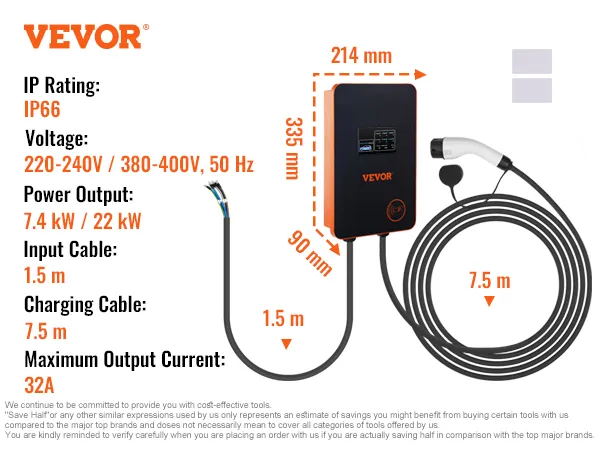

- Item Dimensions(H x W x D)
- 335 x 214 x 90 mm / 13.19 x 8.43 x 3.54 in
- Packing Size(H x W x D)
- 515 x 375 x 170 mm / 20.28 x 14.76 x 6.69 in
- Net Weight
- 7.53 kg / 16.6 lbs
- Gross Weight
- 8.5 kg / 18.74 lbs
Description

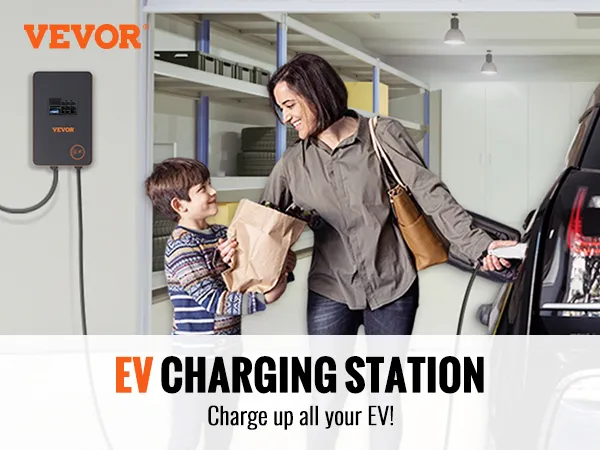

Get ready to charge up and hit the road again!
Are you ready to charge your EV efficiently without feeling frustrated? VEVOR EV charger station is compatible with most electric vehicles and plug-in hybrid vehicles that meet IEC 62196 standards. Feel the difference between our intelligent current adjustment function and APP control!
Q: Is the charging current adjustable from the app?
A: Yes. We also have an intelligent recognition system that automatically adjusts the current.
Q: Is the charger UL certified?
A: No, but we have TUV certification.
Q: What is the length of the charging cable?
A: Charging Cable: 7.5 m / 24.6 ft(5*6㎟+1*0.5㎟, TPU). Input Cable: 1.5 m / 5 ft(5*6㎟, PVC).
Q: Does the product have a display? What is displayed??
A: Yes. The LCD touchscreen can control and display the current / mode setting, order / password charging, changing password, and charging interface.
Q: Does the package include any accessories?
A: Yes, we provide 2 x RFID cards, 3 x M8*60 expansion screws, 1 x charging cable hook, 1 x certificate of conformity, and 1 x product specification.
A: Yes. We also have an intelligent recognition system that automatically adjusts the current.
Q: Is the charger UL certified?
A: No, but we have TUV certification.
Q: What is the length of the charging cable?
A: Charging Cable: 7.5 m / 24.6 ft(5*6㎟+1*0.5㎟, TPU). Input Cable: 1.5 m / 5 ft(5*6㎟, PVC).
Q: Does the product have a display? What is displayed??
A: Yes. The LCD touchscreen can control and display the current / mode setting, order / password charging, changing password, and charging interface.
Q: Does the package include any accessories?
A: Yes, we provide 2 x RFID cards, 3 x M8*60 expansion screws, 1 x charging cable hook, 1 x certificate of conformity, and 1 x product specification.
Product guides and documents
User manual-nl (PDF) Review
Questions and Answers (2)
kan ik met een verloop mijn auto opladen
Het kan de huidige grootte en afspraaktijd instellen op de APP.
By vevor
Helpful
(
0
)
Kan je het EV-A30-EU022B model aansluiten op 1 fase 7,4 KW ipv op 3fasen
Het kan worden aangesloten op eenfasige 7,4 kW.
By vevor
Helpful
(
0
)
