Features & Details
- Product Parameter: The CW-5200 industrial water cooler chiller is 6L capacity, 12L/max.flow, Precision: ±32.54℉/0.3℃, Cooling capacity: 1400W, 110V Voltage, and 60Hz Frequency.
- Efficient Cooling Fan: The water cooler chiller has two professional forced air-cooled radiators, high heat dissipating capacity, and not easy to be blocked. High-speed fans inside quickly take away the heat. And the CW-5200 water inlet and outlet ports are made of anti-corrosive brass to keep from any leakage problems and extend long service life.
- Constant & Intelligent Temperature Mode: CW-5200 series industrial chiller can be used to cool high-power lasers. Two working temperature modes are constant temperature and intelligent temperature adjustment. The smart temperature control mode can be adjusted to the corresponding water temperature as the temperature changes, and the water temperature can be automatically adjusted according to the season.
- Various Alarm Functions: This professional industrial chiller has multiple warning protection mechanisms such as water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection.
- Multiple Application: CW-5200 Series professional industrial water cooler machine is suitable for small water-cooled cooling devices requested machinery. The Industrial Water Chiller has a patent Certificate, CE, and ROHS Certificate. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine. Emitting rate higher than 60%.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 3 reviews
Reviews 5.0
All reviews are from verified purchases
See all 3 reviews
About this item
Product specification
- Model
- CW-5200
- Voltage
- 220V
- Frequence
- 50Hz
- Current
- 4.5~7A
- Tank Capacity
- 1.6 Gallon / 6 L
- Compressor Power
- 0.75KW, 0.75HP
- Refrigerating Capacity
- 5186Btu/h, 1.52KW, 1307Kcal/h
- Refrigerant
- R-410a
- Refrigerant Charge
- 11.6-12.3oz / 330-350g
- Precision
- ±32.54℉ / 0.3℃
- Reducer
- Capillary
- Pump Power
- 48W
- Maximum Flow
- 3.17 Gal/min (12L/min)

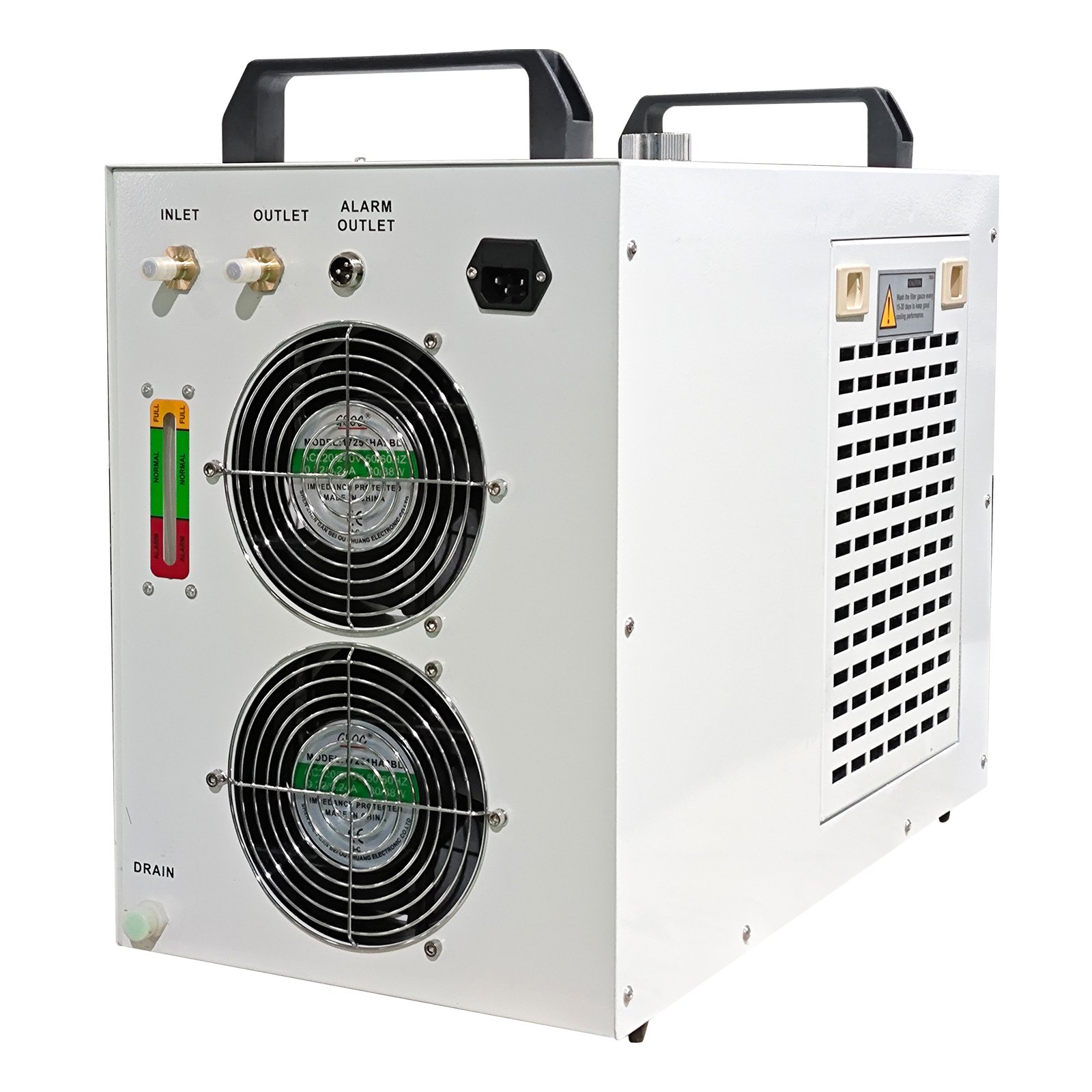

- Inlet and Outlet
- External Φ0.4in / 10mm Nylon Connector
- Maximum Pumping Lift
- 13.1 Yards / 12 m
- Packing Dimensions
- 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm

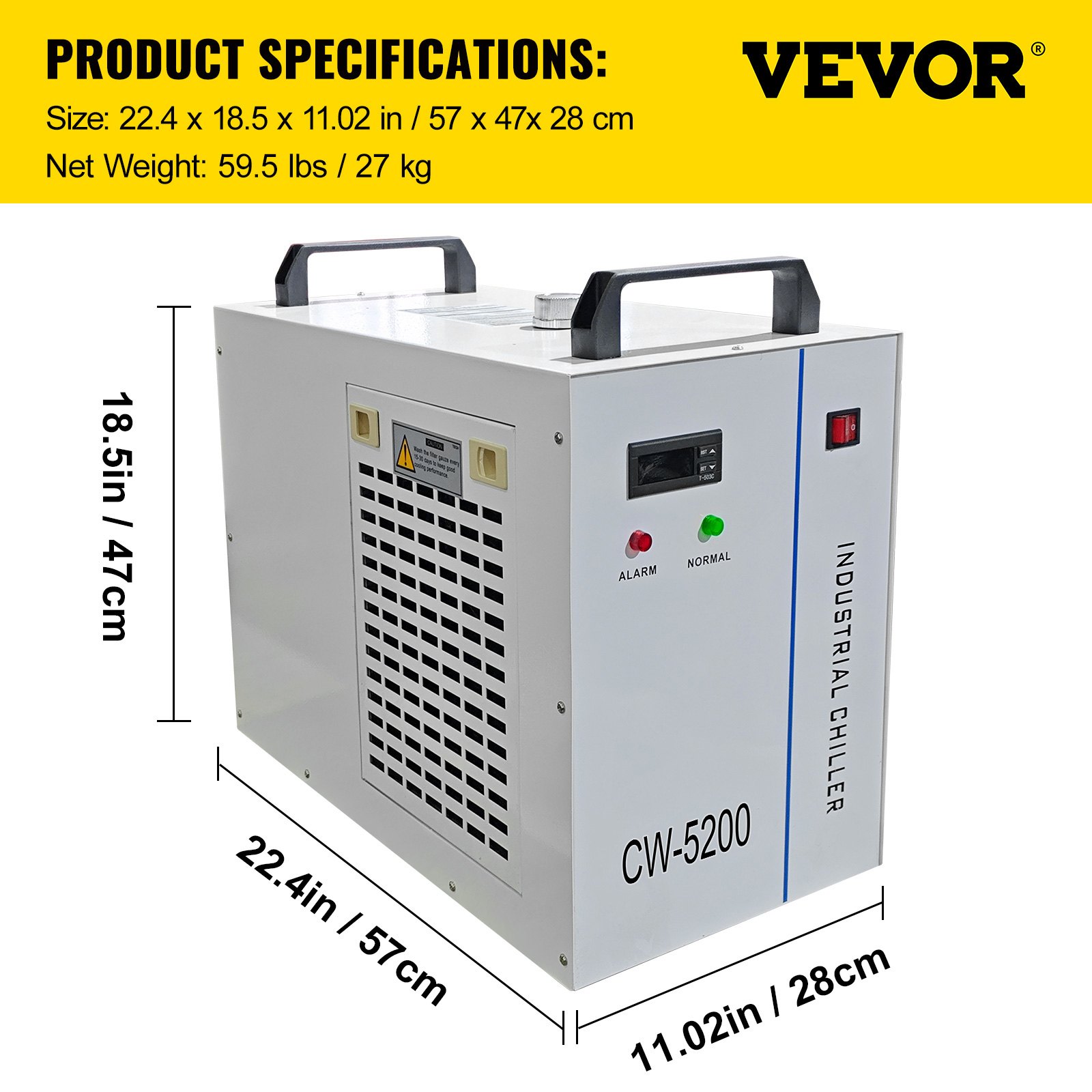

- Product Size
- 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
- Protection
- Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
Description

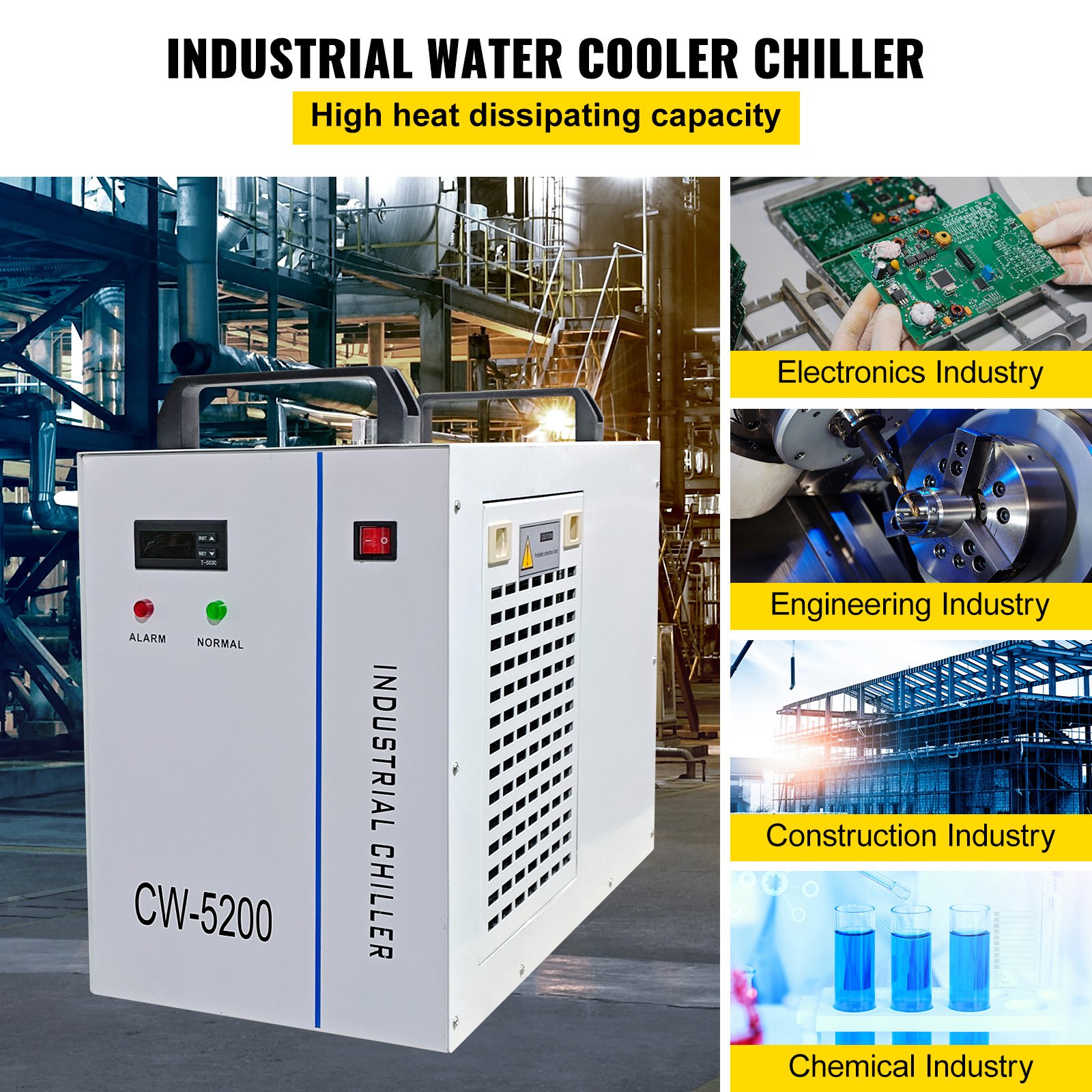

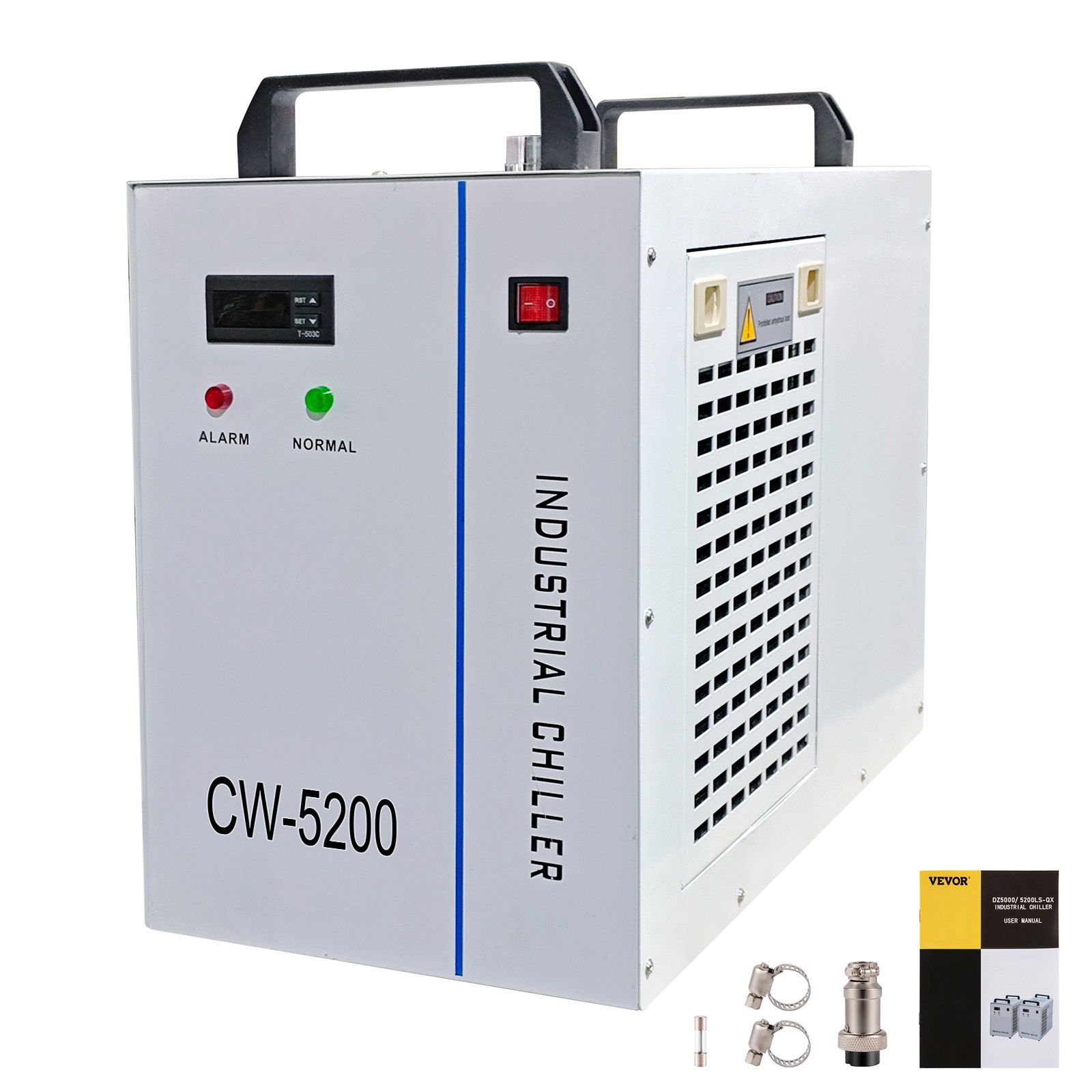

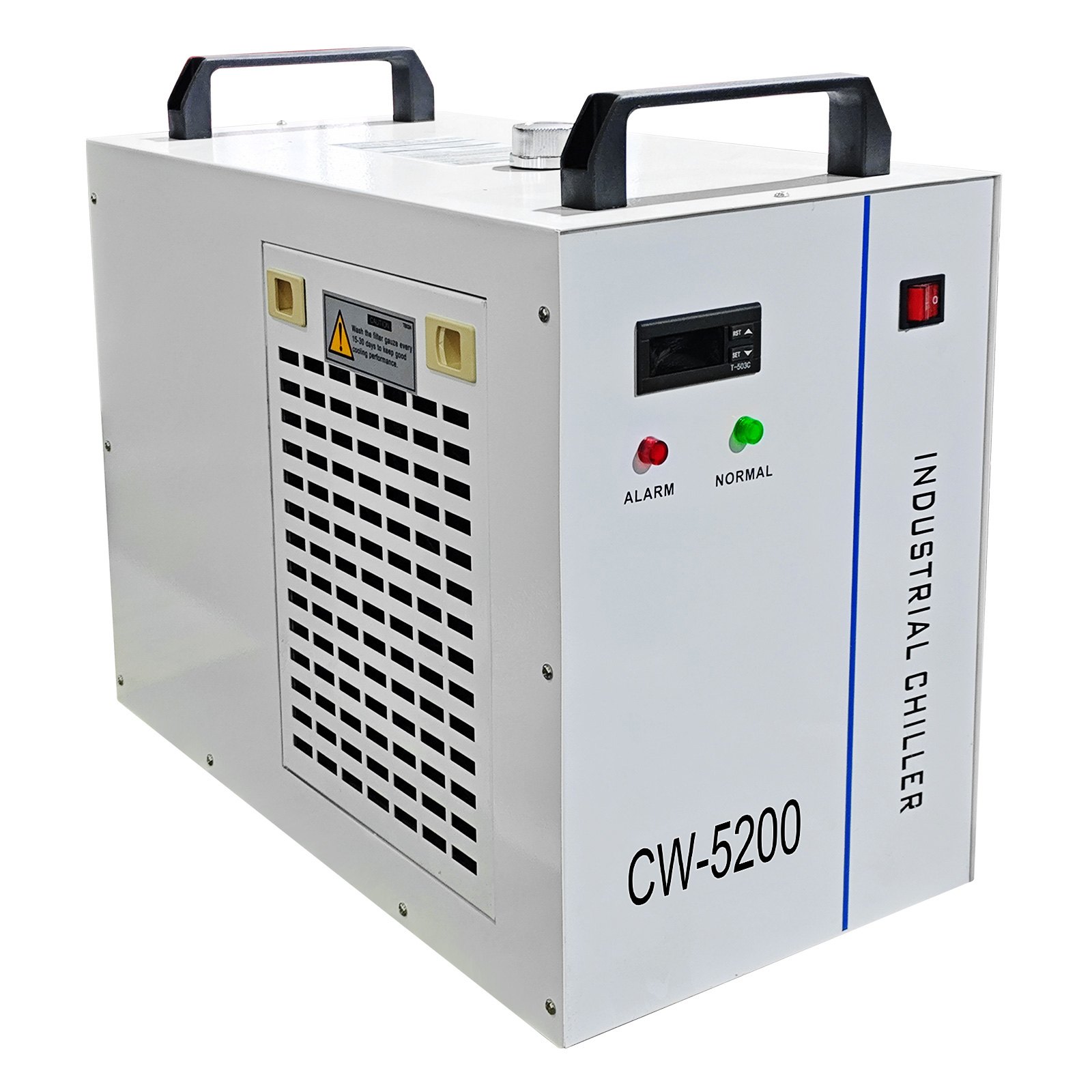

Industrial Water Cooler Chiller
CW-5200 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has a 6L cooling tank capacity with completed water flow and over high-temperature alarm functions. Built-In cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.
- Product Parameter
- Efficient Cooling Fan
- Accurate Thermostat
- Various Alarm Functions
6L Cooling Tank Capacity
The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.

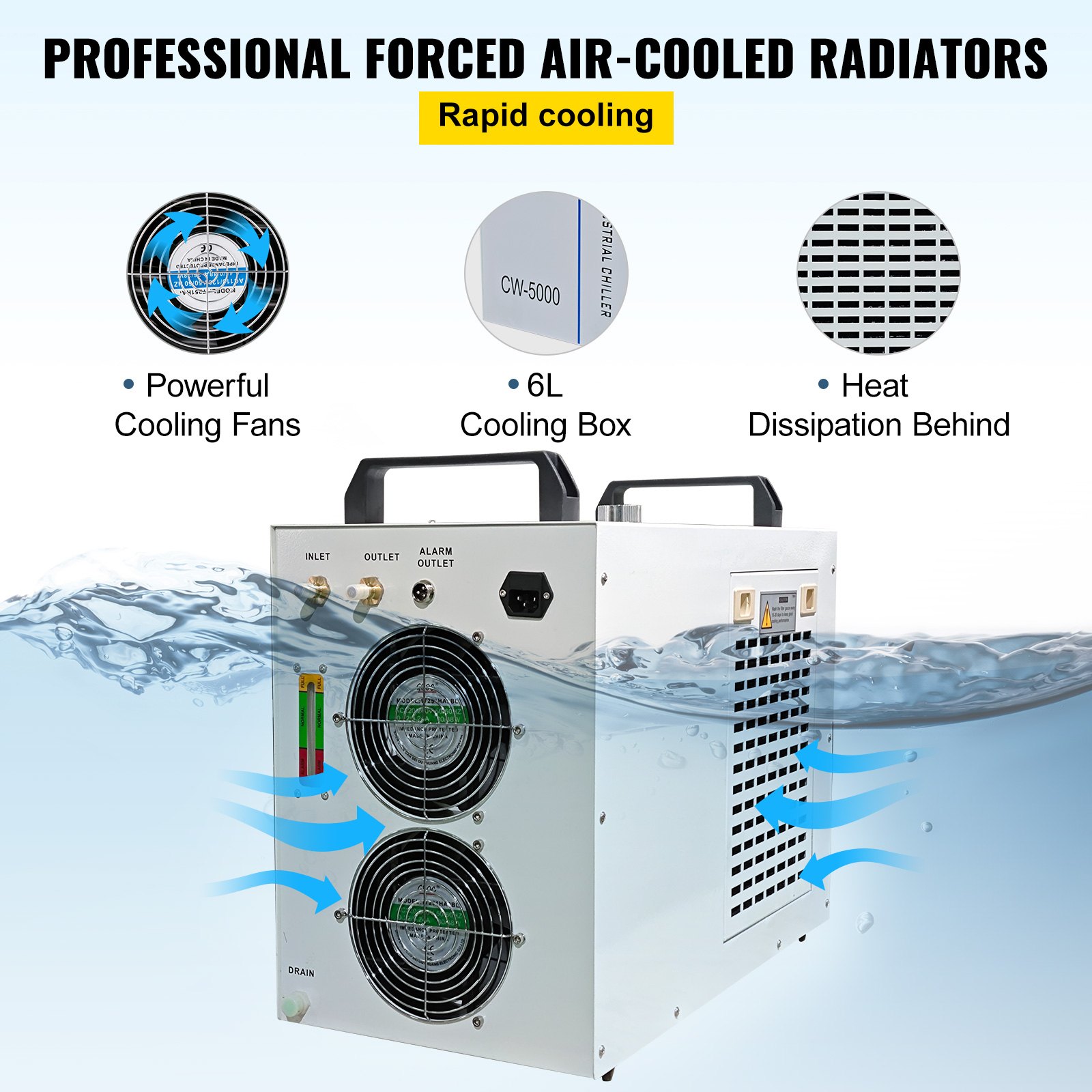

Dual Cooling Fans
Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.

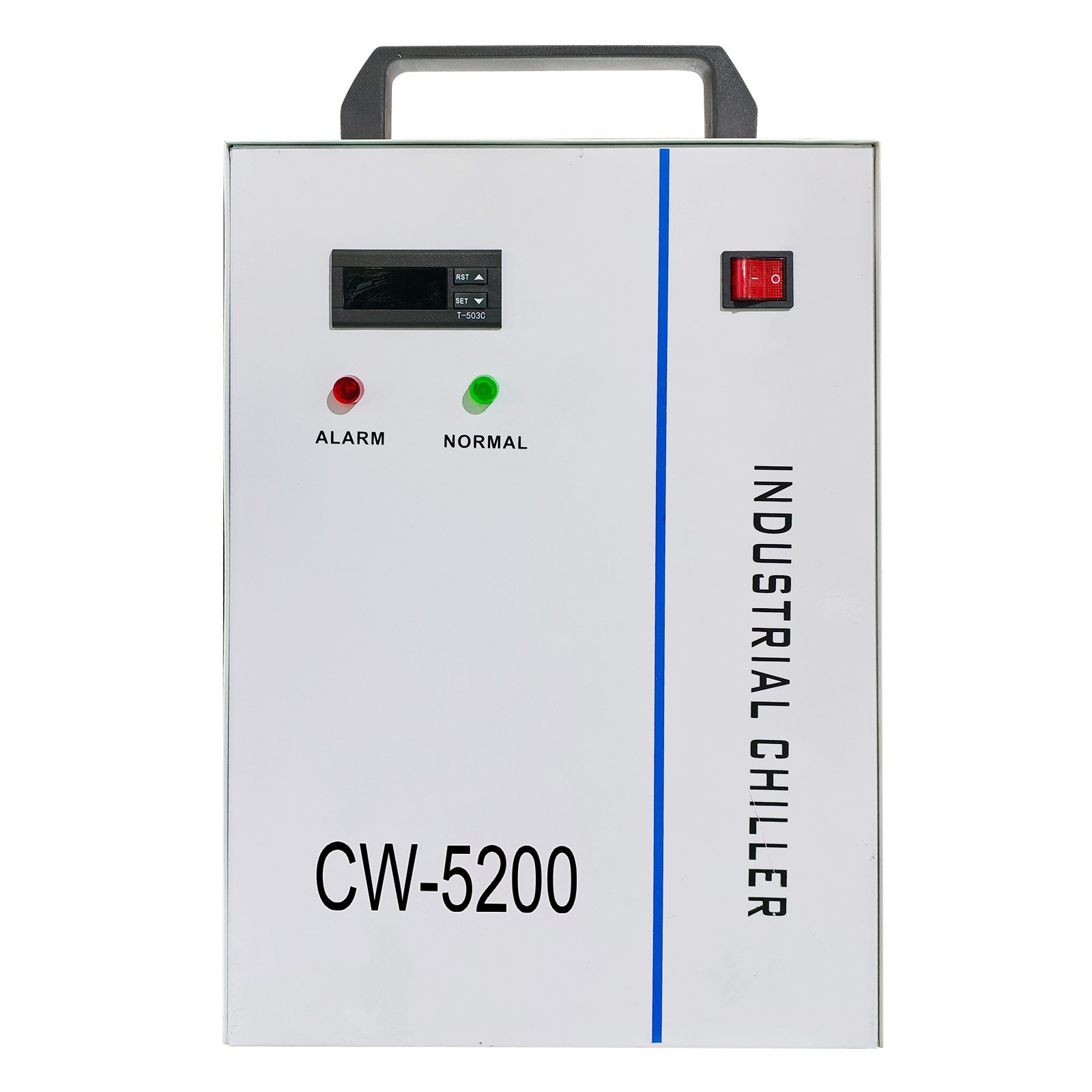

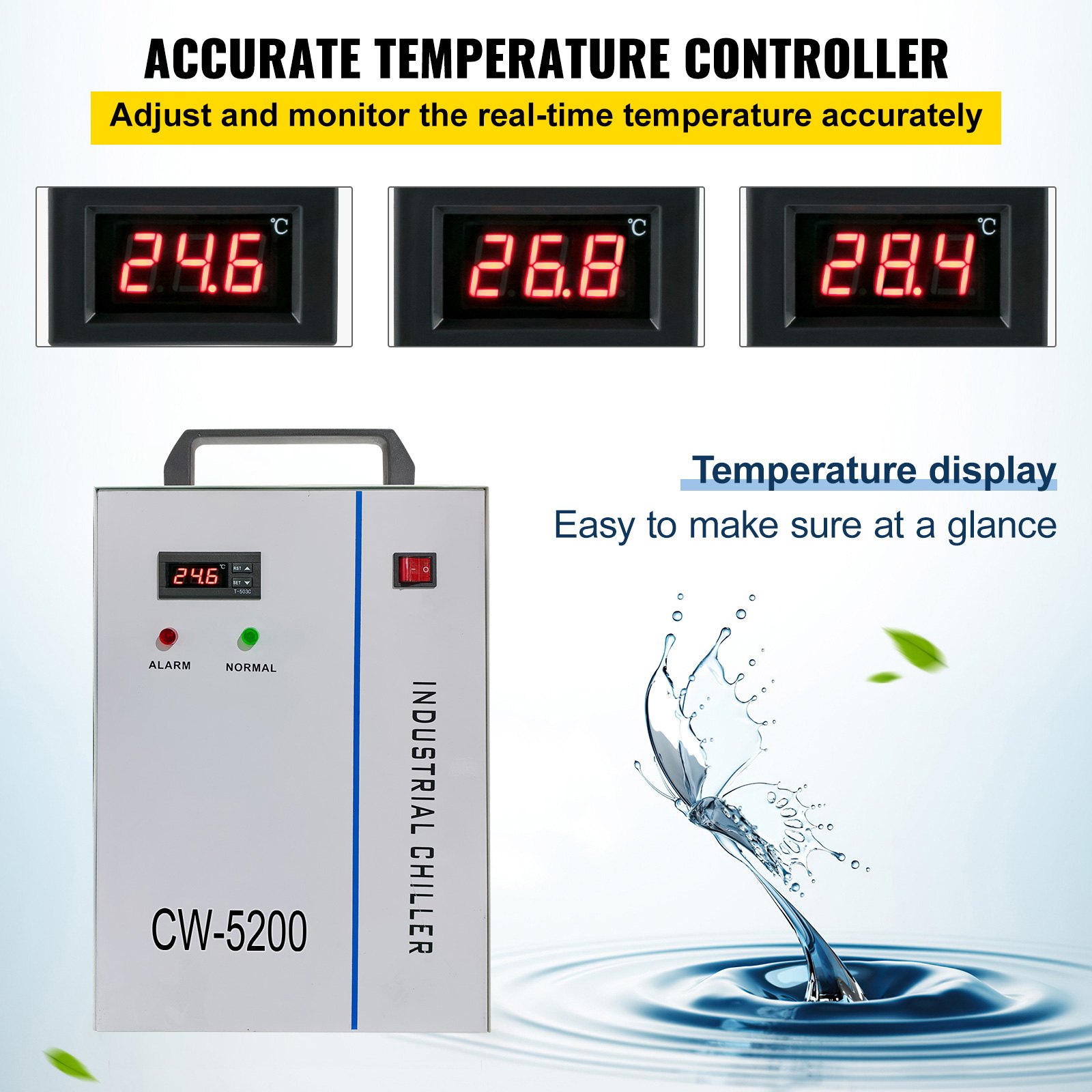

Precise Thermostat
This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.

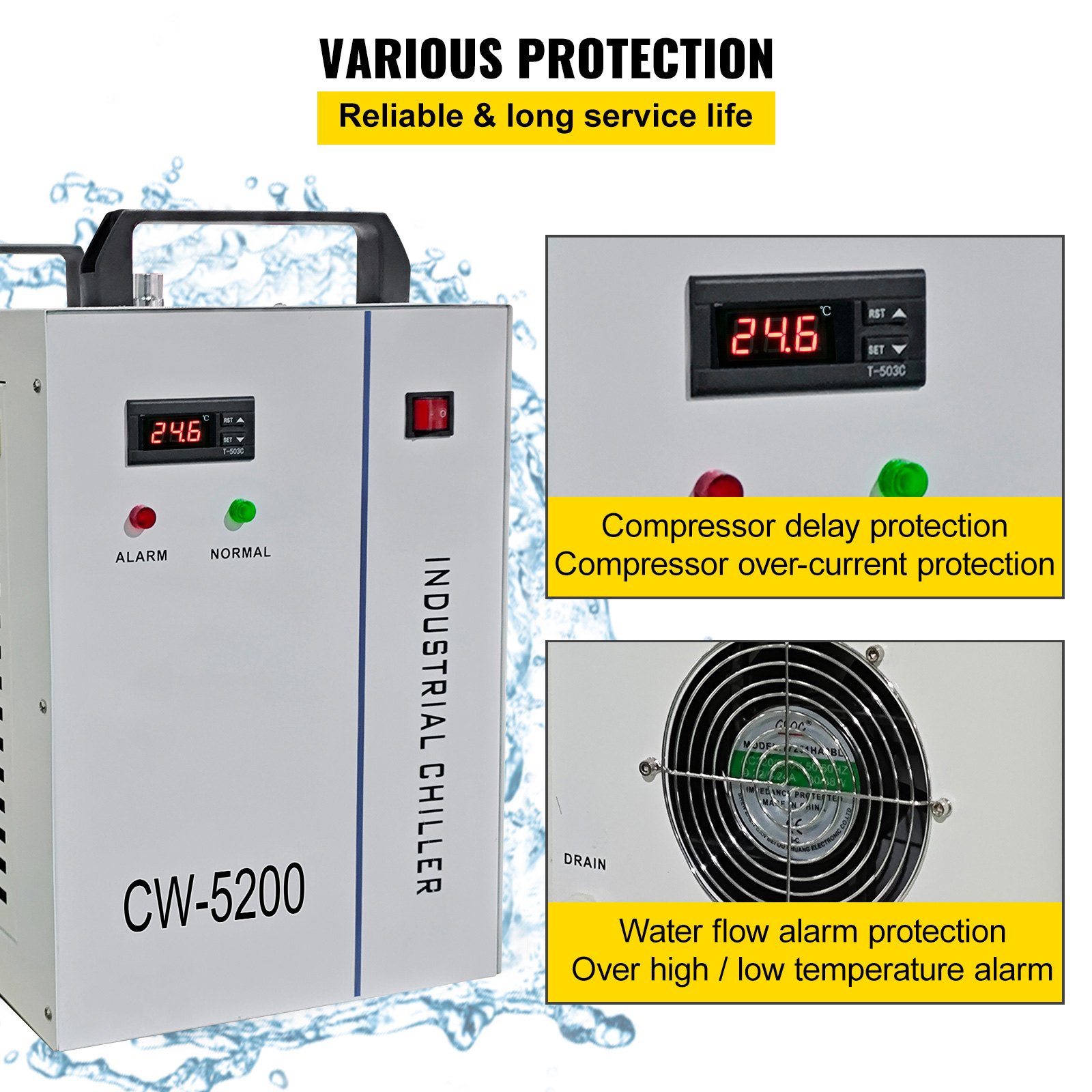

Multiple Alarm Functions
This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.

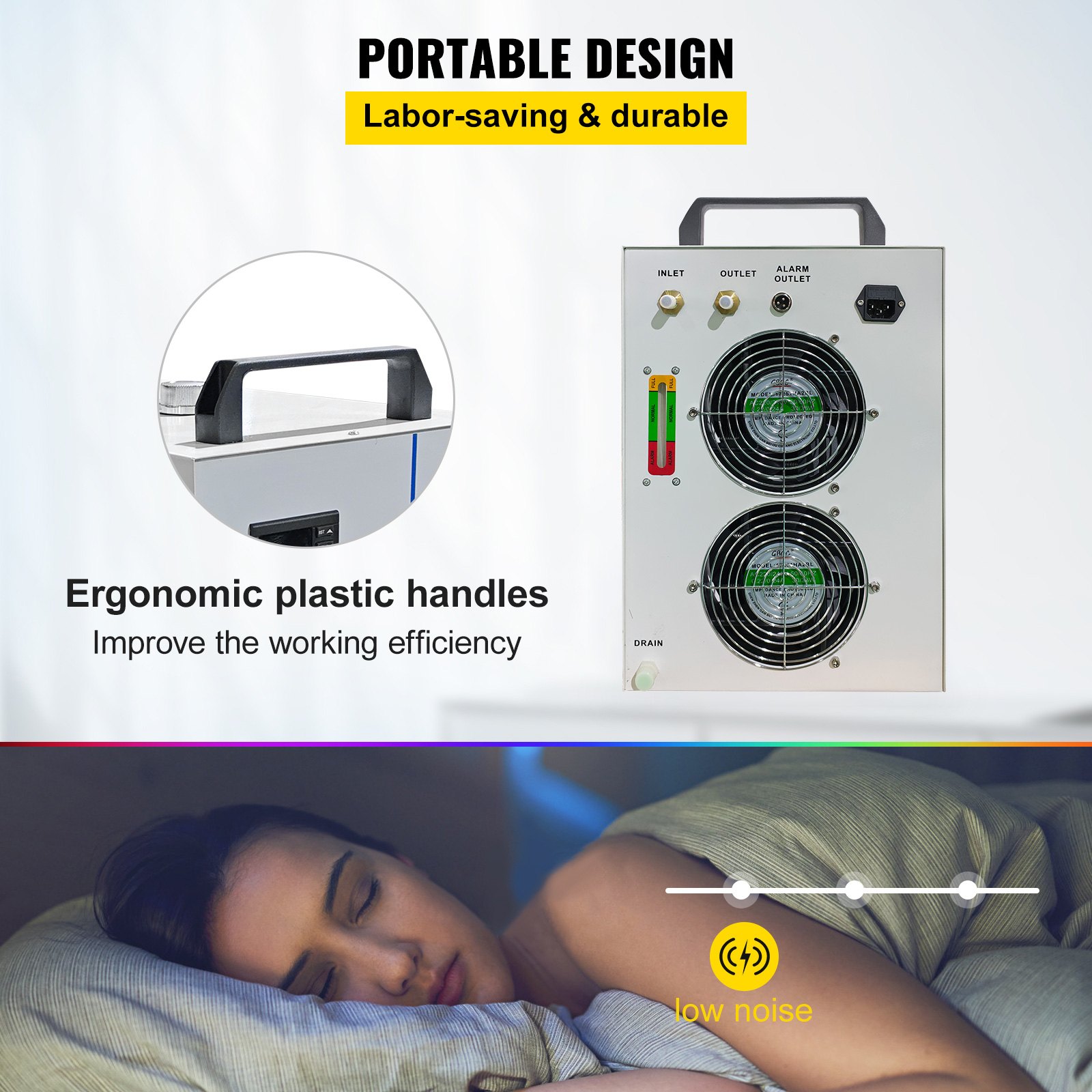

User-friendly Handle
Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.

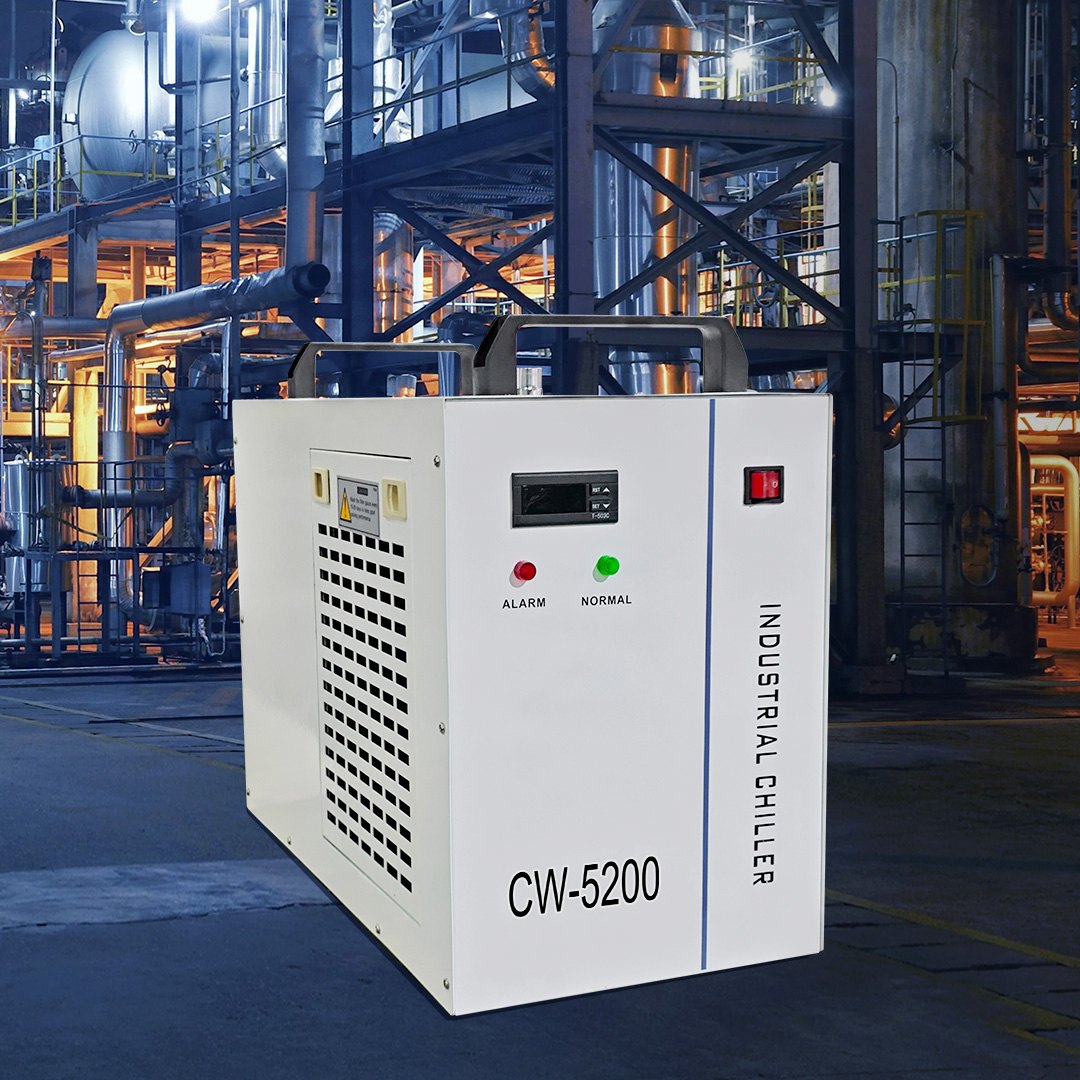

Wide Application
CW-5200 Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.
- Model: CW-5200
- Voltage: 220V
- Frequence: 50Hz
- Current: 4.5~7A
- Tank Capacity: 1.6 Gallon / 6 L
- Compressor Power: 0.75KW, 0.75HP
- Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
- Refrigerant: R-410a
- Refrigerant Charge: 11.6-12.3oz / 330-350g
- Precision: ±32.54℉ / 0.3℃
- Reducer: Capillary
- Pump Power: 48W
- Maximum Flow: 3.17 Gal/min (12L/min)
- Inlet and Outlet: External Φ0.4in / 10mm Nylon Connector
- Maximum Pumping Lift: 13.1 Yards / 12 m
- Packing Dimensions: 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm
- Product Size: 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
- Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
- 1 × DZ5200LS-QX Water Chiller Machine
- 1 × Power Cable
- 2 x Sealing Washer
- 1 × Spare Fuse
- 1 × User Manual
- 1 × Alarm Signal Output Plug
Industrial Water Cooler Chiller
CW-5200 Series is a professional cooling machine referring to international, advanced thermolysis cooling system design, suitable for small water-cooled cooling devices requested machinery. It has a 6L cooling tank capacity with completed water flow and over high-temperature alarm functions. Built-In cooling fan for effective ventilation ensures its high heat dissipating capacity. Designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.
- Product Parameter
- Efficient Cooling Fan
- Accurate Thermostat
- Various Alarm Functions
6L Cooling Tank Capacity
The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill with water according to the scale.
Dual Cooling Fans
Professional forced air-cooled radiators inside quickly takes away the heat. High heat dissipating capacity decides that the water cooler chiller is not easy to be blocked.
Precise Thermostat
This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.
Multiple Alarm Functions
This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.
User-friendly Handle
Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort as well as improving the working efficiency.
Wide Application
CW-5200 Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling the one CO2 glass laser tube under 130W/150W of the laser engraving and cutting machine.
- 1 × DZ5200LS-QX Water Chiller Machine
- 1 × Power Cable
- 2 x Sealing Washer
- 1 × Spare Fuse
- 1 × User Manual
- 1 × Alarm Signal Output Plug
- Model: CW-5200
- Voltage: 220V
- Frequence: 50Hz
- Current: 4.5~7A
- Tank Capacity: 1.6 Gallon / 6 L
- Compressor Power: 0.75KW, 0.75HP
- Refrigerating Capacity: 5186Btu/h, 1.52KW, 1307Kcal/h
- Refrigerant: R-410a
- Refrigerant Charge: 11.6-12.3oz / 330-350g
- Precision: ±32.54℉ / 0.3℃
- Reducer: Capillary
- Pump Power: 48W
- Maximum Flow: 3.17 Gal/min (12L/min)
- Inlet and Outlet: External Φ0.4in / 10mm Nylon Connector
- Maximum Pumping Lift: 13.1 Yards / 12 m
- Packing Dimensions: 28.3 x 17.3 x 24.4 in / 72 x 44 x 62 cm
- Product Size: 22.4 x 11.02 x 18.5 in / 57 x 28 x 47 cm
- Protection: Over Current Protection for compressor, Over-Flow & Over-Heat Alarm
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (4)
Ik zag onderstaande specificaties en vroeg me af of de koelcapaciteit klopt en of deze machine ook leverbaar is op 230 volt. De CW-5200DG industriële waterkoeler-chiller heeft een capaciteit van 6 L, 10 L / max. flow, Precisie: ± 32,54 ℉ / 0,3 ℃, Koelcapaciteit: 1749 W, 110 V-spanning en 60HZ-frequentie.
Hoor graag.
Met vriendelijke groet,
Evert
Dit sku-model kan 230v gebruiken en de frequentie is 50/60hz.
By vevor
Helpful
(
6
)
Kan deze chiller gebruikt worden voor koelwater met een temperatuur instelbaar tussen de 10 en 20 graden C met een flow van minimaal 6 l/min. De energie die gedissipeerd moet worden is ca 60W
De waterstroom kan niet worden aangepast. Alleen maximale output. Als er enige belemmering voor de waterstroom is, geeft de waterkoeler een alarm.
By vevor
Helpful
(
0
)
Hoi ik heb een vraag ik ben op zoek naar een koeler voor me ijsbad kan ik deze daar voor gebruiken en wat is het laagste waar ik hem op in kan stellen hij zou zo rondt de 6 grade moeten kunnen of kouder
Het product is niet geschikt, het voldoet niet aan uw wensen.
By vevor
Helpful
(
0
)
Wat is de laagste temperatuur waar je de machine op kan instellen?
10 Grad Celsius.
By vevor
Helpful
(
0
)
CW5200DGLSJ000001V2
