Features & Details

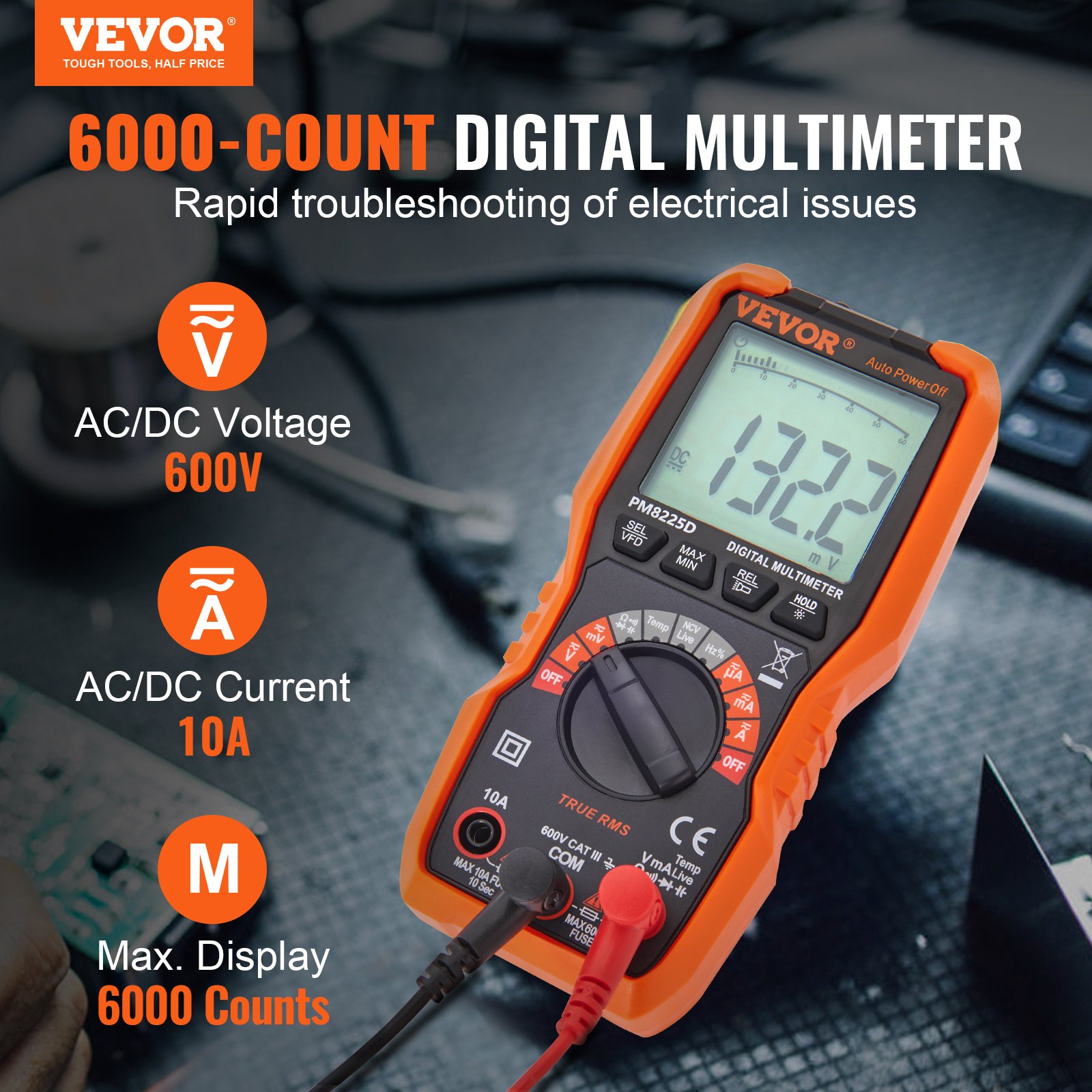

- Multi-functional & Precise Measurement: This 6000 counts multimeter allows for measuring various electrical parameters such as AC/DC current, voltage, and resistance. It also features temperature measurements from -4°F to 1832°F, meeting various measurement needs.

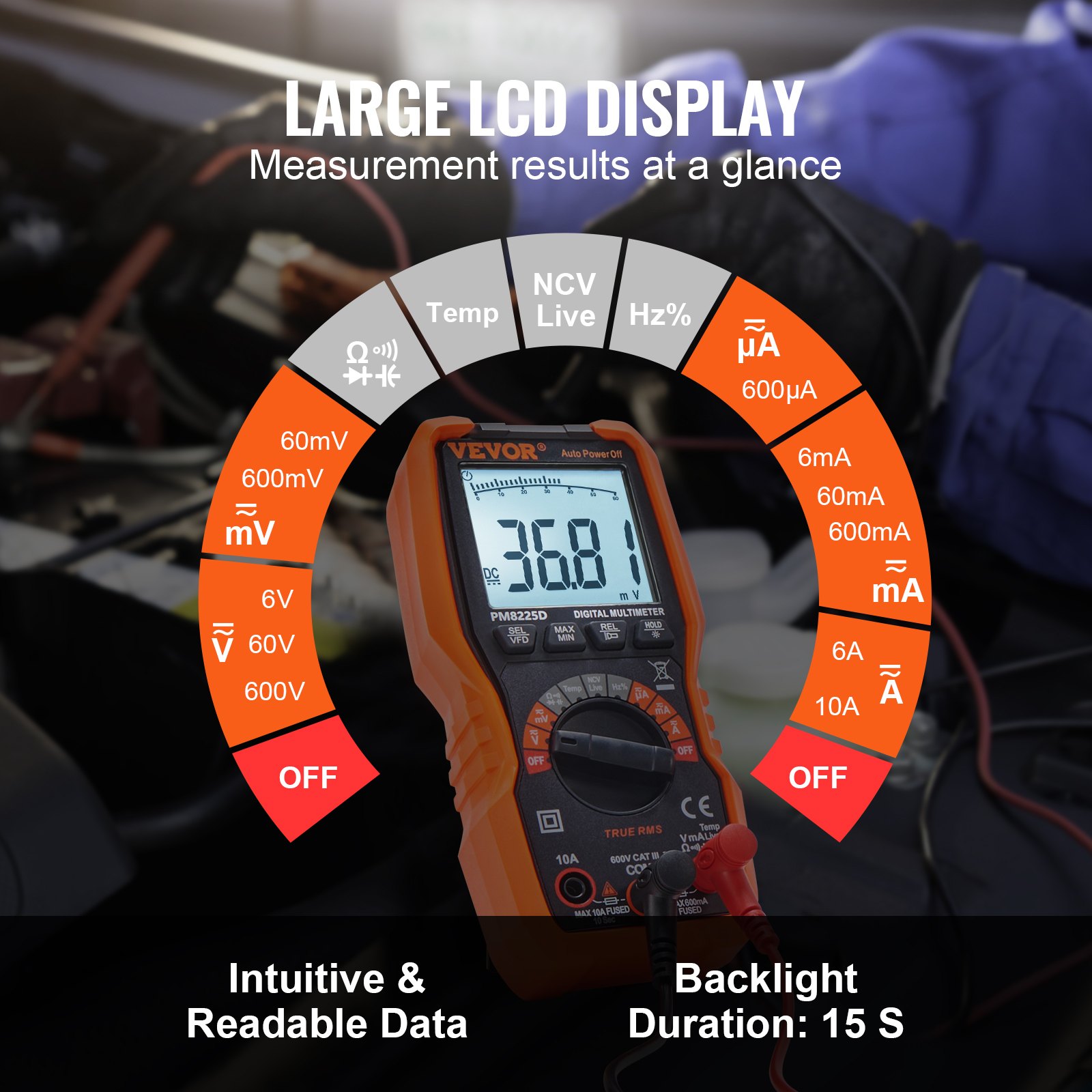

- Convenient & Easy to Use: Equipped with a large LCD screen and analog bar, this digital multimeter offers user-friendly operation and intuitive data reading. The backlight design with white light ensures easy usage at night, with the backlight lasting for 15 seconds.
- High Reliability: Our multi testers are designed with overload protection, NCV detection, and true RMS function, ensuring a secure user experience. It is constructed with high-quality materials and precision craftsmanship, providing reliable performance and a long lifespan to withstand harsh work environments.

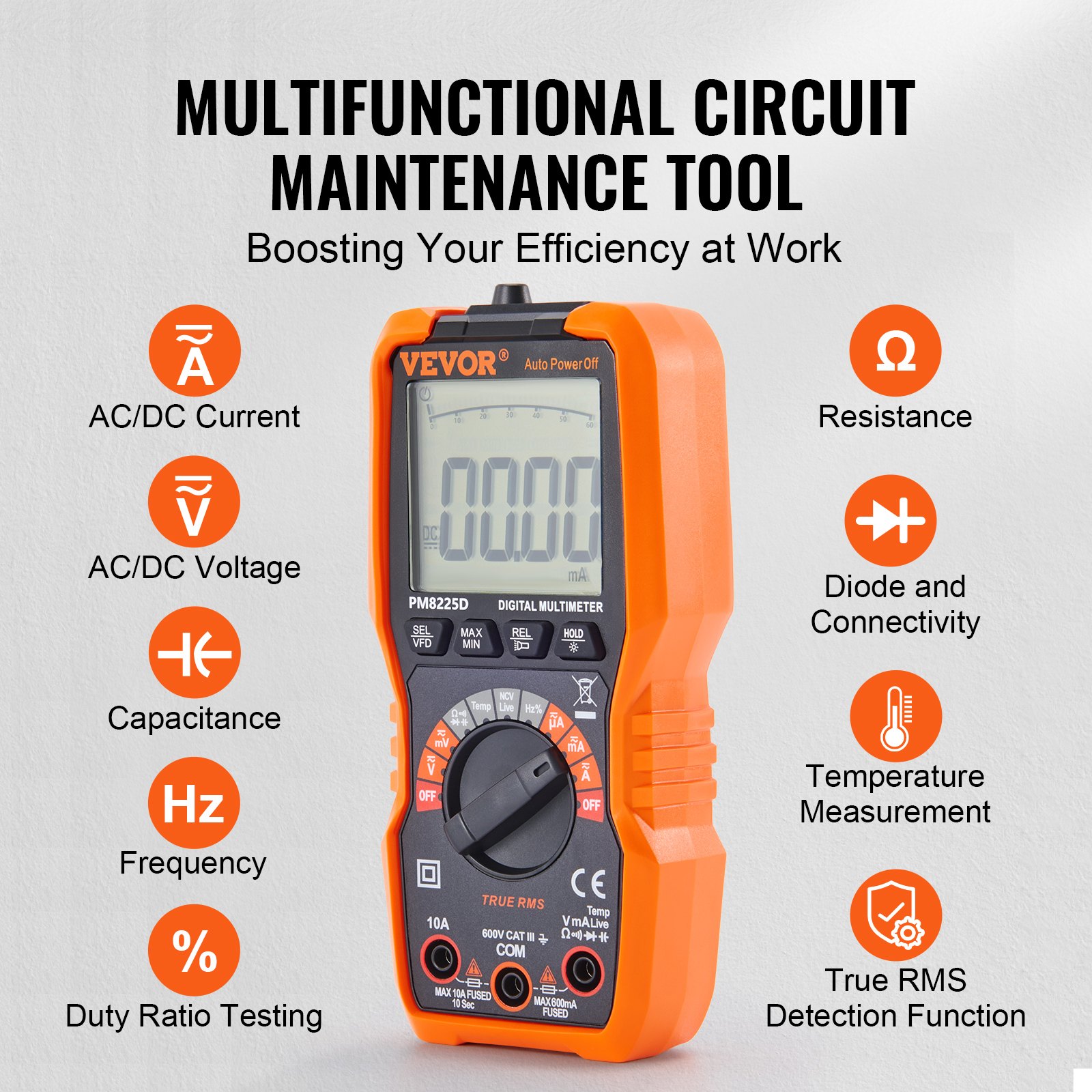

- Suitable for Various Applications: In addition to basic current, voltage, and resistance measurements, the digital multimeter tester also has additional functions such as diode testing, duty cycle testing, and capacitance testing. It is suitable for power, railway, manufacturing, electrical testing, and equipment maintenance industries, catering to diverse field requirements.

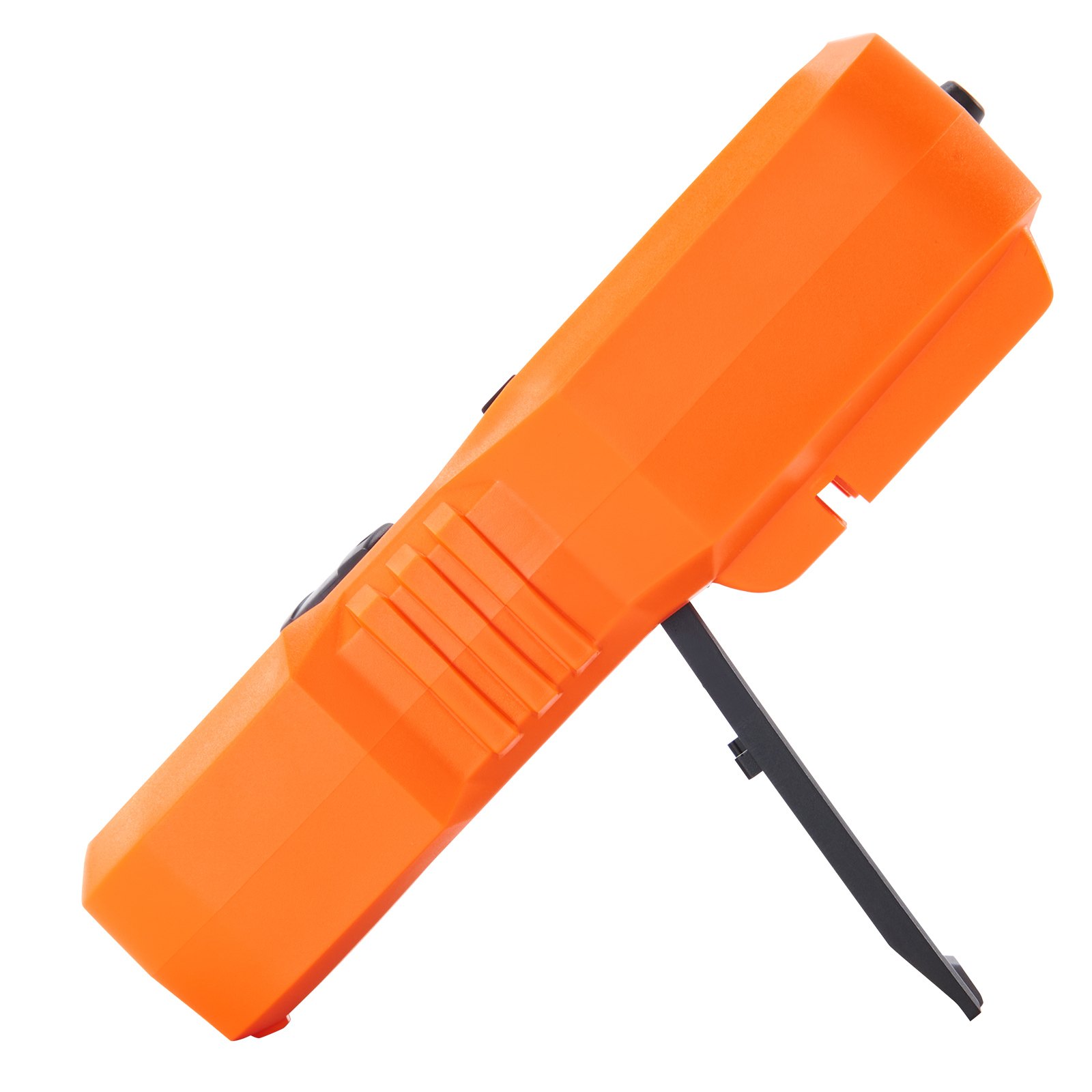

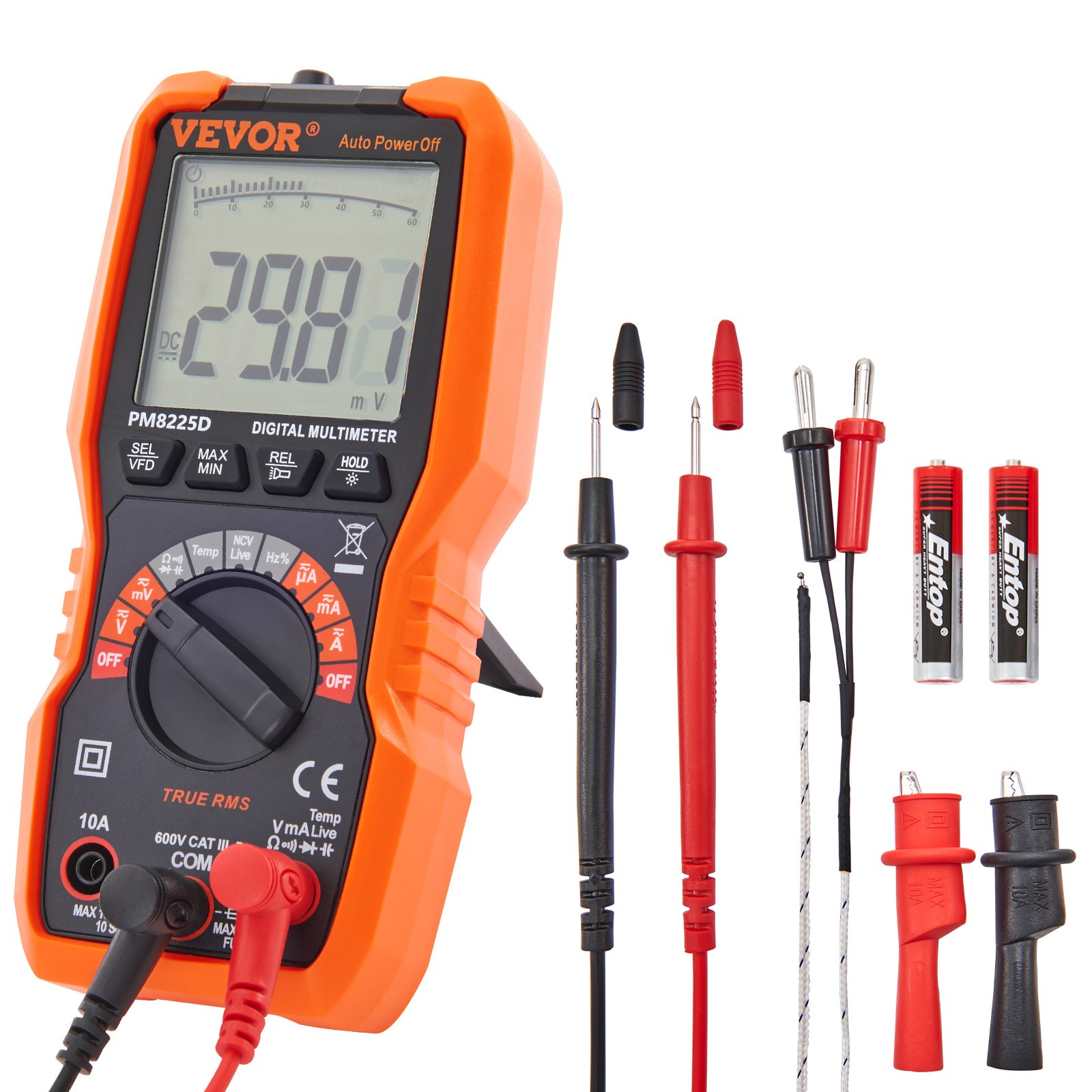

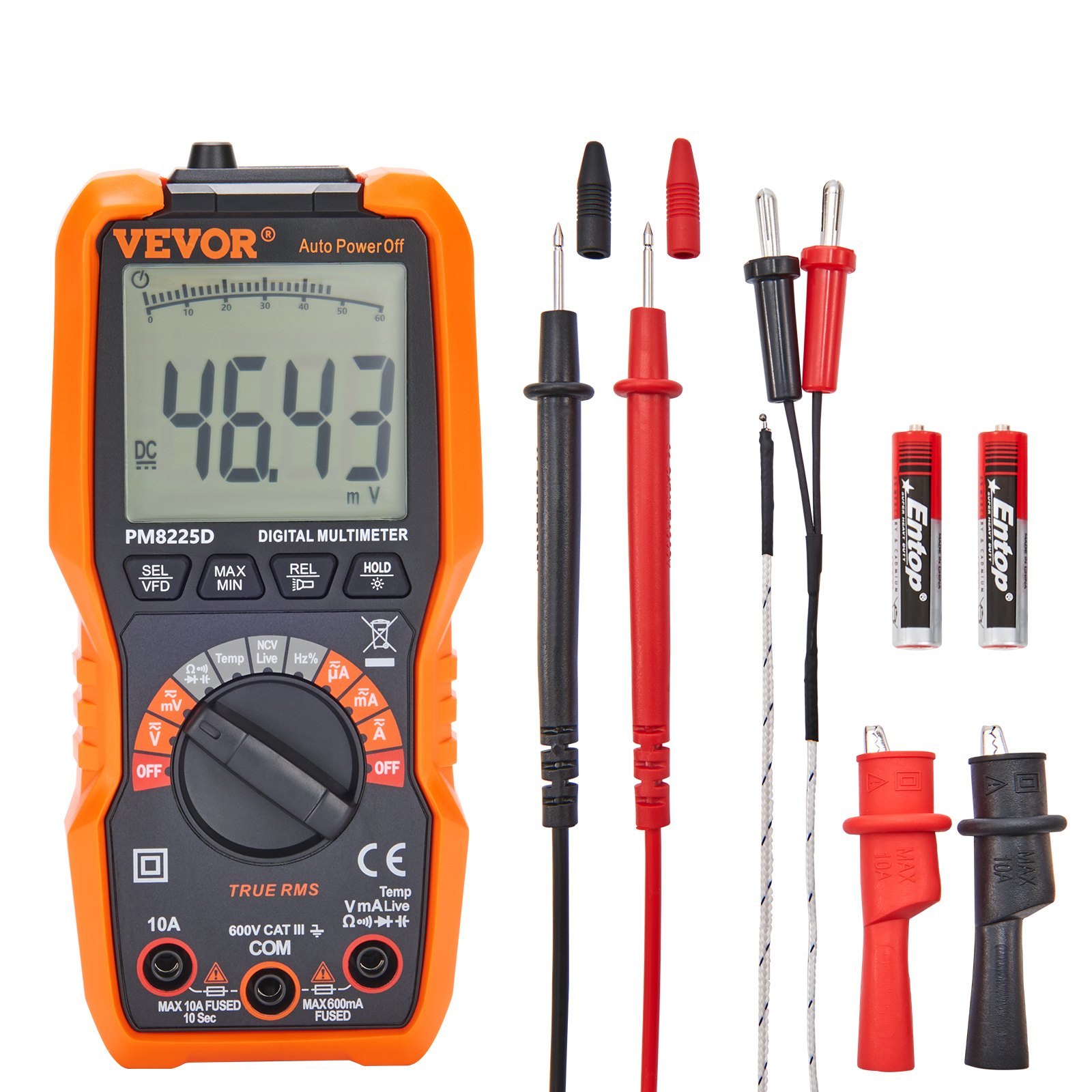

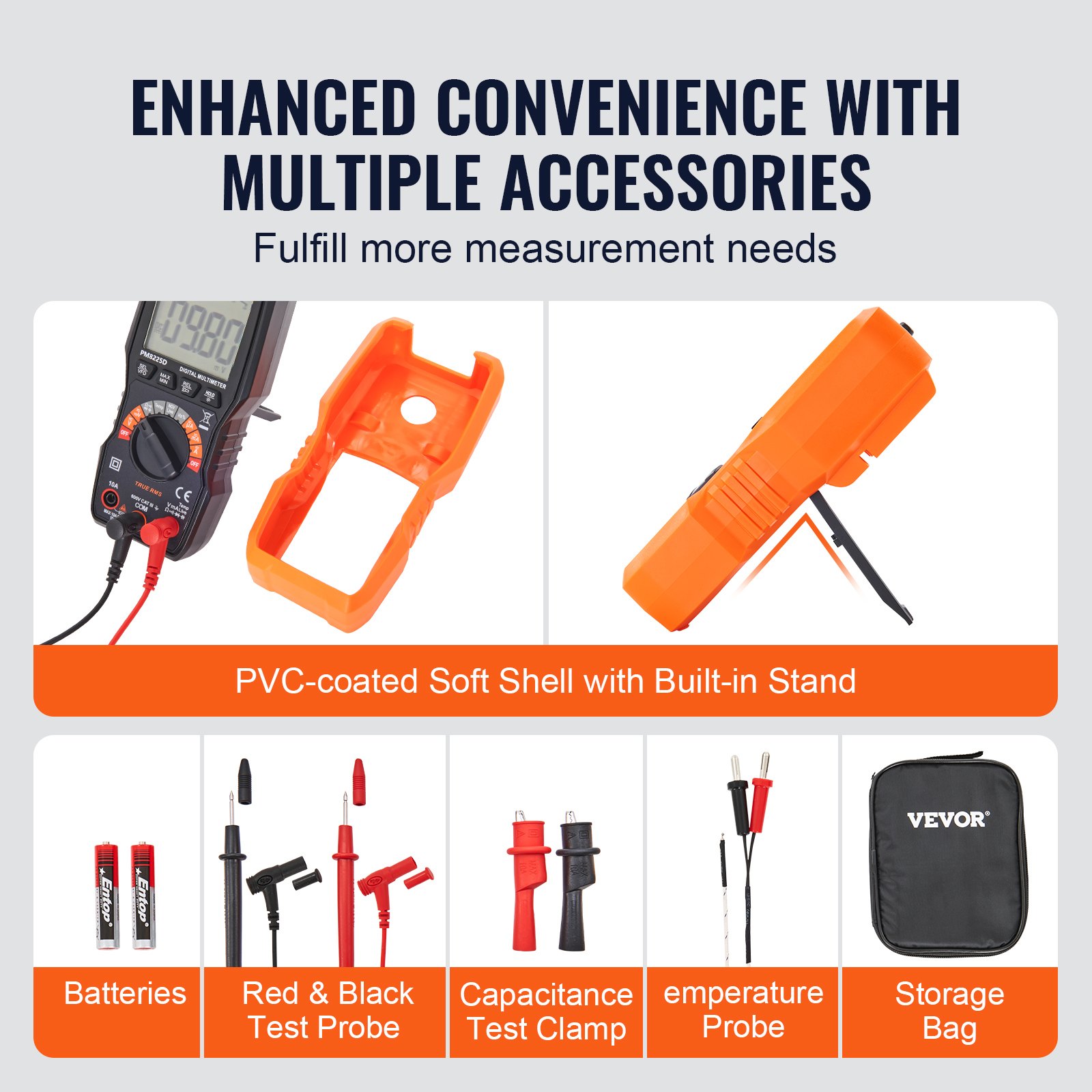

- User-friendly Design: This electric multi tester is lightweight and portable, equipped with an ABS casing and a built-in stand, including accessories such as batteries, test probes, a capacitance test clamp, a storage bag, and a temperature probe, ensuring convenience. The thoughtful battery indicator function provides reminders for battery replacement to ensure uninterrupted operation.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

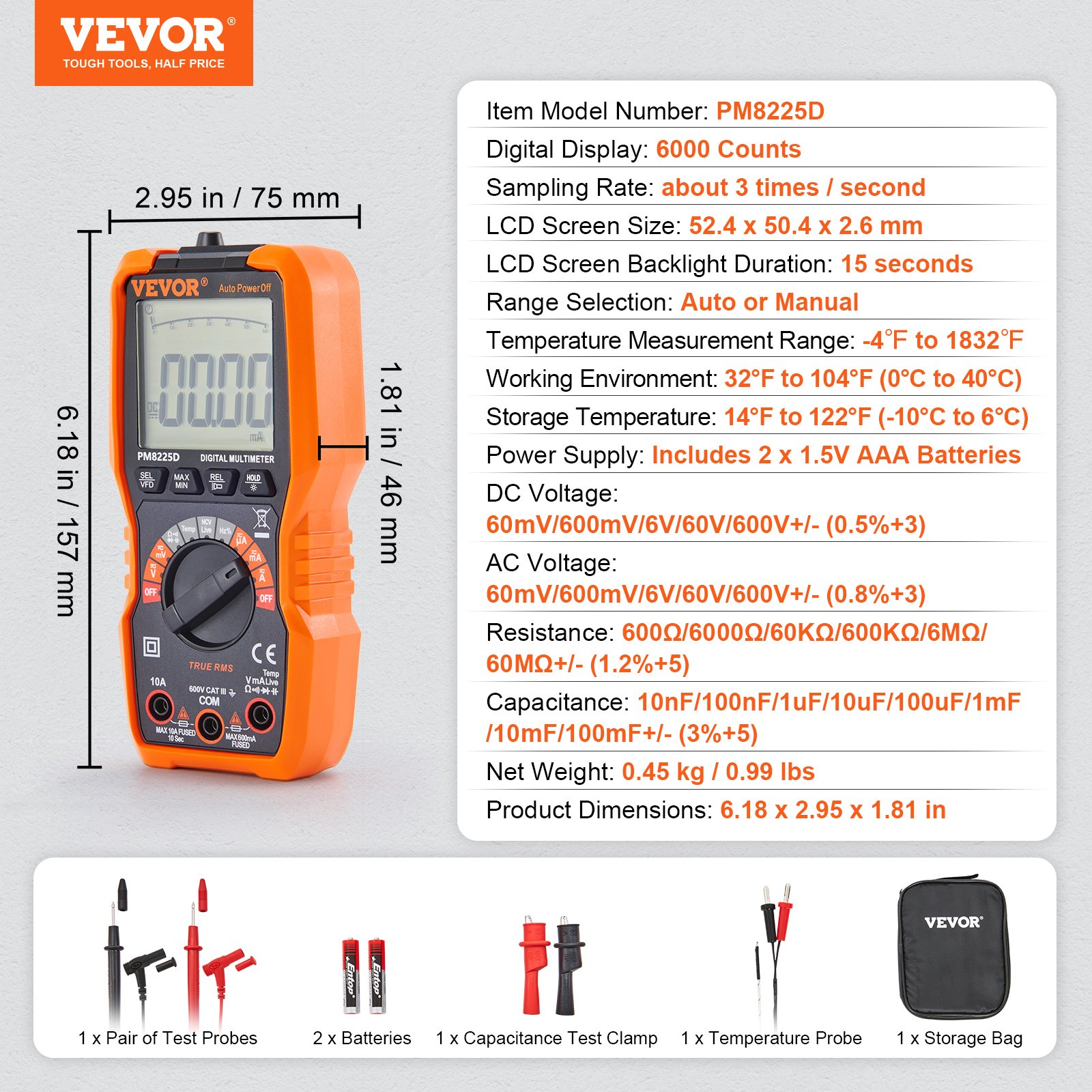

Product specification
- Item Model Number
- PM8225D
- Digital Display
- 6000 Counts
- Sampling Rate
- about 3 times / second
- LCD Screen Size
- 52.4 x 50.4 x 2.6 mm
- LCD Screen Backlight Duration
- 15 seconds
- Range Selection
- Auto or Manual
- Temperature Measurement Range
- -4℉ to 1832℉
- Working Environment
- 32°F to 104°F (0°C to 40°C); <80% Relative Humidity
- Storage Temperature
- 14°F to 122°F (-10°C to 6°C); <70% Relative Humidity
- Power Supply
- Includes 2 x 1.5V AAA Batteries
- DC Voltage
- 60mV/600mV/6V/60V/600V+/- (0.5%+3)
- AC Voltage
- 60mV/600mV/6V/60V/600V+/- (0.8%+3)
- Resistance
- 600Ω/6000Ω/60KΩ/600KΩ/6MΩ/60MΩ+/- (1.2%+5)
- Capacitance
- 10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF+/- (3%+5)
- Net Weight
- 0.45 kg / 0.99 lbs
- Product Dimensions
- 157 x 75 x 46 mm / 6.18 x 2.95 x 1.81 in
Description

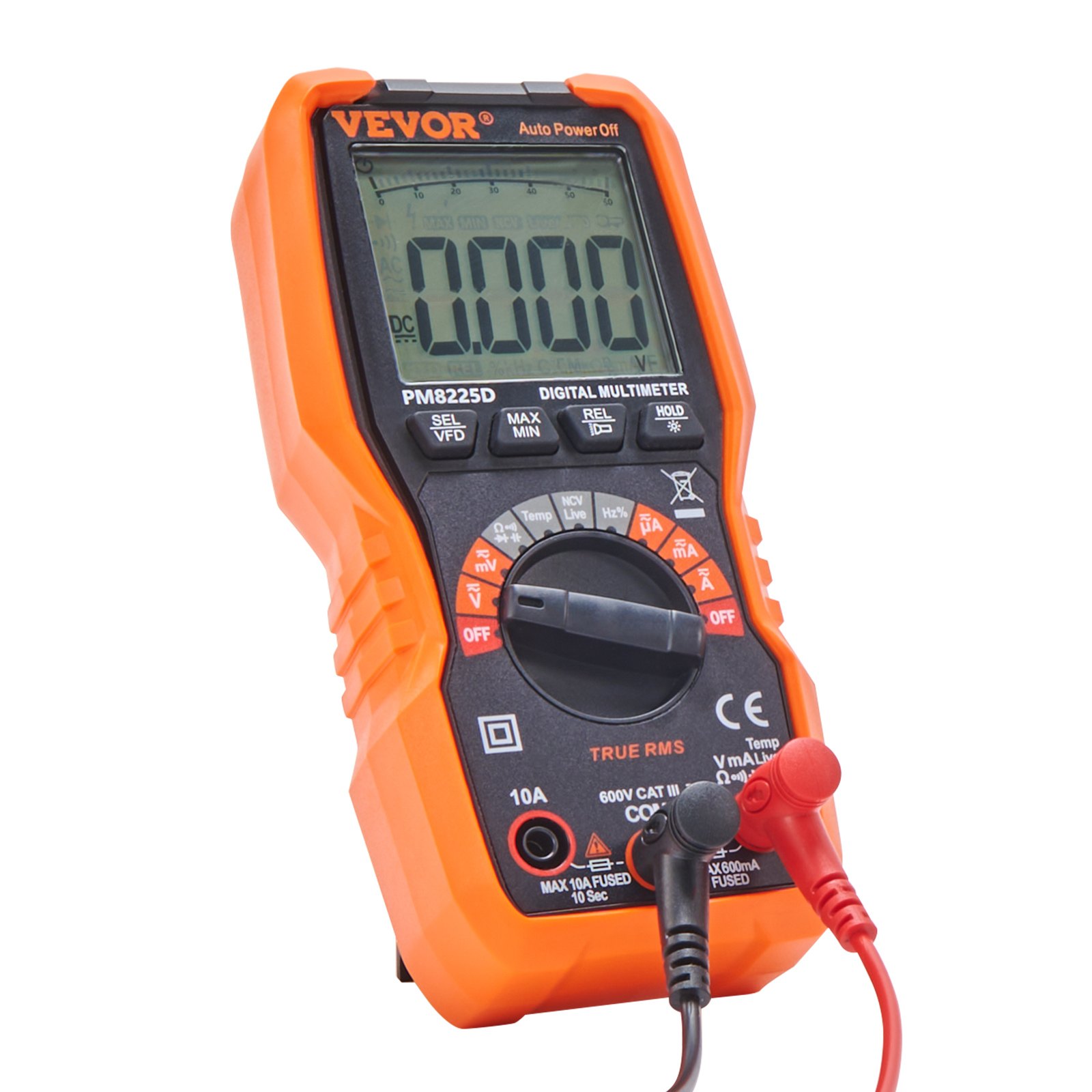

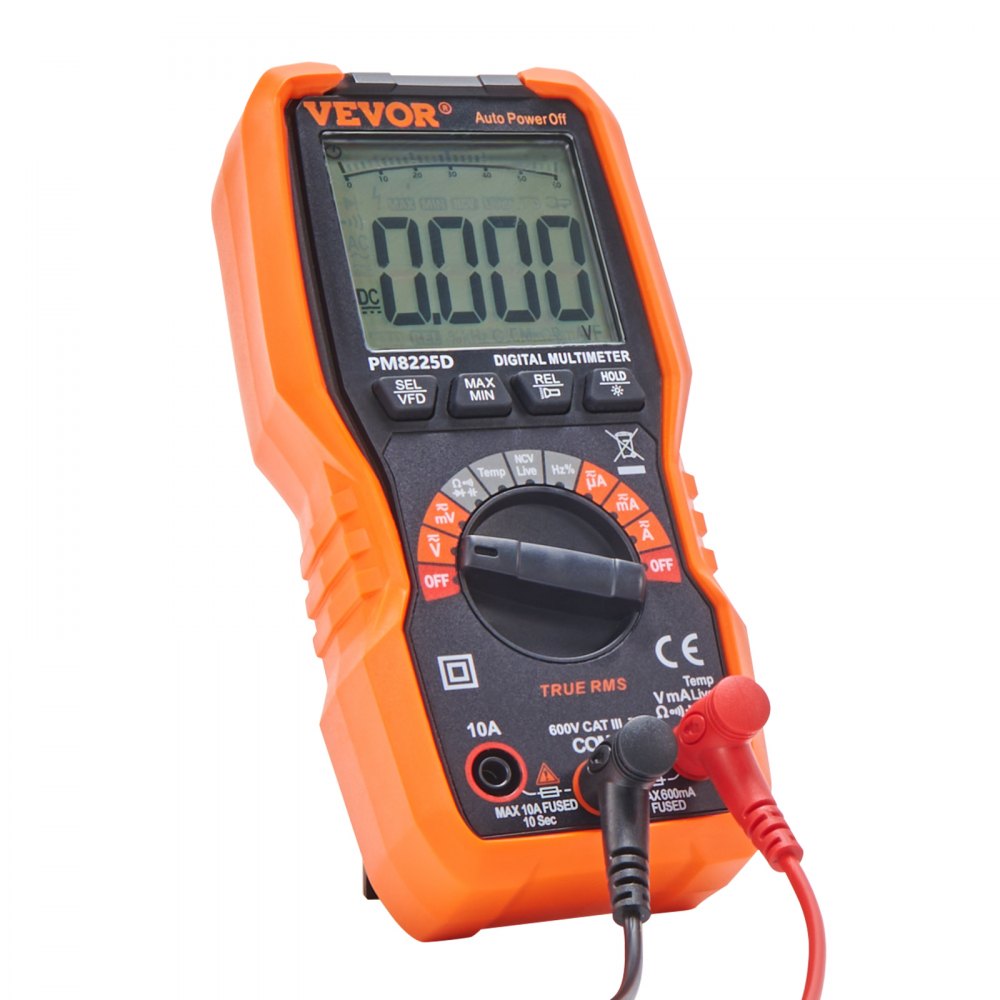

VEVOR 6000-Count Digital Multimeter
The 6000-count digital multimeter is designed to measure various electrical parameters, including AC/DC current, voltage, and resistance. With a temperature measurement range of -4°F to 1832°F, it effortlessly solves electrical problems.
Equipped with a large LCD display, our digital multimeter tester offers easy operation and intuitive readability. The backlit design ensures convenient nighttime usage, with a backlight duration of 15 seconds.
The multimeter tester features overload protection, NCV function, and true RMS detection function to ensure secure usage for users. It is manufactured with high-quality materials and precision technology to withstand the harsh working environment.
The electric multi tester is built with a data hold function and a battery indicator, which alerts users to replace the batteries to ensure uninterrupted operation.

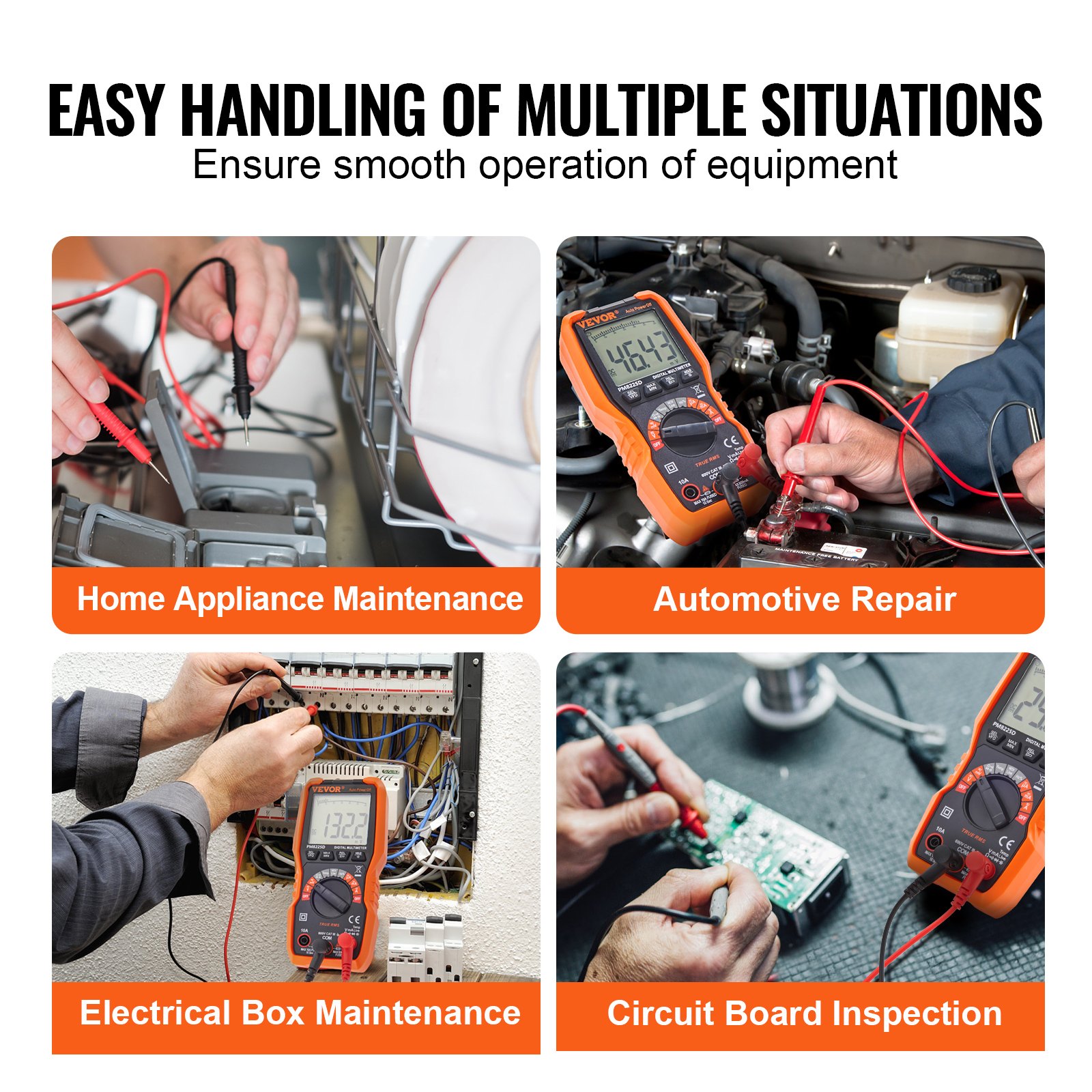

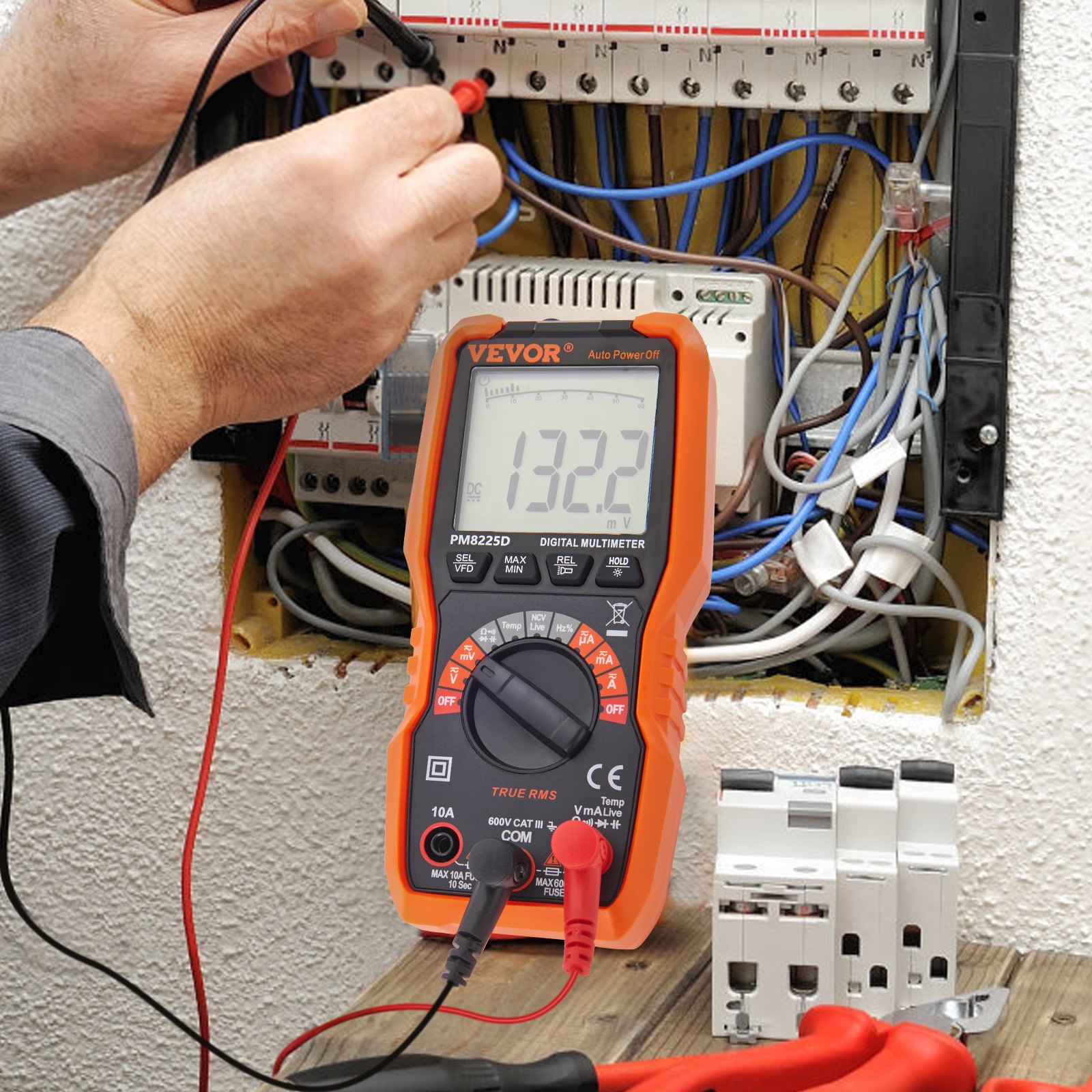

Our multi testers measure current, voltage, resistance, diode, duty cycle, capacitance, etc. Suitable for home appliance maintenance, automotive repair, electrical box maintenance, and circuit board inspection.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Het temperatuur meetbereik (-20-1000 gr.C) suggereerd een thermokoppel type K (Chromel-Alumel).
Kunnen wij deze multimeter gebruiken voor temperatuur meten met zulke koppels? We zien geen aansluitpunt op de afbeelding.
Het product is uitgerust met een thermokoppel voor algemeen gebruik, dat wordt gebruikt om hoge temperaturen of temperaturen in speciale omgevingen te meten. Hiervoor moet u zelf een speciaal thermokoppel kopen.
By vevor
Helpful
(
4
)
