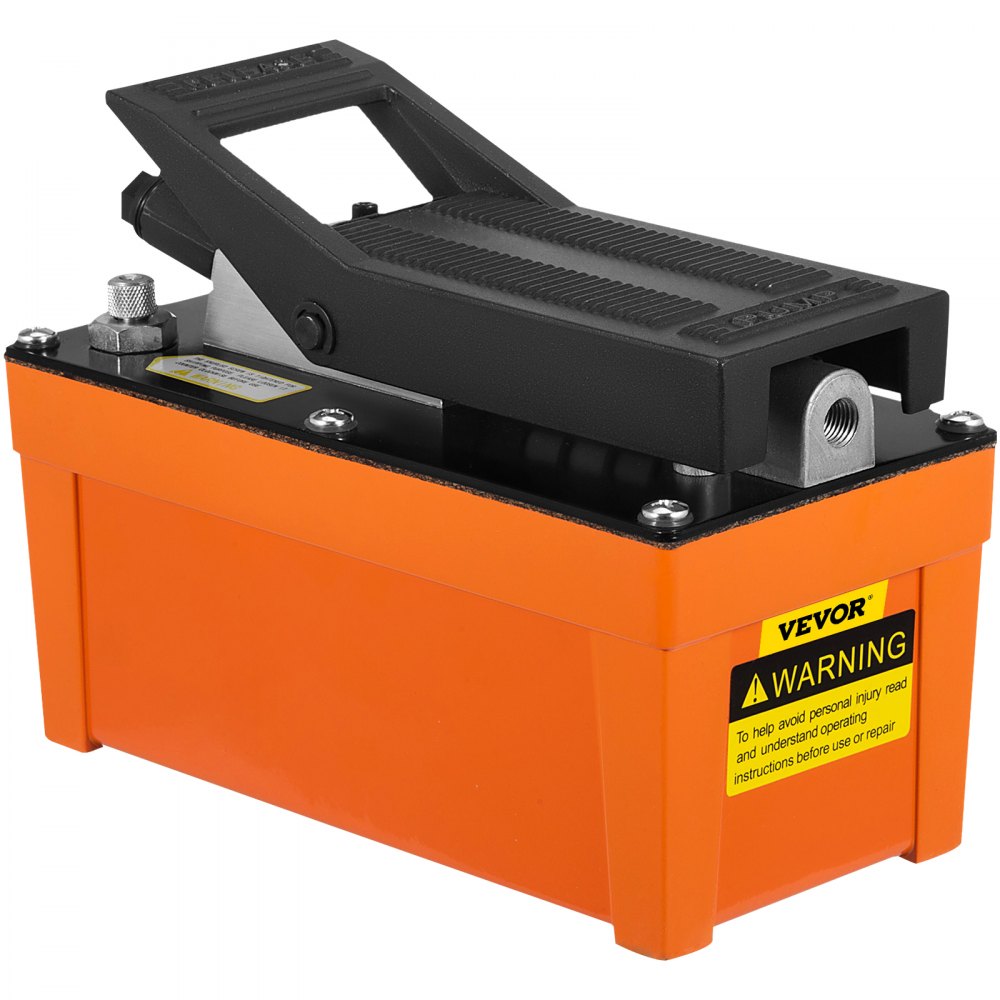

10,000 PSI Air Hydraulic Foot Pump
Foot Pedal Control & 1.6L Oil Tank & 6.56 ft Hydraulic Hose
This high-pressure air-powered hydraulic pump is constructed for security, durability, and the delivery of higher oil flow, ideal for delivering compact air over hydraulic. The user-friendly foot-actuated design provides hands-free operation. It is engineered to meet users' standards with high-quality performance and fine metering capabilities for precise control—a perfect pump for all your auto body shop hydraulic needs.
- Fundamental Parameters
- Foot-Actuated Design
- Sturdy & Compact Construction
- Durable Oil Pipe Included
- 10,000 PSI for Wide Application

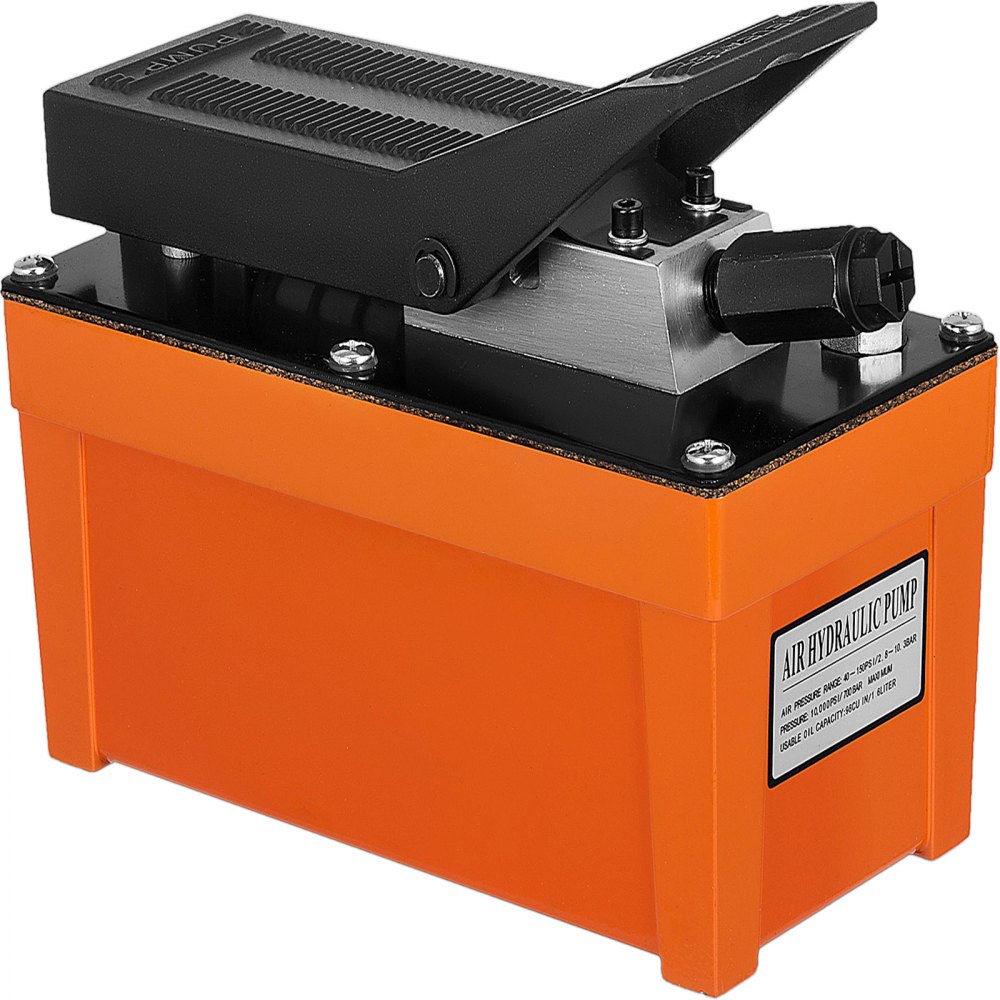

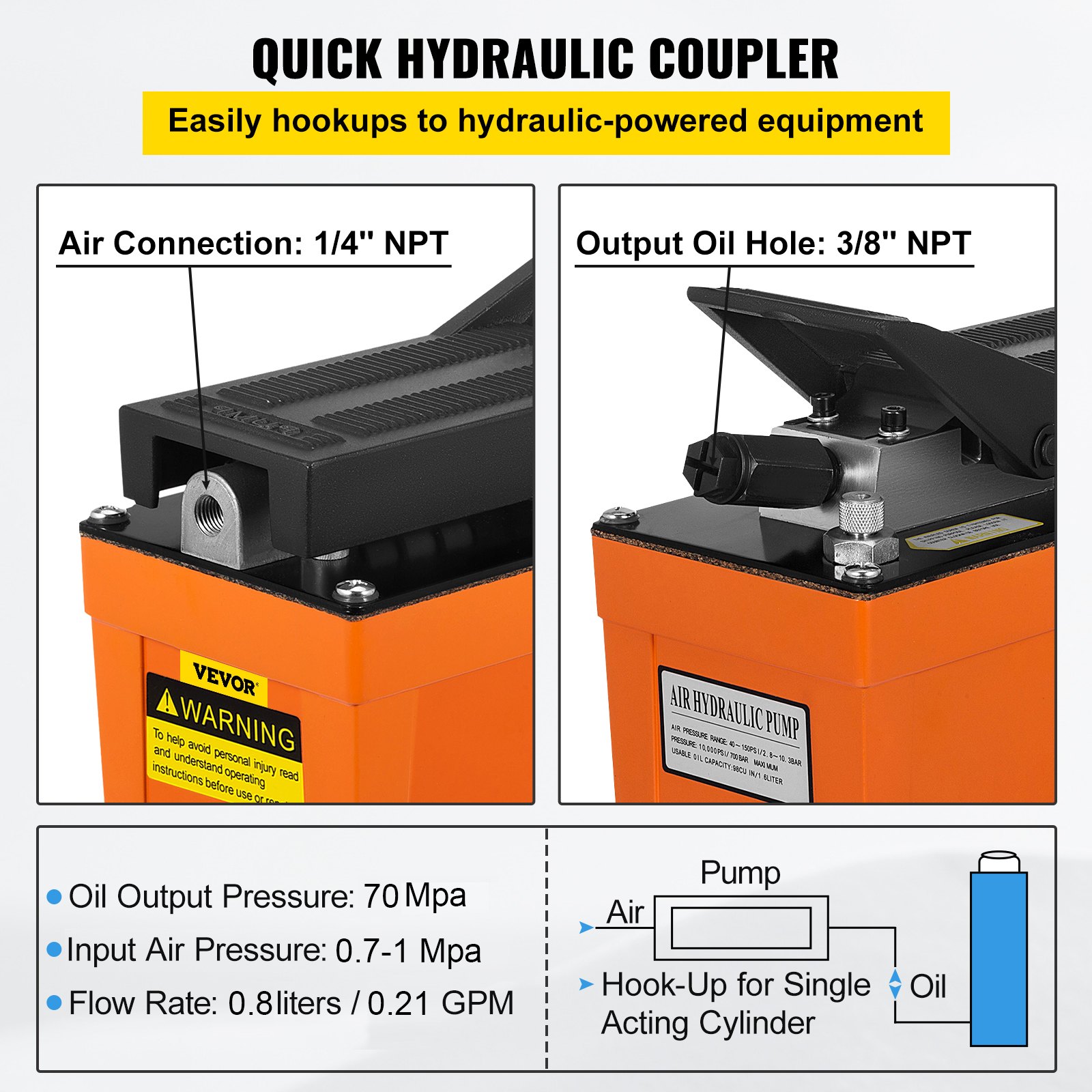

Standard Air Inlet & Oil Outlet
The air hydraulic pump features a 1/4'' NPT air inlet and a 3/8'' NPT oil outlet, which will not leak oil easily. In addition, the 3/8 inch female NPT oil port conveniently hookups to hydraulic-powered equipment.

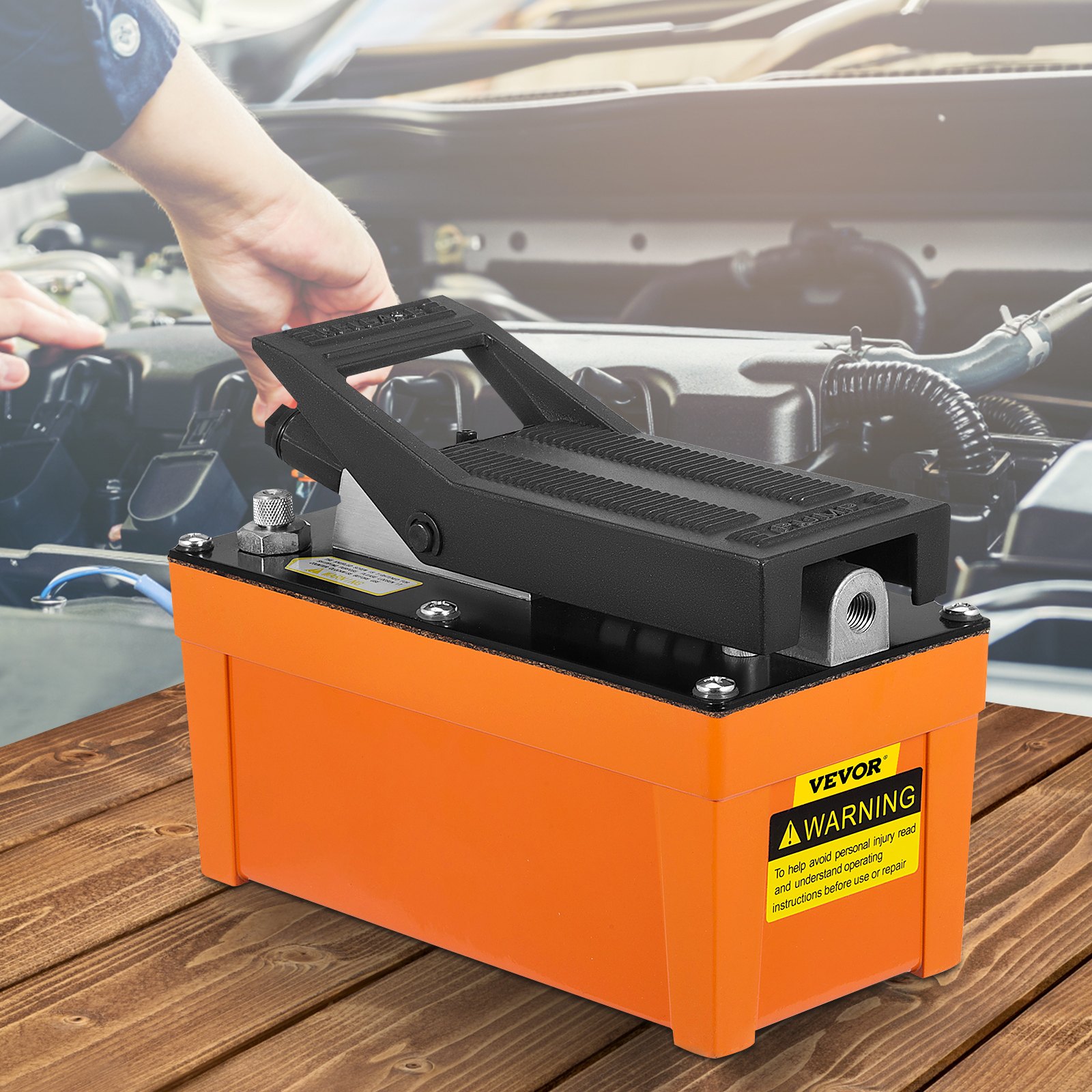

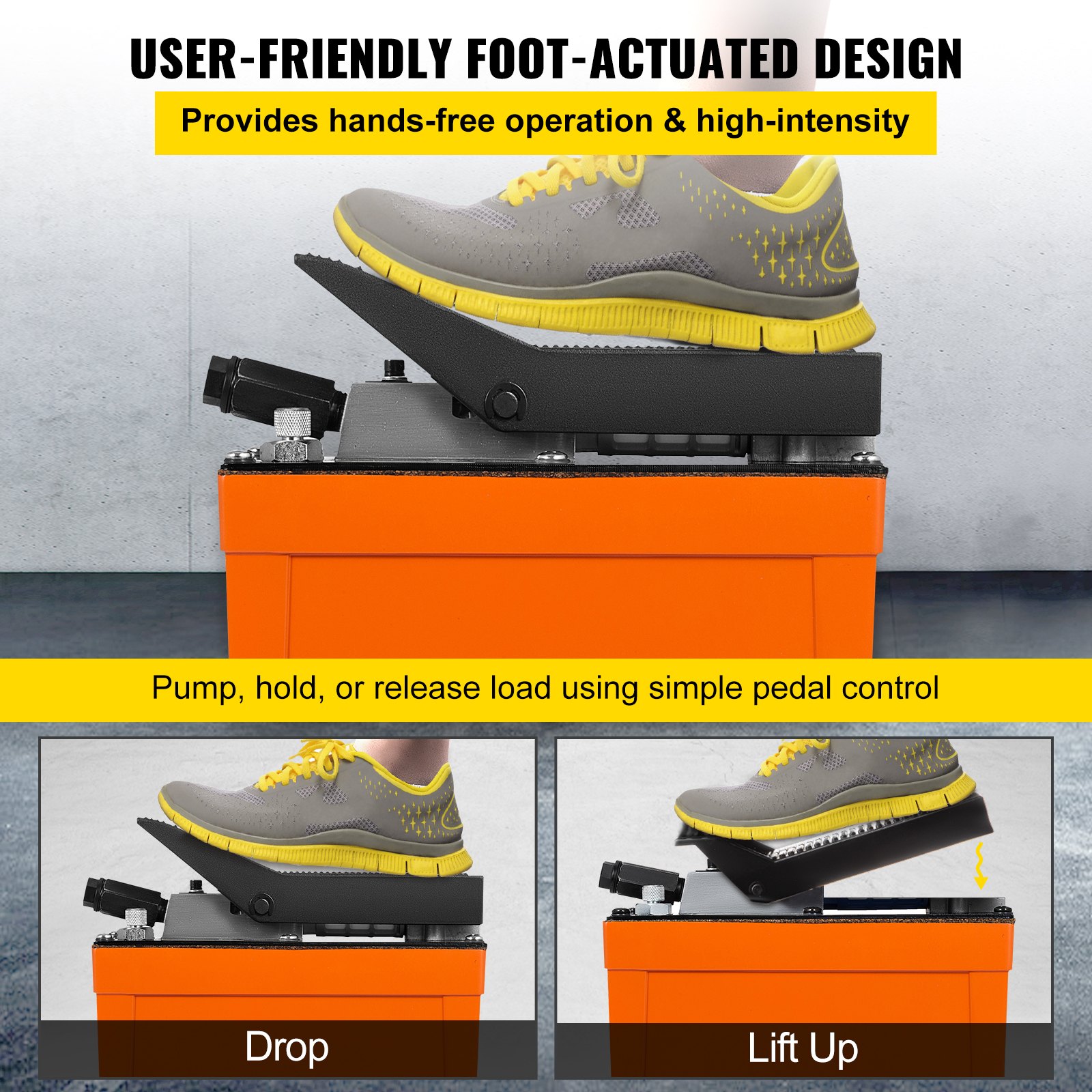

Simple Foot Pedal Control
The high-intensity frame machine pump is much easier to pump, hold, or release the load, which is time-saving and labor-saving. In addition, it allows fine control of the pump while keeping both hands free.

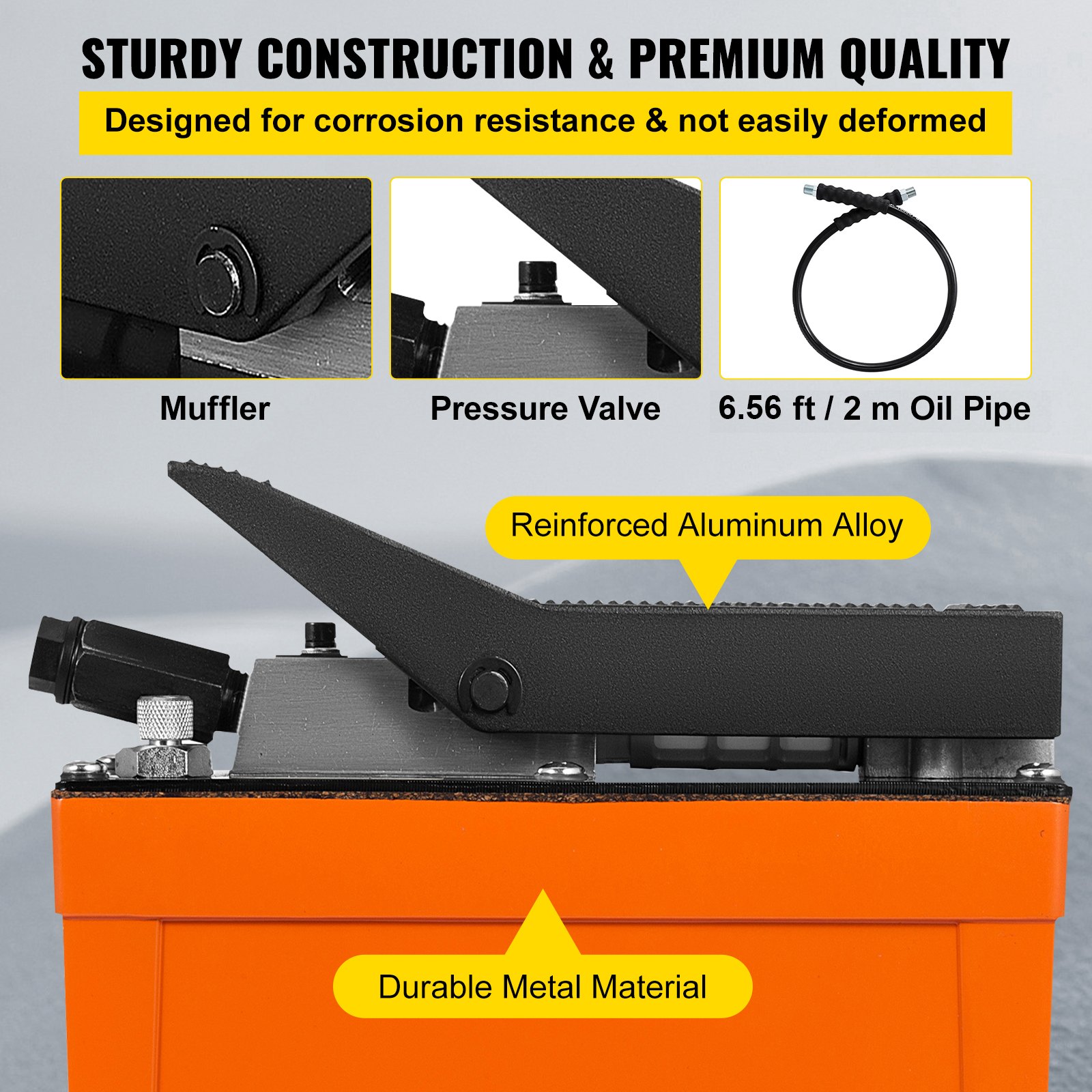

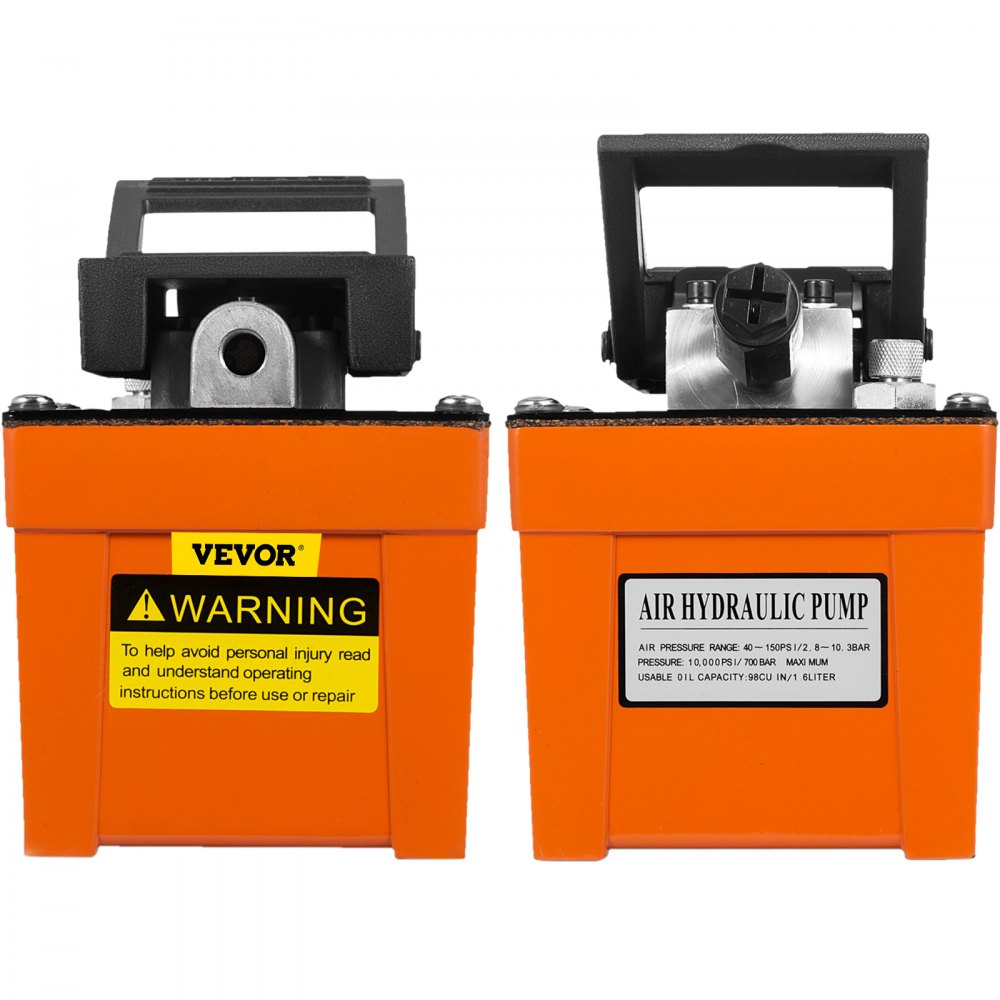

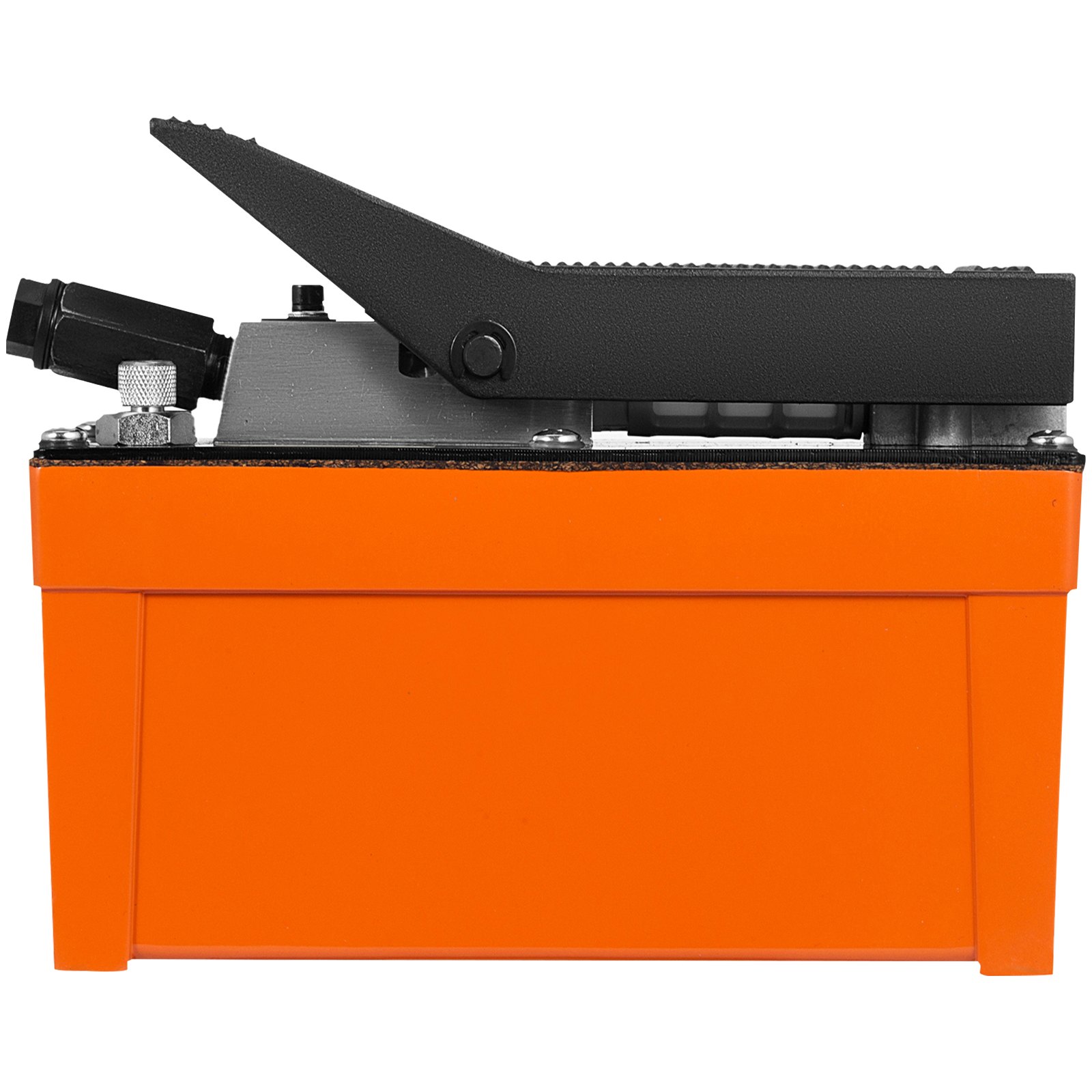

Premium Quality & Structure
The pump core is made of high-quality aviation aluminum to resist compression, vibration, and corrosion. In addition, a durable metal shell protects the internal structure better and is not easily deformed.

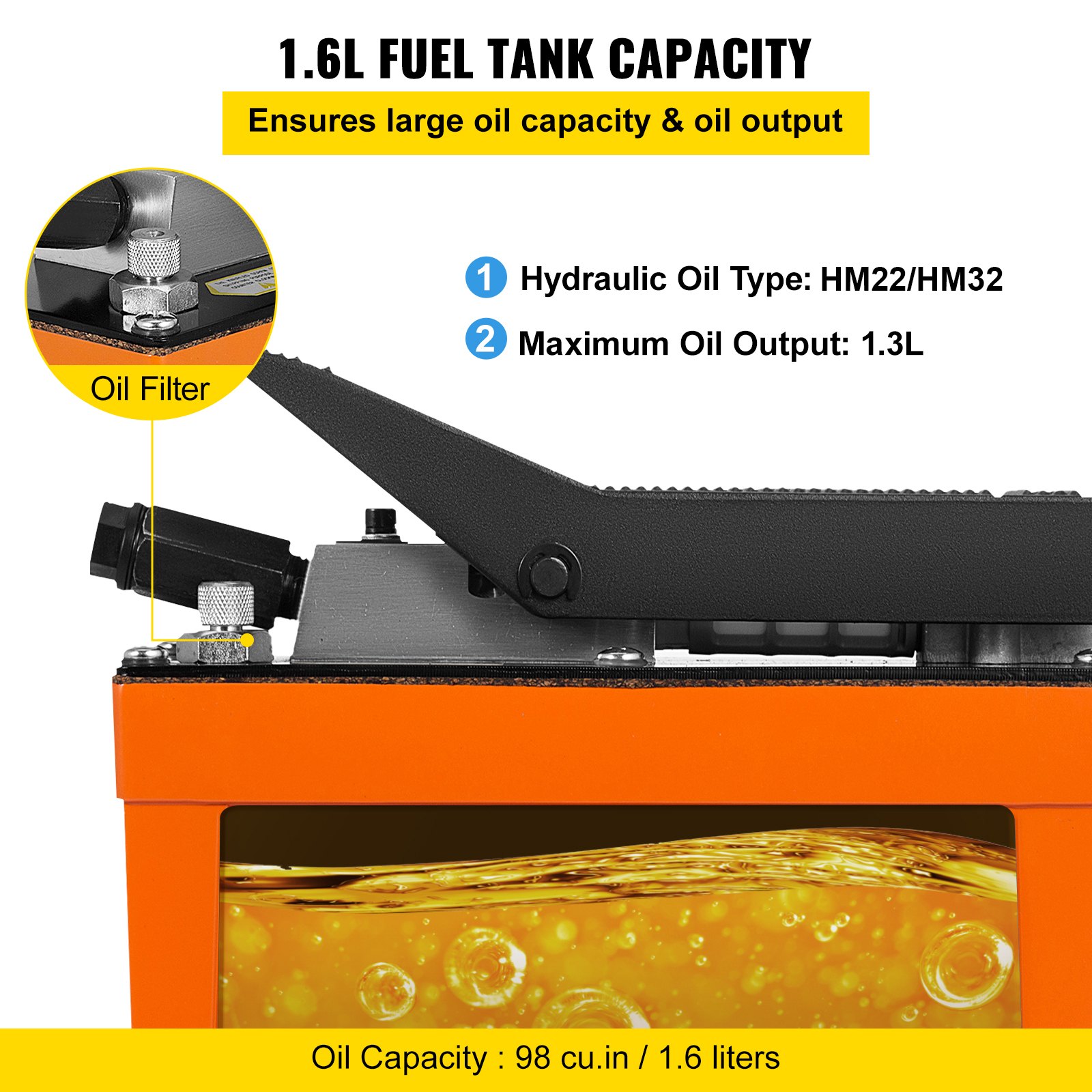

1.6L Large Oil Tank
The hydraulic air foot pump adopts a 1.6L ± 0.1L aluminum alloy fuel tank with 98 cubic Inches / 1.6 liters oil capacity for high performance. Moreover, it ensures you have the supply needed to power your equipment.
High-Pressure Hydraulic Hose
This hydraulic pump includes a high-quality oil pipe that resists high pressure and is not easily broken. Hydraulic Hose: 6.5 ft / 2 m with 3/8 NPT - Quick hydraulic coupler.

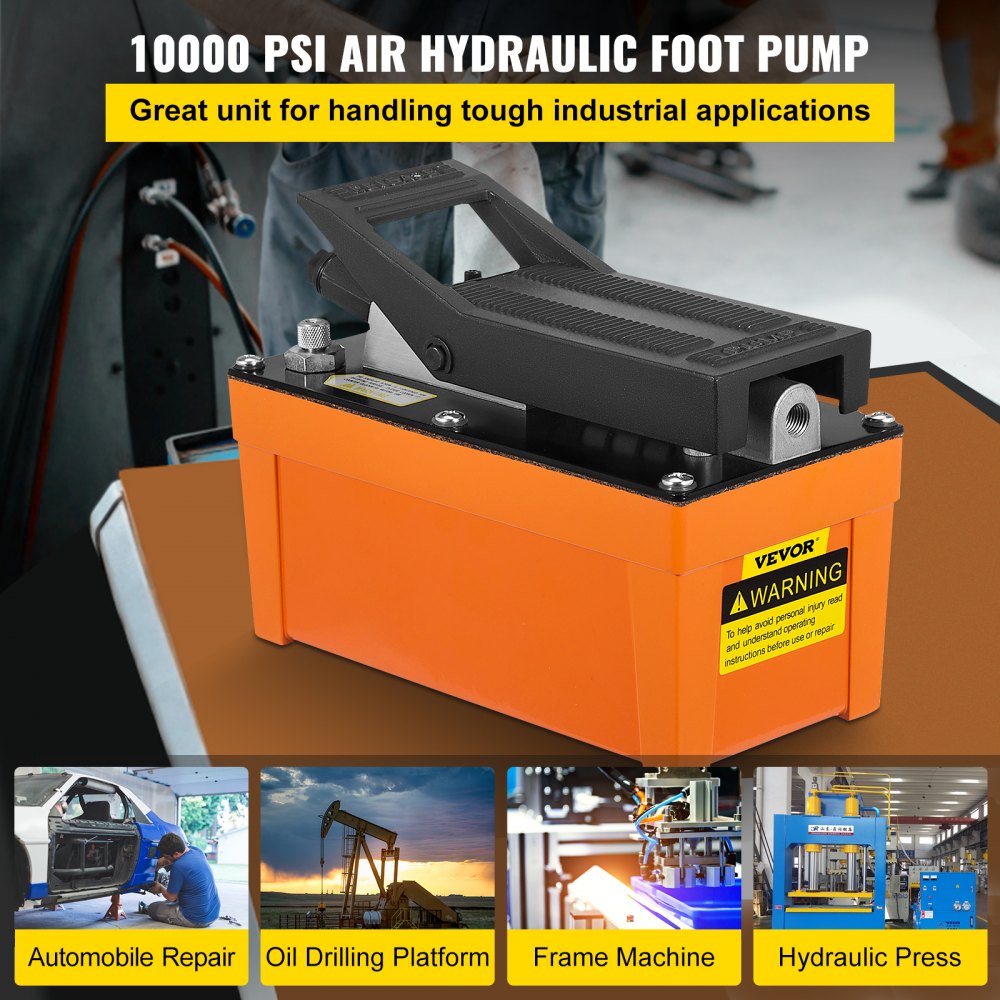

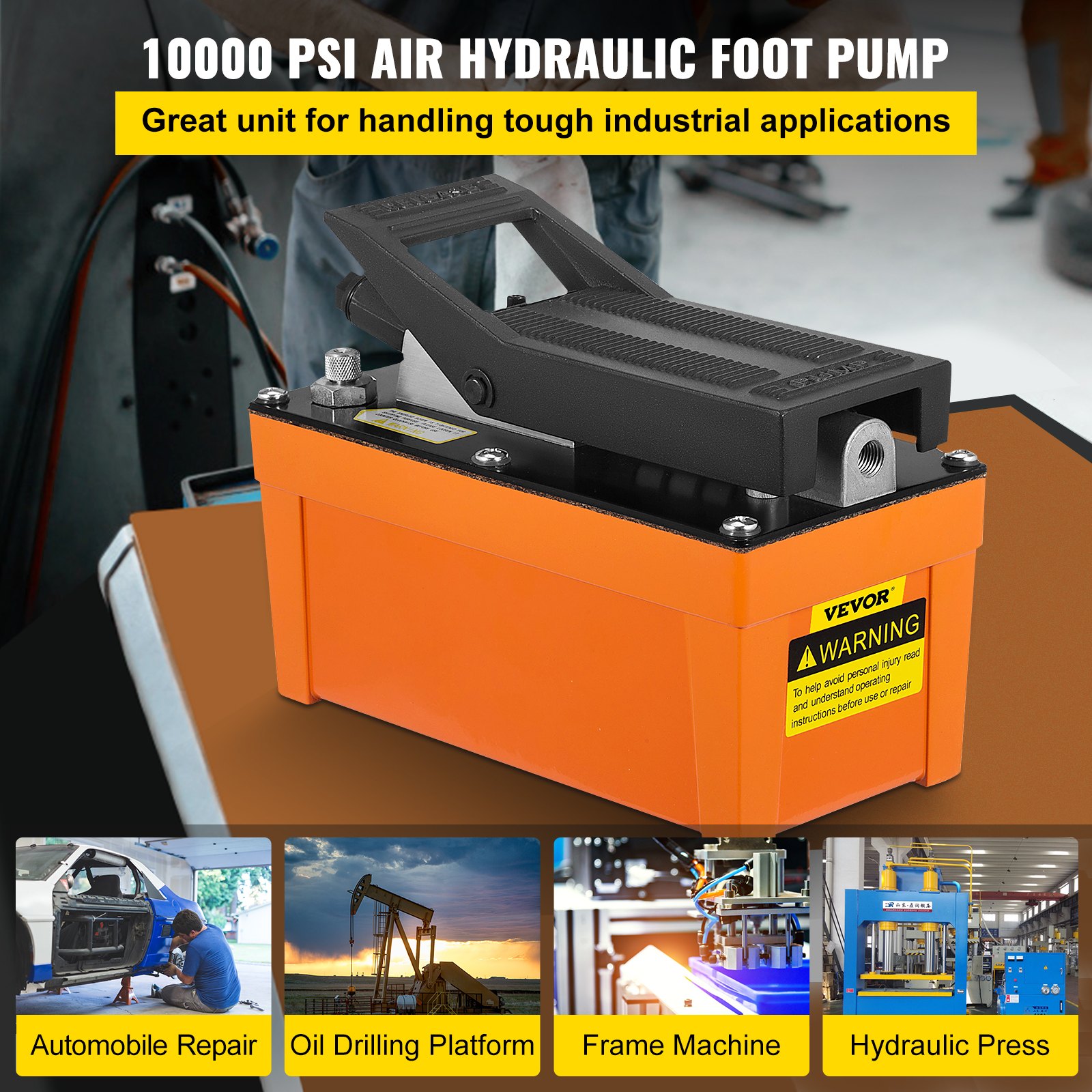

Multiple Application
This air hydraulic foot pump is suitable for heavy machinery rigging and moving, auto repair, oil rigging, machine maintenance. It effectively operates your frame machine, hydraulic presses, etc.

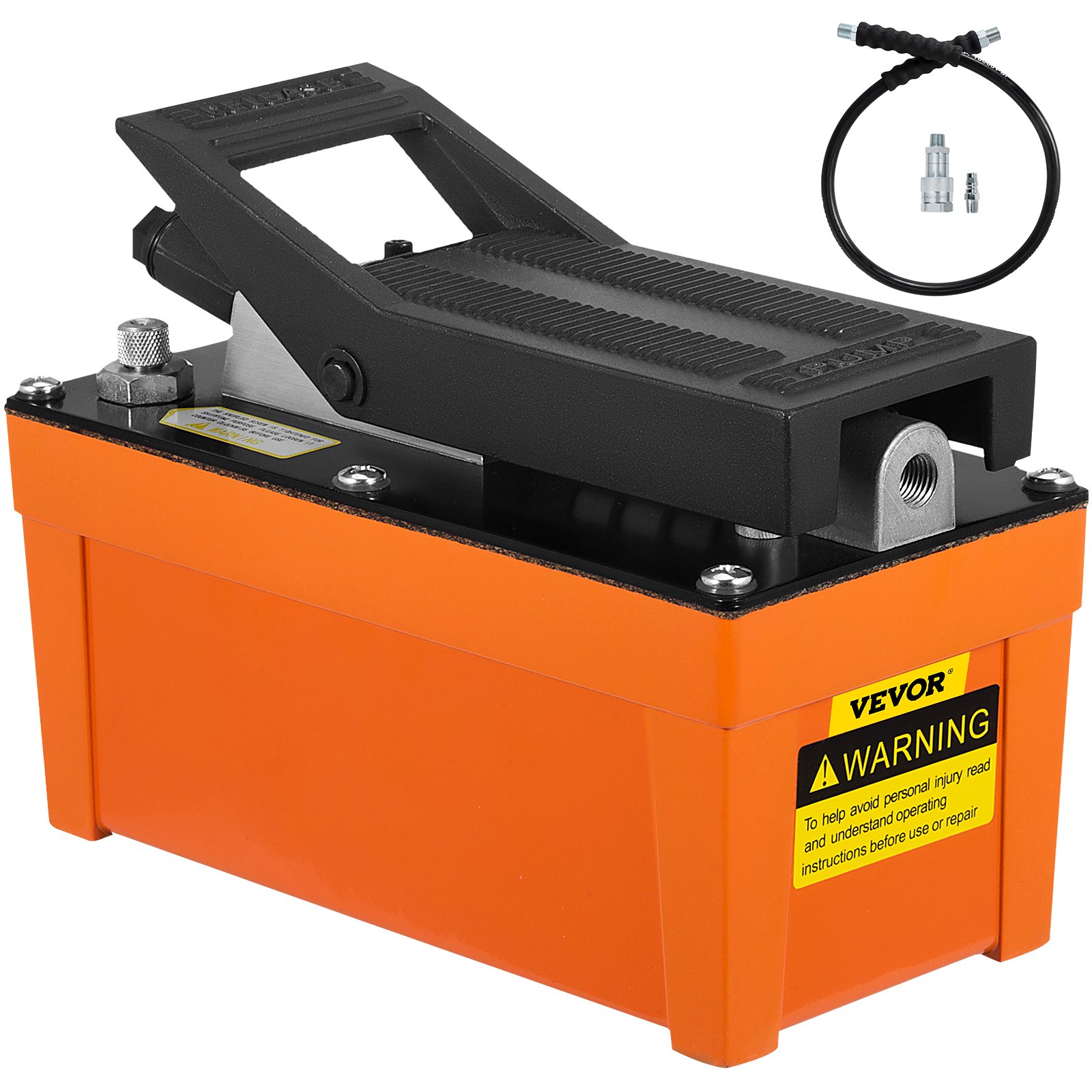

- 1 x Air Powered Hydraulic Pump
- 1 x High-Pressure Oil Pipe
- 1 x Quick Connector

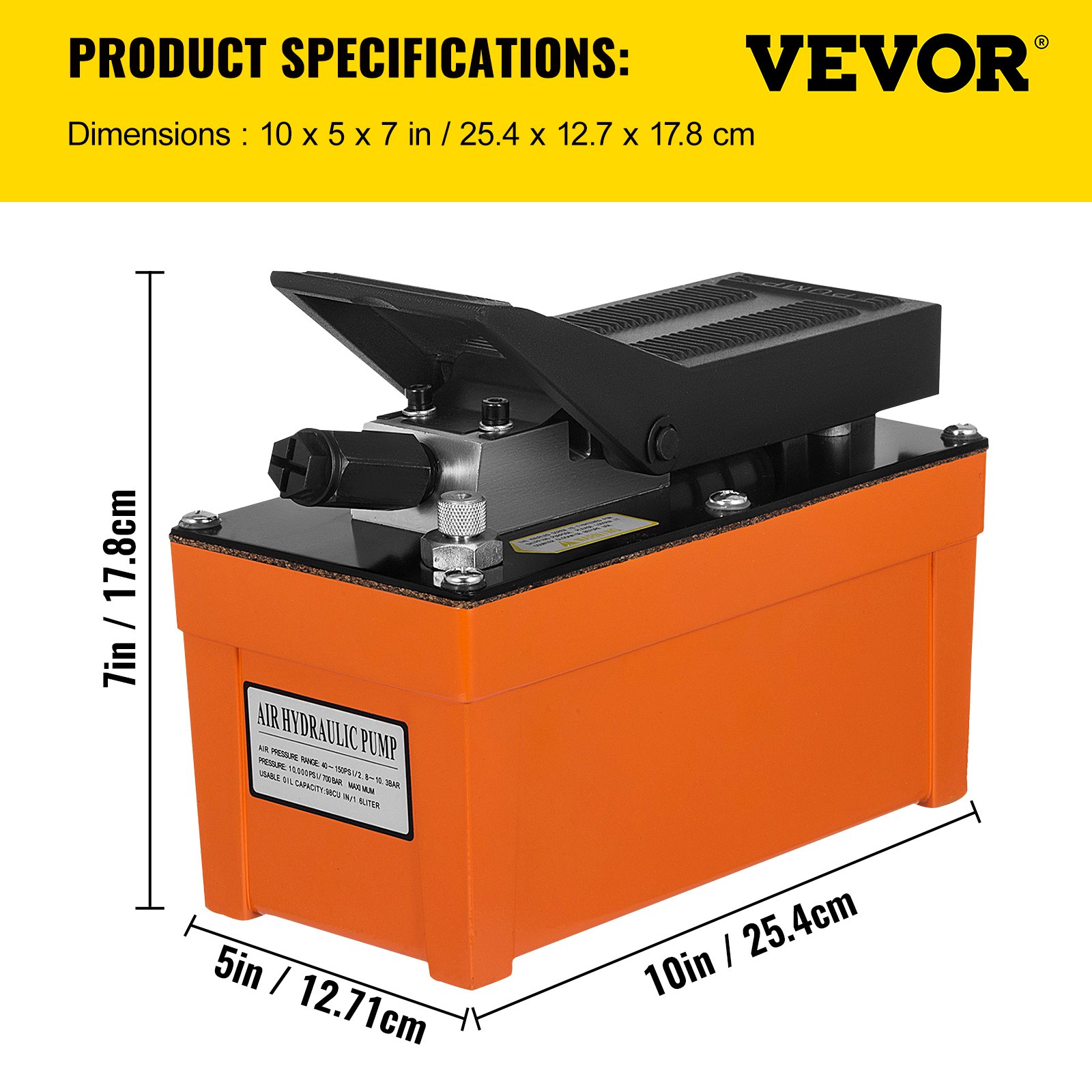

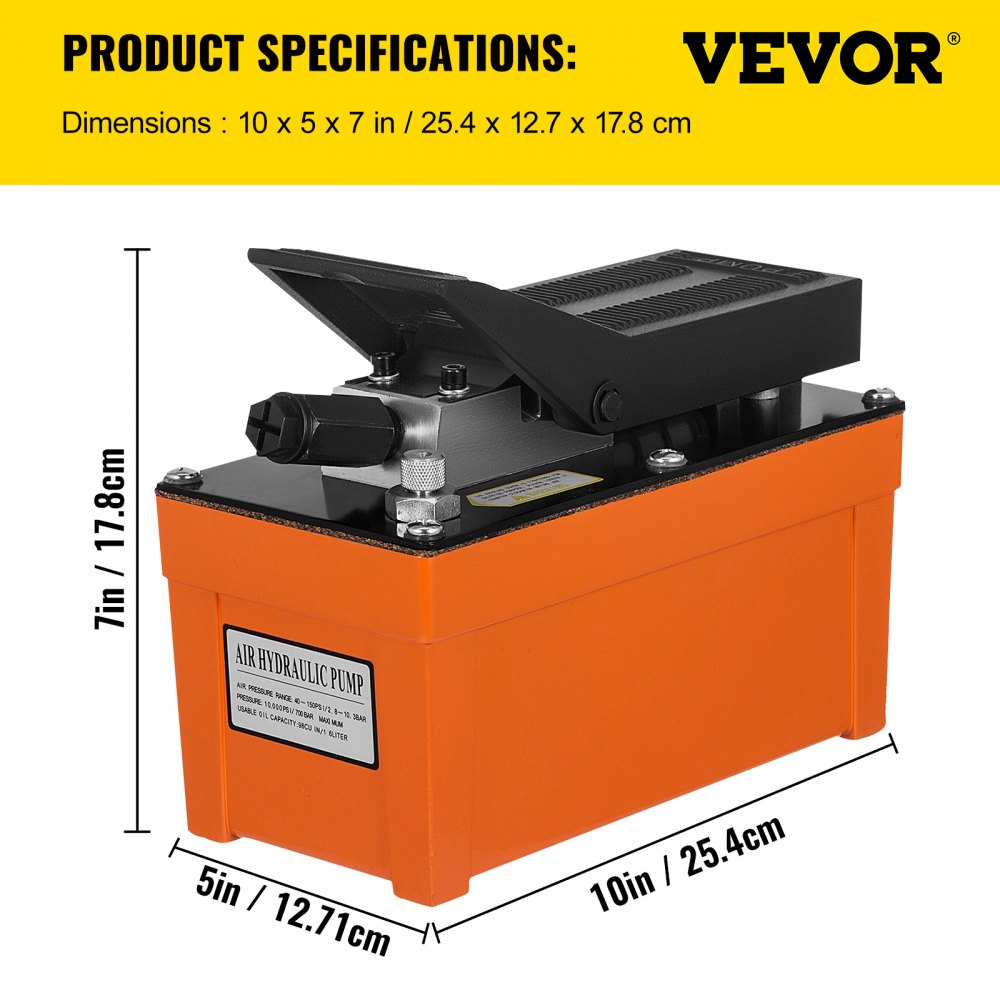

- Type: Air Powered Hydraulic Pump
- Action: Single Acting
- Control: Foot pedal pump - Release pressure to return fluid
- Includes Hydraulic Hose: 2 m / 6.56 ft with 3/8'' NPT - Quick hydraulic coupler
- Flow Rate: 0.8 liters / 0.21 gallons per minute
- Air Connection: 1/4" Female NPT
- Output Oil Hole: 3/8'' NPT Connection
- Hydraulic Oil Type: HM22/HM32
- Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc)
- Air Pressure Range: 0.7-1MPa
- Shell Material: Reinforced Aluminum Alloy
- Fuel Tank Capacity: 1.6L
- Capacity Tolerance: ± 0.1L
- Maximum Oil Output: 1.3L
- Oil Output Pressure: 70MPa
- Pressure Range: ≥0.5
- Max Output Hydraulic Pressure: 10000 psi / 700 bar
