2 Axis DRO Digital Readout for Milling Lathe Machine
Our brand new 2 Axis DRO Digital Readout is an instrument which can measure position of work piece when processing. Coordinate system must be definite first for more efficiency and accuracy.
- High Performance
- Multiple Diameter Patterns
- Full Closed Keyboard
- Professional Parameters Setting
- Free Brackets+Screw Set

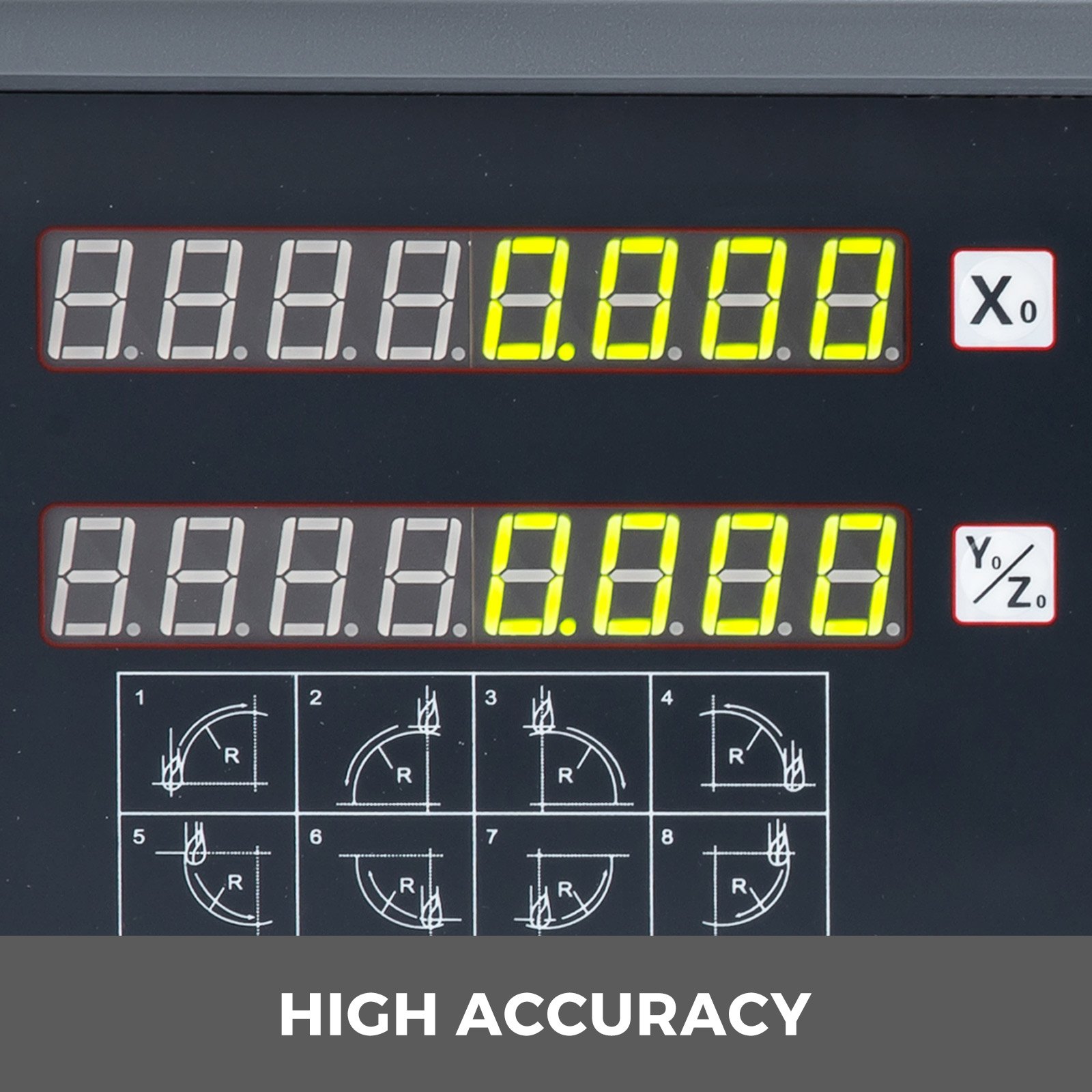

High Accuracy
Precise design with 10 kinds of scale, and these resolutions are 0.05µm, 0.1µm, 0.2µm, 0.5µm, 1µm, 2µm, 5µm, 10µm, 20µm, 50µm. The resolution must be set to match the linear scale.

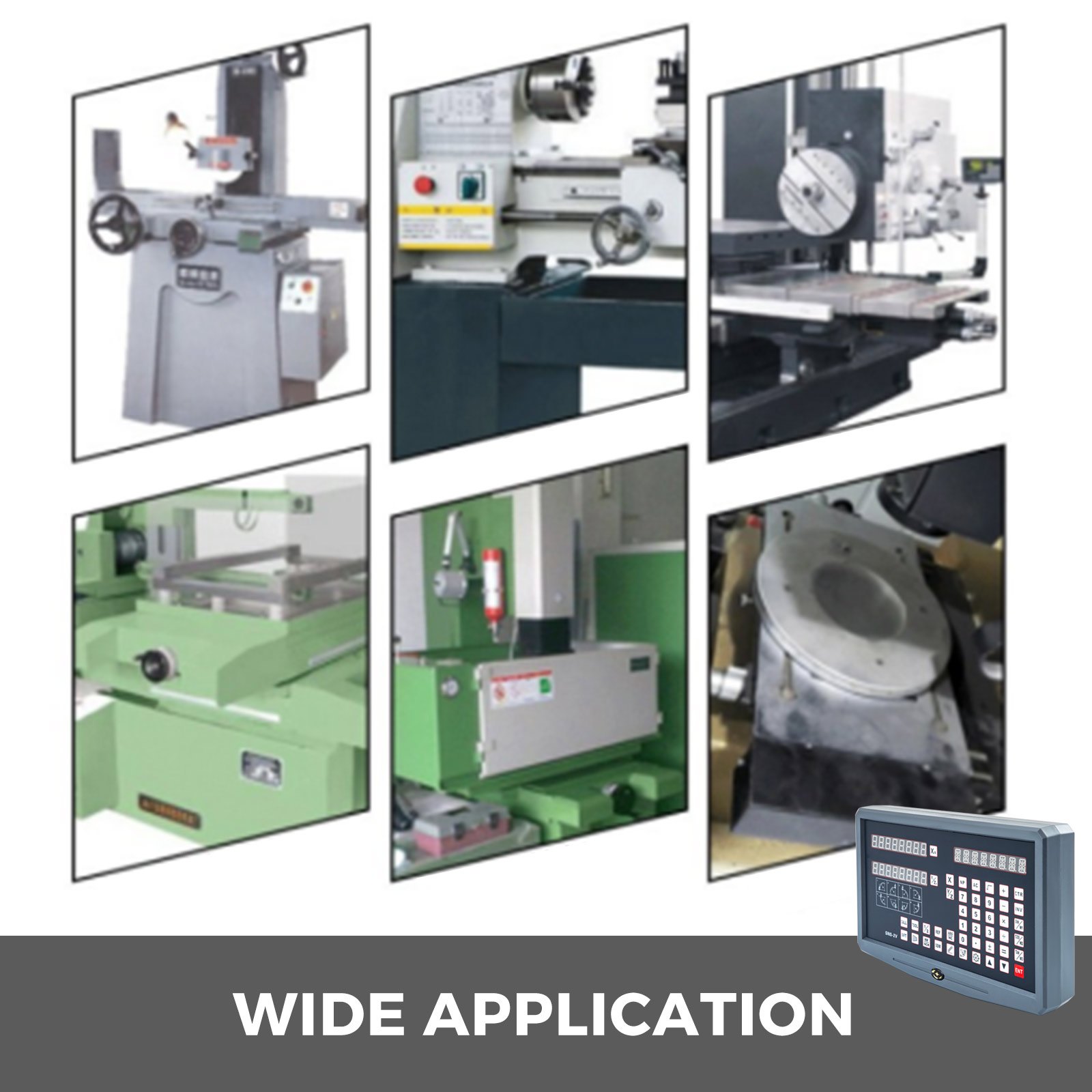

Wide Application
Widely used on manual machine tools such as milling machines, lathes, linear cutting machines, and grinders.

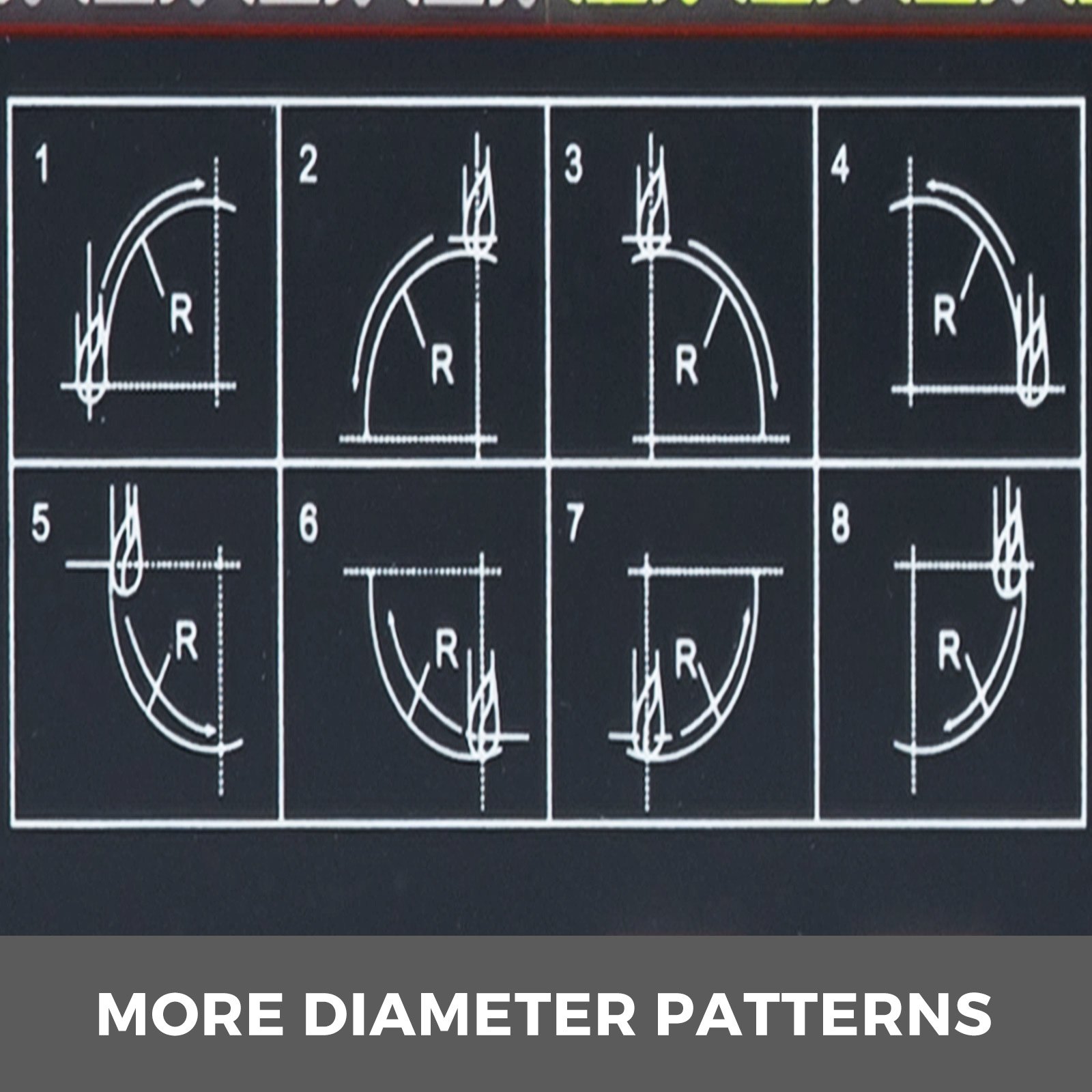

More Diameter Patterns

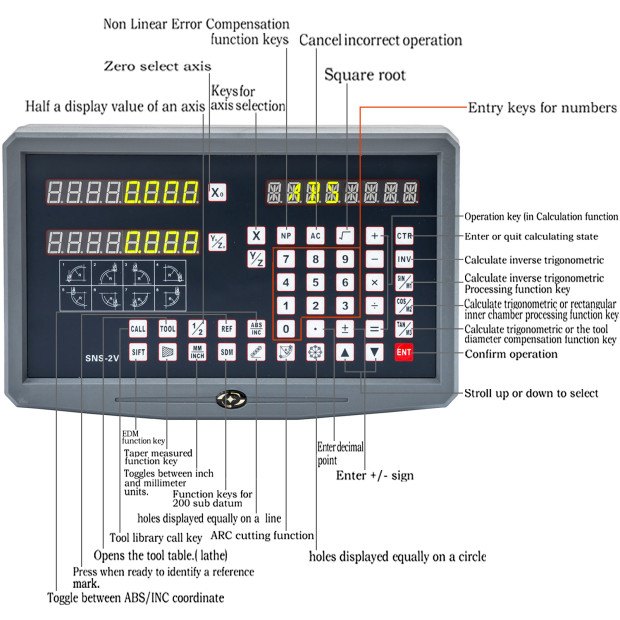

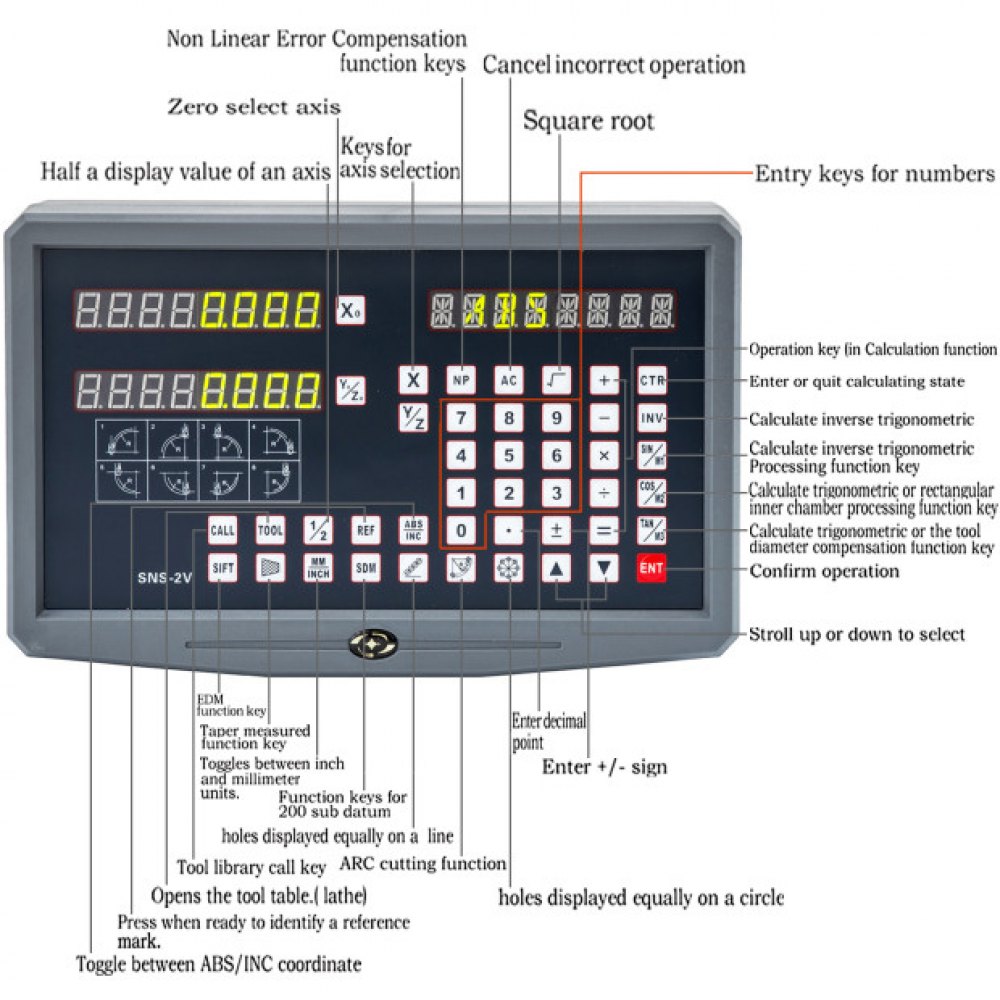

There are 8 modes as the following when processing arc in XZ or YZ plane. Diameter patterns can be displayed with circumferential hole making, inclined plane processing and arc processing function.

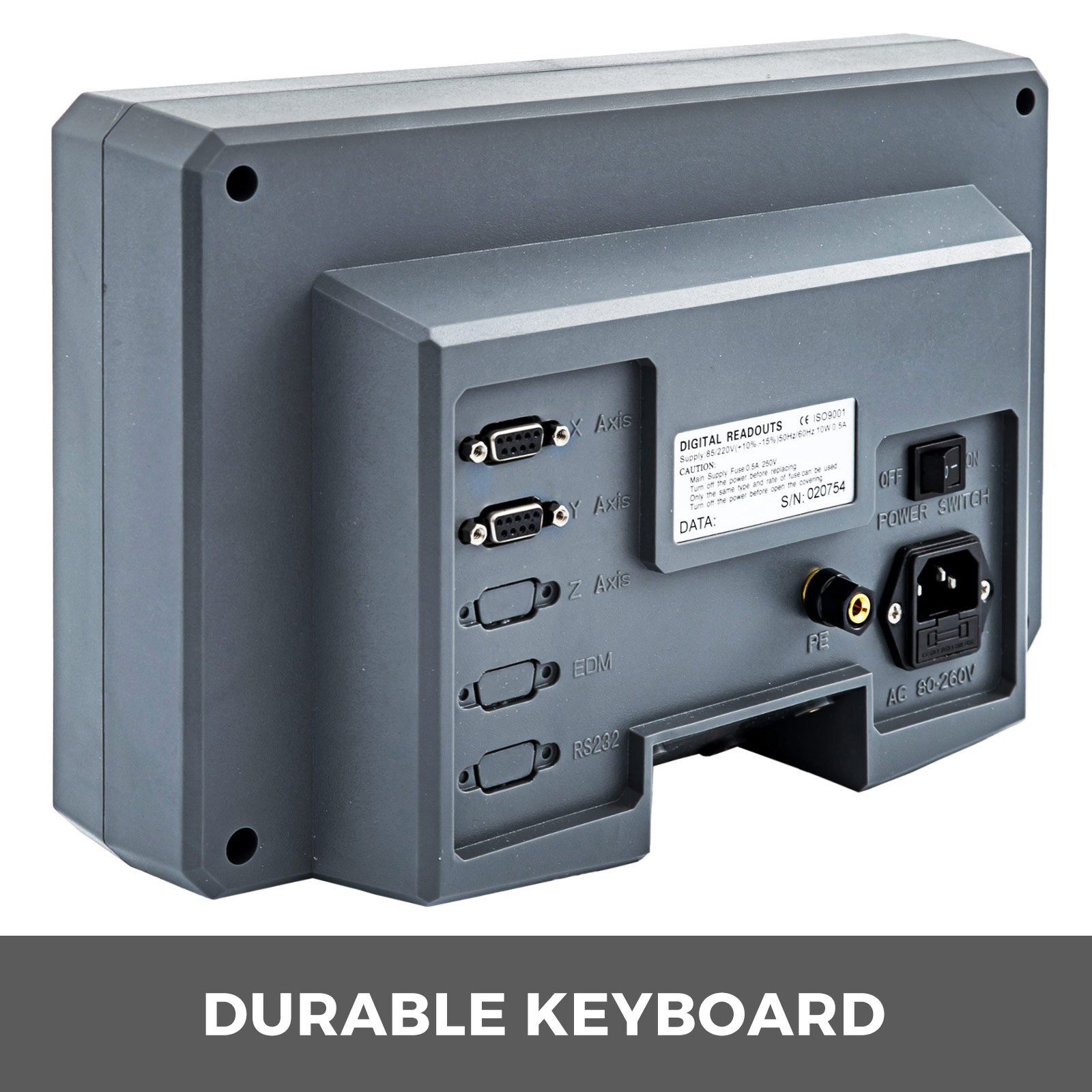

Durable Keyboard
Robust casing, high reliability and durability switch design. Full-closed design ensures its clean and dust resistance, safety increased.

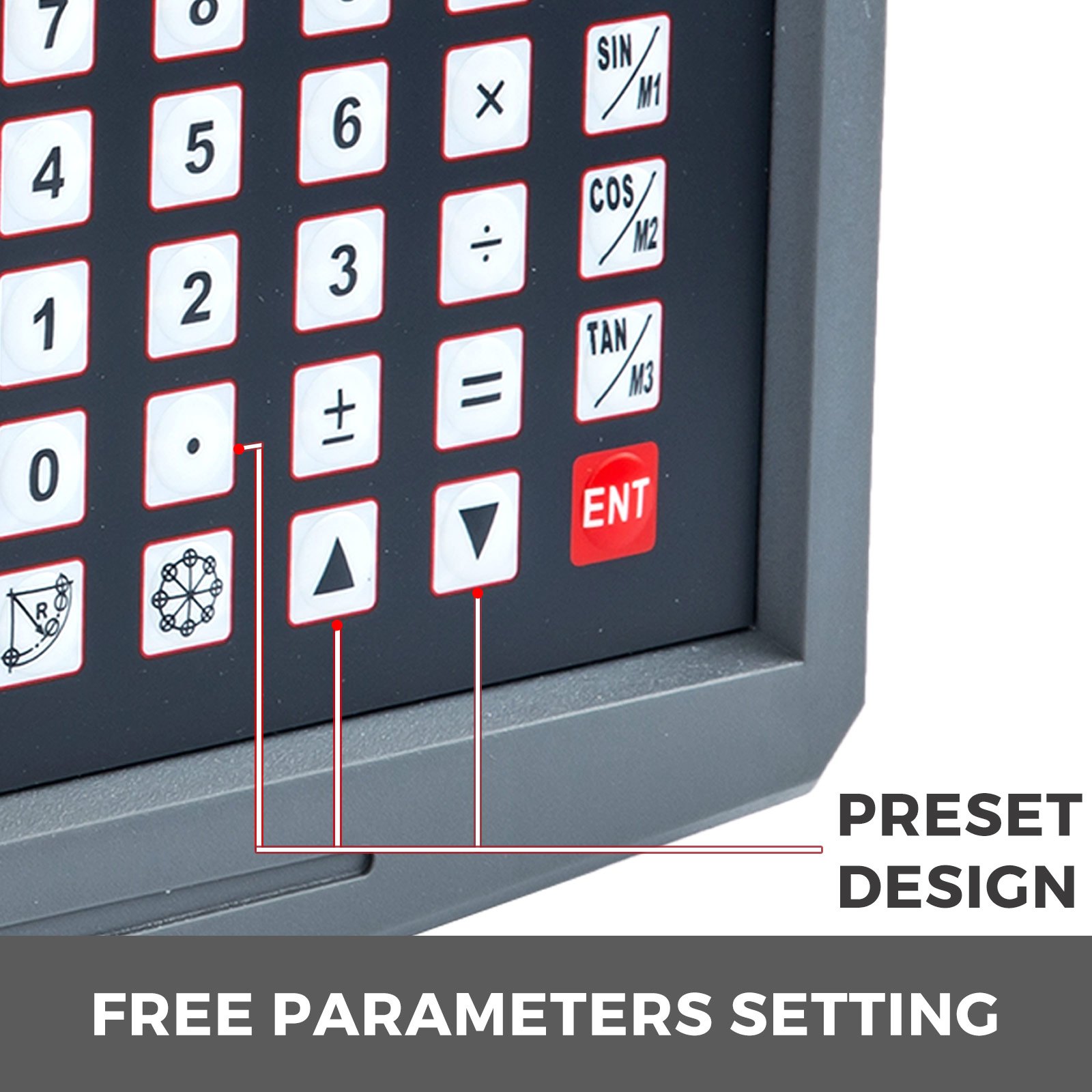

Free Parameters Setting
Parameters can be preset. The repeatability of the measurement is more stable. Working Temperature: 0-45°, Frequency Doubling: 4x, Connectors: 9PD.

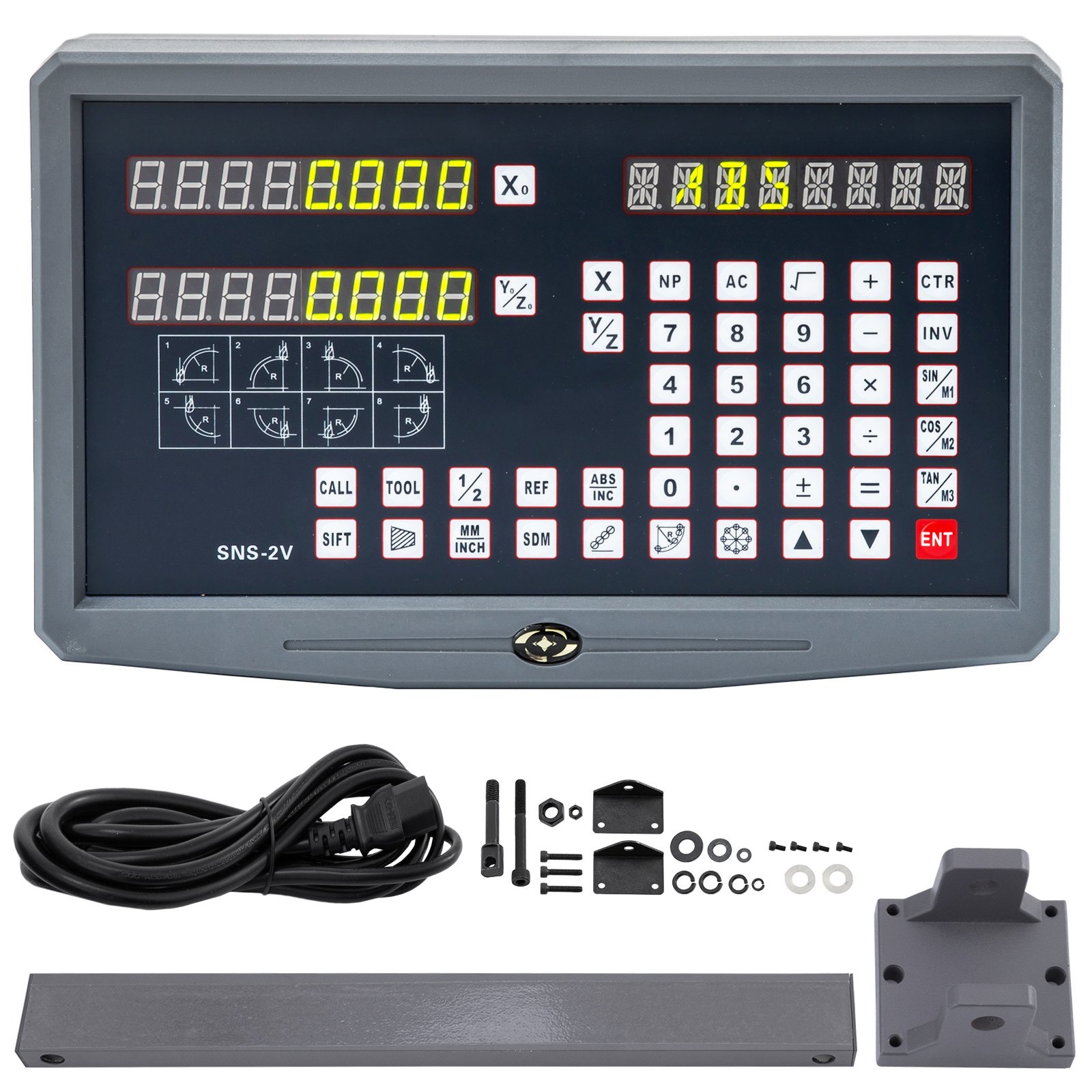

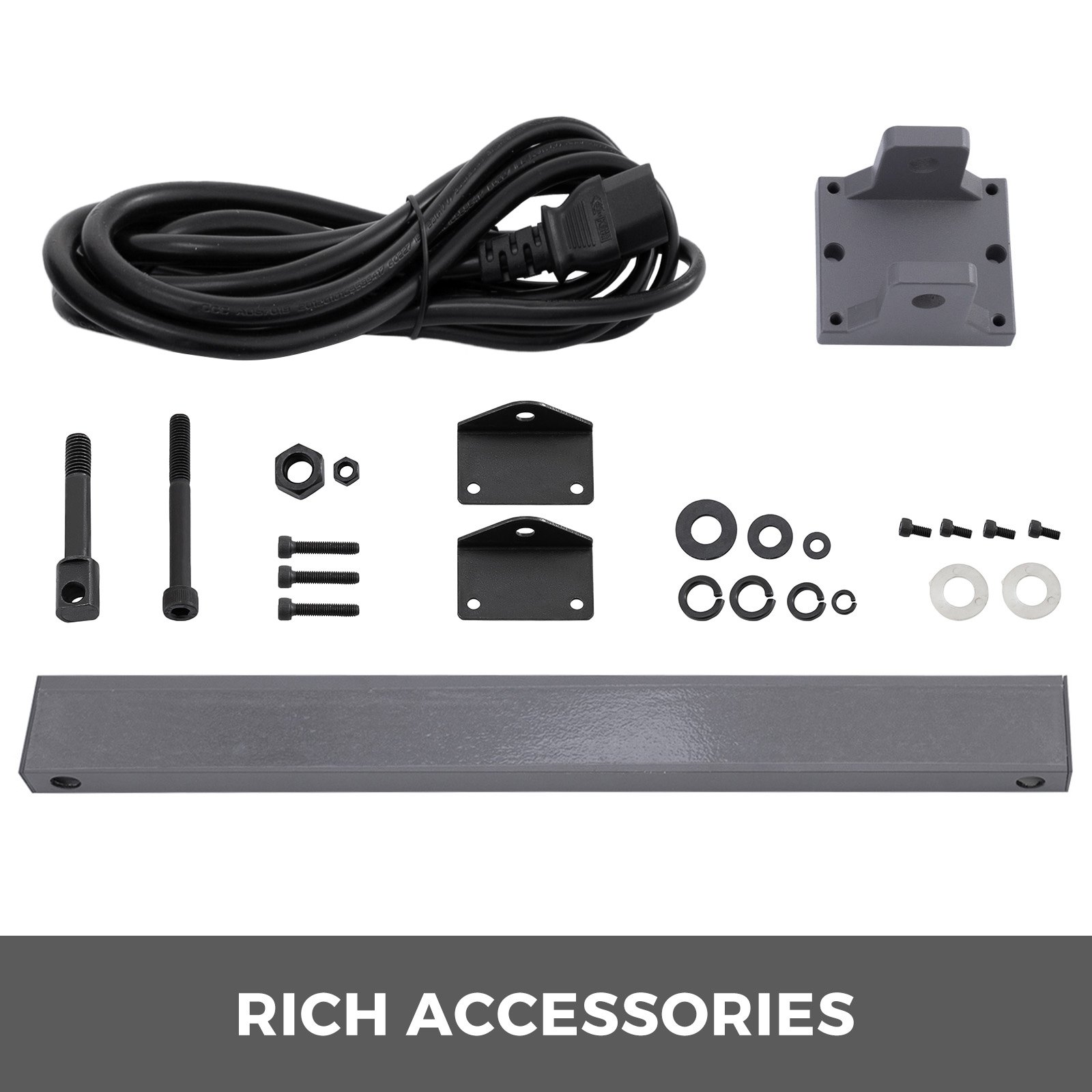

Rich Accessories

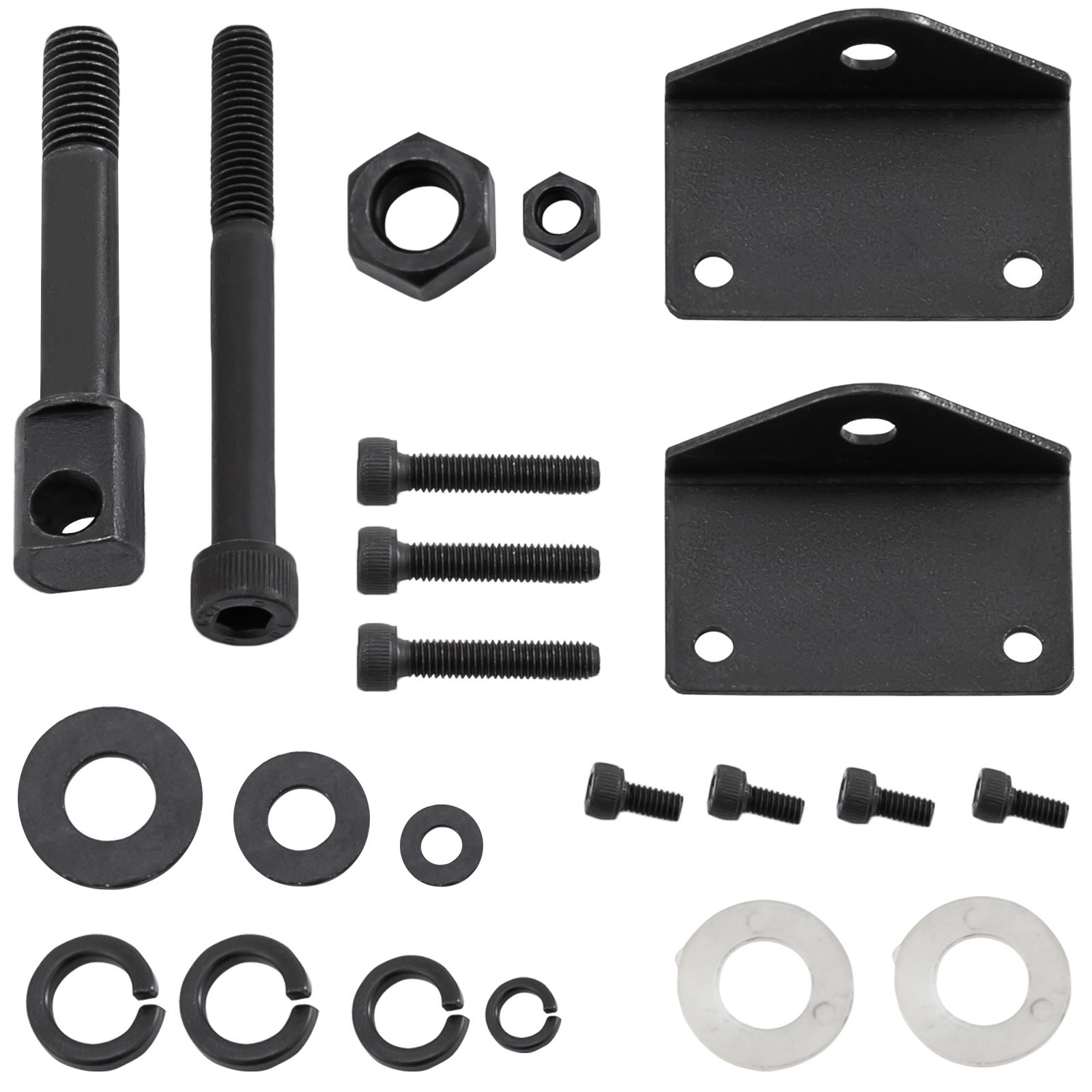

Two brackets and one screw set are free for you to install and operate easily. One cable is also included.
- 1 x 2 Axis Digital Readout
- 2 x Bracket
- 1 x Screw Set
- Supply Voltage Range: 85V-220V
- Power: 10W
- Current: 0.5A
- Working Temperature: 0-45°
- Frequency Doubling: 4x
- Keyboard: Full Closed
- Allowable Input Signal: TTL square wave

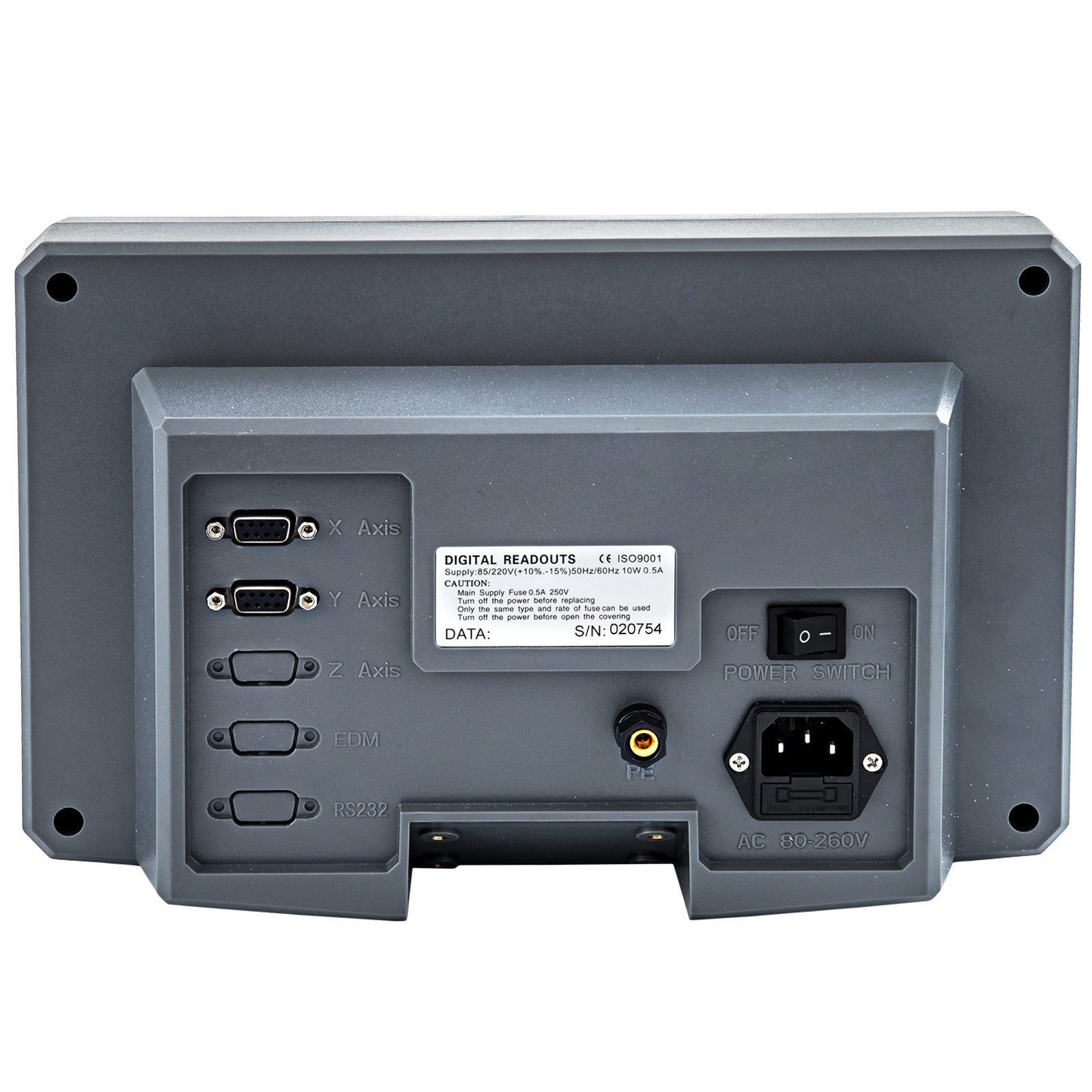

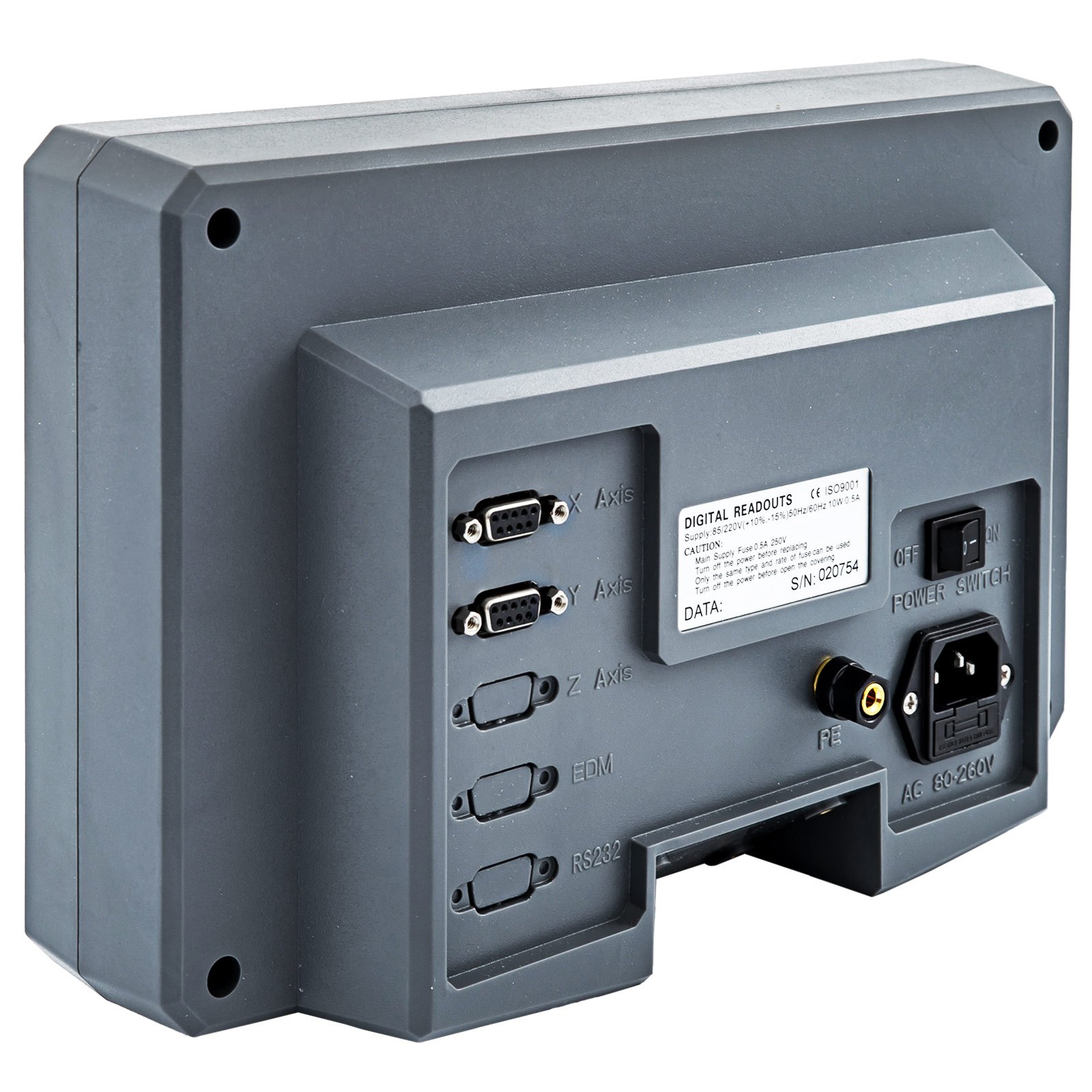

- Connectors: 9PD
- Resolutions:0.05 µm, 0.1 µm, 0.2 µm, 0.5 µm, 1 µm, 2 µm, 5 µm, 10 µm, 20 µm, 50 µm
- Weight: 0.9 kg / 1.98 lbs

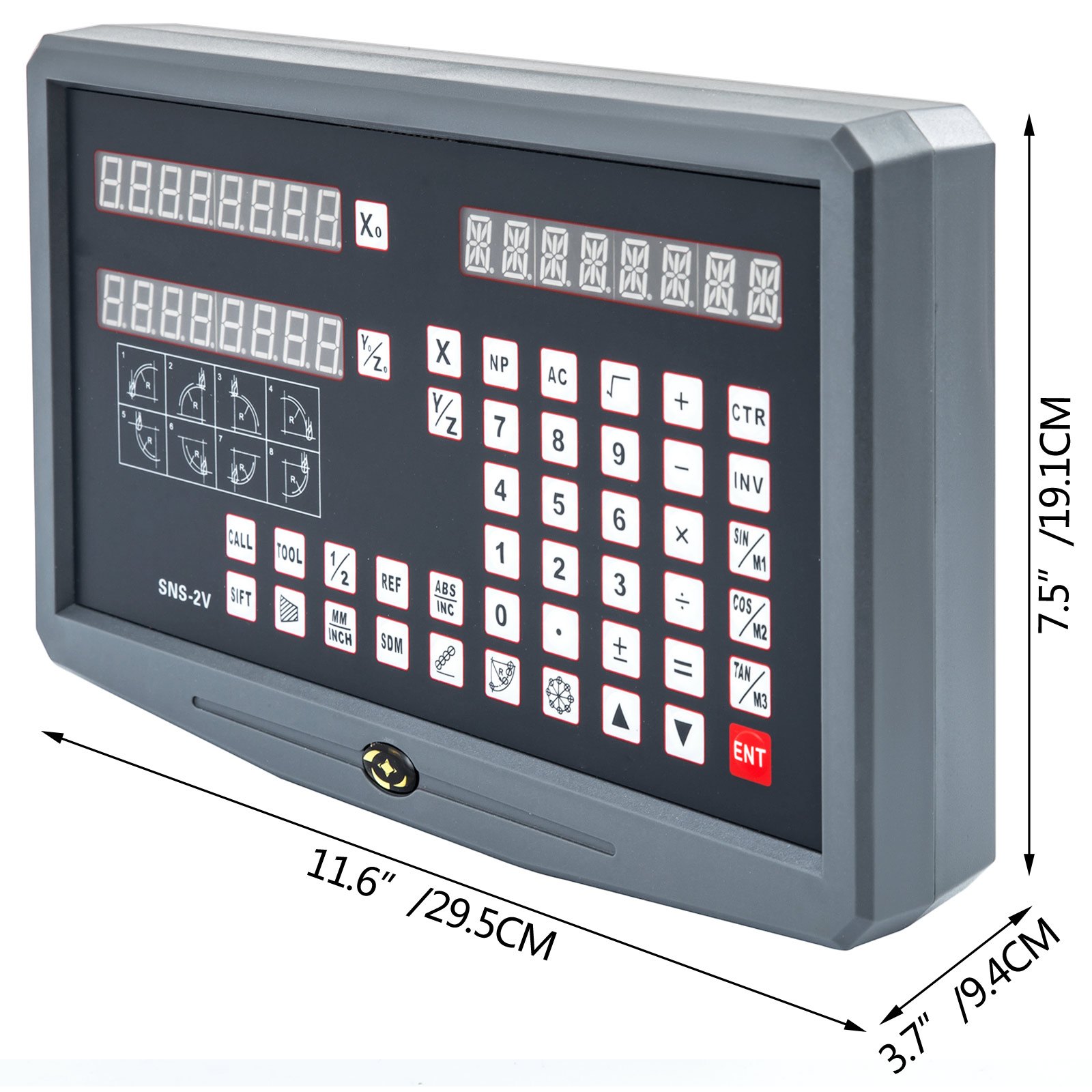

- Size(L x W x H): 29.5 x 18.5 x 9.5 cm/11.61" x 7.28" x 3.74"
