Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
+12
More
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine
Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine Laser Module 15000mw, 450nm Blue Laser Wavelength CNC Laser Module 12V/5A with Focusable Laser Head TTL/PWM Laser Module Engraving Laser Head for CNC Laser Cutting Machine

Features & Details

  • Brilliant Performance: Material: Aluminum, Laser Power: 5.5W, Laser Wavelength: 450 nm (Blue), Working Voltage: 12V DC, Supporting PWM / TTL, Cooling: Fan; Laser Interface: 3 Pins. Adopting an intelligent feedback control circuit, external constant current drive mode, featuring with reliability, high stability, high efficiency, low noise & excellent laser beam quality.
  • Dual Heat Dissipation: Equipped with the large aluminum heatsink and cooling fan, added 4 heat dissipation diversion holes, the heat dissipation improves 15%-20%. This makes the heat dissipate go fast, protect the laser, and prolong its service life, ensure the laser module works continuously.
  • Adjustable Laser: Compared to some common laser modules on the market, the 5.5W high-power laser head is much stronger, able to engrave on some soft metals, such as aluminum, etc.

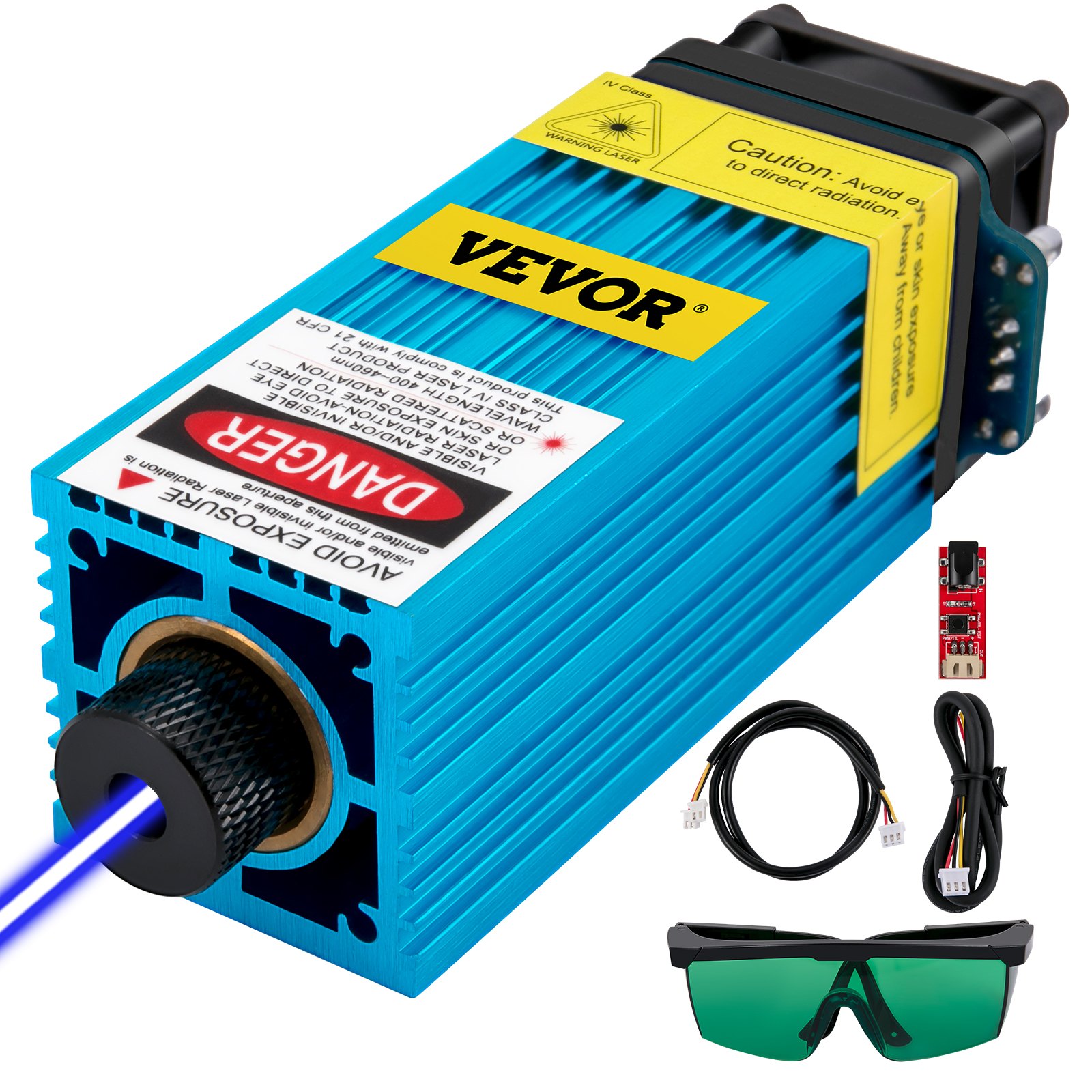

  • Accessories Included: The accessory package includes: a pair of protective glasses, a power supply wire, a control wire and a module test board.
  • Versatile Use: The laser head is designed for industrial CNC laser machine. Ideal for engraving, cutting, scribing, and drilling; compatible with 1610pro/3018/3018 pro. Note: This machine is capable of cutting soft metal like aluminum. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews

See all 2 reviews

About this item

Product specification
Model
XTS15W
Supply Voltage
12VDC
Working Current
2.0A Max
Rated Power
22W MAX
Laser Power
5500mW
Module Power
15W
Output Power
5.8W
Electro Optic Conversion Rate
>25%
Laser Wavelength
450nm (Blue Light)
Facula Type
Dot (Adjustable Focus)
Driving Mode
Built in ACC Constant Current Drive
Laser Output Control
PWM/TTL
Power Supply And Control Interface
2.54 3PIN
Shell Material
Aluminum Surface Anode Blue
Module Material
Brass
Collimating Lens
K9 Optical Glass & High Antireflection Coating
Heat Dissipation Mode
Aluminum Alloy Shell Forced Air Cooling
Net Weight
0.34 lbs / 153 g

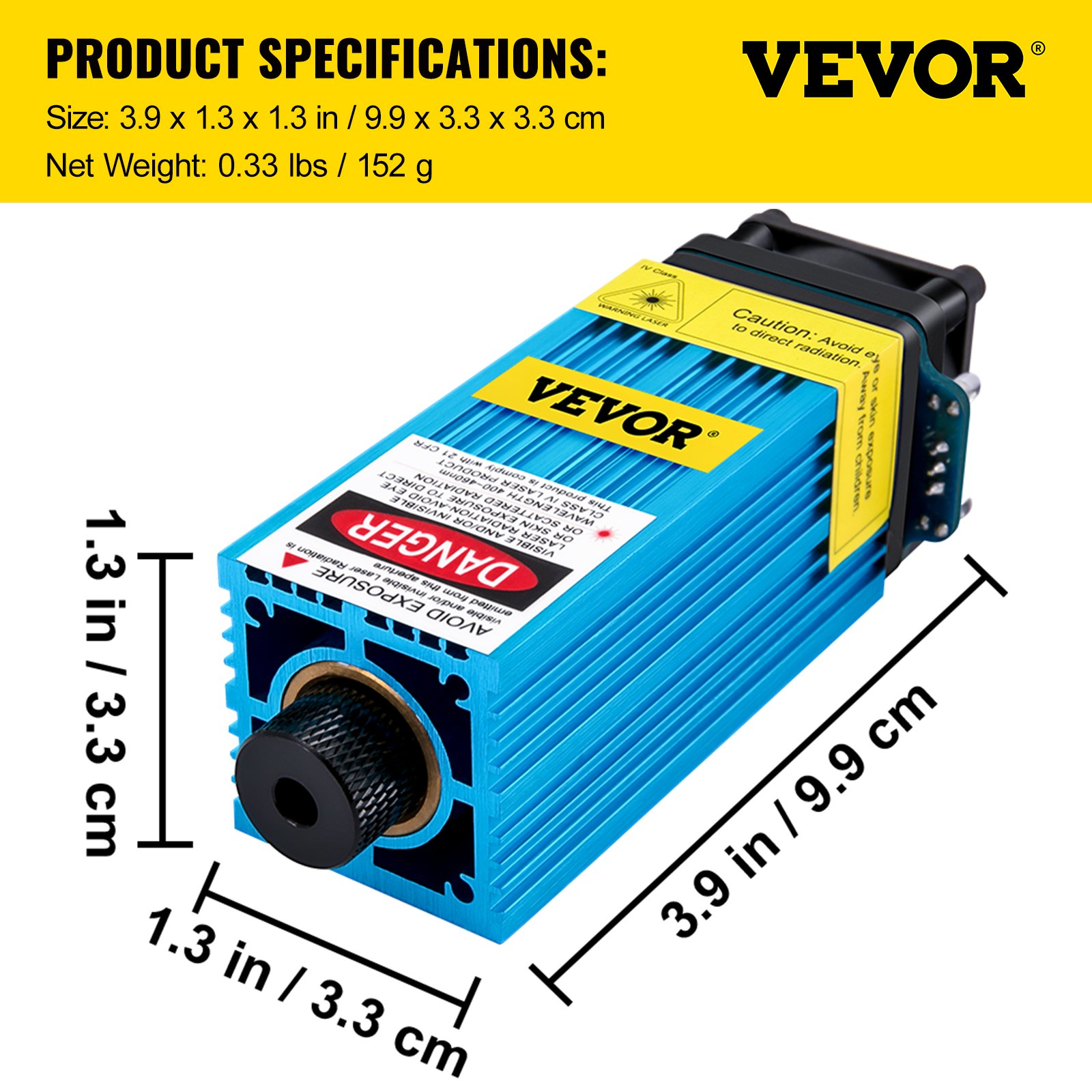

Product Size
3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm
Description

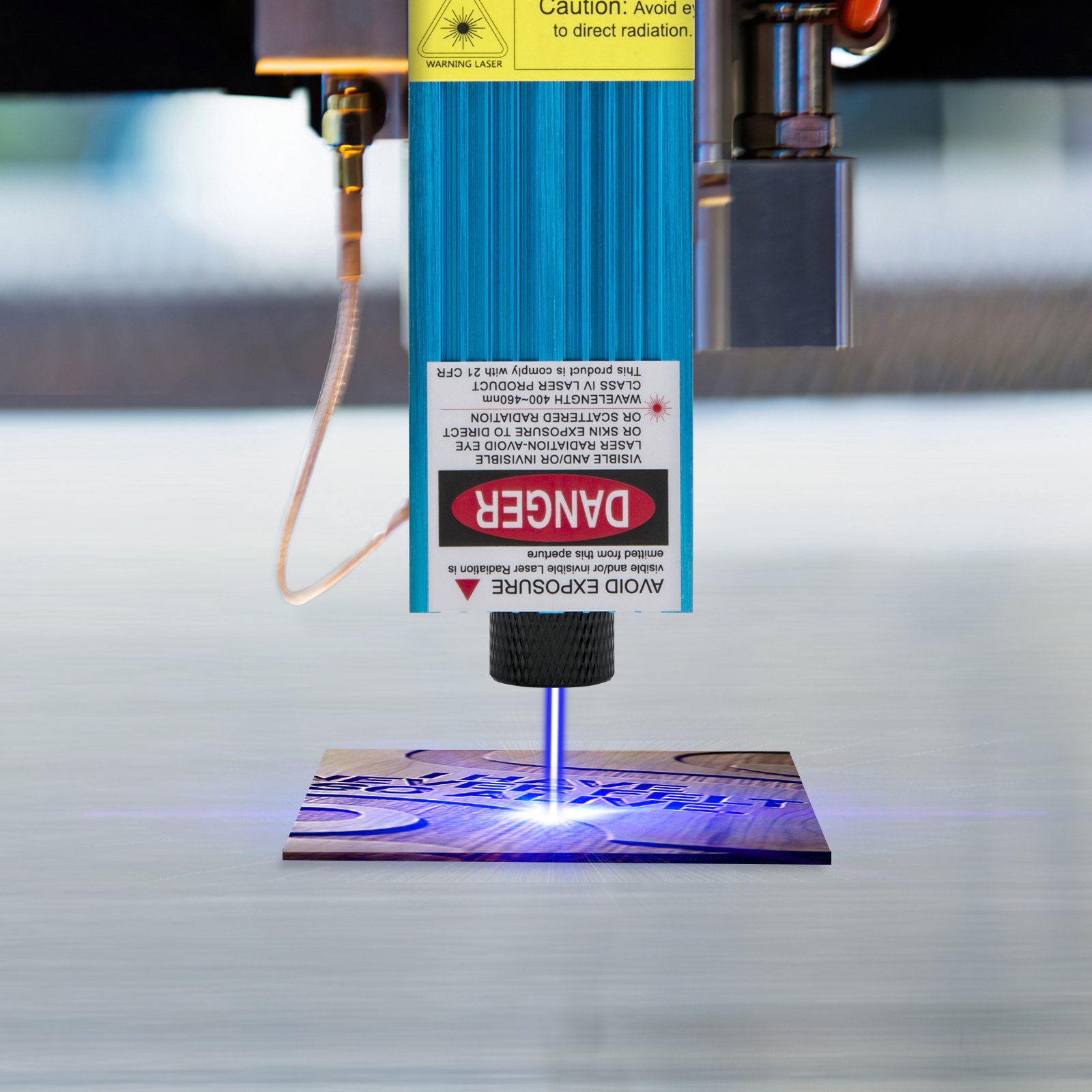

5500mw Engraving Laser Head
This laser head adopts the intelligent feedback control circuit & external constant current drive mode, bringing the excellent laser beam quality. Work with the radiator and fan to dissipate heat quickly, suitable for amateurs, DIY handymen, or artists to unleash your creativity.
  • Brilliant Performance
  • Dual Heat Dissipation

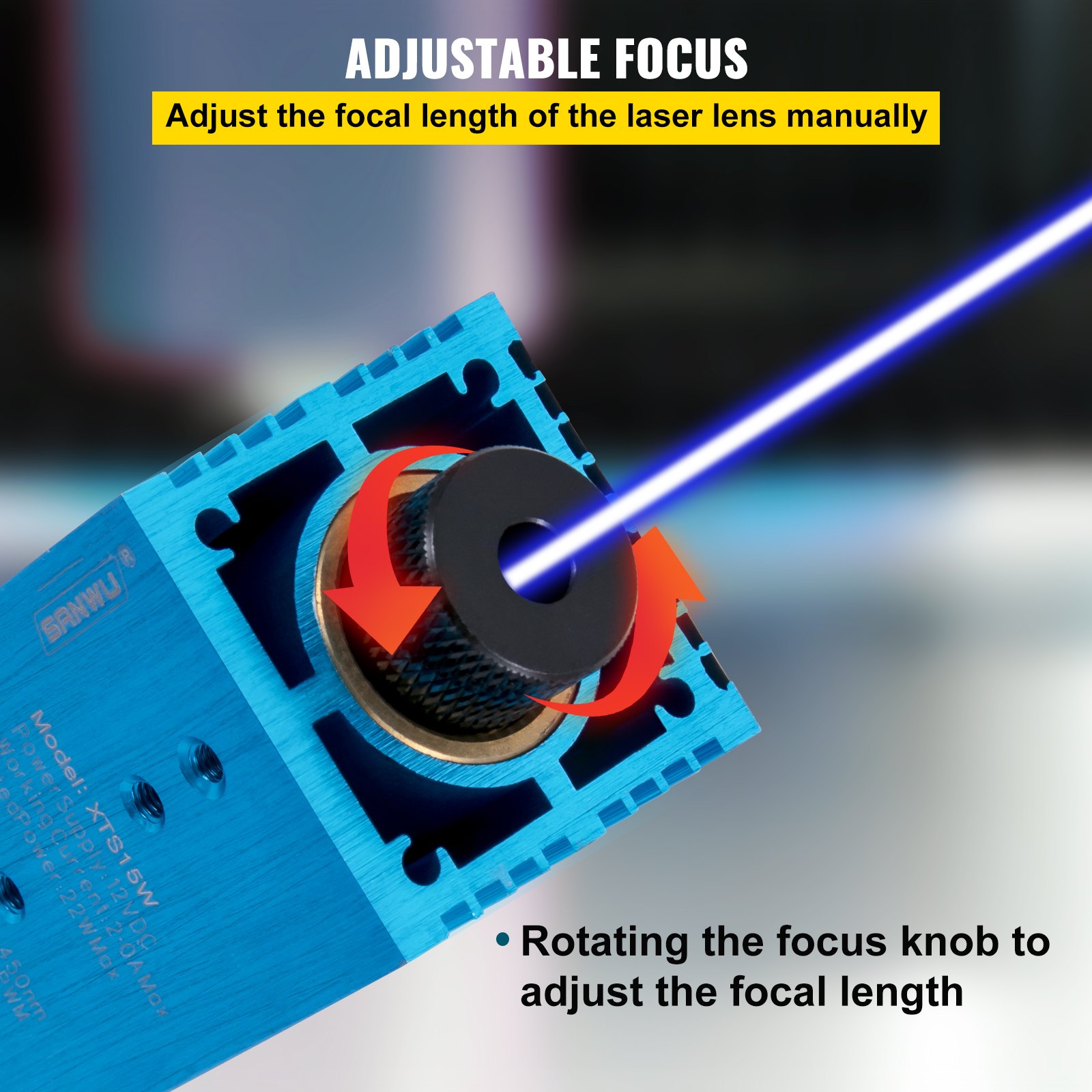

  • Focusable Laser
  • Accessories Included
Durable Aluminum

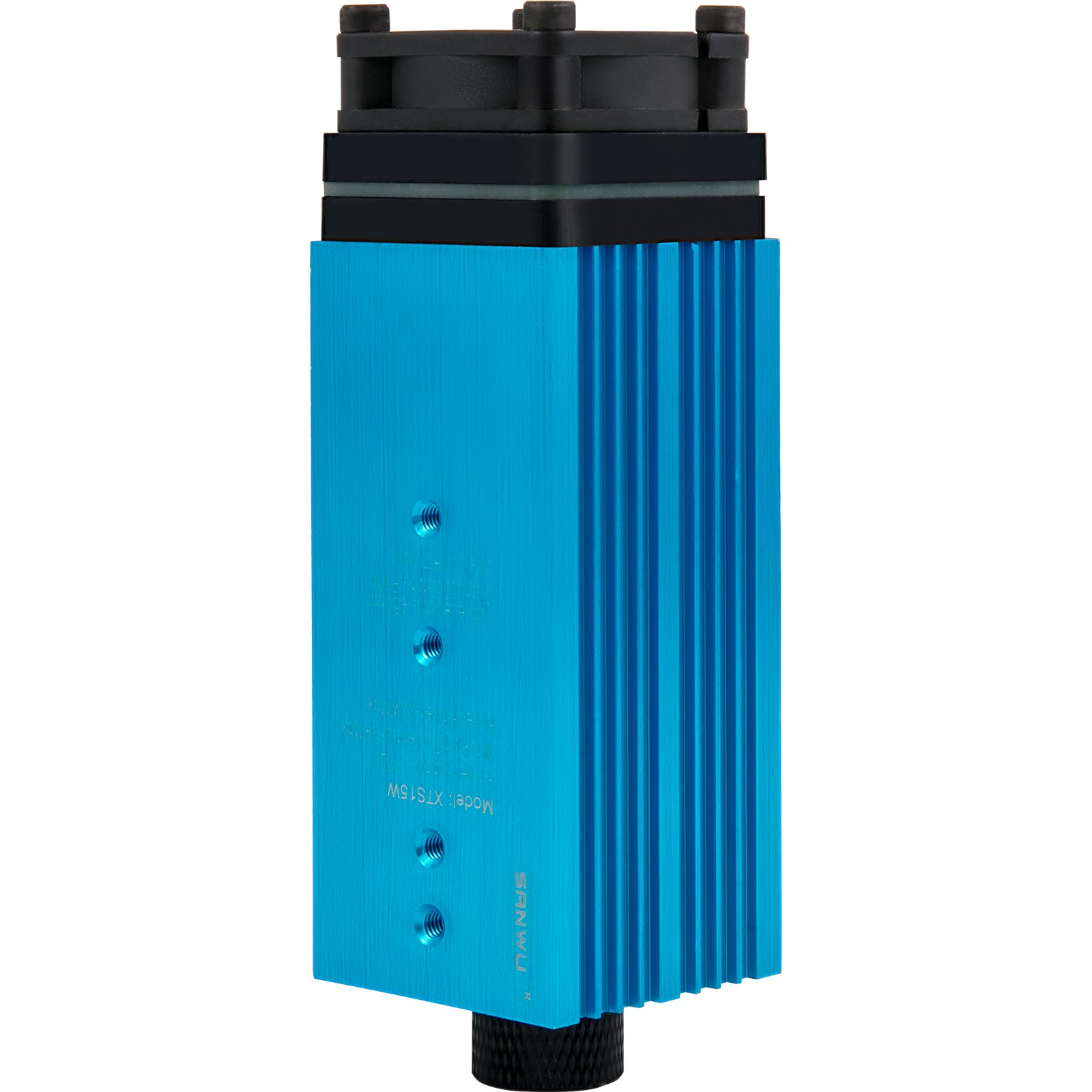

The 5500mw laser module's shell is mainly aluminum + brass, light in weight, high in strength, and stable in structure for long service life.
5.5W Powerful Laser
The laser head is a fixed laser. The 5500mw strong laser is more powerful than the typical laser heads on the market.

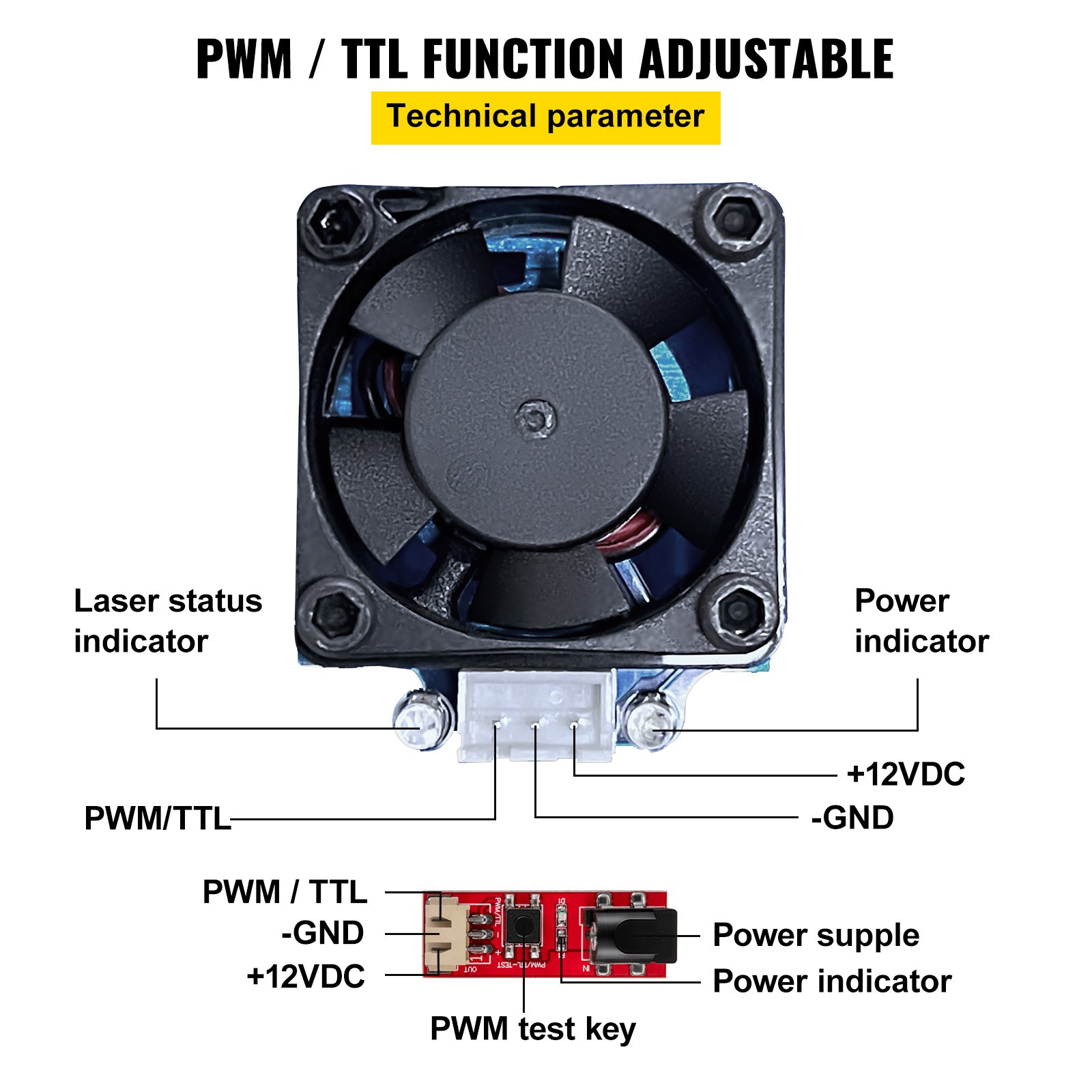

Technical Parameter
The laser head driver board has PWM/ TTL, so we can control the laser head's power and speed through some parameters.

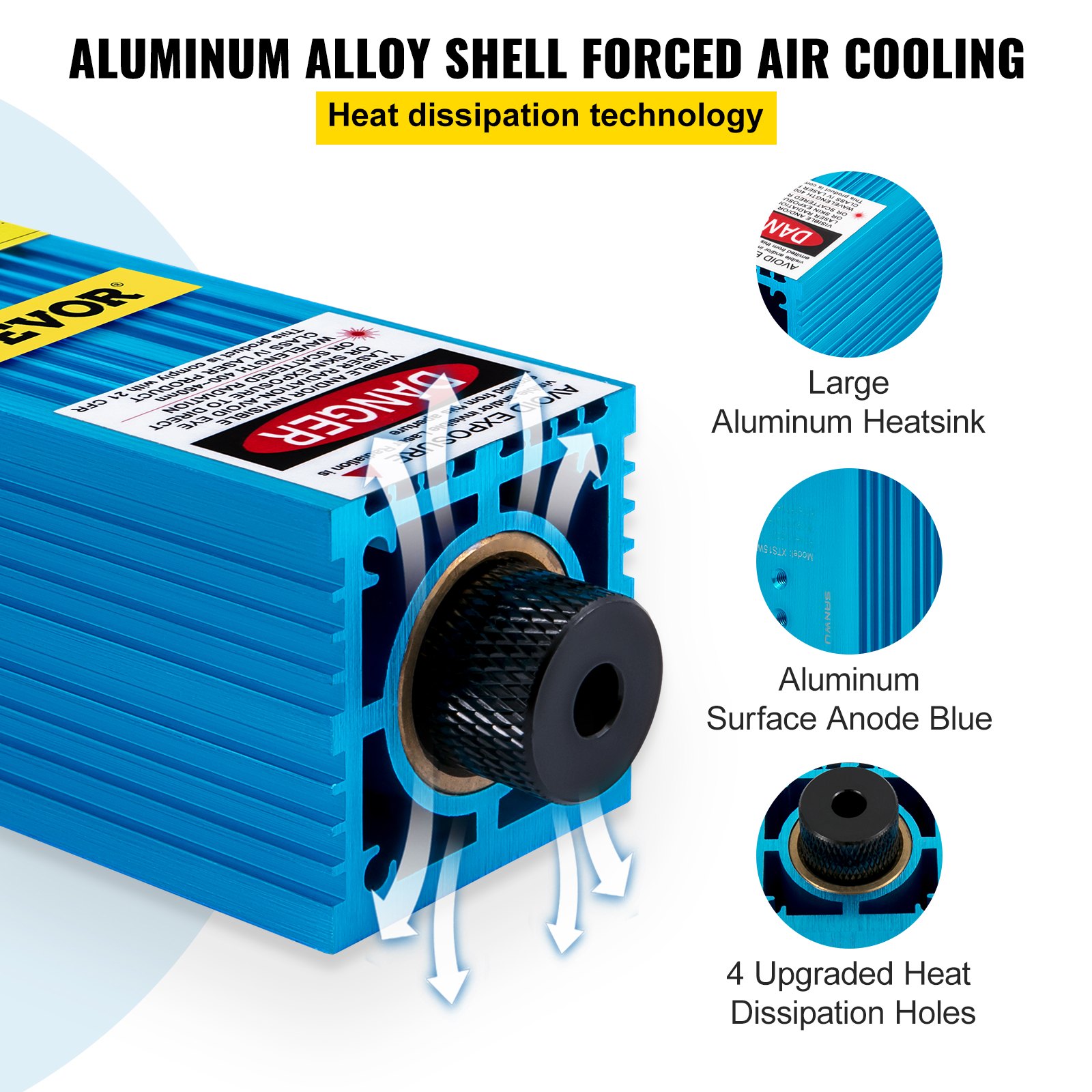

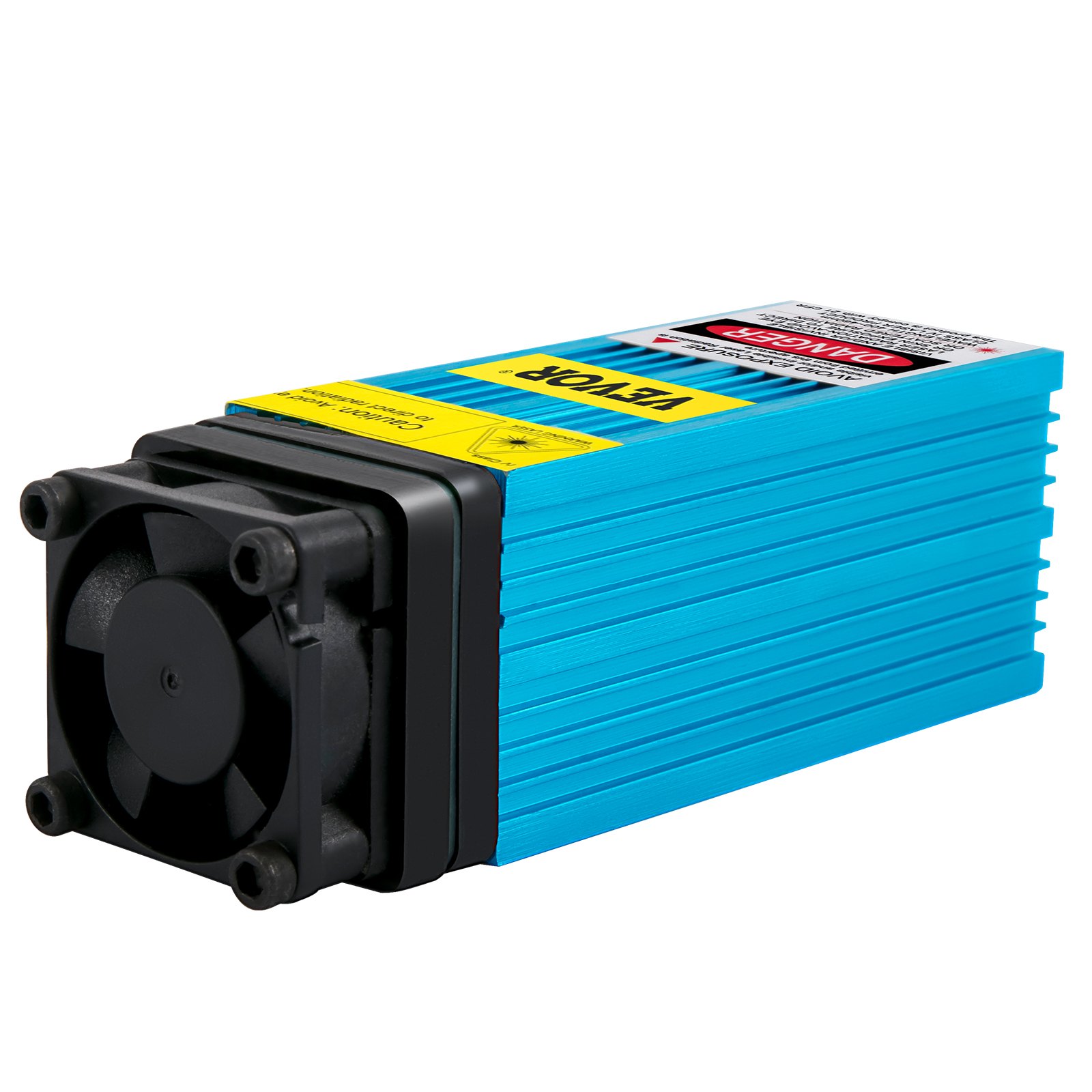

Great Heat Dissipation
The large-area aluminum heatsink & the upgraded 4 heat dissipation holes increase the heat dissipation efficiency by 15%-20%. The timely dissipation of heat helps protect the laser and ensure its continuous operation.

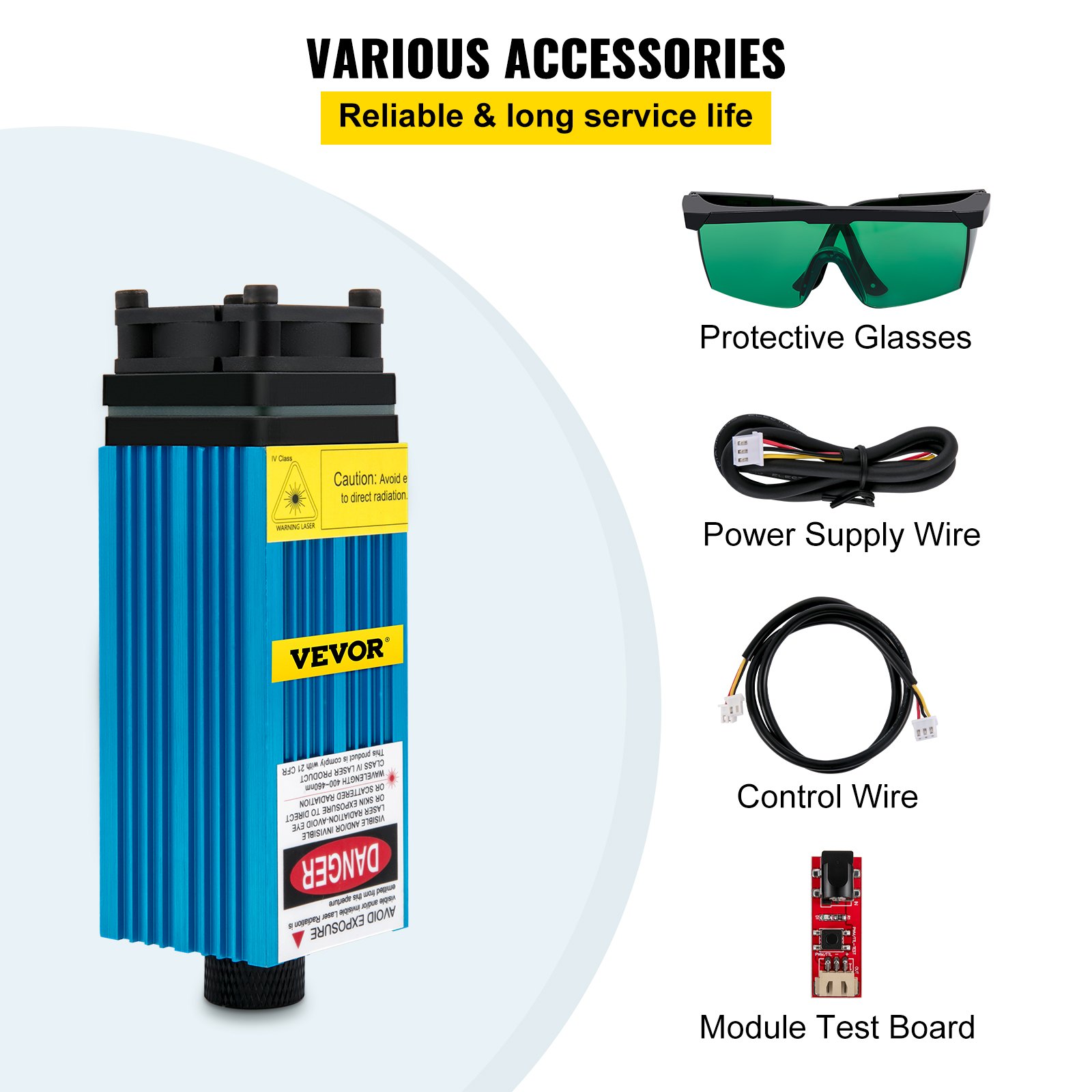

Complete Accessories
We have prepared some commonly-used accessories for your convenience, including a pair of glasses, a power supply wire, a control wire and a module test board.

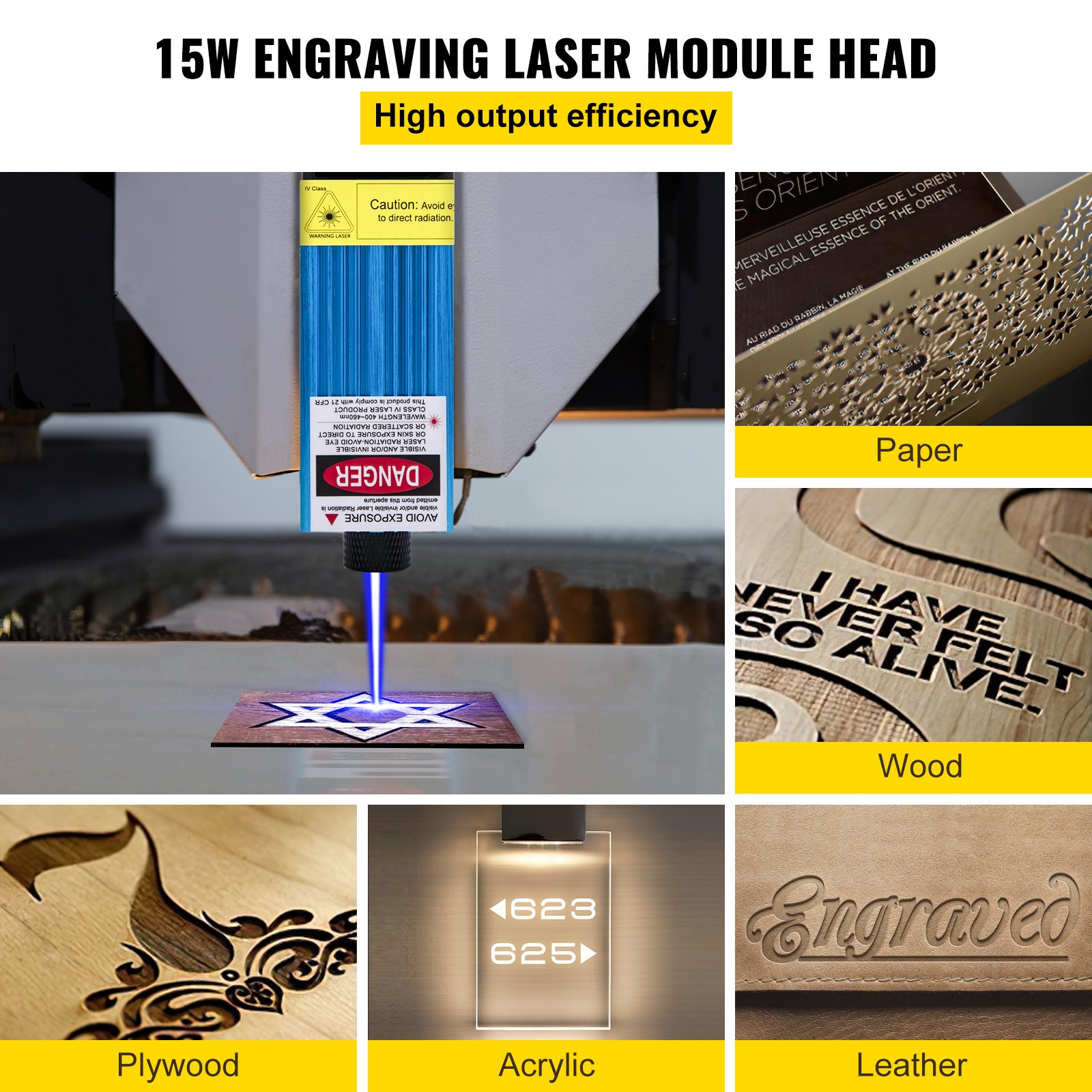

Wide Application
Laser cutter modules are mainly used in industrial laser engraving machines, ideal for engraving, cutting, scribing, and drilling. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.
  • Model: XTS15W
  • Supply Voltage: 12VDC
  • Working Current: 2.0A Max
  • Rated Power: 22W MAX
  • Laser Power: 5500mW
  • Module Power: 15W
  • Output Power: 5.8W
  • Electro Optic Conversion Rate: >25%
  • Laser Wavelength: 450nm (Blue Light)
  • Facula Type: Dot (Adjustable Focus)
  • Driving Mode: Built in ACC Constant Current Drive
  • Laser Output Control: PWM/TTL
  • Power Supply And Control Interface: 2.54 3PIN
  • Shell Material: Aluminum Surface Anode Blue
  • Module Material: Brass
  • Collimating Lens: K9 Optical Glass & High Antireflection Coating
  • Heat Dissipation Mode: Aluminum Alloy Shell Forced Air Cooling
  • Net Weight: 0.34 lbs / 153 g
  • Product Size: 3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm
  • 1 x Laser Head
  • 1 x Power Supply Wire
  • 1 x Control Wire
  • 1 x Pair of Glasses
  • 1 x Module Test Board
  • 1 x English Manual
5500mw Engraving Laser Head
This laser head adopts the intelligent feedback control circuit & external constant current drive mode, bringing the excellent laser beam quality. Work with the radiator and fan to dissipate heat quickly, suitable for amateurs, DIY handymen, or artists to unleash your creativity.
  • Brilliant Performance
  • Dual Heat Dissipation
  • Focusable Laser
  • Accessories Included
Durable Aluminum
The 5500mw laser module's shell is mainly aluminum + brass, light in weight, high in strength, and stable in structure for long service life.
5.5W Powerful Laser
The laser head is a fixed laser. The 5500mw strong laser is more powerful than the typical laser heads on the market.
Technical Parameter
The laser head driver board has PWM/ TTL, so we can control the laser head's power and speed through some parameters.
Great Heat Dissipation
The large-area aluminum heatsink & the upgraded 4 heat dissipation holes increase the heat dissipation efficiency by 15%-20%. The timely dissipation of heat helps protect the laser and ensure its continuous operation.
Complete Accessories
We have prepared some commonly-used accessories for your convenience, including a pair of glasses, a power supply wire, a control wire and a module test board.
Wide Application
Laser cutter modules are mainly used in industrial laser engraving machines, ideal for engraving, cutting, scribing, and drilling. Applied materials: balsa/paper/wood/fabric/plastic/leather/plywood.
  • 1 x Laser Head
  • 1 x Power Supply Wire
  • 1 x Control Wire
  • 1 x Pair of Glasses
  • 1 x Module Test Board
  • 1 x English Manual
  • Model: XTS15W
  • Supply Voltage: 12VDC
  • Working Current: 2.0A Max
  • Rated Power: 22W MAX
  • Laser Power: 5500mW
  • Module Power: 15W
  • Output Power: 5.8W
  • Electro Optic Conversion Rate: >25%
  • Laser Wavelength: 450nm (Blue Light)
  • Facula Type: Dot (Adjustable Focus)
  • Driving Mode: Built in ACC Constant Current Drive
  • Laser Output Control: PWM/TTL
  • Power Supply And Control Interface: 2.54 3PIN
  • Shell Material: Aluminum Surface Anode Blue
  • Module Material: Brass
  • Collimating Lens: K9 Optical Glass & High Antireflection Coating
  • Heat Dissipation Mode: Aluminum Alloy Shell Forced Air Cooling
  • Net Weight: 0.34 lbs / 153 g
  • Product Size: 3.9 x 1.3 x 1.3 in / 9.9 x 3.3 x 3.3 cm

Questions and Answers (7)

7 Questions
Ask a Question
Wat is de levensduur van de laser ?
Answer This Question
De normale gebruikstijd van de laser is 1000 uur+. De laserkop is bij normaal gebruik over het algemeen niet gemakkelijk kapot te maken. Als deze gedurende lange tijd wordt gebruikt, kunt u de software pauzeren en de laserkop, die te maken heeft gehad met hoge temperaturen, een paar seconden laten afkoelen voordat u verdergaat werk, wat gunstiger is voor de levensduur van de laserkop.
By vevor
Helpful ( 1 )
Geachtig, Wanneer zou deze laser terug leverbaar zij . Vriefelijk groeten
Answer This Question
Het product zal een paar maanden niet op voorraad zijn. Het is raadzaam om het aan uw verlanglijstje toe te voegen, zodat u er automatisch aan herinnerd wordt wanneer het product arriveert.
By vevor
Helpful ( 0 )
Kan de 15 Watt module multiplex snijden tot welke dikte met 1 snijgang
Answer This Question
Het kan multiplex binnen 2-3 mm snijden.
By vevor
Helpful ( 0 )
tot welke dikte kan hiermee aluminium worden gesneden?
Answer This Question
Nee, lasers kunnen geen aluminium snijden. Aluminium is een materiaal met een goede thermische geleidbaarheid en is niet geschikt voor lasercarbonisatie bij hoge temperaturen.
By vevor
Helpful ( 0 )
Kan deze 15W laser gebruikt worden met de VEVOR CNC 3018?
Answer This Question
Ja, deze 15W laser kan gebruikt worden met VEVOR CNC 3018.
By vevor
Helpful ( 0 )
JGMZJGT15W0000001V0
