- Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 8-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a double-acting pump for both power up and power down.
- Easy to Use: This 12V hydraulic power unit has been fully assembled in advance. The wiring is simple and comes with operating instructions. Two additional SAE#6 connectors and one 15 ft remote control are included in the package.
- Reliable Quality: The dump trailer pump is made of sturdy metal; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with an overflow valve, it automatically releases when overpressure, safer and reliable.
- Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.
- Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
Frequently Bought Together
Reviews 0.0
All reviews are from verified purchases
Average rating based on 0 reviews
Reviews 0.0
All reviews are from verified purchases
See all 0 reviews
About this item

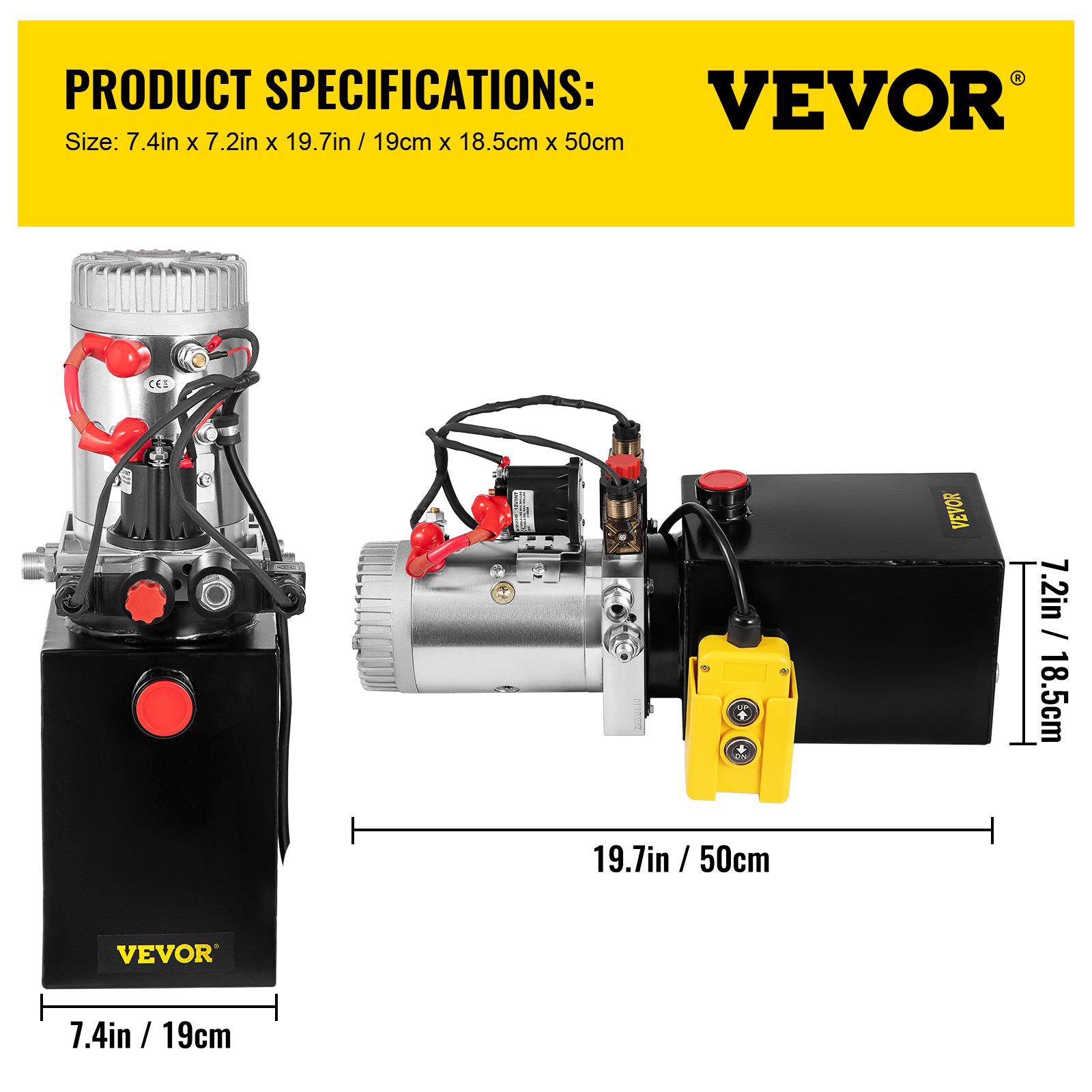

Product specification
- Mode
- 8QDAMHP
- Tank Material
- Metal
- Tank Capacity
- 8L/ 8Quart/ 2 Gal
- Flow
- 2.0 GPM
- Max. Relief Valve Setting A Port
- 3200 PSI
- Max. Relief Valve Setting B Port
- 1500 PSI
- Rated Speed
- 2850R/MIN
- Voltage
- DC12V
- Power
- 1.6KW (Rated), 3.0KW (Max)
- Duty
- 3 Min
- Traffic
- 1.1 cc/r
- Rotation
- Clockwise
- Connector
- SAE # 6
- Mount Position
- Horizontal/ Vertical
- Control
- Solenoid and Handheld Pendant
- Pendant Control Length
- 15ft/ 4.5 m
Description

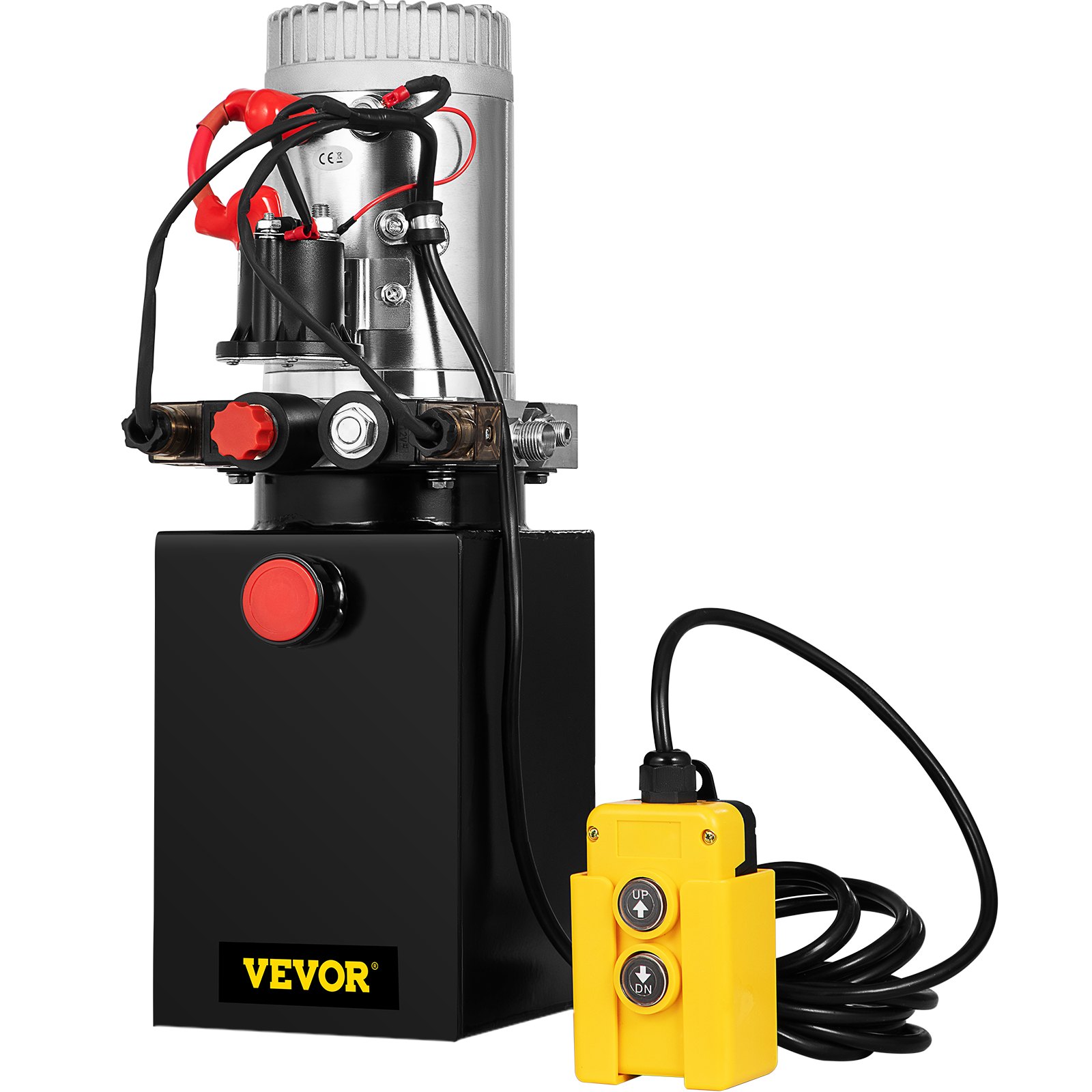

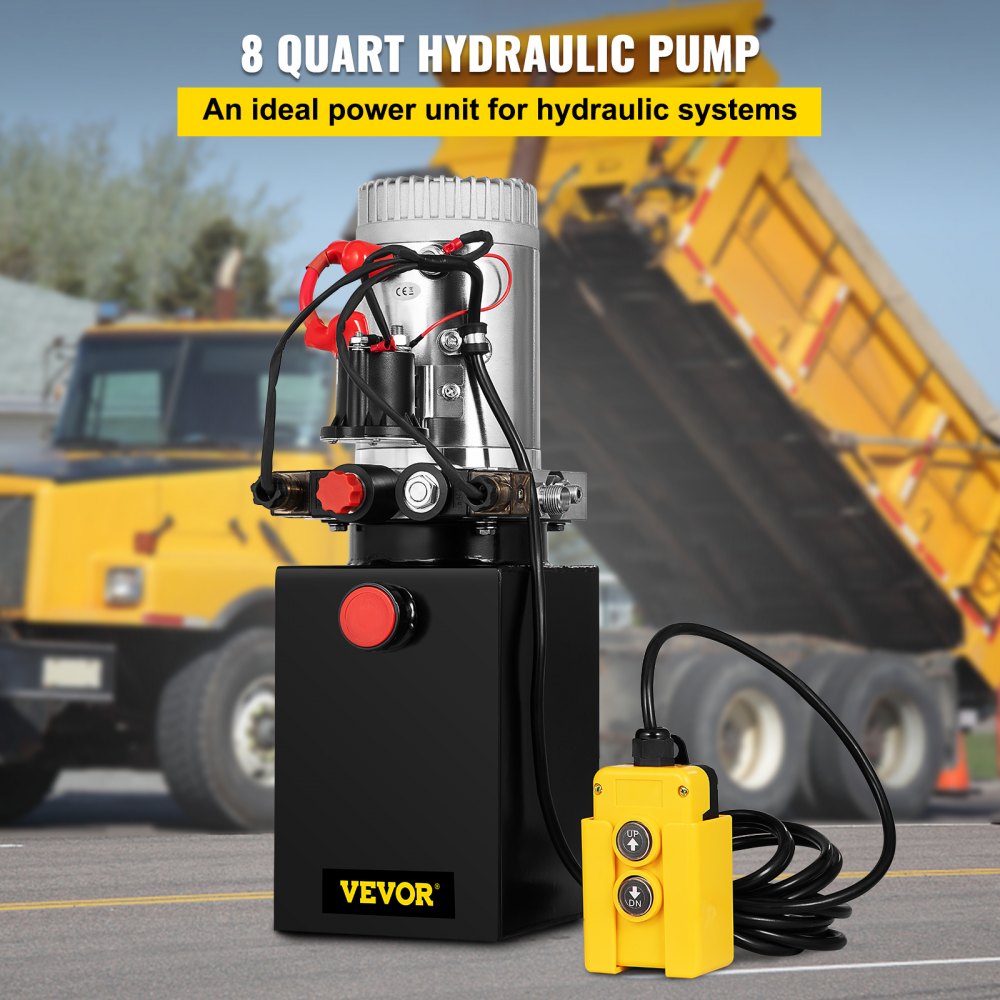

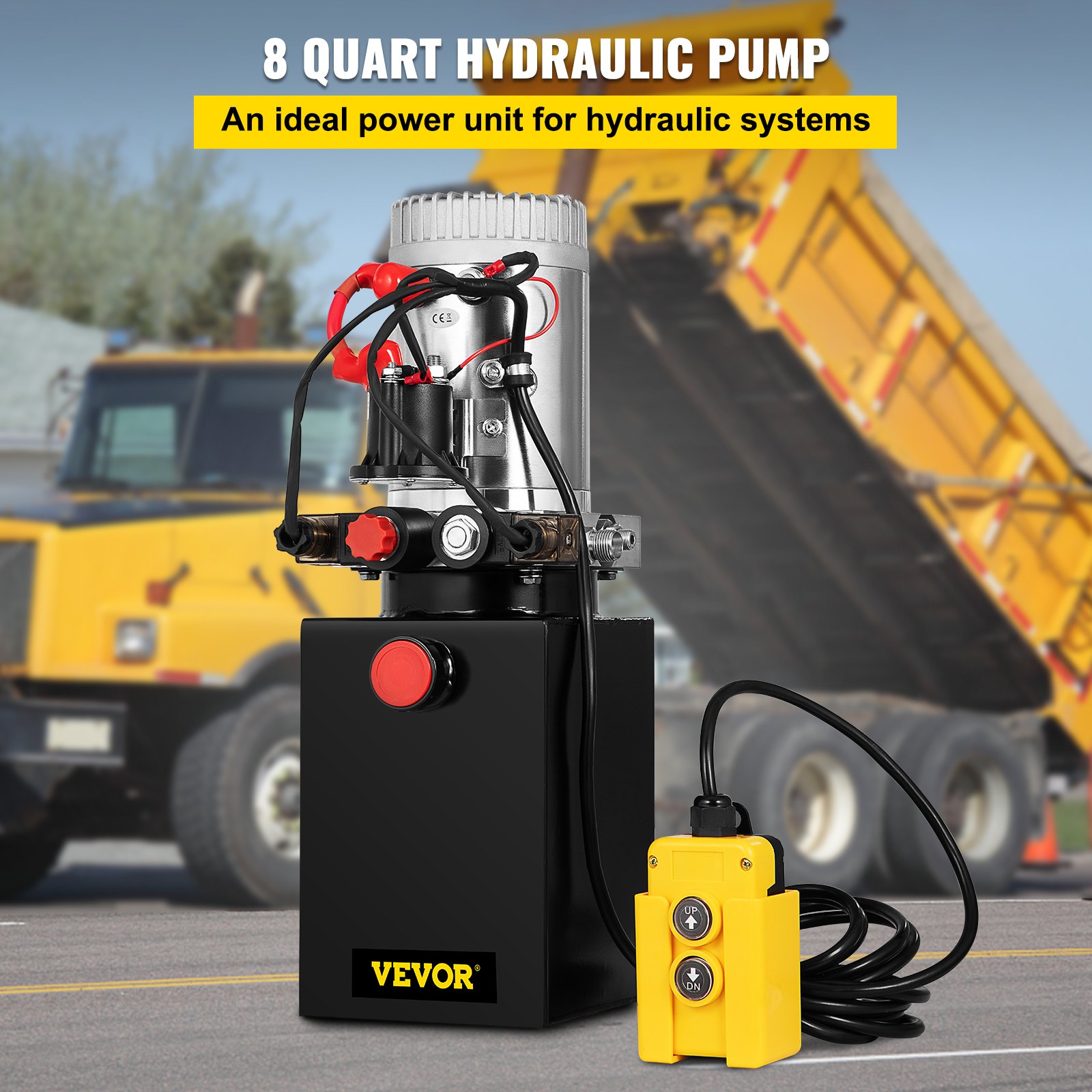

8 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has an 8-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application

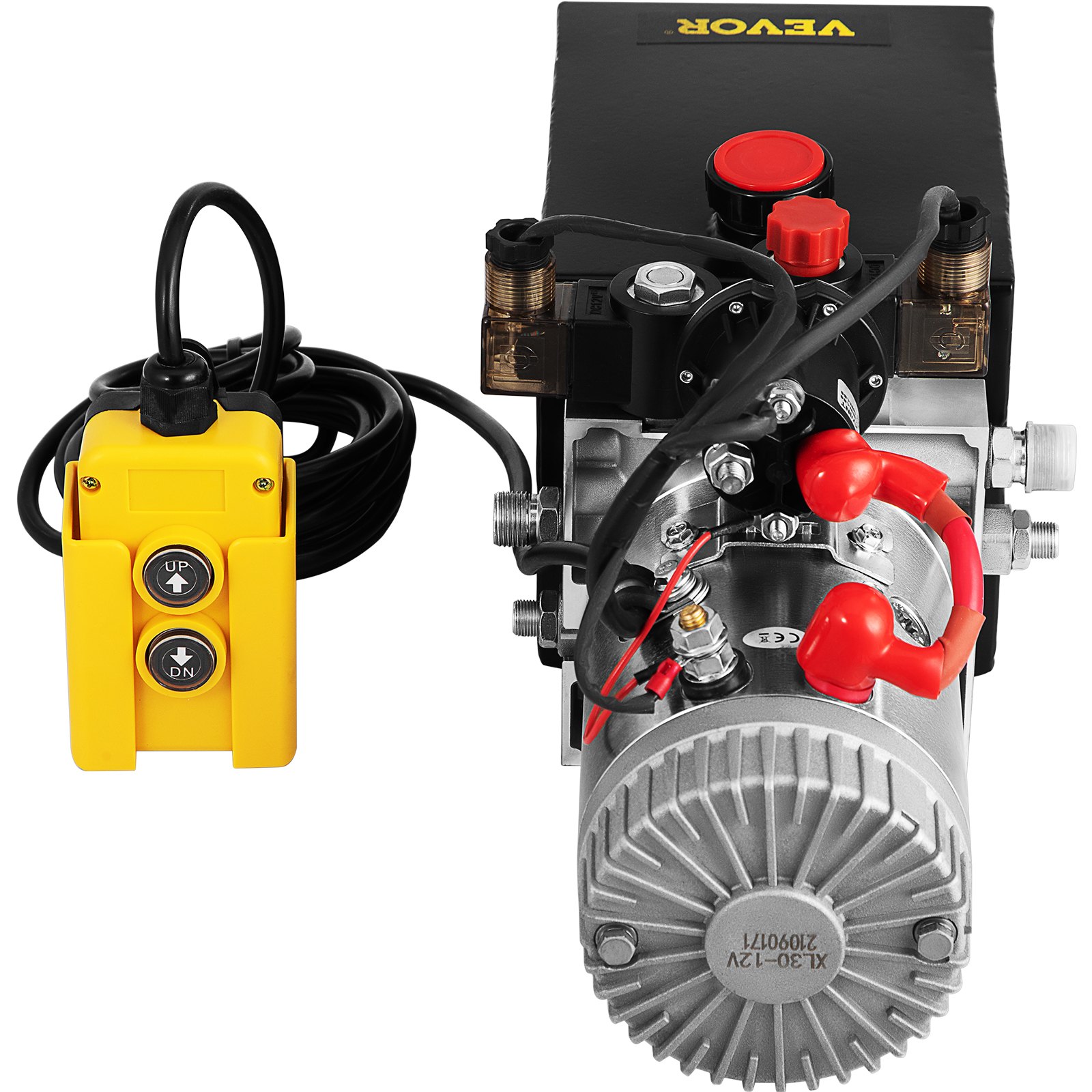

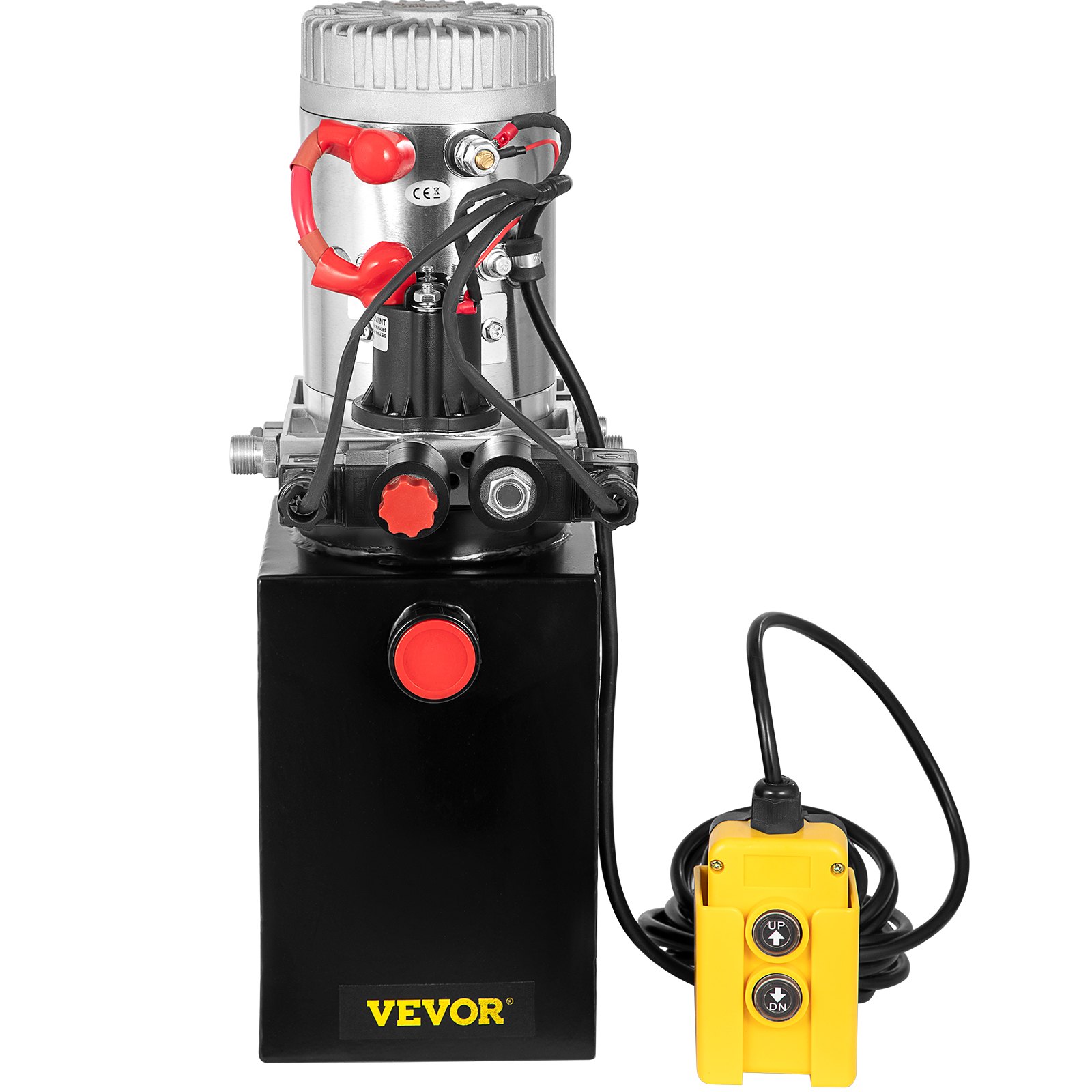

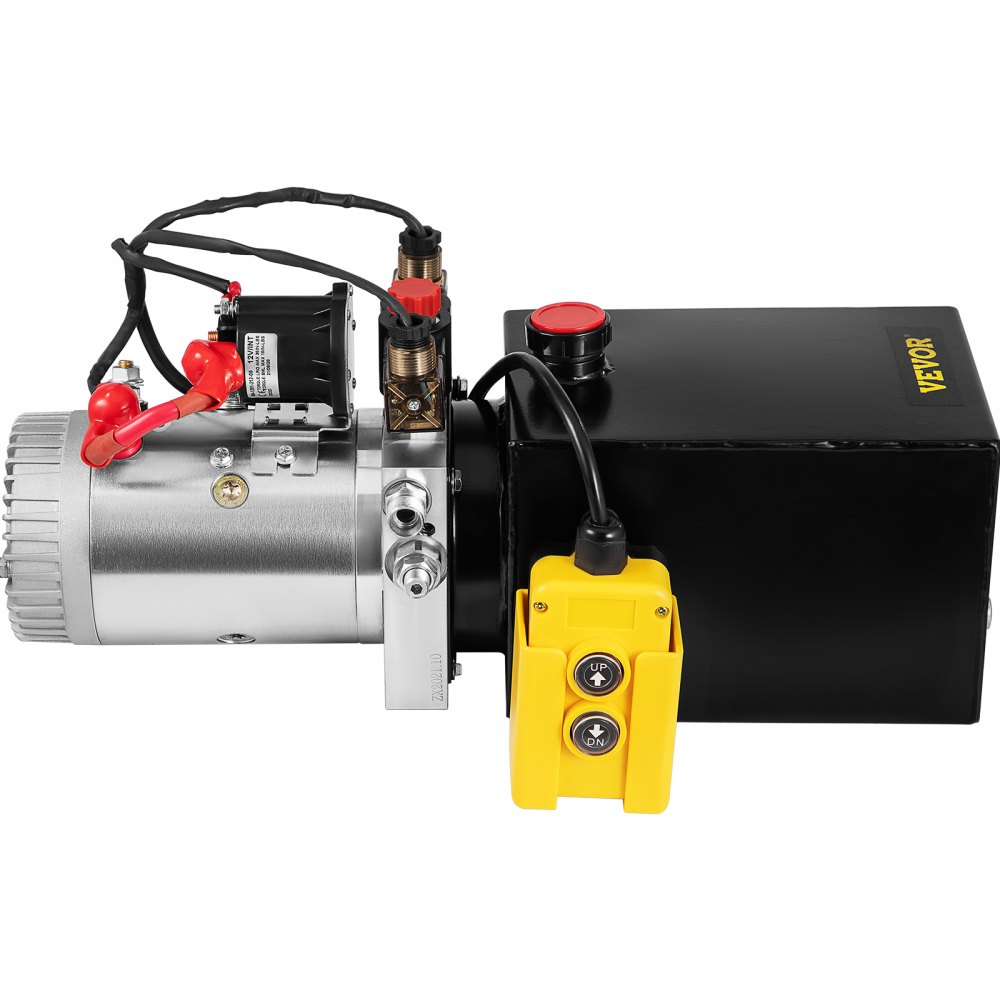

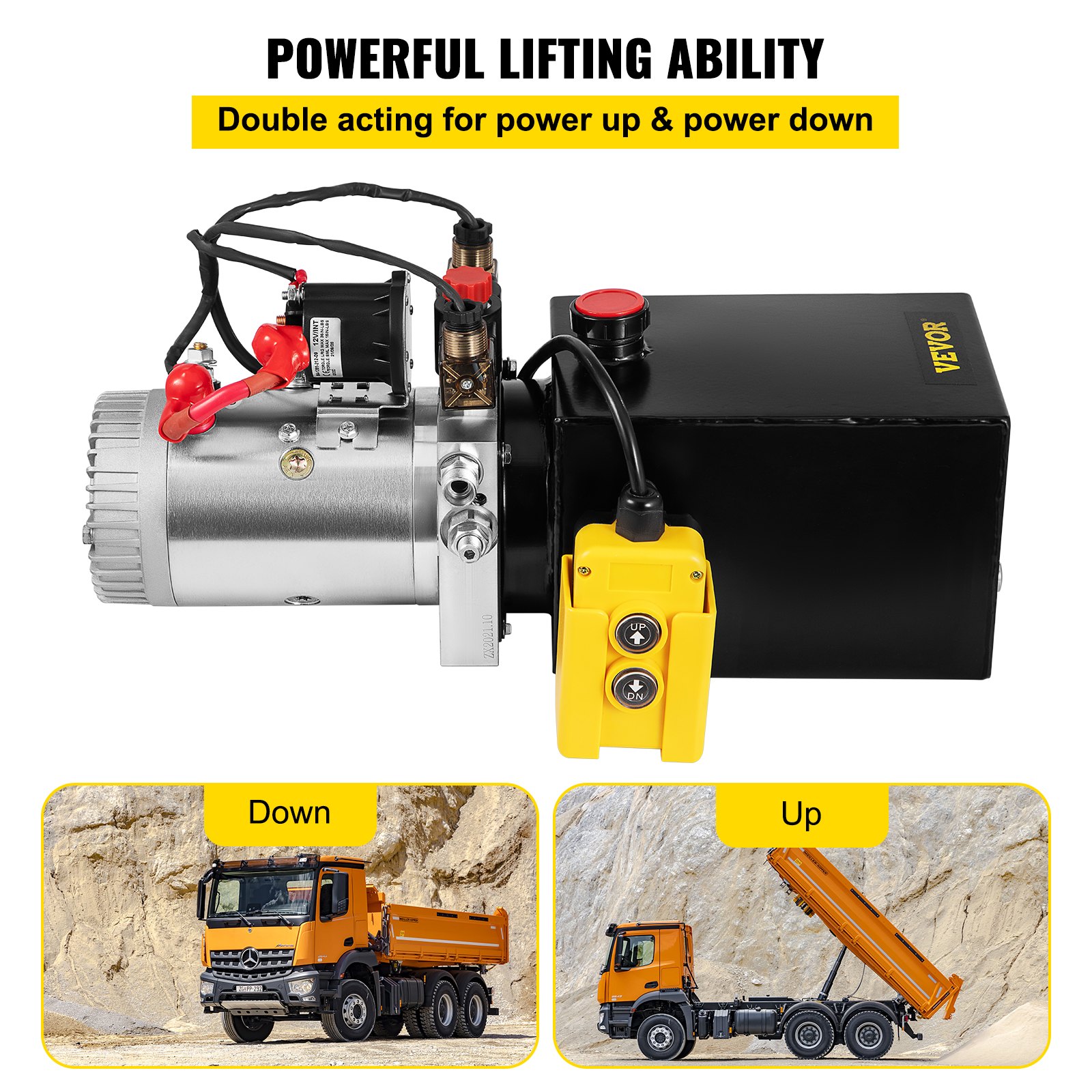

Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and an 8-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.

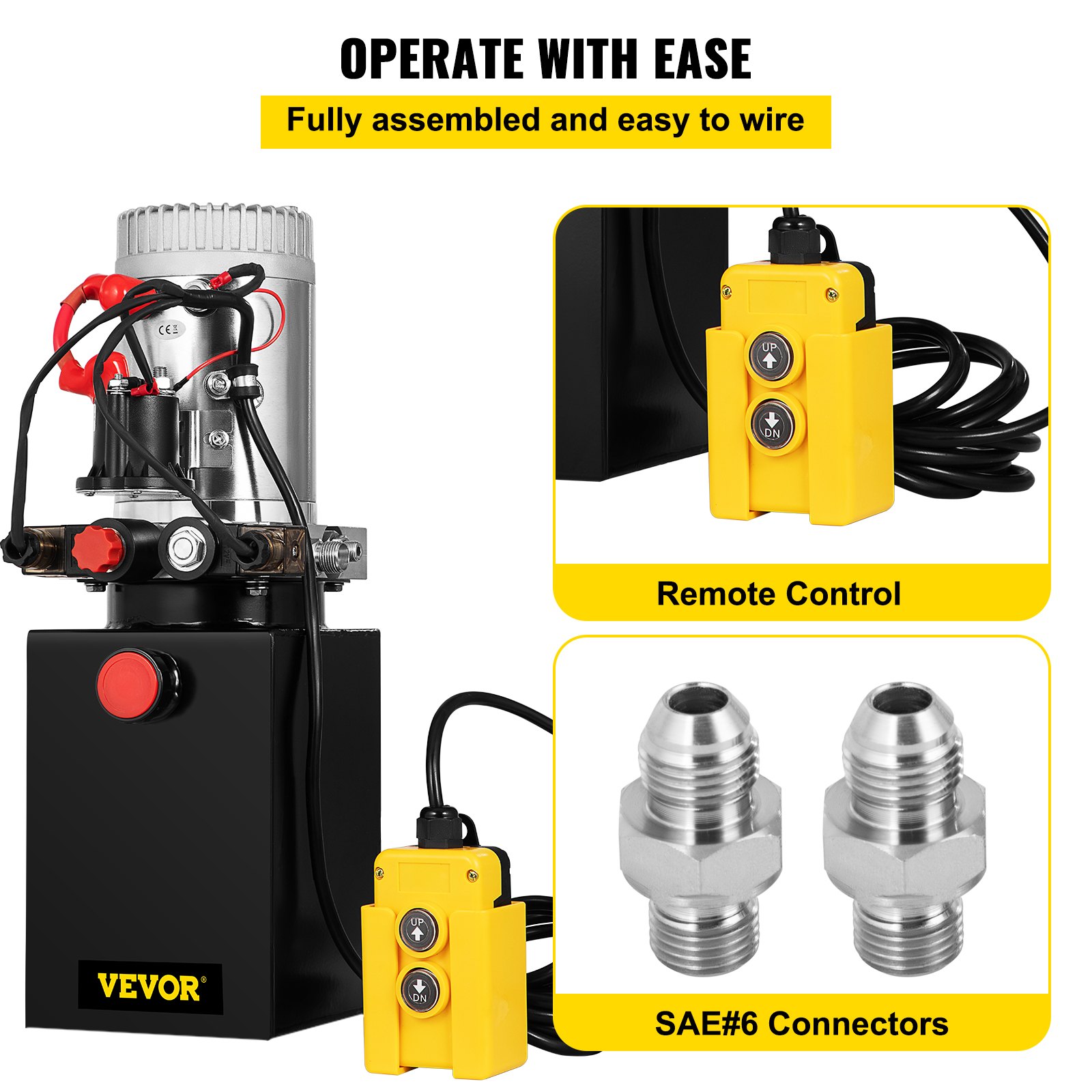

Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 2 additional SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.

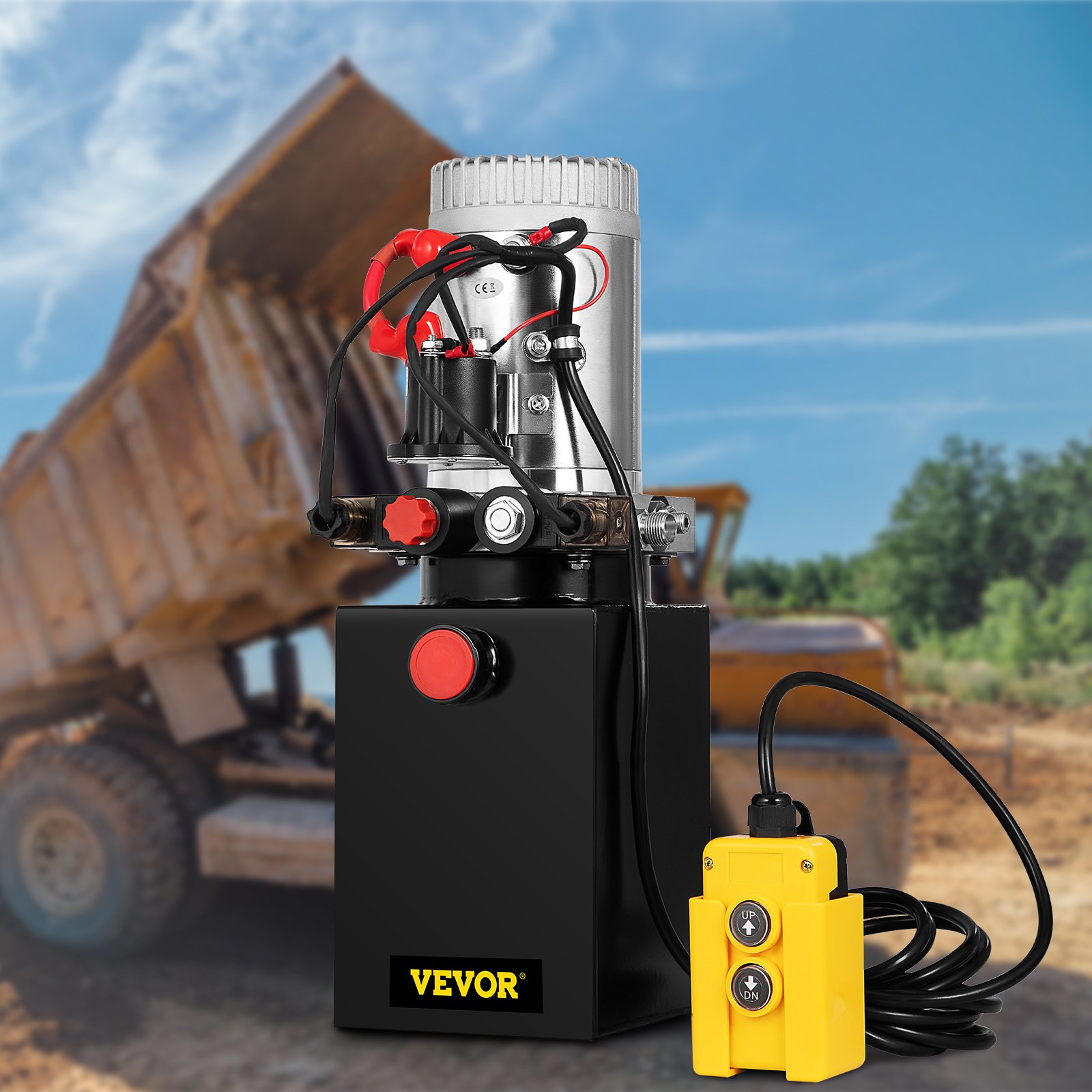

Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.

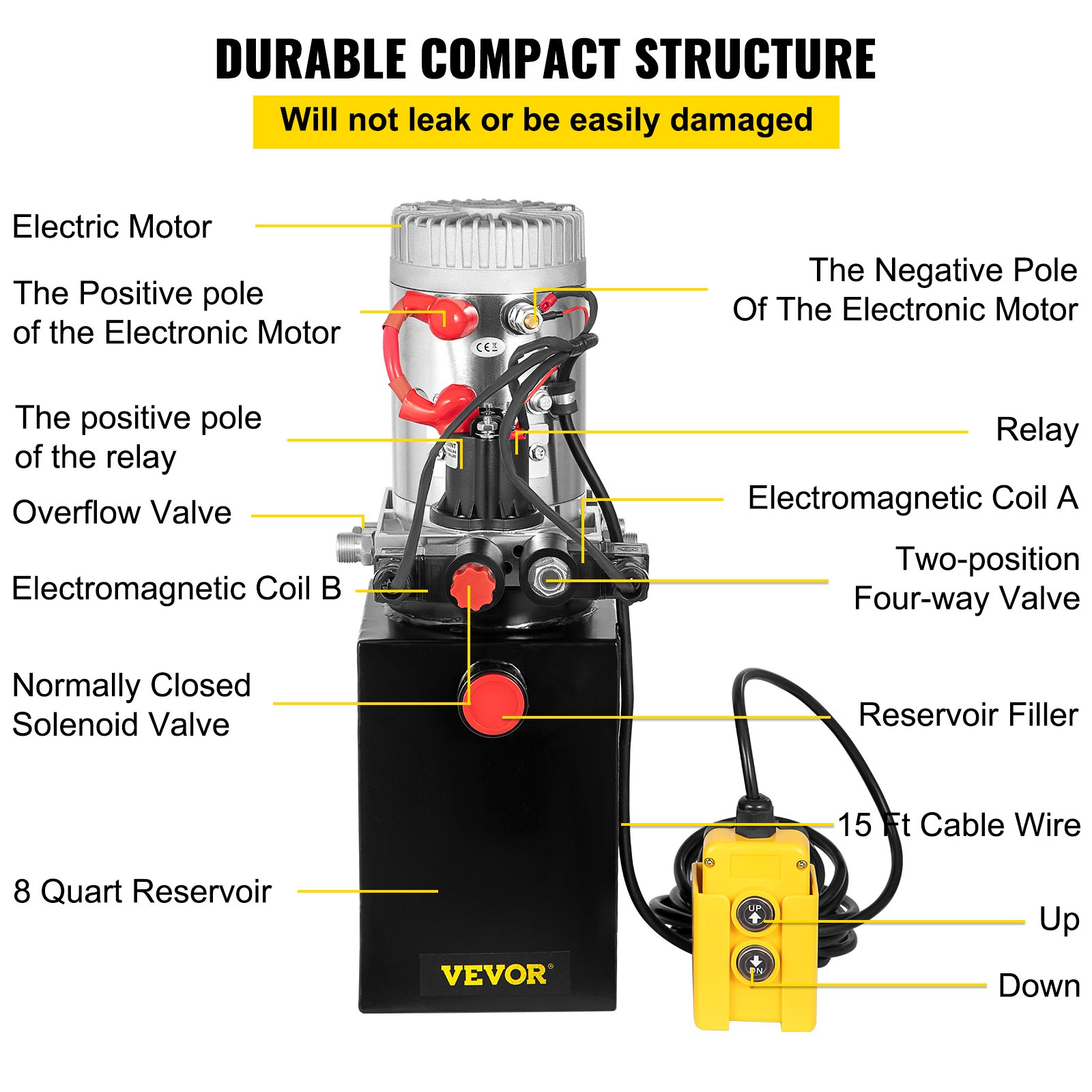

Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.

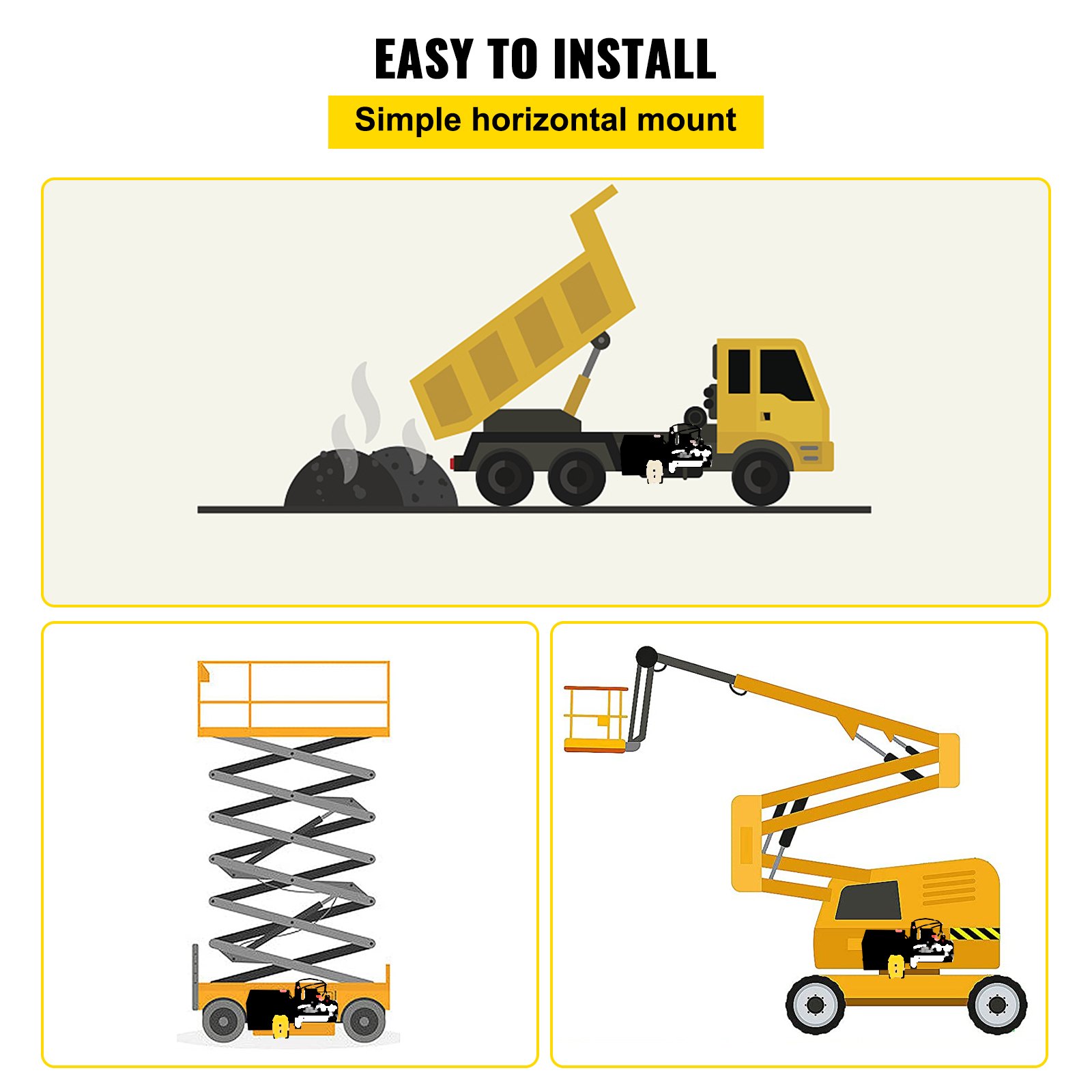

Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
- Mode: 8QDAMHP
- Tank Material: Metal
- Tank Capacity: 8L/ 8Quart/ 2 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
- 1 x 8 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- 2 x SAE# 6 Connectors
8 Quart Double Acting Hydraulic Pump
This hydraulic pump is a double-acting power unit for both lifting and lowering. It has an 8-quart sturdy metal reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.
- Please Note: All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.
- Product Details
- Easy to Use
- Reliable Quality
- Rapid Start
- Wide Application
Double-Acting Power Unit
This double-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and an 8-quart metal reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
Convenient Design
Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 2 additional SAE#6 connectors for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting
With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy metal, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application
As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
- 1 x 8 Quart Double Acting Hydraulic Pump
- 1 x English Manual
- 2 x SAE# 6 Connectors
- Mode: 8QDAMHP
- Tank Material: Metal
- Tank Capacity: 8L/ 8Quart/ 2 Gal
- Flow: 2.0 GPM
- Max. Relief Valve Setting A Port: 3200 PSI
- Max. Relief Valve Setting B Port: 1500 PSI
- Rated Speed: 2850R/MIN
- Voltage: DC12V
- Power: 1.6KW (Rated), 3.0KW (Max)
- Duty: 3 Min
- Traffic: 1.1 cc/r
- Rotation: Clockwise
- Connector: SAE # 6
- Mount Position: Horizontal/ Vertical
- Control: Solenoid and Handheld Pendant
- Pendant Control Length: 15ft/ 4.5 m
