12'' Explosion-Proof Axial Fan
3450RPM High Speed & Portable Handle & Low Noise
This 12 in / 300 mm explosion-proof axial fan features 2295 CFM / 3900 m³/h large air volume, and 3450 r/min motor speed to provide high working efficiency and directional airflow to limited access areas. It is the ideal ventilation fan for factories, basements, warehouses, tunnels, and more places requiring ventilation. Avoid hazards from forming and let air in trapped rooms flow and circulate. Robustness and power have all come together to provide you with a superior ventilating solution.
- 12'' Explosion-Proof Axial Fan
- 550W Pure Copper Motor
- 3900 m³/h Large Air Flow
- Sturdy & Humanized Design
- Ventilate Anywhere

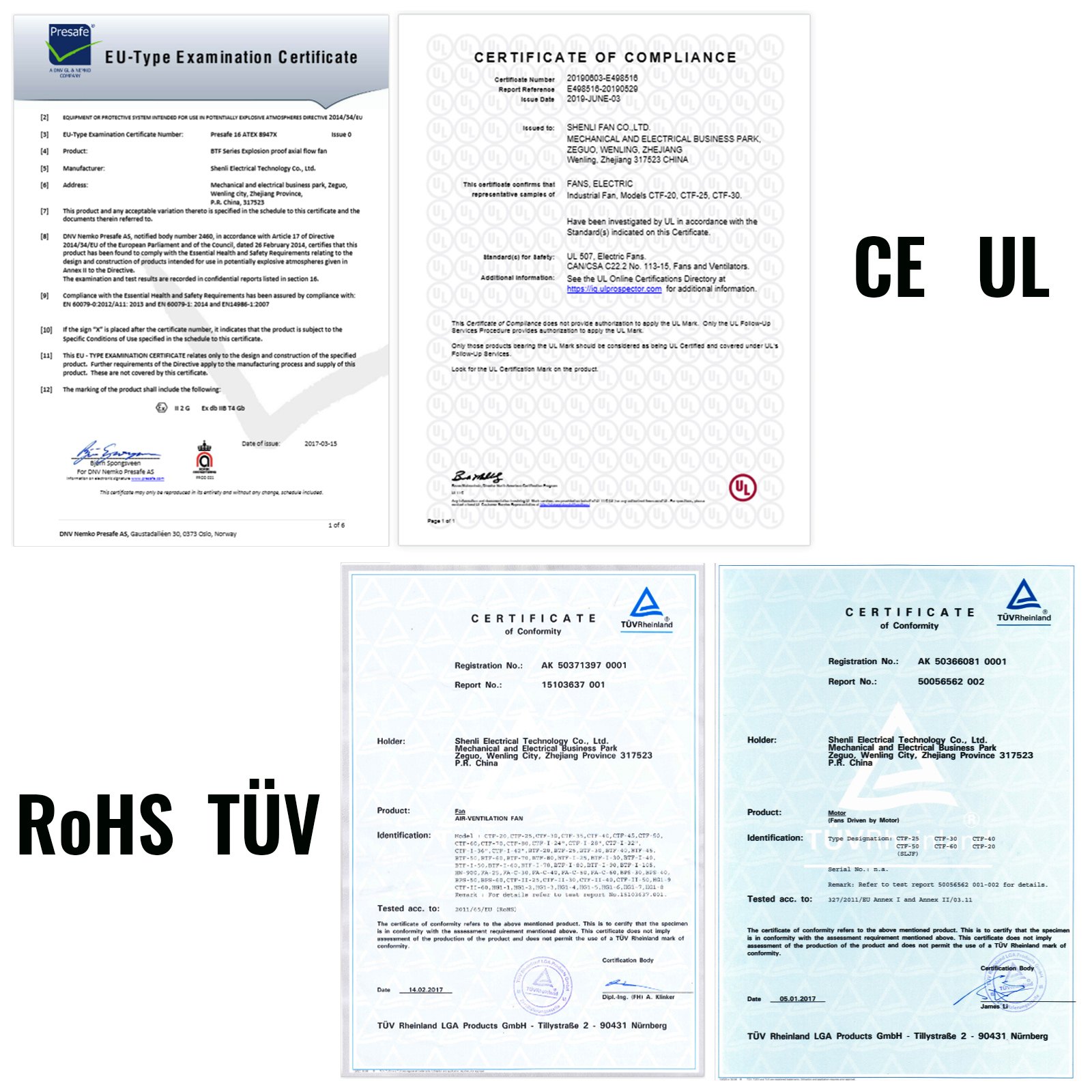

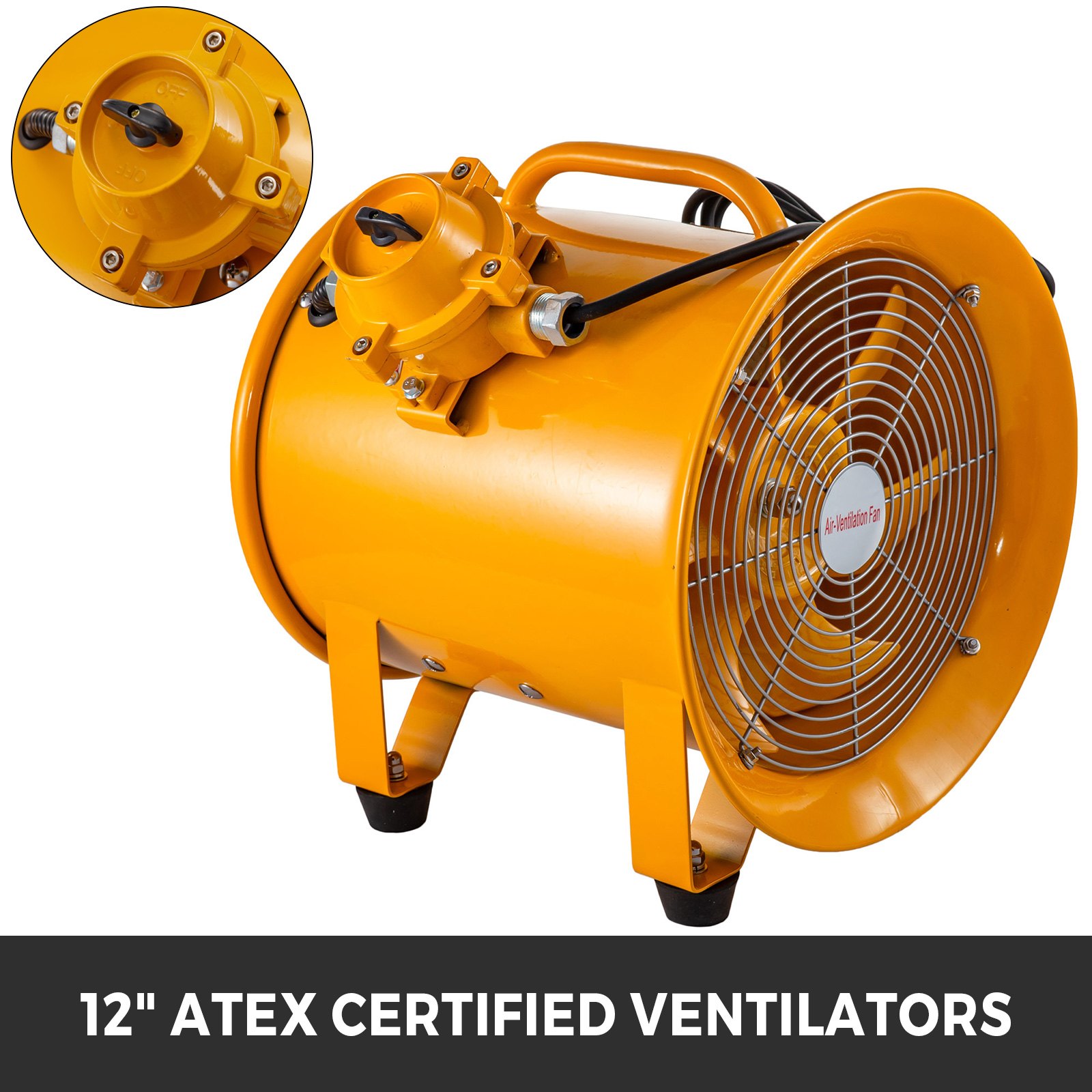

ATEX Certified Axial Fan

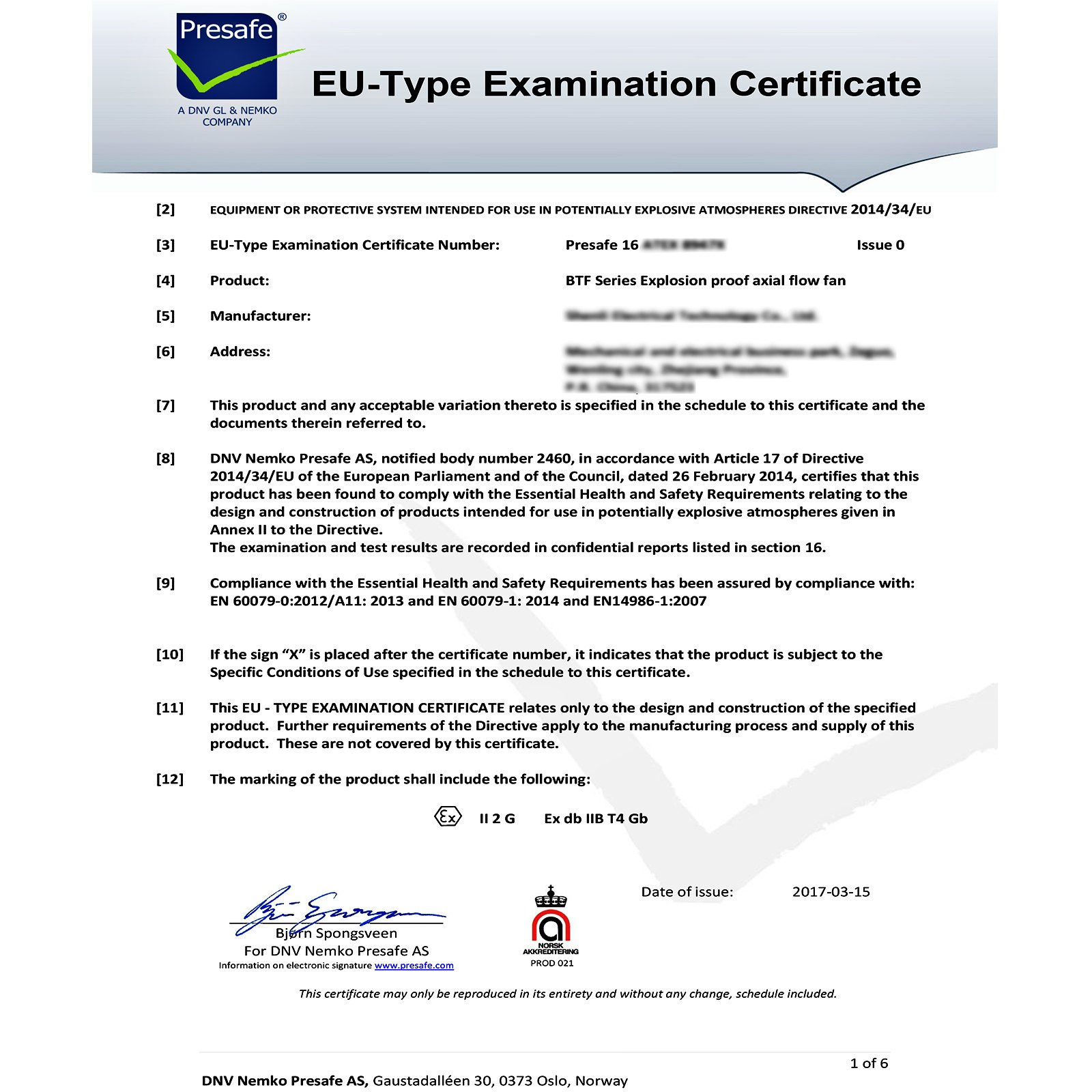

The portable exhaust fan is certified with ATEX, CE, UL, RoHS, TÜV, explosion-proof, and is safer to use. EX Mark: EX db IIB T4 Gb Certified by DNV. CE Certificate Number: CN208A1Z 001. UL Certificate Number: E498516.

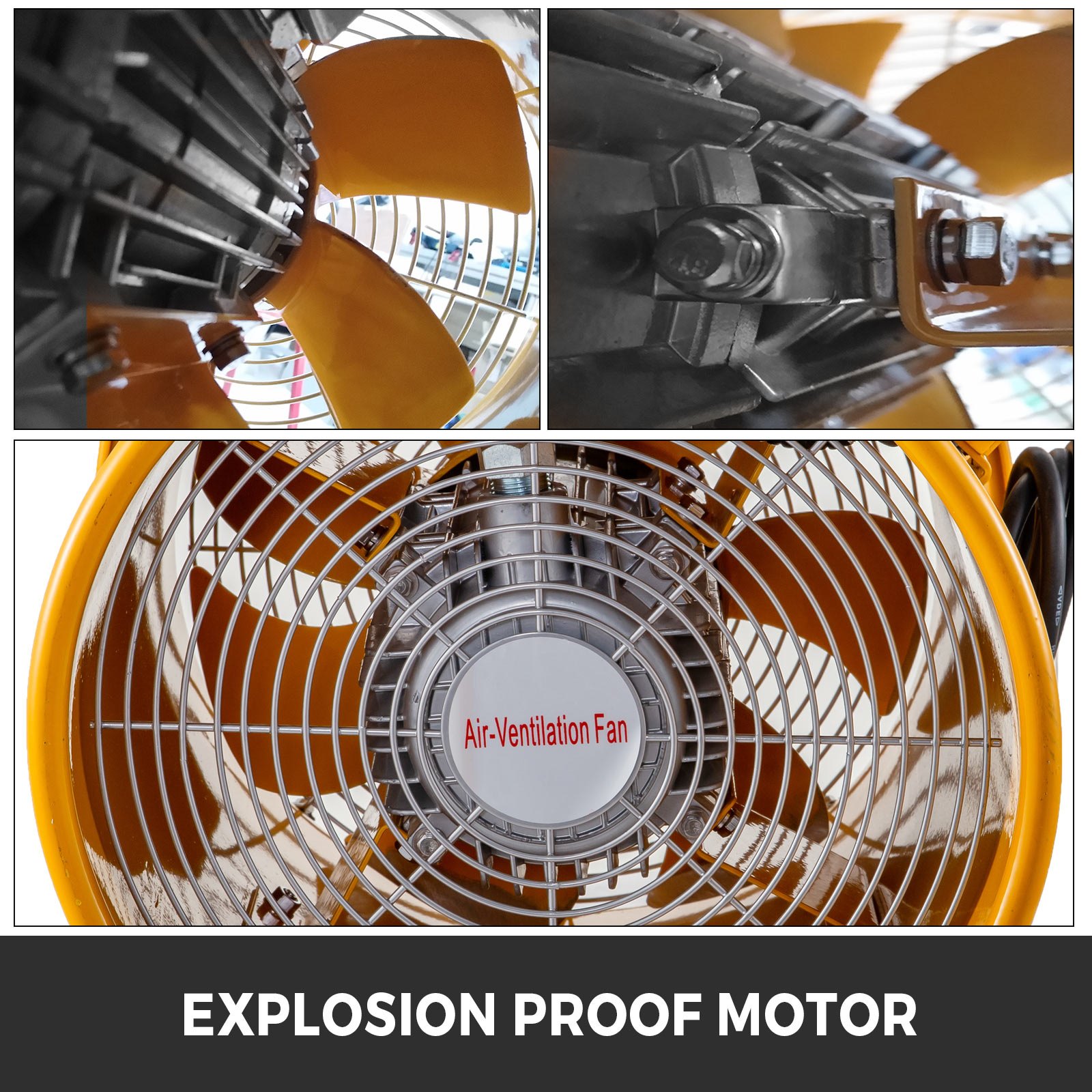

Pure Copper Motor
The portable explosion-proof fan features a 550W pure copper motor with a 3450 RPM high speed and fits long periods of ventilation work. Impedance-protected motors contain windings that have a higher heat resistance.

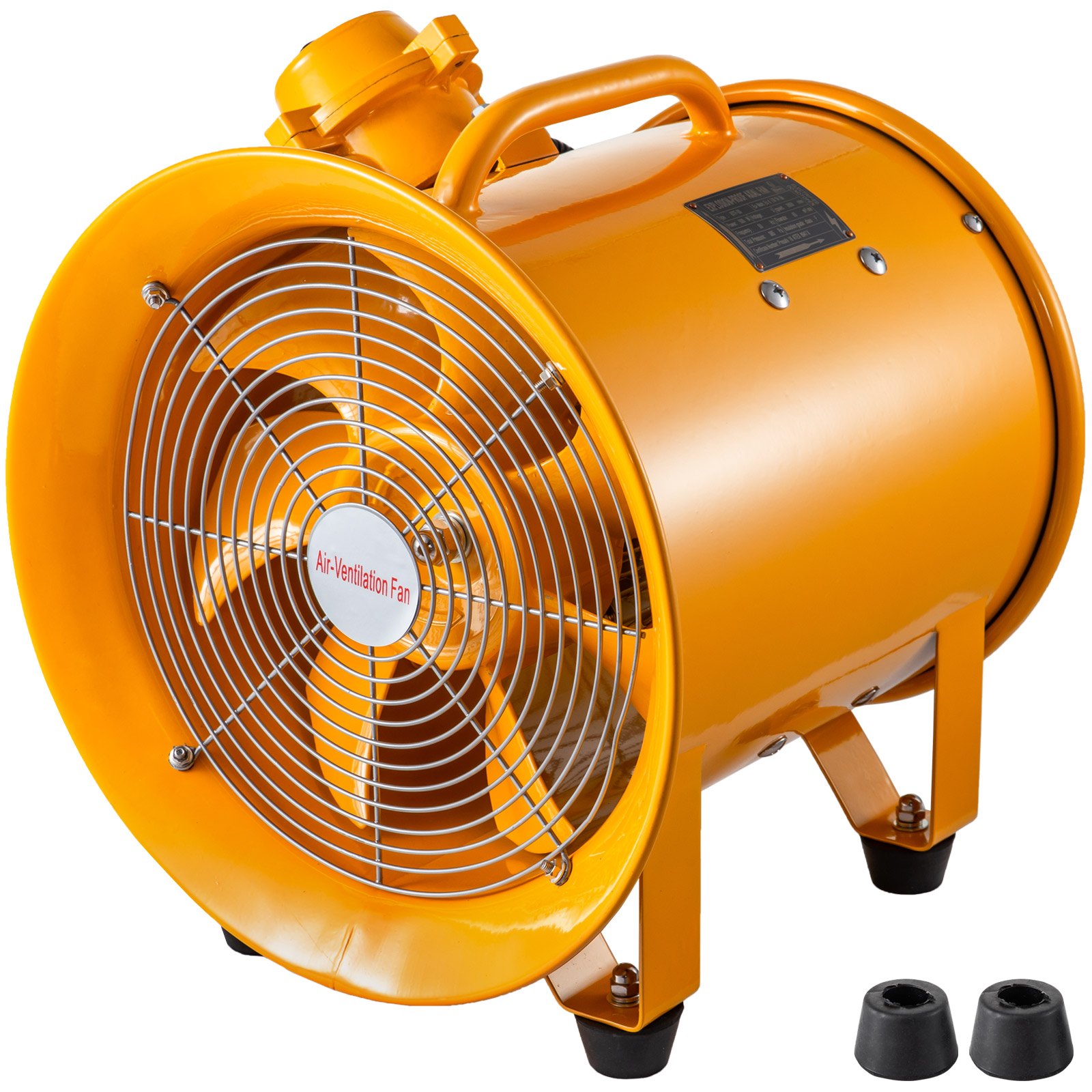

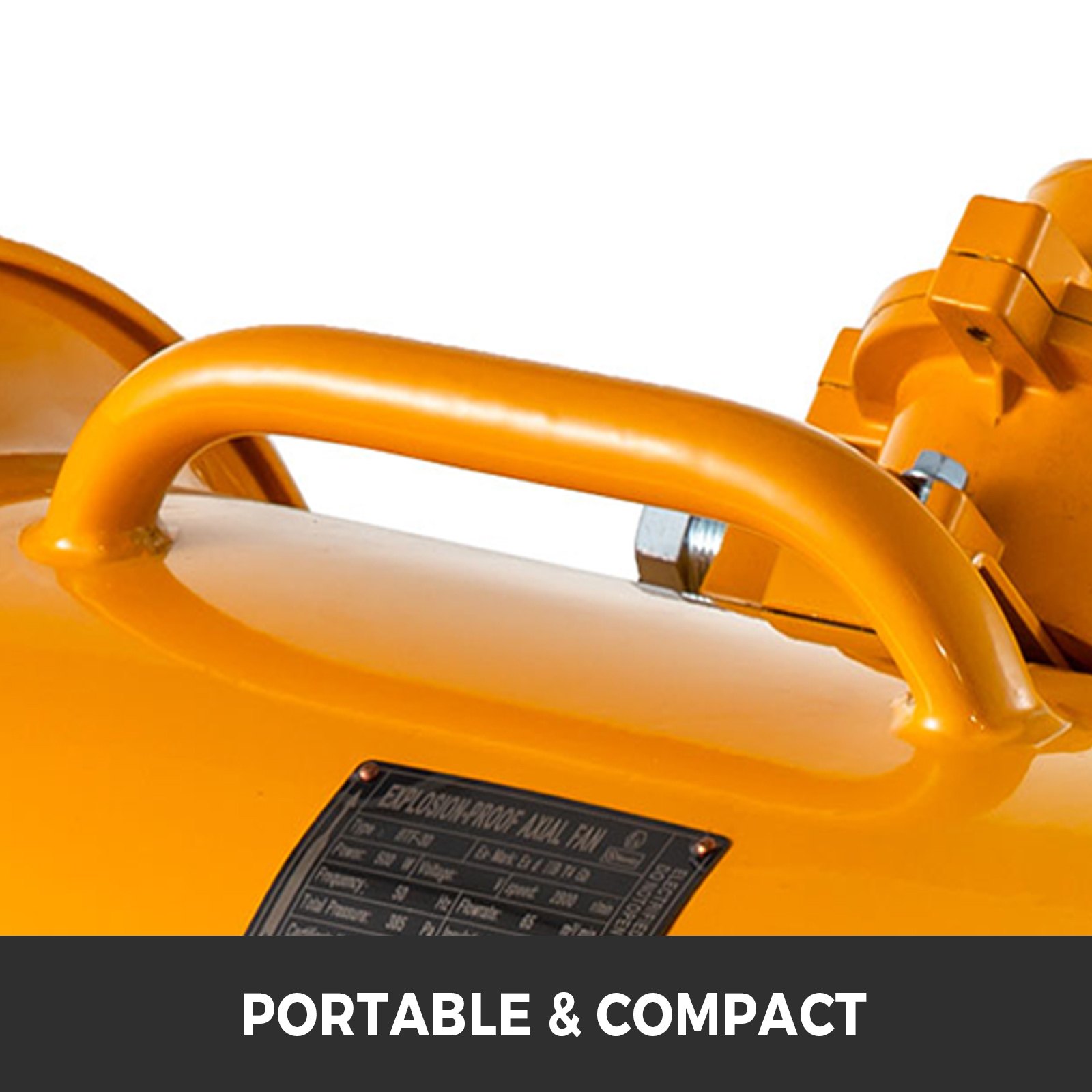

Portable & Compact
This portable exhaust fan shell is built with an easy-carry handle, making it practical and convenient to move and transport. It is constructed from a 0.079 in / 2.0 mm steel sheet, which can resist rust, compression, vibration, and deformation.

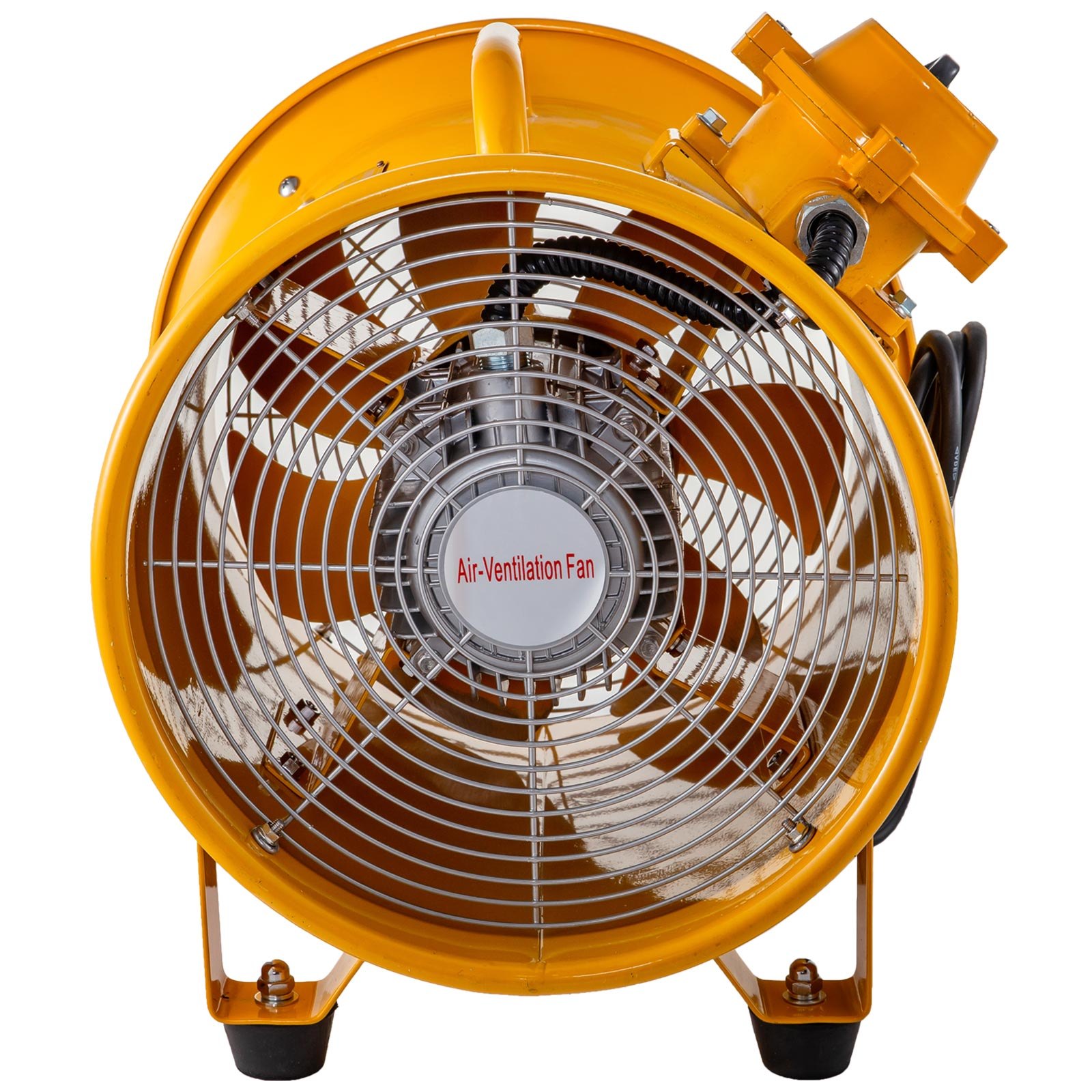

Aluminum Alloy Blades

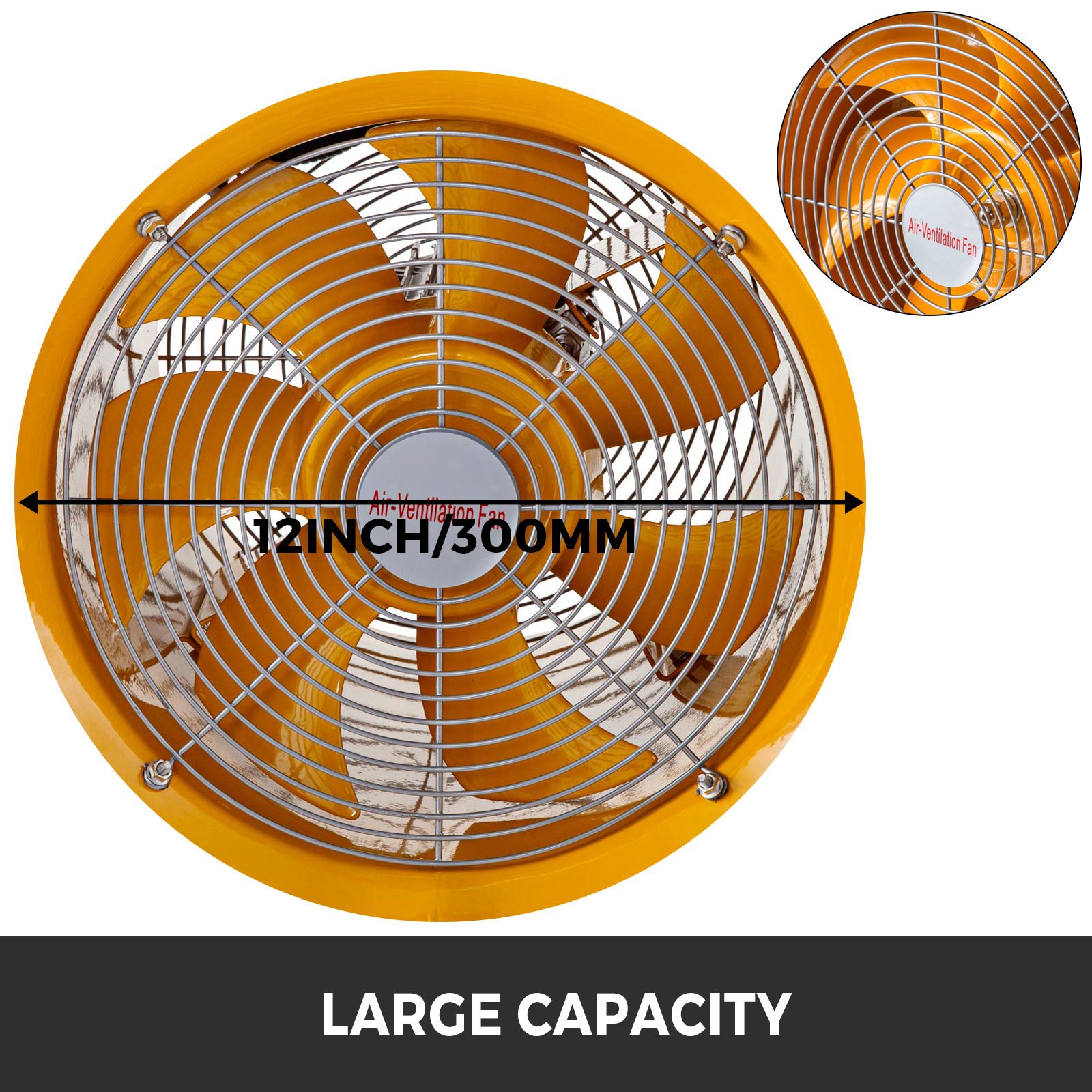

12 in / 300 mm fan diameter and 7 thick blades provide a large air volume: 2295 CFM / 3900 m³/h, which means it can quickly move a large amount of air. Aluminum alloy blades are built to resist heat, cold, and corrosion.
Effortless to Move

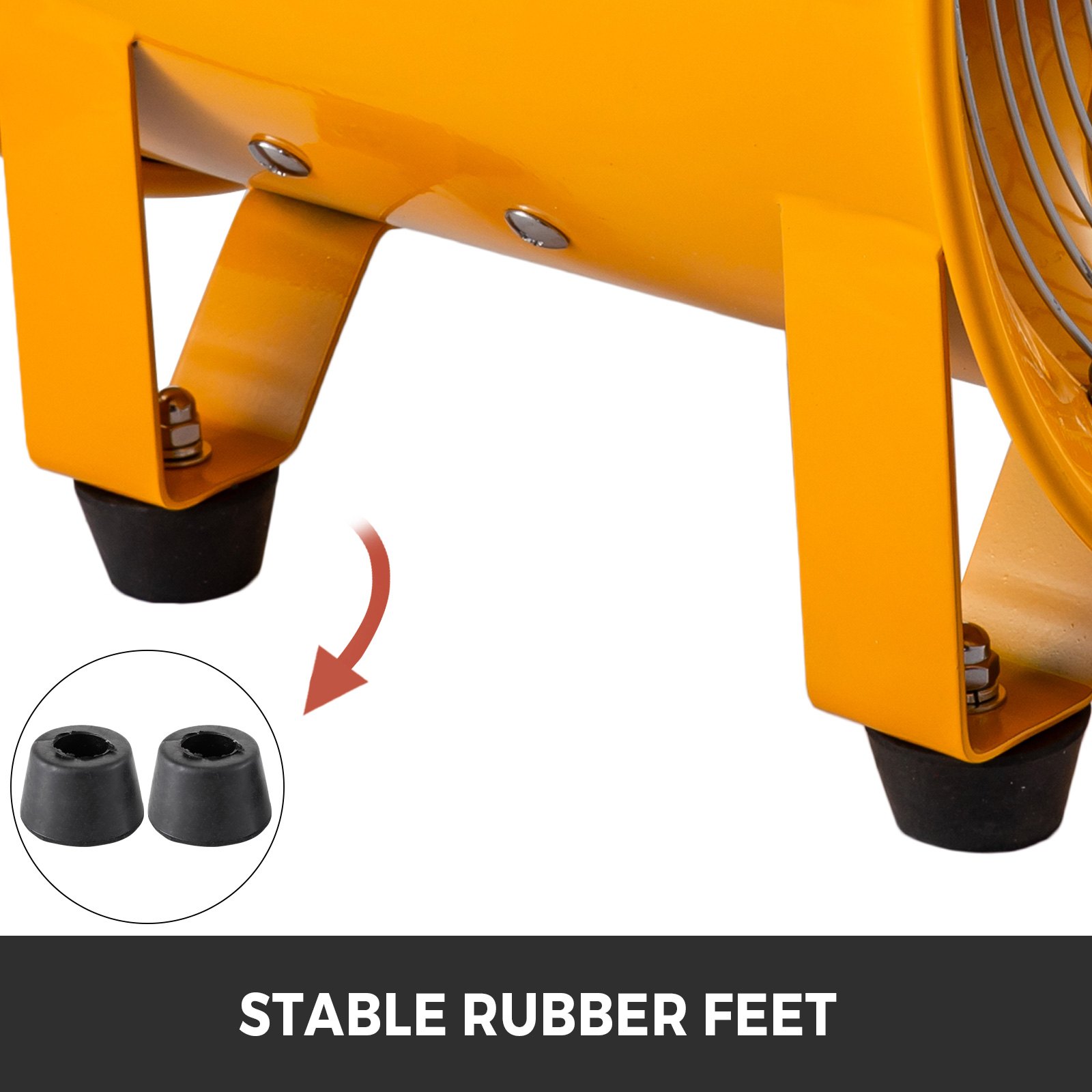

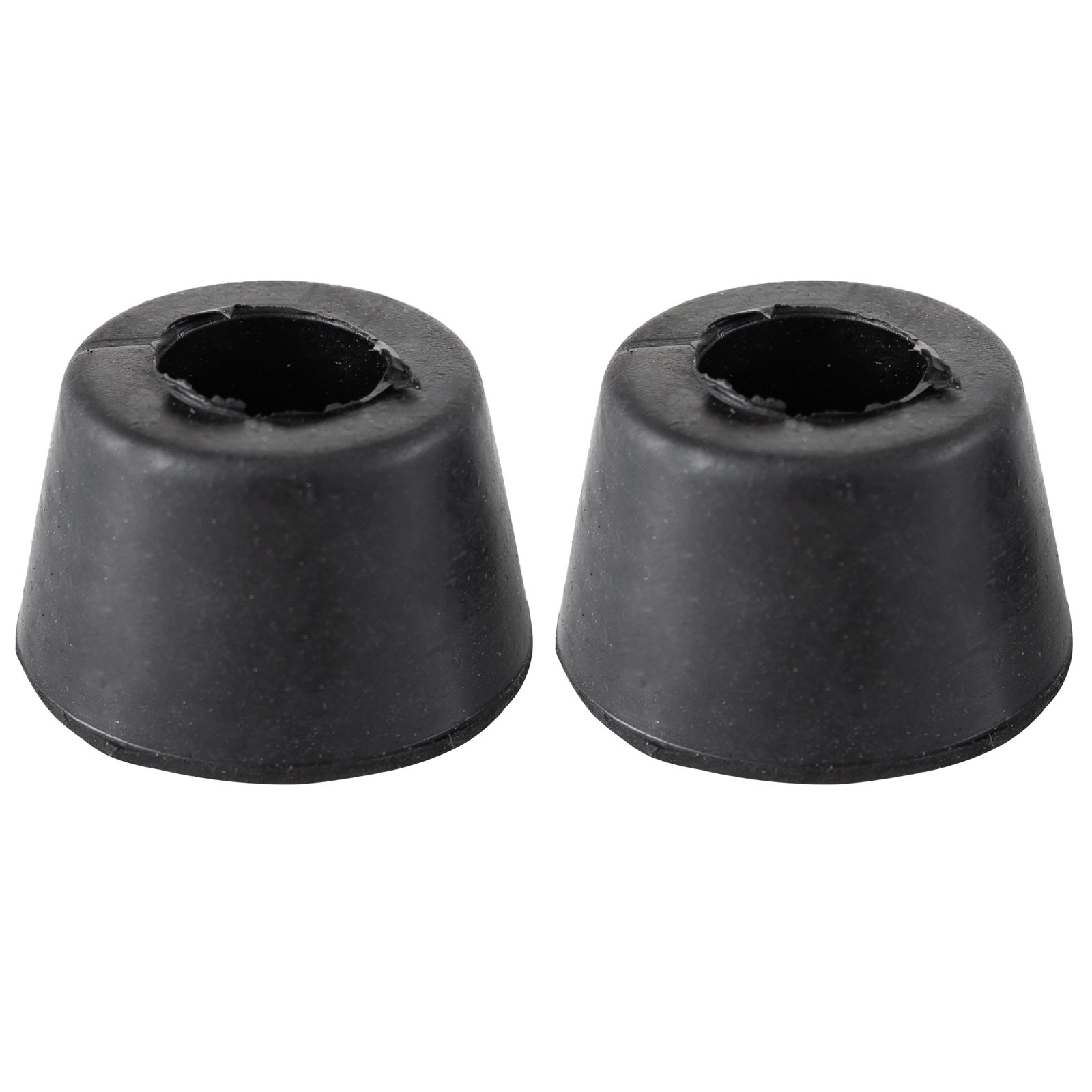

The rubber feet positioned on the base help minimize noise, reduce vibration, and enable the fan to stand stably. In addition, two high-density covers avoid small animals from flying into the machine.
Wide Application
This portable ventilator is designed for ventilating most rooms and large locations. Such as factories, warehouses, workshops, laboratories, automobile manufacturing, automobile repair shops, plastic machinery, etc.
- 1 x ATEX Certified Ventilator
- Color: Orange
- Power: 550W
- Voltage: 220V
- Frequency: 60 Hz
- Current: 5.0A
- Motor Speed: 3450 RPM
- Air Flow: 2295 CFM / 3900 m³/h (65 m³/min)
- Fan Diameter: 12 in / 300 mm
- Noise: 69 dB(A)
- Static Pressure: 450 Pa
- Motor Type: 100% Copper, Explosion-proof
- Ex Mark: EX db IIB T4 Gb Certified by DNV
- CE Certificate Number: CN208A1Z 001
- UL Certificate Number: E498516
- Other Certification: RoHS, TÜV
- Fan Material: 0.079 in / 2.0 mm Steel Sheet
- Blades Material: Aluminum Alloy
- Axial Fan Bearing Type: 6203

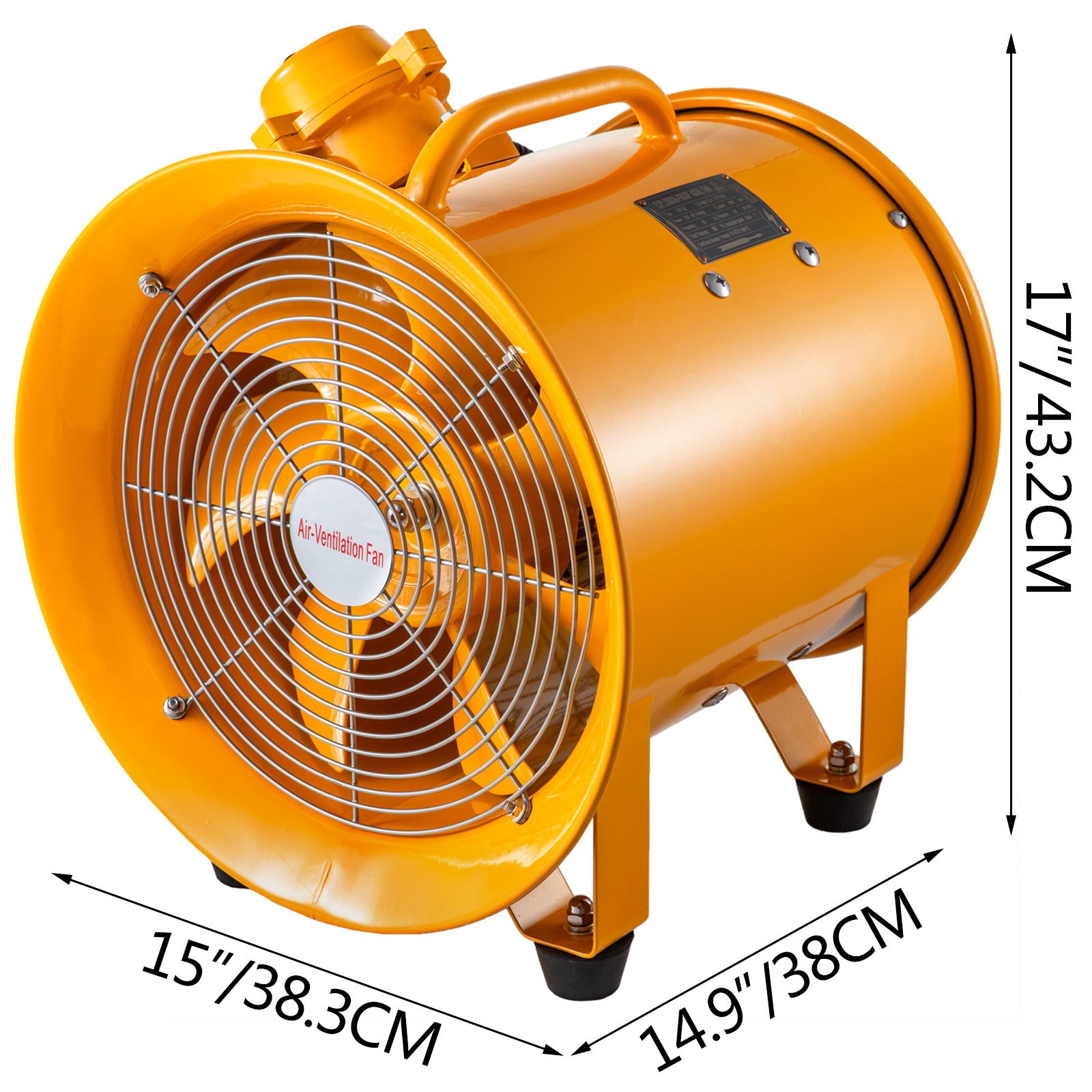

- Fan Dimensions(L x W x H): 14.9 x 15 x 17 in / 38 x 38.3 x 43.2 cm
- Net Weight: 40.12 lbs / 18.2 kg
