Features & Details

  • All-in-one functionality: Our 3-in-1 combination sheet metal machine offers the functions of a bending machine, a shearing machine, and a rolling machine in a single unit. Say goodbye to the hassle of purchasing multiple independent machines and the lengthy changeover process. It's a must-have for your factory and workshop, increasing overall work efficiency.
  • Exceptional Compatibility: Our sheet metal bending machine supports sheet materials with a maximum width of 12 inches/305 mm and a maximum thickness of 20 GA/1 mm. With a maximum bending angle of 90° and a blade pitch of less than 0.0027 inches/0.07 mm, it offers a wide range of options for your processing tasks.
  • Robust construction: This press brake is constructed of HT200 cast material and designed for durability. The shear blade is made of T10 material and cuts without burrs. Both the bending blade and roller are made of 45# material, offering exceptional durability and deformation resistance. It easily processes low-carbon steel, aluminum, brass, copper, lead, plastic, zinc sheet, etc.
  • Segmented bending versatility: The central bending module of our sheet metal bending press includes five blades in sizes of 1 inch (2.54 cm), 2 x 2 inches (5.08 cm), 3 inches (7.62 cm), and 4 inches (10.16 cm). You can customize the blade combinations according to your needs to perform a wide range of complex sheet metal fabrication tasks, such as the production of exterior wall panels for houses, doors, and window materials. It is widely used in homes, factories, and small workshops.
  • Precision machining: By utilizing state-of-the-art external cylindrical grinding technology, our 3-in-1 sheet metal processing machine reduces friction between the sheet and the rollers, thus improving machine stability during operation. It also minimizes scraping caused by uneven roller surfaces and improves the smoothness of the sheet surface.

Frequently Bought Together

Reviews 5.0
All reviews are from verified purchases
Average rating based on 1 reviews

See all 1 reviews

About this item

Product specification
Item model number
3-in-1/305
Max. cutting length
12 inches / 305 mm
Maximum shear thickness
20 GA / 1 mm
Blade distance
< 0.07 mm
Shear tensile strength
≤ 235 MPa
Maximum bending thickness
20 GA / 1 mm
Maximum bending width
12 inches / 305 mm
Max. bending length
28 inches / 710 mm (±10 mm)
Maximum bending angle
90° ± 1°
Max. sheet roll width
12 inches / 305 mm (±3 mm)
Working length of the roller
12 inches / 305 mm (±3 mm)
Sheet rolling thickness
20 GA / 1 mm
Min. sheet rolling diameter
1.8 inches / 45 mm
Surface treatment and color
Painted
Primary materials
Q235, 45#, HT200
Net weight
90 lbs / 41 kg
Product dimensions
20.9 x 14.8 x 15 inches / 530 x 375 x 380 mm
Shear blade
Thickness
Upper bending tool
Straight blade, thickness
Lower bending die
V-shaped die, thickness
Sheet metal rolling drum
Diameter
Description
VEVOR 3-in-1 Sheet Metal Bending Machine

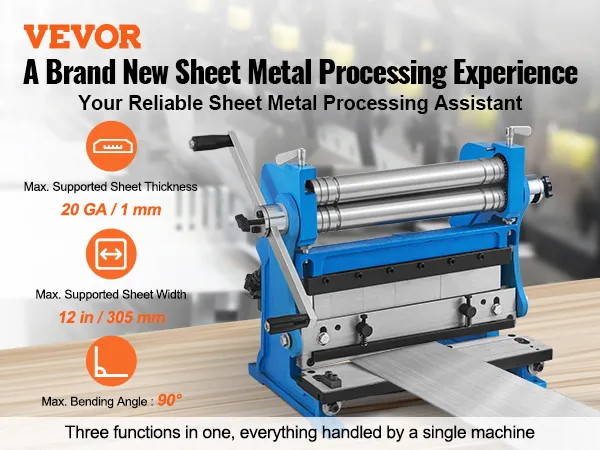

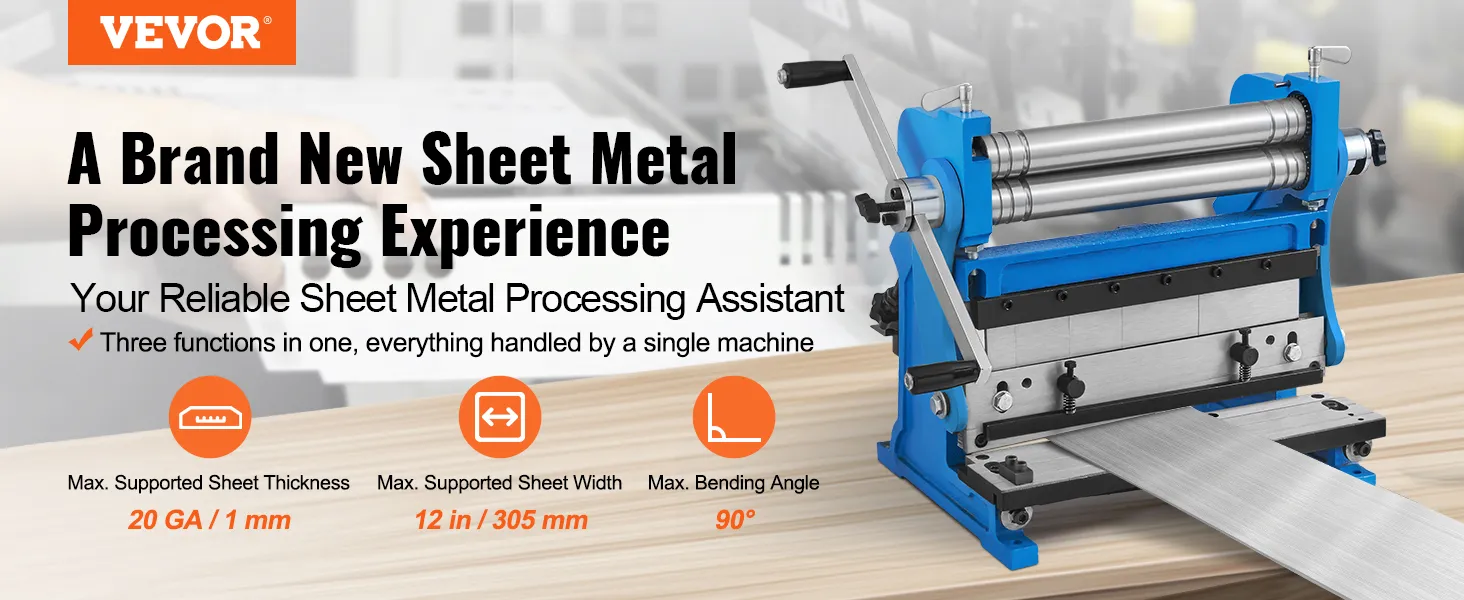

VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.
VEVOR sheet metal brake with adjustable rollers, handles 20 ga thickness, 12 in width, 90° bending angle.
Our sheet metal processing machine combines rolling, bending, and shearing functions in a single compact unit. You can adjust the roller position with a knob, extend up to 90 degrees, and cut various sheet materials.

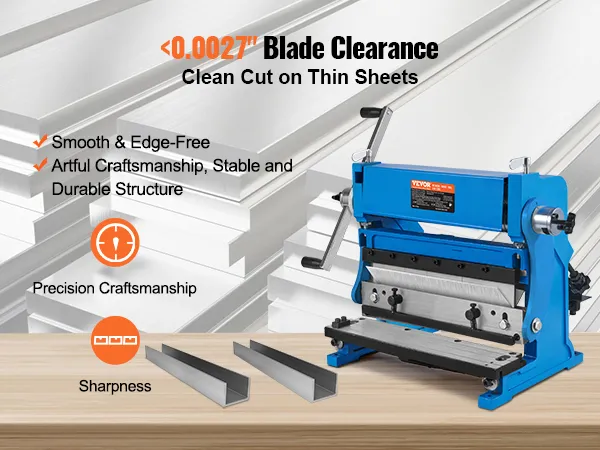

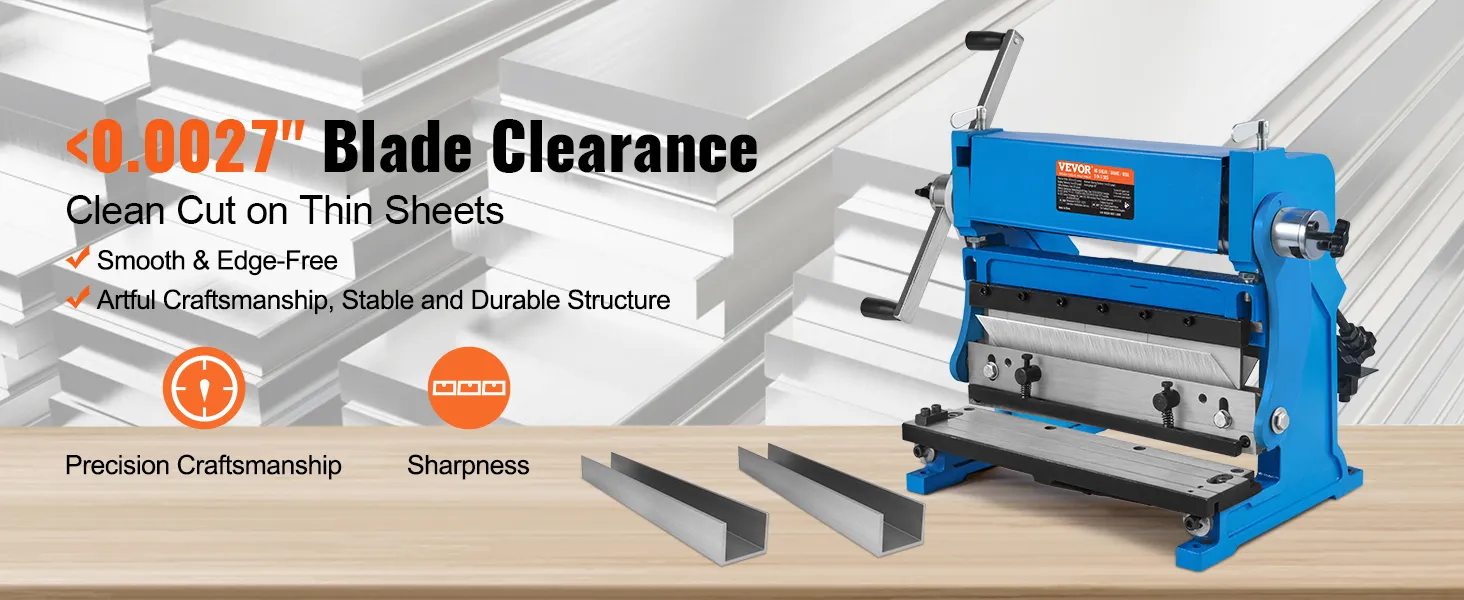

VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.
VEVOR sheet metal brake with <0.0027" blade clearance for smooth, edge-free cuts on thin sheets.
Carefully crafted to be your long-lasting workhorse, this scissor press brake is constructed from carefully selected materials to deliver optimal performance. Industrial-grade materials ensure durability and wear resistance.

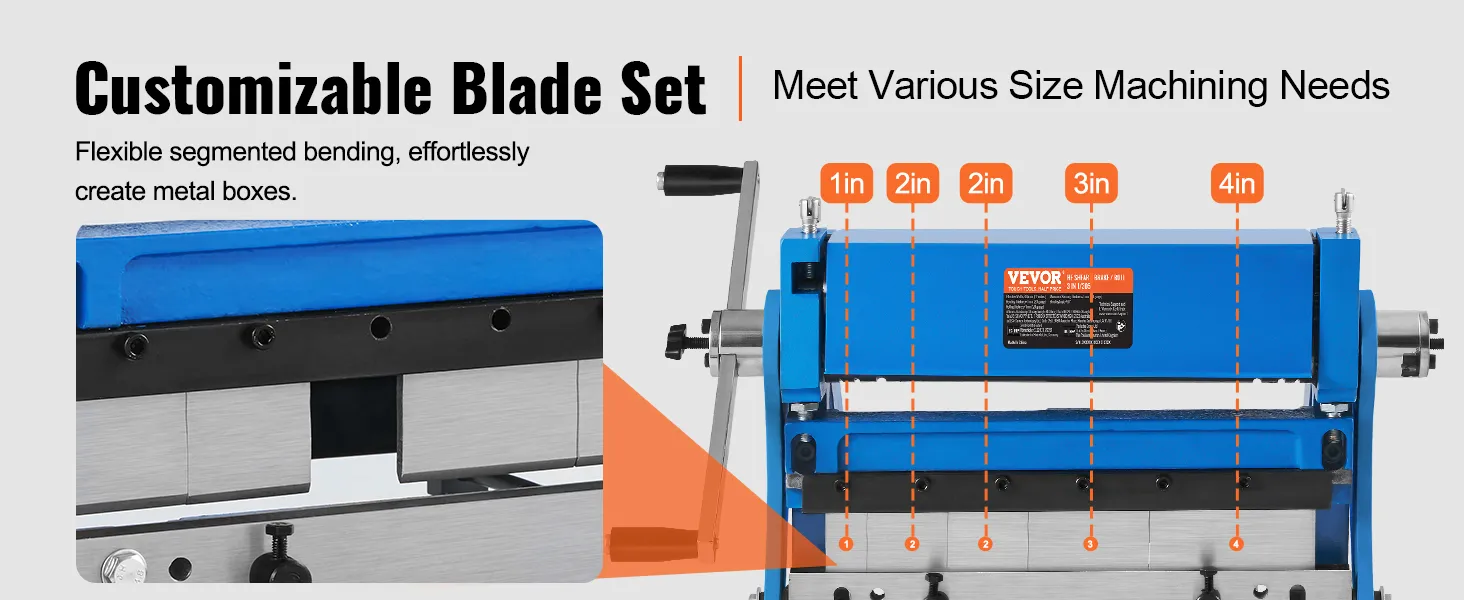

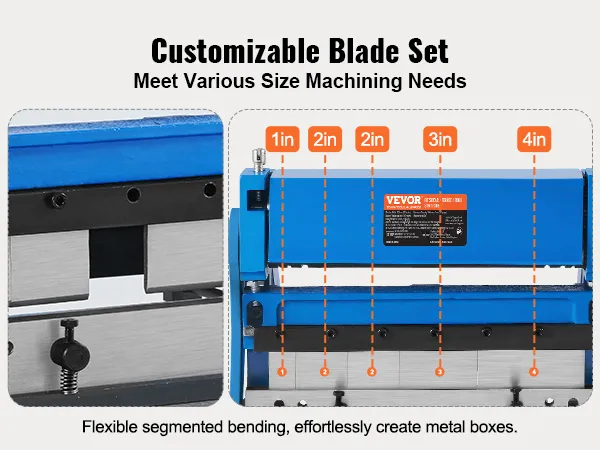

customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
customizable VEVOR sheet metal brake with various size machining needs and flexible segmented bending.
The upper bending tool and lower die module are constructed from robust 0.2"/5mm thick #45 material. It comes with five different sized blades: 1", 2 x 2", 3", and 4", ensuring effortless bending of low-carbon steel and aluminum.

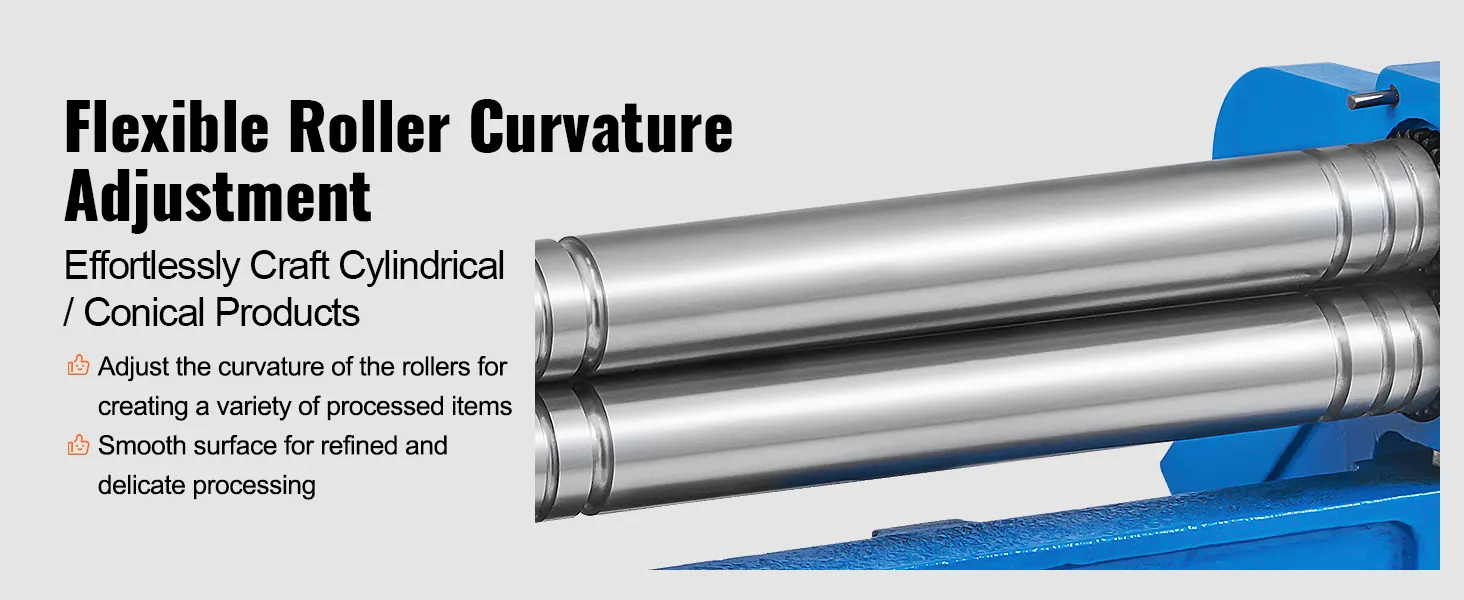

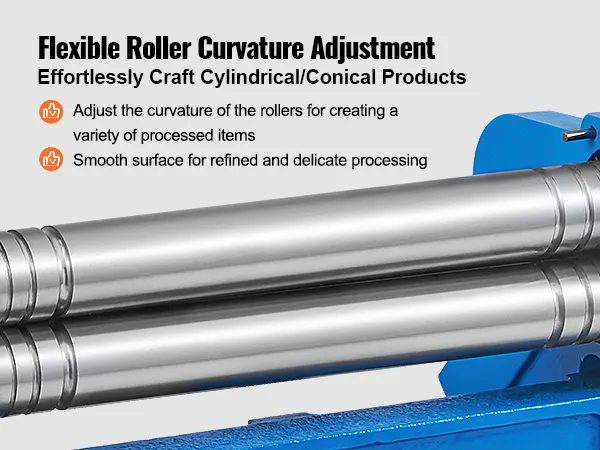

VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.
VEVOR sheet metal brake with adjustable rollers for crafting cylindrical and conical products.
The roller of our sheet metal bending machine is equipped with precise curvature adjustment technology, allowing you to effortlessly produce a wide range of cylindrical and conical workpieces and obtain flawlessly smooth sheet metal.
versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
versatile VEVOR sheet metal brake for low carbon steel, stainless steel, and aluminum processing.
Our 3-in-1 combo sheet metal bending machine lets you easily handle various sheet metal processing needs. It supports sheet materials with a maximum thickness of 20 GA/1 mm, a maximum width of 12 inches/305 mm, and also offers a 90-degree bending angle.

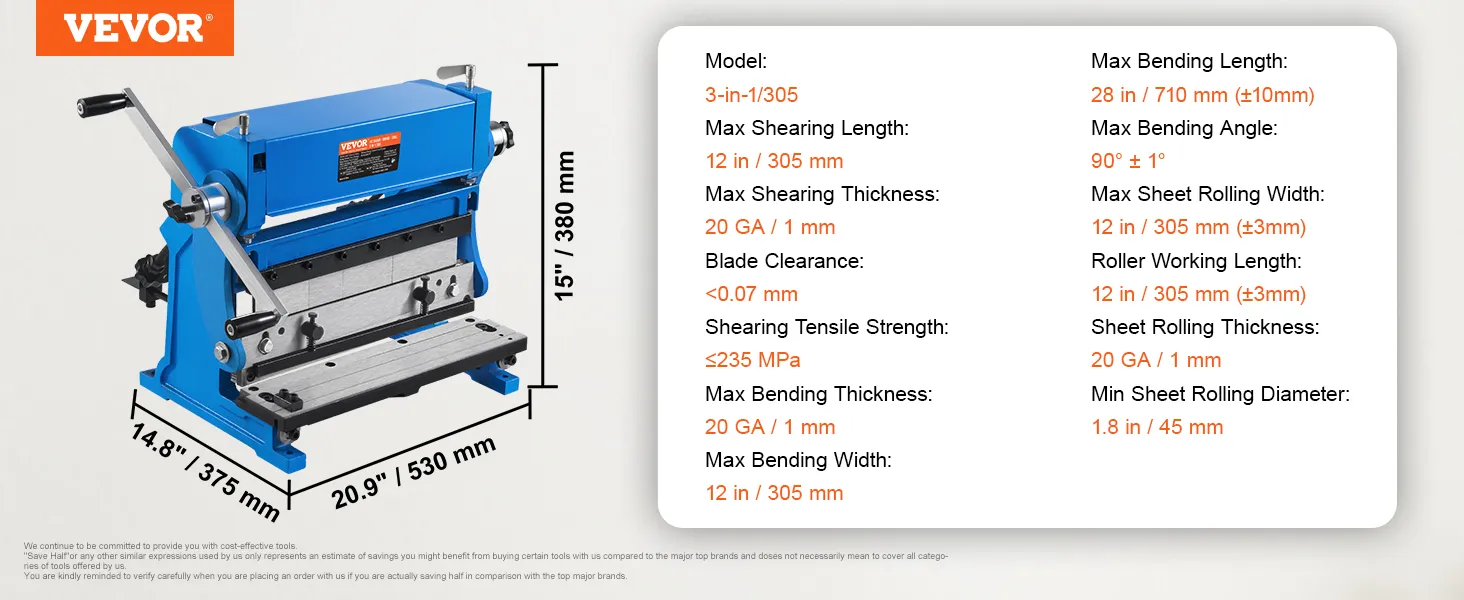

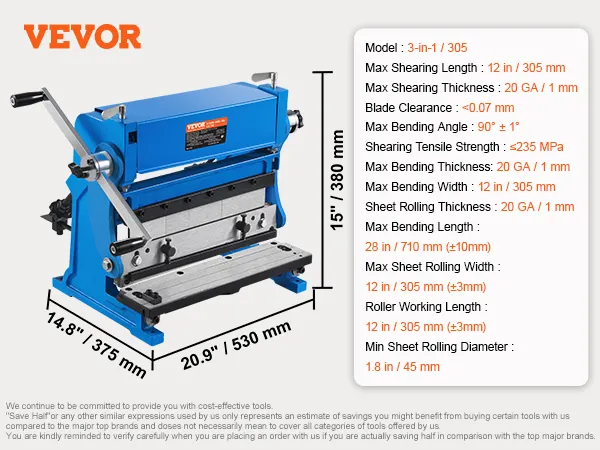

VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.
VEVOR sheet metal brake 3-in-1/305, blue machine with specifications for shearing, bending, and rolling.
