Features & Details
- 【FLEXIBLE STROKE LENGTH】- This stroke linear actuator uses a lead screw to move a shaft back and forth along its length (Maximum Stroke Length: 6-inch/150 mm), while two limit switches will safely stop the motor at either end of its range.
- 【EXCELLENT CONSTRUCTION】- Our 12v electric actuator adopts a sturdy aluminum alloy outer casing, featuring all-metal gear inside, with the entire case sealed to protect against dust and water (rated IP54).
- 【POWERFUL PERFORMANCE】- The electric lift actuator comes with a powerful DC 12V electric motor, which can run stably with low noise (≤50dB). It can provide a large actuation force of 900 N and allow the push rod to travel at 10 mm/s.
- 【QUICK & EASY ASSEMBLY】- Two U-shaped mounting brackets and installation screws are available. They work perfectly with motor end and stroke end mounting points to allow for 180-degree rotation.
- 【DIVERSE USE SCENARIOS】- This linear track actuator is widely used in home furniture, hospital & health-care fields, including window openers, table lifter, and headrest, footrests, lumbar supports, and other parts for adjustable recliners.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Stroke Length
- 6"/150 mm
- Actuation Force
- 900 N
- Travel Speed
- 0.4"/10 mm per second
- Material
- Aluminum Alloy
- Input Voltage
- DC 12V
- Rated Current
- 3 Amp
- Duty Circle
- 25%
Description
DC 12V Linear Actuator Kit

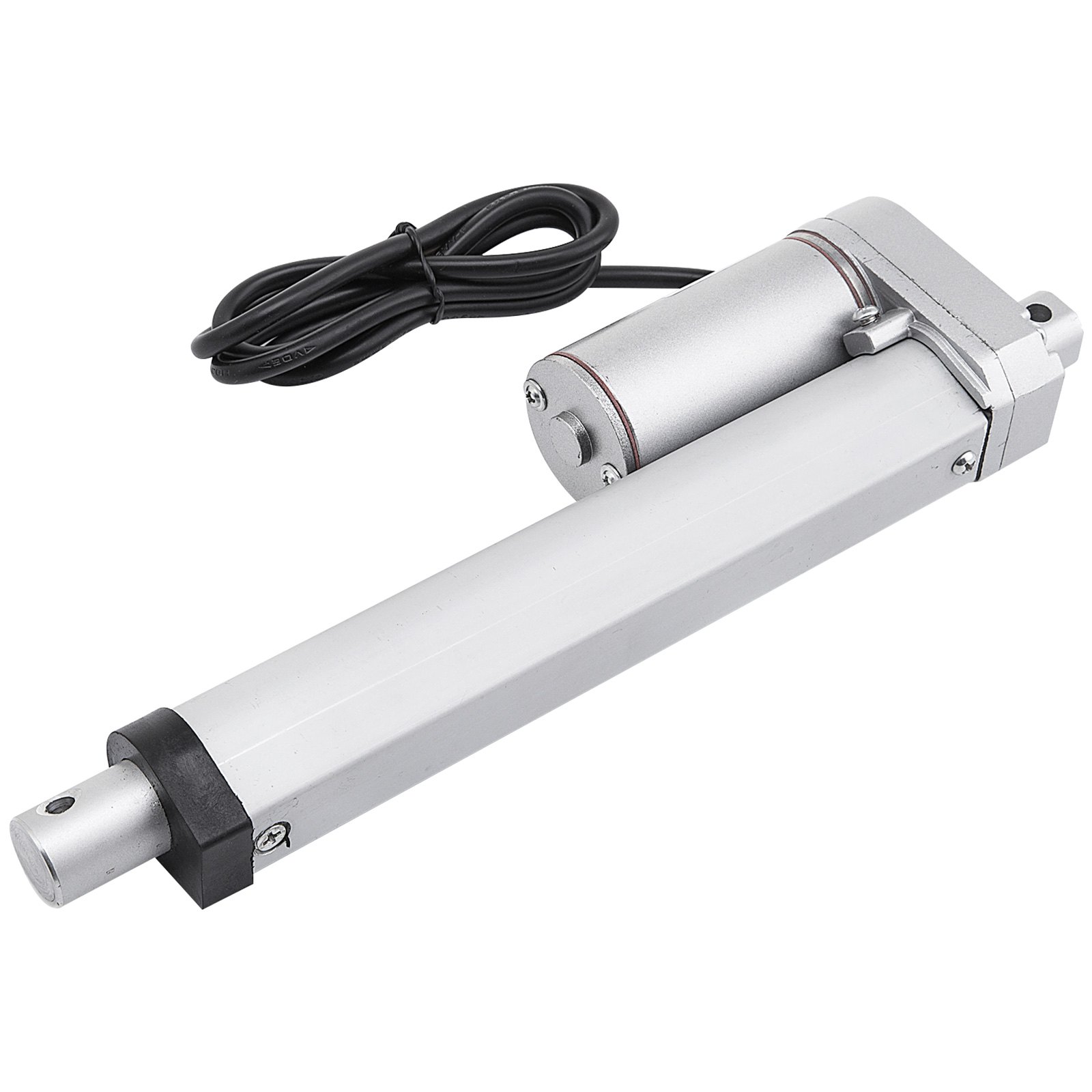

Our compact and versatile linear actuator is manufactured with high-grade aluminum alloy material, featuring two built-in limit switches. It would provide consistent, reliable performance with minimal maintenance for all your automation projects. It comes with a quiet yet powerful motor to accommodate a number of applications that require precise movement in a linear motion.
- Flexible Stroke Length
- Excellent Construction
- Powerful Performance
- Quick & Easy Assembly
Controllable Stroke Length

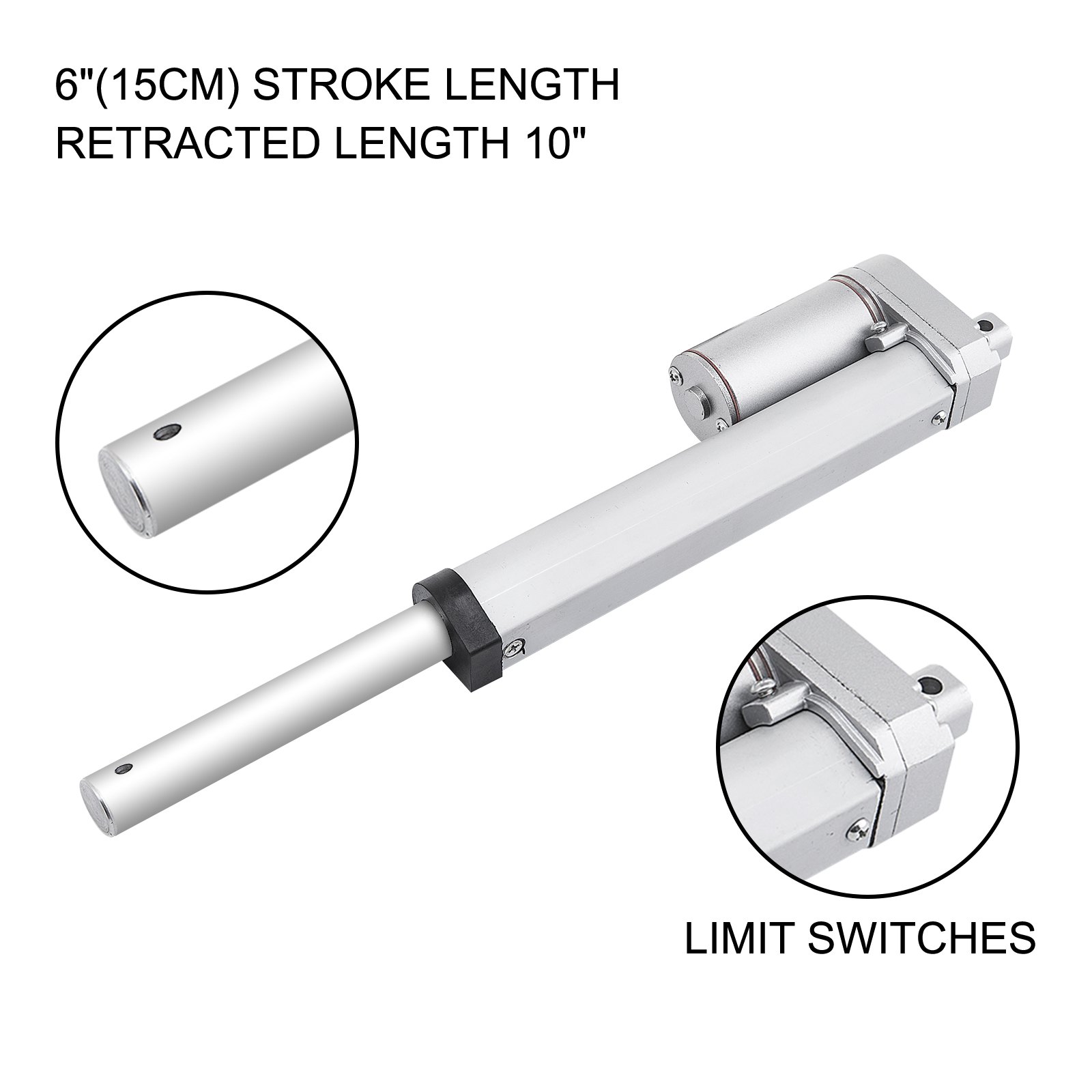

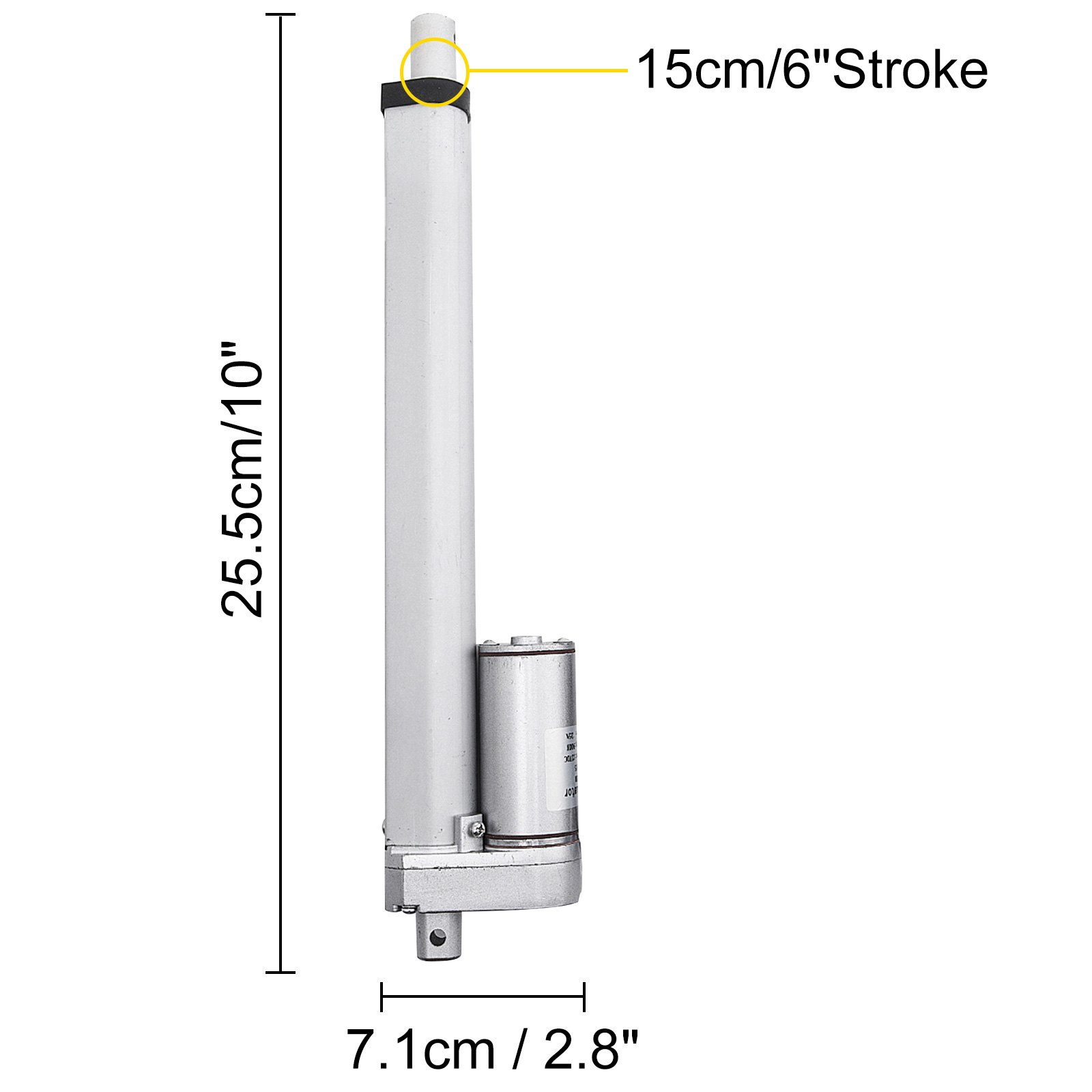

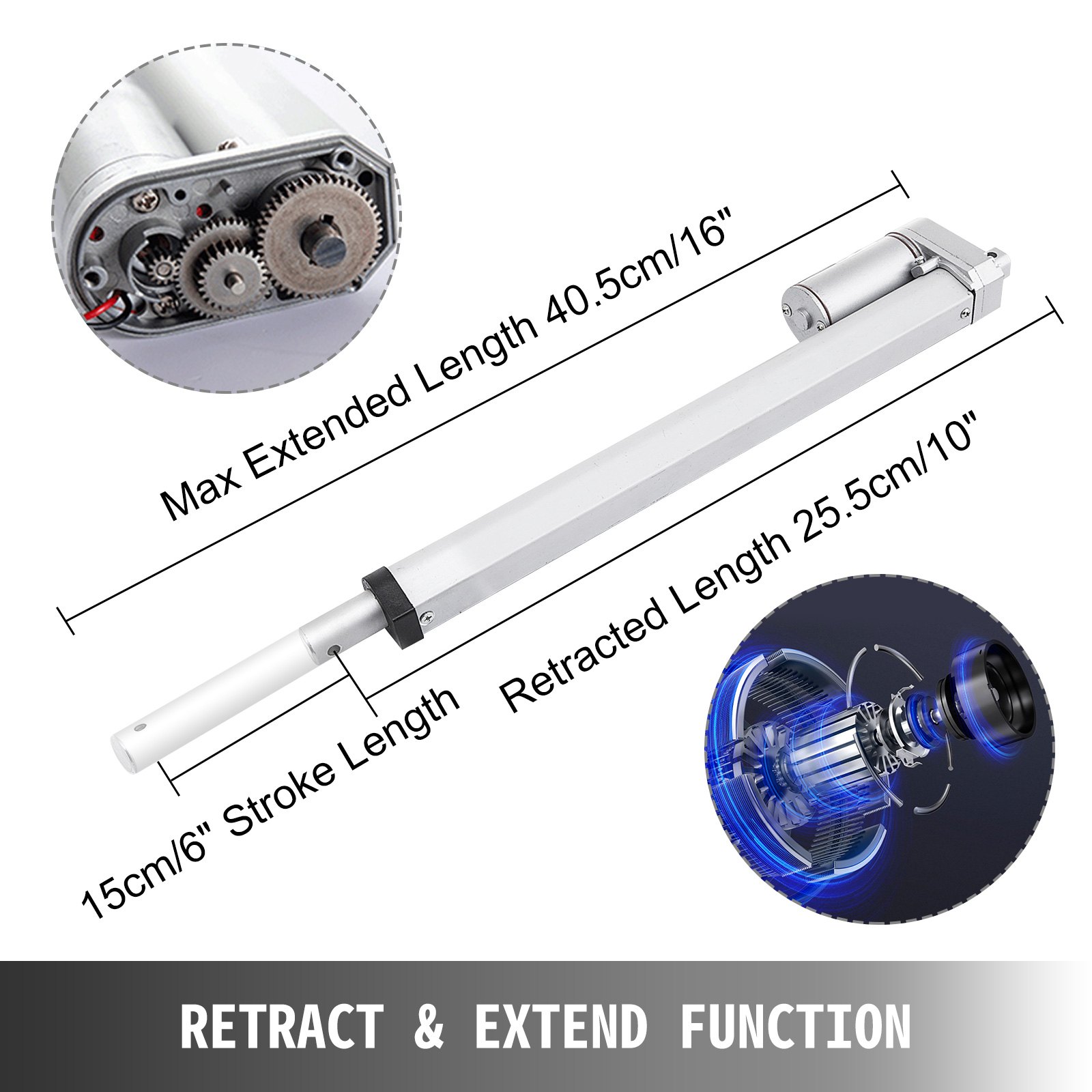

This linear actuator features a maximum stroke length of 6" (150 mm). The limit switches prevent the device from stalling the motor once maximum stroke length is achieved.
Premium Aluminum Alloy
The excellent aluminum alloy material ensures the sturdiness and longevity of the actuators. With a compact structure, the outer casing is fully sealed and IP54 waterproof.
Powerful & Quiet Motor
The supported voltage of this linear motion actuator is DC 12V. The powerful motor runs smoothly with reliable performance, sensitive action, and low noise (≤50dB).
Strong Actuation Force

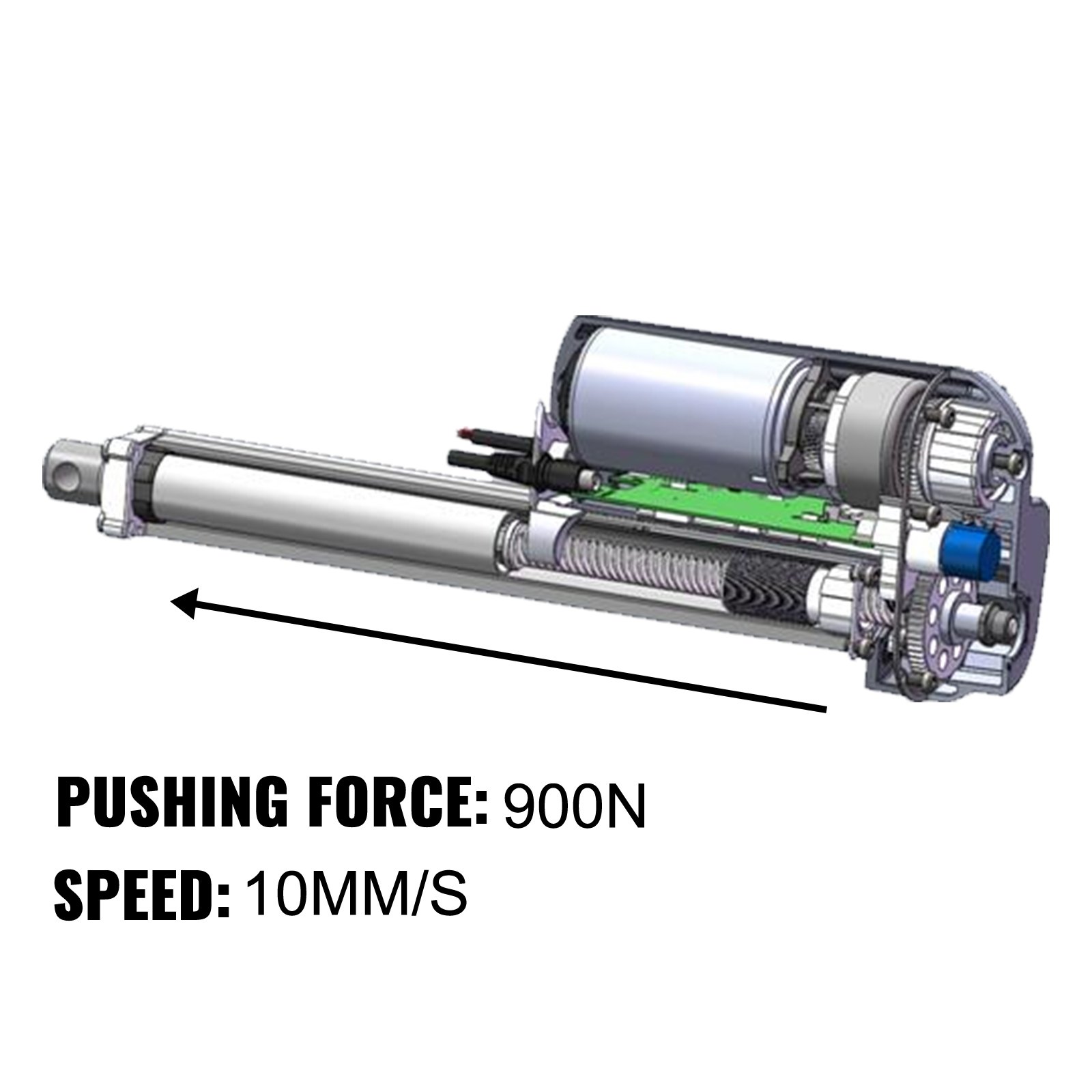

This compact linear actuator is able to provide a strong pushing force of 900 N, with the travel speed of 0.4" (10 mm) per second. (The force and speed are inversely proportional)
Convenient Installation

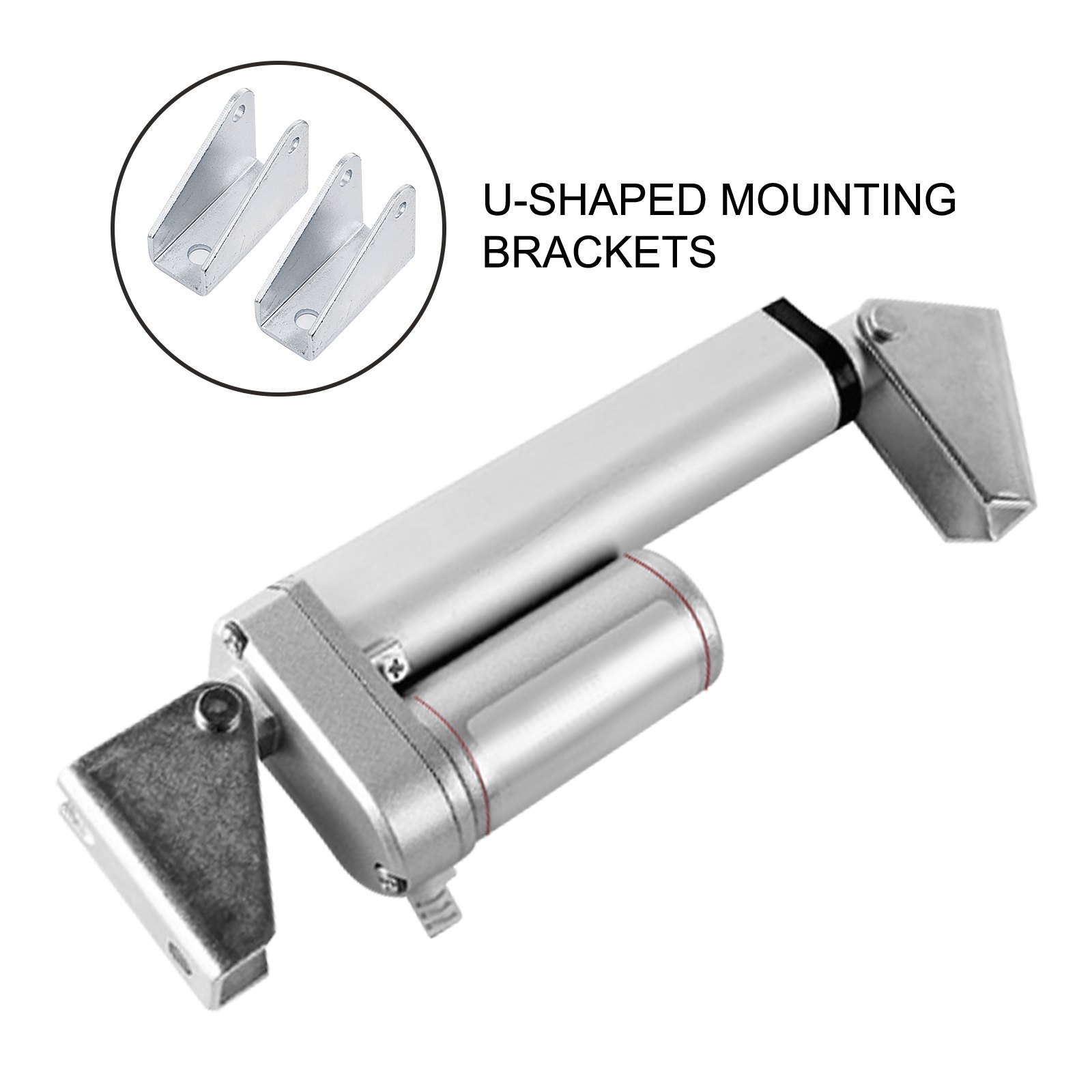

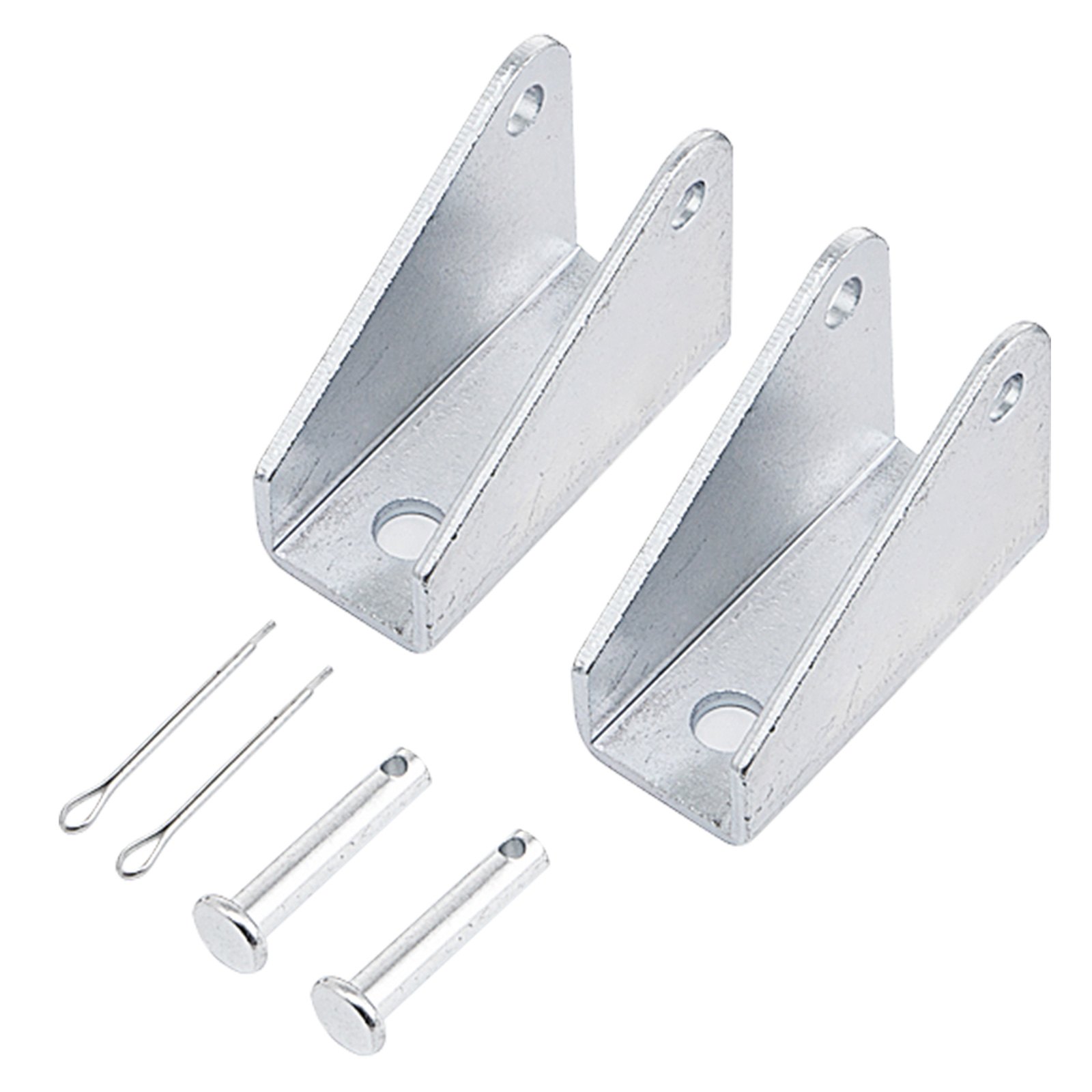

The linear actuator kit comes with two U-shaped mounting brackets and several screws to help you finish your installation conveniently and quickly.
Various Applications

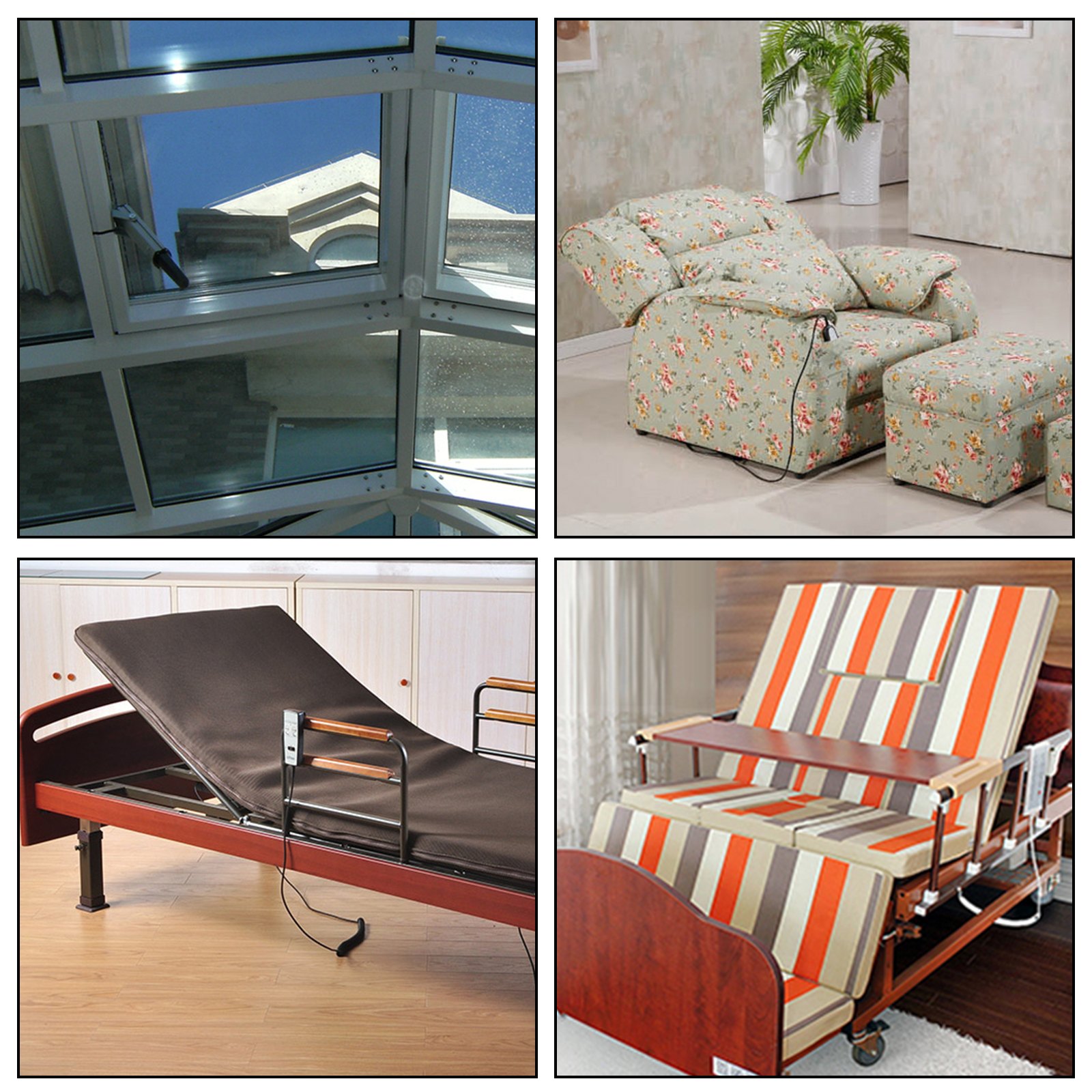

This multifunctional actuator is widely applied to electric medical chairs, electric lift tables, electric recliners, electric lift beds, massage chairs, etc.
- Stroke Length: 6"/150 mm
- Actuation Force: 900 N
- Travel Speed: 0.4"/10 mm per second
- Material: Aluminum Alloy
- Input Voltage: DC 12V
- Rated Current: 3 Amp
- Duty Circle: 25%

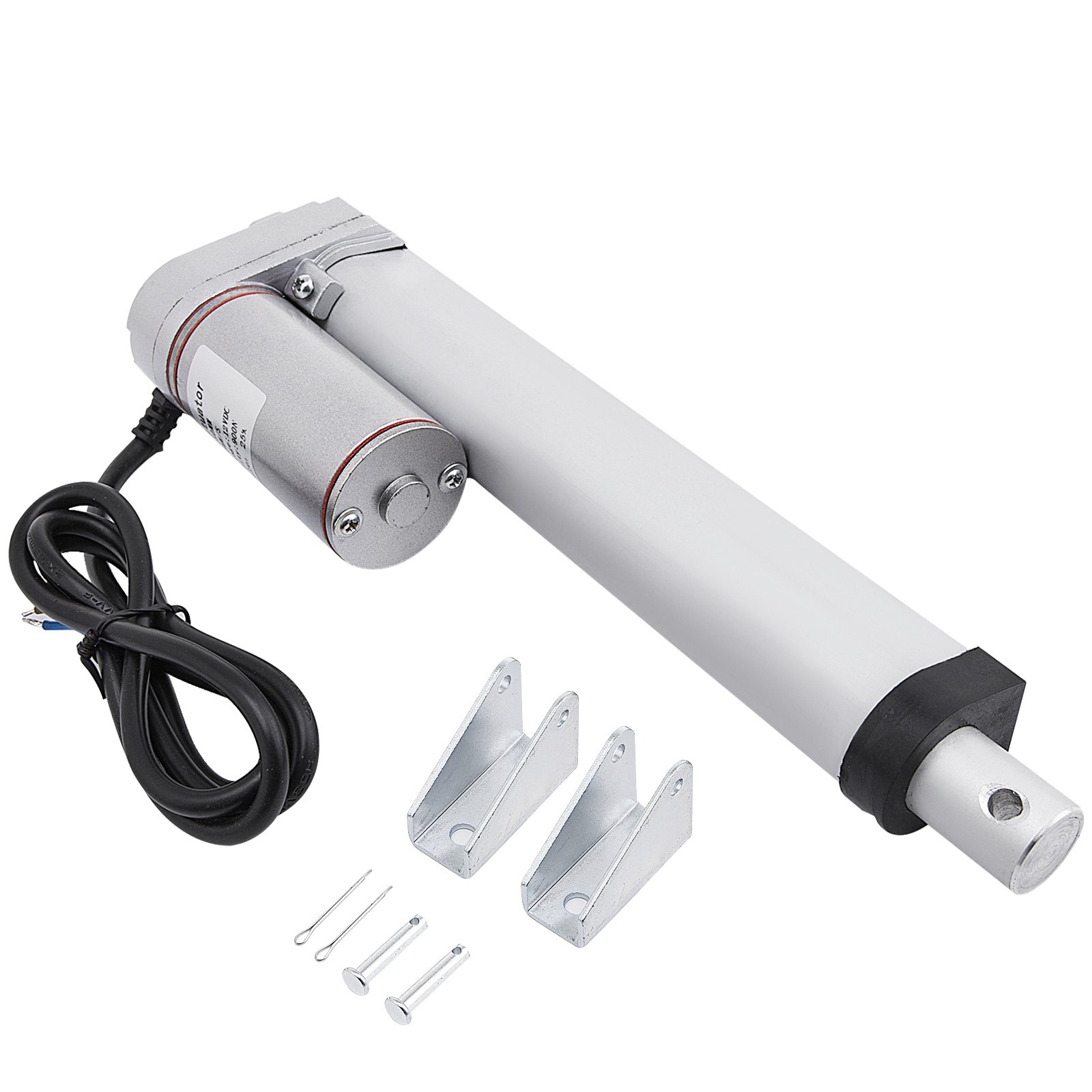

- 1 x Linear Actuator
- 2 x Mounting Brackets
- 1 x Screw Set
DC 12V Linear Actuator Kit
Our compact and versatile linear actuator is manufactured with high-grade aluminum alloy material, featuring two built-in limit switches. It would provide consistent, reliable performance with minimal maintenance for all your automation projects. It comes with a quiet yet powerful motor to accommodate a number of applications that require precise movement in a linear motion.
- Flexible Stroke Length
- Excellent Construction
- Powerful Performance
- Quick & Easy Assembly
Controllable Stroke Length
This linear actuator features a maximum stroke length of 6" (150 mm). The limit switches prevent the device from stalling the motor once maximum stroke length is achieved.
Premium Aluminum Alloy
The excellent aluminum alloy material ensures the sturdiness and longevity of the actuators. With a compact structure, the outer casing is fully sealed and IP54 waterproof.
Powerful & Quiet Motor
The supported voltage of this linear motion actuator is DC 12V. The powerful motor runs smoothly with reliable performance, sensitive action, and low noise (≤50dB).
Strong Actuation Force
This compact linear actuator is able to provide a strong pushing force of 900 N, with the travel speed of 0.4" (10 mm) per second. (The force and speed are inversely proportional)
Convenient Installation
The linear actuator kit comes with two U-shaped mounting brackets and several screws to help you finish your installation conveniently and quickly.
Various Applications
This multifunctional actuator is widely applied to electric medical chairs, electric lift tables, electric recliners, electric lift beds, massage chairs, etc.
- 1 x Linear Actuator
- 2 x Mounting Brackets
- 1 x Screw Set
- Stroke Length: 6"/150 mm
- Actuation Force: 900 N
- Travel Speed: 0.4"/10 mm per second
- Material: Aluminum Alloy
- Input Voltage: DC 12V
- Rated Current: 3 Amp
- Duty Circle: 25%
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (5)
Zelf besturing configureren, hebben jullie een besturing welke in en uit kan regelen?
Hallo, u moet uw eigen 12V6A-voeding en besturingsgedeelte configureren.
By vevor
Helpful
(
0
)
Is het een IP67 afdichting ?
Het is IP54.
By vevor
Helpful
(
0
)
Als de actuator in een bepaalde stand staat, blijft hij daar dan ook staan, zonder power ? (Mits belasting < 900N natuurlijk)
Ja, deze positie blijft behouden na een stroomstoring.
By vevor
Helpful
(
0
)
Hoe is de besturing van deze actuator ? Welke aansluitingen zijn er precies ?
Hiervoor moet u het besturingsgedeelte zelf configureren.
By vevor
Helpful
(
0
)
hoe zwaar is deze elektrische cilinder?
Het gewicht van dit product is 1,18 kg.
By vevor
Helpful
(
0
)
