Features & Details
- Quality Construction: The lathe chuck body is made of high-quality hardened steel, several rigorous quality tests have proved that. The wearing parts are specially designed after quenching, for greater durability and a long duration of life.
- High Precision: This metal lathe chuck is connected by a high-precision short cone, The self-centering lathe part contains a delicate bevel gear and pinion gears. They contribute to precise processing progress, and its alignment accuracy is less than or equal to 0.003" / 0.07 mm.
- 2 Sets of Jaws: This chuck includes two sets of solid steel jaws, Jaws are hardened and ground. The internal jaws are a positive L shape, and the external jaws are an inverted L shape. The clamping range of the external jaw is larger than that of the internal jaw.
- Large Clamping Range: This self-centering lathe chuck has a large clamping range, the internal clamping range is 0.12" - 2.17" / 3 - 55 mm, and the external clamping is 2.17"- 5.71" / 55 - 145 mm. Jacket jaw is adjustable and reversible independent.

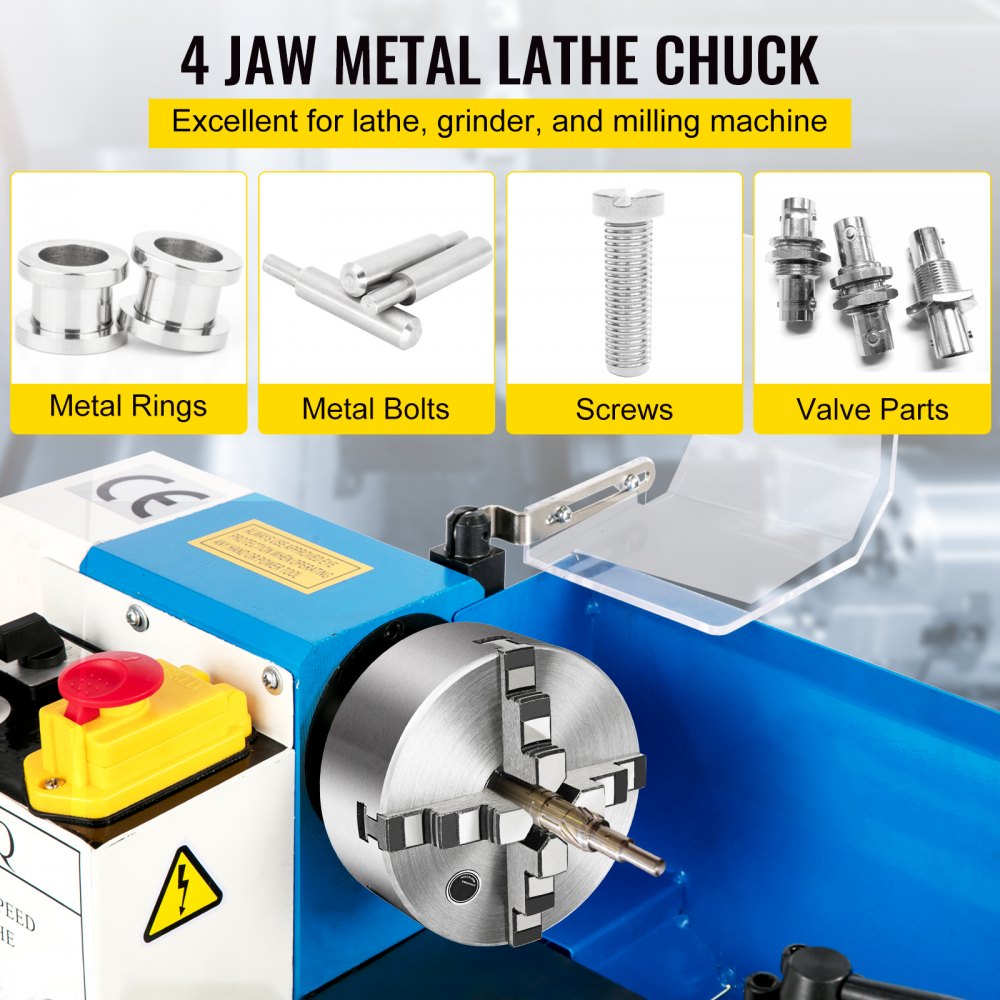

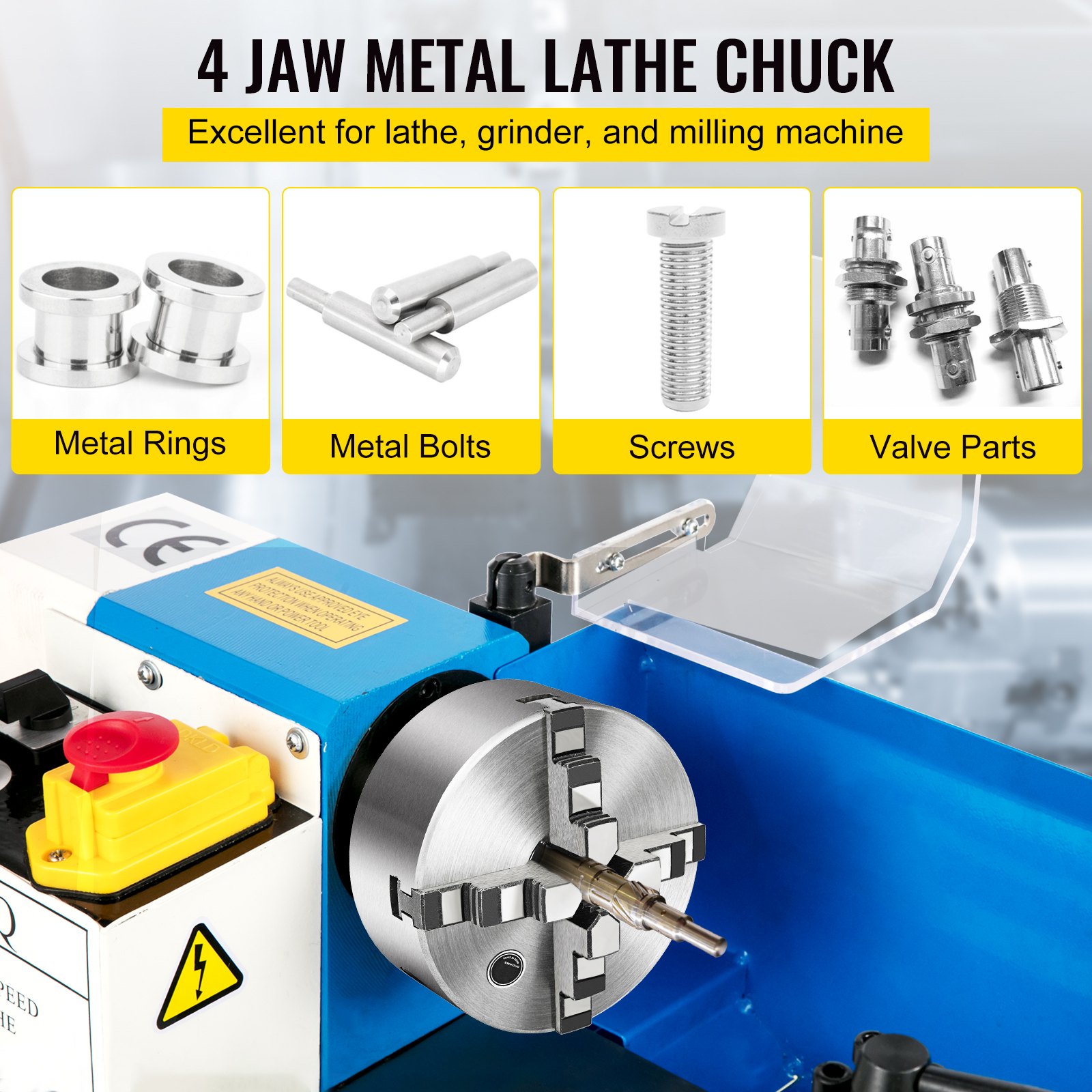

- High Adaptability: This turning chuck is highly adaptable, suitable for all kinds of general-purpose lathes, economical CNC lathes, grinders, milling machines, drilling machines, and machine tool accessories.
Frequently Bought Together
Reviews 5.0
All reviews are from verified purchases
Average rating based on 2 reviews
Reviews 5.0
All reviews are from verified purchases
See all 2 reviews
About this item
Product specification
- Size
- 6.3" / 160 mm

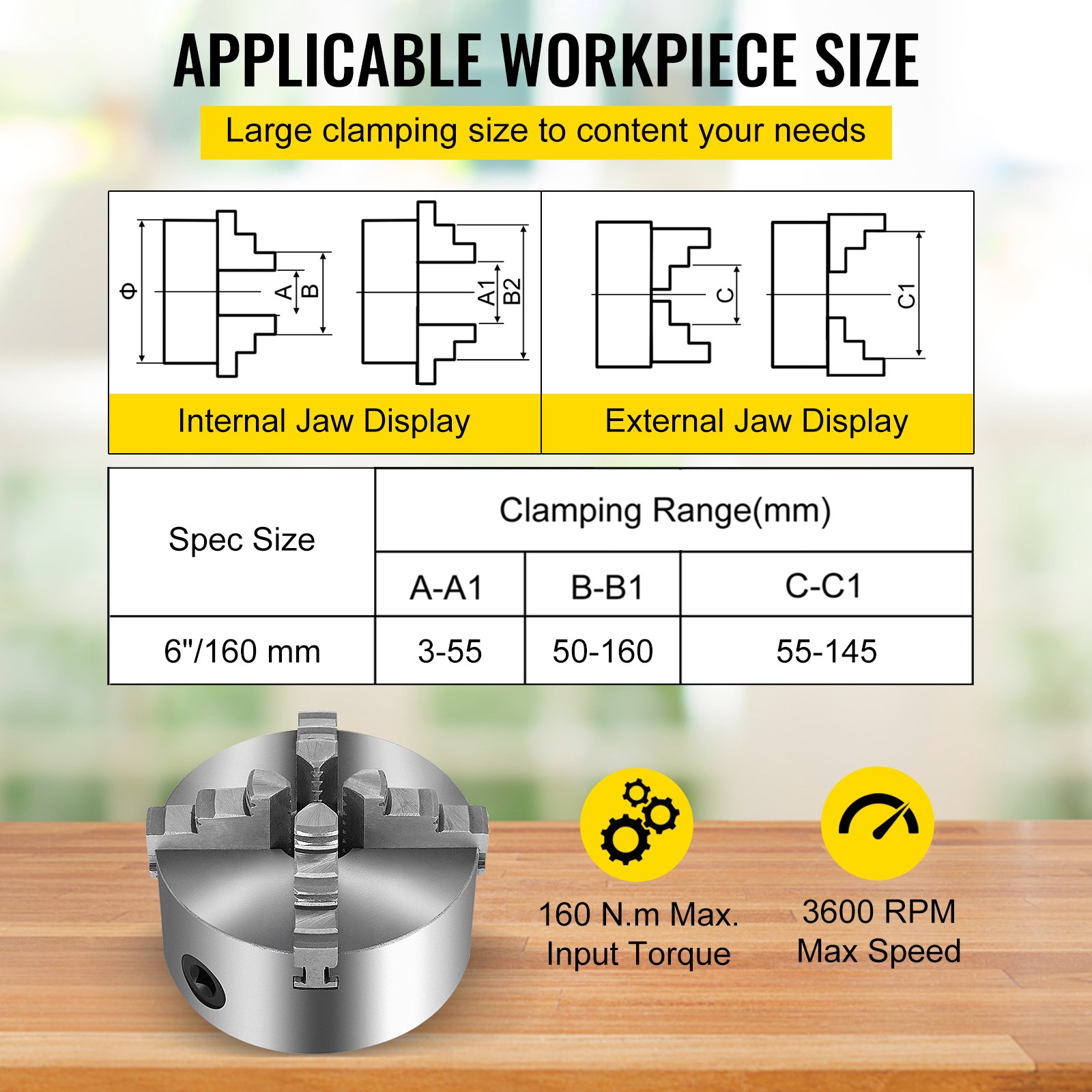

- Internal Jaw Clamping Range (A-A1)
- 0.118" - 2.17" / 3- 55 mm
- Internal Jaw Jamming Range (B-B1)
- 1.968" - 6.3" / 50 - 160 mm
- External Jaw Clamping Range (C-C1)
- 2.17" - 5.71" / 55 - 145 mm
- Number of Jaws
- 4
- Outside Diameter
- 6.3" / 160 mm
- Bolt Type
- M8
- Center Thru Hole Diameter
- 1.77" / 45 mm
- Mounting Thread
- 3-M8
- Accuracy
- 0.003" / 0.007 mm
- Max. Input Torque
- 160 N.m
- Max. Speed
- 3600 RPM
- Accuracy
- 0.003" / 0.07 mm
- Gross Weight
- 11.9 lbs / 5.4 kg
- Package Dimensions (L x W x H)
- 6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm
Description

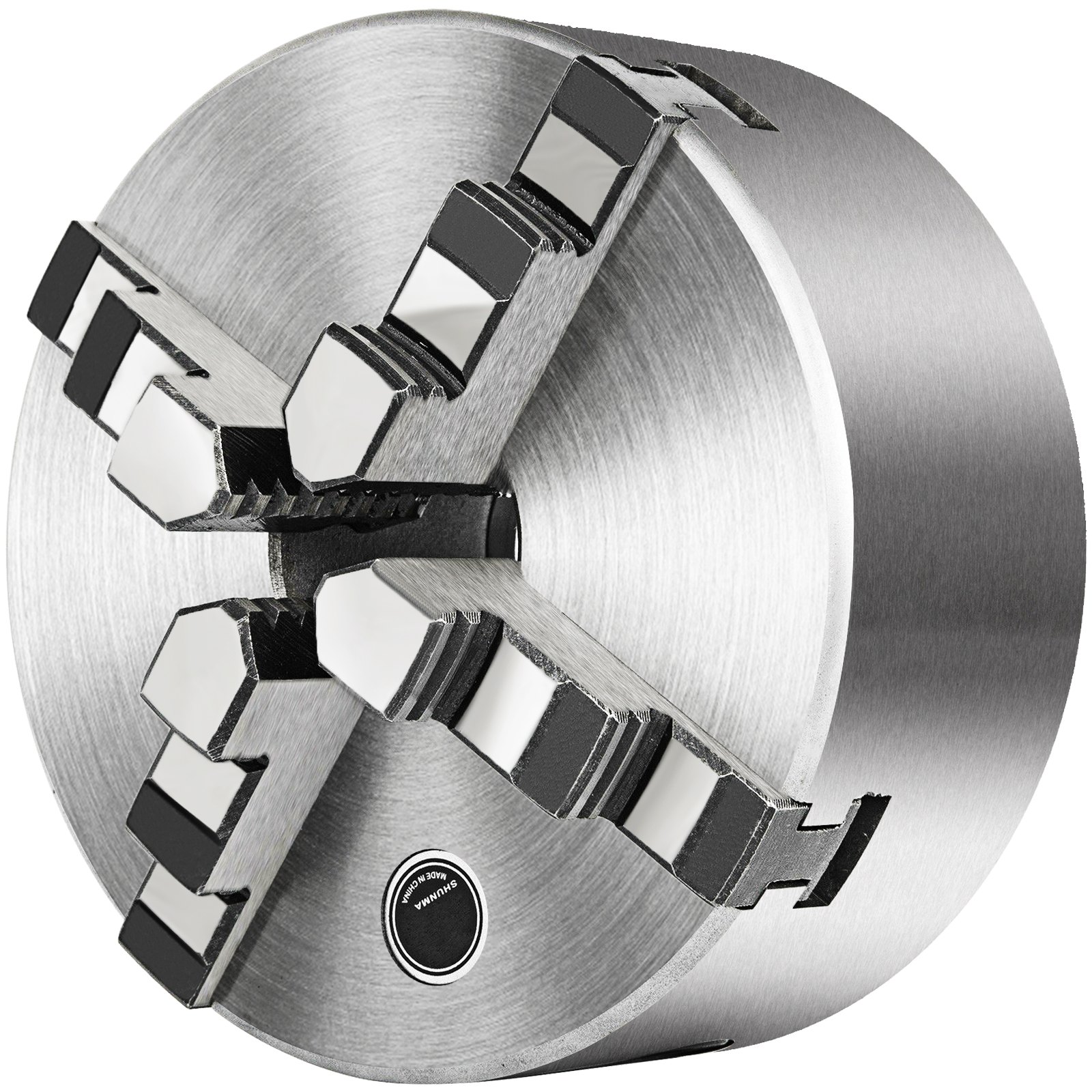

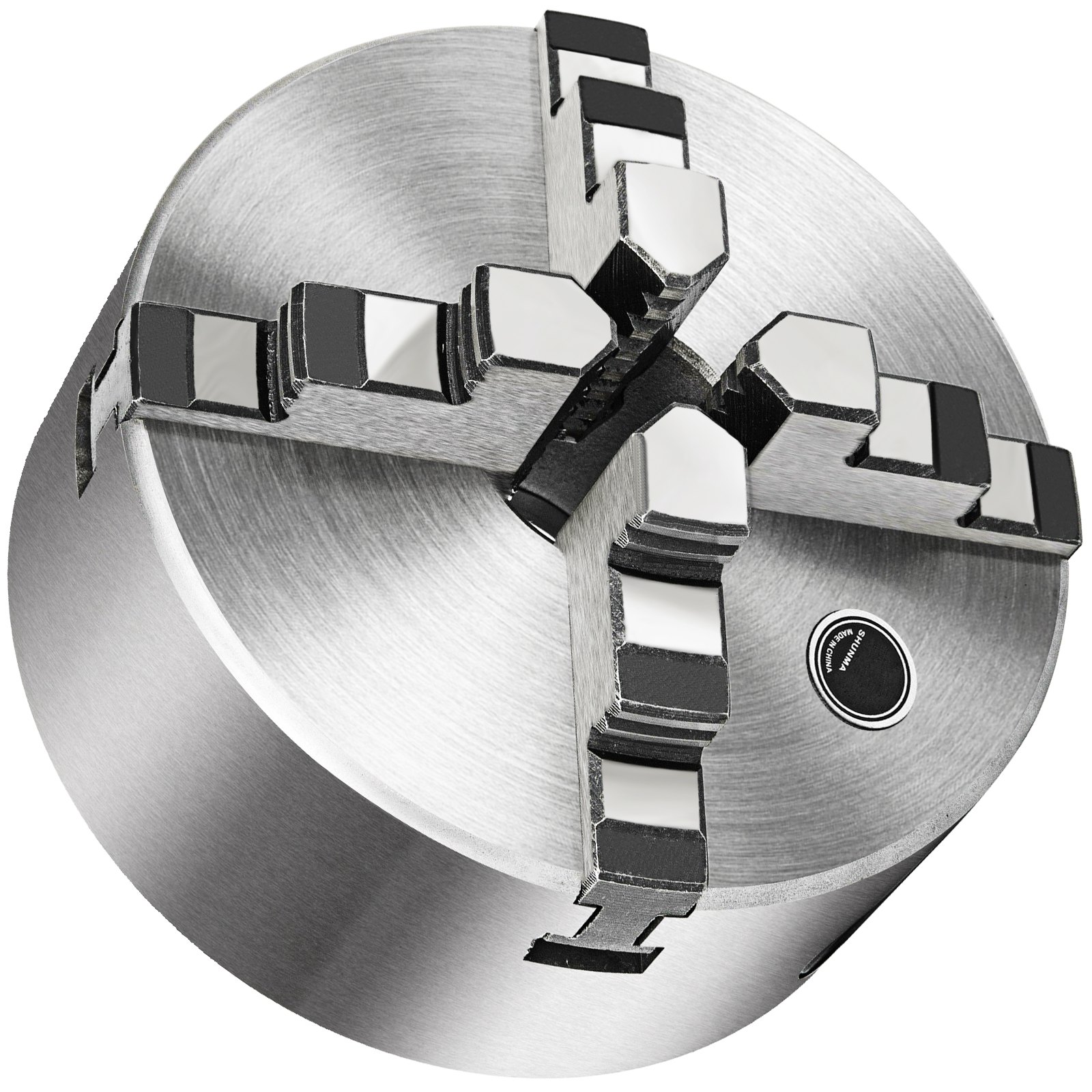

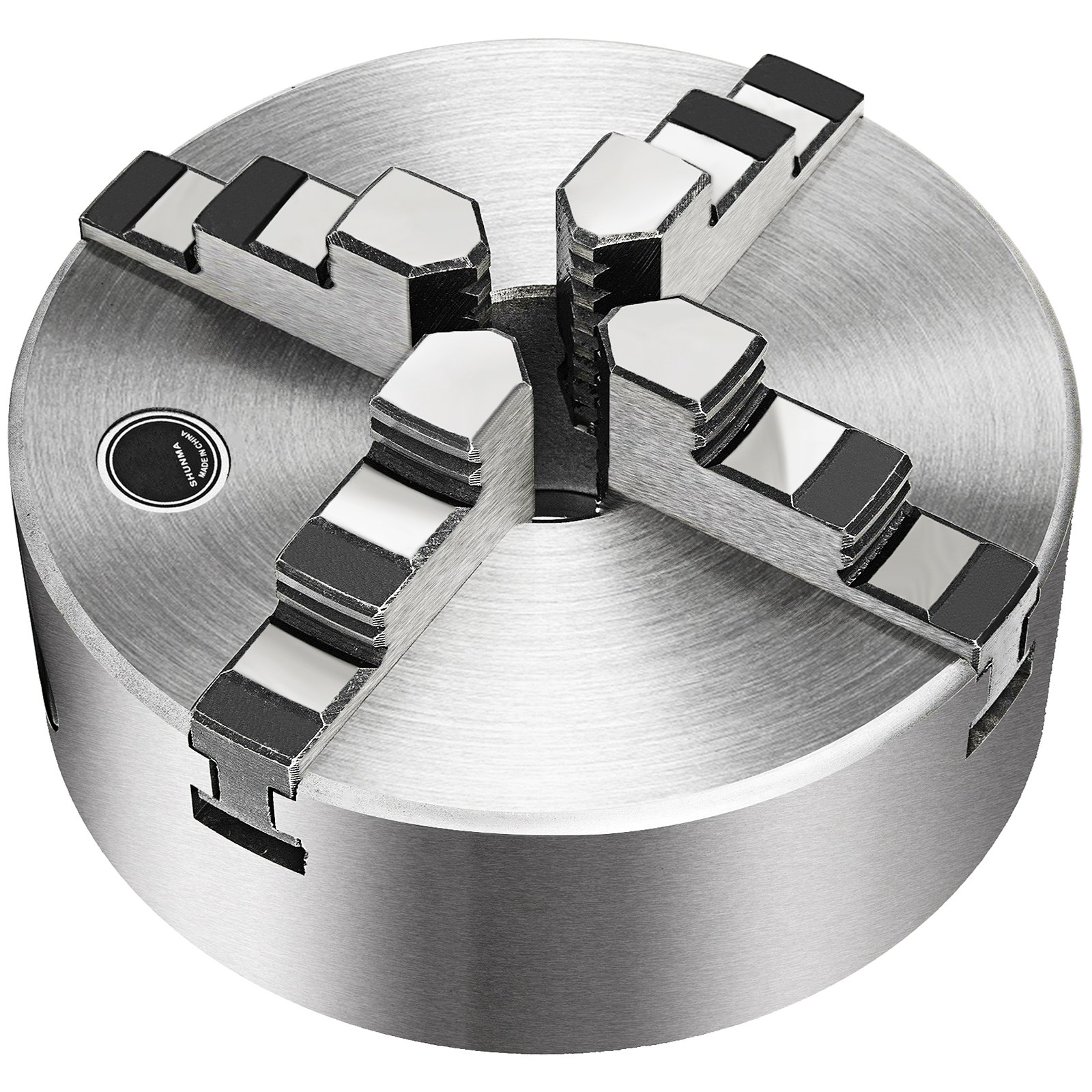

6.3" 4-Jaw Lathe Chuck with Two Sets Of Jaws
Self Centering & 0.002" Accuracy & Extra 4 Jaws
This versatile lathe chuck is made of high-quality hardened steel, compression resistance and has a long service life. This chuck is a short conical connection with high centering accuracy, good rigidity, and short overhang. This scroll chuck has two sets of internal and external jaws, which can hold industrial parts in the range of 0.12" - 6.3" / 3 - 160 mm. The 4-jaw chuck has a large clamping range and a strong clamping force, and is suitable for industrial parts with complex shapes.
- Quality Construction
- High Precision
- 2 Sets of Jaws
- Large Clamping Rang
- High Adaptability

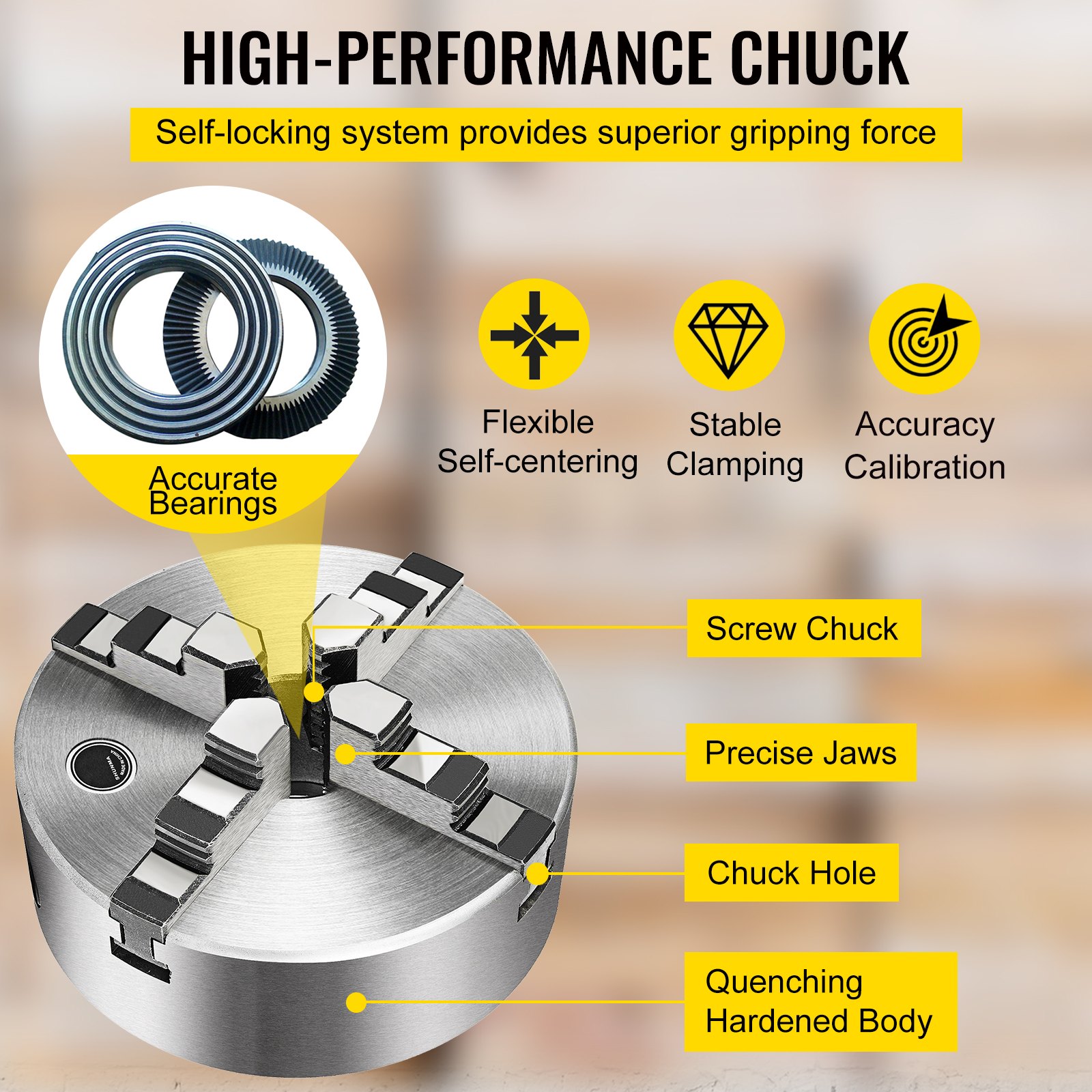

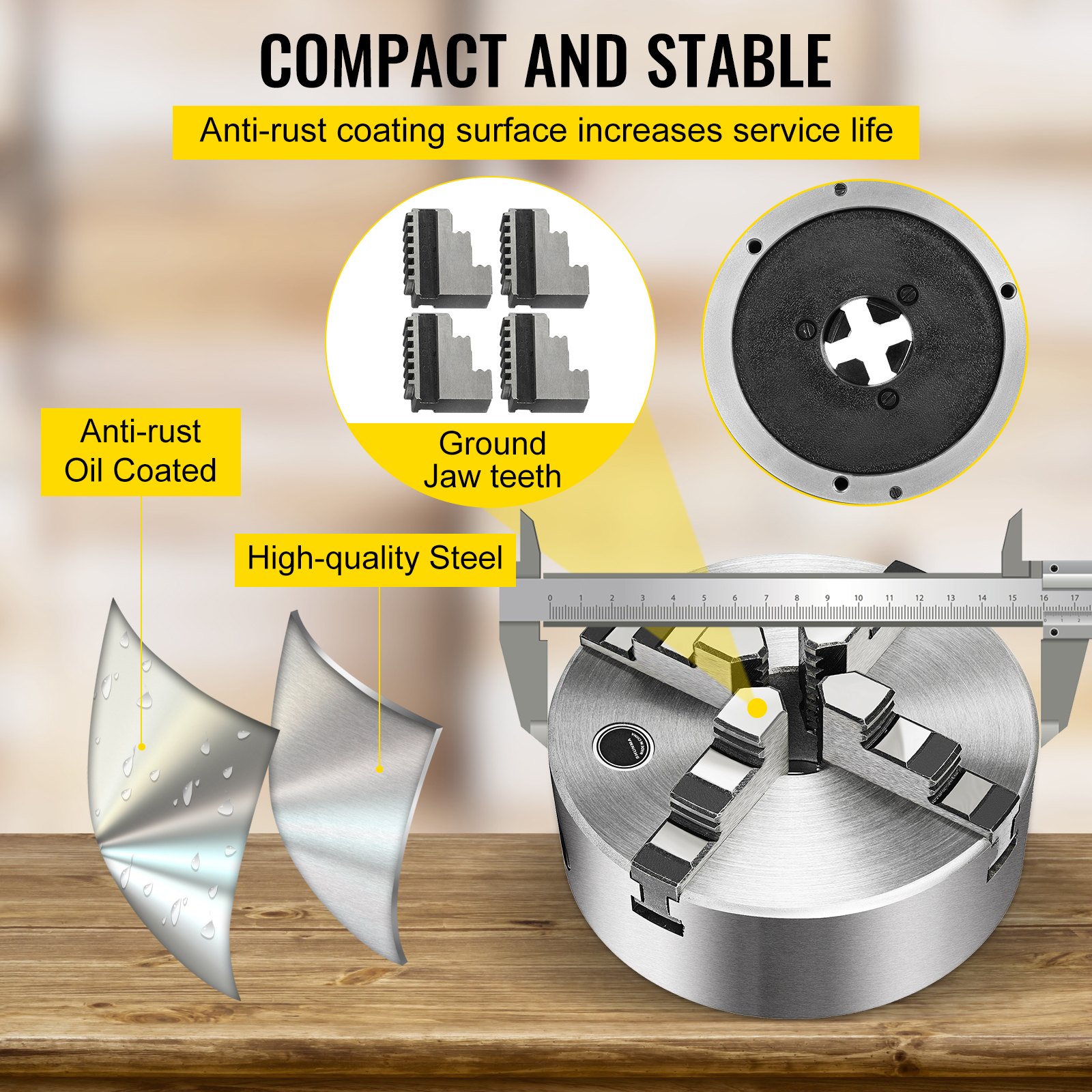

Hardened Steel
The lathe chuck body is made of high-quality steel. All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC58-62 test.

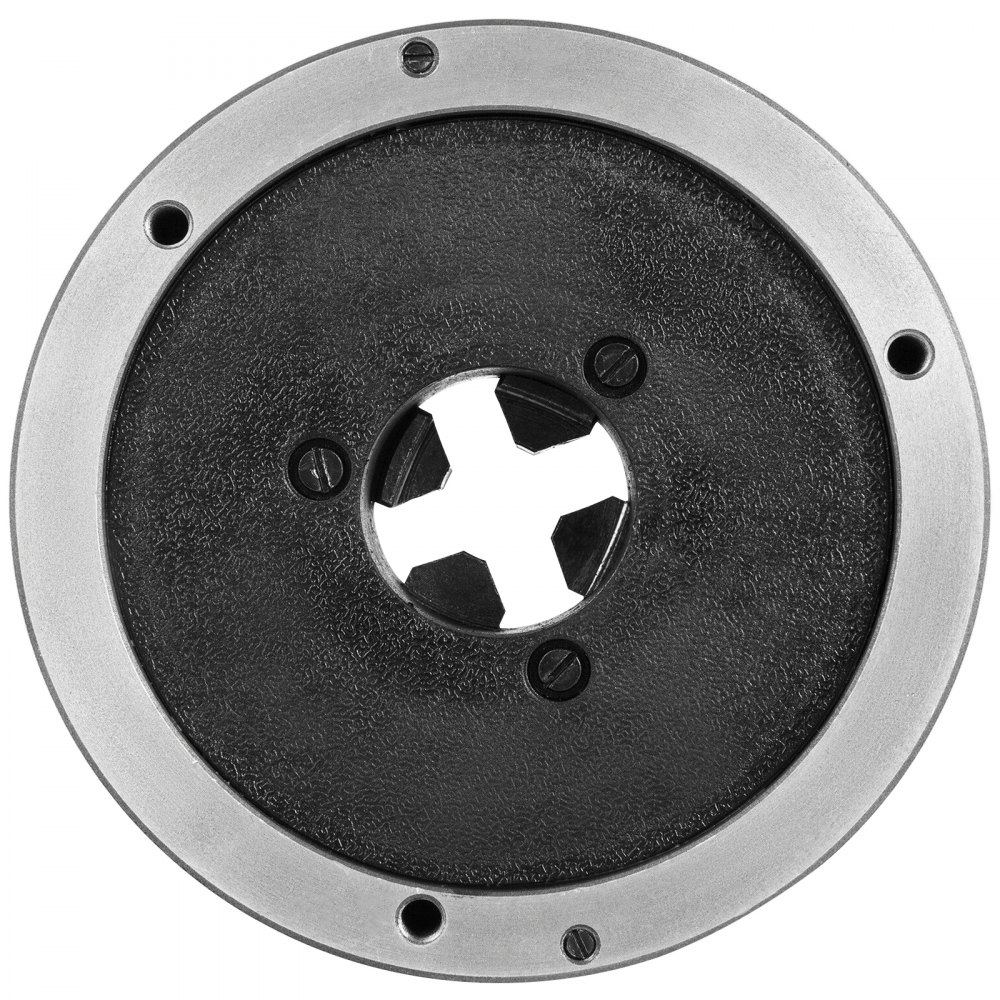

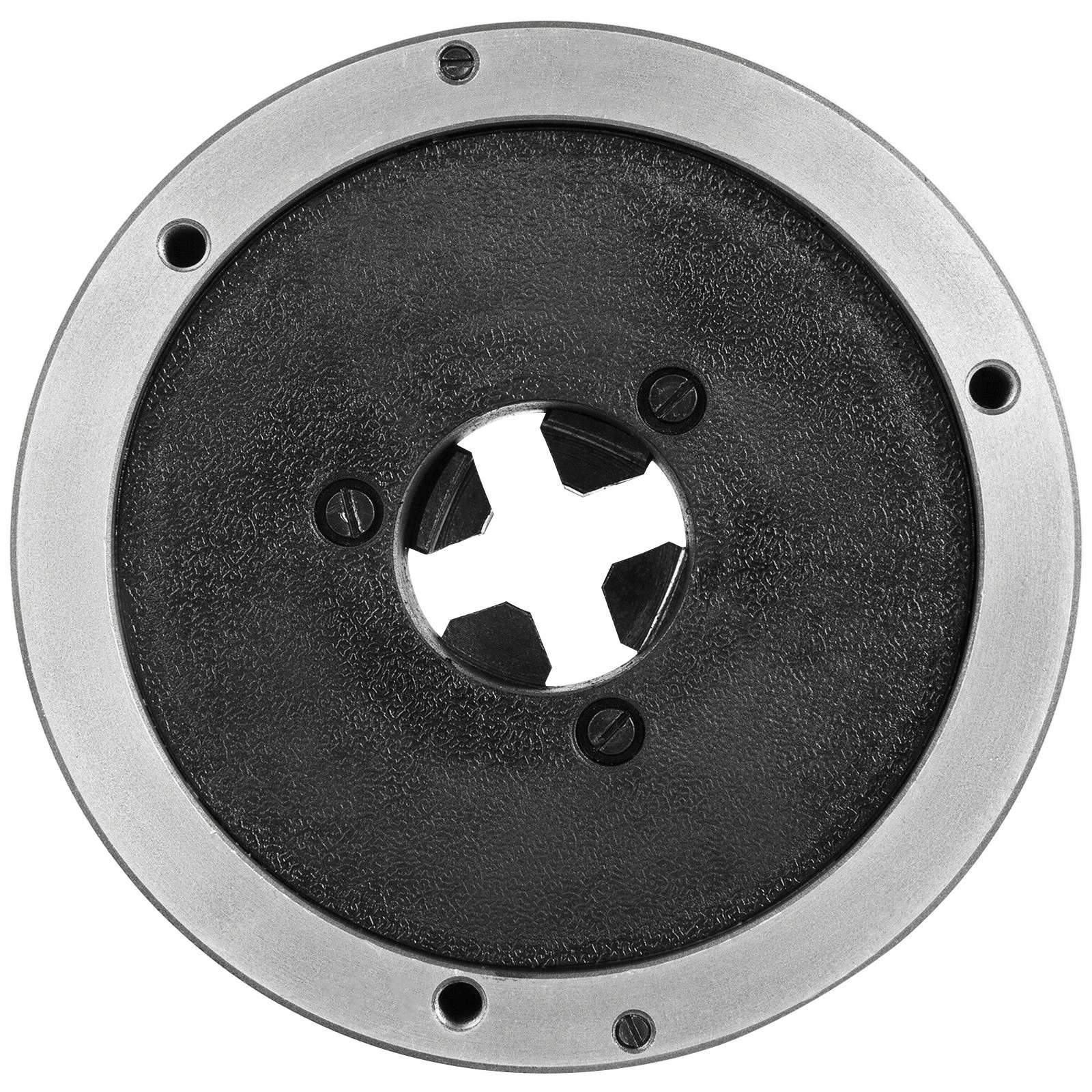

Short Cone Connection
The taper hole is designed on the gland of the chuck and assembled with the chuck body by screws to form a closed structure. Therefore, the centering accuracy is high, the rigidity is good, and the overhang is short.
Precision Bevel Gear
The bevel gear controls the precision of the power lathe chuck operation. Each time it is pulled, the position of the clamping parts is ensured to achieve the precise operation of the machine.

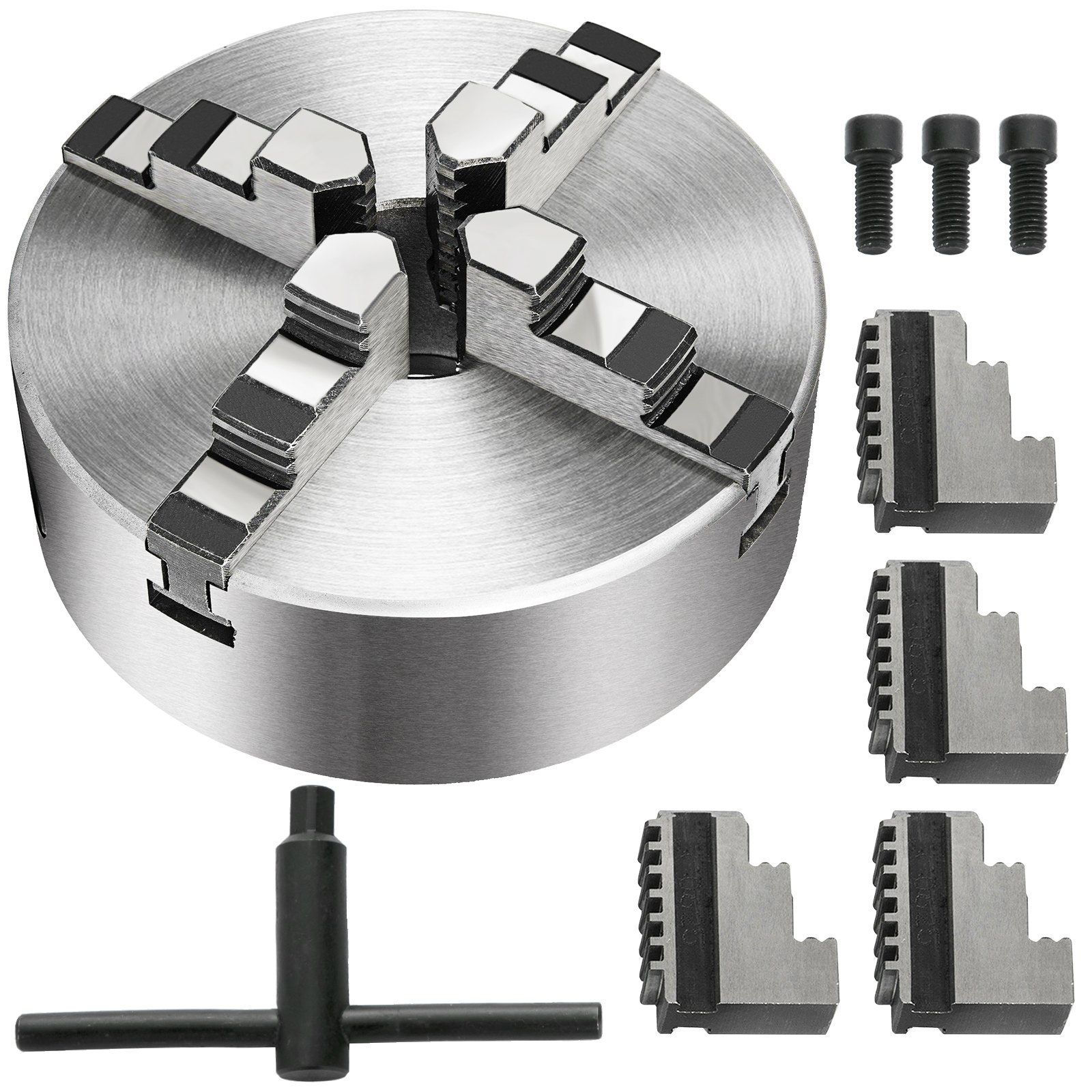

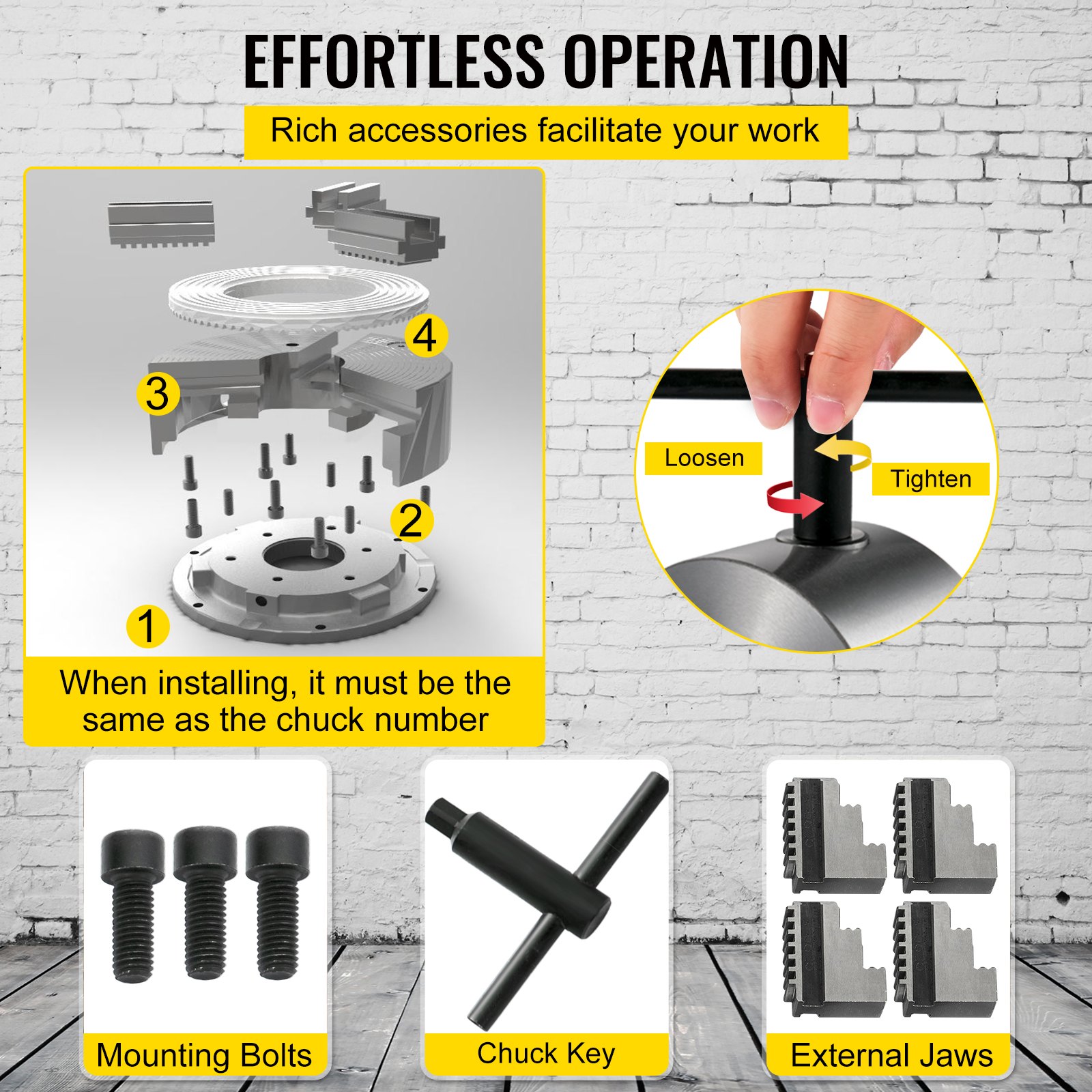

Complete Accessories
This 4-jaw lathe chuck comes with two sets of jaws, one set of solid steel internal jaws and one set of solid steel external jaws; three mounting bolts; and one security chuck key for your facilitate operation.
High Adaptability
The clamping range of this mini lathe chuck is 0.12" - 6.3" / 3 - 160 mm, which can be used to clamp a variety of irregularly shaped industrial parts.

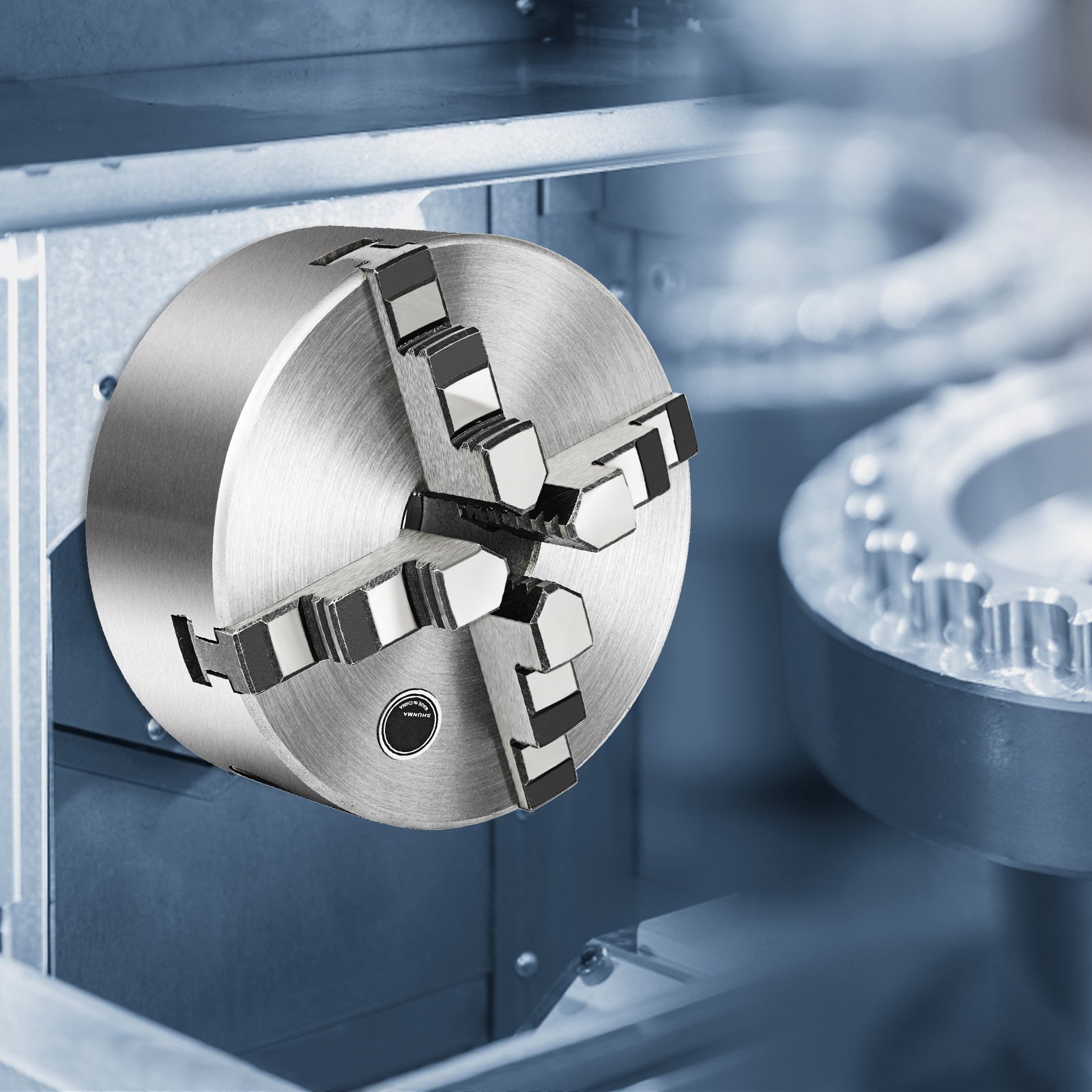

Wide Application
The scroll chuck has a large clamping range and a large clamping force, which is suitable for the work with the complicated clamping appearance.

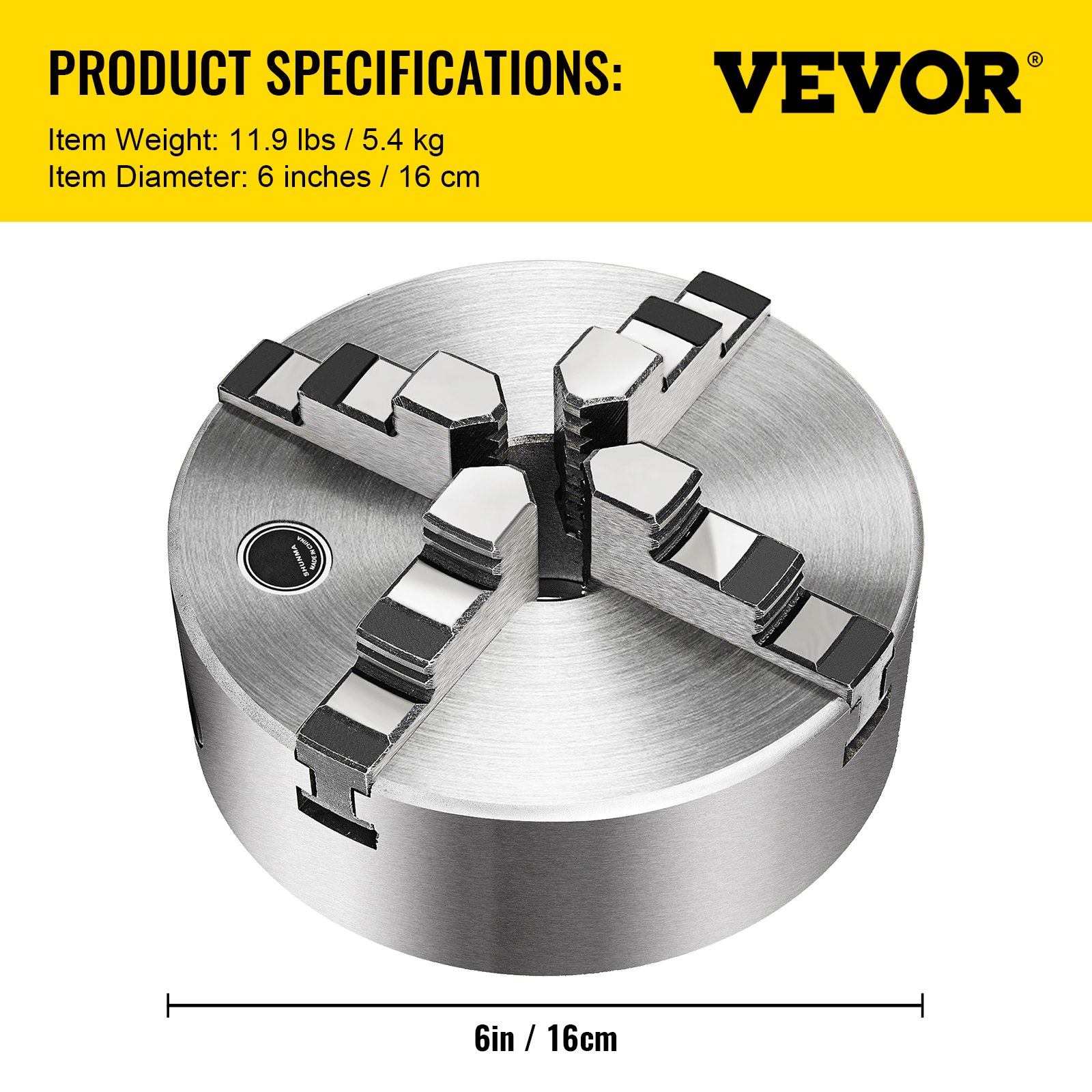

- Size: 6.3" / 160 mm
- Internal Jaw Clamping Range (A-A1): 0.118" - 2.17" / 3- 55 mm
- Internal Jaw Jamming Range (B-B1): 1.968" - 6.3" / 50 - 160 mm
- External Jaw Clamping Range (C-C1): 2.17" - 5.71" / 55 - 145 mm
- Number of Jaws: 4
- Outside Diameter: 6.3" / 160 mm
- Bolt Type: M8
- Center Thru Hole Diameter: 1.77" / 45 mm
- Mounting Thread: 3-M8
- Accuracy: 0.003" / 0.007 mm
- Max. Input Torque: 160 N.m
- Max. Speed: 3600 RPM
- Accuracy: 0.003" / 0.07 mm
- Gross Weight: 11.9 lbs / 5.4 kg
- Package Dimensions (L x W x H): 6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm
- 1 x 6.3" / 160 mm Lathe Chuck Body
- 4 x Internal Jaws
- 4 x External Jaws
- 1 x Chuck Key
- 3 x Mounting Bolts
6.3" 4-Jaw Lathe Chuck with Two Sets Of Jaws
Self Centering & 0.002" Accuracy & Extra 4 Jaws
This versatile lathe chuck is made of high-quality hardened steel, compression resistance and has a long service life. This chuck is a short conical connection with high centering accuracy, good rigidity, and short overhang. This scroll chuck has two sets of internal and external jaws, which can hold industrial parts in the range of 0.12" - 6.3" / 3 - 160 mm. The 4-jaw chuck has a large clamping range and a strong clamping force, and is suitable for industrial parts with complex shapes.
- Quality Construction
- High Precision
- 2 Sets of Jaws
- Large Clamping Rang
- High Adaptability
Hardened Steel
The lathe chuck body is made of high-quality steel. All guide rails and bearing surfaces of this jaw self-centering keyed chuck are precision-machined and have passed the HRC58-62 test.
Short Cone Connection
The taper hole is designed on the gland of the chuck and assembled with the chuck body by screws to form a closed structure. Therefore, the centering accuracy is high, the rigidity is good, and the overhang is short.
Precision Bevel Gear
The bevel gear controls the precision of the power lathe chuck operation. Each time it is pulled, the position of the clamping parts is ensured to achieve the precise operation of the machine.
Complete Accessories
This 4-jaw lathe chuck comes with two sets of jaws, one set of solid steel internal jaws and one set of solid steel external jaws; three mounting bolts; and one security chuck key for your facilitate operation.
High Adaptability
The clamping range of this mini lathe chuck is 0.12" - 6.3" / 3 - 160 mm, which can be used to clamp a variety of irregularly shaped industrial parts.
Wide Application
The scroll chuck has a large clamping range and a large clamping force, which is suitable for the work with the complicated clamping appearance.
- 1 x 6.3" / 160 mm Lathe Chuck Body
- 4 x Internal Jaws
- 4 x External Jaws
- 1 x Chuck Key
- 3 x Mounting Bolts
- Size: 6.3" / 160 mm
- Internal Jaw Clamping Range (A-A1): 0.118" - 2.17" / 3- 55 mm
- Internal Jaw Jamming Range (B-B1): 1.968" - 6.3" / 50 - 160 mm
- External Jaw Clamping Range (C-C1): 2.17" - 5.71" / 55 - 145 mm
- Number of Jaws: 4
- Outside Diameter: 6.3" / 160 mm
- Bolt Type: M8
- Center Thru Hole Diameter: 1.77" / 45 mm
- Mounting Thread: 3-M8
- Accuracy: 0.003" / 0.007 mm
- Max. Input Torque: 160 N.m
- Max. Speed: 3600 RPM
- Accuracy: 0.003" / 0.07 mm
- Gross Weight: 11.9 lbs / 5.4 kg
- Package Dimensions (L x W x H): 6.3" x 6.3" x 5.5" / 16 x 16 x 14 cm
