Features & Details

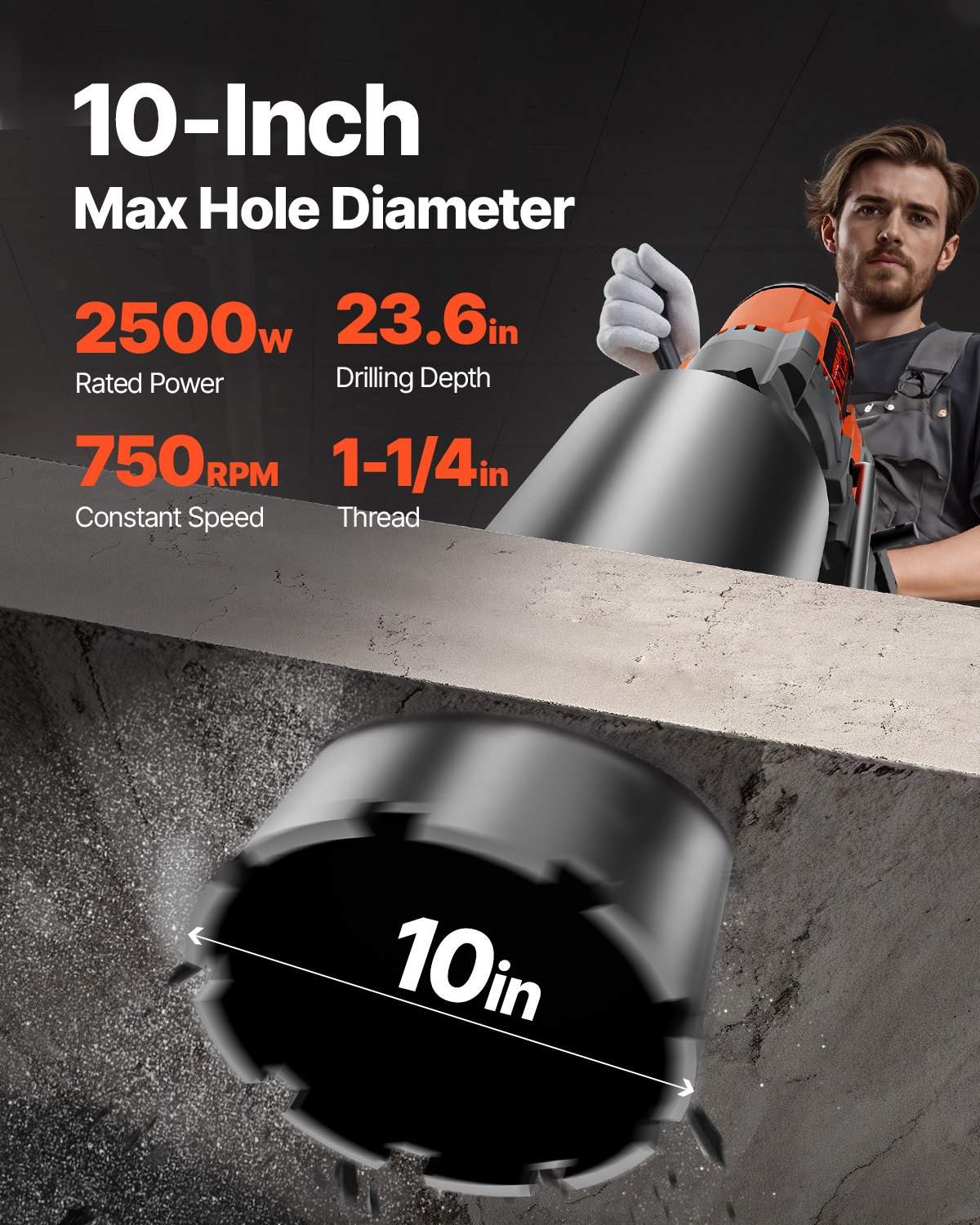

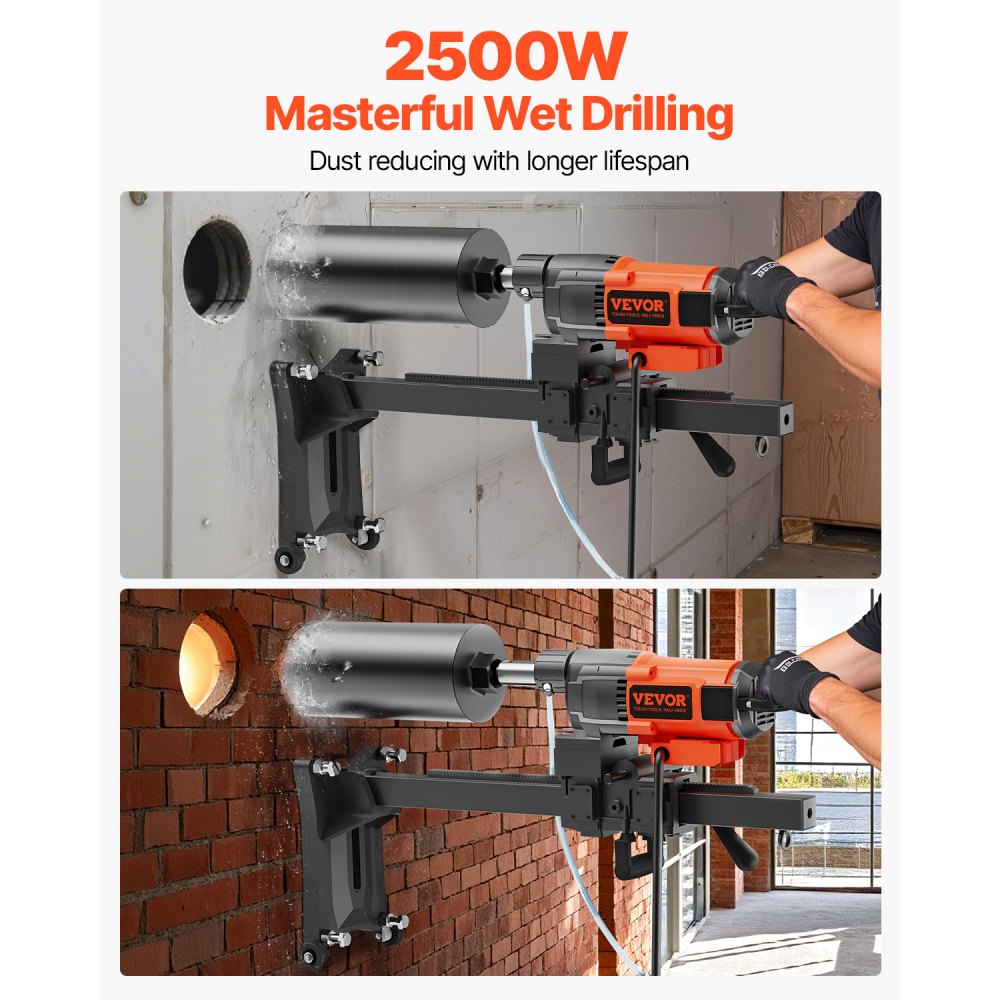

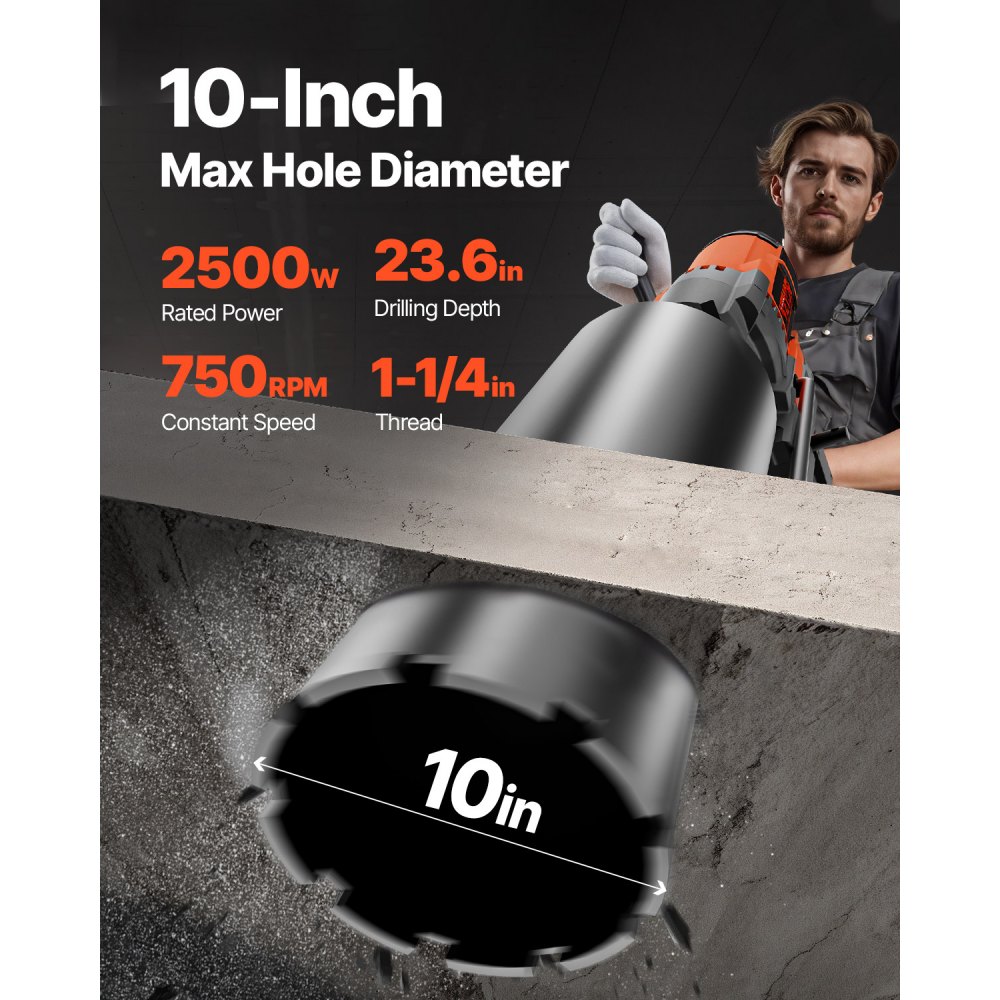

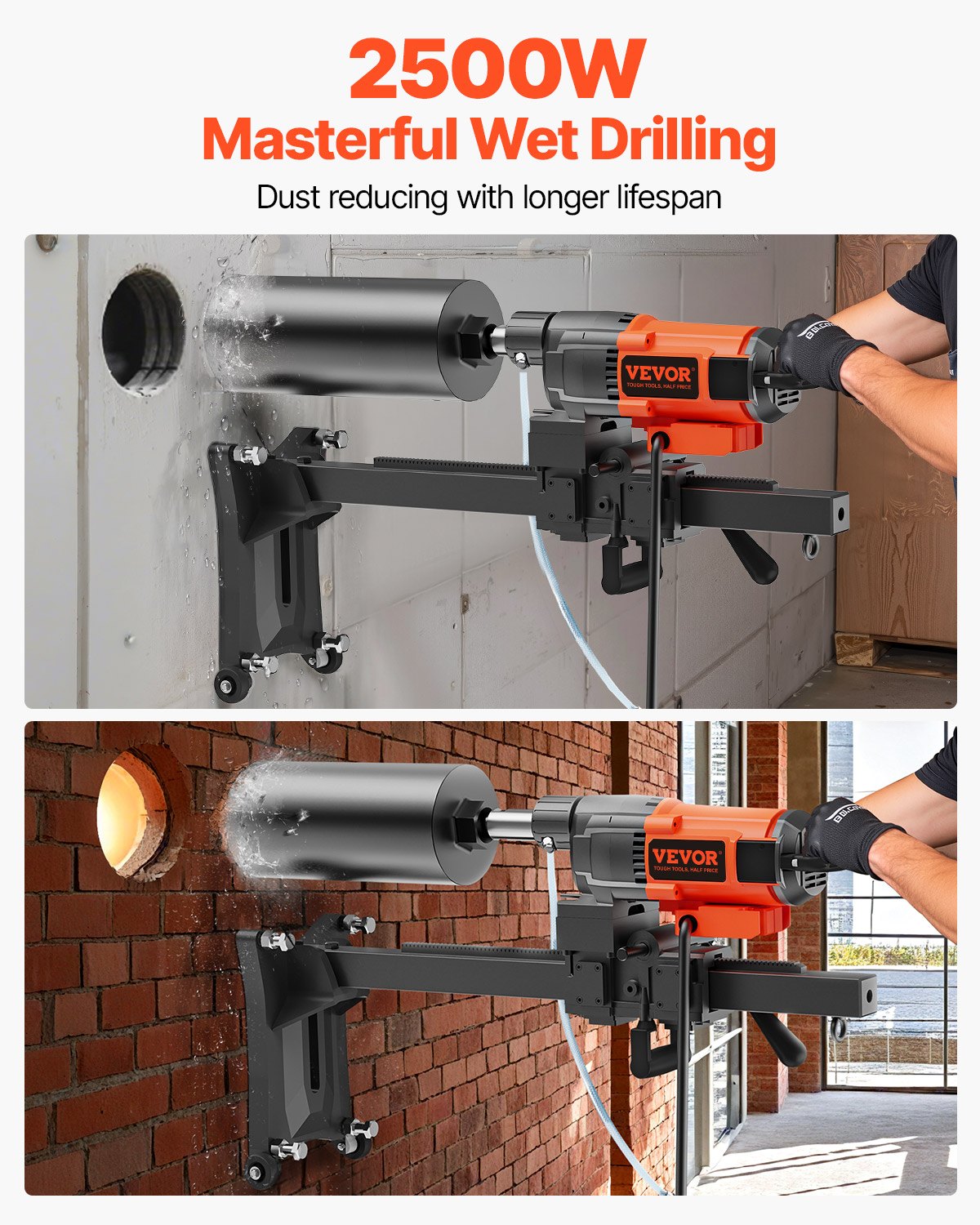

- 10-inch Wet Drilling: Our standup core drilling machine with stand can perform wet drilling, and you can feel assured of accuracy when boring holes in a variety of surfaces with a 10 in / 26 cm diameter hole capacity. Note: The drilling bit is not included.
- Capable Coring Efficiency: A 3200W powerful motor and 750RPM high-speed gearbox are intentionally taken to complete diversified drilling projects, allowing the operator to adjust based on the specific material being drilled. Max Drilling Depth: 23.62 in / 60 cm. Arbor Size: 1-1/4" Thread.
- Expertly Designed for Security: Our diamond core drill rig integrates a secure clutch with an overload protection device to work by automatically tripping when the drill bit becomes stuck or encounters resistance beyond a certain level, further reducing the risk of operator damage and injury during the operations.

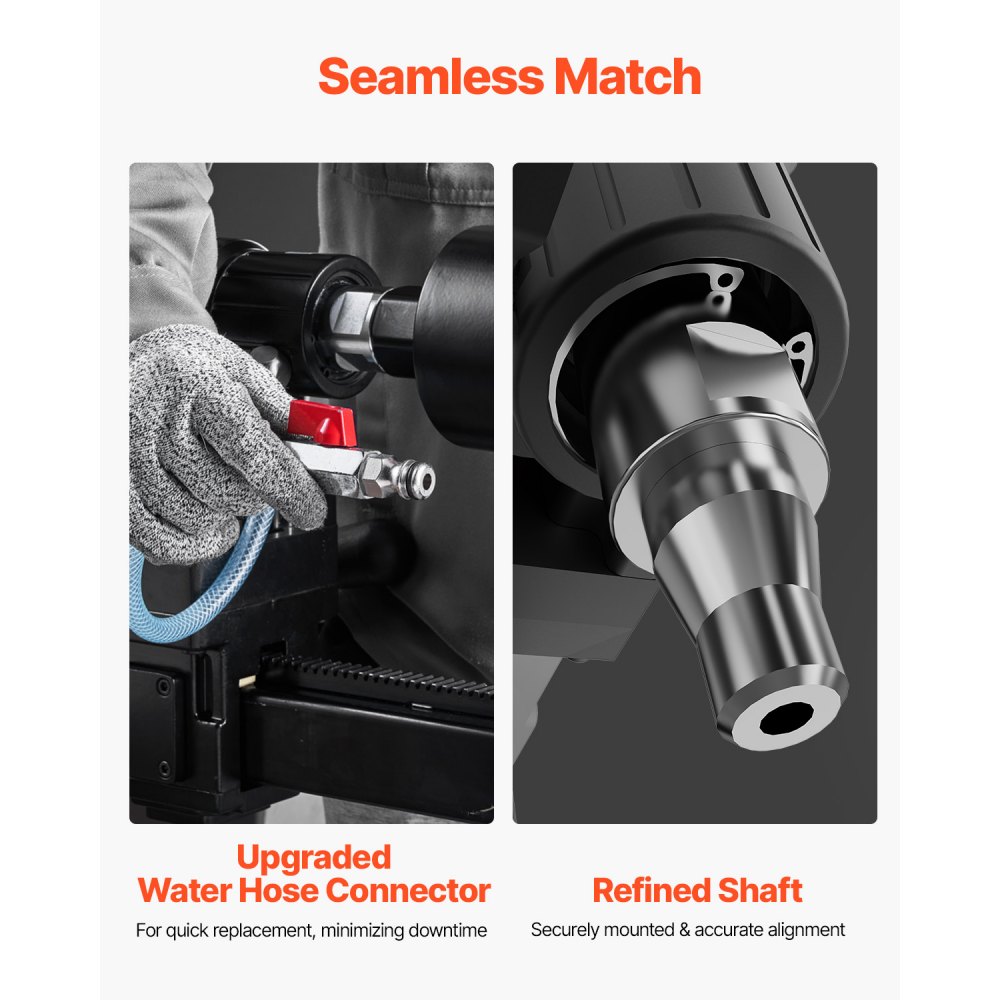

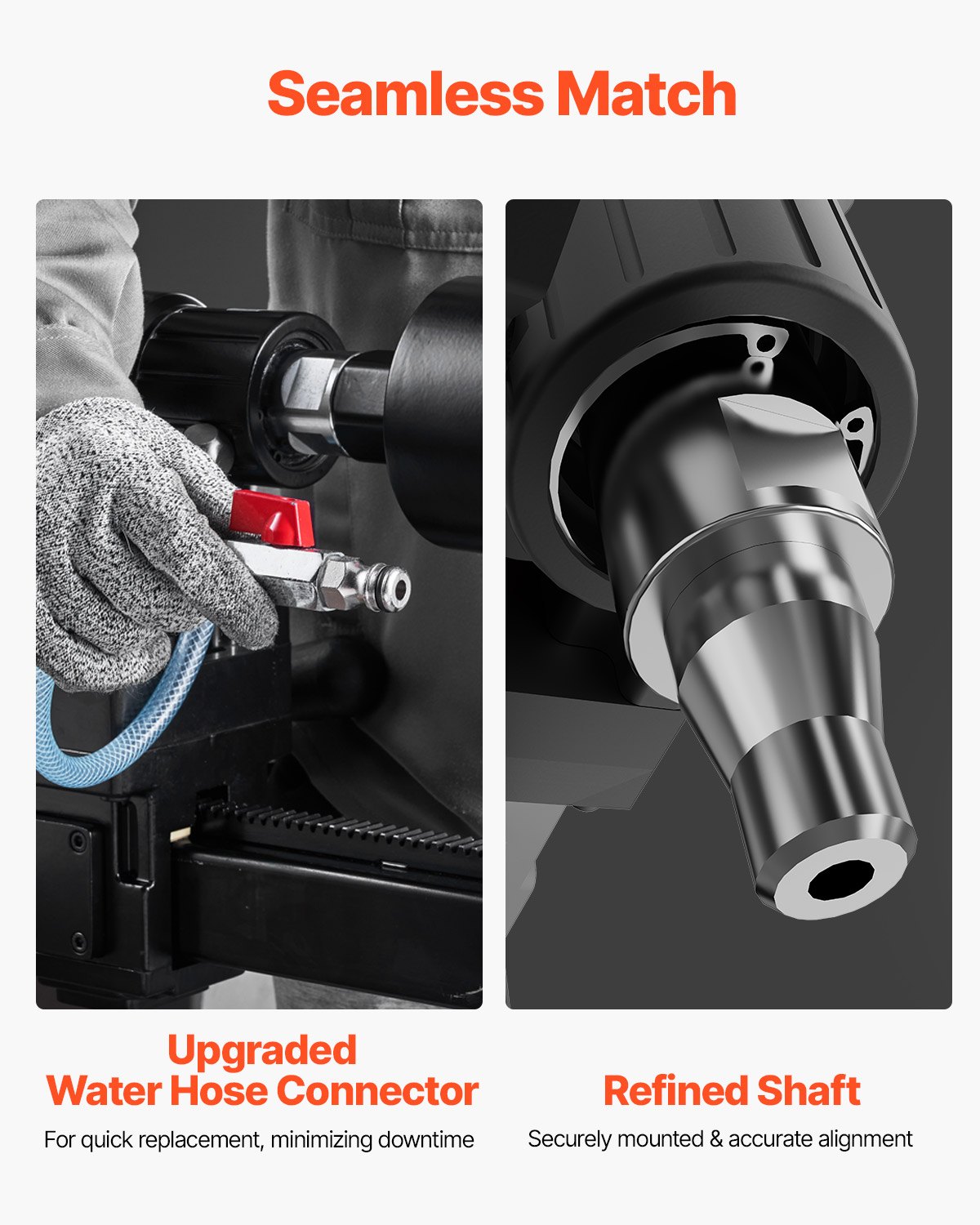

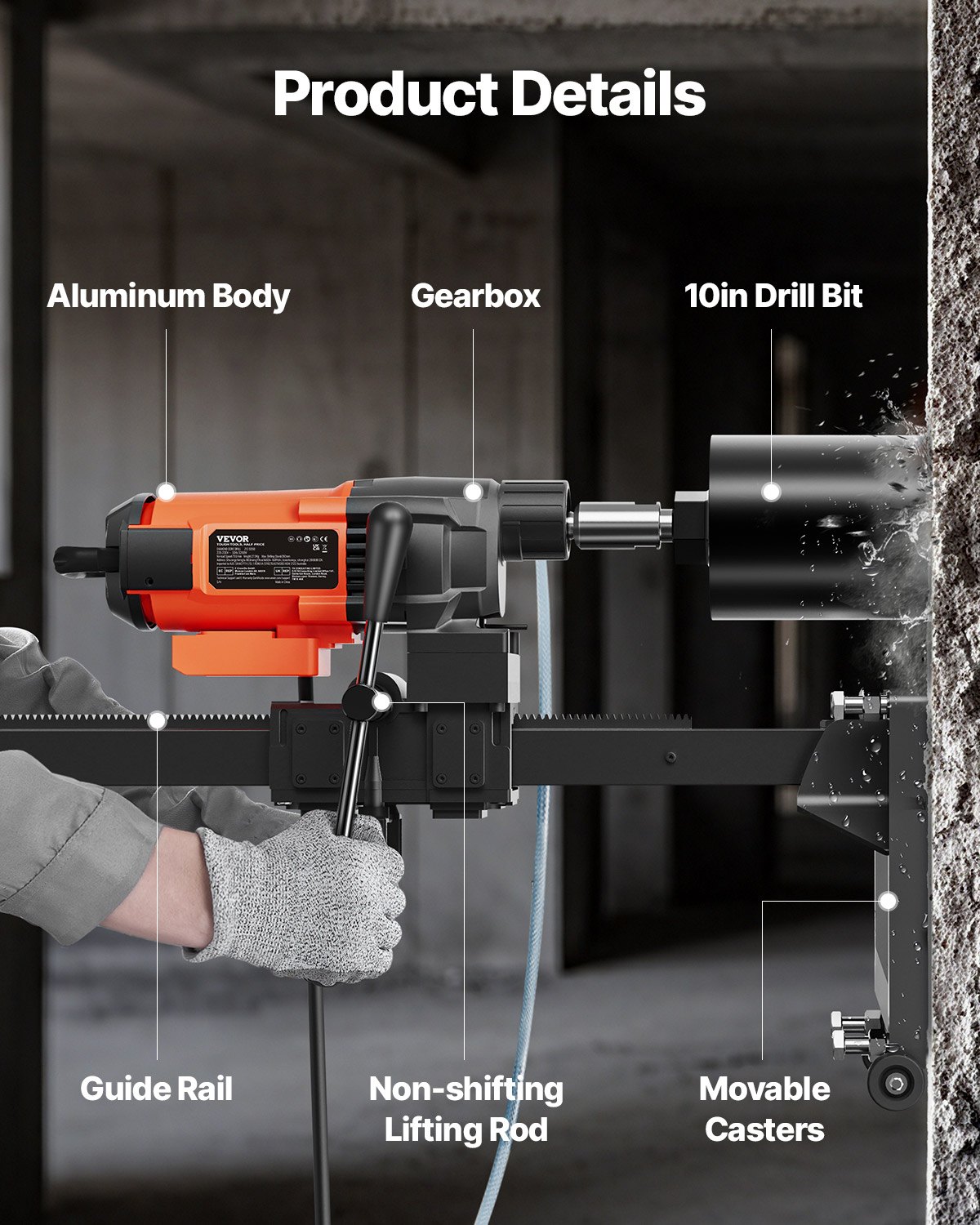

- Effortless Drilling: Our concrete core drill has a rustproof steel forged output shaft to bear more pressure, an upgraded one-touch water pipe connector for a stable water supply, and 2 caster wheels for you to move on various surfaces flexibly.

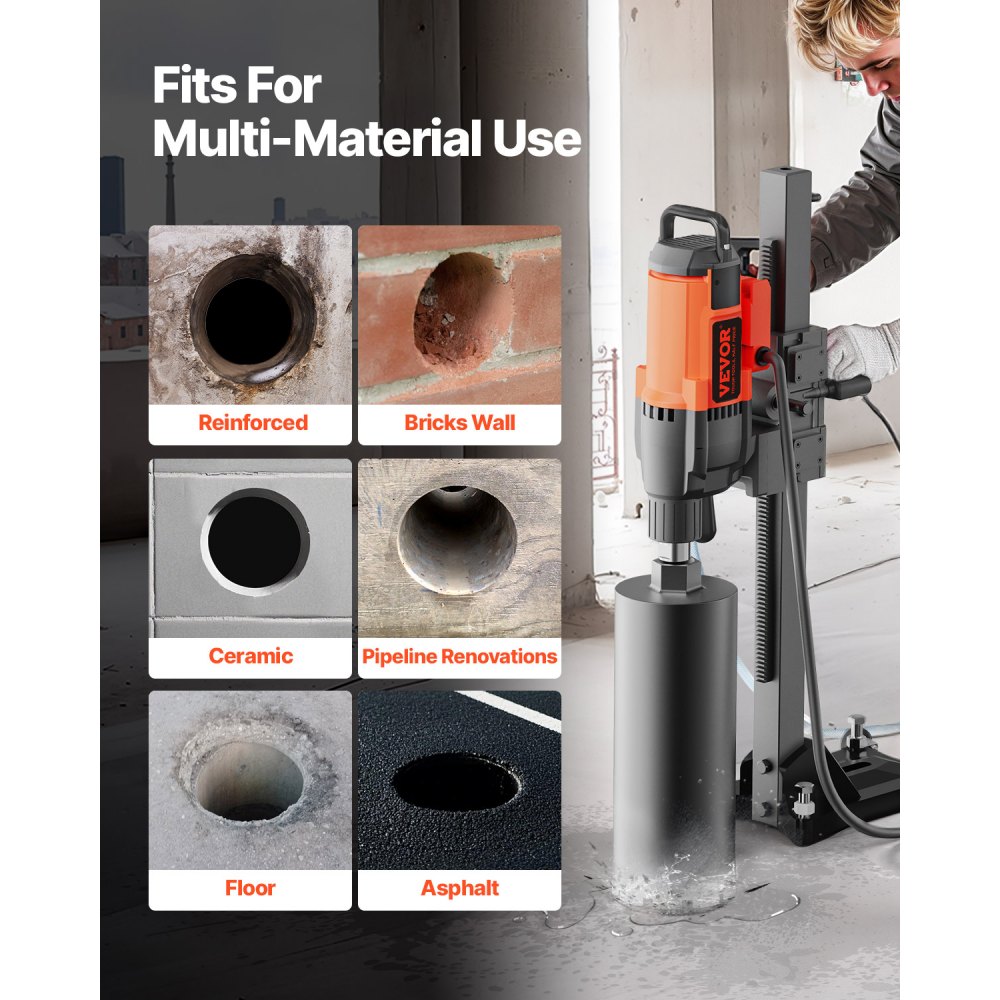

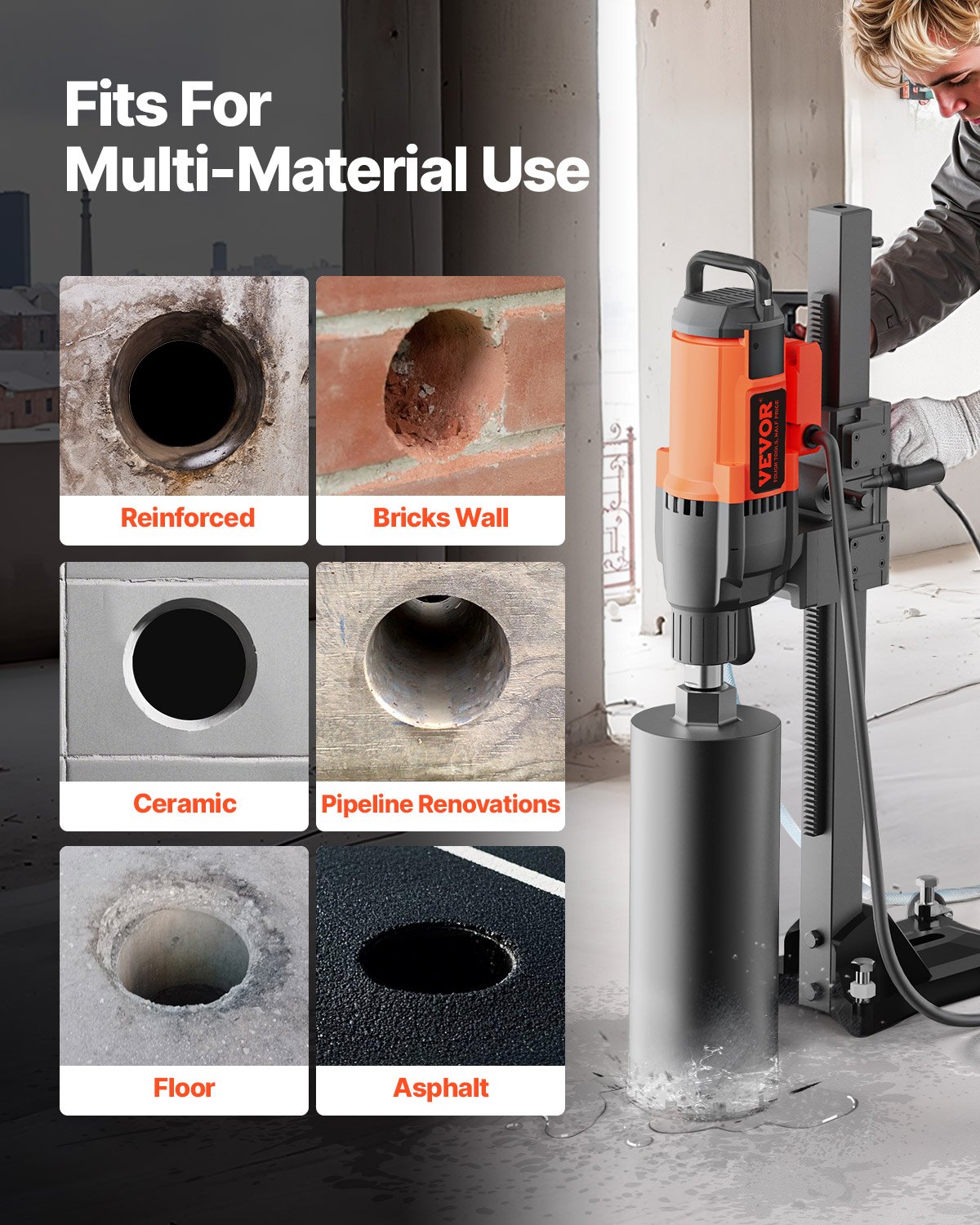

- Built for Heavy-Duty Concrete Drilling: Easy to maneuver in drilling reinforced concrete, red brick, marble, and other materials. Our wet diamond core drilling rig will surely meet professional demands and is for more than just home use, and you can quickly install air conditioners, kitchen pipes, stair railings, repair highways, etc.
Frequently Bought Together
Reviews 4.8
All reviews are from verified purchases
Average rating based on 28 reviews
Reviews 4.8
All reviews are from verified purchases
See all 28 reviews
About this item

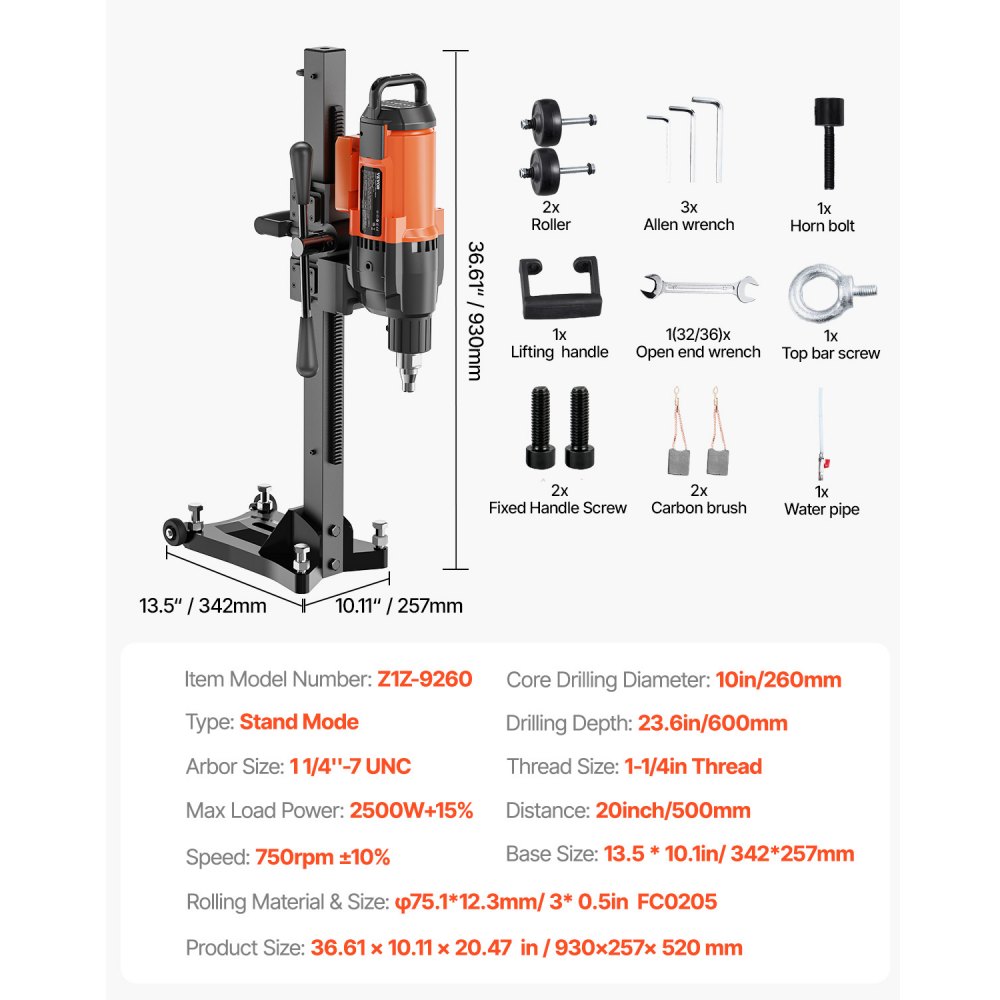

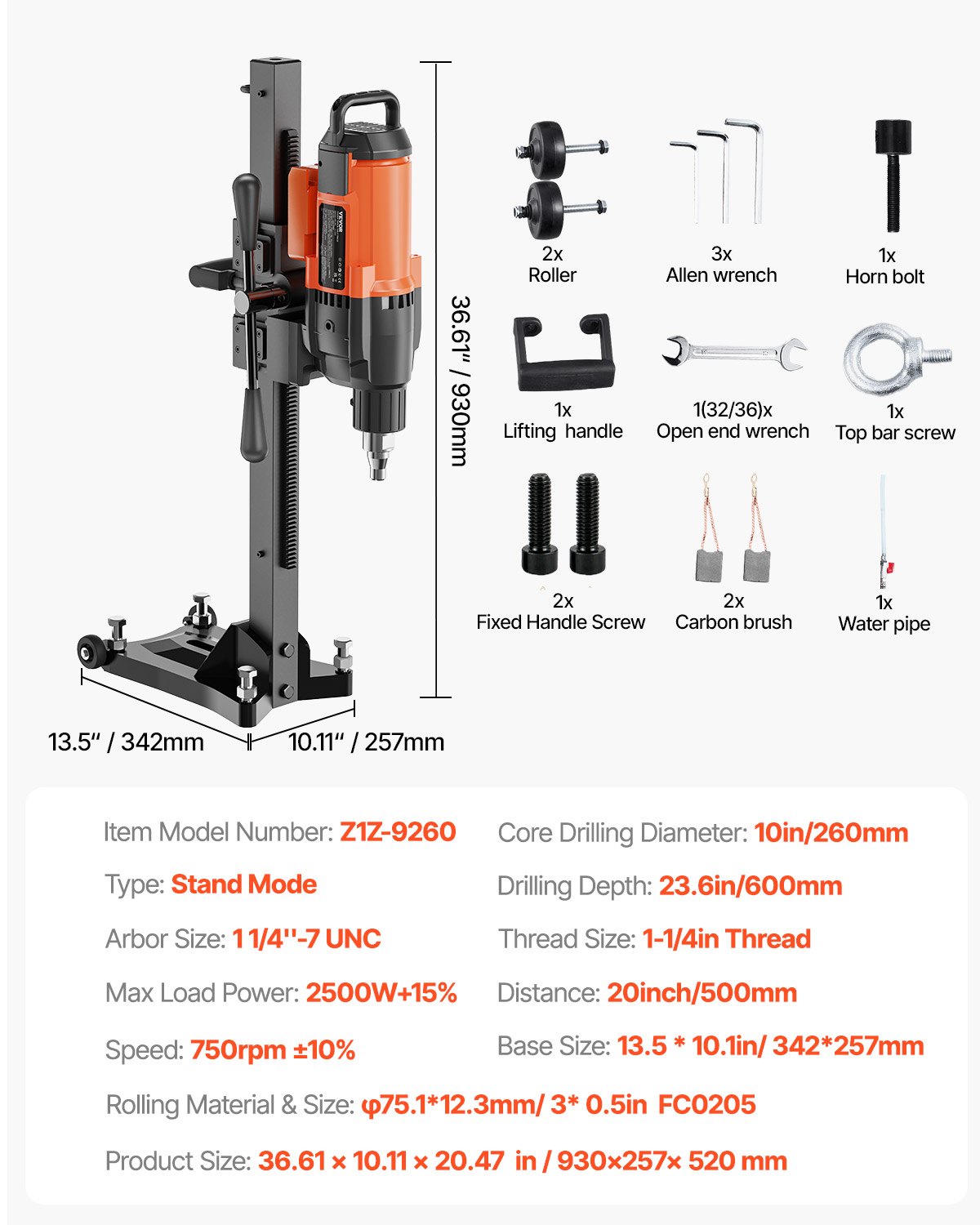

Product specification
- Item Model Number
- Z1Z-9260
- No-load Power
- 1630W
- Rated Power
- 3200W
- Speed
- 750RPM
- Drilling Diameter
- 10 in / 26 cm Max
- Drilling Depth
- 23.62 in / 60 cm Max
- Arbor Size
- 1-1/4" Thread
- Drilling Method
- Wet Drilling
- Product Size
- 36.61 x 10.11 x 20.47 in / 93 x 25.7 x 52 cm
- Net Weight
- 61.5 lbs / 27.9 kg
Description

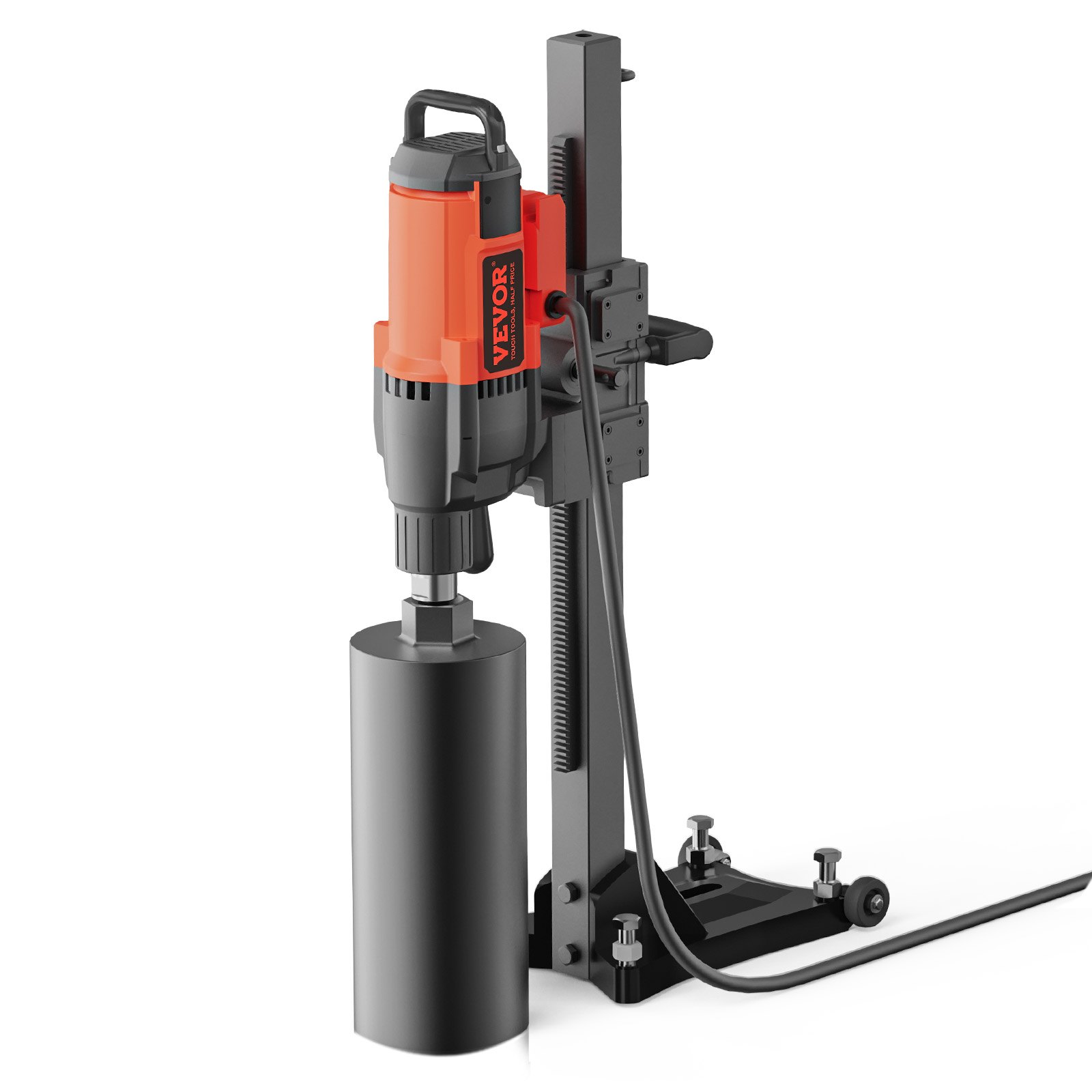

10-inch Electric Core Drill Machine
Our diamond wet drilling machine is suitable for plumbing, electrical, HVAC, and construction projects. The heavy-duty but lightweight design combined with caster wheels makes it easy to move and tackle a variety of materials, such as concrete, red brick, marble, etc.
The 3200W robust motor easily loosens the reinforced concrete wall with a rotary speed of 750RPM, widely used in road construction, home decoration, and Routine maintenance activities.
As the machine will work upside down, so water would unavoidable flow on to the drill machine. In this case, our drilling rig has a rustproof steel forged output shaft and quick-insert water pipe connector for a long-lasting water supply.
When the safety clutch is activated, it disengages the drill motor from the core bit, preventing the drill bit from rotating and reducing the risk of injury or damage to the machine.

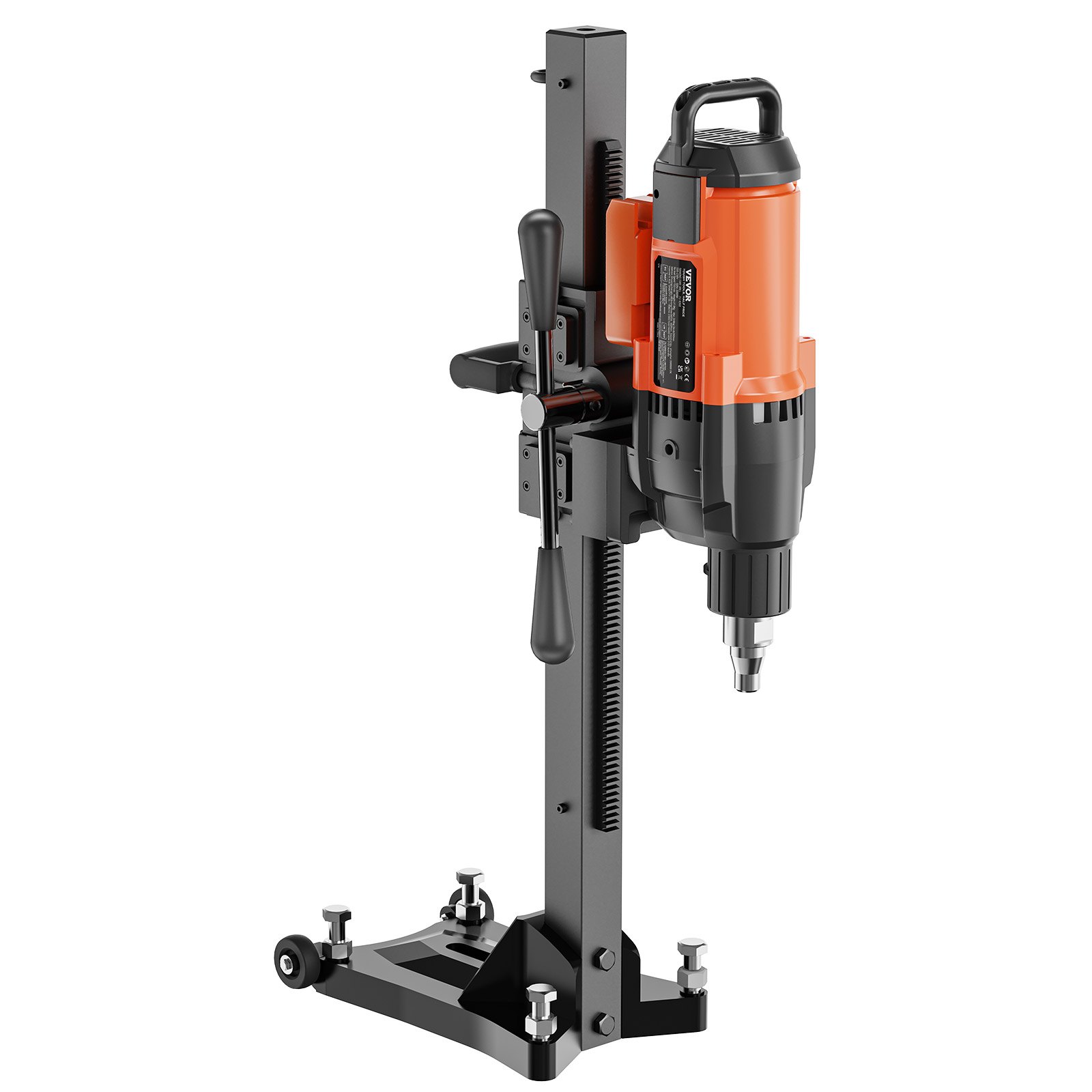

Smooth alloy base support is lighter and steadier. It also means higher accuracy, good durability, and longer lifespan.
Product guides and documents
User manual-en (PDF) Review
Questions and Answers (1)
Hello. I want to ask if the support bracket is removable or not?
The support of the product can be disassembled. The drilling rig cannot be used alone and needs to be used with support.
