Name: VEVOR 48V DC 1800 Watt Electric brushless Motor with Controller & Charger 9 Tooth T8F Chain Sprocket and Mounting Bracket for Go Karts Scooters & E-bike
Brand: VEVOR
SKU: ZLDJ1800W48VWKC01V0
Price: 133.99 EUR
Availability: OutOfStock
Rating: 4.7 (7 reviews)

VEVOR 48V DC 1800 Watt Electric brushless Motor with Controller & Charger 9 Tooth T8F Chain Sprocket and Mounting Bracket for Go Karts Scooters & E-bike

133.99€

133.99

Price including VATSee details

Save up to 15% with PRO price. Sign up for free PRO Account.

About this item

Fundamental Parameters: This brushless go kart motor is powerful and efficient. Input Voltage: 48V DC, Output Power: 1800W, Rated Current: 33A, Rated Speed: 4500 RPM, Maximum Speed: 5200 RPM, Sprocket: T8F-9T,Maximum Current: 37.5A. Package includes: 1 x Brushless DC Motor, 1 x Controller, 1 x Charger, 2 x Wrench, 1 x Screw Set.
1800W Brushless Motor: The dc electric go kart brushless motor adopts a 100% copper core for low noise operation and excellent speed regulating performance. The high-precision rotor features high-tech components, a clean finish for water resistance, and high working efficiency. Get ready to leave the competition in the dust.
Sturdy Aluminum Construction: The electric brushless dc motor kit features an aluminum alloy shell that resists heat, cold, and deformation, ensuring it will not rust easily. This dc electric motor is a forward and backward rotation motor so that you can switch rotation gears effortlessly.
Speed Controller Included: This dc electric motor brushless comes with a controller to provide speed control at a desirable range, speed adjustment method: Potentiometer. Model: BY15WF01-A, Current: 33A, Phase Degree: 120°, Conversion Efficiency: 90%, Under Voltage Protection Voltage: 41±0.5V.
Multiple Application: The brushless motor outshines the brushed motor due to its high efficiency, power conservation, low noise, long lifespan, and stable operation. It is suitable for go karts, scooters, e-bikes, ATVs, motorized bicycles, mopeds, mini bikes, pocket bikes, etc. Get up to speed with a brushless motor.

See More See Less

VEVOR 48V DC 1800 Watt Electric brushless Motor with Controller & Charger 9 Tooth T8F Chain Sprocket and Mounting Bracket for Go Karts Scooters & E-bike

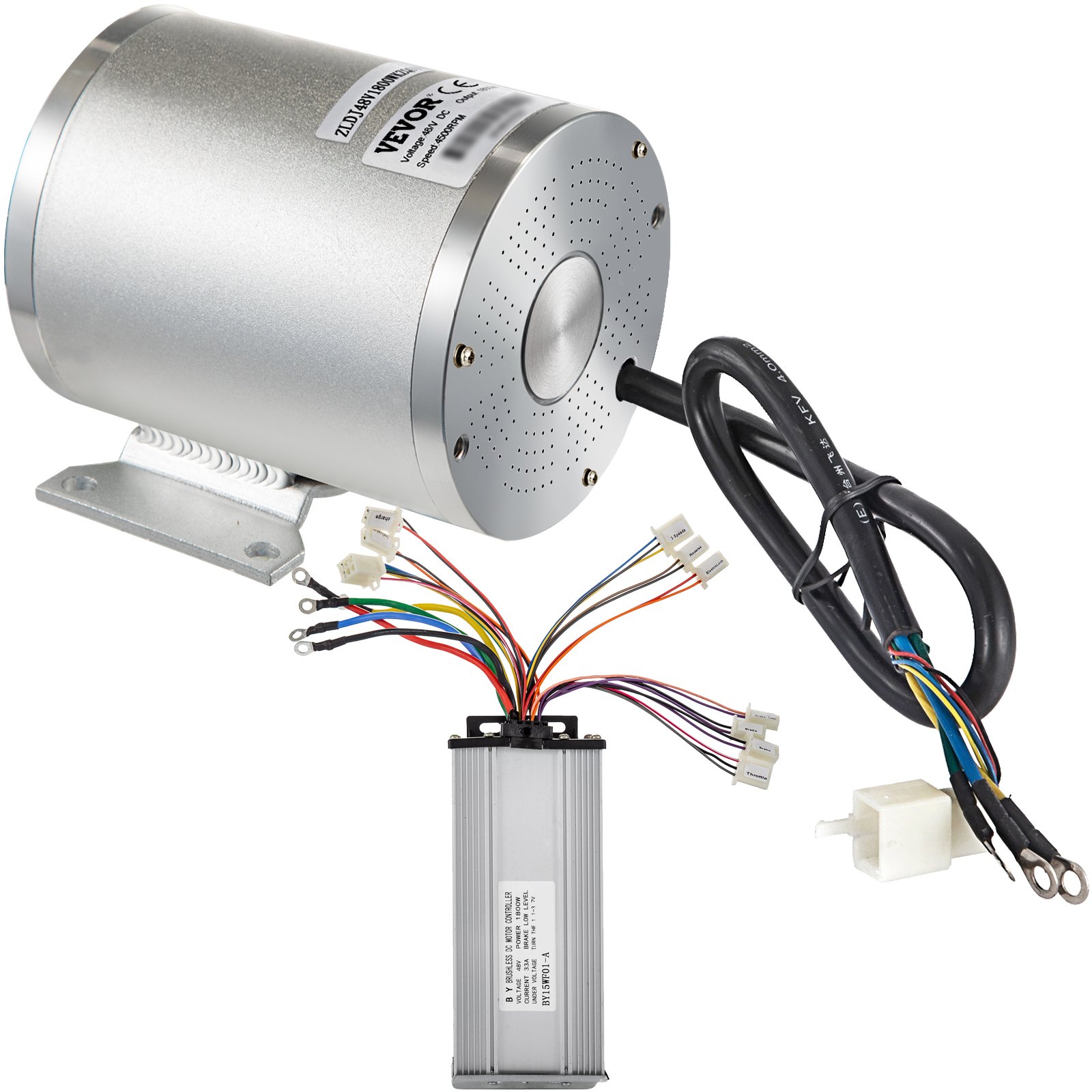

Brushless DC Motor Kit w/ Controller & Charger

48V DC & 1800W Output & 4500RPM Rated Speed

This brushless electric motor is built with a 100% copper core for low noise operation and high working efficiency. It features an aluminum alloy shell and a complete accessories kit to help you fix the motor safely. It is ideal for go karts, electric scooters, e-bikes, ATVs, motorized bicycles, etc. Hit the ground running faster than ever with our brushless DC motor kit.

Fundamental Parameters
1800W Brushless Motor
Sturdy Aluminum Construction
Speed Controller Included

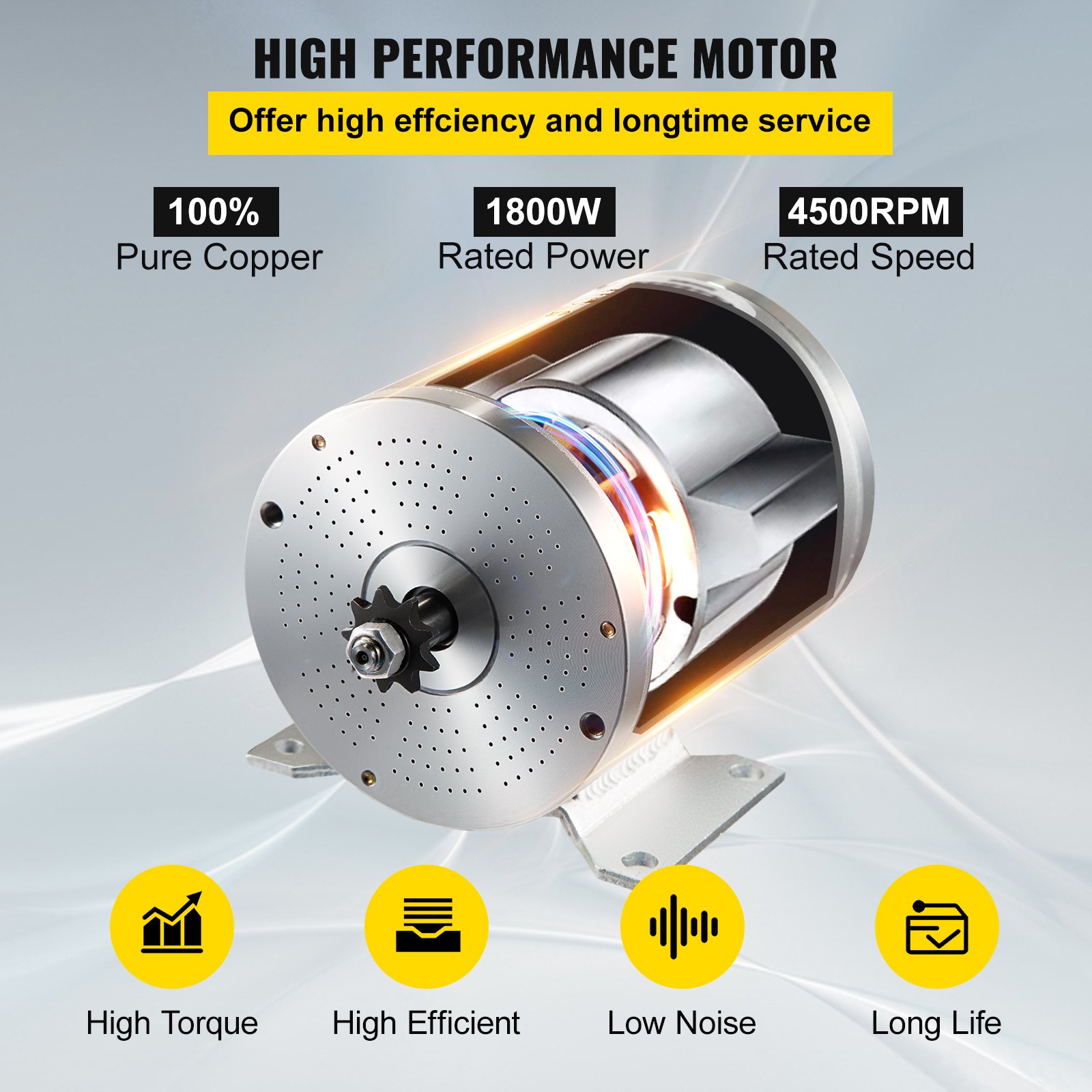

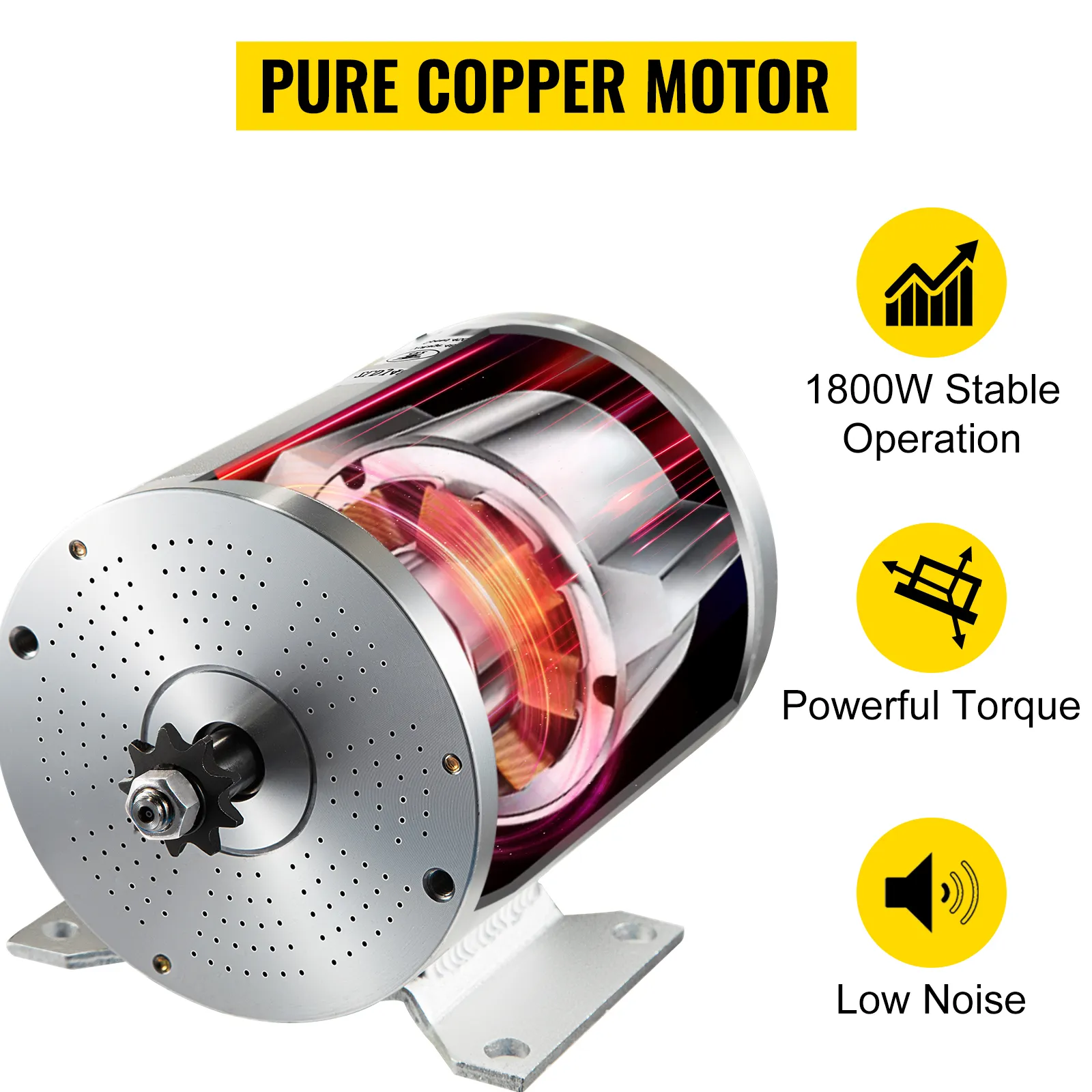

Pure Copper Motor

The electric brushless dc motor features a 100% pure copper core for high conductivity, high-temperature resistance, low noise, and saves energy during extended use.

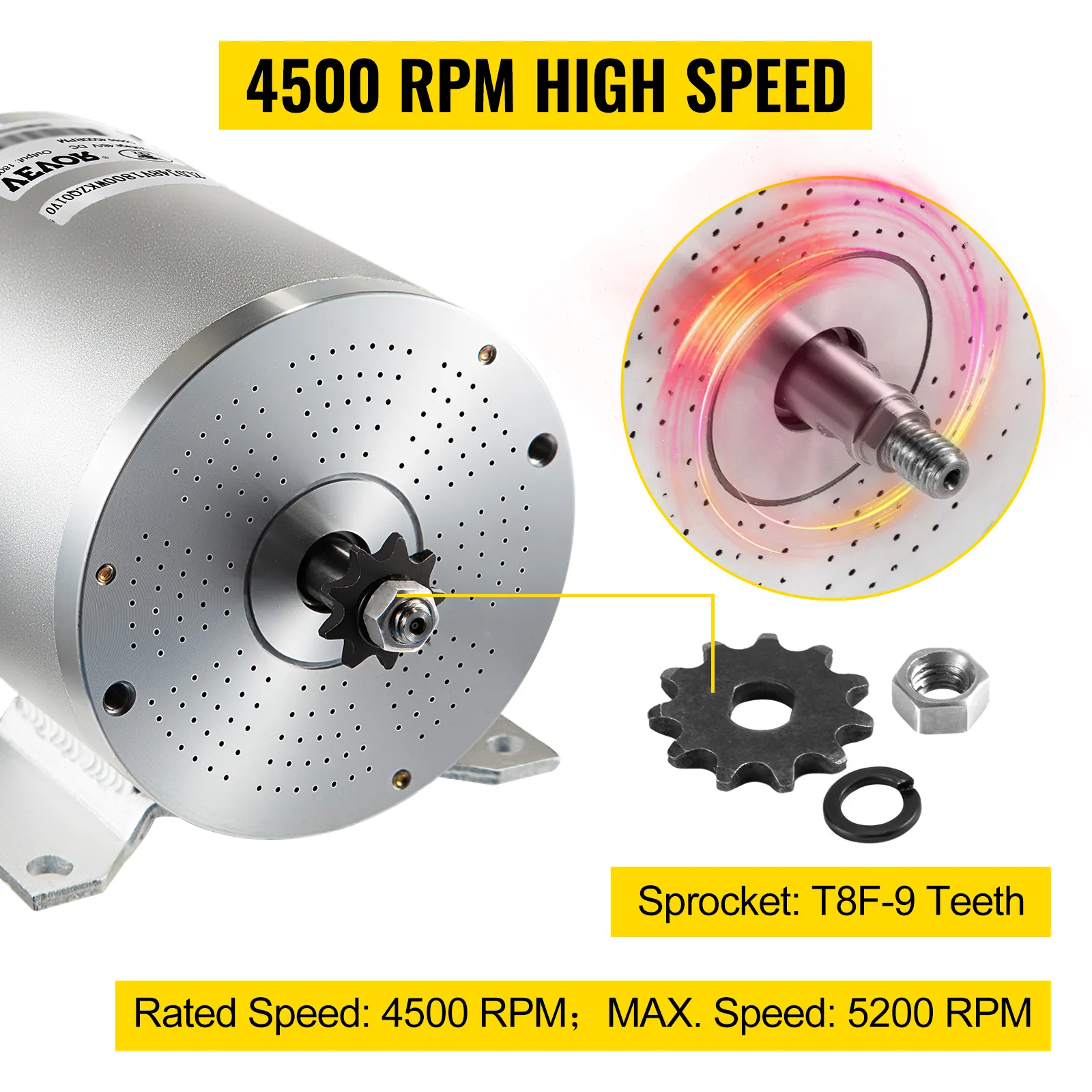

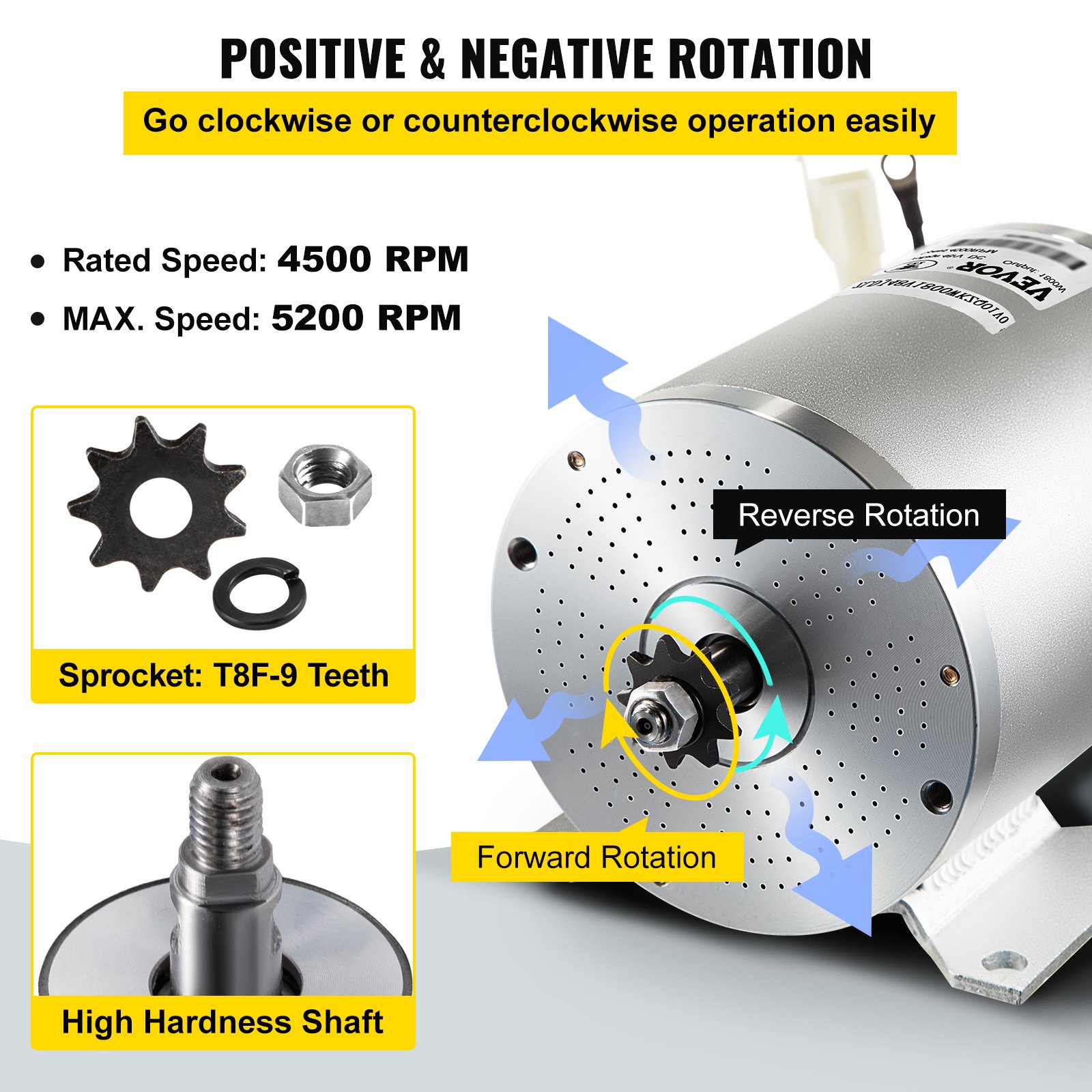

4500 RPM High Speed

This dc brushless motor kit runs at 1800W, the rated speed is 4500RPM, and the maximum speed is 5200 RPM. Thus, it can provide fast acceleration and unmatched power for your machines.

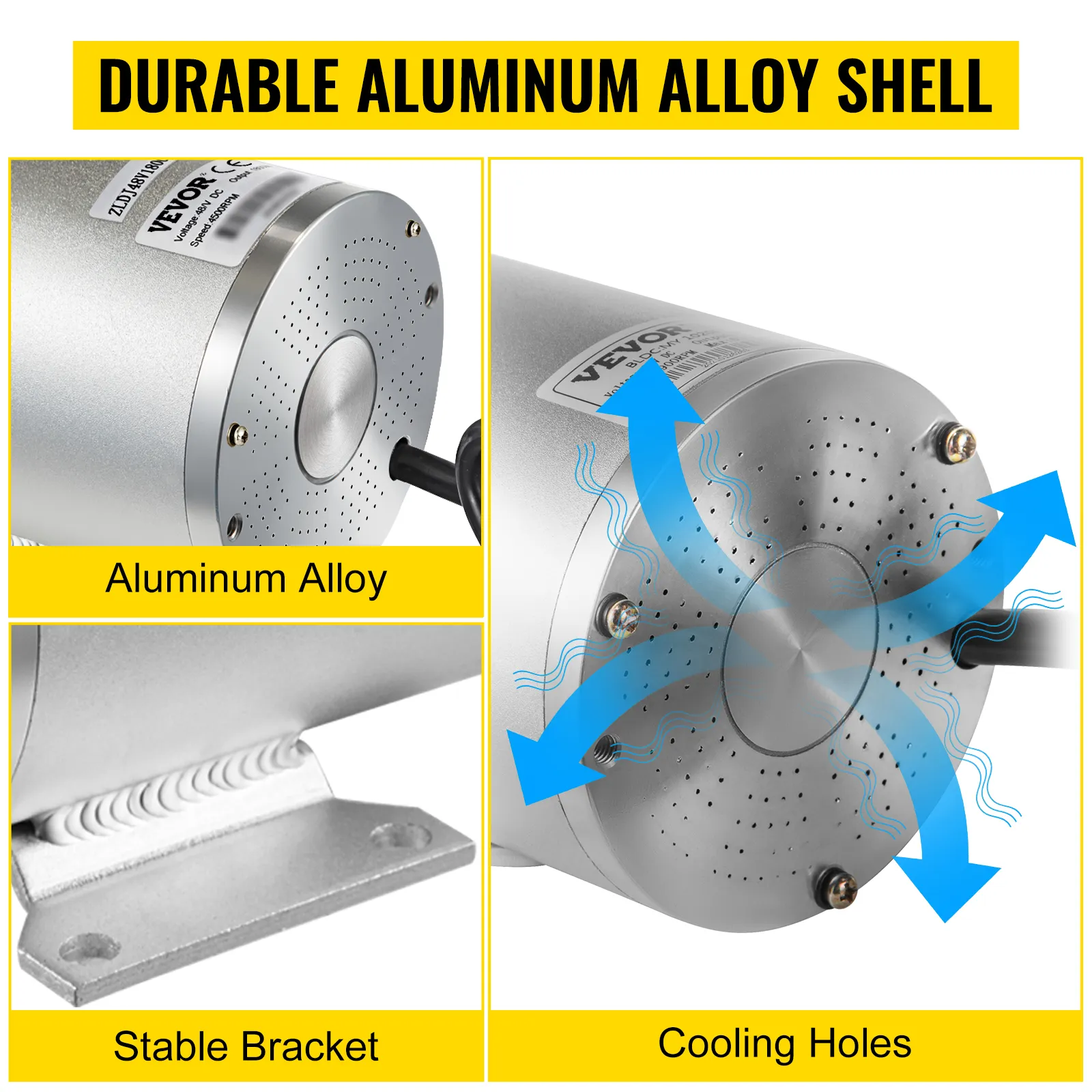

Durable Aluminum Alloy Shell

The electric go kart motor is constructed from aluminum alloy material, which can resist oxidation, compression, and deformation. Besides, it is lightweight enough to carry and process with ease.

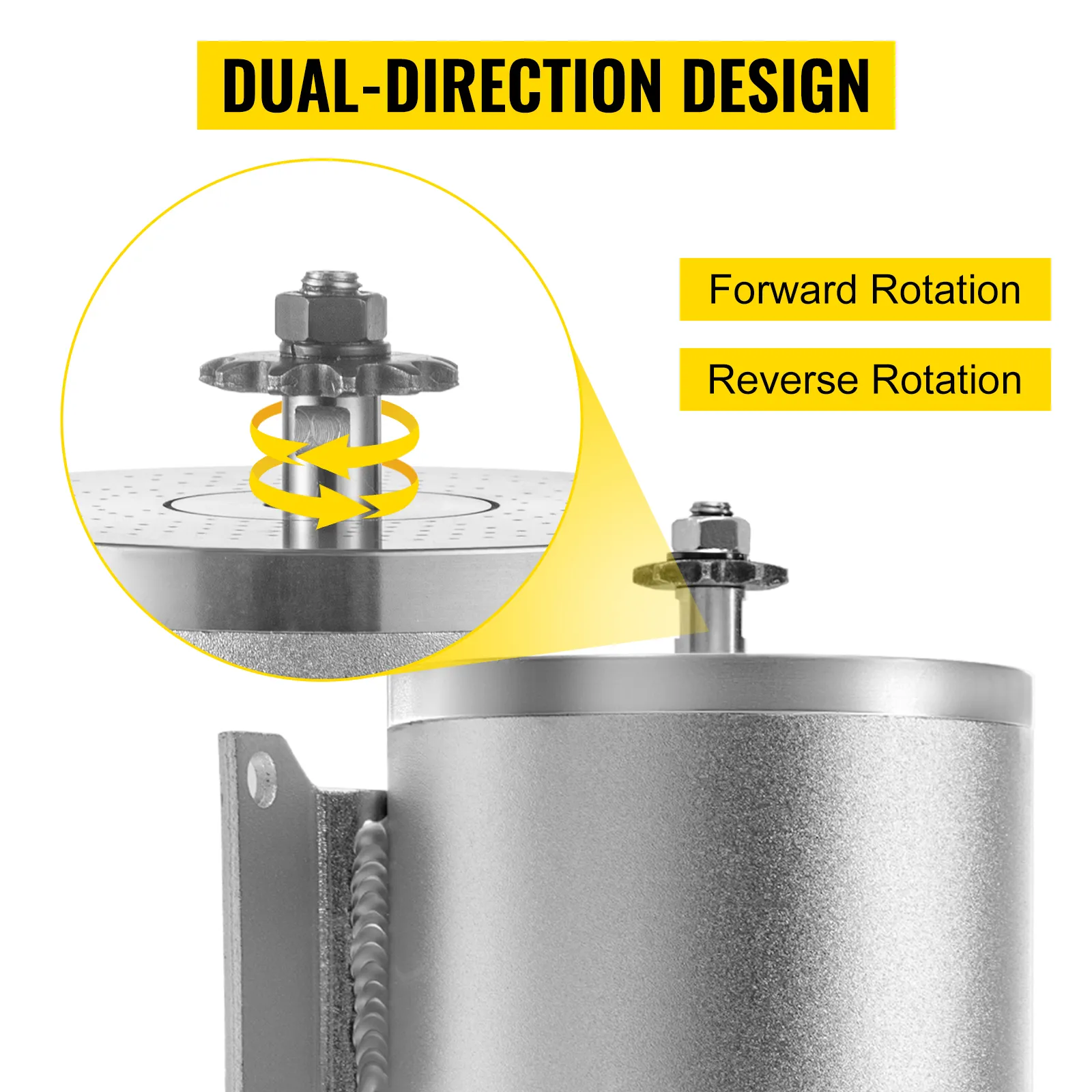

Dual-Direction Design

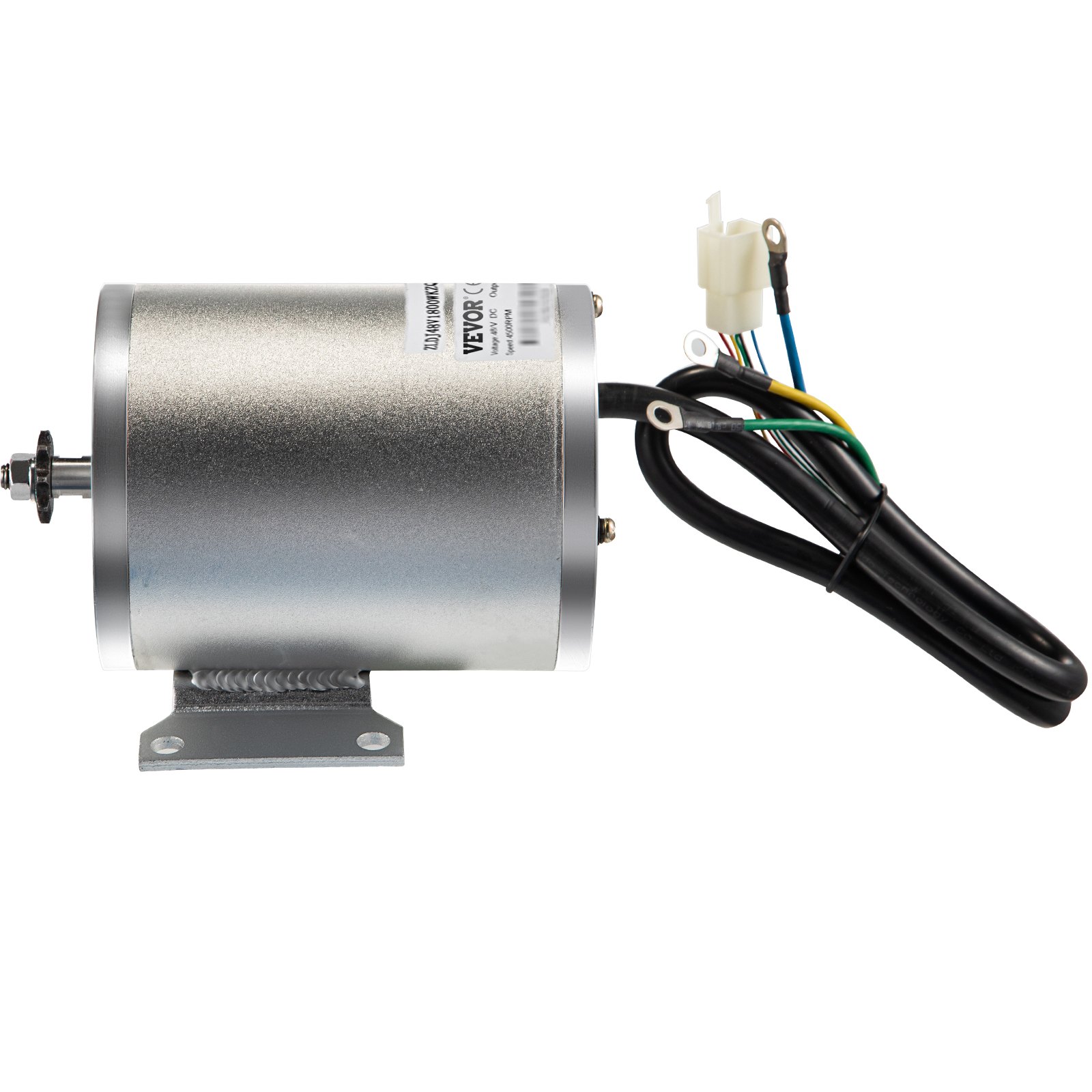

You can switch the rotation to either a clockwise or counterclockwise direction by reversing the go kart electric motor's power wires, which are easy to adjust.

Simple Speed Control

The speed controller allows you to control the speed effortlessly. The complete brushless motor set, speed controller, and other necessary components assist in operating the machine.

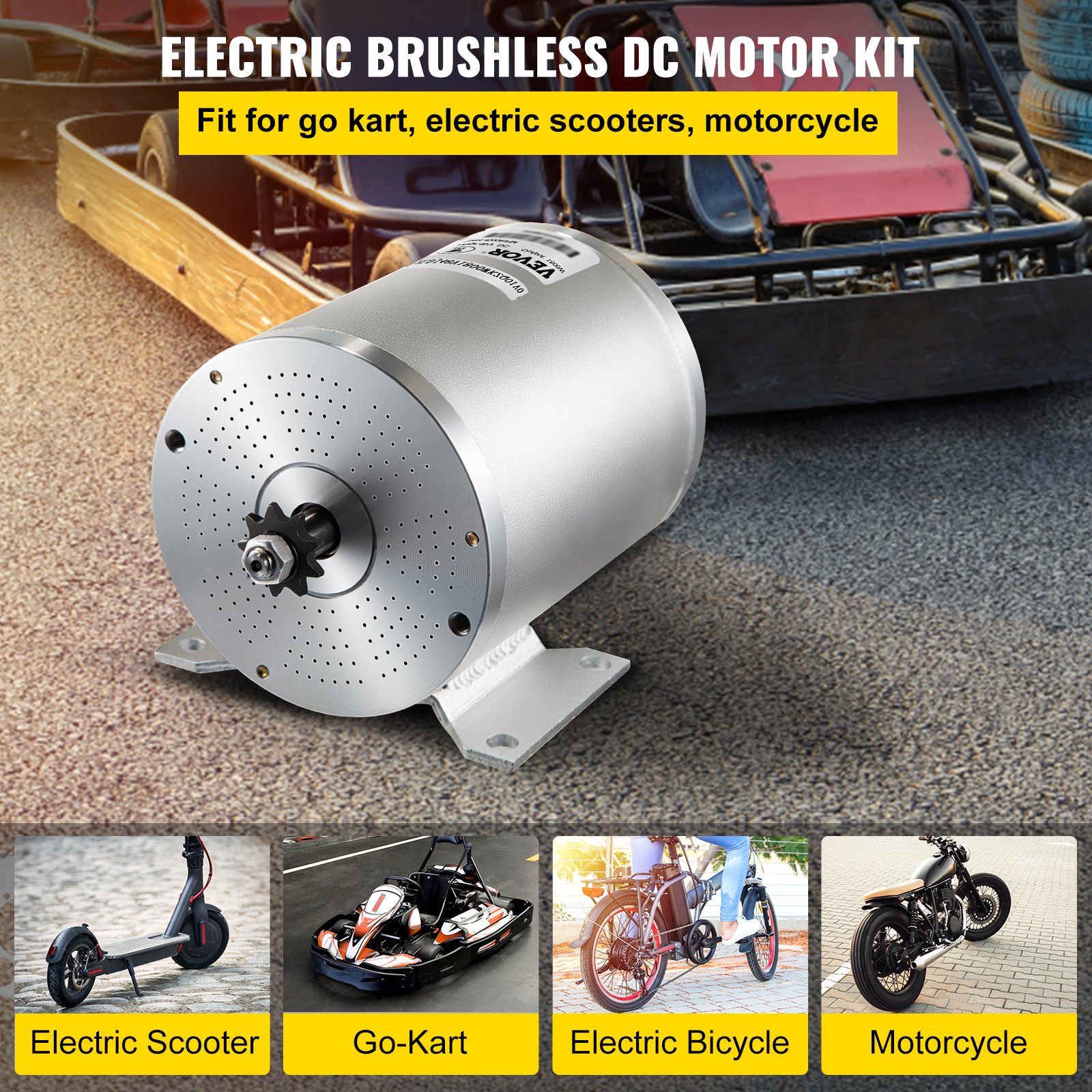

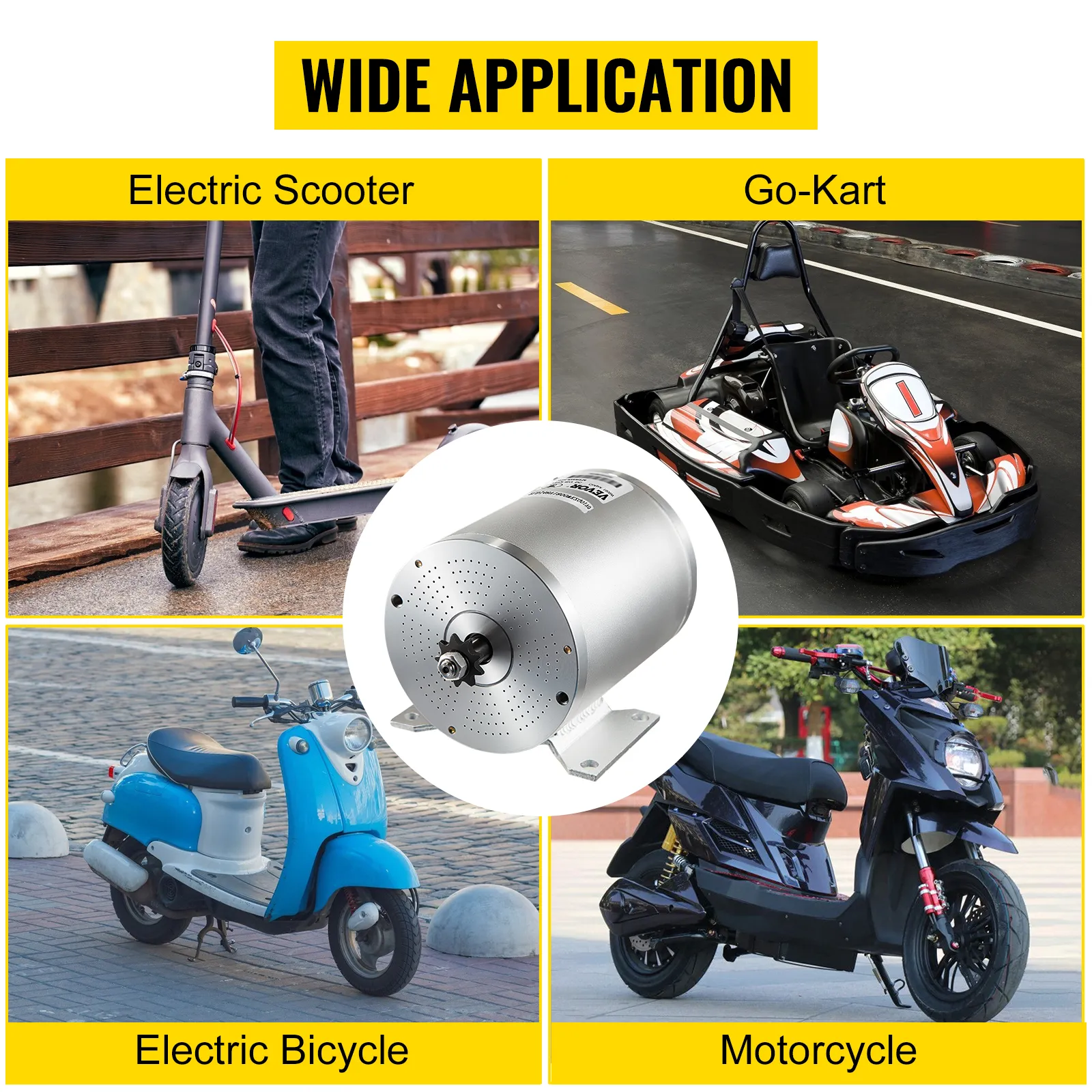

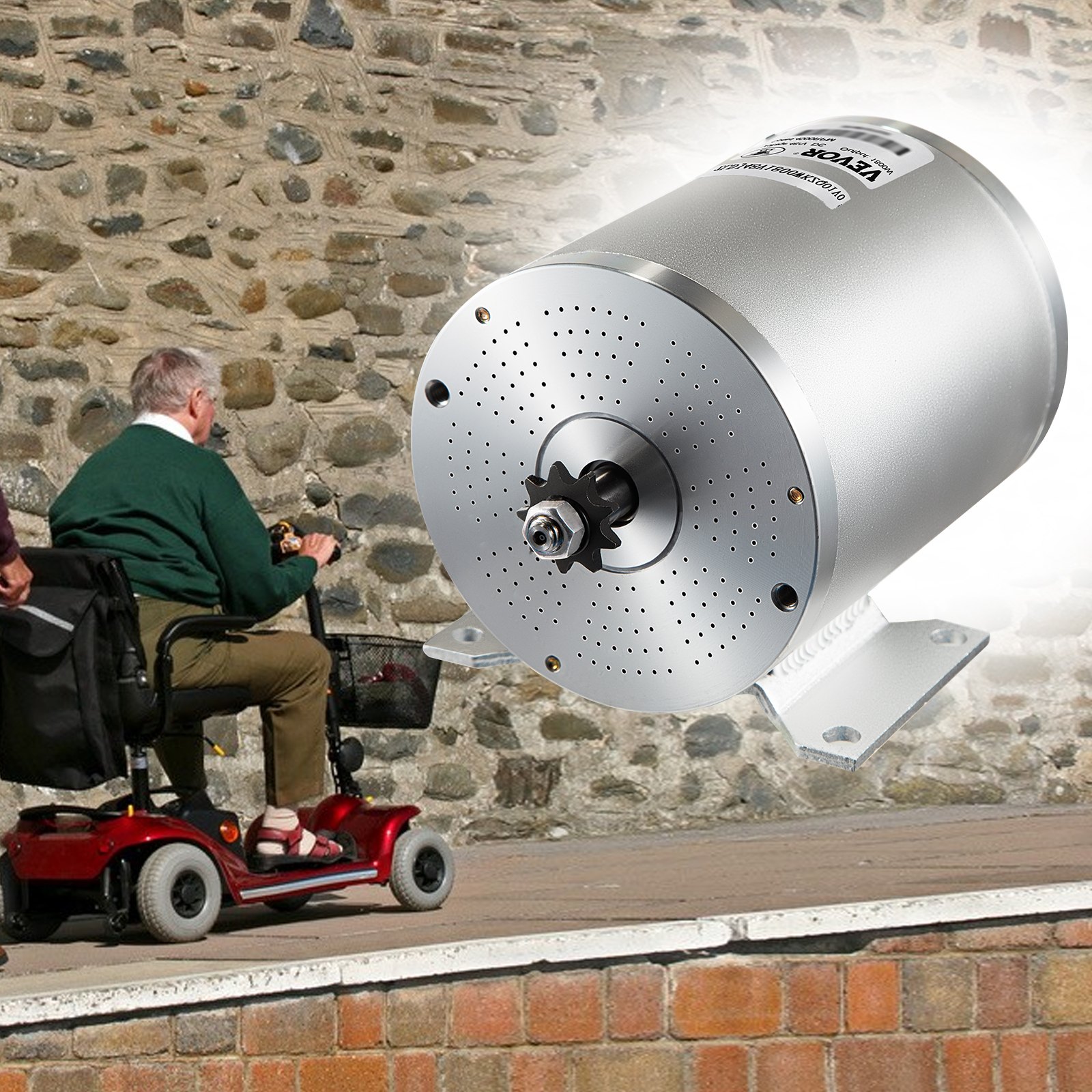

Wide Application

Electric brushless motor is ideal for Electric Scooters, Motorcycle, Ebike Bicycles, Motorcycle, E Tricycle, Mid Drive Motor Kit, Complete Sets, DIY Engine Systems, Cycling Parts, Mini Electric Motorcycles, DIY Engine Kit, etc.

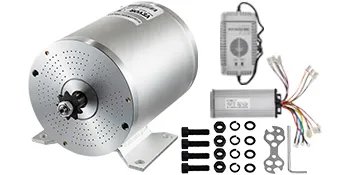

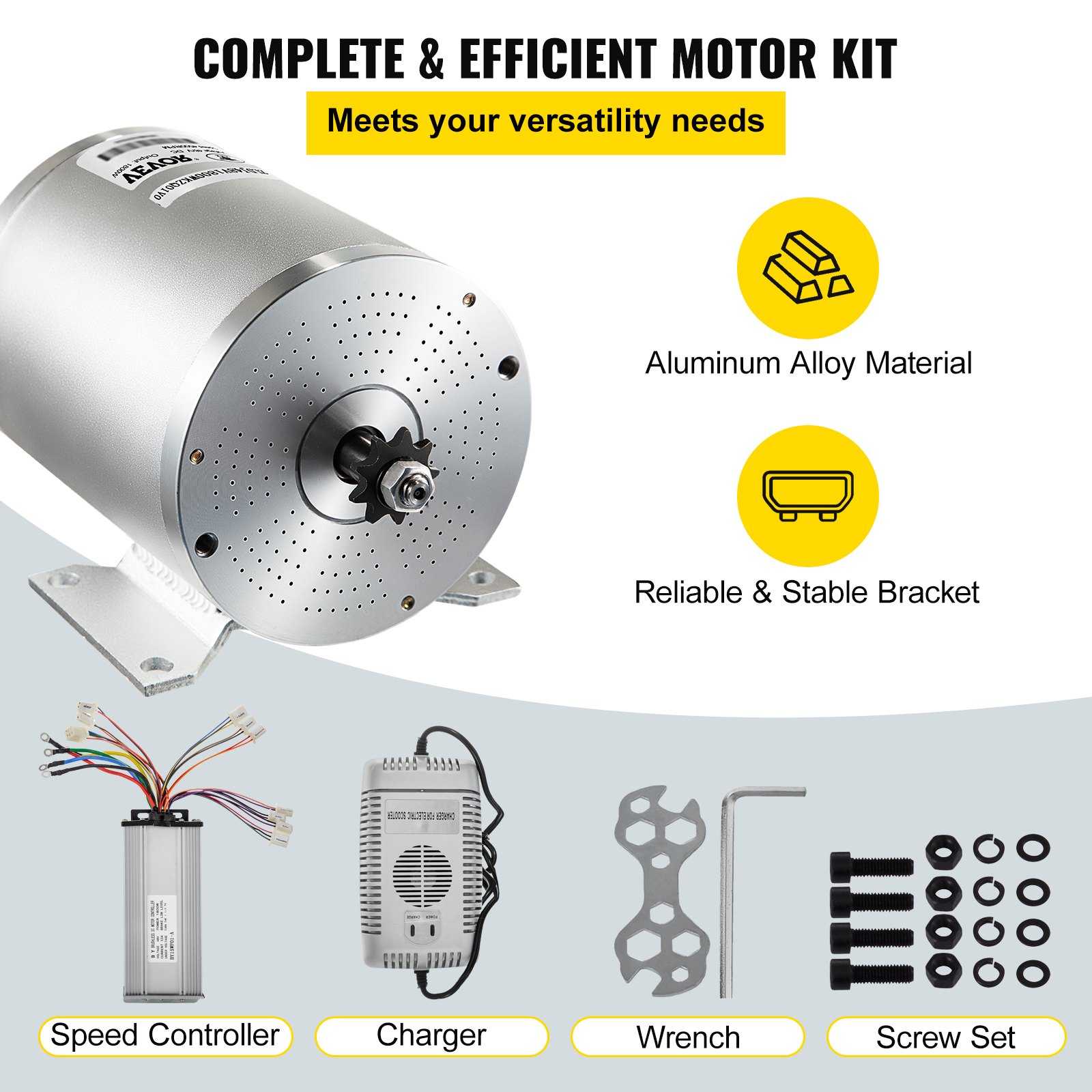

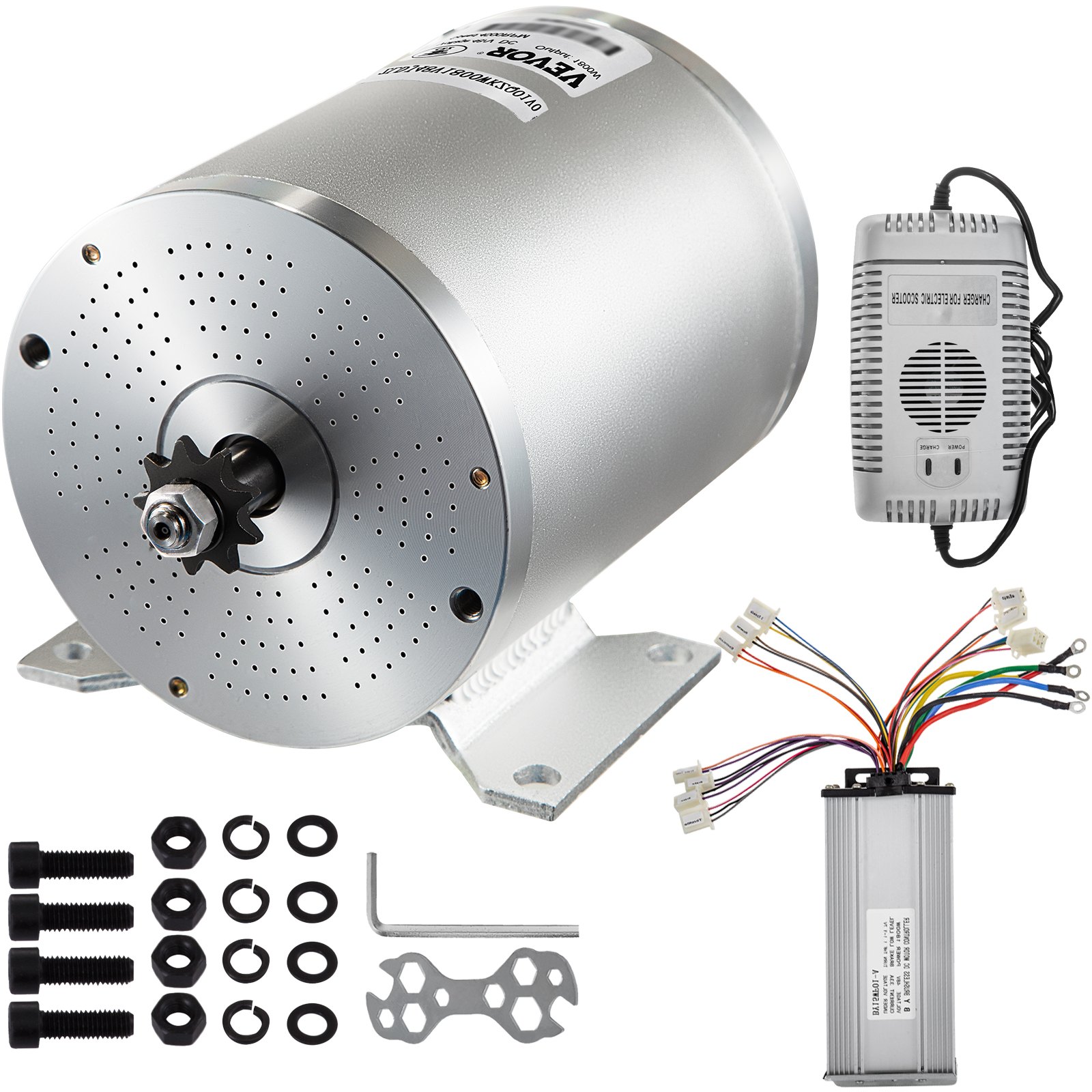

1 x Brushless DC Motor
1 x Controller
1 x Charger
2 x Wrench
1 x Screw Set

Motor
Model: MY1020D
Input Voltage: 48V DC
Output Power: 1800W
Rated Current: 33A
Rated Speed: 4500 RPM
Maximum Speed: 5200 RPM

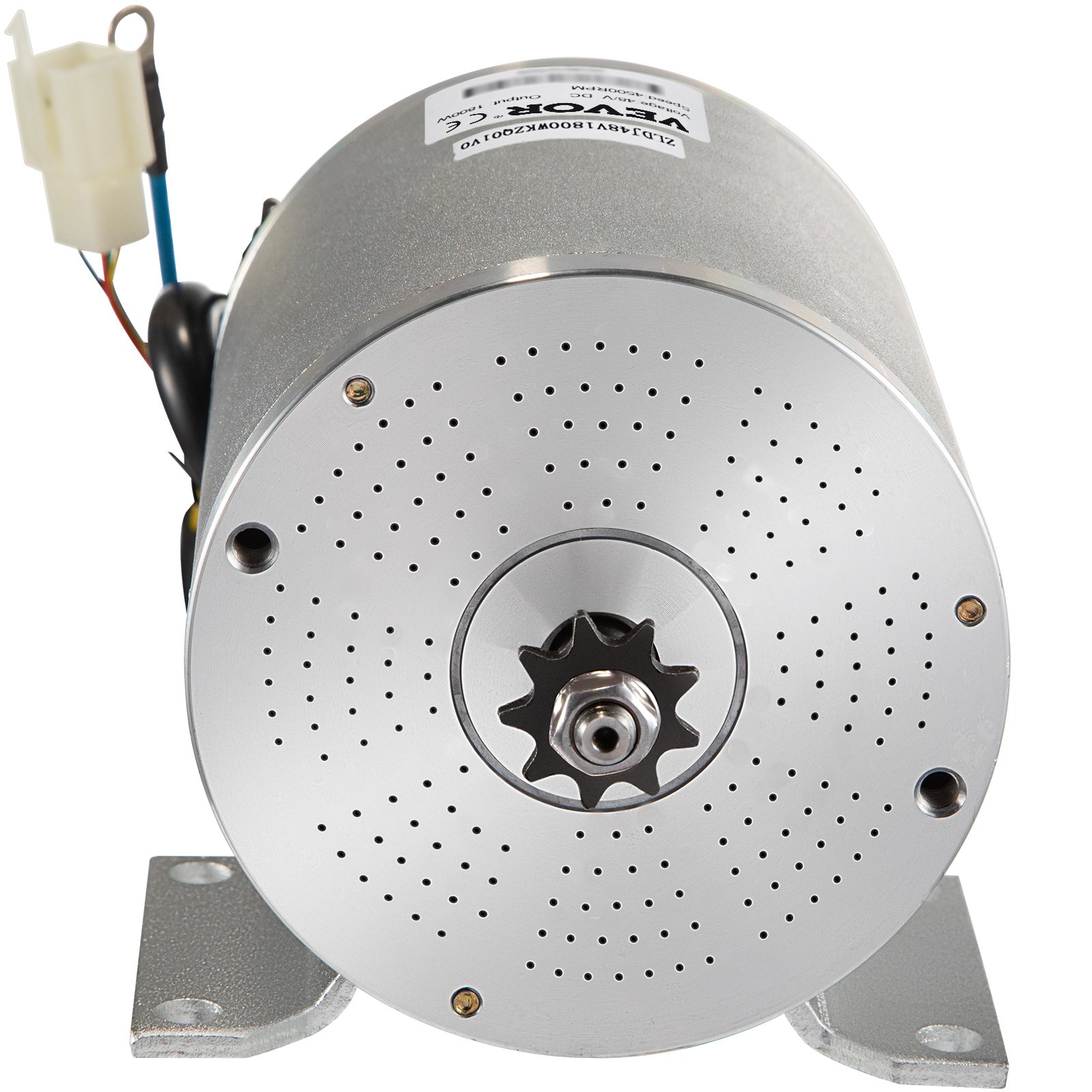

Sprocket: T8F-9T
Horsepower: 2.4 HP
Rated Torque: 4.0 N.m / 566.44 oz.in
Maximum Current: 37.5A
No-load Current: ≤ 3.5A
Peak Efficiency: ≥ 85%
Working Temperature: < 120 °C / 248 ℉
Shaft Length: 5.28'' / 134 mm
Net Weight: 9.26 lbs / 4.2 kg
Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm

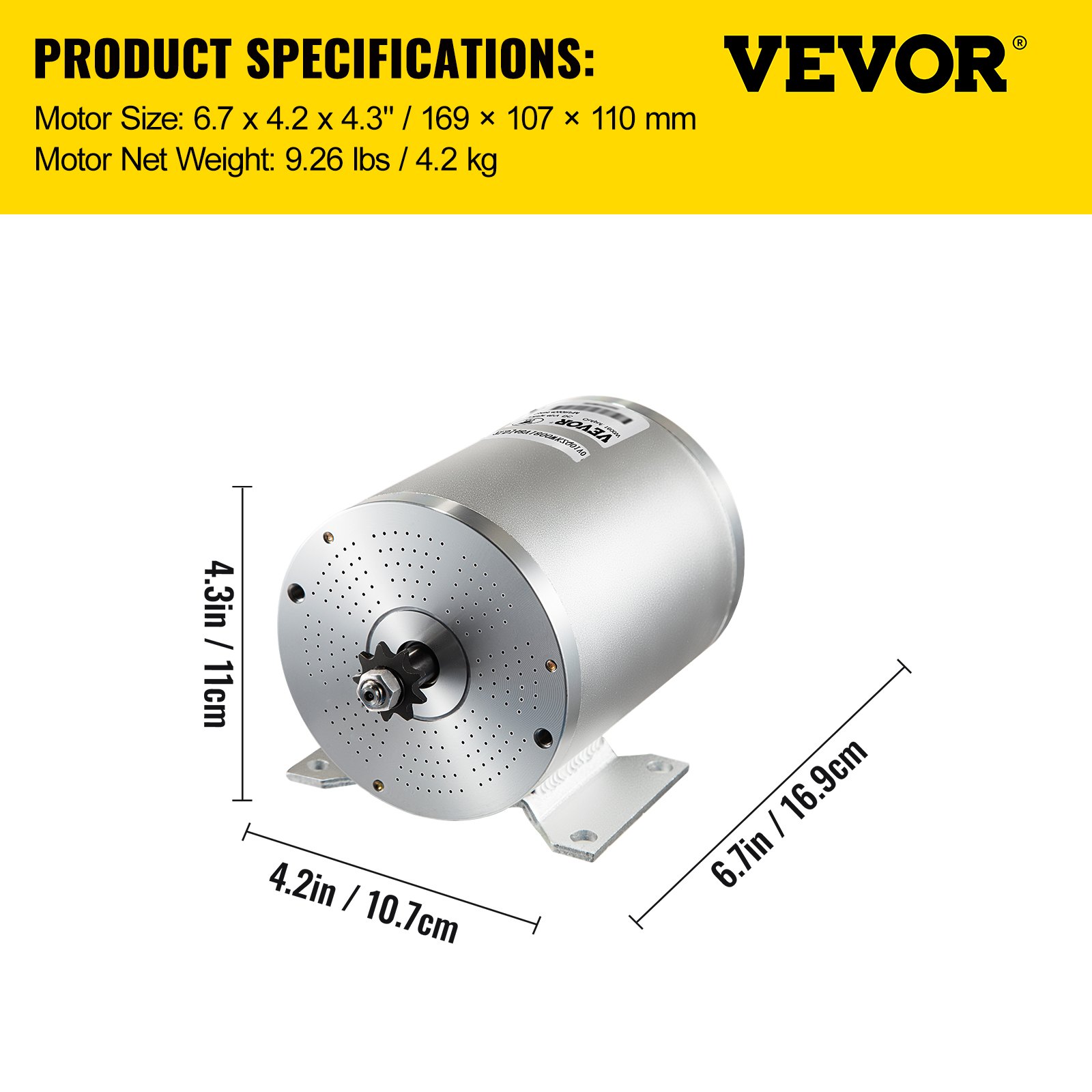

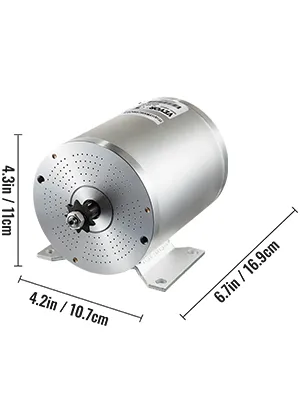

Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm
Controller
Model: BY15WF01-A
Current: 33A
Phase Degree: 120°
Conversion Efficiency: 90%
Under Voltage Protection Voltage: 41±0.5V
Speed Regulator (Throttle): 1-4.3V

Specification

: Motor

Model: MY1020D

Input Voltage: 48V DC

Output Power: 1800W

Rated Current: 33A

Rated Speed: 4500 RPM

Maximum Speed: 5200 RPM

Sprocket: T8F-9T

Horsepower: 2.4 HP

Rated Torque: 4.0 N.m / 566.44 oz.in

Maximum Current: 37.5A

No-load Current: ≤ 3.5A

Peak Efficiency: ≥ 85%

Working Temperature: < 120 °C / 248 ℉

Shaft Length: 5.28'' / 134 mm

Net Weight: 9.26 lbs / 4.2 kg

Mount Bracket Size: 2.2 x 4'' / 56 x 102 mm

Dimensions(L x W x H): 6.7 x 4.2 x 4.3'' / 169 x 107 x 110 mm

: Controller

Model: BY15WF01-A

Current: 33A

Phase Degree: 120°

Conversion Efficiency: 90%

Under Voltage Protection Voltage: 41±0.5V

Speed Regulator (Throttle): 1-4.3V

Good engine. Reasonable price. I am in the process of converting my outboard from petrol to electric and used this engine. It works perfect, compares to a 3HP petrol engine. Can be improved by making it more resistant to corrosion and water.

Heb niet alles getest, vermogen rendement, duurzaamheid. Goeie kwaliteit/prijs, en wat ik getest heb, werkt prima, zoals belooft. Verzending varieert, van enkele dagen tot ongeveer 10 dagen. Via de mail krijg je de status van je bestelling.

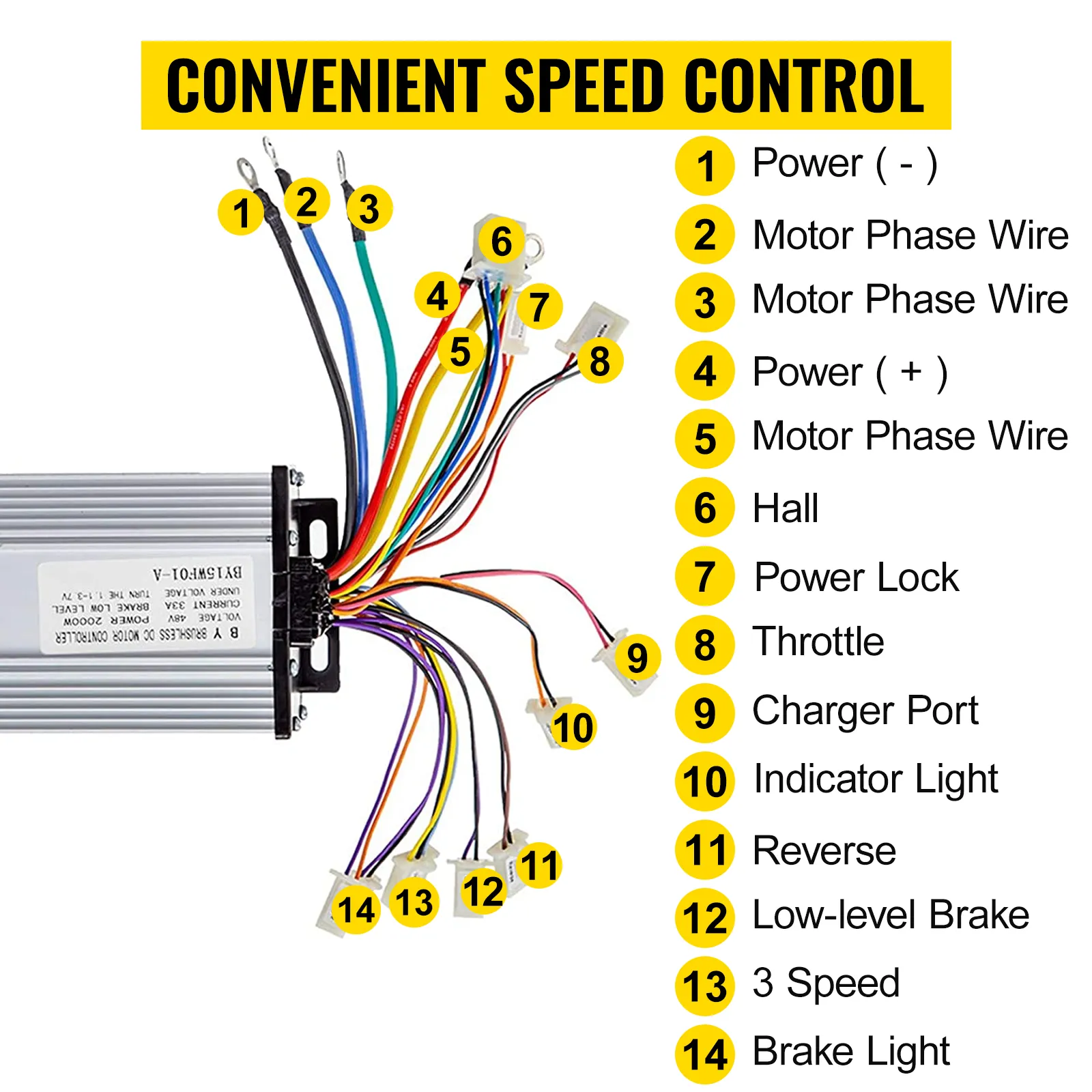

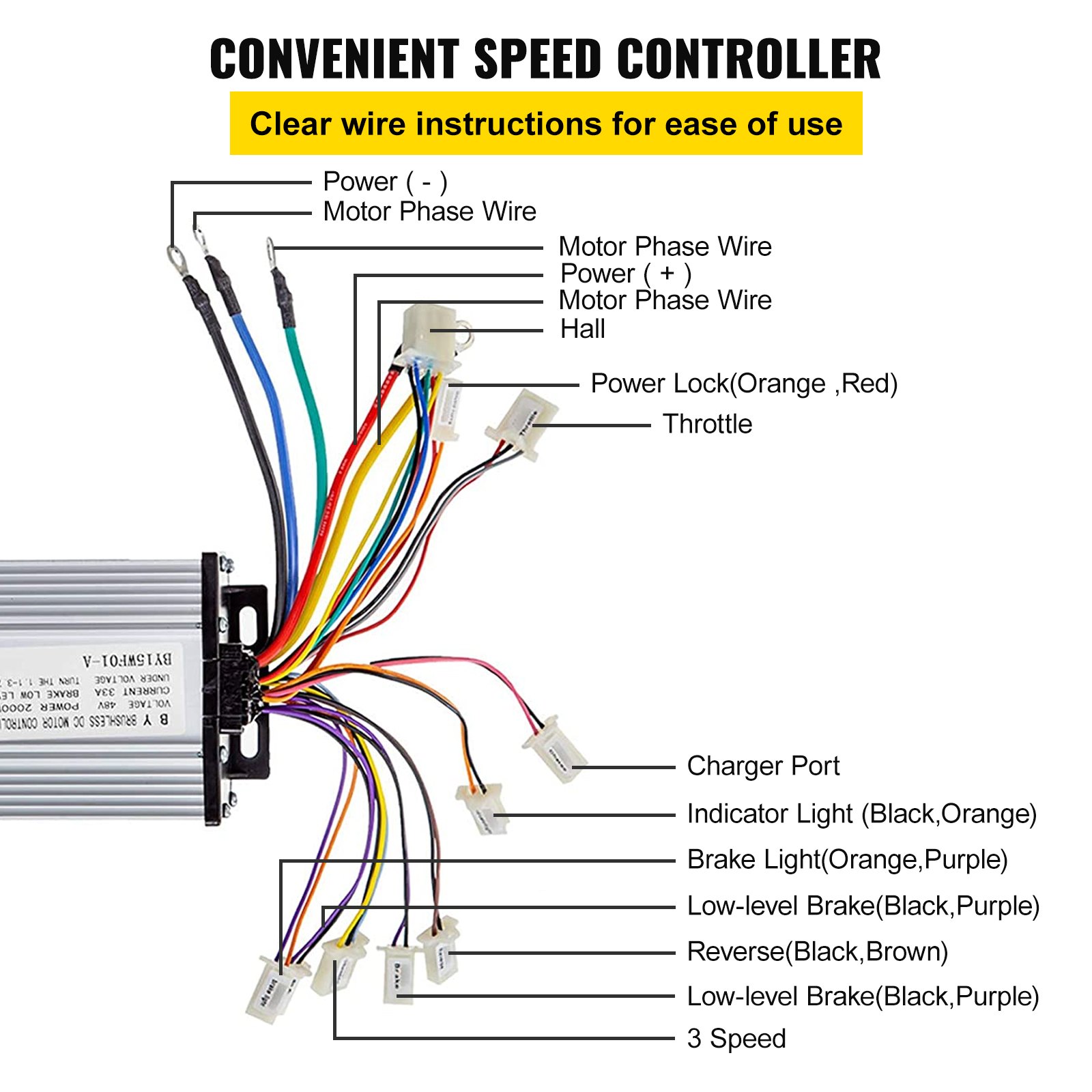

As noted by others the most frustrating part is the lack of documentation. You have to reverse engineer by taking the controller apart and following the wires. Even then it's a bit of luck to figure it all out. Once you wire the controller correctly it's an impressive DC motor/Controller for a DIY project. This motor has a lot of kick. Very happy with result, and has been great for the first couple days using it on a DIY go kart I've been building.Addendum: After figuring out the wiring I ran across the above picture of a similar product. Surprisingly, it appears to be the correct wiring diagram - correct number of wires, correct wire color, but use at your own risk. Hope this helps save another buyer some frustration. Good Luck!

Customer Reviews

4.7 Out of 5

Based on 7 reviews

Ratings by Features

Price 4.7
Quality 4.5
Features 4.6
Easy to Use 4.5
See More See Less

7 Review(s)

Clear filters

joezeitouny

Helpful Sending feedback... Thank you for your feedback. 1 people found this helpful

Stacey Dickinson

Used in evo powerboard

Worked perfectly no faults, fit as it should no base plate on it like most rear chain driven scooters need

Ben

motor 2000w 1800w stappen motors

Helpful Sending feedback... Thank you for your feedback. 0 people found this helpful

Product received exactly as hope for and in very sort time. Well done all. Not so sure about not having enough caractures in my notes though

Jessica H.

Work good

It did what it need to do

Lack of documentation, so be prepared. Otherwise great!

Helpful Sending feedback... Thank you for your feedback. 2 people found this helpful

Rolly

Monster Motor; Too excited to tell my projects!

This is a huge electric motor! Please proceed with caution..It's a wonderful beast of a motor...Looks proper; but a monster she is!
